USER'S MANUAL
Rollator Walker
JH10001

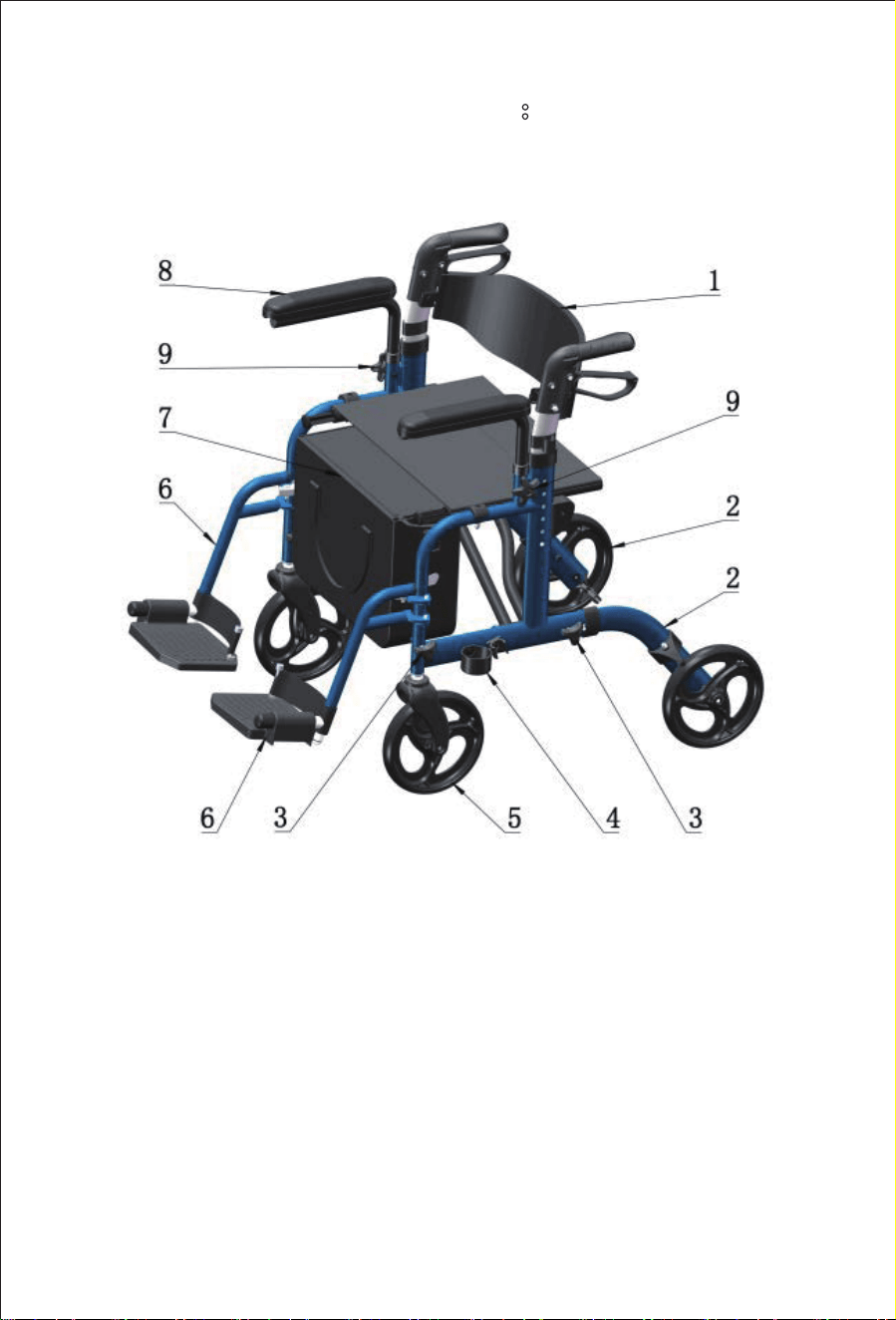

Product Structure Diagram：
1. Main frame
2. Rear wheel assembly
3. Triangle knob
4. Umbrella holder
5. Front wheel assembly
6. Le�/Right foot pedal
7. Cloth bag
8. Handrail tube
9. Knob screw
Prepara�on Before Assembly: A�er unpacking the packing box, first
use scissors to remove the plas�c �es and the packed bubble bag. Please take care
to protect all the parts in the box.
If assembling on the ground, first lay paper or carpet on the ground to prevent
scratches.
Pay a�en�on to dis�nguish the parts and components, and then remove the inner
carton to take out the parts and place them first.

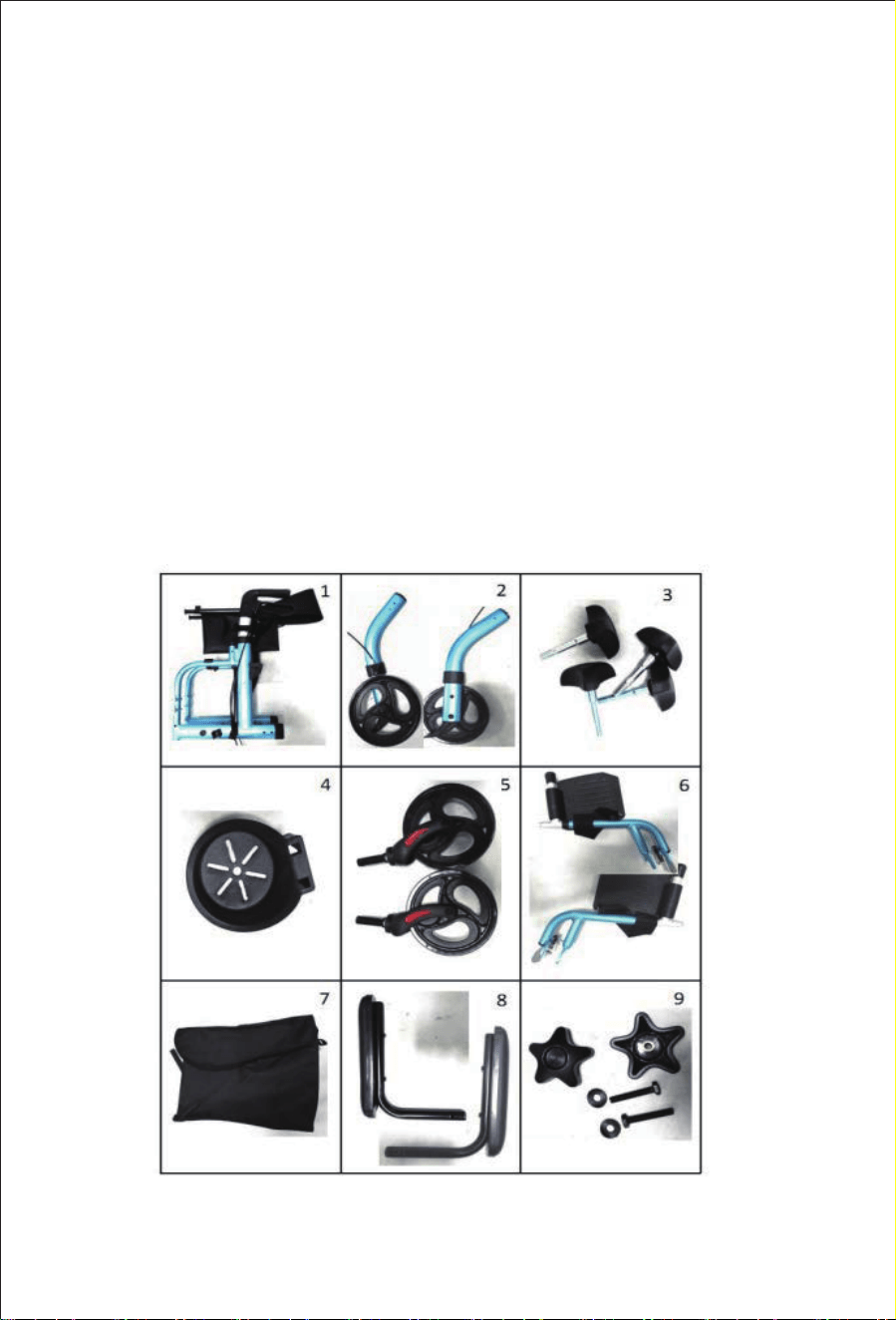

As shown in
Figure 1, there are accessories for installa�on in the box.
(1) Main frame (2) Rear wheel assembly
(3) Triangle knob (4) Umbrella holder
(5) Front wheel assembly (6) Le�/Right foot pedal
(7) Cloth bag (8) Handrail tube
(9) Knob screw
Figure 1

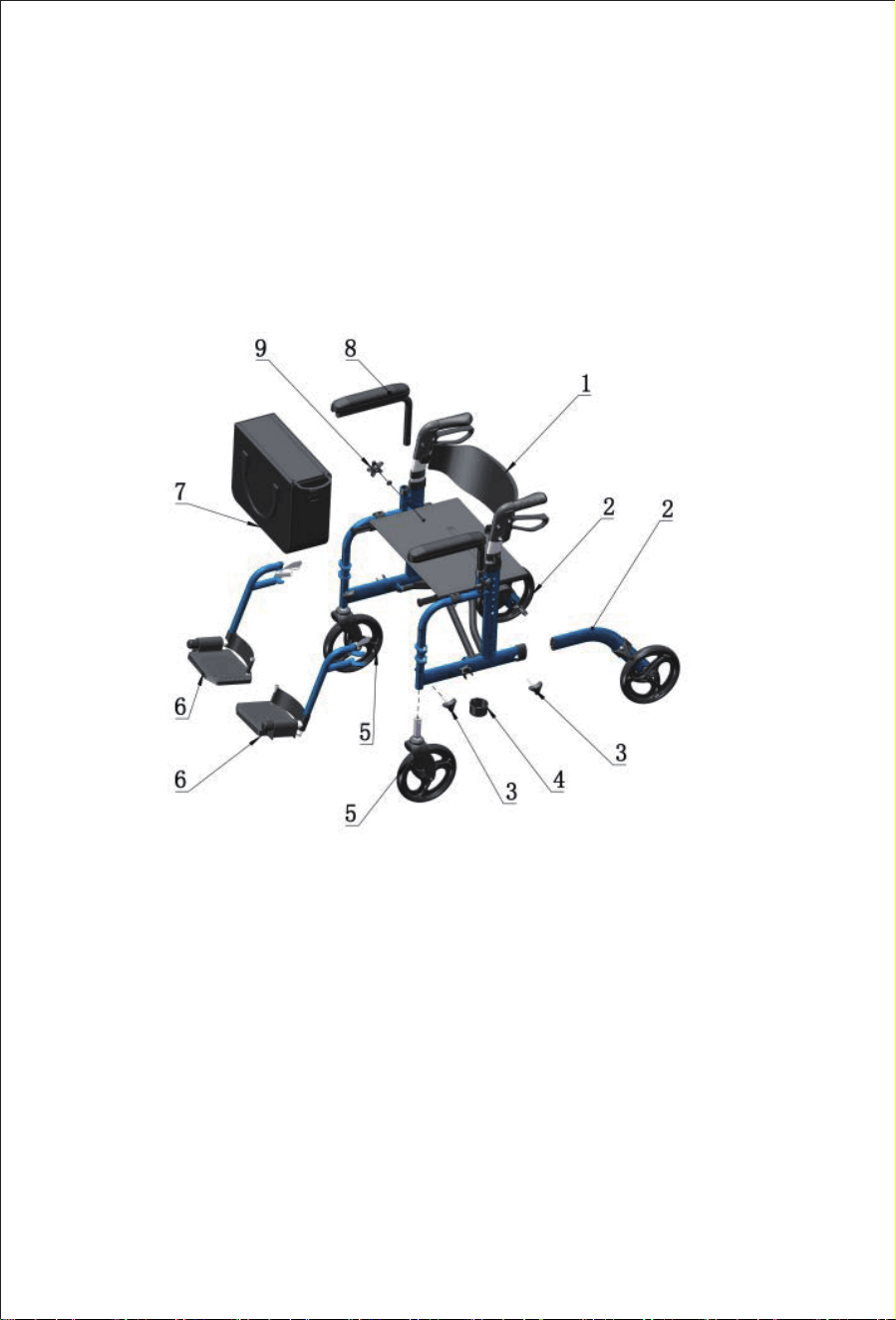

Steps: (as shown in Figure 2)
a. Put (2) Rear wheel assembly on (1) Main frame and fix them with (3) Triangle knob;
b. Put (5) Front wheel assembly on (1) Main frame and fix with (3) Triangle knob ;
c. Put the (6) Le�/Right foot pedal on the (1) Main frame respec�vely;
d. Put the (8) Handrail tube on the (1) Main frame, fix it with (9) Knob screws;
e. Finally fix the (4) Umbrella holder on the (1) Main frame.
Figure 2
Check A�er Installa�on:
1. Whether the Rollator Walker is installed correctly, please refer to the manual diagram for
comparison.
2. Verify that all parts of the Rollator Walker are fully assembled, and you can check for extra
parts.
3. Check whether there is any looseness in the installa�on of the Rollator Walker. If there is any
looseness, �ghten the screws and nuts.
4.Check the appearance of all components of the Rollator Walk
er for skew, and make appropriate
adjustments.
5. Check whether the Rollator Walker brakes are normal, whether the folding is smooth, and
whether the steering is smooth.
Assembly Instruc�ons: (please refer to the part number and name in Figure 1
for assembly):
Product Maintenance Methods:
1. Do not scratch or scrape the surface of the product to prevent material damage.
2. For daily cleaning and maintenance, apply neutral synthe�c detergent, wipe with a damp cloth,
and then wipe with a dry cloth.
3. Do not contact with strong acids and alkalis to prevent corrosion.
Storage Condi�ons And Methods:
A�er packaging, the Rollator Walker should be stored in a clean room where the temperature
does not exceed
-10℃~40℃, the relative humidity does not exceed 80% , no corrosive gas, and
well-ven�lated. Keep away from moisture, sunlight and heat sources during transporta�on.
