30L WET & DRY INDUSTRIAL VACUUM CLEANER
1400W WITH STAINLESS DRUM & AUTO START
MODEL NO: PC300SDAUTO.V3
1. SAFETY
2. INTRODUCTION & SPECIFICATION
Powerful 1400W motor head gives incredible suction through Ø35mm hosing. May also be used as a blower. Integral 3-pin BS socket provides
power supply for dust-free tools up to 1400W. When operating in conjunction with a power tool the cleaner auto-starts when the tool is started
and auto-stops 10-seconds after the tool is switched off - to ensure tool and hose are left free of dust. Stainless steel drum on two castor and
two fixed wheels, stainless steel telescopic rigid extension tube as well as tools for wet and dry operations. Tool storage points on head and
base. Supplied with cartridge filter and wet-use foam filter.
Model no .............................. PC300SDAUTO.V3
Airflow ...........................................120m³/h
Drum size ...........................................30L
Filter type .......................................cartridge
Max. vacuum pressure .............................165mbar
Motor power ...................................... 1400W
Optional accessories ..........PC300PB5- dust bags 9pack of 5)
Replacement parts .......................................
PC200CFL - Cartridge Filter, PC200FF10 - Foam Filters (Pack of 10)
Supply .............................................230V
Vacuum accessories diameter .........................35mm
© Jack Sealey Limited
Original Language Version
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Read before
first use
Wear
protective
clothing
Wear
protective
gloves
Wear
eye
protection
1.1. ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and all
electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products. You may obtain an RCD by contacting your local Sealey stockist.
If the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable
Appliance Test) tested.
Electrical safety information, it is important that the following information is read and understood.
1.1.1. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2. Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
1.1.3. Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the
correct fuse - see fuse rating in these instructions.
8 DO NOT pull or carry the appliance by the power cable.
8 DO NOT pull the plug from the socket by the cable. Remove the plug from the socket by maintaining a rm grip on the plug.
8 DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or replaced immediately by a
qualied electrician.
1.2. This product is tted with a BS1363/A 13 Amp 3 pin plug.
If the cable or plug is damaged during use, switch the electricity supply and remove from use.
Replace a damaged plug with a BS1363/A 13 Amp 3 pin plug. If in doubt contact a qualied electrician.
Class II products are wired with live (brown) and neutral (blue) only are marked with the Class II symbol;
A) Connect the BROWN live wire to the live terminal ‘L’.
B) Connect the BLUE neutral wire to the neutral terminal ‘N’.
C) After wiring, check that there are no bare wires and ensure that all wires have been correctly
connected.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
8 DO NOT connect either wire to the earth terminal.
Sealey recommend that repairs are carried out by a qualied electrician.
Recommended fuse rating
13 Amp
PC300SDAUTO.V3 Issue:4 (H,F) 26/04/21

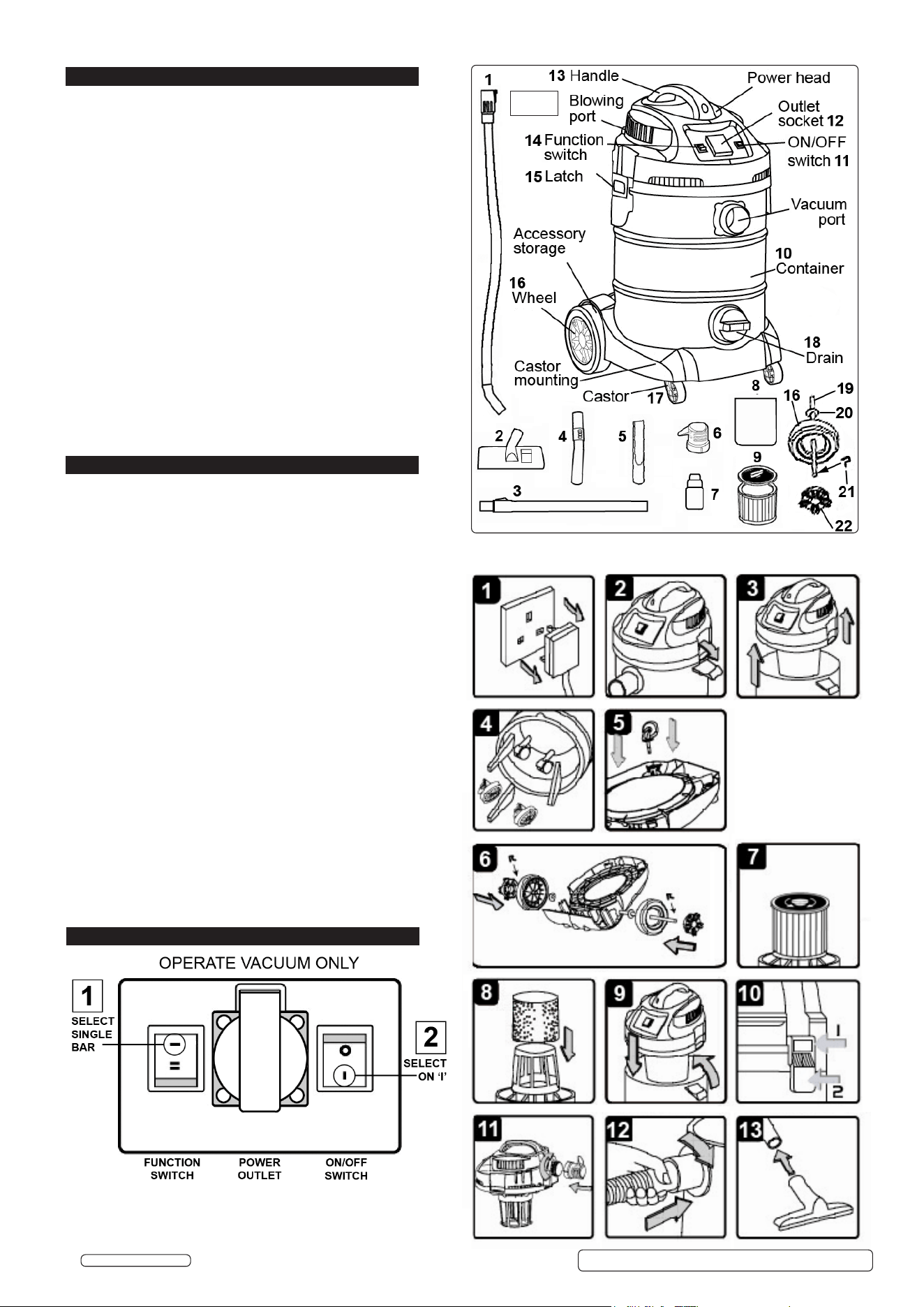

3. CONTENTS
3.1 Carton content
3.1.1 Carefully unpack the carton.
3.1.2 Locate the two side latches (fig. 1.19) which hold the power
head in place.
3.1.3 Undo the latches, remove the top section and take out the
items in the container.
3.1.4 Check and identify each component as listed below. If anything
is missing or damaged please contact your supplier immediately.
Item Description
1 Flexible vacuum hose
2 Combination nozzle
3 Telescopic suction tube
4 Vacuum hose connection
5 Crevice nozzle
6 Noise diffuser
7 Dust free tool adaptor
Part No:PC200SDAV3.43
8 Foam filter
9 Locking Cartridge filter
(fitted as standard)
10 Container, (Stainless Steel)
11 ON/OFF switch
Item Description
12 Dust free tool socket
13 Handle
14 Function switch
15 Latch (2)
16 Wheel (2)
17 Castors (2)
18 Drain cap
19 Axle
20 Washers (4)
21 'R' clip (2)
22 Hub caps (2)
fig 1
4. ASSEMBLY
4.1 Ensure the mains plug is disconnected.
4.2 Undo latches that secure the power head to the stainless
container.
4.3 Lift off the power head and put carefully to one side.
4.4 Locate the castors and wheels ready for assembly.
4.5 Turn the container upside down. Push the castor spindles
fully home into the mounting collars provided on the
underside of the lower moulding.
4.6 Push the rear axle tube through the mounting points provided
at the back of the lower moulding so that it protrudes equally
at either end. Slide a washer over each end of the axle
followed by a wheel and another washer. Retain the wheels
and washers by inserting an 'R' clip through the holes in
each end of the axle tube. Snap a hub cap into place on
each wheel.
4.7 For dry vacuum cleaning use the locking cartridge filter
supplied. NOTE: Do not operate the cleaner without a
cartridge filter fitted as this will damage the machine and
invalidate your warranty. Ensure the filter is correctly
fitted before every use.
4.8 If wet vacuuming remove the cartridge filter and push the
foam filter over the filter basket instead.
4.9 Replace the top section onto the container.
4.10 Align up the top section with the latches and snap into place,
by applying pressure at the mid point of the clasps.
4.11 For quiet operation insert the noise diffuser (fig.1-6) into the
blower port and push it firmly home.
4.12 Screw the large end of the vacuum hose into the front inlet
of the container.
4.13 Choose the desired nozzle and push it onto the telescopic
suction tube.
5. SWITCH OPERATION
5.1 OPERATE VACUUM ONLY.
5.1.1 Select single bar position on function switch.
5.1.2 Move the ON/OFF switch
to ('I') position to start the cleaner.
© Jack Sealey Limited
Original Language Version
PC300SDAUTO.V3 Issue:4 (H,F) 26/04/21
7. WET VACUUM CLEANING
7.3 To the same flexible hose as used in dry cleaning fit the
desired nozzle.
7.4 Ensure the switch is ‘Off’ (position ‘0’) before plugging into
the power supply.
7.5 Press the switch to ‘On’ (position ‘I’).
Note: To vacuum large quantities of liquid, from a sink or
tank etc, do not immerse the nozzle completely in the liquid,
leave a gap at the top of the nozzle opening to allow an air
inflow. The machine is fitted with a float valve which stops
the suction action when the tank has reached its maximum
capacity. The user will notice an increase in motor speed.
When this happens, turn off the machine, disconnect from
power supply and empty the container either by removing
the power head and pouring the liquid out or by removing the
drain cap at the base of the container. After wet vacuuming,
turn the machine off and unplug from power supply. Empty the
container and clean and dry the inside and outside before
storage. Remember! After wet vacuuming the foam filter must
be removed and a cartridge filter must be fitted before dry
vacuuming again.
WARNING! Ensure you read, understand and apply Section 1.
‘Safety Instructions’. Reminder: Remove plug from power
supply before opening unit. DO NOT vacuum solvents,
explosives, inflammable and/or hazardous liquids such
as petrol, oil, spirits, paint, thinners, acids etc.
WARNING! Not designed for liquid storage. Always
empty liquids after use and before storing.
7.1 Ensure the machine is unplugged from the power supply.
Make sure the tank is clean and free from dust and dirt.
7.2 Remove the cartridge filter and fit a foam filter over the filter
basket. Replace the top section onto the container.
WARNING! Ensure you read, understand and apply
Section 1 ‘Safety Instructions’.
Reminder: DO NOT vacuum hazardous substances. Use
of an incorrect cartridge filter will invalidate your
warranty.
6.1 Ensure the machine is unplugged from the power supply.
6.2 Remove the top section and with the raised rim uppermost fit
the cartridge filter tube down over the filter basket and push
fully home. Place the locking disc onto the top of the filter
and turn the locking bar until the latch drops into the slot in
the top of the filter cage. Continue turning until the filter is
fully locked down. (see below)
6.3 Reposition the head onto the drum body and clip in place.
6.4 Insert the larger end of the flexible hose into the front inlet on
the container and lock in place. Push the required attachment
onto the free end of the hose.
6.5 Plug in the power supply.
6.6 Switch to the ‘On’ (position ‘I’).
6.7 When you have completed vacuuming, press the switch to
‘Off’ (position ‘O’) and unplug from power supply.
Regularly check the container and dispose of dust and
debris when it is 1/2 full.
6. DRY VACUUM CLEANING
8. BLOWING
WARNING! Wear a dust mask.
WARNING! Always wear safety goggles when using the
unit for blowing.
WARNING! Keep bystanders clear from blowing debris.
Make sure the container is empty before using the unit
as a blower.
8.1 Remove the hose from the vacuum port and insert the large
end of the hose into the blowing port on the other side of the
power head and twist to the right to lock it in place.
8.2 Fit the desired extension tube/nozzle to the free end of the
vacuum hose.
8.3 Ensure the ON/OFF switch is in the OFF position.
8.4 Plug the unit into the mains power supply.
8.5 Take firm hold of the loose end of the hose and move the
ON/OFF switch to the ON 'I' to start the motor.
8.6 If the unit does not appear to be blowing, switch OFF and
check for blockages in the hosepipe.

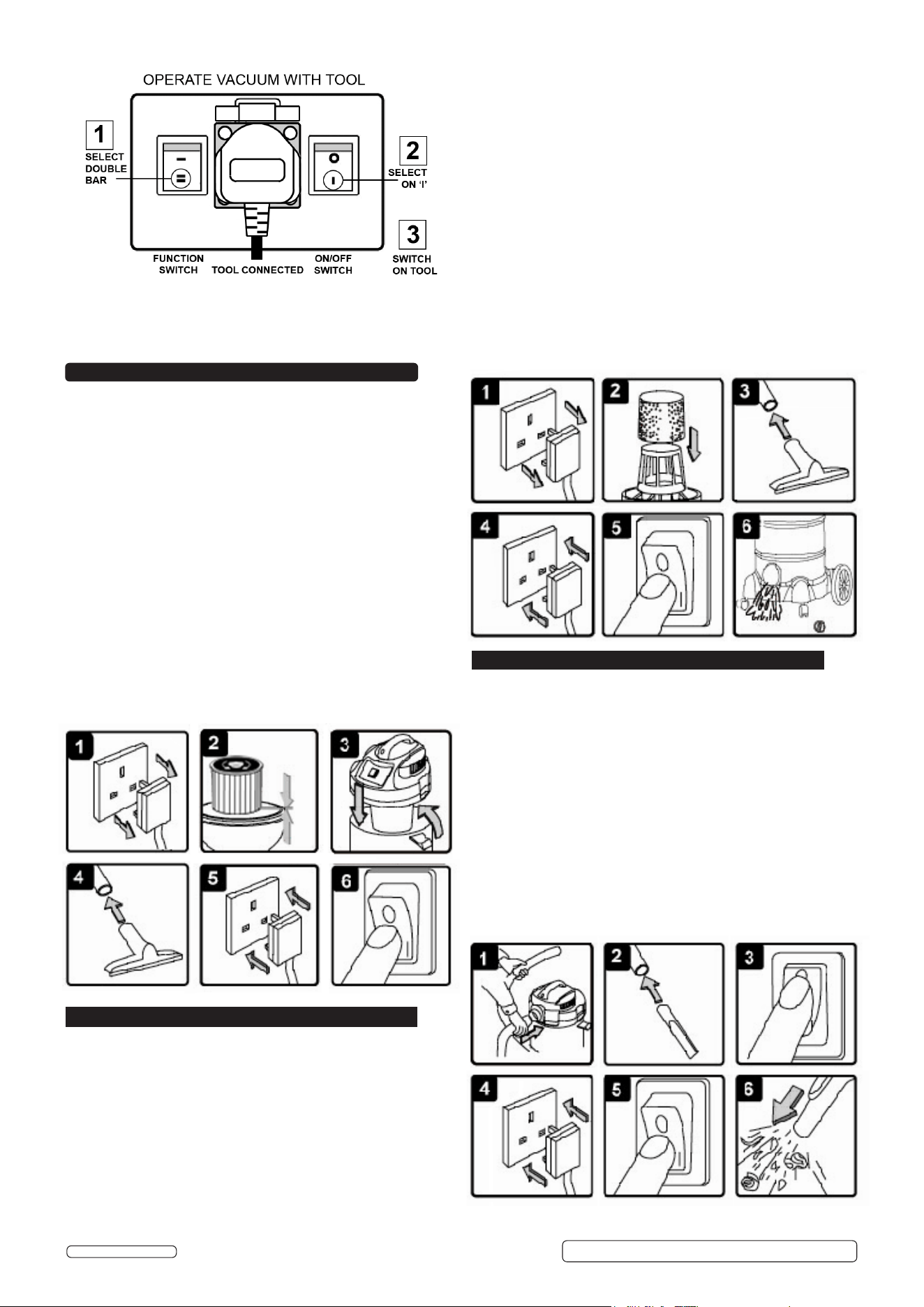

5.2 OPERATE VACUUM WITH DUST FREE TOOL
5.2.1 Select double bar position on function switch.
5.2.2 Move the ON/OFF switch
to the ('I') position.
5.2.3 Vacuum cleaner starts when tool is switched on.
© Jack Sealey Limited
Original Language Version
PC300SDAUTO.V3 Issue:4 (H,F) 26/04/21
10. MAINTENANCE
10.1 GENERAL MAINTENANCE.
10.1.1 Ensure the machine is unplugged from the power supply. (1)
10.1.2 Disconnect the hose from the container. (2)
10.1.3 Undo the clasps and remove motor head from the container. (3)
10.1.4 Clear out any dirt or debris from the container and hose. (4)
10.1.5 Check that the telescopic suction tube operates smoothly,
and check the power cable to make sure it has not been
damaged.
10.2. CARE OF CARTRIDGE FILTER
IMPORTANT! Clean or change the cartridge filter regularly
for best performance and long product life. The cartridge
filter is essential for the proper functioning of the cleaner. If
the machine is used without a cartridge filter the motor
will burn out and the warranty will be voided. Always
keep a new, spare filter on hand.
10.2.1 The cartridge filters supplied are made of a high quality
material designed to trap small dust particles and should
only be used for dry vacuum cleaning. If the cartridge filter
becomes wet it will clog very quickly and be very
difficult to clean. Always handle filters very carefully when
removing and cleaning them. Check the filter for tears or
small holes. Replace the filter if it is found to be damaged.
11. TROUBLESHOOTING
Symptom Possible causes Solutions
Vacuum will not operate No power supply Check power supply - cable, breakers, fuses.
Faulty power cable Unplug and check the power cable. If
damaged have it replaced by your local Sealey
dealer.
Container full Empty container
Dust expelled from the motor cover Cartridge lter missing or damaged Fit cartridge lter or replace damaged lter
Reduced eciency and increased motor/
speed vibration
There is a blockage in the nozzle or hose
or in the container inlet.
Cartridge lter blocked by ne dust.
Check nozzle, hose and container inlets and clear
any blockages found.
Remove lter and clean it or install new lter.
IMPORTANT! IF THE MACHINE IS USED WITHOUT A FILTER THIS MAY CAUSE DAMAGE TO THE MOTOR AND THE GUARANTEE
WILL BE INVALIDATED. ALWAYS KEEP A SPARE FILTER HANDY.
10.4 CLEANING CARTRIDGE FILTER
10.4.1 To remove the cartridge filter pull it carefully upwards and off
the filter cage. (C)
10.4.2 Clean the cartridge by gently tapping it over a waste
receptacle or lightly brushing with a soft brush. Do this
outdoors. (D)
10.4.3 If a cartridge filter becomes inadvertently wetted it should be
removed and allowed to air dry for 24 hours before reinstalling.
10.5 FITTING A FOAM SLEEVE FILTER (WET VACUUM ONLY)
10.5.1 Remove the power head and turn it upside down. Carefully
remove the cartridge filter and store safely for future use.
10.5.2 Slide the foam sleeve filter down over the filter cage ensuring
that the whole cage is covered. See 1`& 2
10.5.3 Invert the power head and refit it onto the container
10.6 CLEANING A FOAM SLEEVE FILTER
10.6.1 Carefully remove the foam sleeve from the filter cage.(3)
10.6.2 Wash the foam sleeve in a mild soap and water solution and
then rinse it in clean water. (4)
10.6.3 Allow the filter to air dry before installing and using again.
10.3 INSTALLING CARTRIDGE FILTER (DRY VACUUM ONLY)
10.3.1 Remove the top section and with the raised rim uppermost fit
the cartridge filter tube down over the filter basket and push
fully home. Place the locking disc onto the top of the filter
and turn the locking bar until the latch drops into the slot in
the top of the filter cage. Continue turning until the filter is
fully locked down. (see below)
9.1 Connect the tool to the vacuum hose using the rubber adaptor
supplied.
Ensure that the ON/OFF switch is in the OFF
position then plug the dust free tool into the covered socket
provided on the front of the power head (see fig.1-12). Move
the function switch to the double bar position. Move the ON/
OFF switch to the ON ('I') position. The vacuum cleaner will
start automatically when the tool is switched on. When the
tool is switched off the vacuum will continue to run for 10
seconds to ensure that the tool and hose are left free of dust.
9. USING DUST FREE TOOLS
© Jack Sealey Limited
Original Language Version
PC300SDAUTO.V3 Issue:4 (H,F) 26/04/21
© Jack Sealey Limited
Original Language Version
PC300SDAUTO.V3 Issue:4 (H,F) 26/04/21
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without
prior notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email
or call our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
