Installation Guide
PCAM-CHMSL2-FD99
Third Brake Light Camera
with Cargo and Side Blind Spot Views
Ford Super Duty Trucks (1999-2016)
Installation Guide
2
PCAM-CHMSL2-FD99
Third Brake Light Camera
1/3” CMOS Sensor
Operates at 0.3 LUX
3 Viewing Angles
• Right 95°
• Left 95°
• Rear 90 °
Water/debris proof rating: IP67
Thank you for purchasing your EchoMaster Pro automotive camera.
EchoMaster cameras are designed to improve safety while driving by
providing high quality images of surrounding areas and obstacles in the
vicinity of the vehicle. They will also improve vehicle maneuvering capability
by displaying blind spots not normally visible to the driver.
Please ensure you read and understand all aspects of this manual before
installing or using your EchoMaster camera.
Key Features
Installation Guide
3
PCAM-CHMSL2-FD99
Third Brake Light Camera
17.5’ Extension Cable
Camera Adjustment Tool

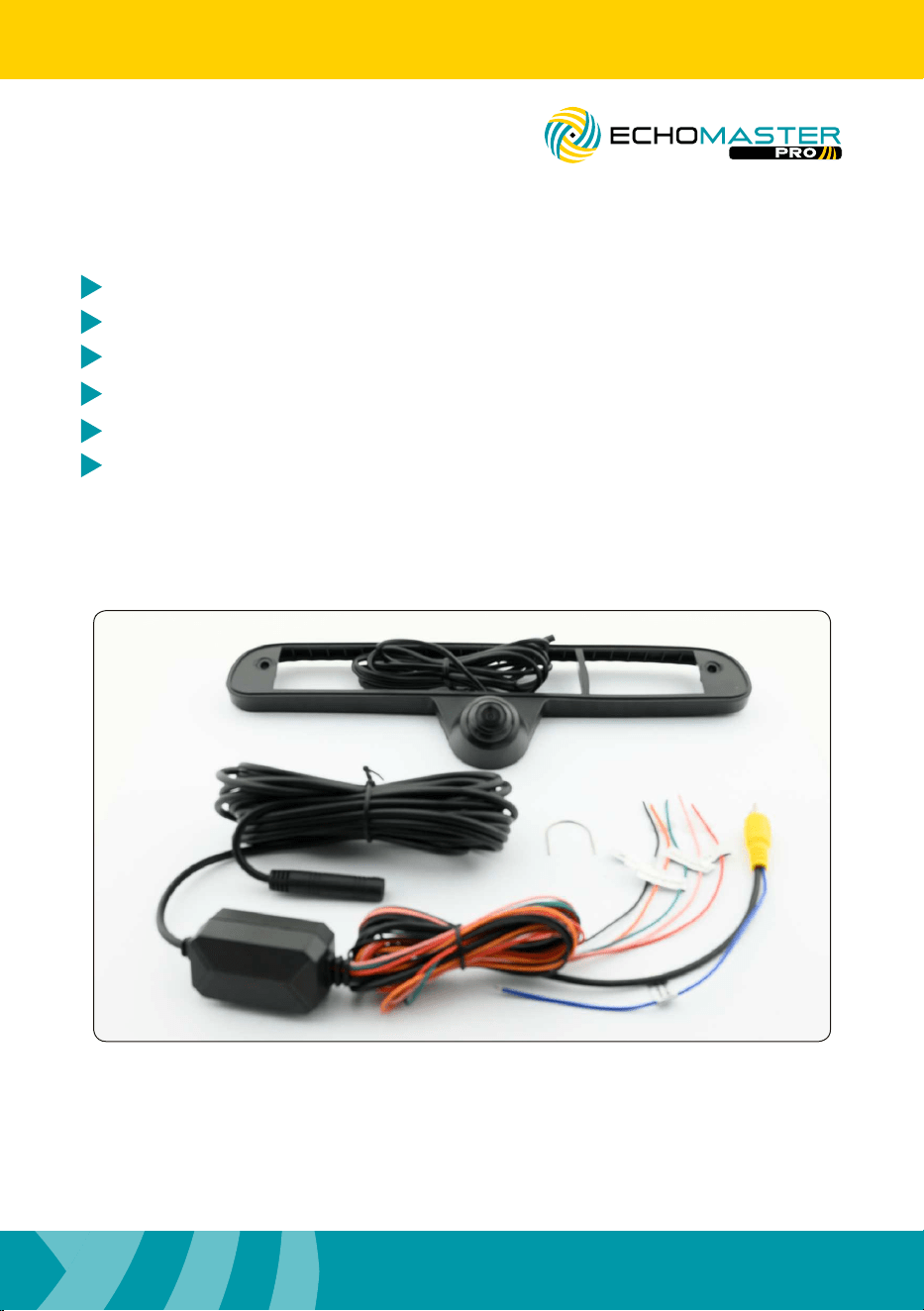

Box Contents
Installation Guide
Third Brake Light Camera and Bracket
Warranty Card
Illustrations are typical and may not match exact vehicle details.
2 Phillips Mounting Screws
Installation Guide
4
PCAM-CHMSL2-FD99
Third Brake Light Camera

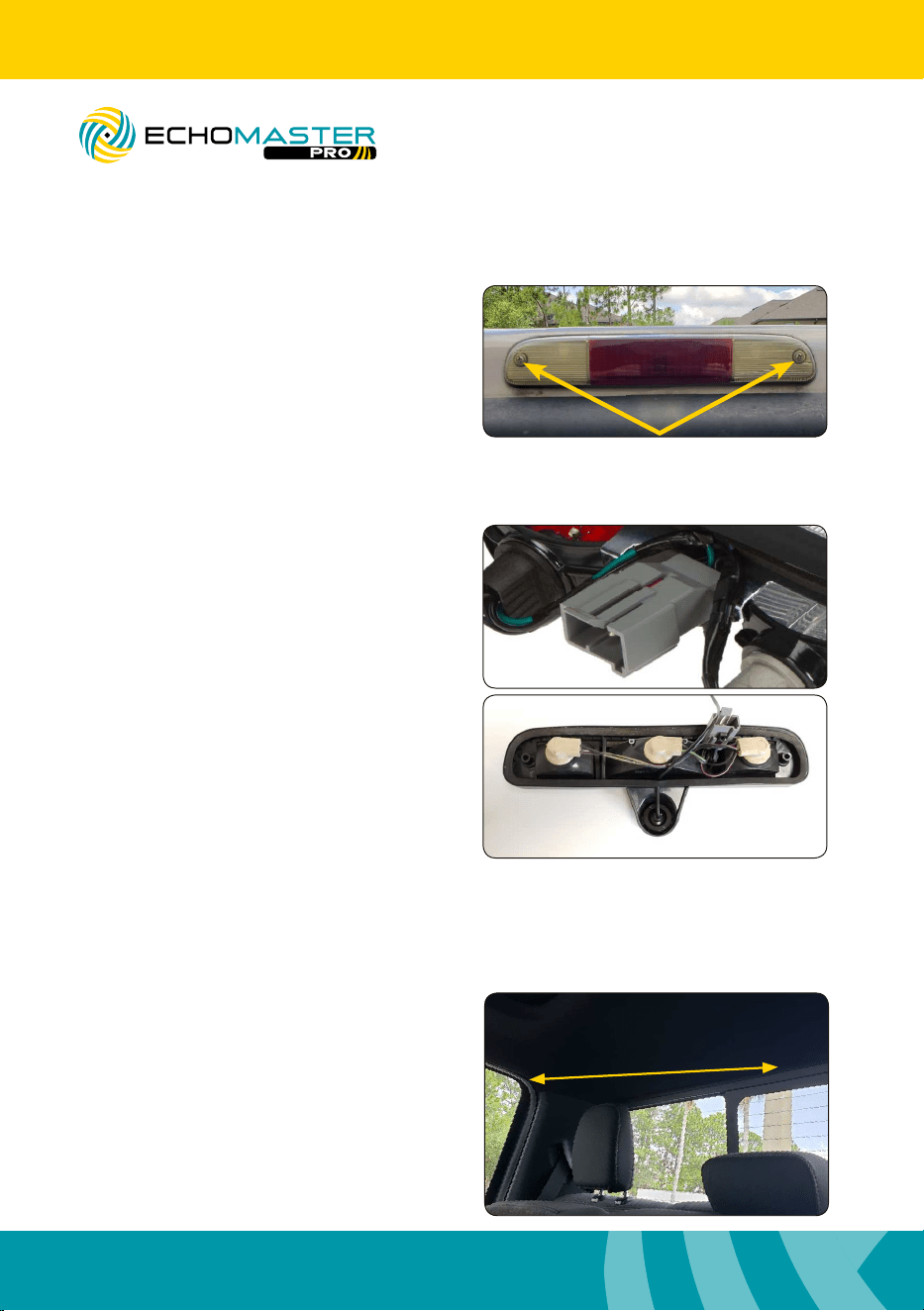

Step 1
Remove the 2 screws that secure the third
brake light.
Step 2
a. Remove the third brake light from the
vehicle and disconnect connector.
b. Place the third brake light onto the third
brake light camera bracket and line up the
screw holes.
c. Reconnect the third brake light to the
factory connector.
Step 3
Using a long zip tie or sh tape with the
camera cable attached to it, feed the
camera cable from the third brake light
opening into the vehicle and towards the
b / c pillar to the right or the left. (The
weather seal may need to be removed to
gain access to the sh tool used to run
the cable.)
Installing the CHMSL Camera
Installation Guide
5
PCAM-CHMSL2-FD99
Third Brake Light Camera

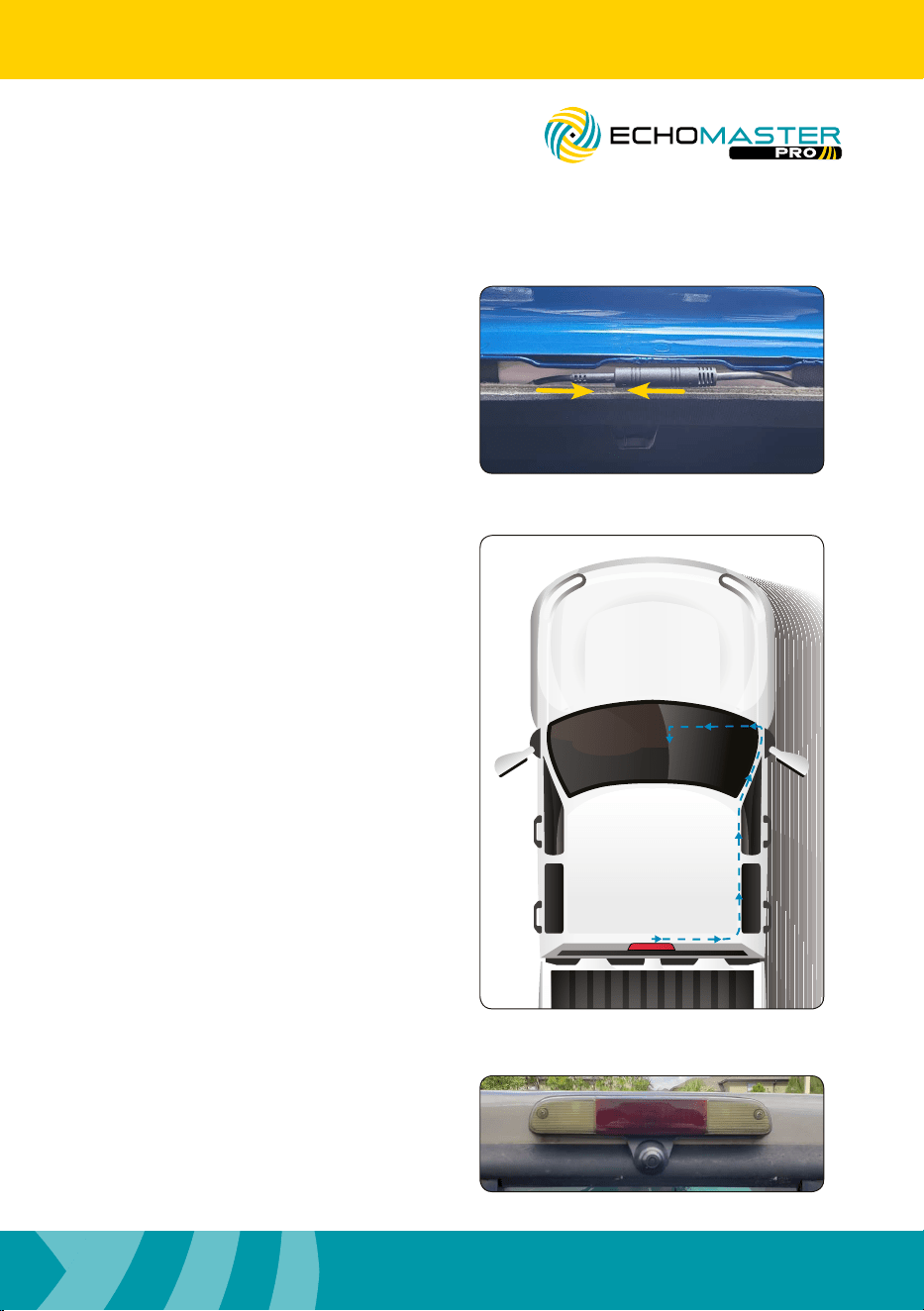

Step 4
Connect the extension cable to the
camera.
Step 5
Route the cable to the front of the
vehicle and behind the radio, monitor, or
mirror monitor.
Step 6
Remount third brake light and
camera assembly using the longer
mounting screws provided in the kit.
Installation Guide
6
Step 7
Route the reverse and turn signal wires to their respective locations according to the
table below
1999 - 2001
Turn Signal (Left) Light Green / White + Turn signal switch
Turn Signal (Right) White / Lt. Blue + Turn signal switch
Reverse Light Black / Pink + Under hood relay box
2002 - 2007
Turn Signal (Left) Light Green / White + Turn signal switch, Gray 12 pin plug,
pins 10
Turn Signal (Right) White / Light Blue + Turn signal switch, Gray 12 pin plug,
pins 7
Reverse Light Black / Pink + Dash fuse box, rear, Black 8 pin plug
(G), pin 1
2008 - 2010
Turn Signal (Left) Blue / Green + SJB in passenger kick, Black 26 pin
plug, pin 21
Turn Signal (Right) Yellow / Violet + SJB in passenger kick, Black 26 pin
plug, pin 23
Reverse Light Green / Brown + Under steering column to left, Black
59 pin plug, pin 41
2011 - 2016
Turn Signal (Left) Blue / Green + BCM in passenger kick, Green 26 pin
plug, pin 8
Turn Signal (Right) Yellow / Violet + BCM in passenger kick, Green 26 pin
plug, pin 7
Reverse Light Blue / White + BCM in passenger kick, 32 pin plug,
pin 13
PCAM-CHMSL2-FD99
Third Brake Light Camera
Installation Guide
7
PCAM-CHMSL2-FD99
Third Brake Light Camera

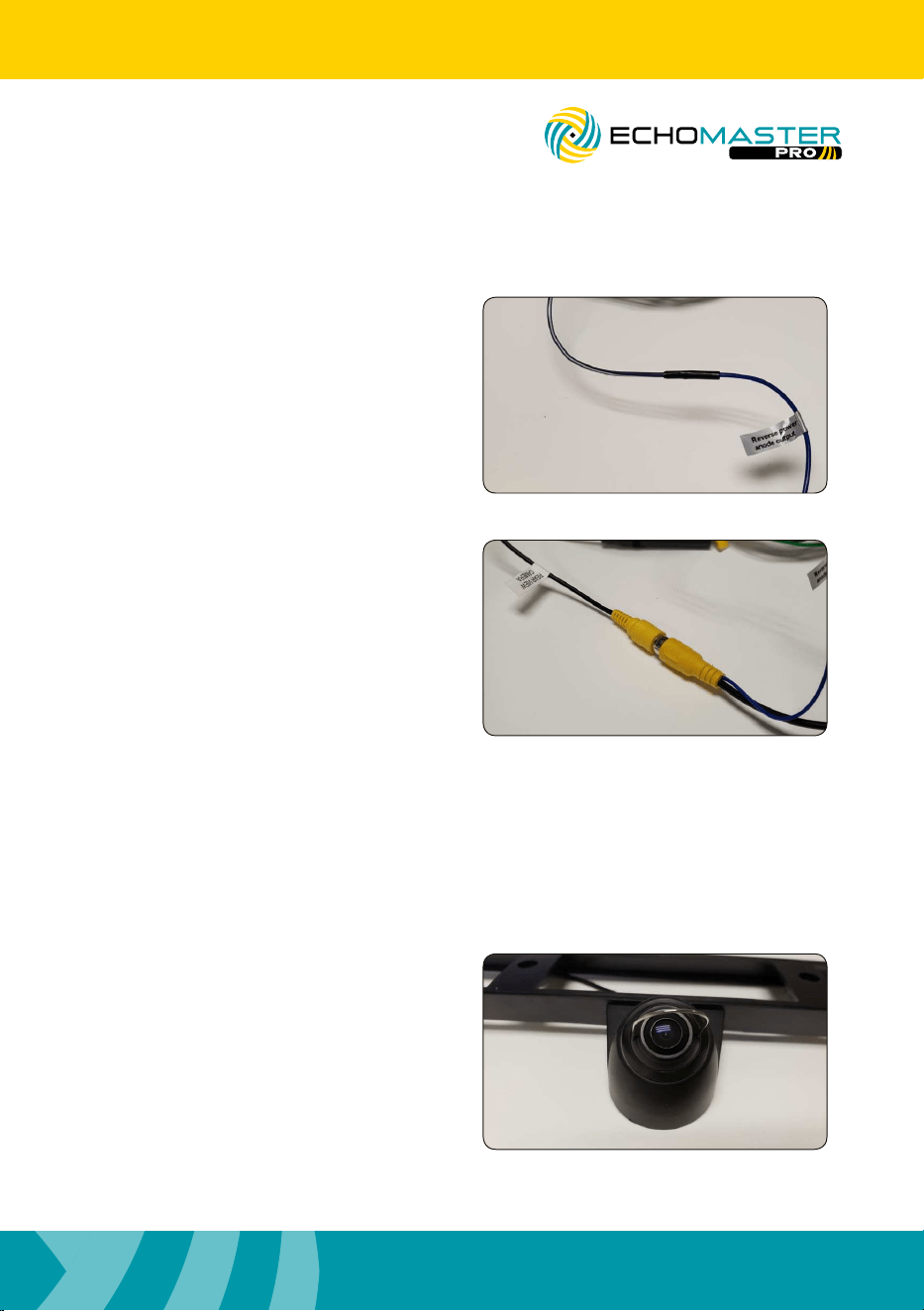

Step 8
Connect the yellow video RCA to the
rear camera input on the radio, monitor,
or mirror monitor.
Step 9
Connect the Blue “Reverse power
anode output” wire to the reverse trigger
input on the radio, monitor, or mirror
monitor.
Step 10
With the ignition in the on position, shift
the vehicle into reverse.
Step 11
Using the supplied tool, adjust the
camera’s view to desired position. (Keep
in mind that this adjustment will effect
the blind spot view. It may be necessary
to trigger the blind spot view to conrm
desired position.)
Installation Guide
8
Using the CHMSL Camera
PCAM-CHMSL2-FD99
Third Brake Light Camera

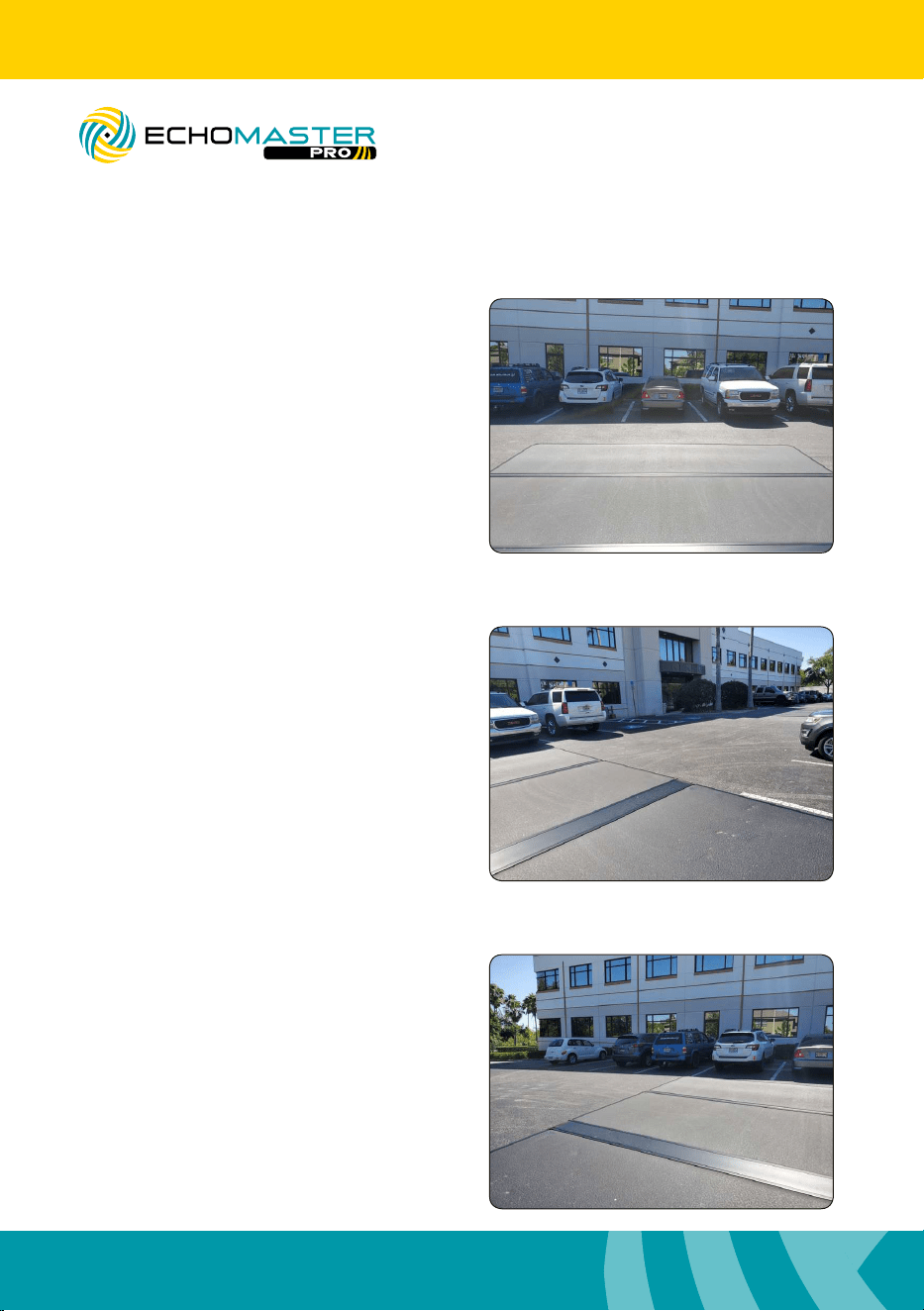

Using the CHMSL Camera
Right Blind Spot Camera
With the ignition in the on position, apply
the right turn signal. The image should
appear on the screen.
Left Blind Spot Camera
With the ignition in the on position, apply
the left turn signal. The image should
appear on the screen.
Rear Cargo View Camera
With the ignition in the on position, shift
the vehicle into reverse. The image should
appear on the screen.
Installation Guide
9
PCAM-CHMSL2-FD99
Third Brake Light Camera

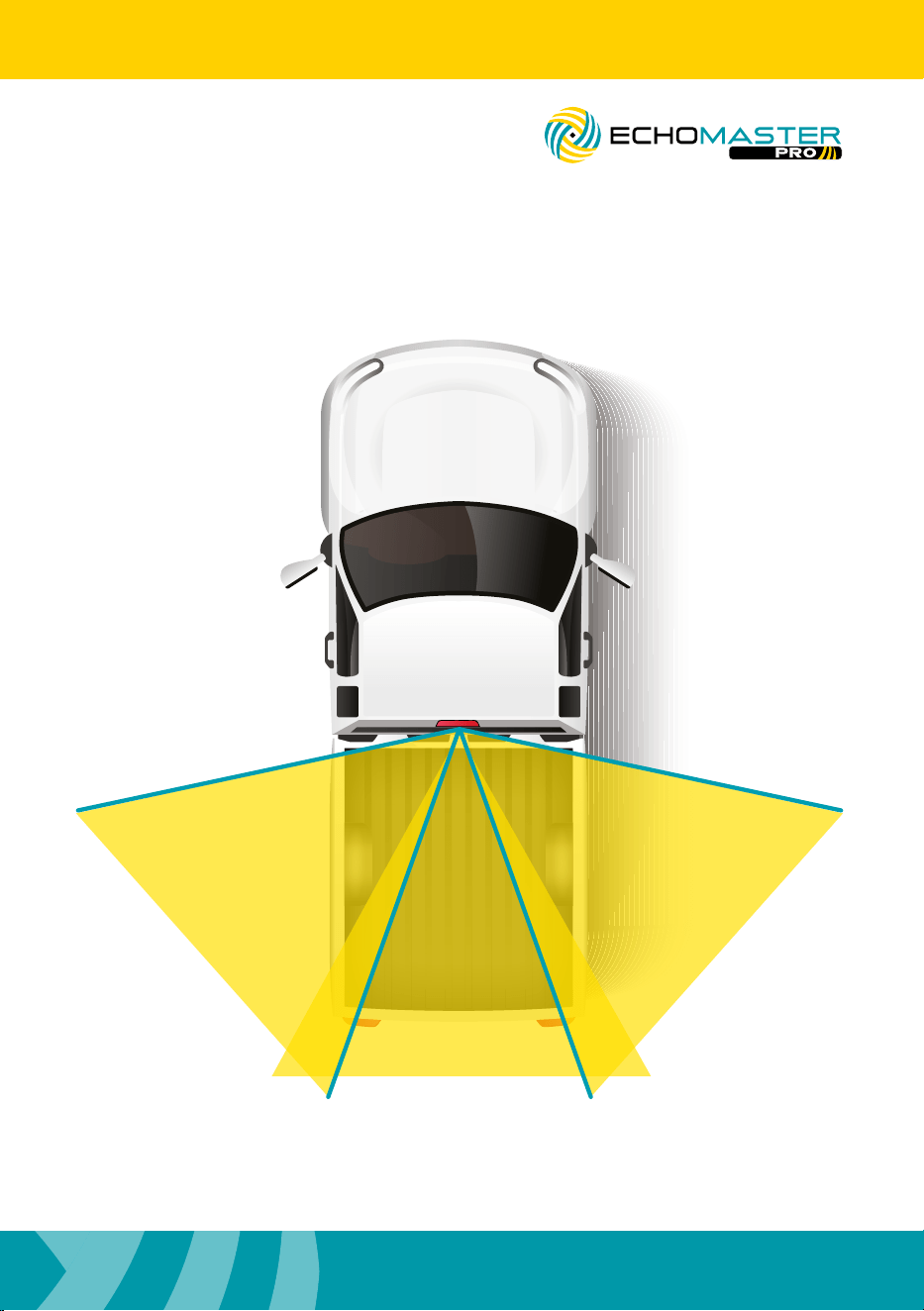

Views
REAR
90°
RIGHT 95°
LEFT
95°
Installation Guide
10

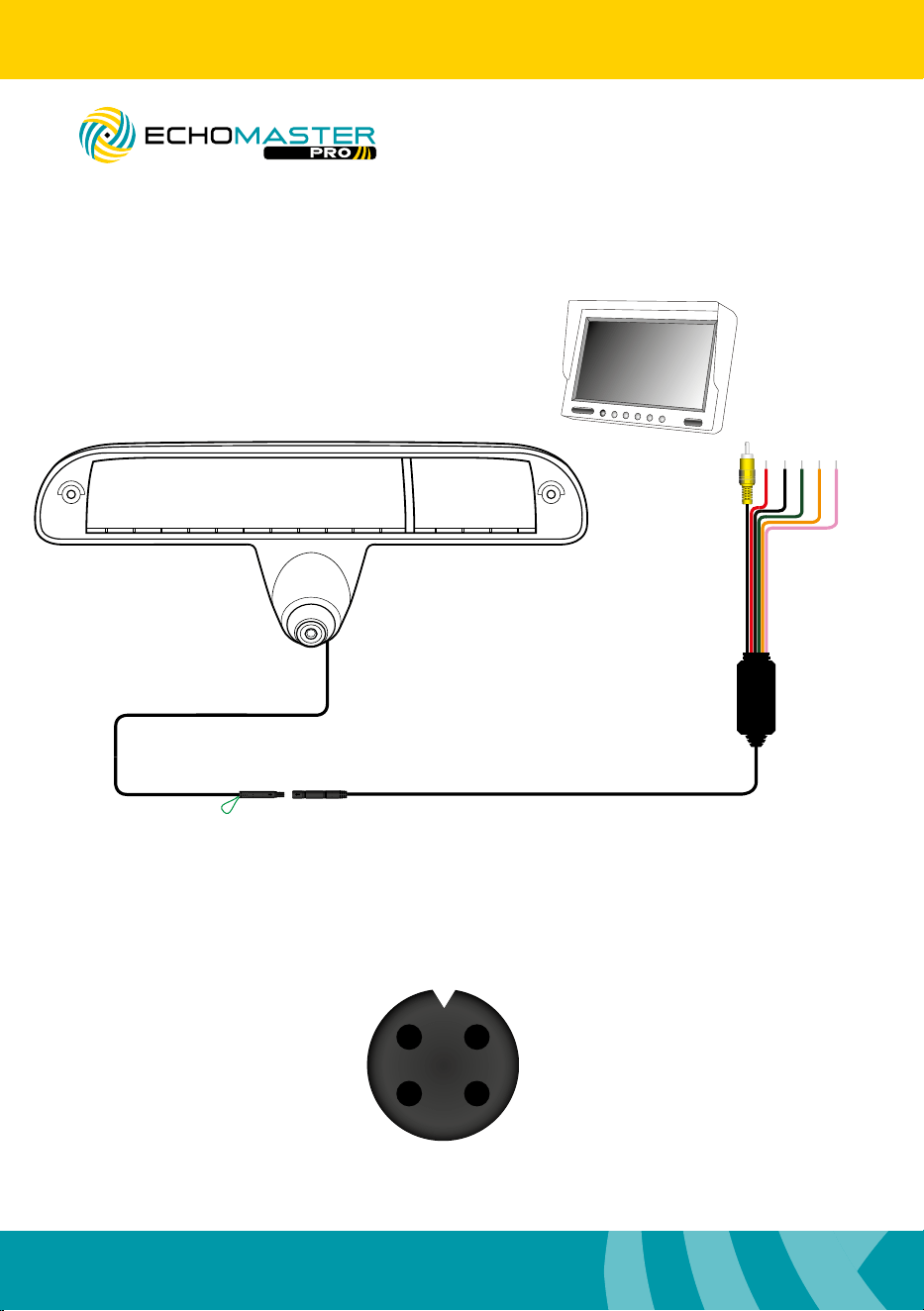

Wiring Diagram
Parking Lines (Green) On - Joined (Default)
Ground (Black)
Reverse Signal Input + (Green)
Right Turn Signal Input + (Orange)
Left Turn Signal Input + (Pink)
Video Output
Switched +12V (Red)
+12V
GND
1 2
43
Video
69 in
36in
Off - Cut
174 in
PCAM-CHMSL2-FD99
Third Brake Light Camera
Installation Guide
11
Notes:
PCAM-CHMSL2-FD99
Third Brake Light Camera
Clearwater Florida 33760
EchoMaster is a Power Brand of AAMP Global
www.EchoMaster.com
AGREEMENT: End user agrees to use this product in compliance with the instructions and terms of use
above and with all State and Federal laws. EchoMaster provides instructions and safety warnings with
respect to this product and disclaims all liability for any use not in conformity with those instructions
or other misuse of its product. If you do not agree, please discontinue use immediately and contact
EchoMaster. This product is intended for off-road use and passenger use only.
REV. 060619
PCAM-CHMSL-FD99
email - [email protected]
tel- 866-766-2267
