User Manual
Brake Light Camera for
Nissan NV Van 2011-2015
PCAM-NV4
Introduction
Key Features
u 1/4” CMOS Sensor
u Operates at 0 LUX
u IP67 Rated
u 170 Degree Viewing Angle
u Parking Lines (selectable)
Box Contents
u Camera
u Din to Video RCA Harness
u Power Harness
u Extension Harness
u Gasket
u Mounting Hardware
u Manual
u M to M RCA Barrel Adapter

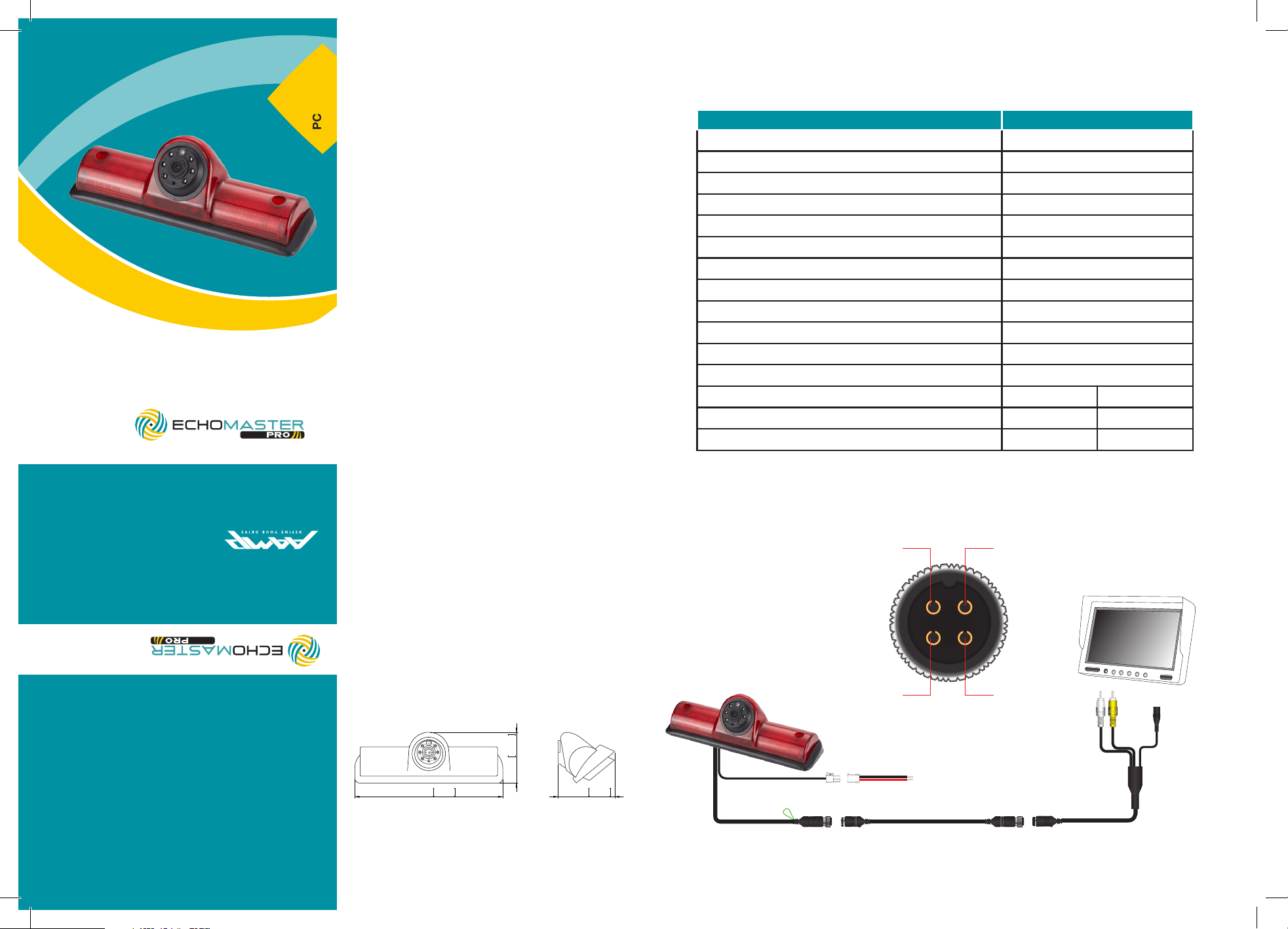

Wiring Diagram & Pin Out
Dimensions
Specications
PCAM-NV4-P I PCAM-NV4-N
Sensor Type
¼” CMOS
LEDs
6
Illumination
0 LUX
Viewing Angle
170 degrees
Mirror Image
YES
Normal View
NO
Water/Debris-Proof
IP67
Audio
YES
Power Supply
9-16V DC
Current
<150mA
Working Temperature
-30ºC - +70ºC
Dimensions (mm)
D (83) x W (215) x H (74)
System
PAL NTSC
TV Lines
N/A 580
Resolution
N/A 762 x 504
Thank you for purchasing your EchoMaster Pro
automotive camera.
This manual covers the following part numbers:
u PCAM-NV4-P
u PCAM-NV4-N
EchoMaster Pro cameras are designed to improve safety
during driving by providing high quality images of surrounding
areas and obstacles in the vicinity of the vehicle. They will
also improve vehicle maneuvering capability by displaying
blind spots not normally visible to the driver.
Please ensure you read and understand all aspects of
this manual before tting or using your EchoMaster Pro
Camera. Choose a suitable mounting place dependent on
the application. Ensure that there are no wiring harnesses or
hoses/pipes located behind this panel before drilling.
1
23
4
POWER +12V VIDEO
AUDIOGROUND
1
2 3
4
Parking Lines (Green) On - Cut (Default)
O - Joined
+12V & GND
Brake Light
GND (Black)
+12V (Red)
VIDEO
AUDIO
73.9mm
2.91in
215.2mm
8.47in
82.6mm
3.25in
