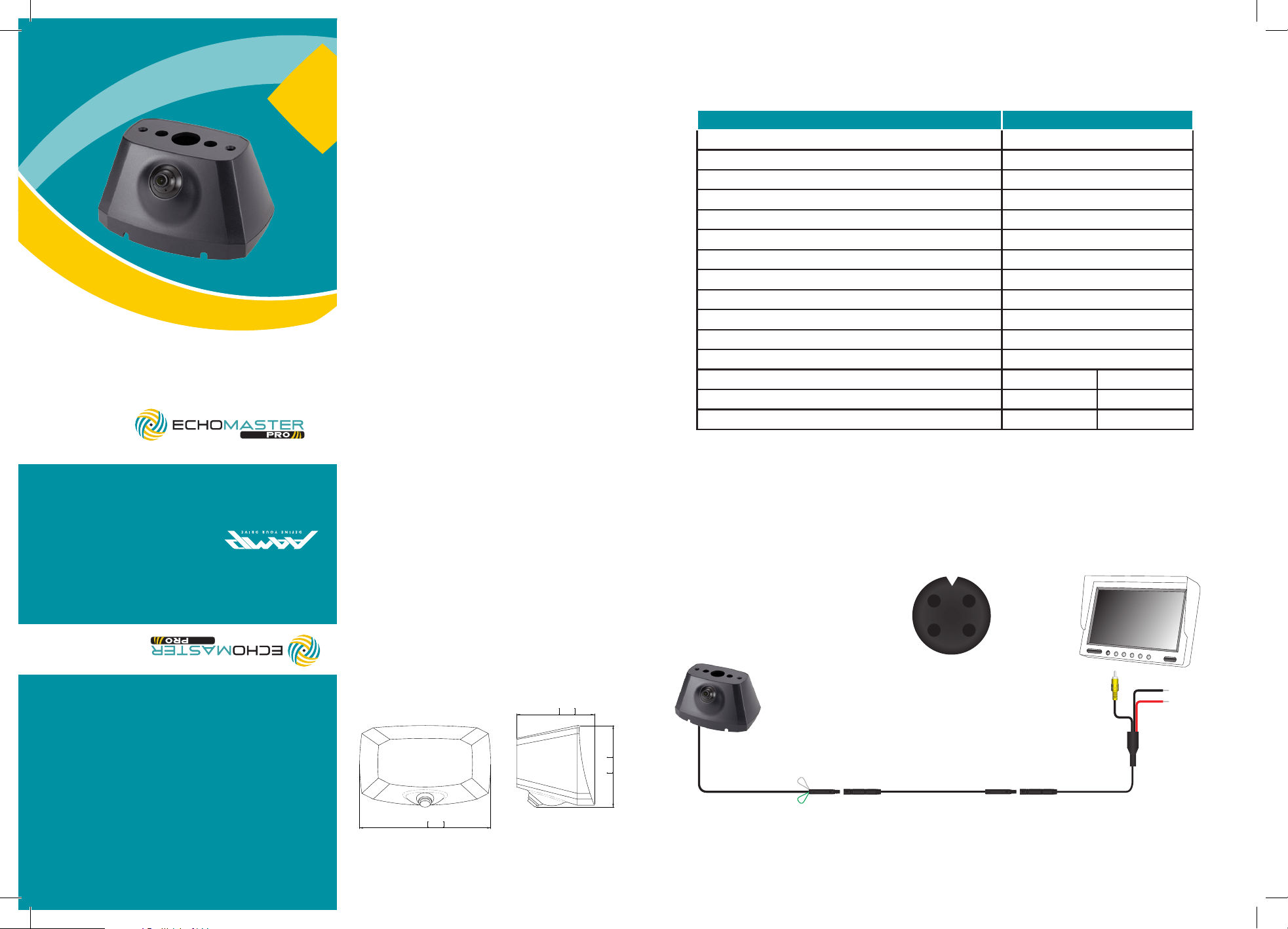

User Manual
Third Brake Light Camera for
Dodge ProMaster 2014-2016
PCAM-PM4
Introduction
Key Features
u 1/4” CMOS Sensor
u Operates at 0.3 LUX
u IP67 Rated
u 170 Degree Viewing Angle
Box Contents
u Camera
u Manual
u Wiring Harness
u Mounting Bracket
u Mounting Hardware
Wiring Diagram & Pin Out
Dimensions
Specications
PCAM-PM4-P I PCAM-PM4-N
Sensor Type
¼” CMOS
LEDs
0
Illumination
0.3 LUX
Viewing Angle
170 degrees
Mirror Image
YES
Normal View
NO
Water/Debris Proof
IP67
Audio
NO
Power Supply
9-16V DC
Current
<50mA
Working Temperature
-30ºC - +70ºC
Dimensions (mm)
D (77) x W (130) x H (81)
System
PAL NTSC
TV Lines
480 420
Resolution
648 x 488 648 x 488
Thank you for purchasing your EchoMaster Pro
automotive camera.
This manual covers the following part numbers:
u PCAM-PM4-P
u PCAM-PM4-N
EchoMaster Pro cameras are designed to improve safety
during driving by providing high quality images of surrounding
areas and obstacles in the vicinity of the vehicle. They will also
improve vehicle maneuvering capability by displaying blind
spots not normally visible to the driver.
Please ensure you read and understand all aspects of
this manual before tting or using your EchoMaster Pro
Camera. Choose a suitable mounting place dependent on
the application. Ensure that there are no wiring harnesses or
hoses/pipes located behind this panel before drilling.
130mm
5.12in
81mm
3.19in
77mm
3.03in
