User Manual
Mirror Dash Cam G840S
IC warning:
This device contains licence-exempt transmitter(s)/receiver(s)/ that comply with Innovation
Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to
the following two conditions:
1. This device not cause interference.
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
Radiation Exposure: This equipment complies with Canada radiation exposure limits set forth
for an uncontrolled environment. To maintain compliance with IC's RF Exposure guidelines, this
equipment should be installed and operated with minimum distance of 20cm the radiator your
body. This device and its antenna(s) must not be co-located or operation in conjunction with
any other antenna or transmitter.
Déclaration de l'ISED Canada:
Cet appareil contient des tasmittre (s) / récepteur (s) sans licence / conformes à l'innovationRSS
exemptes de licence de Sciences et Développement économique Canada. L'opération est
sous réserve des deux conditions suivantes:
1. Cet appareil ne peut pas causer d'interférences et.
2. Cet dispositif doit accepter toute interférence, y compris peut provoquer le fonctionnement
indésirable de l'appareil.
Exposition aux rayonnements: Cet équipement est conforme aux radiations du Canada limites
d'exposition pour un environnement incontrôlé noncé d'exposition RF Pour maintenir le
respect des guides d'exposition RF d'IC, cquipment doit être.installé et actionné avec une
distance minimale de 20cm le radiateur de votre corps. Cet appareil et ses antennes ne
doivent pas être co-localisé ou en opération en conjonction avec toute autre antenne ou
émetteur.
Product Overview
Precautions
Warnings
Getting started
Package Contents
Appearance
About the Micro-SD card
Installation
Power On/Off
Menu Settings
Video Playback on PC
Troubleshooting
2
3
3
4
7
8
9
11
13
27
27
42
43
…………………………………………
……………………………………
…………………………………………………
……………………………………………………
……………………………………………
…………………………………………
…………………………………………………
…………………………………
…………………………………………………
………………………………………………
………………………………………………
……………………………………
……………………………………………
CONTENT
1
Product Overview
Thank you for choosing WOLFBOX G840S 4K Mirror Dash Cam. This product can provide you
with irrefutable evidence in the event of an accident, and the ultra-clear picture can also record
the scenery you encounter while driving.
WOLFBOX is a professional automotive supplies manufacturing company. We have worked in
field of dash cam for more than 10 years. We have a team of experienced and imaginative
engineers who are committed to building a reliable and trustworthy automotive supplies
brand.
We have been selling G840S(the 1080P model) for about 3 years, According to the different
opinions of customers, we have developed this model-G840S, the resolution of front camera
improved to 4K. Thank you for your continued support.
2
Pre-cautions
Product Specifications
CPU
RAM
Display Size
Display Type
Full Touch Screen
Resolution(Rear Cam)
Resolution(Front Cam)
> SSC8826Q
> DDR3 256M
> 11.8 inch
> IPS
> Support
> 1920*1080P
> 3840*2160P
2560*1440P
1920*1080P
Video Format
Picture Format
Loop Recording
GPS Tracking
Parking Monitoring
Power interface
Input voltage
Working Temperature
Storage Temperature
> TS
> JPG
> Support
> Support
> Support
> Type C
> 5V
> -20℃~70 ℃
> -30 ℃~80℃
If you have any questions or want accessories, Please CONTACT US ([email protected]),
we will solve it for you and send you the accessories.
After receiving the product, please insert the GPS, and then adjust the time zone in the
"Time Zone" setting to make the time correct. If you choose to restore factory settings, you
need to reset the time zone to adjust the time.
3
Use the accessories provided in the box to ensure compatibility. When the power supply is
plugged into a power splitter the camera will not have enough current to power on.
Do not attempt to extend the camera wire by splicing in more wire or the camera may not

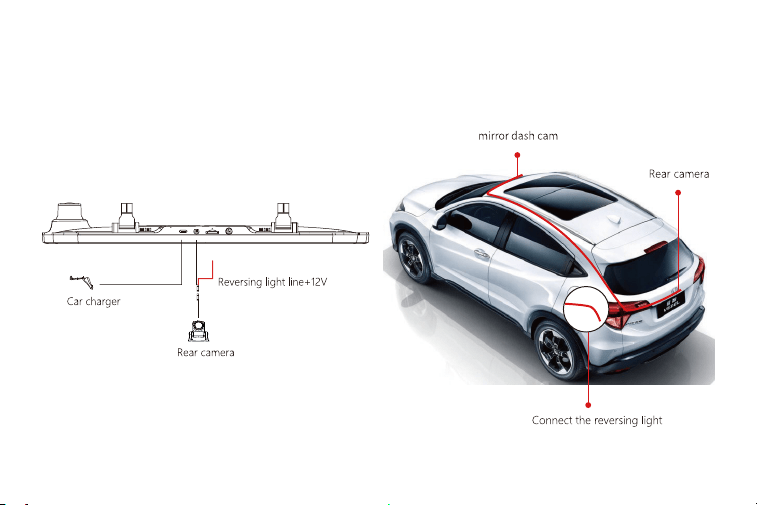

work. The length of original cable for rear camera is 20 feet, suitable for most types of cars.
We also have 33ft extension cable(ASIN-B082RZNJFY)and 50ft extension cable
(ASIN-B0814ZHHST)sold separately.
If you use micro SD card capacity > 32GB, Please change micro SD card [Class10 (10MB/
sec) required] format to FAT 32 on PC (a 32GB card is inciuded in the package ).
If you want 24H parking monitor function to guide your car parking safety, dedicated
hardwire-kit(ASIN:B09X1L1GMX) is needed.
Please confirm whether your cigar power port is ACC. If the cigarette lighter is still charged
after the car is turned off, please use the hardwire kit or manually unplug the car charger
while parking, otherwise it may exhaust your car's power supply. (Note:This happens in
some Ford/Audi cars, and electric cars).
4
Please read this manual the first time you open the package and familiarize with the
equipment. Plug in the camera before installing it and verify its functionality, especially if you
hire a professional to install it.
Please carefully read the instructions provided by us. If you have any doubts, please contact our
staff and they will solve them for you. Please do not install incorrectly without understanding. The
company will not be responsible for any consequences arising therefrom.
5
Be sure to use included accessories and parts. Using other parts may damage the equipment or
cause fire, electric shock, or malfunction.
If this product is damaged or malfunctions, stop using it immediately and consult your dealer.
Continued use may cause fire, electric shock or vehicle failure.
Please install the device in a position that does not affect the driver's field of vision. WOLFBOX
always puts the driver's safety first.
This product is intended to be used for reference material in the event of an accident. We do not
guarantee its effectiveness as complete evidence.
Please note that this product may infringe on privacy and other rights depending on how it is
used. We are not responsible for these cases.
Since this product uses a wide-angle lens, part of the image may be distorted. It also differs from
the actual perspective. This is a characteristic of wide-angle lenses and is not a malfunction.
Warnings
Please use our products as required. Incorrect installation may lead to serious consequences.
If the lens needs to be cleaned, we recommend gently wiping it with a soft damp cloth to avoid
scratching the lens and affecting the clarity of the video.
This product is for DC12V/24V vehicles only.
The specifications and appearance of this product are subject to change without notice.
Please keep the device away from water, water vapor, and various liquids at all times to avoid
equipment failure and potential safety hazards.
If the driving recorder is faulty or has a black screen during use, please be sure to contact us or
go to a professional store for repair, please do not repair it yourself, otherwise the seller will not
be responsible for the consequences.
During driving, do not adjust the position of the device. If you feel that your vision is blocked,
please stop immediately and drive after adjustment.
6
Do not use the charger if the wiring of the power cord is faulty.
Do not disassembie or modify this product. Otherwise, it may cause a fire, electric shock or
malfunction.
Getting Started
Please comply with local laws while using this product. Some countries have legal provisions
prohibiting the installation of items on the windshield or specific areas of the windshield.
The company is not responsible for errors in the user's installation area.
Please read this manual carefully before using the device.
00:08
08:39
10/07
PM
Fri.
7
Before the G840S starts running, please check the SD card and format it to ensure the smooth
operation of the mirror dash cam.

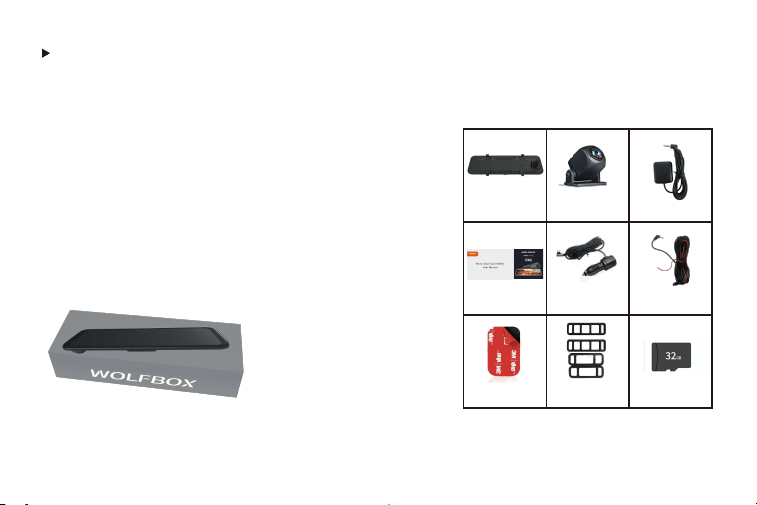

1* 4K
Mirror Dash Cam
1* User Manual
&1 * FAQ
1 * Power Supply
Cable with Car
Charger
1 * 3M Adhesive

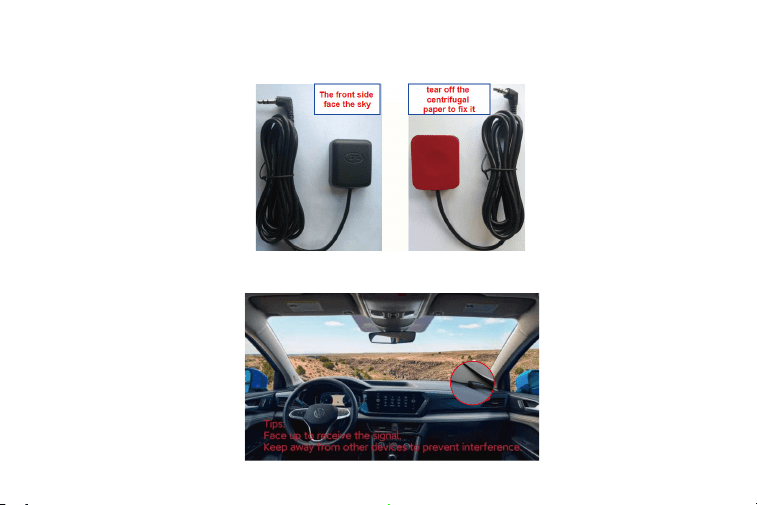

1* GPS
1* Rear
Camera Cable
1*32GB TF Card
1* 1080P
Rear Camera
4*Rubber Straps
for fixing
front camera
PACKAGE CONTENTS
If the dash cam cannot be turned on after powering, please keep the power on and press the
hole marked "R" (on the back of the mirror unit) to reset the dash cam. Please CONTACT US if it
still doesn't work.
Tip: In addition to the original accessories in the package,
we also provide separate Hardwire-Kit (used for parking
monitor-ing and replacement of car chargers), rear camera
extension cable (approximately 10m long), and the rear
camera mounting bracket in the car (you can use this to
install the rear camera in the car). If you need these
accessories, please feel free to contact us.
8
Appearance
NO. Name
lens
Front lens, record the front image of the
car
Fasteners
The machine can be fixed with 2 straps
Reset hole
When the machine failure cannot be
eliminated, you can try to restart the
machine by clicking here
USB
Port for charging
AV-IN
Port used to connect the rear lens
TF card slot
Provide extensible storage(class 10
Max 128GB)
GPS port
Used to connect GPS module(GPS
function requires optional GPS
antennal)
Power button
Short press to wake and turn off the
screen, long press to turn on and off the
power
Display screen
11.8 inch touch screen display
Description
1
2
3
4
5
6
8
9
9
00:08
08:39
10/07
PM
Fri.
08:39
10/07
PM
Fri.
Recording status: During normal recording, it is red, turns
yellow while emergency recording
Click on it, the clock setting appears on the screen
GPS Status: Once gps antenna connected, the GPS icon
on the home screen will show
Menu Setting:Touch and enter to set the screen in your
favor (Please pause recording first)
Video/Photo Playback: Playback the video & Photo
Start/Stop Recording: Record and save every precious
moment
Photograph: Take photos one moment
Rear view/Front view switchable: Switch between front
view & rear view one moment
Emergency Lock: Lock videos as event files so it won't be
overwritten by loop recording
Sound Record is on
10
Resolution Movie Clip Time

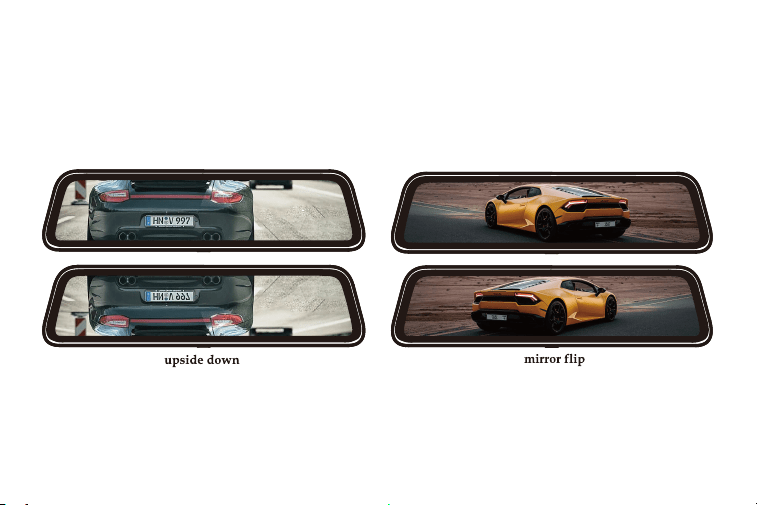

Reversing line
mirror flip of
rear image
Upside down of
rear image
Format SD-Card
FlickerVolumn setting
G-Sensor
sensitivity
Parking Mode
Screen saverLanguage
Language

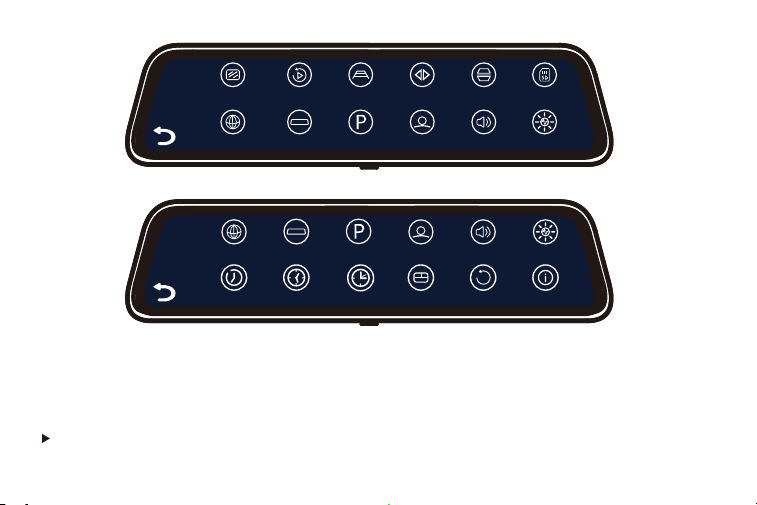

Clock Settings
Screen saver
Time style
Parking Mode
Daylight Saving
Time
Default booting
display
G-Sensor
sensitivity
Product information
Flicker
Movie Clip Time
Volumn setting
About the Micro SD Card
When using a new Micro SD card, be sure to format it in the dash cam.
When you remove or insert the SD card, make sure the device is turned off.
11
Use a Micro SD card with Class 10 or higher(32GB-128GB).
SD card insertion and removal
Make sure the dash cam is off when inserting or removing the SD card.
For stable use, it is recommended to format the micro SD card regularly. Recommend: Once a
month.
This product will check the Micro SD card at startup and will announce if it is not inserted or
damaged, that can prevent missed shots.
The memory card has its own expiration date, and we recommend that you replace it every three
months.
Formatting will erase all recorded data.
12
Please press the SD card with your fingernail and you will hear a Click sound. This will keep the
SD card stuck in the slot.
Installation
NOTE:
Please note the insertion direction of the SD card.
13
Please check the functionality of dash cam with its all accessories before installation.
When you use the dash cam for the first time, the dash cam comes with factory default settings and
you do not need to set it manually.
Format SD before use! Please refer to page 11 for SD card settings.

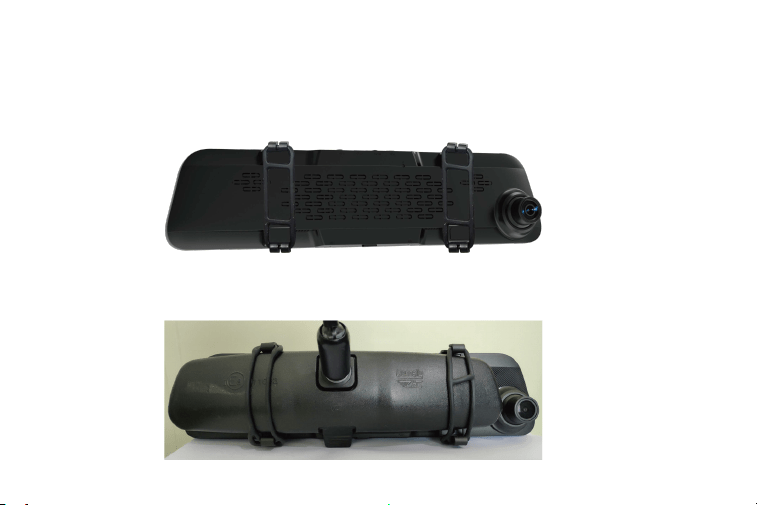

Step 1: Fix the host on the rear-view mirror by hand, be sure to separate the silicone brackets on
both sides of the rear-view mirror
Step 2: Buckle the product in the rearview mirror by silicone button
14
Host installation
Step 3: Adjust the front lens to the right position
Rear camera installation
15
Rear camera installation

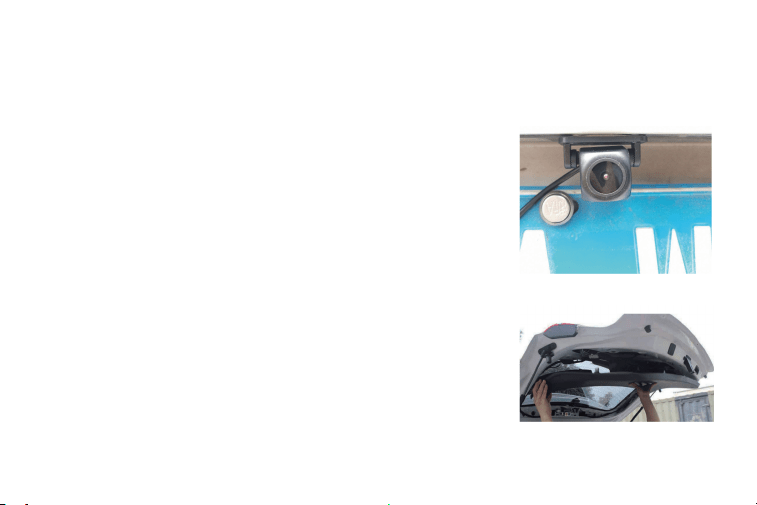

We recommend install the rear camera above the license plate.
1. Fix camera with 3M adhesive
Find a best location tear off the 3M adhesive on the rear camera, fix
the rear camera near by the car license plate lamp. (if you need to
adjust the angle, please attach the rear camera bracket to the rear
camera and tighten it with screws first).

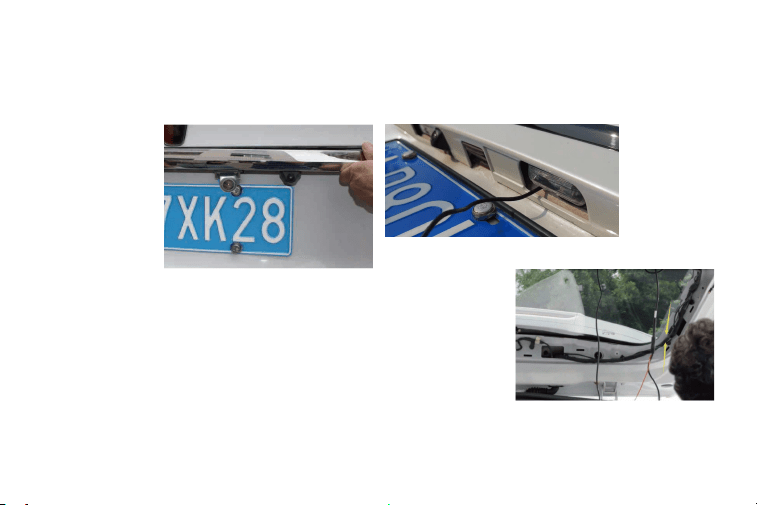

2. Remove the Panel
Remove the inner panel of the trunk to expose the rear wiring
compartment of the car. Open the trunk and look for a sturdy inner
panel covering the other side of the license plate installation area.
Then, insert a decorative removal tool or another thin device behind
the panel and pry it apart.
16
3. Install the cable
Look for lights near the license plate that have gaps to allow wires to
pass through. Run the rear camera cable through the gap into the
trunk of your car.
4. Connect the rear cameras power cable to the extension cable.
After snaking your rear camera's extension cable, connect the power
cable to your rear camera's extension cord.
*If your car has its own reversing assist
system, please ignore the red wire on
the rear camera cable.
17

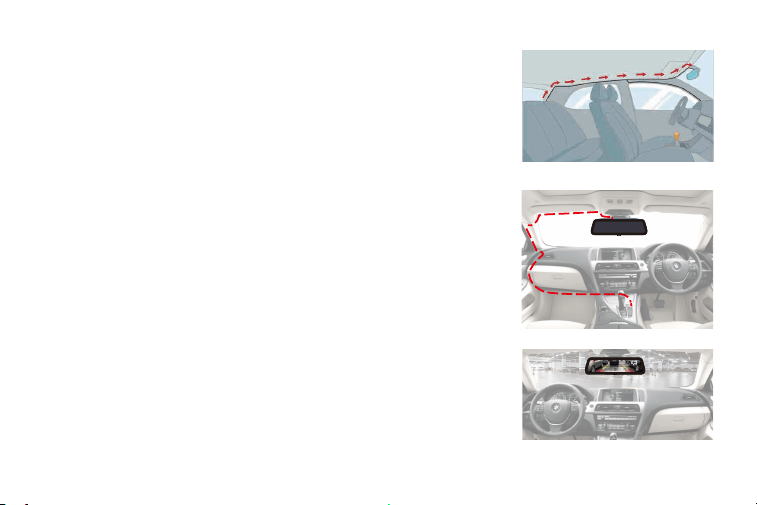

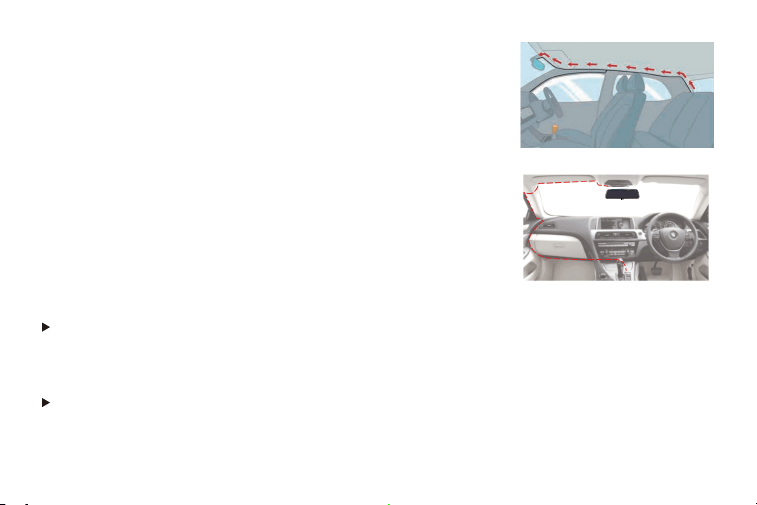

5. Route your rear camera's power cable to the front of the car.
If you'd like, use a trim removal tool to pop out the headlining panel
directly above your windshield. Then, run your cable through the
exposed chamber.
6. Power on the dash cam with box included car charger, don't
charge it with your own chargers.
NOTE:
We do not recommend to install the rear camera inside the car, it will make the effect of the rear
camera worse. If you need to install the rear camera in the car, please purchase a in-car rear
camera (Asin: B09Q84NBFN), or contact us to get it.
If your car is a RV or a pickup truck, you can install the rear camera forward (the bracket is below),
and turn on the "Upside down of rear image" and turn off the "mirror flip of rear image" to adjust
the image.
18

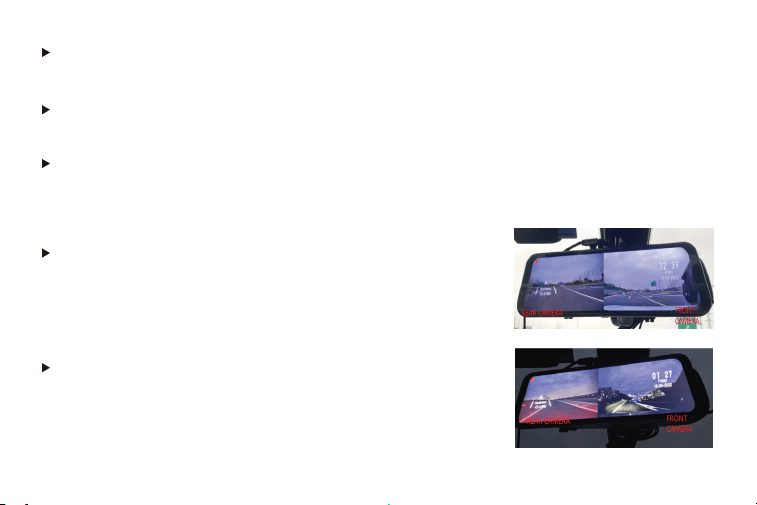

Glare due to high beams is unavoidable. We have an upgraded WDR rear camera (Asin:
B09KRM9QQ5) that can effectively improve this problem.
About the WDR rear camera: it has the function of automatically adjusting the brightness. So it
will look darker than the front camera when shooting during the day. This is normal and not
caused by a camera defect. Also it automatically brightens at night and can reduce the impact of
rear vehicle lights. As shown below:
Day time (The rear camera is a little darker than the front camera).
Night vision (The rear camera is brighter and clearer than the
front camera).
19
If you need a license plate bracket, we also provide this accessory (Asin: B09J7VXQ2T), you can
search by yourself or CONTACT US.
How to install the mirror dash cam

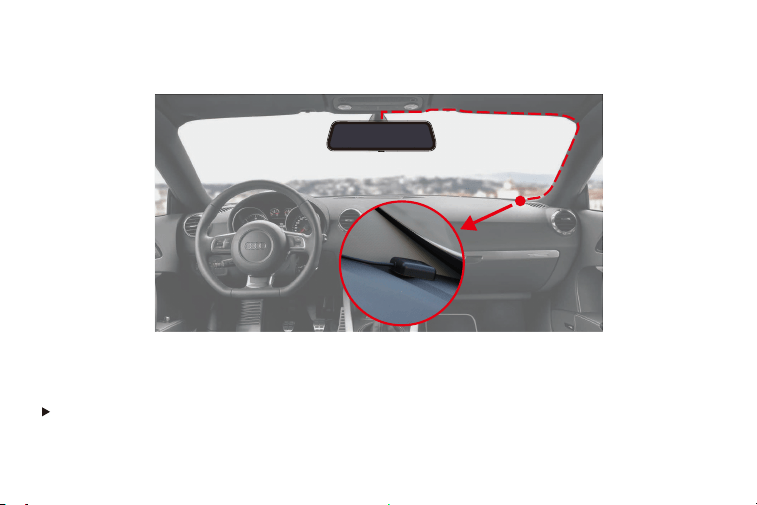

1. Route your rear camera's power cable to the front of the car. If
you'd like, use a trim removal tool to pop out the "headlining panel
directly above your windshield. Then, run you cable through the
exposed chamber.
2. Power on the dash cam with box included car charger, don't
charge it with your own chargers.
3. Test the camera to make sure everything works.
20
��
4. Installation method (Note: GPS model is facing up, placed on the instrument panel).
CAUTION：
Connect the cigar plug cord connector in the correct orientation. Connecting in the wrong
direction may cause malfunction or damage. If you cannot connect successfully, check the
connection part carefully before connecting.
21

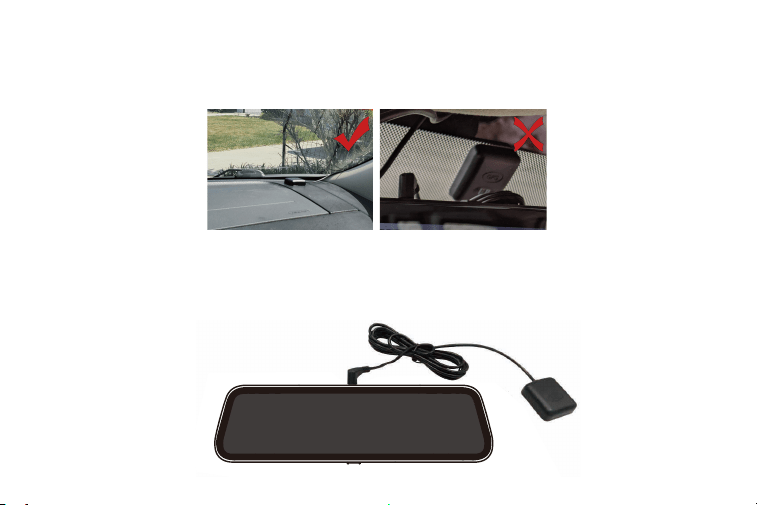

How to install the GPS
Installation location
GPS front and back
22
Installing step
1. Install the GPS Antenna onto the camera, the GPS Antenna will start to search for a GPS signal.
Considering the use effect and installation convenience, we usually recommended customers to
install it at the position specified in the picture. Of course, you can also try to install it in other
locations for testing, and choose the location you think is most suitable.
23
1. The vehicle must be within a large area.
2. Insert the GPS plug again.
3. Place the GPS plug upward.
4. Restart.
2. Once the GPS is installed, the GPS icon on the home screen will show. After the GPS signal has
been received, it will show direction and speed.
Q: Why is my GPS not working? /How to use GPS ?
A: If you cannot receive the signal after inserting the GPS, please follow the steps below.
5. It will be recognized after about 40 seconds. If still cannot receive the signal, it may be a GPS
problem. Please CONTACT US and we will help you solve this problem.
00:08
08:39
10/07
PM
Fri.
24
Hardwire Kit Installation
Dedicated Hardware Kit ASIN: B09X1L1GMX or B0BBLCCQ2B
Muti-size Hardware Kit ASIN: B09X9F8GMT
1. Stop the engine.
2. Open the fuse box.
3. Use a power detector to detect the constant power and ACC power (emergency power). *note:
Use an ACC power supply of 15A to 25A. Use a constant power supply below 30A.
4. Connect the yellow fuse to the constant power source, the red fuse to the ACC power source,
and the ground terminal (black wire) to the metal part of the body.
Installation - Connect the following three cables to the car fuse box. (The position of the fuse box
differs depending on the model).
Step:
25

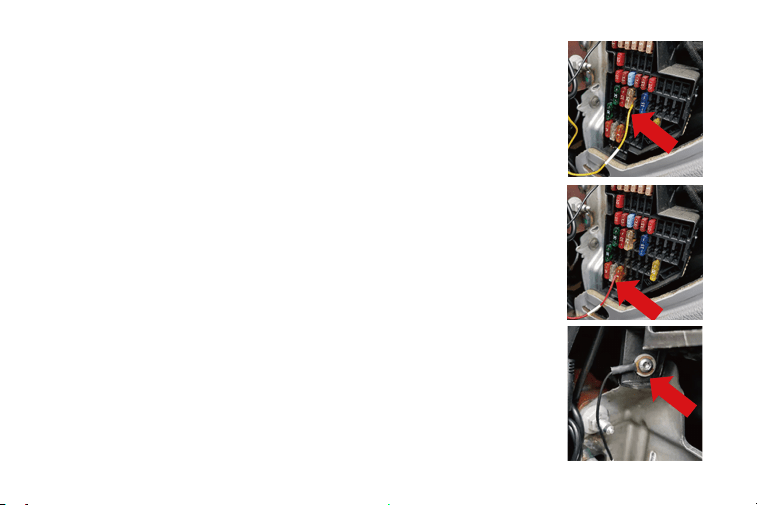

Yellow cable (BATT/B+)
The yellow cable should be connected to the fuse of the constant power
supply in the car fuse box. If you are looking for a constant power supply
in the fuse box: Use a voltage tester to check the fuse to ensure it still have
electricity even if the car engine is off.
Red cable (ACC)
Connect the red cable supply power only when the car engine starts.
Testing method: The tester bulb will light when the engine is on and won't
light when the engine is off.
Black cable (GND)
Connect this black cable (GND) to the metal part of the vehicle. Most cars
have screws or metal parts next to the fuse box. Connect the black cable to
the screw or metal part. (As in the picture below).
26
NOTE:
If you can't install it, please CONTACT US, you can send us a photo of your fuse box, and we
have professional technicians who can help you wire it.
If you turn on the engine (ACC on) while the cigar power adapter is connected, the power
will be turned on automatically and the opening screen will be displayed.
Press and hold the power button to turn off the power during startup, and then briefly press
the power button again to turn on the power of the unit and display the opening screen.
After turning on the power, the machine will automatically turn on and enter the main interface,
and the camera will start recording at the same time.
Short press the power button to wake and turn off the screen.
Power ON/OFF
Menu Settings
Home-interface
27

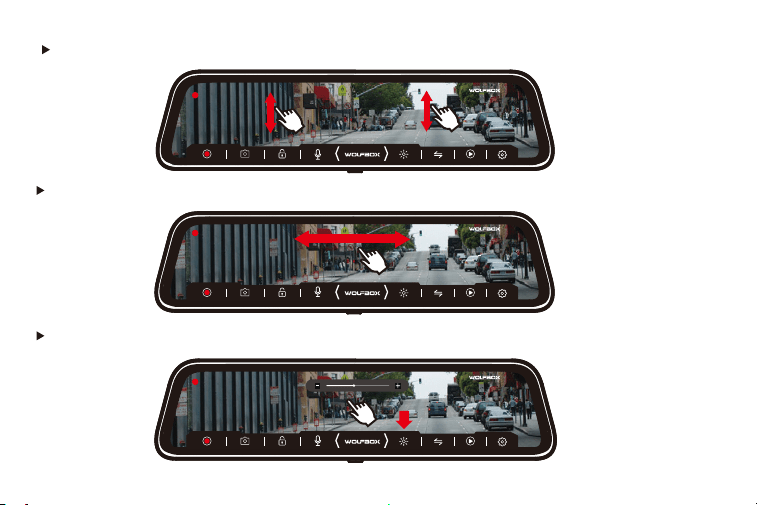

Swipe left or right to switch between front and rear cameras.
Click the top of the screen and slide to adjust the brightness.
00:08
08:39
10/07
PM
Fri.
00:08
08:39
10/07
PM
Fri.
00:08
08:39
10/07
PM
Fri.
28
Swip the left/right screen up and down to adjust the angle of view.
Overview
NO.
Overview
NO.
1
3
2
4
5
6
Normal Video: Select it to view recorded videos
Locked Video: Select it to check locked videos
Photos: Select it to check photos
Front/Rear Video Switch:Click it to switch to front/rear video
Delete
Lock the video
View videos on fullscreen
Video playback interface
Function interface
After powering ON the camera, press the button to enter the setup process. (If the camera
is recording video, press the button to stop recording before pressing the button.)
29
CH1-20201014-095920
CH1-20201014-095820
CH1-20201014-095736
00:08
08:39
10/07
PM
Fri.
Resolution: 2160P/1440P/1080P
The front camera supports 2160P/1440P/1080P, and rear camera supports 1080P.
Resolution
4K+1080P
2.5K+1080P
1080P+1080P
Movie Clip Time
1minute
2minutes
3minutes
30
Movie clip time: 1min/2min/3min
Select the recording duration for each video.
31
Sound Record: ON/OFF
In order to be able to record more comprehensive evidence, we recommend that you turn
on this switch.
00:08
08:39
10/07
PM
Fri.
Q: Why is every video recording so short?
Movie Clip Time: 1minutes/2minutes/3minutes
A: We set the recording interval of each video to 1min/2min/3min. This is for the convenience
of finding the locked video later. The main function of the recorder is to record, especially to
record emergency video. If each video is too long and the G-Sensor triggers emergency
recording when a collision occurs, the video will be locked and cannot be covered by the loop
recording, and customers will be difficult to find the video in the subsequent search. You need
slide the longer progress bar to find this locked video. And the capacity of the Micro SD card is
limited, if the locked video is too long, the normal video capacity that can be stored will
decrease.
(Avaliable after correctly installing the hardwire kit)
Paking Mode
32
Parking Mode
Off
12Hours
24Hours
There are 12H and 24H parking modes, you can choose according to your needs.
NOTE:
Principle
In the time-lapse recording mode, the car will not trigger the G-Sensor when it is vibrated,
and the emergency recording video will not appear in the locked folder.
When the hardwire kit is correctly connected and the Parking mode lapse Recording mode is
turned on, the acc is out of power when the car is turned off (bat is always charged), and the
dash cam detects that the acc is out of power and will stop normal recording and enter the
"Lapse Recording mode".
Advantage
1. Save electricity, will not drain the car battery.
2. Save the SD card space, which is 1/30 of the normal recording.
33
NOTE:
This function needs to connect the hardwire kit(ASIN: B09X1L1GMX), you can buy it yourself
or CONTACT US.
If you need the introduction and installation video of the hardwire kit, please CONTACT US.
If you want to lock some videos during timelapse mode, please set the G-Sensor Sensitivity.
Screen Saver
Off/1min/2min/3min.
If you want it to automatically turn off the screen or use it as a rearview mirror, you can set the
screen saver mode.
34
Off/High/Middle/Low
G-Sensor sensitivity
G-Sensor sensitivity
Off
High
Middle
Low
After turning on the G-Sensor, the dash cam will lock the video when it detects bumps while
driving.
Default booting display
Split screen/Front Camera/Rear Camera.
Choose the default camera image to display when powering on.
NOTE:
Recommended to adjust to medium/low.
35
Set the volume of the dash cam.
Volume setting
Volumn setting
Off
Low
Middle
High
Set the time and date manually.
12/24 time style.
MPH/KMH Select the unit you need.
Speed unit
Clock settings
Time Style
36
ON/OFF
Time zone(Available after installing GPS )
Daylight Saving time
Time zone
UTC -12:00
UTC -11:00
UTC -10:00
UTC -09:30

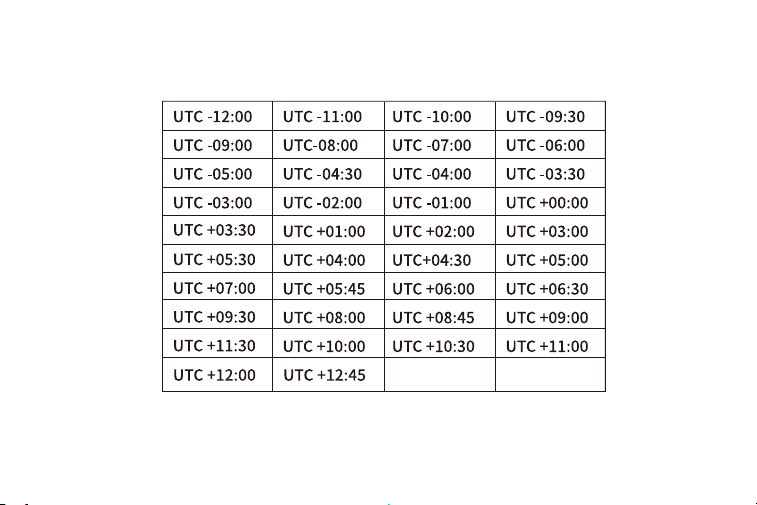

37
After plugging in the GPS, you need to set the time zone to get the correct time. After a
factory reset, the time zone also needs to be reset.
38
Mirror flip of rear image: ON/OFF
Upside down of rear image: ON/OFF
Format SD card
Clean all the data. It is recommended to manually format the SD card once a month. Please
format the SD card before first use.
If you are installing rear camera in a forward direction (fixing the bracket downwards), please
turn on "Upside down of rear image" and turn off "Mirror flip of rear image" to adjust the view.
39
Reset setup
This is used to restore factory settings.
When reversing, the reversing line will automatically appear on the screen, and the screen will
automatically be pressed down 15° horizontally. However, due to the different installation
location of each guest, manual adjustment is required.
Reversing line (Auxiliary function)
If your car does not have a reversing system and you need a backup reversing system as an
aid, you need to connect the red cable of the rear cam to the positive pole of your reversing
lamp.
If your car already has a reversing system, you just ignore the red cable on the rear cam.
When you shift to "r" gear, the rear view will automatically show on the screen with reversing
lines for easy and safe parking. You can enter the "Reversing line" option in the settings, then
adjust the angle of the reversing image and the reversing line. Also when in reversing, you can
adjust the viewing angle of the image. (
This function activate after the red wire of the rear
camera be connected to the positive pole of the reversing light.)
40
Q: How do I use the reversing system when reversing the car?
A: You can enter the "Reversing line" option in the settings to adjust the angle of the reversing
image and reversing line. Then switch the car to ”R” to enter the reversing system.
You can adjust the viewing angle and the positions of the four corners of the reversing line in
the "Reversing line" option of the settings
The reversing line has three colors of red, yellow and green. When the object behind the car
reaches the red distance, it means you can stop reversing.
GPS Information
Speed Cpmpensation
Speed compensation
+5
+3
+1
0

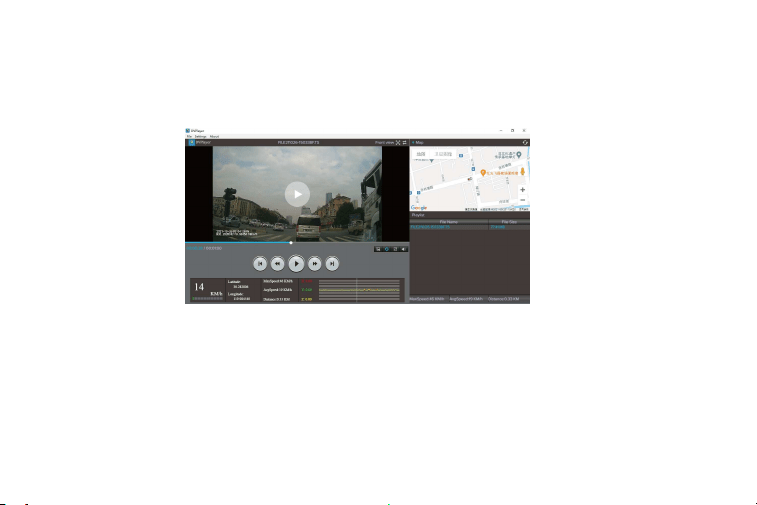

Please install the GPS first.
To track the Location, Speed, status, Signal Strength, please go to info on the Menu Setting.
Check your version number here.
Product information
41
Over Speed Remind
Over speed remind
Off
20 KM/H
25 KM/H
30 KM/H
Language
Clock Settings
Screen saver
Time style
Parking Mode
Daylight Saving
Time
Default booting
display
G-Sensor
sensitivity
Product information
Flicker
Movie Clip Time
Volumn setting
Product information
WOLFBOX_G840S_118_46 _20220928
Video Playback on PC
You can also get the link in the SD card.
If you need to track GPS information, please download the dedicated player, the download link
as follows: Mac/Win Version Download:
https://wolfbox.com/gps-player/
1. Please insert the GPS and SD card into the dash cam, after
restarting the machine, take out the SD card and use a card reader to
view it in the computer.
2. Open GPS_Player. Txt to get the download link.
42
Player interface
Trouble Shootings
Please install the GPS first.
To track the Location, Speed, status, Signal Strength, please go to info on the Menu Setting.
Please feel free to contact our customer support at [email protected]. Most email are
typically replied within 10 hours. All questions are answered within 24 Hours.
1. Click File in the upper left corner
2. Click "Open" to select the file
3. Start playing
43
Why the front lens image is tilted?
Please rotate the front lens to adjust the front image.
Why doesn't the rear camera work? Why can't the rear camerabe detected?
1. Please confirm whether the rear cable is installed correctly, pay attention to whether the 4pin
connection position is loose and whether the position of the host and the rear camera mouth is
loose. Please try to reconnect.
2. If still not work after reconnection, there may be a problem with the cable. Because when
wiring in the car, it may cause the metal wire in the rubber to bend and cause a short circuit.
Please CONTACT US and we will solve it for you.
Why can't it automatically switch to the rear camera when reversing or why can't the reversing
line appear?
1. Check if the 4pin is loose, and if the rear camera port of the dash cam is loose.
2. Check whether the red wire of the rear camera cable is connected to the positive pole of the
reverse light, please do not connect it to the brake light or other.
44
3. If the connection is correct, please use a tester to measure whether the voltage is output
from the reversing light when in reverse gear.
Why dash cam does not work/cannot be turned on/freezes/restarts repeatedly?
1. Unplug the GPS, card, and rear camera cable, reset after power on again, and try to see if it
can be turned on.
2. If the above does not work, please contact us.
ONE YEAR LIMITED WARRANTY
We are committed to giving customers the best product experience and after-sale service.
Our warranty period is one year. If the machine parts are damaged or there are any problems
during use, we will solve them in time and provide you with a satisfactory shopping experience.
Please CONTACT US with your online order, and we will provide free replacement and lifetime
technical support. Besides, you can also get free accessories from us.
45
USE
Check us out here!
We have professional customer service!
M
E-mail: service@wolfbox.com
Phone: +1 888 296 8399
