Mirror Dash Cam T10 Plus
User Manual
V01
IC warning:
This device contains licence-exempt transmitter(s)/receiver(s)/ that comply with Innovation Science and
Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:
1. This device not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the
device.
Radiation Exposure: This equipment complies with Canada radiation exposure limits set forth for an
uncontrolled environment. To maintain compliance with IC's RF Exposure guidelines, this equipment should be
installed and operated with minimum distance of 20cm the radiator your body. This device and its antenna(s)
must not be co-located or operation in conjunction with any other antenna or transmitter.
Déclaration de l'ISED Canada:
Cet appareil contient des tasmittre (s) / récepteur (s) sans licence / conformes à l'innovationRSS exemptes de
licence de Sciences et Développement économique Canada. L'opération est sous réserve des deux conditions
suivantes:
1. Cet appareil ne peut pas causer d'interférences et
.
2. Cet dispositif doit accepter toute interférence, y compris peut provoquer le fonctionnement indésirable de
l'appareil.
Exposition aux rayonnements : Cet équipement est conforme aux radiations du Canada limites d'exposition
pour un environnement incontrôlé noncé d'exposition RF Pour maintenir le respect des guides d'exposition RF
d'IC, cquipment doit être.installé et actionné avec une distance minimale de 20cm le radiateur de votre corps.
Cet appareil et ses antennes ne doivent pas être co-localisé ou en opération en conjonction avec toute autre
antenne ou émetteur.
01
CONTENT
Getting Started

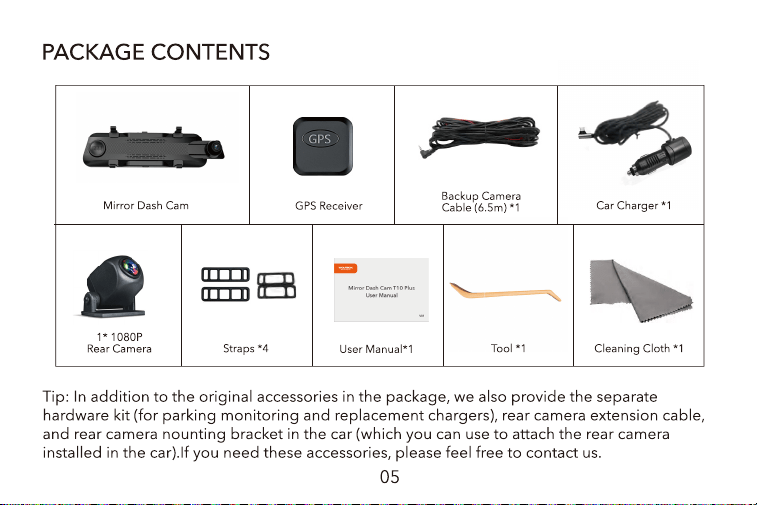

Package Contents
Overview
About the Micro SD Card
Installation
Date&Time Setting
Power ON/OFF
Menu Setting
03
05
06
07
09
20
25
25
02
CONTENT
About Hardwire Kit
Entering Time-Lapse
Playback Mode
Play on APP
Play on Computer
Touble Shootings
One Year Limited Warranty
Product Specifications
39
41
41
44
50
51
54
55
03
Please use the original power cable provided in package, do not use other power cables.
Please check the functionality of dash cam with its all accessories before installation. If you
want to find a professional for installation, please check the function first, so as to prevent
the inconvenience and installation cost loss caused by the machine problem after the
installation.
Please use original accessories provided in the package, just in case of compatible issues
after using others', especially use 2 or 3 in 1 cigar socket will lead to 100% insufficient current
supply.
Please don't splice rear camera wire for extension, the monitor may lose the rear image. The
length of original cable for rear camera is 20 feet, suitable for most types of cars. We also
have 33 feet rear camera extension cables sold separately.
Getting Started
Please read the instructions before operating.
04
If the machine cannot be turned on after the power is turned on, please keep the power on
and reset the machine. Please CONTACT US if it still doesn't work.
How to transfer videos to PC ? Insert memory card via card reader to your PC/MAC to view
or download them.We recommend that you use a dedicated video player to watch the video.
You can get it free at : https://wolfbox.com/gps-player/
Do NOT use Windows Media Player . It is NOT made to play 4K videos hence , your video
playback will lag.
NOTE
：
06
OVERVIEW
NO. Name Description
Record the front view of the
vehicle
Power Supply Port(Type-C)
Port used to connect the rear
camera
Provide extensible storage
(class 10 Max 256GB)

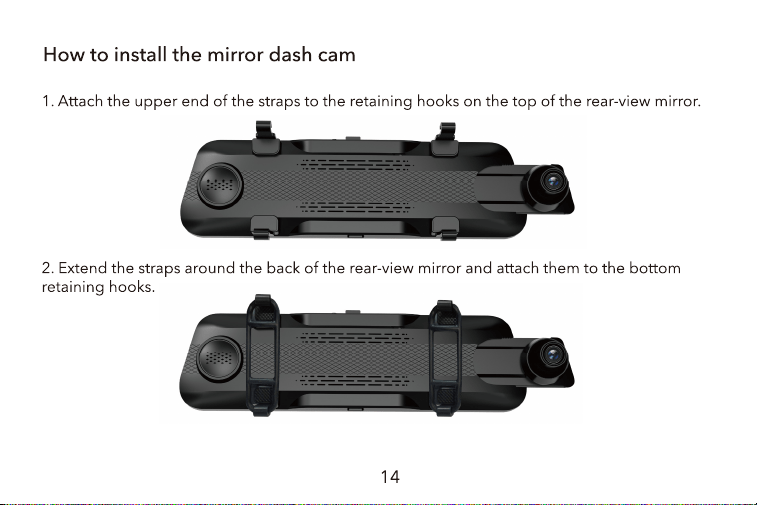

The machine can be fixed with
2 straps
Short press to wake and turn off
the screen, long press to turn
on and off the power
10 inch touch screen display
Used to connect GPS port(GPS
function requires optional GPS
antennal)
Front Camera
Power connector
Rear Camera Port
TF card slot
GPS port
Fasteners
Power button
Display screen
1
2
3
4
5
6
7
8
TYPE-C GPS
AV-IN
07
About the Micro SD Card
When using a new Micro SD card, be sure to format it on the main body.
Start/Stop Recording: Record and save
every precious moment
Photograph: Take photos one moment
Click for emergency recording
Sound Record is on
Sound Record is off
Screen brightness adjustment
Rear view/Front view switchable: Switch
between front view & rear view one moment
Video/Photo Playback: Playback the video & Photo
Menu Setting:Touch and enter to set the screen in
your favor (Please pause recording first)
Recording status
GPS Status: Once gps antenna connected, the GPS
icon on the home screen will show
Display time/date
01:20
01:20
00:09
Sat, 01 Jan
00:09
Sat, 01 Jan
N
0km/h
N
0km/h
08
Do not remove or insert a Micro SD card while the power is on.
Use a Micro SD card with Class 10 or higher(8GB-128GB).We have 32GB SD card
(Asin: B09Q87X76V) 128GB SD card (Asin: B0B7KWV4CJ) for sale.
For stable use, it is recommended to format the micro SD card regularly Recommend: Once
a month.
Please format the card in the dash cam, not on PC.
Formatting will erase all recorded data.
NOTE:
Pay attention to the orientation of the Micro SD card and insert
it into the slot (the side with the metal strip faces the back of the
dash cam)
Make sure that the micro SD card is securely inserted inside the
slot.
09
Please check the functionality of dash cam with its all accessories before installation.
Insert until you hear a click.
When removing the micro SD card, push in the micro SD card first and then pull it out after
the micro SD card pops out a little.
Installation
When you use the dash cam for the first time, the dash cam comes with factory default settings
and you do not need to set it manually.
TYPE-C GPS
AV-IN
10
Rear camera installation
We recommend install the rear camera above the license plate.
1. Fix camera with 3M adhesive
Find a best location tear off the 3M adhesive on the rear camera,
fix the rear camera near by the car license plate lamp. (if you need
to adjust the angle, please attach the rear camera bracket to the
rear camera and tighten it with screws first).
2. Remove the Panel
Remove the inner panel of the trunk to expose the rear wiring
compartment of the car. Open the trunk and look for a sturdy
inner panel covering the other side of the license plate installation
area. Then, insert a decorative removal tool or another thin device
behind the panel and pry it apart.
11
3. Install the cable
Look for lights near the license plate that have gaps to allow wires to pass through. Run the rear
camera cable through the gap into the trunk of your car.
4. Connect the rear cameras power cable to the extension
cable.
After snaking your rear camera's extension cable, connect
the power cable to your rear camera's extension cord.
*If your car has its own reversing
assist system, please ignore the
red wire on the rear camera cable.
12
5. Route your rear camera's power cable to the front of the car.
If you'd like, use a trim removal tool to pop out the headlining
panel directly above your windshield. Then, run your cable
through the exposed chamber.
6. Power on the dash cam with box included car charger, don't
charge it with your own chargers.
NOTE:
We do not recommend to install the rear camera inside the car, it will make the effect of the
rear camera worse. If you need to install the rear camera in the car, please purchase a in-car
rear camera (Asin: B09Q84NBFN), or contact us to get it.
If your car is a RV or a pickup truck, you can install the rear camera forward (the bracket is
below), and turn on the "Upside down of rear image" and turn off the "mirror flip of rear
image" to adjust the image.
13
If you need a license plate bracket, we also provide this accessory (Asin: B09J7VXQ2T), you
can search by yourself or CONTACT US.
Glare due to high beams is unavoidable. We have an upgraded WDR rear camera (Asin:
B09KRM9QQ5) that can effectively improve this problem.
About the WDR rear camera: it has the function of automatically adjusting the brightness.
So it will look darker than the front camera when shooting during the day. This is normal and
not caused by a camera defect. Also it automatically brightens at night and can reduce the
impact of rear vehicle lights. As shown below:
Day time (The rear camera is a little darker than the front
camera).
Day time (The rear camera is a little darker than the front
camera).
15
1. Route your rear camera's power cable to the front of the car.If you'd
like,use a trim removal tool to pop out the headlining panel directly
above your windshield.Then,run you cable through the exposed
chamber.
2. Power on the dash cam with box included car charger,don't charge it
with your own chargers.
3. Test the camera to make sure everything works.
4. Installation method (Note: GPS module is facing up, placed on the
instrument panel).
16
CAUTION:
Connect the cigar plug cord connector in the correct orientation. Connecting in the wrong
direction may cause malfunction or damage. If you cannot connect successfully, check the
connection part carefully before connecting.
Q: Why is the front lens picture so dark?
A: Please check if your front camera is facing the sky. If the lens is facing the sky, it will
automatically reduce the light reception, causing the screen to darken.
Facing the sky Adjust the front lens downward
17

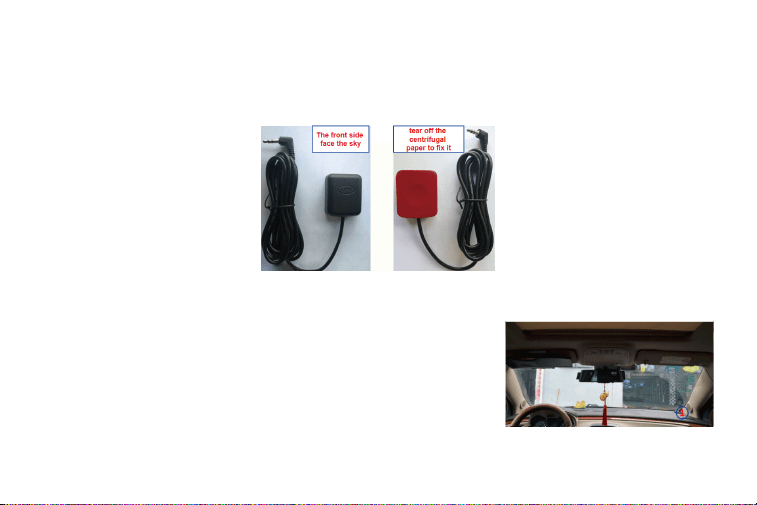

How to install the GPS
1. GPS front and back
2. Installation location
Considering the use effect and installation convenience, we
usually recommend customers to install it at position 1. Of
course, you can also try to install it in other locations for testing,
and choose the location you think is most suitable.
18
GPS Working
When GPS is not connected: There's nothing there
00:15
07:31
03/04
AM
Sat.
00:15
07:31
03/04
AM
Sat.
N
0 mph
19
When GPS is not connected
No signal
When GPS is connected
Q: Why is my GPS not working? /How to use GPS ?
A: If you cannot receive the signal after inserting the GPS, please follow the steps below.
00:40
07:31
03/04
AM
Sat.
N
0 mph
20
1. The vehicle must be within a large area.
2. Insert the GPS plug again.
3. Place the GPS plug upward.
4. Restart
5. It will be recognized after about 40 seconds.
If still cannot receive the signal, it may be a GPS problem. Please CONTACT US and we will
help you solve this problem.
Date&Time Setting
TimeZone Setting
Time zone
UTC -12:00
UTC -11:00
UTC -10:00
UTC -09:30
21
It will automatically update the time according to your location andtime zone due to GPS, so
you do not need to manually change the time. But you can adjust the daylight saving time by
changing the time zone.
Time Zones - GMT (Greenwich Mean Time) Values
UTC/GMT-12
UTC/GMT-7
UTC/GMT-3:30
UTC/GMT+1
UTC/GMT+4:30
UTC/GMT+6:30
UTC/GMT+10:30
UTC/GMT-11
UTC/GMT-6
UTC/GMT-3
UTC/GMT+2
UTC/GMT+5
UTC/GMT+7
UTC/GMT+11:30
UTC/GMT-10
UTC/GMT-5
UTC/GMT-2
UTC/GMT+3
UTC/GMT+5:30
UTC/GMT+8:45
UTC/GMT+12:45
UTC/GMT-9
UTC/GMT-4:30
UTC/GMT-1
UTC/GMT+3:30
UTC/GMT+5:45
UTC/GMT+9
UTC/GMT-8
UTC/GMT-4
UTC/GMT+0
UTC/GMT+4
UTC/GMT+6
UTC/GMT+9:30
22
If you need a special time zone or need any help, please CONTACT US.
NOTE:
The time is automatically adjusted when GPS is connected.If you are not connected to GPS,
manual setup is required.
GPS Information
Daylight Saving
Time
Product
information
Speed unit
Speed
compensation
Clock Settings
Over speed
remind
Reset Setup
Clock Settings
Y
2023
M
13
D
01
H
22
m
01
s
58
OK Cancel
Clock Settings
Flicker
Time style Time zone
Default booting
display
23
With GPS connected:
GPS Status: Once GPS is connected, the
GPS icon on the home screen will show
Menu Settings: Touch and select the
appropriate settings and functions
Front and Rear view switch
Recording Status
Photograph
Display Time/Date
Playback Menu
Brightness Control
Lock Files
Start / Stop Recording
N
0km/h
00:40
07:31
03/04
AM
Sat.
N
0 mph
07:31
03/04
AM
Sat.
00:40
24
Slide up and down the blank area on the screen to adjust the angle of view.
Blank area on the screen: Swipe the screen left or right to switch between front view, rear view,
or split-screen view.
07:31
03/04
AM
Sat.
N
-- mph
07:31
03/04
AM
Sat.
N
-- mph
25
NOTE
：
Ensure that the rear camera is connected
If you turn on the engine (ACC on) while the cigar power adapter is connected, the power
will be turned on automatically and the opening screen will be displayed.
Press and hold the power button to turn off the power during startup, and then briefly press
the power button again to turn on the power of the unit and display the opening screen.
Briefly press the power button to turn off the screen.
After powering ON the camera, press the button to enter the setup process.
Power ON/OFF
Menu Settings
26
Icon Function Function options
Adjust the video
recording resolution.
2.5K+1080P
1080P+1080P
Resolution
2.5K +1080P
1080P+1080P
UT
UT
Resolution
Movie Clip Time
1minute
2minutes
3minutes
UT
27
Split Time
Icon
Icon
Function
Function
Function options
Function options
Adjust the loop
recording duration.
Adjust the sensitivity
of G-sensor. It is
recommended
to adjust to"Low".
1min / 2min /3min
Off
High
Middle
Low
Movie Clip Tine
G-Sensor sensitivity
Off
High
Middle
Low
G-Sensor
sensitivity
28
Gsensor detects the impact and performs fixed time video recording for 20 seconds.
Emergency video recording time is the video file before impact + 20 seconds of emergency
video.
When the car crashes at 28 seconds, the normal recording time is 28 seconds, and then the
G-sensor detects the impact for 20 seconds, so the emergency recording time is 48 seconds.
The first Second
Start Recording
28 Seconds Car Crash
28 Seconds 20 Seconds
Normal Recording
Normal Recording
Emergency Recording
Video Save Time
28+20= 48 Seconds
NOTE
：
The G sensor detects the impact above the set value, and the LED light starts to turn yellow
and go off, which is recorded as an "Emergency Video".
29
Icon Function Function options
/
50Hz
60hz
Flicker
50 Hz
60 Hz
Middle
Low
Flicker
Screen saver
Off
1min
2min
3min
30
Icon Function Function options
Set the statues of the
screen display when
recording
Off/1min/2min/3min
Screen saver
Icon Function Function options
Flip the recording
direction up and
down or horizontally
Rear Flip
Rear Mirror
ON
OFF
Middle
Low
31
Icon Function Function options
12-Hour / 24-hour
time format
12-Hour
24-Hour
Time style
12H time style
24H time style
Middle
Low
Clock Settings
32
Icon Function Function options
Screen display
when reversing
/
Reversing line
The following 5 icons will appear only after the GPS is connected
33
Icon Function Function options
Set the vehicle
speed displaymode.
KM/H
MPH
Speed unit
km/h
mph
Middle
Low
Speed unit
Time zone
UTC -12:00
UTC -11:00
UTC -10:00
UTC -09:30
34
Icon Function Function options
Set the current
time zone (Default
Time Zone GMT5:00).
All time zones.
Icon Function Function options
Check the GPS
signal reception
details. (Number,
Speed, Longitude,
Latitude).
/
Time zone
GPS Information
Lon./LaL: 119.977239 30.279921
24 20 40 38 25 004 321 51 31 47
13 10 14 16 2717 21789 30
GPS Information
35
Icon Function Function options
Remind the driver
when vehicle is in
overspeed.
Off/20MPH/
25MPH/30MPH...
Over speed remind
Off
Over speed
remind
Speed compensation
+5
+3
+1
0
36
Icon Function Function options
Adjust the volume
when vehicle speeds
up or slows down
+5/+3/+1/0
Speed
compensation
Icon Function Function options
Set the common
language, the default
is English.
Language
37
Icon Function Function options
Format SD at once?
OK
Cancel
Language
Pormat SD-Card
Fornat Card?
OK Cancel
Format SD-Card
Language
Reset Setup
Reset Setup?
OK Cancel
38
Icon Function Function options
Restore the initial
settings.
OK
Cancel
Reset Setup
Product information
WOLFBOX_T10_966_53_20230221
www.wolfbox.com
Icon Function Function options
Restore the initial
settings.
/
Product
information
39
NOTE:
We will continue to update the firmware based on customer feedback.
About Hardwire Kit
The Parking Mode function requires a G900 hardwire kit activate. If you
need this function, please connect the hardwire kit.(CONTACT US to get
T10 Plus hardwire kit)
40
After T10 Plus dedicated hardware kit is
connected, the icon "Parking Mode" will
occur on the screen.
Resolution
Reversing line
Parking Mode
Movie Clip Time
WIFI switch
Upside down of
rear image
Language
Format SD-Card
G-Sensor
sensitivity
Screen saver
Volumn setting
GPS Information
Daylight Saving
Time
Product
information
Speed unit
Speed
compensation
Clock Settings
Over speed
remind
Reset Setup
Flicker
Time style Time zone
Default booting
display
Parking Mode
41
When you clik into there will be the following options :
Parking Mode
Off
12 Hours
24 Hours
Low
Parking Mode
Entering time-lapse... :
Option1
Option2
Option3
OFF
G-sensor working
：
Lapse Record
：
Low/Middle/High
12h/24h/48h
Playback Mode
When you turn on the power, the dash cam will start recording automatically. Click to
enter the playback mode.
42
Playback menu
Emergency Locked Recording
2
1
00:40
07:31
03/04
AM
Sat.
N
0 mph
00:40
07:31
03/04
AM
Sat.
N
0 mph
43
Normal Album
Emergency Locked file
Front and Rear Switch
CAUTION:
The front-view and the rear-view media files are displayed in different lists.
You need to click to switch between the front-view list and the rear-view media
files list.
CH1-20230301-215330
CH1-20230301-215328
CH1-20230301-215228
CH1-20230301-215019
CH1-20221112-022835
CH1-20221112-022821
44
NOTE:
Play on APP(About WIFI and APP)
If the video recorded by time-lapse mode is locked, it is still stored in the parking video folder,
but it is locked.
The WIFI feature has been designed so you can pair your dash camera wirelessly with your
smartphone and access your recording instantly from the dash cam. Here you can view,
download and share your videos easily with your friends and family. The app “Wolfbox” is a free
app that allows you to operate this WLAN built-in drive recorder from your smartphone.
Download the “Wolfbox” app
Please go to the following address to download the “Wolfbox” app:
https://wolfbox.com/app/
Or you can use your smart phone to scan the QR code to go to the
download page.
How to connect WIFI
45
2. WIFI Function on
Turn on the WIFI setting. The WIFI name and WIFI password will appear on the screen.
3. Connect WIFI
Now simply join the T10P WIFI by going into your iPhone or Android phone’s Settings > WiFi >
i07 WiFi. Then enter the default password:12345678 to join the network.
4. Open the “Wolfbox” app
Once your camera is connected to T10P WiFi successfully and when you open the “Wolfbox”
app, the camera will sync automatically. You should see the live video feed from the camera on
the “Wolfbox” app. Then keep exploring the app from here on.
Please choose to allow when these
prompts appear.
For Android Phone
Allow Wolfbox to access this
device’s location?
Allow Wolfbox to access photos
and media on your device?
CONTENT
46

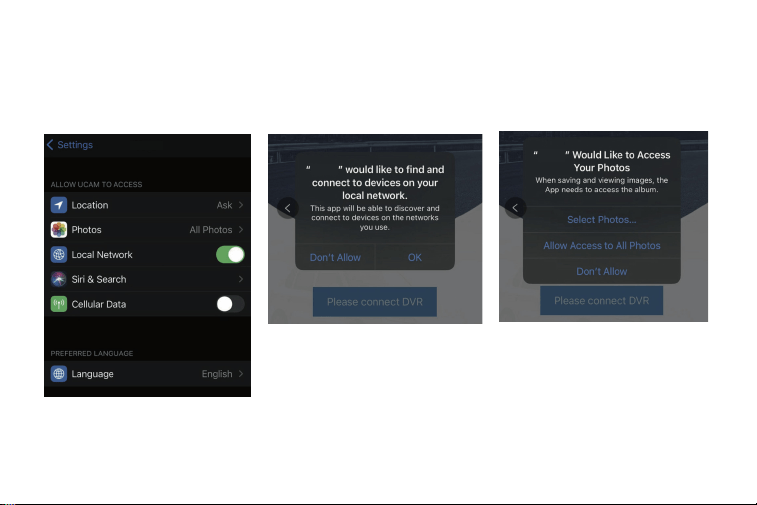

If you get this pop up for your iPhone while using WiFi feature, make sure to tap on "ALLOW"
or "OK"
For iPhone
Wolfbox
Wolfbox
Wolfbox
CONTENT
47
NOTE:
Recording Interface
Once you connect to T10P WiFi, it will say "No Internet". Which is fine. As long as you keep
the WIFI connection,you can still use the APP normally.
When connected to WIFI,the dash cam can only operate by phone.
Please CONTACT US if you need any help.
Mirror the image
Display the video screen in full screen
Stop recording
Capture video screen
Enter video list
Enter Camera Settings
48

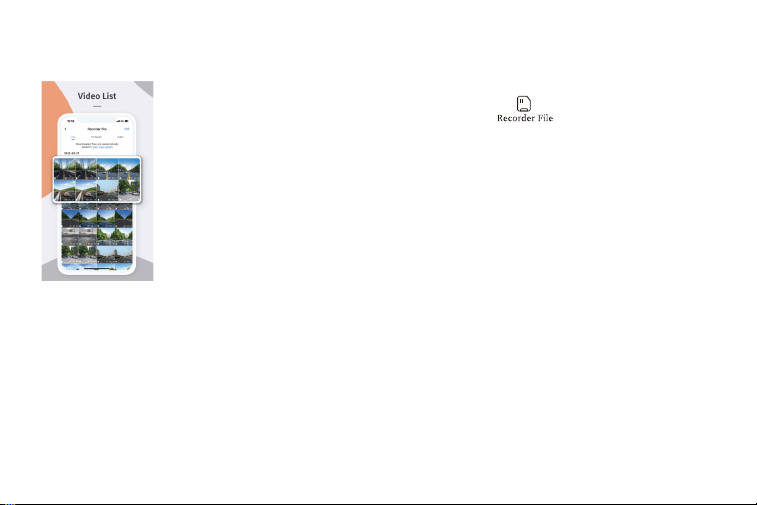

Check/Play data with APP
You can check and play the video by pressing “ ” on the recording
screen to enter the data file list.

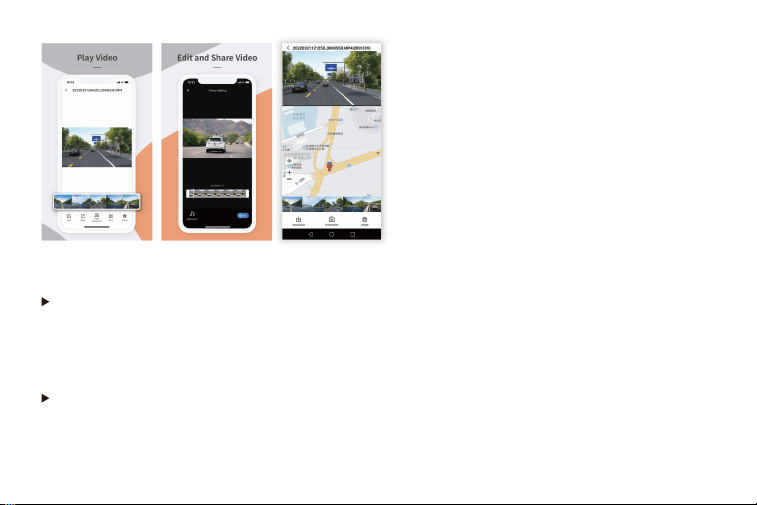

On the data file screen, you can select a file to play/download/screenshot/delete.
After download, you can share it to social media, such as facebook, wechat, line, etc.
You can select a local album, play the downloaded data, and view it in conjunction with Google
Maps.(Internet connection environment is required)
49
FAQ about WIFI&App
What is the WiFi range?
The WiFi signal range is about 10ft when there are no obstructions in the middle. Please
NOTE that just like your home WiFi network,you can't have WiFi signal outside your
home,the same way, WiFi range is 10FT from this small device.
Can I change the password?
Yes. You can set the WIFI password in the app. And if you need to modify the WIFI password,
please restart the dash cam and forget the original network with your mobile phone after the
modification is completed.
50
Can I change the password?
Yes. You can set the WIFI password in the app. And if you need to modify the WIFI password,
please restart the dash cam and forget the original network with your mobile phone after the
modification is completed.
Why can't I use the APP normally when all the steps are correct?
Because there are too many mobile phones and software version numbers, our APP is
currently not compatible with all mobile phones.
If you are unable to use the APP, please CONTACT US. We will include your mobile phone
model and software version.We need your help to improve our APP, thank you very much for
your support and understanding.
Play on Computer
Correct Video Player to Play 4K Videos
We recommend GPS Media player which can view google maps. You can get it free. Mac/Win
Version Download
：
https://wolfbox.com/gps-player/
51
Trouble Shootings
Please feel free to contact our customer support at [email protected]. Most emails are
typically replied within 10 hours. However, all questions are answered within 24 Hours.
CAUTION:
If you encounter problems during use please
CONTACT US.
Why rear camera cannot be detected?
1. Please confirm whether the rear cable is installed correctly, pay attention to whether the 4pin
connection position is loose and whether the position of the host and the rear camera mouth is
loose. Please try to reconnect.
2. If still not work after reconnection, there may be a problem with the cable. Because when
wiring in the car, it may cause the metal wire in the rubber to bend and cause a short circuit.
Please CONTACT US and we will solve it for you.
52
Why can't it automatically switch to the rear camera when reversing or why can't the reversing
line appear
1. Check if the 4pin is loose, and if the rear camera port of the dash cam is loose.
2. Check whether the red wire of the rear camera cable is connected to the positive pole of the
reverse light, please do not connect it to the brake light or other.
3. If the connection is correct, please use a tester to measure whether the voltage is output
from the reversing light when in reverse gear.
Card Error
Video is fuzzy
T10 Plus records in 2.5K image quality, with a large amount of data transmission. We
recommend you to buy the SD card we sell, 32GB SD card (Asin: B09Q87X76V) 128GB SD
card (Asin: B0B7KWV4CJ). Make sure the card is insert correctly, restart the machine. Please
CONTACT US if you still have card problems.
Please make sure the lens of the camera is clean and there is no dirt or grease on the
windshield also. If the lens is out of focus, we are extremely sorry in advance. This can be a
manufacturing defect. Please send us an email with a screenshot or a sample video so we can
get this resolved for you ASAP.
53
Camera turns ON/ OFF frequently automatically
Your WOLFBOX Dash Cam has Loop Cycle Recording. When it is set to either 1, 3 or 5 -mins, it
will delete oldest files and record newer files over and over when the memory card is full.
Camera Locks many videos automatically.
My Video playback on PC is lagging.
Please change your G-Sensor Setting to lower setting. This setting depends on type of car or
truck you are driving and how much vibration your car/truck is creating based on suspensions
and road condition.
Make sure you have use the dedicated GPS Player. You are viewing high-bit rate version of
video files. Slower PC may have problem with faster data processing. Please record videos at
lower resolution and try again. Contact us if problem still persists.
54
GPS can not be received
It may be difficult to receive GPS signals in tunnels or in valleys of buildings, and also difficult to
receive GPS signal immediately after starting this unit Please check again after a while. Please
CONTACT US if you still have problems.
ONE YEAR LIMITED WARRANTY
We are committed to giving customers the best product experience and after-sale service.
We would like to provide One full year of limited warranty for your product from the date of
purchase to be free from defects in materials and craftsmanship.
Please CONTACT US with your online order, and we will provide free replacement and lifetime
technical support. Besides, you can also get free accessories from us.
55
Product Specifications
Features
Item Name
Model
NAND Flash
Display/Touch Screen
Rearview camera
Full Screen Touch
GPS Trajectory
Button
Taking Pictures
Camera Rotation
Automatic Astem View
Display Resolution
The Speaker
MIC
Video Format
Image Format
The Battery Type
ACC
WOLFBOX GT10 Plus
SPI NOR FLASH 16Mbit
10 Inch
AHD
Yes
Yes
Power button
Yes
Yes
Yes
Front 2560*1440 Rear 1080
8R
4015
MP4
JPG
H.265
Farad Capacitance 5.5V 4.5F
Support ACC control of Hardwire Kit
10" Stream Mledia Dash
Camera
Storage
Compression Mode
Working
Temperature
56
Software Support
Language Support
G-Sensor
Loop Video
Recording Function
Photo Resolution
Working Voltage
Multilingual Translation
Yes
Yes
Yes
2560x1440P
1080P
5M
5 (V)
200uA
Rear Camera Video
Quality
The Minimum
Power Consumption
Front Camera Video
Quality
Check us out here!
We have professional customer service!
E-mail: [email protected]
Phone: +1 888 296 8399
