KOMGH60TXA
EN Oven User Manual
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. INSTALLATION.................................................................................................. 7
4. PRODUCT DESCRIPTION................................................................................ 9
5. CONTROL PANEL............................................................................................. 9
6. BEFORE FIRST USE....................................................................................... 10
7. DAILY USE....................................................................................................... 10
8. CLOCK FUNCTIONS....................................................................................... 12
9. USING THE ACCESSORIES........................................................................... 13
10. ADDITIONAL FUNCTIONS............................................................................ 14
11. HINTS AND TIPS........................................................................................... 14
12. CARE AND CLEANING..................................................................................24
13. TROUBLESHOOTING....................................................................................27
14. ENERGY EFFICIENCY.................................................................................. 28
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.electrolux.com/support
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Children of less than 8 years of age and persons with
very extensive and complex disabilities shall be kept
away from the appliance unless continuously
supervised.
• Children should be supervised to ensure that they do
not play with the appliance.
• Keep all packaging away from children and dispose of
it appropriately.
• WARNING: Keep children and pets away from the
appliance when it operates or when it cools down.
Accessible parts become hot during use.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
• Only a qualified person must install this appliance and
replace the cable.
• Do not use the appliance before installing it in the
built-in structure.
ENGLISH 3
• Disconnect the appliance from the power supply
before carrying out any maintenance.
• If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
• WARNING: Ensure that the appliance is switched off
before replacing the lamp to avoid the possibility of
electric shock.
• WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
• Always use oven gloves to remove or put in
accessories or ovenware.
• To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the
side walls. Install the shelf supports in the opposite
sequence.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can
scratch the surface, which may result in shattering of
the glass.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
• Keep the minimum distance from
other appliances and units.
• Before mounting the appliance, check
if the oven door opens without
restraint.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power
supply.

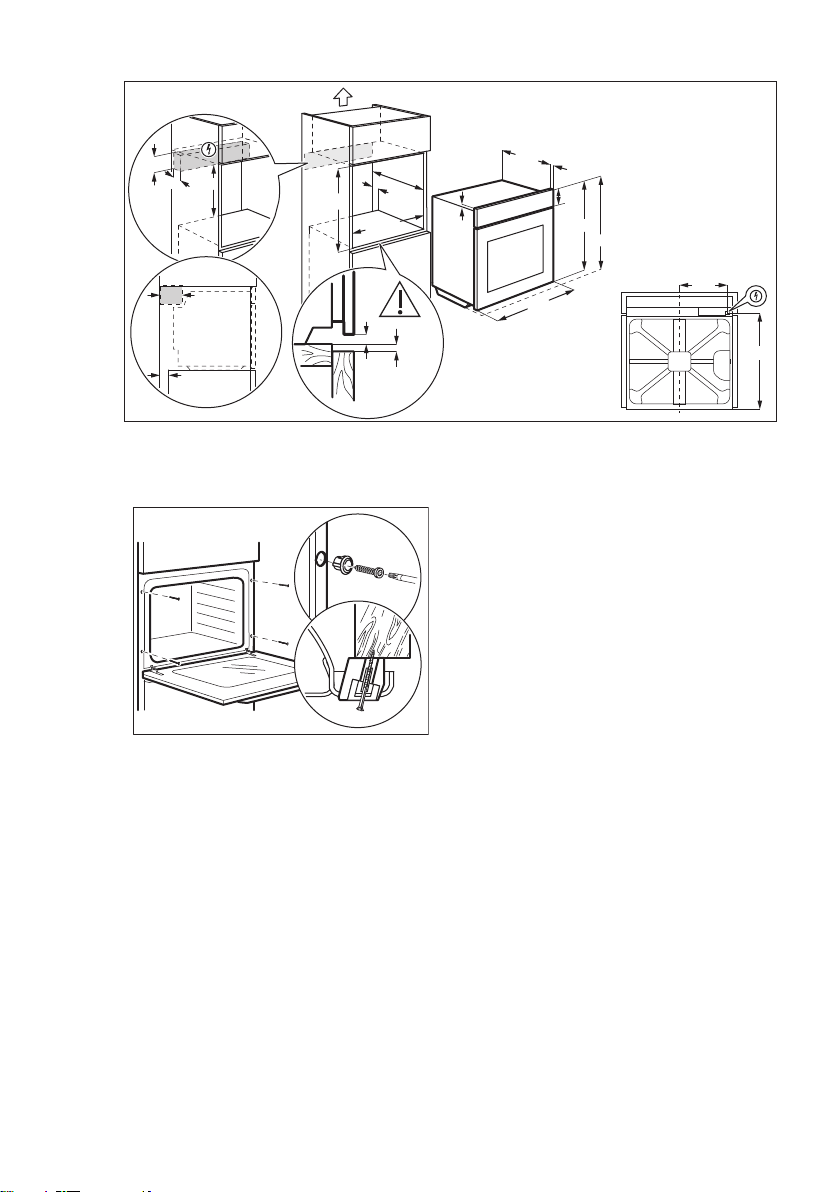

Cabinet minimum
height (Cabinet un‐
der the worktop
minimum height)
590 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
www.electrolux.com4
Height of the front of
the appliance
594 mm
Height of the back
of the appliance
576 mm
Width of the front of
the appliance
595 mm
Width of the back of
the appliance
559 mm
Depth of the appli‐
ance
569 mm
Built in depth of the
appliance
548 mm
Depth with open
door
1022 mm
Ventilation opening
minimum size.
Opening placed on
the bottom rear side
560x20 mm
Mains supply cable
length. Cable is
placed in the right
corner of the back
side
1500 mm
Mounting screws 4x25 mm
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Do not let mains cables touch or
come near the appliance door or the
niche below the appliance, especially
when it operates or the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
• This appliance is supplied only with a
main cable.
Cable types applicable for installa‐
tion or replacement for Europe:
H07 RN-F, H05 RN-F, H05 RRF, H05
VV-F, H05 V2V2-F (T90), H05 BB-F
For the section of the cable refer to the
total power on the rating plate. You can
also refer to the table:
Total power (W) Section of the ca‐
ble (mm²)
maximum 1380 3 x 0.75
maximum 2300 3 x 1
maximum 3680 3 x 1.5
The earth cord (green / yellow cable)
must be 2 cm longer than phase and
neutral cables (blue and brown cables).
ENGLISH 5
2.3 Use
WARNING!
Risk of injury, burns and
electric shock or explosion.
• This appliance is for household
(indoors) use only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and
air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly
on the bottom.
– do not put aluminium foil directly
on the bottom of cavity of the
appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or
stainless steel has no effect on the
performance of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
• Always cook with the oven door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make
sure the door is never closed when
the appliance operates. Heat and
moisture can build up behind a closed
furniture panel and cause subsequent
damage to the appliance, the housing
unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold.
There is the risk that the glass panels
can break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service
Centre.
• Be careful when you remove the door
from the appliance. The door is
heavy!
• Clean regularly the appliance to
prevent the deterioration of the
surface material.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• If you use an oven spray, follow the
safety instructions on its packaging.
www.electrolux.com6
2.5 Internal lighting
WARNING!
Risk of electric shock.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
• Use only lamps with the same
specifications.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to dispose of the
appliance.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Building in
www.youtube.com/electrolux
www.youtube.com/aeg
How to install your AEG/Electrolux
Oven - Column installation
18
594
589
114
21548
595
+-1
min. 550
20
600
min. 560
3
5
60
20
80
520
60
198
523
(*mm)
ENGLISH 7
min. 550
20
595
+-1
18
590
min. 560
594
589
114
21548
3
5
70
60
520
60
20
198
523
(*mm)
3.2 Securing the oven to the
cabinet
www.electrolux.com8
4. PRODUCT DESCRIPTION
4.1 General overview
8
7
12
9
10
11
5
4
1
2
3
331 64 52
1
Control panel
2
Knob for the heating functions
3
Power lamp / symbol
4
Display
5
Control knob (for the temperature)
6
Temperature indicator / symbol
7
Heating element
8
Lamp
9
Fan
10
Cavity embossment - Aqua cleaning
container
11
Shelf support, removable
12
Shelf positions
4.2 Accessories
• Wire shelf
For cookware, cake tins, roasts.
• Grill- / Roasting pan
To bake and roast or as pan to collect
fat.
• AirFry: Baking tray
To fry food with less oil or without
baking paper.
5. CONTROL PANEL
5.1 Retractable knobs
To use the appliance press the knob.
The knob comes out.
5.2 Sensor fields / Buttons
To set the time.
To set a clock function.
To set the time.
ENGLISH 9
5.3 Display
A B
A. Clock functions
B. Timer
6. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
6.1 Before first use
The oven can emit an odour and smoke during preheating. Make sure that the room is
ventilated.
Step 1 Step 2
Step 3
Set the clock Clean the oven Preheat the empty oven
1. , - press to set the
time. After approxi‐
mately 5 sec., the
flashing stops and the
display shows the time.
1. Remove all accesso‐
ries and removable
shelf supports from the
oven.
2. Clean the oven and the
accessories with a soft
cloth, warm water and
a mild detergent.
1. Set the maximum tem‐
perature for the func‐
tion: .
Time: 1 h.
2. Set the maximum tem‐
perature for the func‐
tion: .
Time: 15 min.
3. Set the maximum tem‐
perature for the func‐
tion: .
Time: 15 min.
Turn off the oven and wait until it is cold. Place the accessories and the removable
shelf supports in the oven.
7. DAILY USE
WARNING!
Refer to Safety chapters.
www.electrolux.com10
7.1 How to set: Heating
function
Step 1 Turn the knob for the heat‐
ing functions to select a
heating function.
Step 2 Turn the control knob to se‐
lect the temperature.
Step 3 When the cooking ends,
turn the knobs to the off po‐
sition to turn off the oven.
7.2 Heating functions
Heating
function
Application
Off position
The oven is off.
Light
To turn on the lamp.
True Fan
Cooking
To bake on up to three
shelf positions at the
same time and to dry
food.
Set the temperature 20
- 40 °C lower than for
Conventional Cooking.
Moist Fan
Baking
This function is de‐
signed to save energy
during cooking. When
you use this function,
the temperature in the
cavity may differ from
the set temperature.
The heating power may
be reduced. For more
information refer to
"Daily Use" chapter,
Notes on: Moist Fan
Baking.
Bottom Heat
To bake cakes with
crispy bottom and to
preserve food.
Heating
function
Application
Grill
To grill thin pieces of
food and to toast bread.
Fast Grilling
To grill thin pieces of
food in large quantities
and to toast bread.
Turbo Grilling
To roast large meat
joints or poultry with
bones on one shelf po‐
sition. To make gratins
and to brown.
Pizza Func‐
tion / AirFry
To bake pizza. To make
intensive browning and
a crispy bottom.
To fry food with less oil
or without baking paper.
For dishes like french
fries or pizza.
Conventional
Cooking /
Aqua Clean
To bake and roast food
on one shelf position.
Refer to "Care and
cleaning" chapter for
more information about:
Aqua Clean.
7.3 Notes on: Moist Fan Baking
This function was used to comply with
the energy efficiency class and
ecodesign requirements according to EU
65/2014 and EU 66/2014. Tests
according to EN 60350-1.
The oven door should be closed during
cooking so that the function is not
interrupted and the oven operates with
the highest energy efficiency possible.
For the cooking instructions refer to
"Hints and tips" chapter, Moist Fan
Baking. For general energy saving
recommendations refer to "Energy
Efficiency" chapter, Energy Saving.
ENGLISH 11
8. CLOCK FUNCTIONS
8.1 Clock functions
Clock function Application
Time of Day
To set, change or check the time of day.
Duration
To set how long the oven works.
Minute Minder
To set a countdown. This function has no effect on the
operation of the oven. You can set this function at any
time, also when the oven is off.
8.2 How to set: Clock functions
How to set: Time of Day
- flashes when you connect the oven to the electrical supply, when there was a
power cut or when the timer is not set.
, - press to set the time.
After approximately 5 sec., the flashing stops and the display shows the time.
How to change: Time of Day
Step 1
- press repeatedly to change the time of day. - starts to flash.
Step 2
, - press to set the time.
After approximately 5 sec., the flashing stops and the display shows the
time.
How to set: Duration
Step 1 Set an oven function and the temperature.
Step 2
- press repeatedly. - starts to flash.
Step 3
, - press to set the duration.
The display shows: .
- flashes when the set time ends. The signal sounds and the oven
turns off.
Step 4 Press any button to stop the signal.
Step 5 Turn the knobs to the off position.
www.electrolux.com12
How to set: Minute Minder
Step 1
- press repeatedly. - starts to flash.
Step 2
, - press to set the time.
The function starts automatically after 5 sec.
When the set time ends, the signal sounds.
Step 3 Press any button to stop the signal.
Step 4 Turn the knobs to the off position.
How to cancel: Clock functions
Step 1
- press repeatedly until the clock function symbol starts to flash.
Step 2
Press and hold: .
The clock function turns off after few seconds.
9. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
9.1 Inserting accessories
A small indentation at the top increases
safety. The indentations are also anti-tip
devices. The high rim around the shelf
prevents cookware from slipping of the
shelf.
Wire shelf:
Push the shelf between the guide
bars of the shelf support and make
sure that the feet point down.
ENGLISH 13
Deep pan:
Push the tray between the guide bars
of the shelf support.
Wire shelf, Deep pan:
Push the tray between the guide bars
of the shelf support and the wire shelf
on the guide bars above.
AirFry:
Place the tray on the third shelf posi‐
tion.
Place the baking tray on the first shelf
position.
10. ADDITIONAL FUNCTIONS
10.1 Cooling fan
When the oven operates, the cooling fan
turns on automatically to keep the
surfaces of the oven cool. If you turn off
the oven, the cooling fan can continue to
operate until the oven cools down.
10.2 Safety thermostat
Incorrect operation of the oven or
defective components can cause
dangerous overheating. To prevent this,
the oven has a safety thermostat which
interrupts the power supply. The oven
turns on again automatically when the
temperature drops.
11. HINTS AND TIPS
Refer to Safety chapters.
11.1 Cooking recommendations
The oven has five shelf positions.
www.electrolux.com14
Count the shelf positions from the bottom
of the oven floor.
Your oven may bake or roast differently
to the oven you had before. The below
tables provide you with the standard
settings for temperature, cooking time
and shelf position.
If you cannot find the settings for a
special recipe, look for the similar one.
The oven has a special system which
circulates the air and constantly recycles
the steam. With this system you can
cook in a steamy environment and keep
the food soft inside and crusty outside. It
decreases the cooking time and energy
consumption.
Baking cakes
Do not open the oven door before 3/4 of
the set cooking time is up.
If you use two baking trays at the same
time, keep one empty level between
them.
Cooking meat and fish
Use a deep pan for very fatty food to
prevent the oven from stains that can be
permanent.
Leave the meat for approximately 15
minutes before carving so that the juice
does not seep out.
To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke
condensation, add water each time after
it dries up.
Cooking times
Cooking times depend on the type of
food, its consistency, and volume.
Initially, monitor the performance when
you cook. Find the best settings (heat
setting, cooking time, etc.) for your
cookware, recipes and quantities when
you use this appliance.
11.2 Baking and roasting
CAKES
Conventional
Cooking
True Fan Cooking
(min)
(°C) (°C)
Whisked rec‐
ipes
170 2 160 3 (2 and 4) 45 - 60 Cake
mould
Shortbread
dough
170 2 160 3 (2 and 4) 20 - 30 Cake
mould
Buttermilk
cheesecake
170 1 165 2 60 - 80 Cake
mould, Ø
26 cm
Strudel 175 3 150 2 60 - 80 Baking tray
Jam tart 170 2 165 2 30 - 40 Cake
mould, Ø
26 cm
Christmas
cake, preheat
the empty
oven
160 2 150 2 90 - 120 Cake
mould, Ø
20 cm
ENGLISH 15
CAKES
Conventional
Cooking
True Fan Cooking
(min)
(°C) (°C)
Plum cake,
preheat the
empty oven
175 1 160 2 50 - 60 Bread tin
Muffins 170 3 140 - 150 3 20 - 30 Baking tray
Muffins, two
levels
- - 140 - 150 2 and 4 25 - 35 Baking tray
Muffins, three
levels
- - 140 - 150 1, 3 and 5 30 - 45 Baking tray
Biscuits 140 3 140 - 150 3 30 - 35 Baking tray
Biscuits, two
levels
- - 140 - 150 2 and 4 35 - 40 Baking tray
Biscuits, three
levels
- - 140 - 150 1, 3 and 5 35 - 45 Baking tray
Meringues 120 3 120 3 80 - 100 Baking tray
Meringues,
two levels,
preheat the
empty oven
- - 120 2 and 4 80 - 100 Baking tray
Buns, preheat
the empty
oven
190 3 190 3 12 - 20 Baking tray
Eclairs 190 3 170 3 25 - 35 Baking tray
Eclairs, two
levels
- - 170 2 and 4 35 - 45 Baking tray
Plate tarts 180 2 170 2 45 - 70 Cake
mould, Ø
20 cm
Rich fruit
cake
160 1 150 2 110 -
120
Cake
mould, Ø
24 cm
Preheat the empty oven.
www.electrolux.com16
BREAD
AND PIZZA
Conventional
Cooking
True Fan Cooking
(min)
(°C) (°C)
White bread, 1 -
2 pieces, 0.5 kg
each
190 1 190 1 60 - 70 -
Rye bread, pre‐
heating is not
needed
190 1 180 1 30 - 45 Bread tin
Bread rolls, 6 - 8
rolls
190 2 180 2 (2 and
4)
25 - 40 Baking
tray
Pizza 230 - 250 1 230 - 250 1 10 - 20 Enamelled
tray
Scones 200 3 190 3 10 - 20 Baking
tray
Preheat the empty oven.
Use the cake mould.
FLANS
Conventional Cook‐
ing
True Fan Cooking
(min)
(°C) (°C)
Pasta flan, preheating is
not needed
200 2 180 2 40 - 50
Vegetable flan, preheat‐
ing is not needed
200 2 175 2 45 - 60
Quiches 180 1 180 1 50 - 60
Lasagne 180 - 190 2 180 - 190 2 25 - 40
Cannelloni 180 - 190 2 180 - 190 2 25 - 40
Use the second shelf position.
Use the wire shelf.
ENGLISH 17
MEAT
Conventional
Cooking
True Fan
Cooking
(min)
(°C) (°C)
Beef 200 190 50 - 70
Pork 180 180 90 - 120
Veal 190 175 90 - 120
English roast beef, rare 210 200 50 - 60
English roast beef, medium 210 200 60 - 70
English roast beef, well done 210 200 70 - 75
MEAT
Conventional
Cooking
True Fan Cooking
(min)
(°C) (°C)
Pork shoulder, with rind 180 2 170 2 120 - 150
Pork shin, 2 pieces 180 2 160 2 100 - 120
Leg of lamb 190 2 175 2 110 - 130
Whole chicken 220 2 200 2 70 - 85
Whole turkey 180 2 160 2 210 - 240
Whole duck 175 2 220 2 120 - 150
Whole goose 175 2 160 1 150 - 200
Rabbit, cut in pieces 190 2 175 2 60 - 80
Hare, cut in pieces 190 2 175 2 150 - 200
Whole pheasant 190 2 175 2 90 - 120
Use the second shelf position.
FISH
Conventional
Cooking
True Fan Cook‐
ing
(min)
(°C) (°C)
Trout / Sea bream, 3 - 4 fish 190 175 40 - 55
Tuna / Salmon, 4 - 6 fillets 190 175 35 - 60
www.electrolux.com18
11.3 Grill
Preheat the empty oven.
Use the fourth shelf position.
Grill with the maximum temperature setting.
GRILL
(kg)
(min)
1st side
(min)
2nd side
Fillet steaks, 4 pieces 0.8 12 - 15 12 - 14
Beef steak, 4 pieces 0.6 10 - 12 6 - 8
Sausages, 8 - 12 - 15 10 - 12
Pork chops, 4 pieces 0.6 12 - 16 12 - 14
Chicken, half, 2 1 30 - 35 25 - 30
Kebabs, 4 - 10 - 15 10 - 12
Chicken breast, 4 pieces 0.4 12 - 15 12 - 14
Burgers, 6 0.6 20 - 30 -
Fish fillet, 4 pieces 0.4 12 - 14 10 - 12
Toasted sandwiches, 4 - 6 - 5 - 7 -
Toast, 4 - 6 - 2 - 4 2 - 3
11.4 Turbo Grilling
Preheat the empty oven.
Use the first or the second shelf position.
To calculate the roasting time multiple
the time given in the table below by the
centimetres of thickness of the fillet.
BEEF
(°C) (min)
Roast beef or fil‐
let, rare
190 - 200 5 - 6
Roast beef or fil‐
let, medium
180 - 190 6 - 8
Roast beef or fil‐
let, well done
170 - 180 8 - 10
PORK
(°C) (min)
Shoulder / Neck /
Ham joint, 1 - 1.5
kg
160 - 180 90 - 120
Chops / Spare
rib, 1 - 1.5 kg
170 - 180 60 - 90
Meatloaf, 0.75 - 1
kg
160 - 170 50 - 60
Pork knuckle,
precooked, 0.75 -
1 kg
150 - 170 90 - 120
VEAL
(°C) (min)
Roast veal, 1 kg 160 - 180 90 - 120
ENGLISH 19
VEAL
(°C) (min)
Veal knuckle, 1.5
- 2 kg
160 - 180 120 - 150
LAMB
(°C) (min)
Lamb leg / Roast
lamb, 1 - 1.5 kg
150 - 170 100 - 120
Lamb saddle, 1 -
1.5 kg
160 - 180 40 - 60
POULTRY
(°C) (min)
Poultry, portions,
0.2 - 0.25 kg
each
200 - 220 30 - 50
Chicken, half,
0.4 - 0.5 kg each
190 - 210 35 - 50
Chicken, pou‐
lard, 1 - 1.5 kg
190 - 210 50 - 70
Duck, 1.5 - 2 kg 180 - 200 80 - 100
Goose, 3.5 - 5
kg
160 - 180 120 - 180
Turkey, 2.5 - 3.5
kg
160 - 180 120 - 150
Turkey, 4 - 6 kg 140 - 160 150 - 240
FISH
(STEAMED) (°C) (min)
Whole fish, 1 -
1.5 kg
210 - 220 40 - 60
11.5 AirFry
Put the food directly on the tray.
Set the temperature to 180 - 220°C.
Use the function: Pizza Function / AirFry.
The food does not have to be turned
during cooking.
French fries, fro‐
zen
-
French fries, fresh Apply 1 table‐
spoon of oil.
Potato wedges,
frozen
-
Potato wedges,
fresh
Apply 1 table‐
spoon of oil.
Potato patties -
Croquettes -
Spring rolls, frozen -
Roasted vegeta‐
bles, fresh
Apply 1 table‐
spoon of oil.
11.6 Dehydrating - True Fan
Cooking
Cover trays with grease proof paper or
baking parchment.
For a better result, stop the oven halfway
through the drying time, open the door
and let it cool down for one night to
complete the drying.
For 1 tray use the third shelf position.
For 2 trays use the first and fourth shelf
position.
VEGETA‐
BLES (°C) (h)
Beans 60 - 70 6 - 8
Peppers 60 - 70 5 - 6
Vegetables for
soup
60 - 70 5 - 6
Mushrooms 50 - 60 6 - 8
Herbs 40 - 50 2 - 3
Set the temperature to 60 - 70 °C.
www.electrolux.com20
FRUIT
(h)
Plums 8 - 10
Apricots 8 - 10
FRUIT
(h)
Apple slices 6 - 8
Pears 6 - 9
11.7 Moist Fan Baking - recommended accessories
Use the dark and non-reflective tins and containers. They have better heat absorption
than the light colour and reflective dishes.
Pizza pan
Baking dish
Ramekins
Flan base tin
Dark, non-reflective
28 cm diameter
Dark, non-reflective
26 cm diameter
Ceramic
8 cm diame‐
ter, 5 cm
height
Dark, non-reflective
28 cm diameter
11.8 Moist Fan Baking
For the best results follow suggestions
listed in the table below.
(°C) (min)
Sweet rolls, 12
pieces
baking tray or dripping
pan
175 3 40 - 50
Rolls, 9 pieces baking tray or dripping
pan
180 2 35 - 45
Pizza, frozen,
0.35 kg
wire shelf 180 2 45 - 55
Swiss roll baking tray or dripping
pan
170 2 30 - 40
Brownie baking tray or dripping
pan
170 2 45 - 50
Soufflè, 6
pieces
ceramic ramekins on
wire shelf
190 3 45 - 55
Sponge flan
base
flan base tin on wire
shelf
180 2 35 - 45
ENGLISH 21
(°C) (min)
Victoria sand‐
wich
baking dish on wire
shelf
170 2 35 - 50
Poached fish,
0.3 kg
baking tray or dripping
pan
180 2 35 - 45
Whole fish, 0.2
kg
baking tray or dripping
pan
180 3 25 - 35
Fish fillet, 0.3 kg pizza pan on wire shelf 170 3 30 - 40
Poached meat,
0.25 kg
baking tray or dripping
pan
180 3 35 - 45
Shashlik, 0.5 kg baking tray or dripping
pan
180 3 40 - 50
Cookies, 16
pieces
baking tray or dripping
pan
150 2 30 - 45
Macaroons, 20
pieces
baking tray or dripping
pan
180 2 45 - 55
Muffins, 12
pieces
baking tray or dripping
pan
170 2 30 - 40
Savory pastry,
16 pieces
baking tray or dripping
pan
170 2 35 - 45
Short crust bis‐
cuits, 20 pieces
baking tray or dripping
pan
150 2 40 - 50
Tartlets, 8
pieces
baking tray or dripping
pan
170 2 30 - 40
Vegetables,
poached, 0.4 kg
baking tray or dripping
pan
180 2 35 - 45
Vegetarian
omelette
pizza pan on wire shelf 180 3 35 - 45
Mediterranean
vegetables, 0.7
kg
baking tray or dripping
pan
180 4 35 - 45
11.9 Information for test
institutes
Tests according to IEC 60350-1.
www.electrolux.com22
(°C) (min)
Small
cakes,
20 per
tray
Conven‐
tional
Cooking
Baking
tray
3 170 20 - 30 -
Small
cakes,
20 per
tray
True Fan
Cooking
Baking
tray
3 150 -
160
20 - 35 -
Small
cakes,
20 per
tray
True Fan
Cooking
Baking
tray
2 and 4 150 -
160
20 - 35 -
Apple
pie, 2
tins Ø20
cm
Conven‐
tional
Cooking
Wire
shelf
2 180 70 - 90 -
Apple
pie, 2
tins Ø20
cm
True Fan
Cooking
Wire
shelf
2 160 70 - 90 -
Sponge
cake,
cake
mould
Ø26 cm
Conven‐
tional
Cooking
Wire
shelf
2 170 40 - 50 Preheat the
oven for 10 mi‐
nutes.
Sponge
cake,
cake
mould
Ø26 cm
True Fan
Cooking
Wire
shelf
2 160 40 - 50 Preheat the
oven for 10 mi‐
nutes.
Sponge
cake,
cake
mould
Ø26 cm
True Fan
Cooking
Wire
shelf
2 and 4 160 40 - 60 Preheat the
oven for 10 mi‐
nutes.
Short
bread
True Fan
Cooking
Baking
tray
3 140 -
150
20 - 40 -
Short
bread
True Fan
Cooking
Baking
tray
2 and 4 140 -
150
25 - 45 -
Short
bread
Conven‐
tional
Cooking
Baking
tray
3 140 -
150
25 - 45 -
ENGLISH 23
(°C) (min)
Toast, 4
- 6
pieces
Grill Wire
shelf
4 max. 2 - 3 mi‐
nutes first
side; 2 - 3
minutes
second
side
Preheat the
oven for 3 mi‐
nutes.
Beef
burger,
6
pieces,
0.6 kg
Grill Wire
shelf and
dripping
pan
4 max. 20 - 30 Put the wire
shelf on the
fourth level and
the dripping pan
on the third level
of the oven. Turn
the food halfway
through the
cooking time.
Preheat the
oven for 3 mi‐
nutes.
12. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
12.1 Notes on cleaning
Cleaning
Agents
Clean the front of the oven with a soft cloth with warm water and a
mild detergent. Clean and check the door gasket around the frame of
the cavity.
Use a cleaning solution to clean metal surfaces.
Clean stains with a mild detergent.
Everyday
Use
Clean the cavity after each use. Fat accumulation or other residue
may cause fire.
Moisture can condense in the oven or on the door glass panels. To
decrease the condensation, let the oven work for 10 minutes before
cooking. Do not store the food in the oven for longer than 20 minutes.
Dry the cavity with a soft cloth after each use.
Accessories
Clean all accessories after each use and let them dry. Use a soft
cloth with warm water and a mild detergent. Do not clean the acces‐
sories in a dishwasher.
Do not clean the non-stick accessories using abrasive cleaner or
sharp-edged objects.
www.electrolux.com24
12.2 How to remove: Shelf
supports
Remove the shelf supports to clean the
oven.
Step 1 Turn off the oven and wait
until it is cold.
Step 2 Pull the front of the shelf
support away from the side
wall.
Step 3 Pull the rear end of the shelf
support away from the side
wall and remove it.
2
1
Step 4 Install the shelf supports in
the opposite sequence.
12.3 How to use: Aqua Clean
This cleaning procedure uses humidity to
remove remaining fat and food particles
from the oven.
Step 1 Pour water into the cavity
embossment: 300 ml.
Step 2
Set the function: .
Step 3 Set the temperature to
90 °C.
Step 4 Let the oven work for 30
min.
Step 5 Turn off the oven.
Step 6 Wait until the oven is cold.
Dry the cavity with a soft
cloth.
12.4 How to remove and install: Door
The oven door has two glass panels. You can remove the oven door and the internal
glass panel to clean it. Read the whole "Removing and installing door" instruction
before you remove the glass panels.
CAUTION!
Do not use the oven without the glass panels.
ENGLISH 25
Step 1 Fully open the door and find the
hinge to the right side of the
door.
Step 2 Use a screwdriver to lift and turn
fully the right side hinge lever.
Step 3 Find the hinge to the left side of
the door.
Step 4 Lift and turn the lever fully on the
left hinge.
Step 5 Close the oven door halfway to
the first opening position. Then
lift and pull forward and remove
the door from its seat.
Step 6 Put the door on a soft cloth on a
stable surface.
Step 7 Hold the door trim (B) on the top
edge of the door at the two sides
and push inwards to release the
clip seal.
Step 8 Pull the door trim to the front to
remove it.
Step 9 Hold the door glass panel by its
top edge and carefully pull it out.
Make sure the glass slides out of
the supports completely.
1
2
B
www.electrolux.com26
Step 10 Clean the glass panels with wa‐
ter and soap. Dry the glass pan‐
els carefully. Do not clean the
glass panels in the dishwasher.
Step 11 After cleaning, install the glass
panel and the oven door.
The screen-printing zone must face the
inner side of the door. Make sure that
after the installation the surface of the
glass panel frame on the screen-printing
zones is not rough when you touch it.
When installed correctly the door trim
clicks.
Make sure that you install the internal
glass panel in the seats correctly.
A
12.5 How to replace: Lamp
WARNING!
Risk of electric shock.
The lamp can be hot.
Always hold the halogen lamp with a
cloth to prevent grease residue from
burning on the lamp.
Before you replace the lamp:
Step 1 Step 2 Step 3
Turn off the oven. Wait un‐
til the oven is cold.
Disconnect the oven from
the mains.
Put a cloth on the bottom
of the cavity.
Back lamp
Step 1 Turn the glass cover to remove it.
Step 2 Clean the glass cover.
Step 3 Replace the lamp with a suitable 300 °C heat-resistant lamp.
Step 4 Install the glass cover.
13. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
13.1 What to do if...
In any cases not included in this table
please contact with an Authorised
Service Centre.
ENGLISH 27
Problem Check if...
The oven does not
heat up.
The fuse is blown.
The door gasket is
damaged.
Do not use the
oven. Contact an
Authorised Service
Centre.
Problem Check if...
The display shows
"12.00".
There was a power
cut. Set the time of
day.
The lamp does not
work.
The lamp is burnt
out.
13.2 Service data
If you cannot find a solution to the problem yourself, contact your dealer or an
Authorised Service Centre.
The necessary data for the service centre is on the rating plate. The rating plate is on
the front frame of the oven cavity. Do not remove the rating plate from the oven cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
14. ENERGY EFFICIENCY
14.1 Energy saving
The oven has features which
help you save energy during
everyday cooking.
Make sure that the oven door is closed
when the oven operates. Do not open
the oven door too often during cooking.
Keep the door gasket clean and make
sure it is well fixed in its position.
Use metal cookware to improve energy
saving.
When possible, do not preheat the oven
before cooking.
Keep breaks between baking as short as
possible when you prepare a few dishes
at one time.
Cooking with fan
When possible, use the cooking
functions with fan to save energy.
Residual heat
When the cooking duration is longer than
30 min, reduce the oven temperature to
minimum 3 - 10 min before the end of
cooking. The residual heat inside the
oven will continue to cook.
Use the residual heat to warm up other
dishes.
Keep food warm
Choose the lowest possible temperature
setting to use residual heat and keep a
meal warm.
Moist Fan Baking
Function designed to save energy during
cooking.
www.electrolux.com28
15. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
*
ENGLISH 29
www.electrolux.com/shop
867360994-A-132021
