1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this product.
9 Locate product in a suitable working area.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
WARNING! Use product on level and solid ground, preferably concrete. Avoid tarmacadam since the product may sink into the surface.
9 Keep the product clean and tidy in accordance with good workshop practice.
9 Keep children and unauthorised persons away from the working area.
8 DO NOT use the product for any purpose other than that for which it is designed.
8 DO NOT exceed maximum capacity of product.
8 DO NOT undertake work on the product without the work piece being adequately secured. Use clamps or a vice (not included) to secure the
work piece. Available from your Sealey stockist.
8 DO NOT use the product out of doors.
8 DO NOT get the product wet or use in damp or wet locations or areas where there is condensation.
8 DO NOT clean the product with any solvents which may damage the paint surface or the protective coating.
2. INTRODUCTION
The Sealey modular racking system is nished with a heavy-duty textured powder coat to prevent against rusting. Simply choose
your base, middle and top units and push together using nylon connectors to create versatile storage for the workshop, garage, home
or ofce. All drawers have ball-bearing drawer slides for smooth operation and cupboard doors are tted with spring loaded hinges
allowing them to be tted the side that suits your environment. Buy individually (see specic model number for full specs) or as one of
our pre-created combo’s.
3. SPECIFICATION
4. CONTENTS
MODULAR RACKING TOP CUPBOARD UNIT 580MM
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
APMRT1 Issue 2 03/07/24
Original Language Version
© Jack Sealey Limited
Refer to
instructions

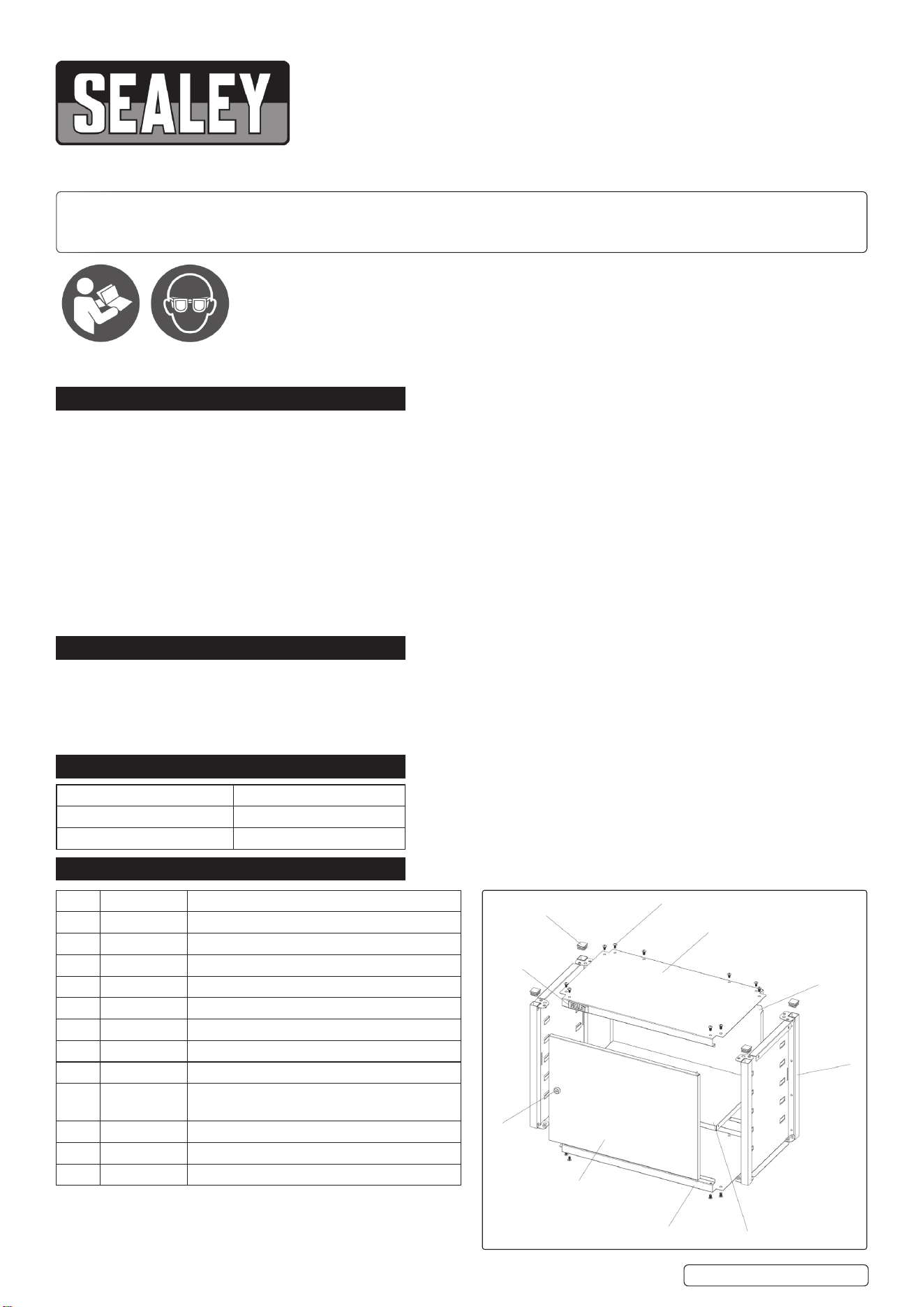

Item Part Description
1 APMRT1-01 Side Panel
2 APMRT1-02 Top Panel
3 APMRB3-03 Top Panel (Bottom Panel)
4 APMRT1-04 Back Panel
5 APMRB3-05 Shelf
6 APMRT1-06 Door
7 APMRB1-07 Plastic End Plug
8 MSP612.S Machine Screw Pan Head Phillips M6 x 12mm
9 APMRB1-09 Self-Tapping Screw ST4.8 x 30mm (Not
Shown)
10 APMRB1-10 Expansion Plug M8 x 40mm (Not Shown)
11 APMRT1-11 Sealey Badge
12 APMRB3-14 Lock
Wear eye
protection
Model no: APMRT1
Nett Weight: 11.7kg
Overall Size (W x D x H): 580 x 340 x 444mm
MODEL NO: APMRT1
2
7
1
4
8
11
12
6
3
5
5. ASSEMBLY
Original Language Version
© Jack Sealey Limited

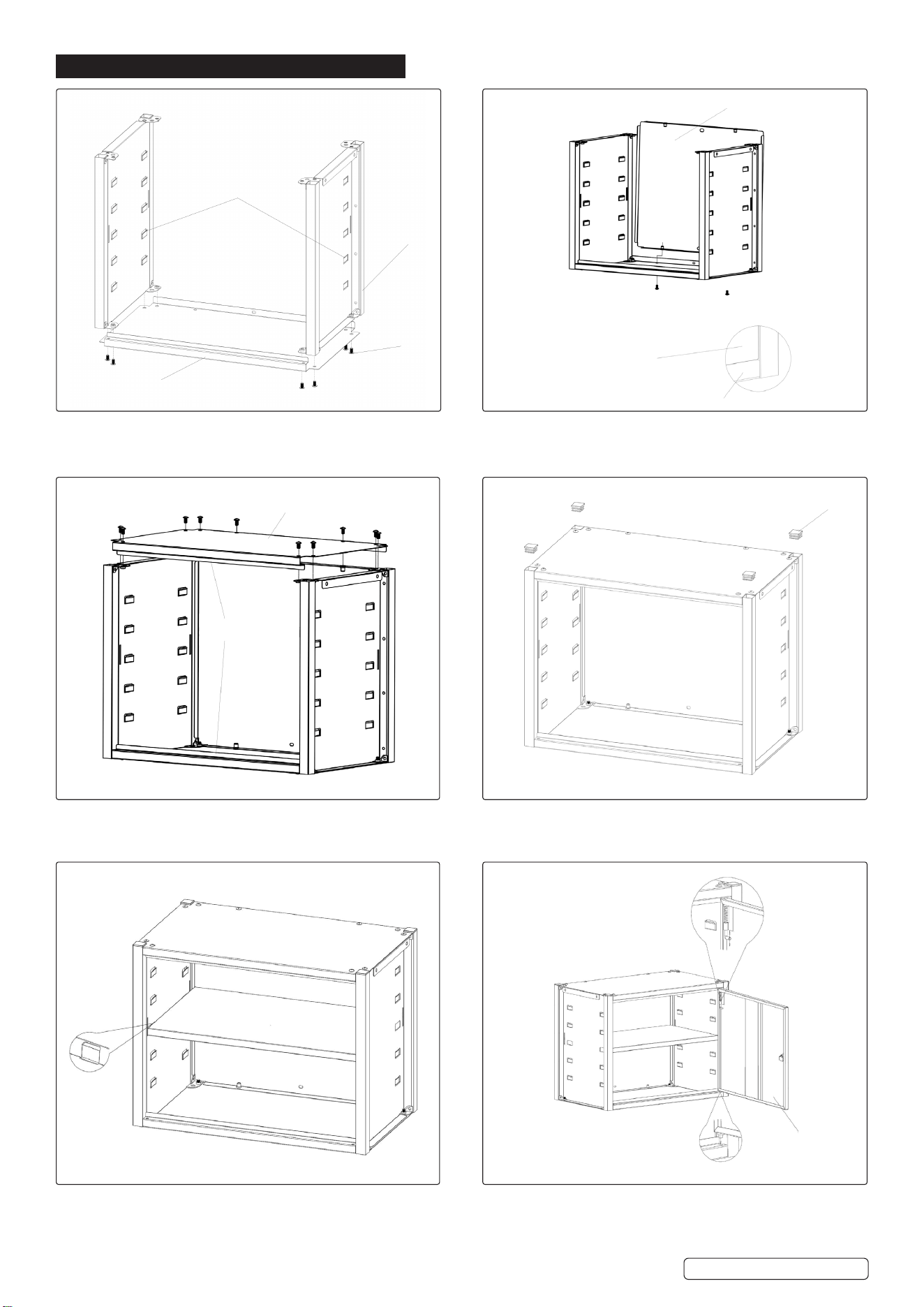

Step 1. Assemble the side panels, attach bottom panel with screws
M6*12 as shown.
1#
3#
Clips up
Step 2. Assemble the back panel, bottom panel with screws M6*12
as shown. Note: The back panel position.
Step 3. Assemble the top panel using screws M6*12 as shown.
Step 5. Assemble the shelves.
4#
7#
8#
4# put back panel inside of
the bottom panel
2#
Step 4. Insert the plastic end plugs.
6#
3#
Same direction
Step 6. Assemble the door as shown.
APMRT1 Issue 2 03/07/24
Original Language Version
© Jack Sealey Limited

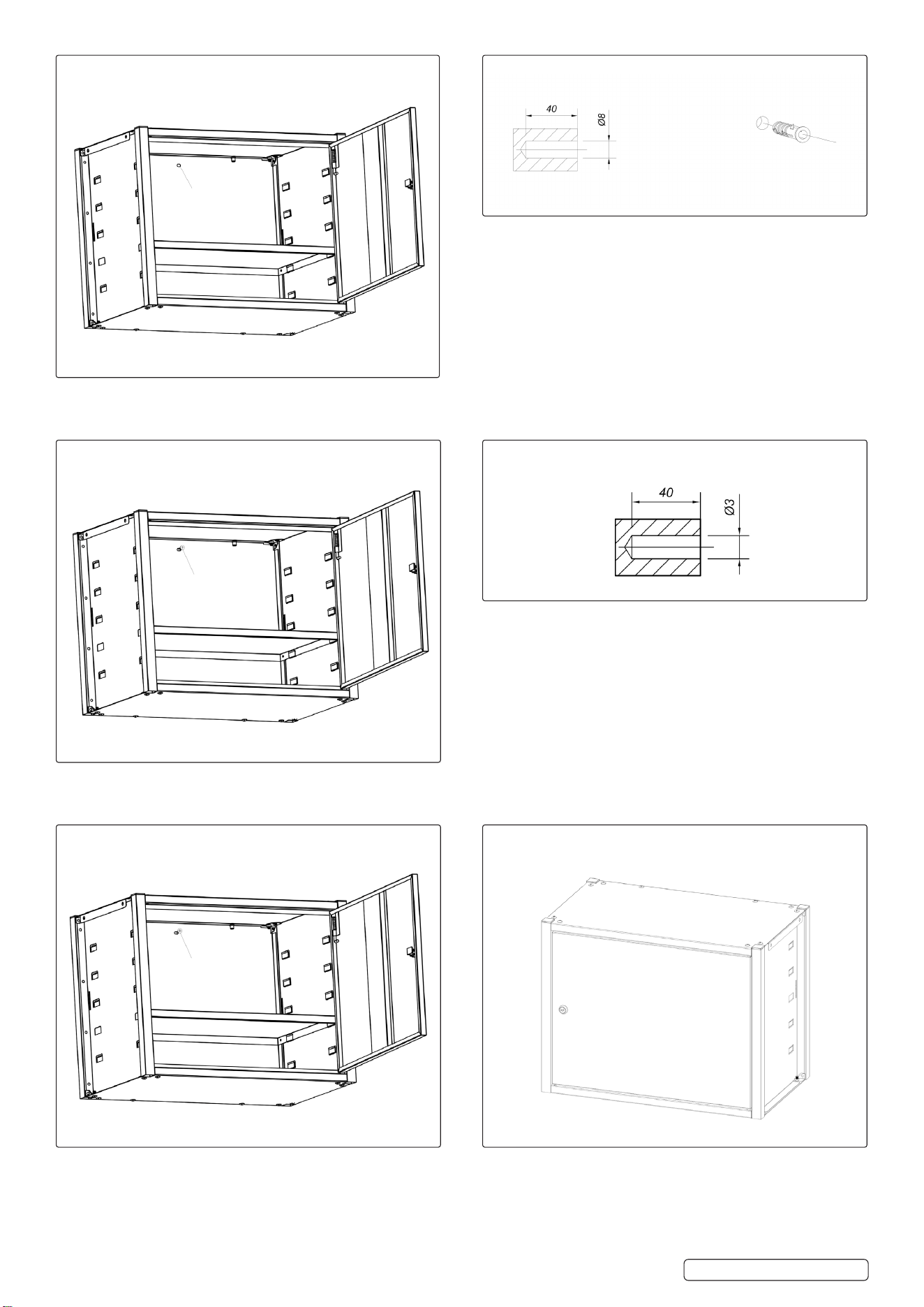

Step 8. To x the cabinet to the wall, mark the wall out before drilling
the hole, drill the hole and insert the expansion plug.
Step 10. To x the cabinet to a wooden wall drill a hole using the
illustration in option 2 as a guide.
Option 1
Hole
Step 7. To x the cabinet to the wall. Mark the wall out before drilling
the hole using the hole in the back panel as a template.
Step 9. Fix the cabinet to the wall using self-tapping screw
ST4.8*30.
9#
10#
Step 11. Fix the cabinet to the wooden wall with the self-tapping
screw ST4.8*30, no expansion plug is required.
Option 2
9#
Step 12. Assembly complete.
APMRT1 Issue 2 03/07/24
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts
without prior notice.
IMPORTANT: No Liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved
containers and dispose of the product and uids according to local regulations.
