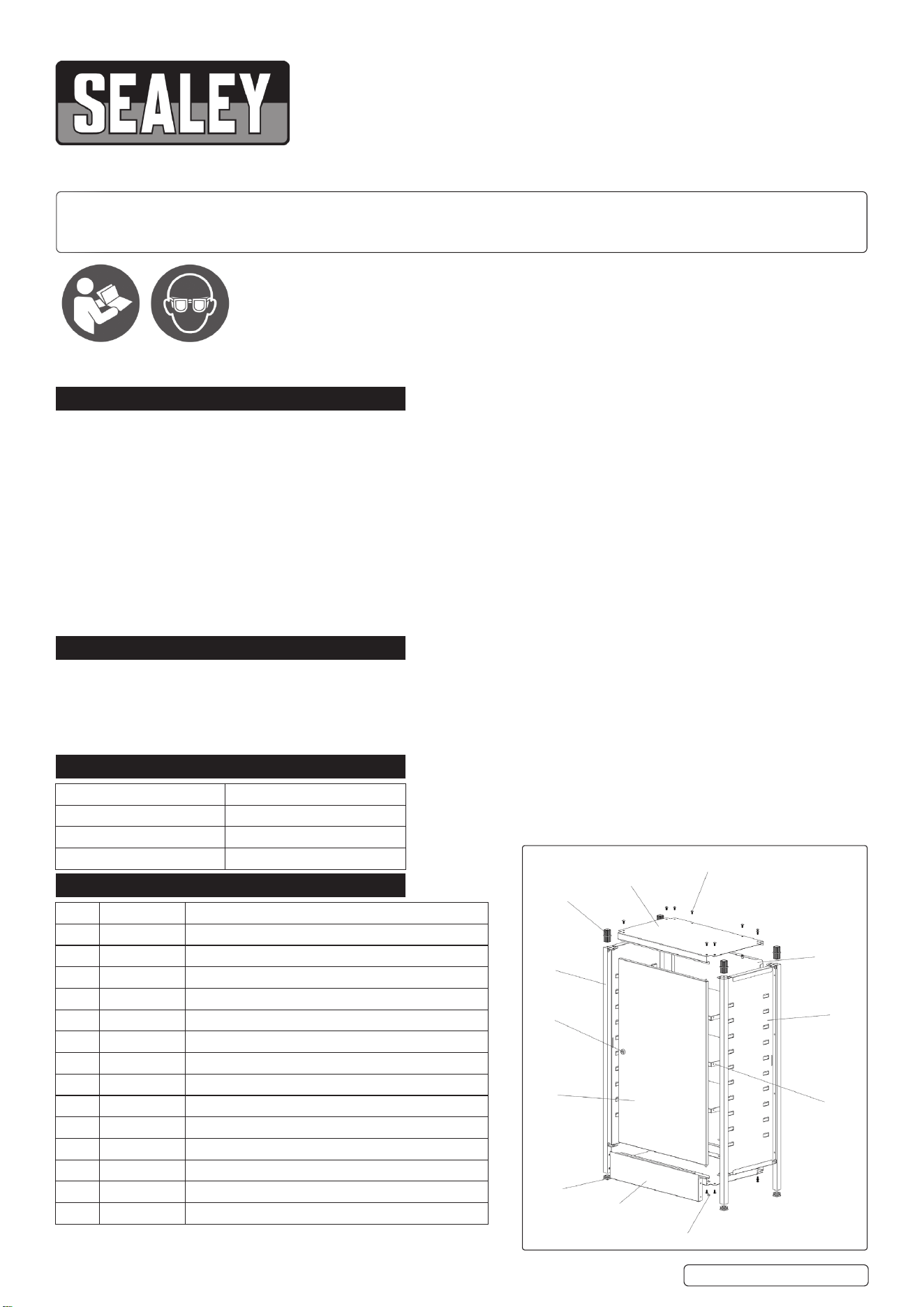

1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this product.
9 Locate product in a suitable working area.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
WARNING! Use product on level and solid ground, preferably concrete. Avoid tarmacadam since the product may sink into the surface.
9 Keep the product clean and tidy in accordance with good workshop practice.
9 Keep children and unauthorised persons away from the working area.
8 DO NOT use the product for any purpose other than that for which it is designed.
8 DO NOT exceed maximum capacity of product.
8 DO NOT undertake work on the product without the work piece being adequately secured. Use clamps or a vice (not included) to secure the
work piece. Available from your Sealey stockist.
8 DO NOT use the product out of doors.
8 DO NOT get the product wet or use in damp or wet locations or areas where there is condensation.
8 DO NOT clean the product with any solvents which may damage the paint surface or the protective coating.
2. INTRODUCTION
The Sealey modular racking system is nished with a heavy-duty textured powder coat to prevent against rusting. Simply choose
your base, middle and top units and push together using nylon connectors to create versatile storage for the workshop, garage, home
or ofce. All drawers have ball-bearing drawer slides for smooth operation and cupboard doors are tted with spring loaded hinges
allowing them to be tted the side that suits your environment. Buy individually (see specic model number for full specs) or as one of
our pre-created combo’s.
3. SPECIFICATION
4. CONTENTS
MODULAR RACKING BASE CUPBOARD UNIT
580MM
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
APMRB3 Issue 2 03/07/24
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Item Part Description
1 APMRB3-01 Panel, Left Side
2 APMRB3-02 Panel, Right Side
3 APMRB3-03 Top Panel (Bottom Panel)
4 APMRB3-04 Back Panel
5 APMRB3-05 Shelf
6 APMRB3-06 Door
7 APMRB3-07 Skirting board
8 APMRB1-07 Plastic End Plug
9 MSP612.S Machine Screw Pan Head Phillips M6 x 12mm
12 MSP410.S Machine Screw Pan Head Phillips M4 x 10mm
13 APMRB1-11 Plastic Connector
14 APMRB3-14 Lock
-- APMRB1-09 Self-Tapping Screw ST4.8 x 30mm (Not Shown)
-- APMRB1-10 Expansion Plug M8 x 40mm (Not Shown)
Wear eye
protection
Model no: APMRB3
Nett Weight: 20.1kg
Overall Size (W x D x H): 580 x 340 x 991mm
Shelves: 3
MODEL NO: APMRB3
13
3
9
1
14
6
8
7
12
5
2
4
5. ASSEMBLY
Original Language Version
© Jack Sealey Limited

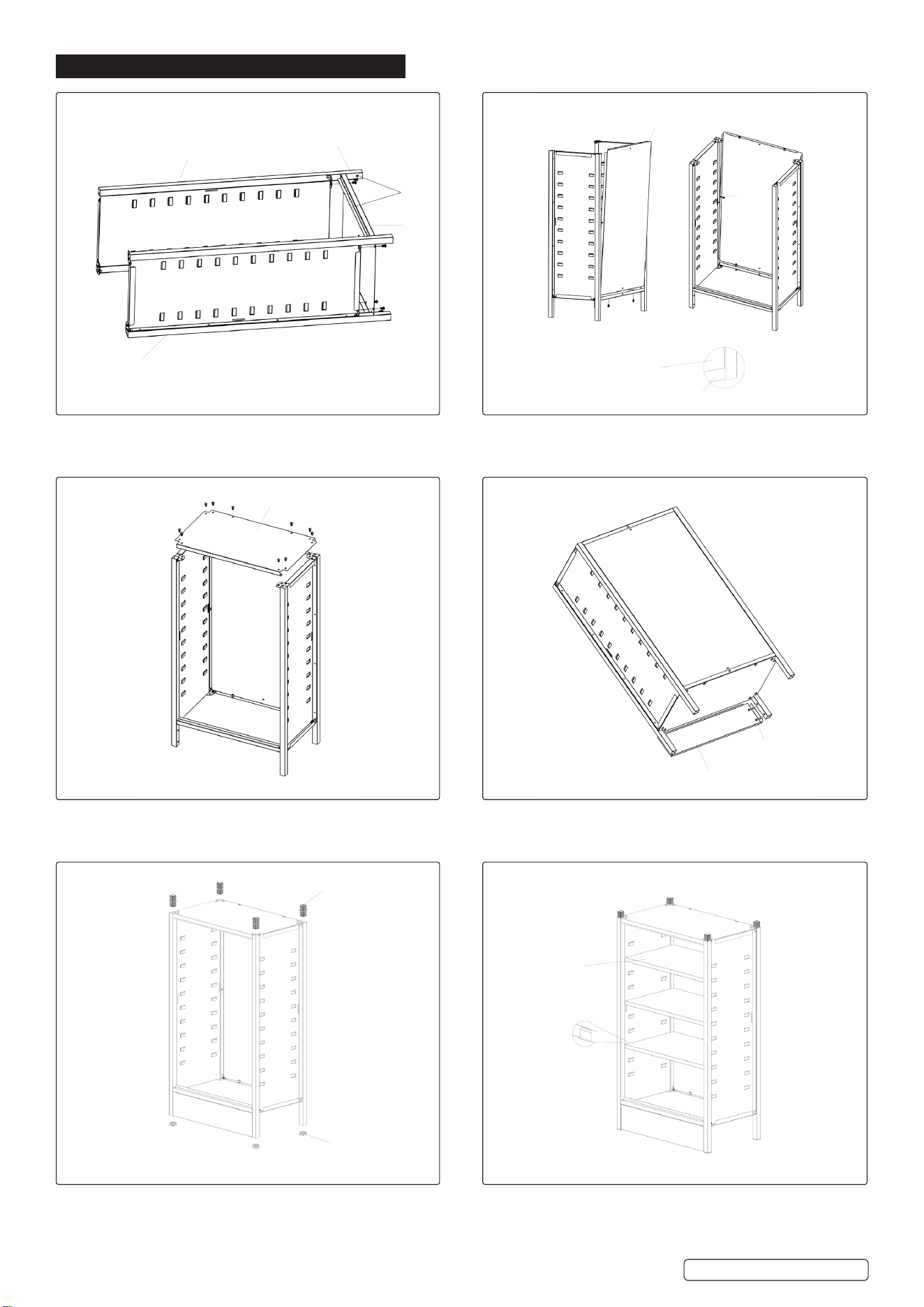

Step 1. Assemble the side panels, top panel, bottom panel, with
screws M6*12 as shown.
3#
2#
1#
Step 2. Assemble the back panel with screws M6*12 as shown.
4#
Step 5. Insert the plastic end plugs into the uprights.
3#
Step 4. Attach skirting board.
7#
13#
5#
Step 6. Insert the shelves.
9#
Front
9#
4# Back panel inside of top
panel (Bottom panel).
3#
Step 3. Asemble the top panel, bottom panel, with screws M6*12.
12#
8#
APMRB3 Issue 2 03/07/24
Original Language Version
© Jack Sealey Limited

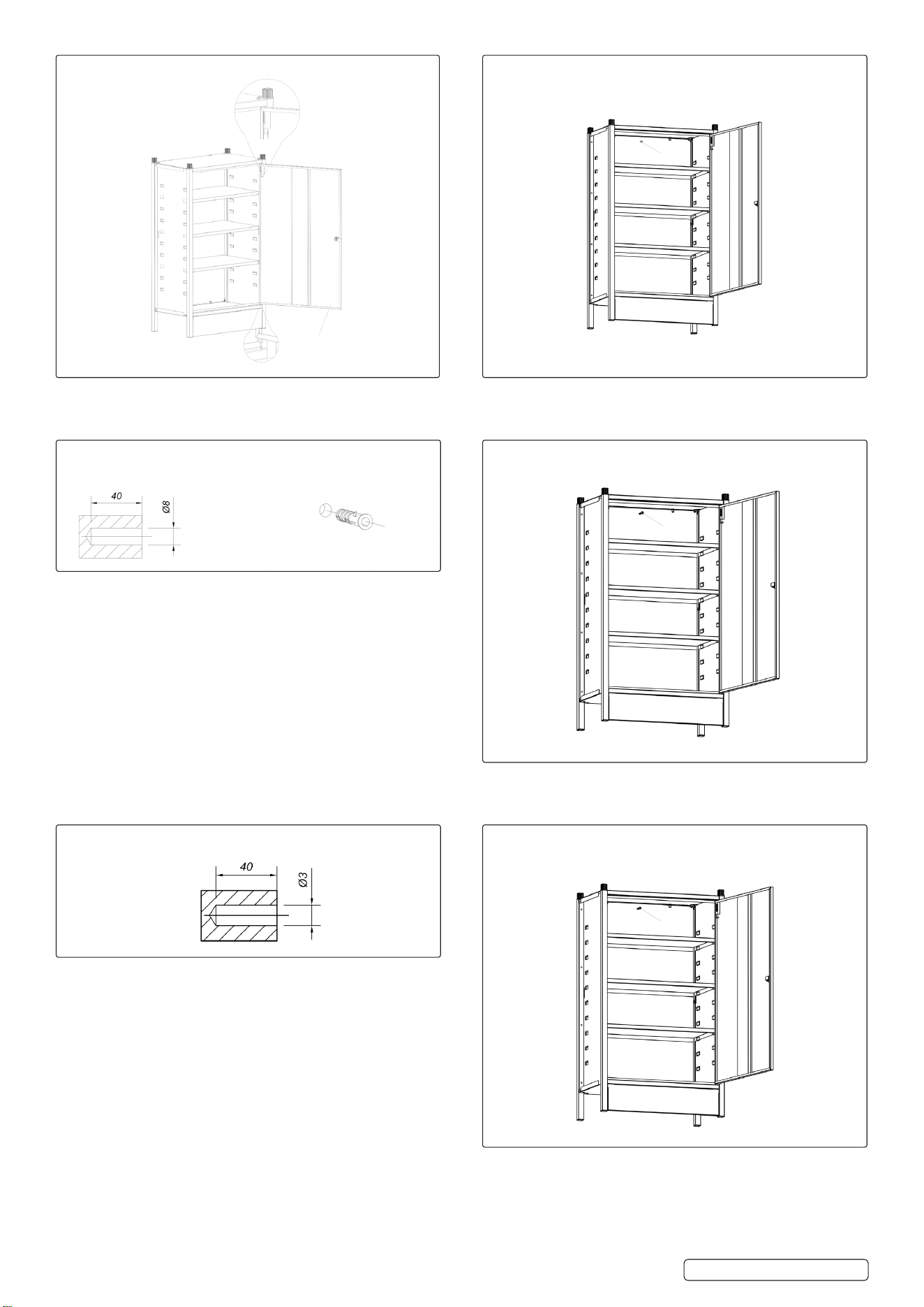

Step 8. To x to the wall. Mark the wall before drilling the hole using
the back panel as a template.
Hole
Step 10. Fix to the wall using self-tapping screw ST4.8*30.
Option 1
6#
Step 7. Attach the door.
11#
Step 9. After marking the wall. Drill a hole the size required, see the
illustration. Insert wall plug 8*40.
10#
Option 2
Step 11. To x the cabinet on to a wooden wall. Mark the wall before
drilling. After the wall has been marked, drill a hole the correct size
using the size guide in the above illustration.
10#
Step 12. Fix to the wall using self-tapping screw ST4.8*30. Wall plug
not required.
APMRB3 Issue 2 03/07/24
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts
without prior notice.
IMPORTANT: No Liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved
containers and dispose of the product and uids according to local regulations.
REGISTER YOUR
PURCHASE HERE

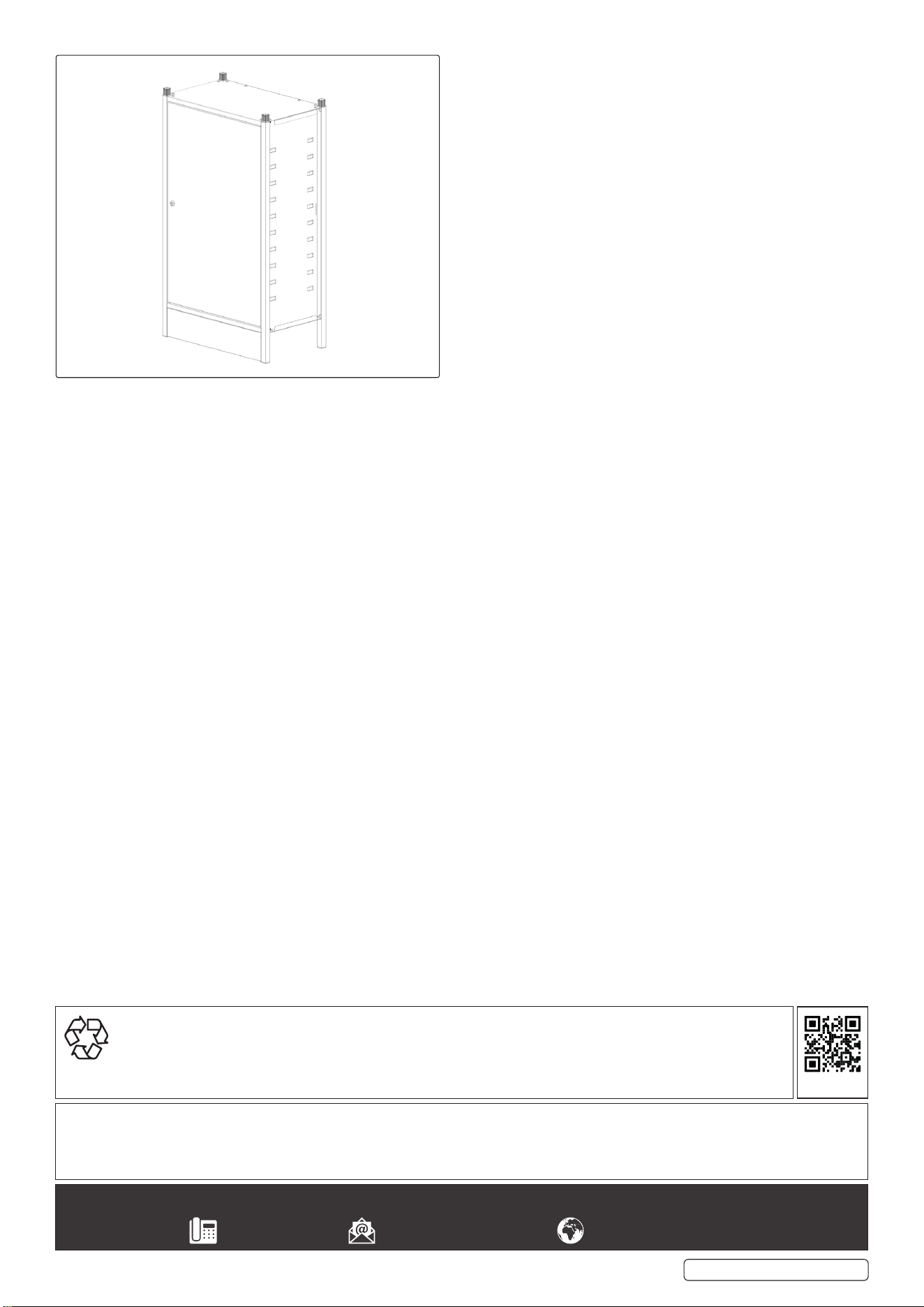

Step 13. Assembly completed.
APMRB3 Issue 2 03/07/24
