WORKSTATION WITH 3 DRAWERS & CUPBOARD
MODEL NO: AP1372B
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this bench.
Locate bench in a suitable working area.
Keep the work area clean, uncluttered and ensure there is adequate lighting.
WARNING! Use bench on level and solid ground, preferably concrete. Avoid tarmacadam since the bench may sink into the surface.
Keep the bench clean and tidy in accordance with good workshop practice.
Keep children and unauthorised persons away from the working area.
DO NOT use the bench for any purpose other than that for which it is designed.
DO NOT exceed maximum capacity of workbench.
DO NOT undertake work on the bench without the work piece being adequately secured. Use clamps or a vice (not included) to secure the
work piece. Available from your Sealey stockist.
DO NOT use the bench out of doors.
DO NOT get the bench wet or use in damp or wet locations or areas where there is condensation.
DO NOT clean the bench with any solvents which may damage the paint surface or the protective coating on the wooden top.
2. INTRODUCTION
Heavy-duty powder coated metal frame with a 40mm MDF work surface. Two confi gurations available with a combination of lockable
drawers and cupboards. Features adjustable feet to help stability when placed on an uneven surface. Supplied fl at-packed with two
keys.
3. SPECIFICATION
Model No: ........................................................AP1372B
Capacity: ............................................................... 300kg
Drawer (x3): .....................................415 x 160 x 415mm
Size (W x D x H): ............................1200 x 600 x 865mm
4. CONTENTS
4.1. Before assembly check contents against the contents lists.
Part Description Quantity
A Top 1
B1 Left side 1
B2 Right side 1
C Bottom 1
D Support 1
E Drawer 3
F1 Door 1
G Shelf 1
H Back 2
I Leg leveller assy. 4
J1 Left slide 3
J2 Right slide 3
Part Description Quantity
a Bolts ST4. 8x10mm 10+2
b Plastic pin 4
Refer to
Instructions
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
I
MPORTANT:
PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
AP1372B Issue 2 (5,F) 18/07/23
Original Language Version
© Jack Sealey Limited

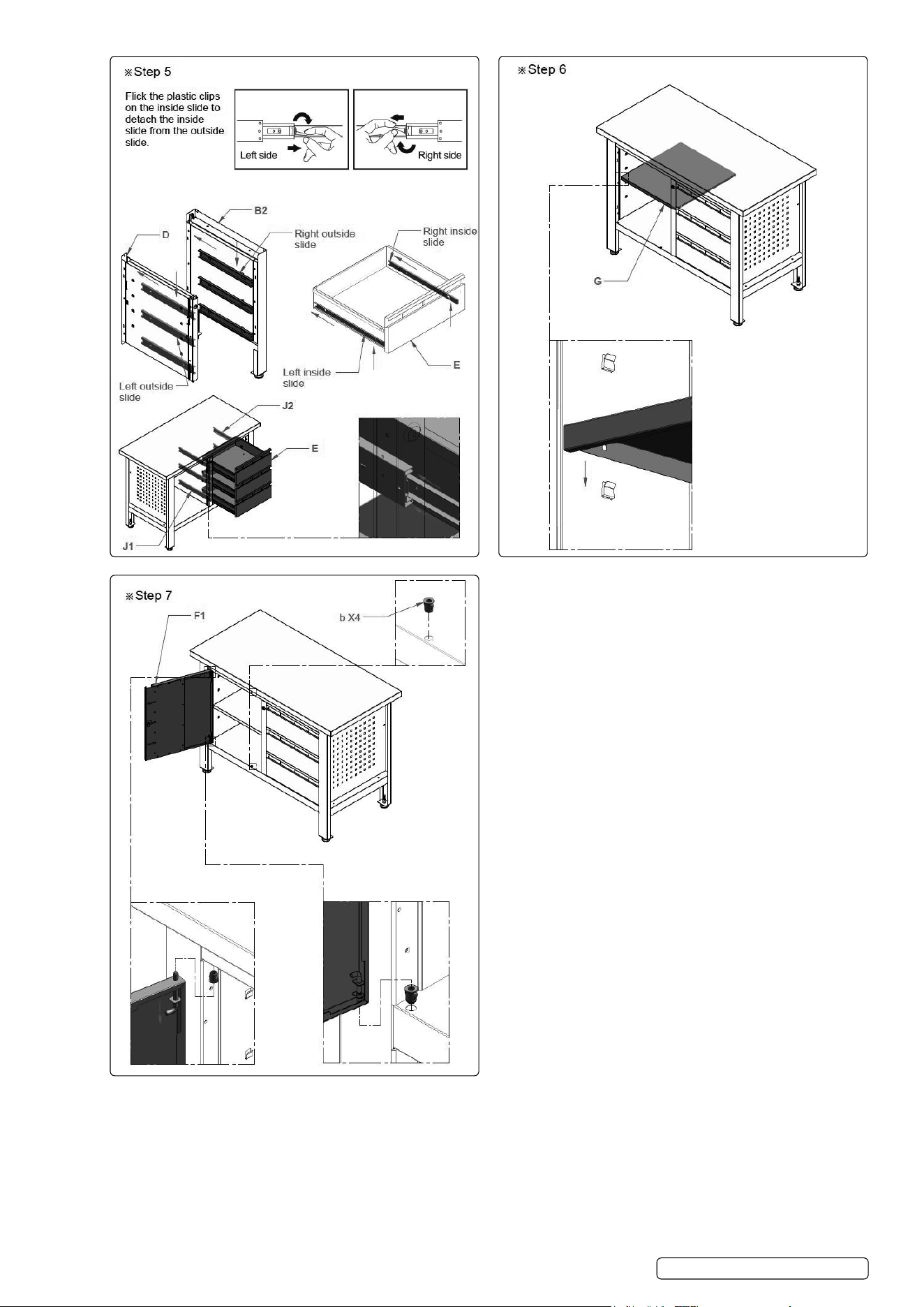

5. ASSEMBLY
AP1372B Issue 2 (5,F) 18/07/23
Original Language Version
© Jack Sealey Limited
AP1372B Issue 2 (5,F) 18/07/23
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call
our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
