4-TIER SHELVING UNIT WITH CUPBOARD AND
DRAWER 150KG CAPACITY PER LEVEL
MODEL NO: AP830R
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
AP830R Issue 2 (3) 20/06/24
Original Language Version
© Jack Sealey Limited
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT
IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE
WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, and local authority regulations are adhered to when assembling and using these shelves.
9 Locate shelves in a suitable area where they will not be an obstruction.
9 Keep the general area clean, uncluttered and ensure there is adequate lighting.
WARNING! Erect shelves on a level and solid surface such as concrete.
9 Keep children and unauthorised persons away from the storage area.
8 DO NOT use the shelves for any purpose other than that for which they are designed.
8 DO NOT site the shelves out of doors.
8 DO NOT get the shelves wet or use in damp or wet locations or areas where there is condensation.
8 DO NOT clean the shelf supports with any solvents which may damage the coated surface.
9 Ensure that the shelves are properly assembled before loading them with any items.
9 Where possible the unit should be xed to the wall with suitable xings
9 Place heavier items on the lower shelves.
9 Where possible heavier items should be evenly distributed across the shelves.
2. INTRODUCTION
Fully painted steel frame with four MDF shelves. 150kg Capacity per level giving a maximum capacity of 600kg per rack plus an
additional 15kg capacity in the drawer. Minimal xings for easy assembly. Built-in double door cupboard and drawer to keep storage
tidy. Nett Weight: 22.5kg. Overall Size (W x D x H): 825 x 325 x 1805mm

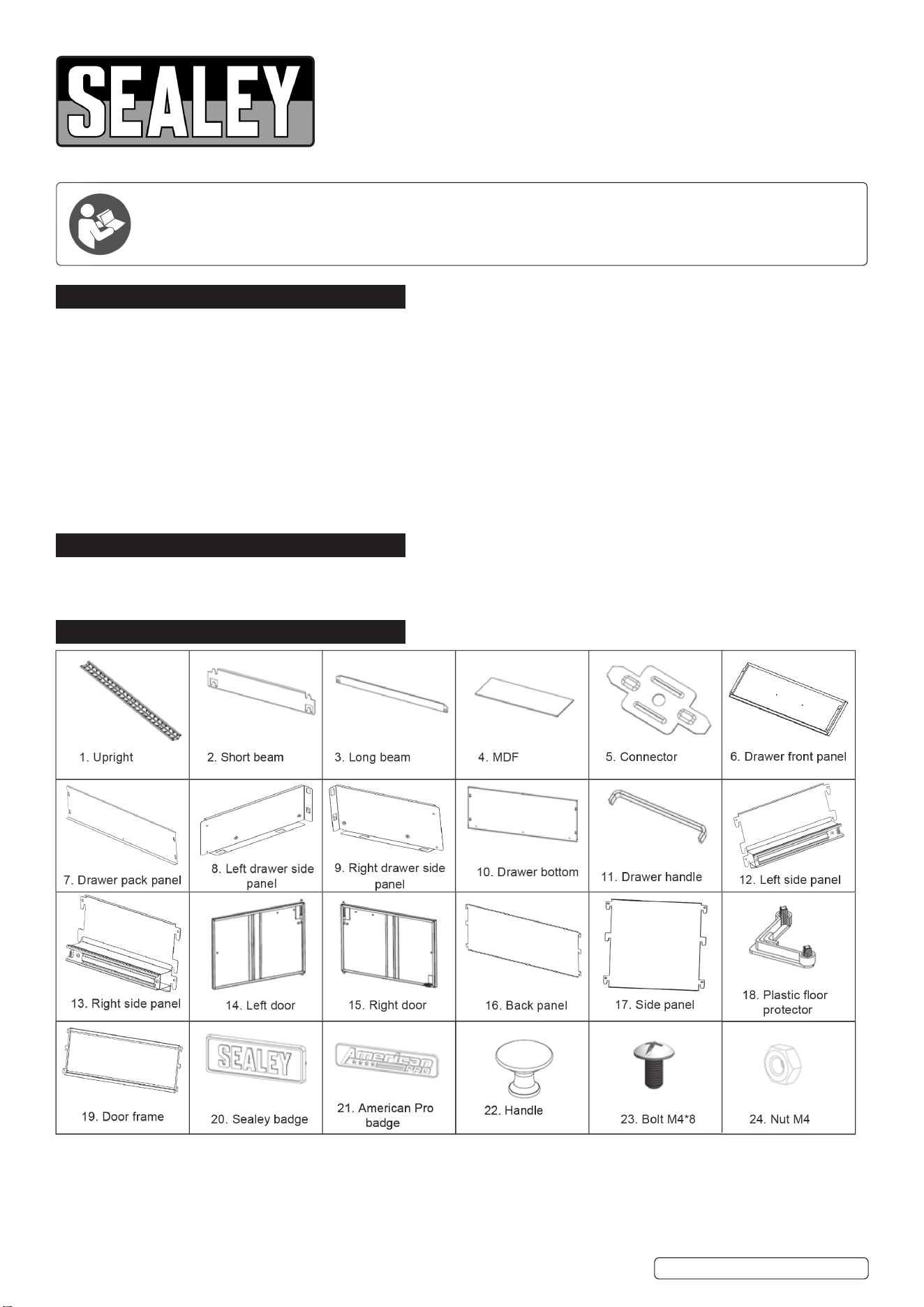

3. COMPONENTS
Original Language Version
© Jack Sealey Limited
AP830R Issue 2 (3) 20/06/24
4. ASSEMBLY

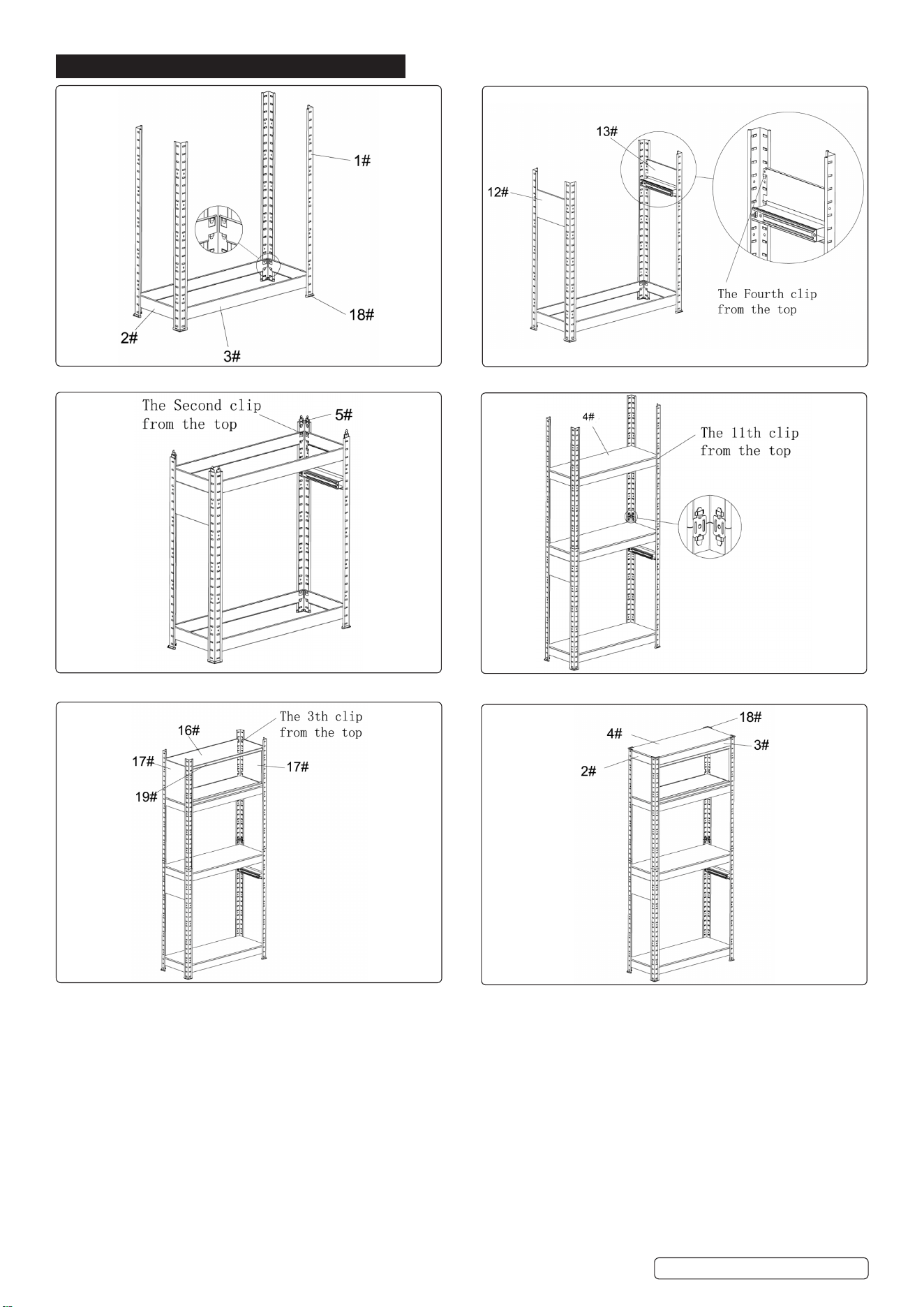

1. Assemble the rst layer shelf as shown 2. Assemble the left and right side panel.
3. Assemble the second layer shelf and connectors.
5. Assemble cabinet side panels 17#, cabinet back panel 16#, door
frame part 19# as shown.
6. Assemble the top layer.
4. Assemble the third layer shelf.
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 24 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved
containers and dispose of the product and uids according to local regulations.
REGISTER YOUR
PURCHASE HERE
AP830R Issue 2 (3) 20/06/24

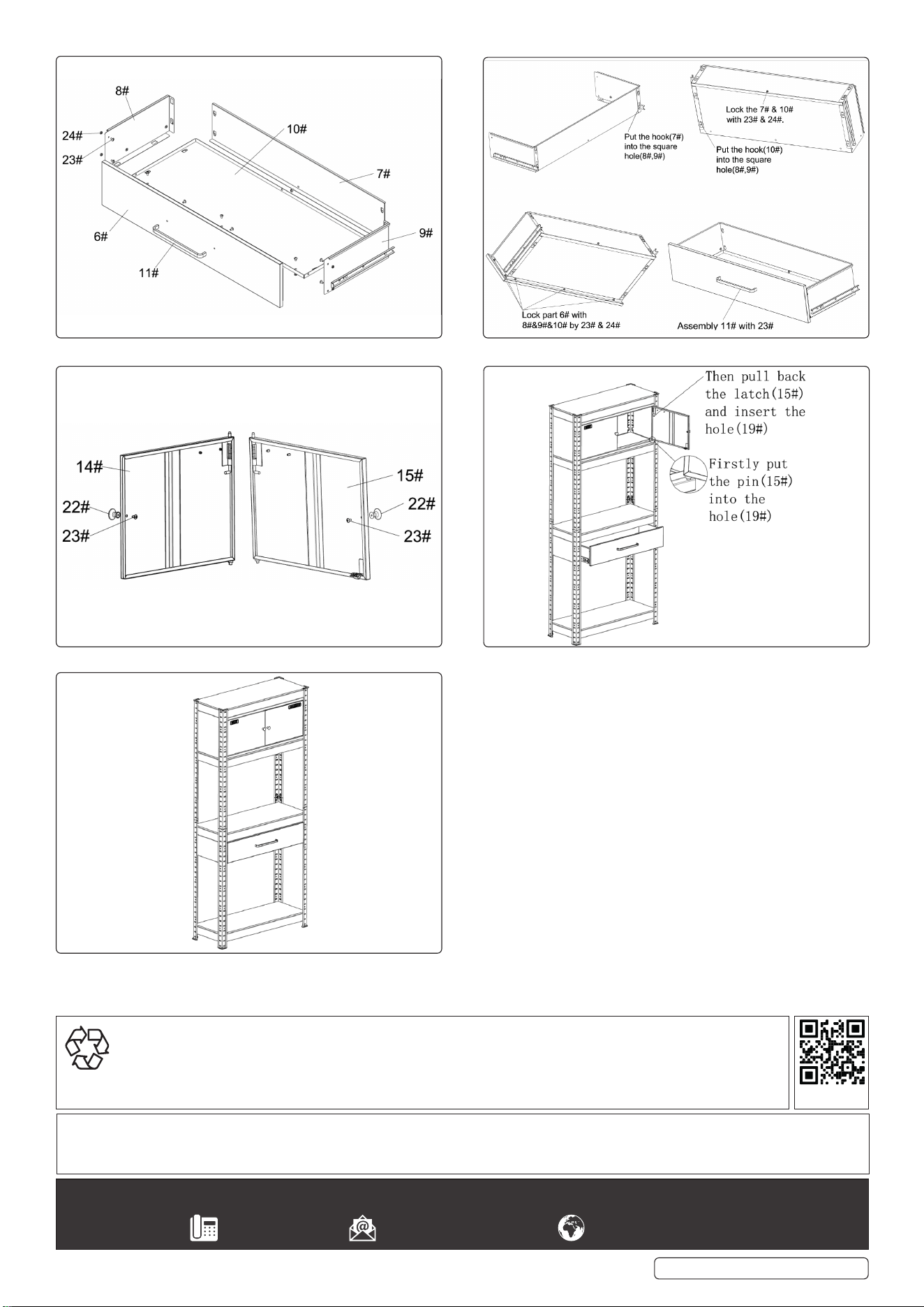

7. Assemble the drawer.
8. Assemble the door handles. 9. Assemble the door and drawer assemblies.
10. Assembly complete.
8. Drawer assembly continued.
