User Manual
IP67 Sprinter Van
Brake Light Camera
Introduction
Thank you for purchasing your EchoMaster
automotive camera.
The following part numbers are supported:
u PCAM-SBL-P
u PCAM-SBL-N
EchoMaster cameras are designed to improve safety during
driving by providing high quality images of surrounding areas
and obstacles in the vicinity of the vehicle. They will also
improve vehicle maneuvering capability by displaying blind
spots not normally visible to the driver.
Please ensure you read and understand all aspects of this
manual before tting or using your EchoMaster Camera.
Choose a suitable mounting place dependent on the
application. Ensure that there are no wiring harnesses or
hoses/pipes located behind this panel before drilling.
Key Features
u 1/4” CMOS Sensor
u Operates at 0 LUX
u IP67 Rated
u 170 Degree Viewing Angle
u Mirrored Image
Box Contents
u Camera
u Manual
u Extension Cable
u Audio/Video Harness
u Power Harness

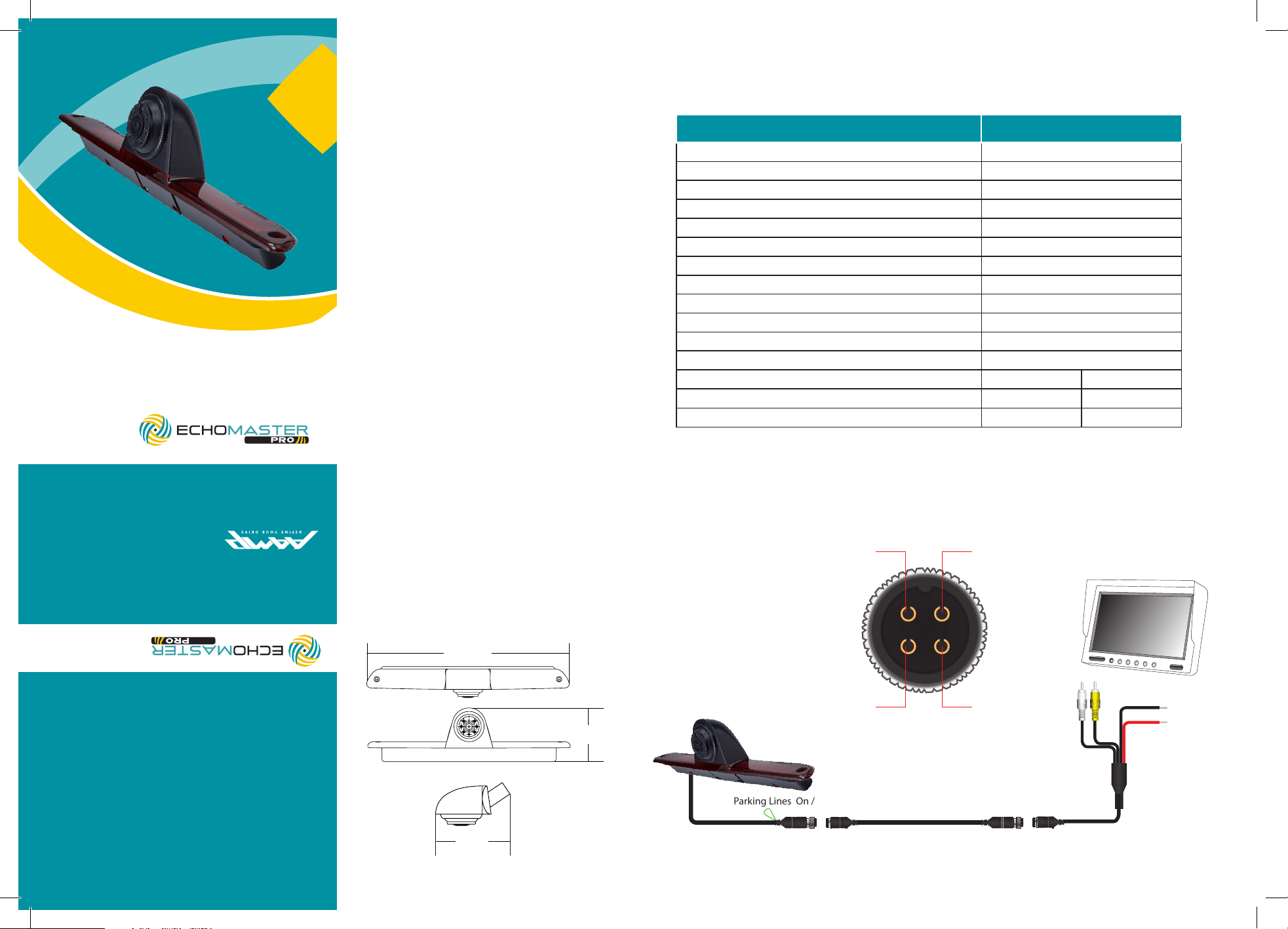

Wiring Diagram & Pin Out
Specications
Dimensions
PCAM-SBL-P I PCAM-SBL-N
Sensor 1/4” CMOS
LEDs 8
Illumination 0 LUX
Viewing Angle 170 degrees
Mirror Image YES
Normal Image NO
Waterproof Class IP67
Audio Yes
Power Supply 12V DC
Current <150mA
Working Temperature -25ºC - +65ºC
Dimensions (mm) D (90) x W (330) x H (51)
System PAL NTSC
TV Lines 580 480
Resolution (HxV) 762 x 504 762 x 504
1
23
4
POWER +12V VIDEO
AUDIOGROUND
1
2 3
4
90mm
51mm
330mm
Extension (sold separately)
VIDEO
AUDIO
Parking Lines On / O (Green)
GND (Black)
+12V (Red)
