CONTENTS
TABLE DES MATIÈRES
Bölgesel Kullanılabilirlik ve Uyumluluk
En iyi kullanıcı deneyimini ve ilgili yasa ve düzenlemelere uyumu sağlamak için satış sonrası hizmet ve kullanım, Narwal'ın ürünlerini resmi olarak piyasaya
sürdüğü ülke veya bölgeyle (veya Narwal tarafından yetkilendirilen distribütörlerle) sınırlıdır. Ürün başka ülke veya bölgelere gönderilirse Narwal Freo
Uygulaması kullanılarak bağlanıp çalıştırılması mümkün olmayabilir. En iyi ürün ve hizmet deneyimi için Narwal ürünlerini bölgenizdeki yetkili distribütör
veya perakendecilerden satın almanızı öneririz.
Çin Anakarasında dağıtılan ve satış sonrası hizmet için erişilen Narwal ürünlerinin, Hong Kong, Makao ve Tayvan hariç olmak üzere, yetkili distribütörler
ve Çin Anakarası ile sınırlı olduğu açıkça belirtiliyor.
Tính Khả Dụng Tại Khu Vực và Độ Tương Thích
Để đảm bảo trải nghiệm người dùng tốt nhất cũng như tuân thủ luật pháp và quy định hiện hành, các sản phẩm của Narwal chính thức phát hành bởi
Narwal (và các nhà phân phối do Narwal ủy quyền) chỉ có thể sử dụng và nhận dịch vụ sau bán hàng tại quốc gia/khu vực nơi sản phẩm được bán ra.
Nếu sản phẩm được vận chuyển đến các quốc gia hoặc khu vực khác, quý vị có thể không thể sử dụng ứng dụng Narwal Freo để liên kết và vận hành sản
phẩm. Để có được trải nghiệm sản phẩm và dịch vụ tốt nhất, chúng tôi khuyến nghị quý vị mua các sản phẩm của Narwal được bán bởi Narwal hoặc các
nhà phân phối do Narwal ủy quyền tại địa phương.
Để tránh nghi ngờ, các sản phẩm của Narwal được Narwal (và các nhà phân phối do Narwal ủy quyền) phát hành tại Trung Quốc Đại Lục chỉ có thể sử
dụng và nhận dịch vụ sau bán hàng ngay trong Trung Quốc Đại Lục (không bao gồm các khu vực Hồng Kông, Ma Cao và Đài Loan).
Disponibilité Régionale et Compatibilité
Pour garantir une expérience utilisateur optimale et se conformer aux lois et réglementations applicables, les produits Narwal oiciellement
commercialisés par Narwal (et les distributeurs autorisés par Narwal) ne peuvent être utilisés et bénéficier d'un service après-vente que dans le pays
ou la région où ils sont commercialisés. Si le produit est expédié vers d'autres pays ou régions, il se peut que vous ne puissiez pas utiliser l'application
Narwal Freo pour applicables et faire fonctionner le produit. Pour obtenir la meilleure expérience produit et service, nous vous recommandons
d'acheter des produits Narwal vendus localement par Narwal ou par des distributeurs autorisés par Narwal.
Pour éviter toute confusion, les produits Narwal commercialisés en Chine continentale par Narwal (et les distributeurs autorisés par Narwal) ne peuvent
être utilisés et bénéficier d'un service après-vente qu'en Chine continentale (à l'exclusion des régions de Hong Kong, de Macao et de Taïwan).
ความพร้อมใช้งานและความเข้ากันได้ในระดับภูมิภาค
เพื่อให้มั่นใจว่าผู้ใช้จะได้รับประสบการณ์ที่ดีที่สุดและปฏิบัติตามกฎหมายและข้อบังคับที่เกี่ยวข้อง ผลิตภัณฑ์นาร์วาลที่เปิดตัวอย่างเป็นทางการโดยนาร์วาล (และผู้จัดจำหน่ายที่ได้รับอนุญาตจากนาร์วาล) จะสามารถใช้ได้และรับบริการหลังการขายในประเทศ/ภูมิภาคที่วางจำหน่ายเท่านั้น หาก
ผลิตภัณฑ์ถูกจัดส่งไปยังประเทศหรือภูมิภาคอื่น คุณอาจไม่สามารถใช้แอปนาร์วาลฟรีโอเพื่อผูกและใช้งานผลิตภัณฑ์ เพื่อให้ได้ผลิตภัณฑ์และบริการที่ดีที่สุด เราขอแนะนำให้คุณซื้อผลิตภัณฑ์นาร์วาลที่จำหน่ายในท้องถิ่นโดยนาร์วาลหรือผู้จัดจำหน่ายที่ได้รับอนุญาตจากนาร์วาล
เพื่อหลีกเลี่ยงข้อกังขา ผลิตภัณฑ์นาร์วาลที่วางจำหน่ายในจีนแผ่นดินใหญ่โดยนาร์วาล (และผู้จัดจำหน่ายที่ได้รับอนุญาตจากนาร์วาล) สามารถใช้และรับบริการหลังการขายในจีนแผ่นดินใหญ่เท่านั้น (ไม่รวมภูมิภาคฮ่องกง มาเก๊า และไต้หวัน)
תירוזא תומיאתו תונימז
לבקלו (לאוורנ ידי לע םישרומה םיציפמו) לאוורנ ידי לע ימשר ןפואב וצפוהש לאוורנ ירצומב שמתשהל ןתינ ,םייטנוולרה תונקתלו םיקוחל תויצ ידכ ךות תילמיטפוא שמתשמ תיווח חיטבהל ידכ
.רצומה תא ליעפהלו רשקל ידכ ואירפ לאוורנ תייצקילפאב שמתשהל לכות אלש ןכתיי ,םירחא םירוזא וא תונידמל חלשנ רצומה םא .וצפוה םה הבש רוזא/הנידמב קר הריכמה רחאל תוריש
.לאוורנ ידי לע םישרומה םיציפמ וא לאוורנ ידי לע ימוקמ ןפואב םירכמנה לאוורנ ירצומ שוכרל םיצילממ ונא ,רתויב םיבוטה תורישהו רצומה תיווח תא לבקל ידכ
.(ןאווייטו ואקמ ,גנוק גנוה ירוזאב ללוכ אל) ןיס תשביב קר הריכמה רחאל תוריש לבקלו (לאוורנ ידי לע םישרומה םיציפמו) לאוורנ ידי לע ןיס תשביב וצפוהש לאוורנ ירצומב שמתשהל ןתינ ,קפס רסה ןעמל
שמתשמל ךירדמה לש תינורטקלא הסרג
Electronic version of the user manual
Elektronische Version des Benutzerhandbuchs
Versione eleronica del manuale d’uso
Version électronique du Manuel d'utilsateur
Versión electrónica del manual de usuario
Электронная версия руководства пользователя
전자 설명서
電子説明書
電子說明書
Wersja elektroniczna instrukcji obsługi
Kullanım kılavuzunun elektronik versiyonu
Bản điện tử sách hướng dẫn sử dụng
คู่มือผู้ใช้แบบอิเล็กทรอนิกส์
Version électronique du Manuel d'utilsateur
03
en
Microphone
Binocular vision
obstacle avoidance sensor
Bumper sensor
Dust bin filter
Dust bin
Replaceable insert bin
Radar sensors
Recall buon
Start/Stop buon
Laser edge sensor
Robot top cover
RESET buon
Top cover slot

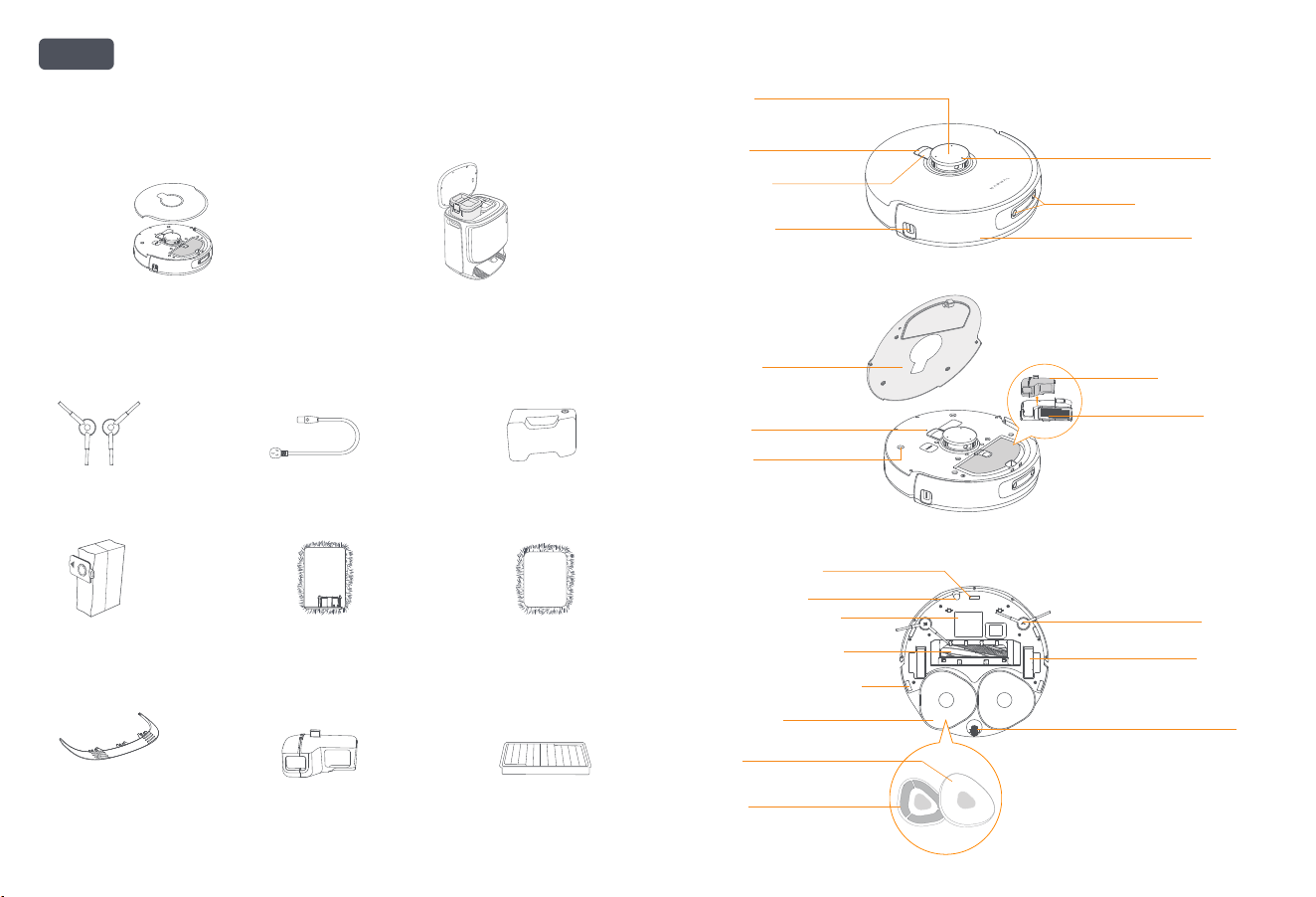

1.2 Robot
Front (top cover closed)
Front (top cover open)
1. Product At A Glance
1.1 Check List
Main parts
Accessories
Robot × 1
(including dust collection
box × 1, mopping module × 2)
Side brush × 2
(Accessory)
Base station dust bag × 1
(Accessory)
Extension ramp × 1
Baseboard cleaning module × 1
(Accessory)
Replaceable insert bin × 1
(Accessory)
Base station power cord × 1 Floor detergent × 1
(Accessory)
Base station × 1
(including cleaning base × 1, cleaning
tray × 1, clean water tank × 1, dirty water
tank × 1, base station dust bag × 1)
Dust bin filter × 1
(Accessory)
Baseboard rag × 3
(Accessory)
Side brush × 2
Drive wheel × 2
Caster
Infrared anti-drop sensor ×3
Ultrasonic carpet sensor
Cyclone tangle-free roller brush
Slot for baseboard cleaning module
Mopping module × 2
Mop pad × 2
Mop base × 2
Robot nameplate(including SN)
Robot boom
04
Child lock on/o buon
Mop washing/drying buon
Start/Stop buon
Robot entrance
Cleaning tray
Cleaning base
Touch panel
Freo Mind on/o buon
Recall/Exit buon
Base station indicator
Extension ramp

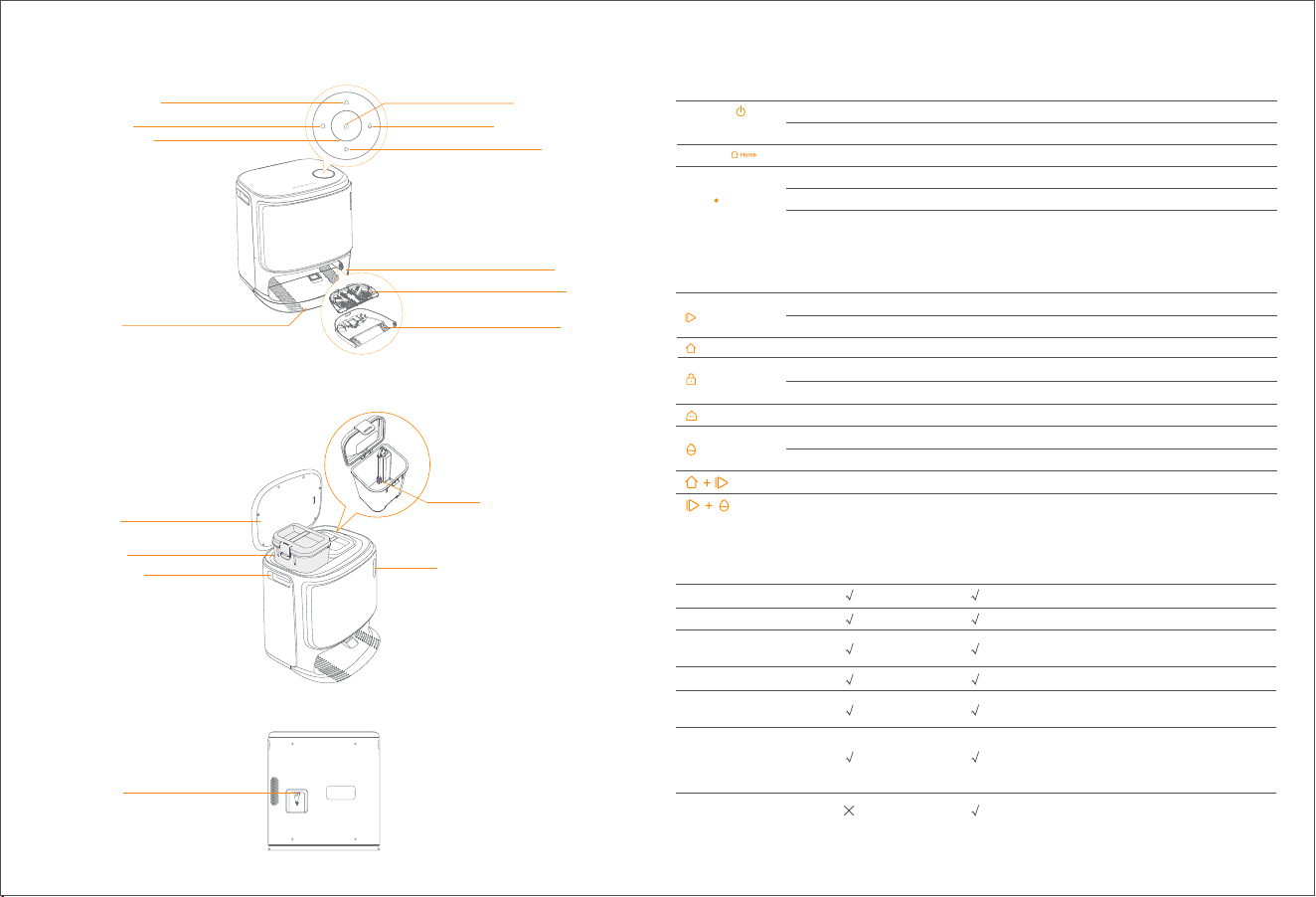

1.3 Base station
Front (lid closed)
Clean water tank sponge filter
Electrolyzed water disinfection module
Base station lid
Dirty Water Tank
Base station handle
Power interface
Front (lid open)
Back
Clean water tank
Short press
Press and hold for 2s during a task
Short press
Press and hold for 2s
Press and hold for 2s
Short press
Short press
Press and hold for 10s
Press and hold for 2s
Press and hold for 2s
Buon
Start/Stop
Start/pause/resume the current task
End all tasks
Recall/Exit
Turn on the Child Lock
Turn o the Child Lock
Turn on/o Freo Mind
Start/cancel mop washing and drying
Refill/discharge self-check
Enter/exit the pairing mode
Restart mapping
Start/pause/resume the current task
Power on/o
Return to the base station
Enter the pairing mode
Unbind the account and clear user data
Factory reset
Short press
Press and hold for 2s
Short press
Short press
Press and hold for 5s
Press and hold for 10s
Recall
Reset
Action Function
Buon Action Function
1.4 Buons and indicators
Robot buons
Base station buons
Steady white
Breathing white
Dynamic spinning blue
Dynamic breathing blue
Red
Breathing orange
Colorful meteor light
Standby mode
Standby
Task underway
Device startup (robot)
Task paused
Error (flashing)
No communication (breathing red)
Pairing
Updating
Checking the automatic water exchange
Power-saving mode
Wake for power on
Wake from a dark screen
Indicator
Robot indicator Base Station indicator Meaning
Robot & base station indicators
05
R

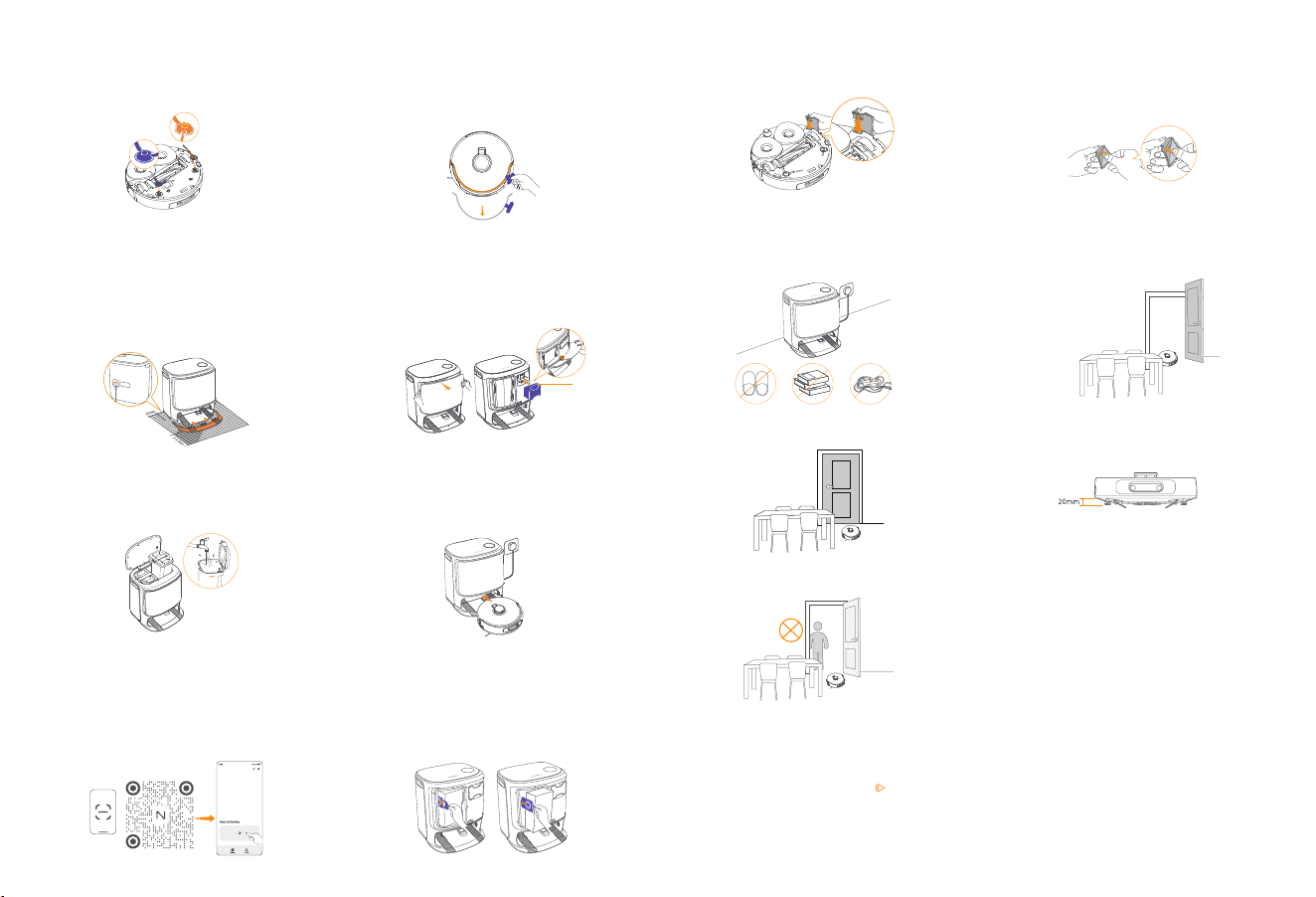

How to Maintain the Baseboard Cleaning Module
2. Get Ready Before Use
Install the side brushes
Press side brushes into the slots as indicated by color
until they click into place.
Remove the anti-collision foam
• Lift the top cover sticker to open the robot top cover and
remove the anti-collision foam.
• Close the robot's top cover.
Place the base station
• Plug in the power cord in the back of the base station.
• Put the extension ramp on the floor and push it into the
boom of the base station until it clicks into place.
• Leave an open space of at least 1 meter long in front of the
base station for the robot to enter and leave the base
station.
Tips: DO NOT put the base station close to a heat source.
Install the floor detergent
• Remove the base station front cover, face the cap of the
floor detergent to the base station (DO NOT remove the
cap; make sure that the sealing sticker is removed), and
horizontally push it into the detergent bin.
• When the detergent is in place, put the base station front
cover back.
Add clean water
• Open the clean water tank and fill it with clean water (DO
NOT exceed the MAX water level mark).
• Close the clean water tank cap and put the clean water
tank back into the base station.
Connect and bind the robot in the App
Download the Narwal App and follow the instructions for
connecting and binding the robot.
Note:
1. In the App device page, tap "Seings" > "Device" and then press
hold the "Restart Robot" for 10s to turn on/o the power-saving mode.
_
Download the Narwal App and follow the instructions for connecting
and binding the robot.
Boot seings
Push the robot into the base station with the camera facing
outward. The base station will beep once to indicate that
charging is successful and the robot will switch itself on and
broadcast the message.
Sealing sticker
of the detergent
Install the baseboard cleaning module
Turn the robot upside down, align the baseboard cleaning
module with the slot, and press it until it clicks into place.
Replace the base station dust bag
•Remove the base station front cover.
•Pull the purple ring in the direction of the arrow to pull
out and discard the dust bag.
•Insert the new dust bag into the slot in the indicated
direction until it hits the boom.
•Put back the base station front cover.
•Tear o the baseboard rag in the indicated direction, align
the new baseboard rag with the hook-and-loop fastener,
and press it until it is firmly fixed.
• Tear o the baseboard rag, rinse it with clean water, and
reuse it after air drying.
1. Tear o 2. Replace
D. The maximum obstacle crossing height is 20mm and
the robot cannot enter rooms with a threshold height of
over 20mm. You can purchase Narwal Threshold Ramp to
help the robot climb over obstacles.
3. How to Use
Before using the robot, please make sure you have finished the installation and base station setup in Chapter 2.
3.1 Organize the home environment
A. Put away the cluer on the floor, e.g. scaered cables,
rags, slippers, clothes, and books.slippers, clothes, and books.
B. Open the doors of the rooms to be cleaned and arrange
the furniture to leave as much space as possible for cleaning.
C. Leave other doors closed and install the fence to prevent
the robot from entering elevated or low areas.
Obstacle climbing height
E. DO NOT stand in front of the robot, on the threshold, or in
narrow aisles to avoid omission.
Before cleaning a new home, the robot needs to explore the environment and create a map. Before first-time cleaning, you
can trigger mapping by short pressing the Start/Stop buon on the base station or tapping "Start Mapping" in the App.
Note:
1. Once a map is created, it can be edited in the App.
2. Please do not move the base station after a map is created, or you have to restart mapping. If large furniture in your home is rearranged,
it is recommended to create a new map.
3.2 Mapping
06
The Freo Mind is an intelligent cleaning assistant. When the Freo Mind is enabled, the robot can:
•set cleaning parameters based on the environmental data collected by sensors;
•enhance edge-to-edge cleaning.
You can enable the Freo Mind in two ways:
•Select the Freo Mind in the cleaning modes in the App;
•Short press the Freo Mind On/O buon on the base station. When the indicator turns on, it means the Freo Mind is on.
Select cleaning modes
Set Freo Mind
The product comes with four built-in cleaning modes: Vacuum, Mop, Vacuum and Mop, and Vacuum then Mop. You can
select and adjust parameters like cleaning cycles, suction, and mop humidity for each mode in the App.
Before a cleaning task, please make sure that the robot has a proper baery level, which can be viewed in the App.
3.3 Cleaning
After the last mopping run, the robot will return to the base station for mop washing and drying. The drying time can
be modified in the App.
You can also start mop washing and drying manually in the following two ways:
•Tap Mop Washing & Drying buon in the App;
•Short press Mop Washing & Drying buon on the base station.
You can start the robot for cleaning in three ways:
•Tap Start Cleaning buon in the App;
•Short press the Start/Stop buon on the robot to start cleaning. The robot will activate the Vacuum Mode by default;
•Short press the Start/Stop buon on the base station to start cleaning. The robot will activate the Vacuum and
Mop Mode by default;
Note: You can adjust the cleaning mode and set more cleaning parameters in the App.
You can pause/resume the current task in three ways:
•Tap Pause/ Resume buon in the App;
•Short press the Start/Stop buon on the robot;
•Short press the Start/Stop buon on the base station.
Start cleaning task
Pause/resume the current task
Mop washing
End current task
If the robot is set for multiple mopping runs or the area for cleaning is large, the robot will automatically return to the
base station for mop washing.
The number of mopping runs and returns can be modified in the App before cleaning starts, and cannot be modified
during the current cleaning task.
Drying and disinfection
The robot will navigate itself back to the base station when cleaning ends. You can view the current cleaning report in the App.
You can manually end the task in the following three ways:
•Press and hold Finish buon for 2s in the App;
•Short press the Home buon on the robot;
•Short press the Recall buon or long press and hold the Start/Stop buon on the base station for 2s.
4. Parameters
4.1 Specifications
Dimensions: 355*350*109.6 mm
Weight: 4.5 kg
Baery: ≥5000 mAh
Rated voltage: 14.4V
Rated power: 65W
Protocol: IEEE 802.11b/g/n
Frequency Range: 2412~2472MHz
Max. Transmier Power (EIRP): ≤20dBm
Protocol: BLE 5.0
Frequency Range: 2402-2480MHz
Max. Transmier Power (EIRP): ≤10dBm
Robot
Wi-Fi
Bluetooth
Baery Pack Quantity Per Pack:
Baery Type:
Nominal Voltage:
Quantity of Baery Cells Per Baery Pack:
Rated Capacity, Rated Energy:
Baery (Robot)
Dimensions: 430.8*462*388.3 mm
Weight: 12.3 kg
Rated input: AC 220-240V 50-60Hz
AC 100V-127V 50-60Hz
Rated output: 20V 2.0A
Rated power:
Charging: 45W
Water heating: 1100W( AC 220-240V, 50-60Hz）
850-1250W( AC 100-127V, 50-60Hz）
Dust Collection: 450W
Drying:65W
Protocol: BLE 5.0
Frequency Range: 2402-2480MHz
Max. Transmier Power (EIRP): ≤10dBm
1 pcs
Rechargeable Li-ion Baery
14.4V
8 pcs
5000mAh, 72Wh
Bluetooth
Base Station
Manufacturer/Fabricant : Yunjing Intelligence Innovation (Shenzhen) Co., Ltd.
Address/Adresse : Room A2901, Yunzhongcheng, Building 1, Vanke Yuncheng VI, Dashi 2nd Road, Xili
Community, Xili Street, Nanshan District, Shenzhen, Guangdong, China
Copyright © 2024 Yunjing Intelligence Innovation (Shenzhen) Co., Ltd. All Rights Reserved.
is a trademark of Yunjing Intelligence Innovation (Shenzhen) Co., Ltd.
Droits d'auteur © 2024 Yunjing Intelligence Innovation (Shenzhen) Co., Ltd. Tous droits réservés.
est une marque de commerce de Yunjing Intelligence Innovation (Shenzhen) Co., Ltd.
