Narwal Freo X Ultra Robot Vacuum and Mop
Model: YJCC0015
User Manual
TM
01
Dear users:
Thank you for purchasing Narwal products. To access comprehensive support from Narwal, you are recommended to read carefully the
manual and illustrations before using the product. Please keep the manual properly.
The manual may be updated from time to time based on product updates and user feedback. Please scan the QR code below to browse
the oicial website and view the latest version.
In case of any problem in using the product, please contact Narwal after-sales customer service through the following ways:
Customer service email:
[email protected]om(North America)
[email protected](Germany)
[email protected](Italy)
[email protected](Japan)
[email protected](France)
[email protected](South Korea)
[email protected](Spain)
*For other countries, please refer to the after-sales contact information provided by your local vendors
We wish you a pleasant experience!
Electronic user manual
電子取扱説明書
전자�설명서
Elektronisches Benutzerhandbuch
Manuale Utente Eleronico
Manual de usuario electrónico
Manuel d'utilisation électronique
Электронное руководство пользователя
คู่มืออิเล็กทรอนิกส์
Sổ tay điện tử
ינורטקלאךירדמ
Elektronik Kılavuz
Instrukcja elektroniczna
02
09
16
23
30
37
44
51
CONTENTS
en
de
it
fr
es
ru
tr
pl
02
Robot × 1 (including
disposable dust bag × 1,
mopping module × 2)
Base station × 1 (including cleaning
base × 1, cleaning tray × 1, clean wate
r tank × 1, dirty water tank × 1)

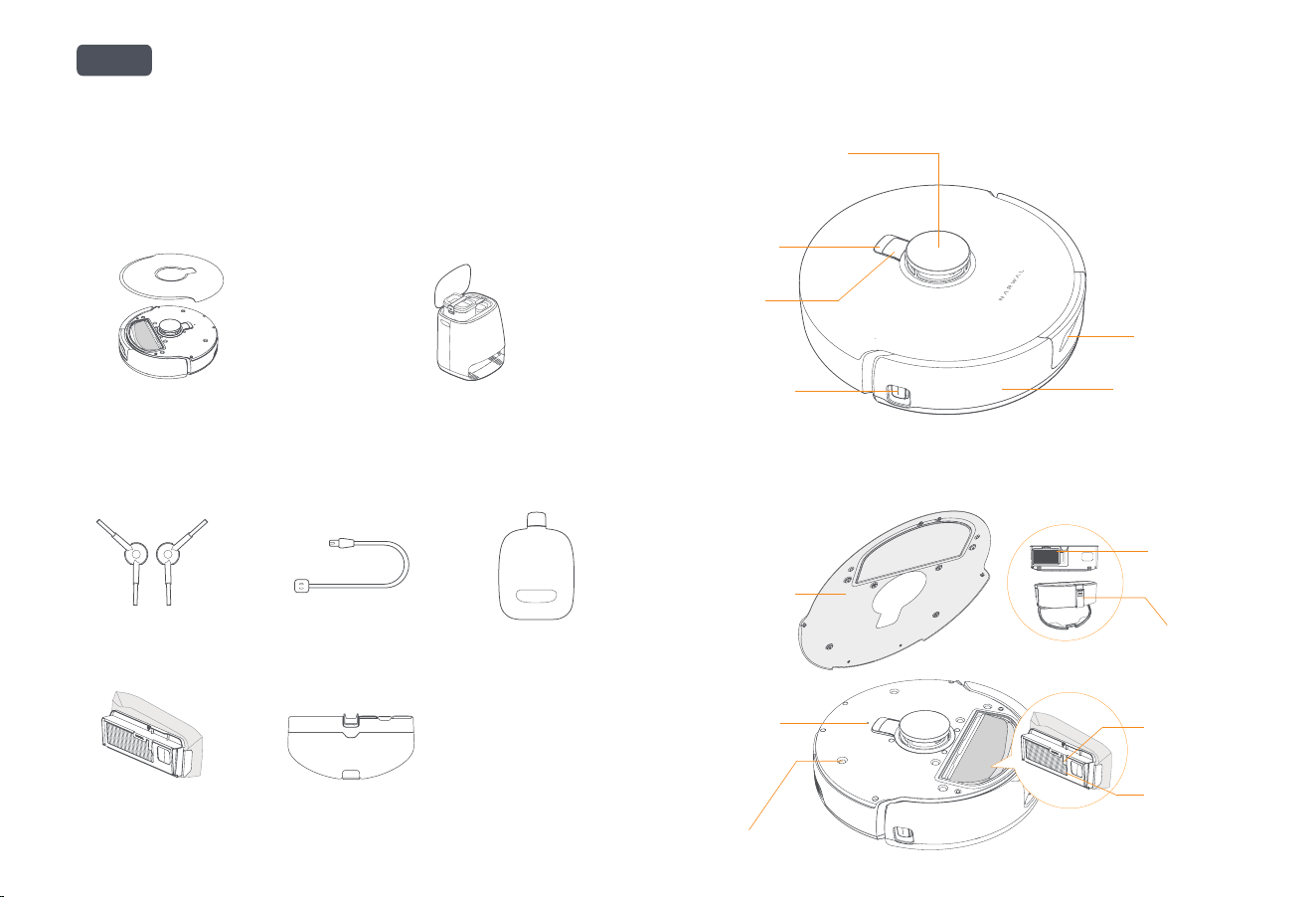

1. Product At A Glance
1.1 Check list
Main parts
Accessories
1.2 Robot
Front (top cover closed)
Front (top cover open)
Radar positioning sensor
(laser ranging sensor)
Robot top cover
Top cover slot
RESET buon
Start/Stop
buon
Bumper (pressure)
sensor
Dust Bin Filter
Dust bin
Disposable dust bag
Dust bin o
pen buon
Dust bag filter
Dust bag snap
Structured light
forward sensor
Structured light
edge sensor
Recall buon
Side brush × 2 Power cord × 1 Dedicated detergent × 1
Disposable Dust Bag × 2 Dust bin × 1
en
Mopping module ×1
03

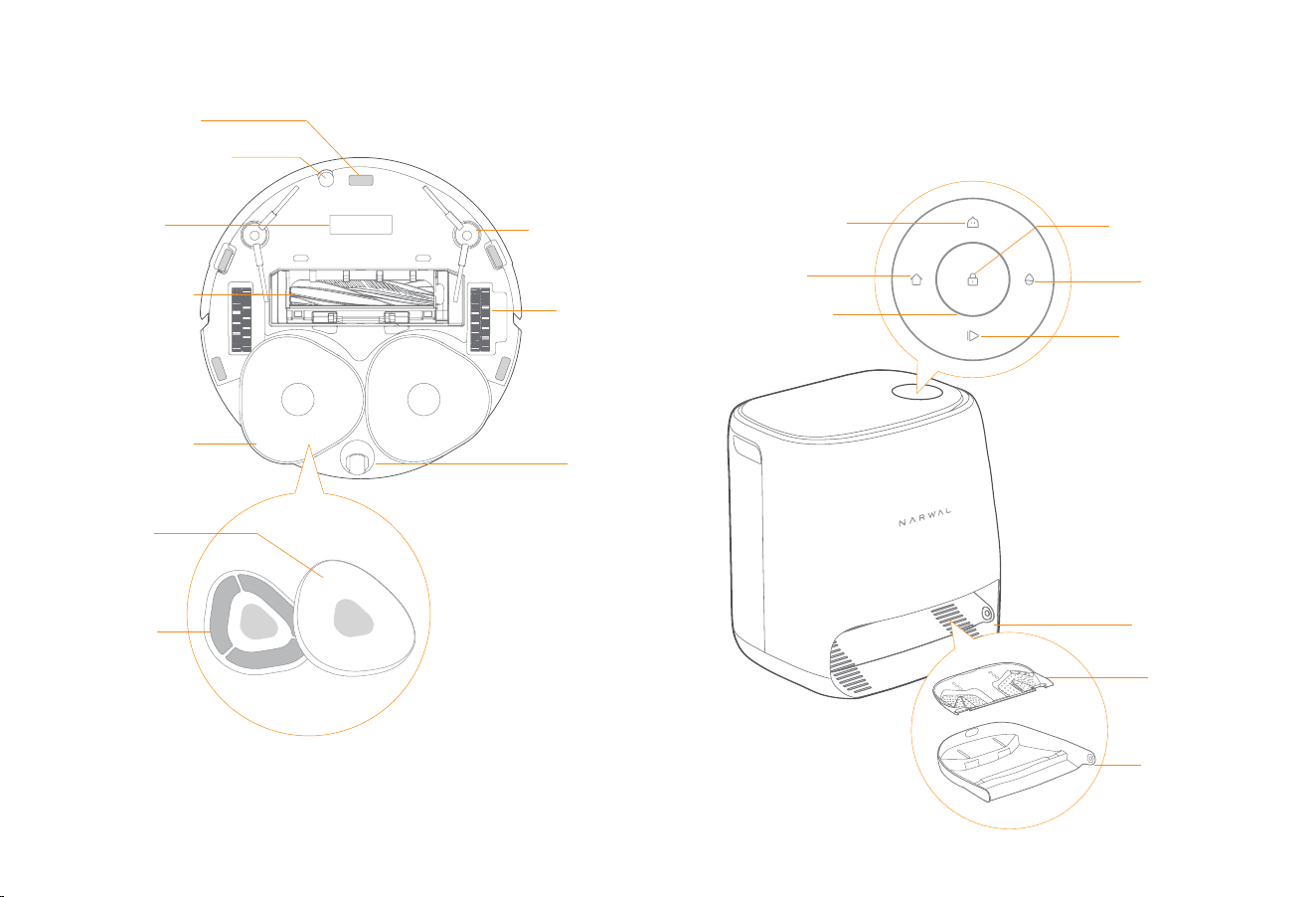

Robot boom
Infrared ranging and
anti-drop sensor ×5
Nameplate
(S/N included)
Ultrasonic carpet sensor
Cyclonic deflector
tangle-free r
oller brush
Mop pad ×2
Mop base ×2
Side brush × 2
Drive
wheel ×2
Caster
1.3 Base station
Front (lid closed)
Touch panel
Start/Stop buon
Recall/Exit buon Mop washing/
drying buon
Freo Mind On/O buon
Child Lock indicator
Base Station indicator
Robot entrance
Cleaning tray
Cleaning base
Start/Stop
Recall
Reset
04

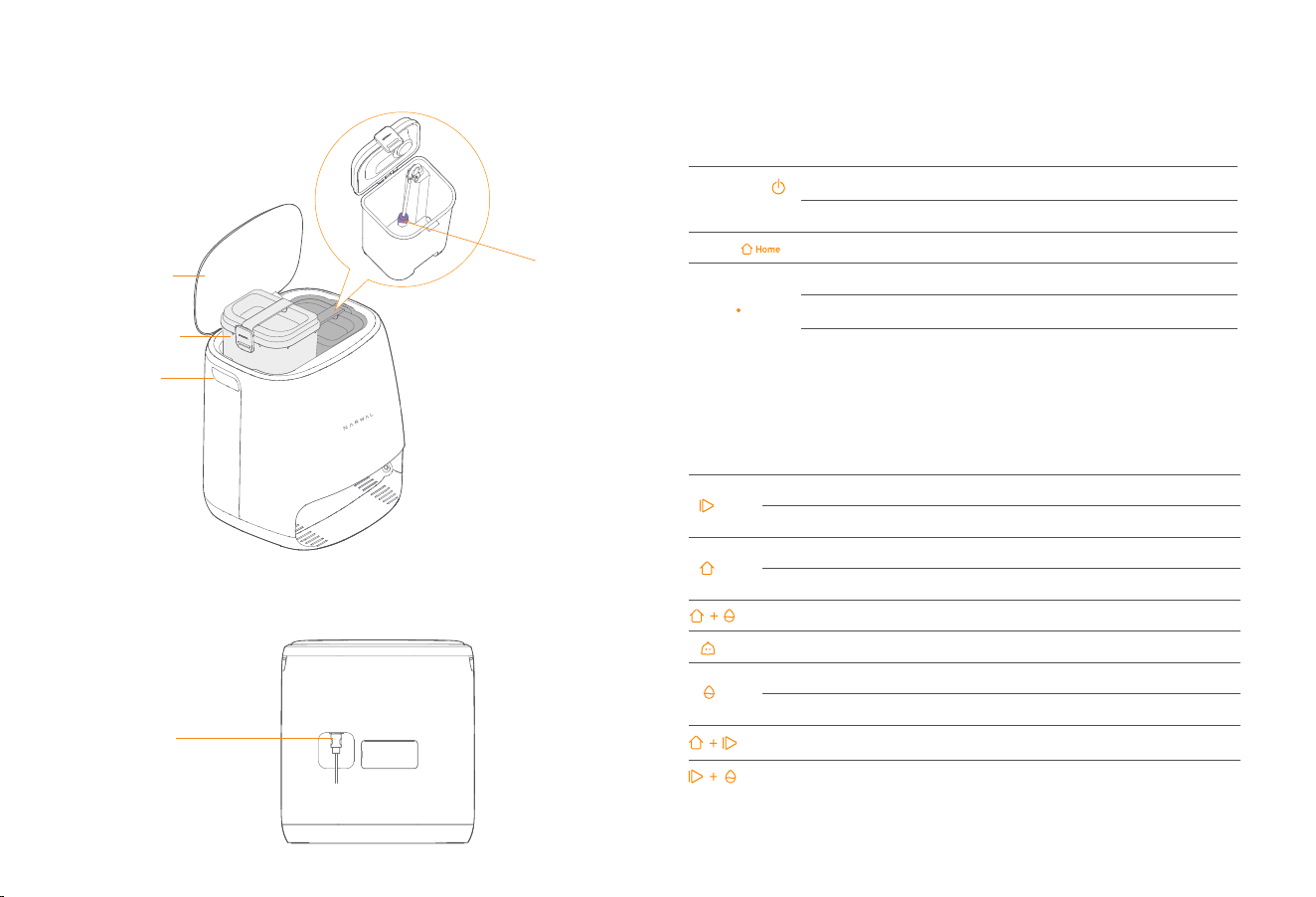

Front (lid open)
Back
Base station lid
Clean water tank
Dirty Water Tank
Base station
handle
Power interface
1.4 Buons and indicators
Robot buons
Buon Action Function
Short press
Press and hold for 2s
Short press
Short press
Press and hold for 5s
Press and hold for 10s
Start/pause/resume current task
Power on/o
Return to the base station
Enter the pairing mode
Unbind the account and clear user data
Restore factory seings
Short press
Press and hold for 2s during a task
Short press
Press and hold for 2s
Press and hold for 2s
Short press
Short press
Press and hold for 10s
Press and hold for 2s
Press and hold for 2s
Start/pause/resume current task
End current task
(Cancel) Recall/Exit
turn on child lock
Child Lock o
Turn On/O Freo Mind
Start/cancel mop washing and drying
Refill/discharge self-check
Enter/exit the pairing mode
Restart mapping
Buon
Base station buons
Action Function
Clean water tank s
ponge filter
05
2. 2. Get Ready Before Use

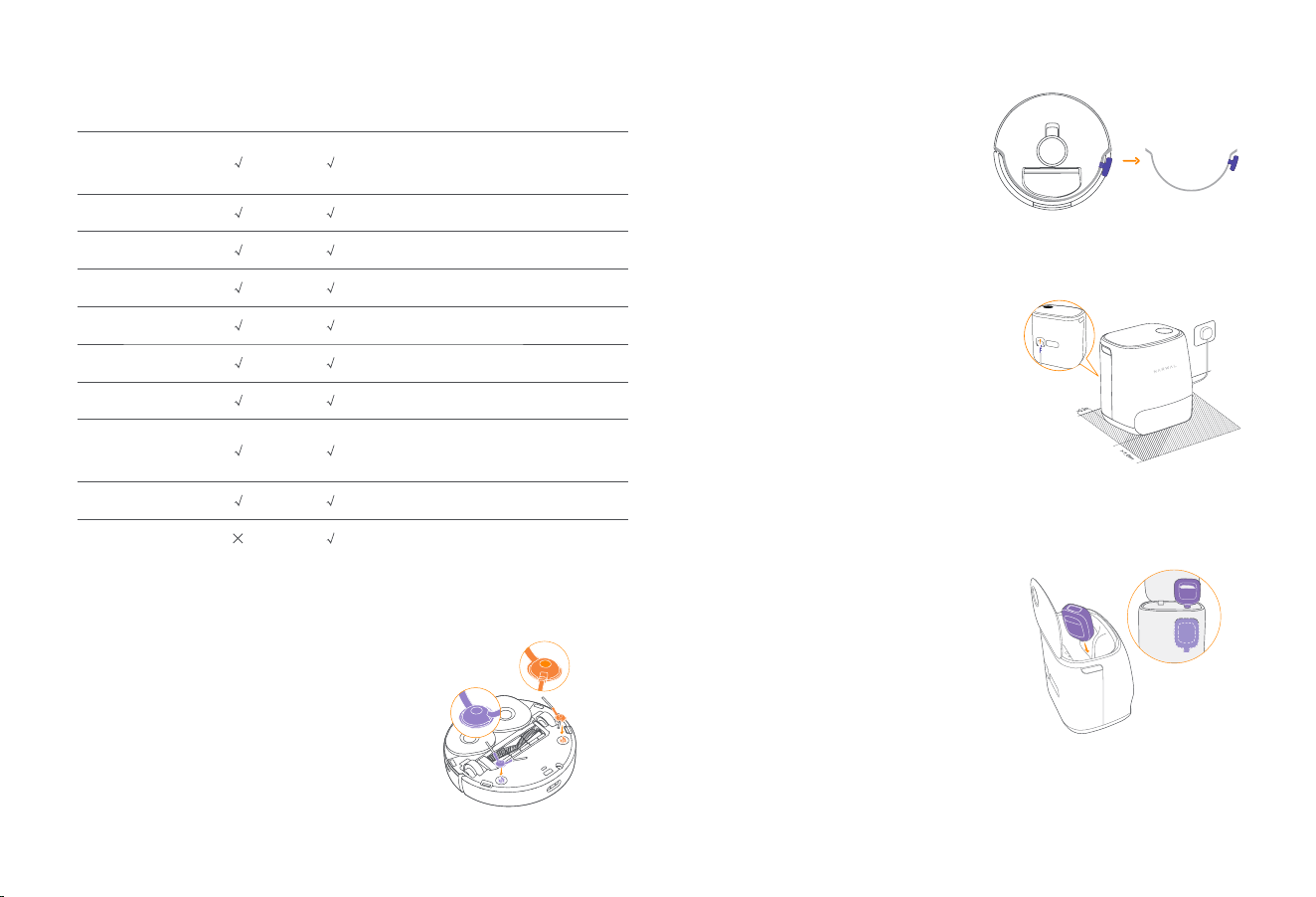

Install the side brushes
L
L
R
R
Press side brushes into the slots as
indicated by color until they click into
place.
Place the base station
Plug the power cord into the socket on
the back of the base station and leave an
open space of at least 1.0m in front of the
base station for the robot to enter and
leave the base station.
Note: If the base station is placed tilted or there
are table legs, curtains, and ornaments around,
the robot's obstacle avoidance function may be
triggered, aecting its entry and exit.
Place dedicated detergent
•Turn the detergent upside down (DO NOT
remove the cap) and insert it into the slot.
The dedicated detergent bole is properly
in place when it is fixed without tipping over.
•You can set in the App whether to add the
detergent automatically when mopping.
Remove the anti-collision foam
Open the robot top cover and remove the
anti-collision foam.
O
Steady white
Breathing white
Steady blue
Breathing blue
Steady purple
Breathing purple
Breathing red
Breathing orange
Colorful meteor light
Robot is turned o
Base station shutdown or touch
panel in AOD. Touch to wake up
Base station and robot on standby
Base station and robot idle
Cleaning underway
Cleaning paused
Disinfection underway
Disinfection paused
Base station or robot abnormal
or base station and robot
disconnected
Pairing or update underway
Waking up the base station
Indicator Robot
indicator
Base Station
indicator
Meaning
Robot & base station indicators
06

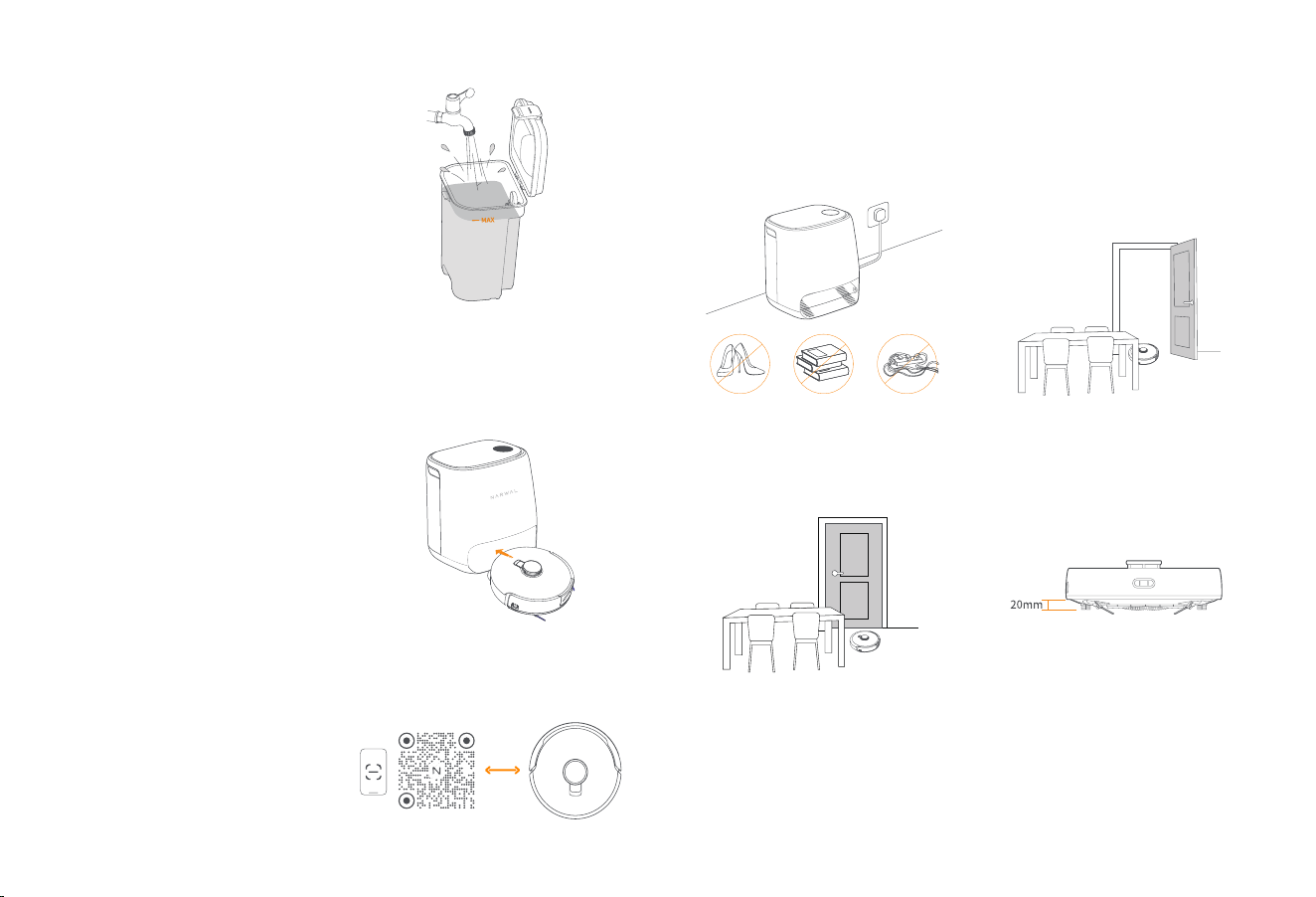

3. How to Use
Before using the robot, please make sure you have finished the installation
and base station setup in Chapter 2.
A. Put away the cluer on the floor,
e.g. scaered cables, rags, slippers,
clothes and books.
B. Open the doors of the rooms to be
cleaned and arrange the furniture to
leave as much space as possible for
cleaning.
3.1 Organize the home environment
Add clean water
Before mopping, add water to the clean
water tank for mop washing.
• Lift up the base station lid. Take out the
clean water tank, snap it open and fill it
with clean water (DO NOT exceed the MAX
water level mark).
• Snap the tank shut and put the water
tank back into the base station.
Note: DO NOT add any third-party detergents or
disinfectants into the clean water tank to avoid
product damage.
Connect and bind the robot in
the App
Scan the QR code to download the
Narwal Freo App, tap “Add Device”
and select the model in the App, and
follow the instructions for
connecting and binding the robot.
Startup seings
Push the robot into the base station with
side brushes facing outward. The base
station will beep once to indicate that
charging is successful and the robot will
switch itself on and broadcast the
message.
C. Leave other doors closed and
install the fence to prevent the robot
from entering elevated or low areas.
D. The maximum obstacle crossing
height is 20mm and the robot
cannot enter rooms with a threshold
height of over 20mm. You can
purchase Narwal Threshold Ramp to
help the robot climb over and around
obstacles more eiciently.
Before cleaning a new home, the robot needs to explore the environment and
create a map. Before first-time cleaning, you can trigger mapping by short
pressing the 【Start/Stop】 buon on the robot or tapping “Start Mapping”
in the App.
Note:
1.Once a map is created, it can be edited in the App.
2.Please do not move the base station after a map is created, or you have to
restart mapping. If large furniture in your home is rearranged, it is
recommended to create a new map.
3.2 Mapping
E.DO NOT stand in front of the robot,
on the threshold or in narrow aisles
to avoid omission.
07
3.3 Cleaning
Select cleaning modes
The product comes with four built-in cleaning modes: Vacuum, Mop, Vacuum
and Mop, and Vacuum then Mop. You can select and adjust parameters like
cleaning cycles, suction, and mop humidity for each mode in the App.
Set Freo Mind
The Freo Mind is an intelligent cleaning assistant. When the Freo Mind is
enabled, the robot can:
•set cleaning parameters based on the environmental data collected by sensors;
•enhance edge-to-edge cleaning.
You can enable the Freo Mind in two ways:
•Select the Freo Mind in the cleaning modes in the App;
•Short press 【Freo Mind On/O】 buon on the base station. When the
indicator turns on, it means the Freo Mind is on.
Start cleaning task
You can start the robot for cleaning in the following three ways:
•Tap 【Start Cleaning】 in the App
•Short press the 【Start/Stop】 buon on the robot and the robot will
activate the Vacuum Mode by default;
•Short press the 【Start/Stop】 buon on the base station to start
cleaning. The robot will activate the Vacuum and Mop Mode by default;
Note: You can adjust the cleaning mode and set more cleaning parameters in the App.
Pause/resume current task
You can pause/resume current task in three ways:
•Tap 【Pause】/ 【Resume】 in the App;
•Short press the 【Start/Stop】 buon on the robot;
•Short press the 【Start/Stop】 buon on the base station.
Mop washing
If the robot is set for multiple mopping runs or the area for cleaning is large,
the robot will automatically return to the base station for mop washing.
The number of mopping runs and returns can be modified in the App before
cleaning starts, and cannot be modified during the current cleaning task.
End current task
The robot will navigate itself back to the base station when cleaning ends. You
can view the current cleaning report in the App.
You can manually end the task in the following three ways:
•Press and hold 【Finish】 for 2s in the App;
•Short press the 【Recall】 buon on the robot;
•Short press the 【Recall】 buon or press and hold the 【Start/Stop】
buon on the base station for 2s.
08
Drying and disinfection
After the last mopping run, the robot will return to the base station for mop
washing and drying. The drying time can be modified in the App.
You can also start mop washing and drying manually in the following two
ways:
•Tap 【Mop Washing & Drying】 in the App;
•Short press 【Mop Washing & Drying】 on the base station.
Baery (Robot)
Baery Type
Baery Pack Quantity Per Pack
Quantity of Baery Cells Per Baery Pack
Rated Capacity, Rated Energy
Nominal Voltage
Rechargeable Li-ion Baery
1 pcs
8 pcs
5000mAh, 72Wh
14.4V
4. Parameters
4.1 Specifications
Robot
Dimensions: 350*350*107 mm
Color: White
Weight: ~4.25kg
Wi-Fi
Protocol: IEEE 802.11b/g/n
Frequency Range: 2412~2472MHz
Max.
Transmier Power (EIRP): ≤20dBm
Dimensions: 415*370*434mm
Color: White
Weight: ~8.5kg
Rated input: 100-240V
Rated output: 20V 3.0A
Rated frequency: 50-60Hz
Rated power: 72W
Base station
Bluetooth
Protocol: BLE 5.0
Frequency Range: 2402-2480MHz
Max. Transmier Power (EIRP): ≤10dBm
Bluetooth
Protocol: BLE 5.0
Frequency Range: 2402-2480MHz
Max. Transmier Power (EIRP): ≤10dBm
