52-Inch Ceiling Fan
ES10118US
USER’S MANUAL
52-Inch
0.10
0.12
0.18
0.27
0.30
0.35
12.6
15.6
22.4
32.1
39.6
48.8
103
122
135
153
175
185
120
6
5.5KG
12.12LBS 14.99LBS
6.8KG
.
cu ft
2.57
5694
with any solid-state speed control
device.
Safety Information
1.To reduce the risk of electric
shock,the electricity has been
turned off at the circuit breaker or
fuse box before begin.
2.The outlet box and support
structure must be securely
mounted and capable of reliably
supporting 35 lbs.
3.The fan must be mounted with a
minimum of 7.5ft clearance
from the trailing edge of the blades
to the floor.
4.Do not operate the reversing
switch while the fan blades are
in
motion. You must turn the fan off
and stop the blades before you
reverse the blade direction.
5.Do not place objects in the path
of the blades.
6.To avoid personal injury or
damage to the fan and other
items, please be careful when
walking around or cleaning the fan.
7.After making electrical
connections, spliced conductors
should be turned upward and
pushed carefully up into the outlet
box. The wires should b
e spread
apart with the grounded
conductor and the
equipment-grounding conductor on
one side of the outlet box.
8.All setscrews must be checked
and retightened where necessary
before installation.
To reduce the risk of personal
injury, do not bend the blade
brackets (also referred to as
flanges) during assembly or after
installation. Do not insert objects
in the path of the blades.
Remove the rubber motor stops
on the bottom of the fan before
installing the blades or testing the
motor.
To reduce the risk of fire or
electric shock,do not use this fan
To reduce the risk of fire, electric
shock, or personal injury, mount
to outlet box marked "Acceptable
for fan support of 35 lbs or less"
and use the screws provided with
the outletbox.
WARNING:
Pre-Installation

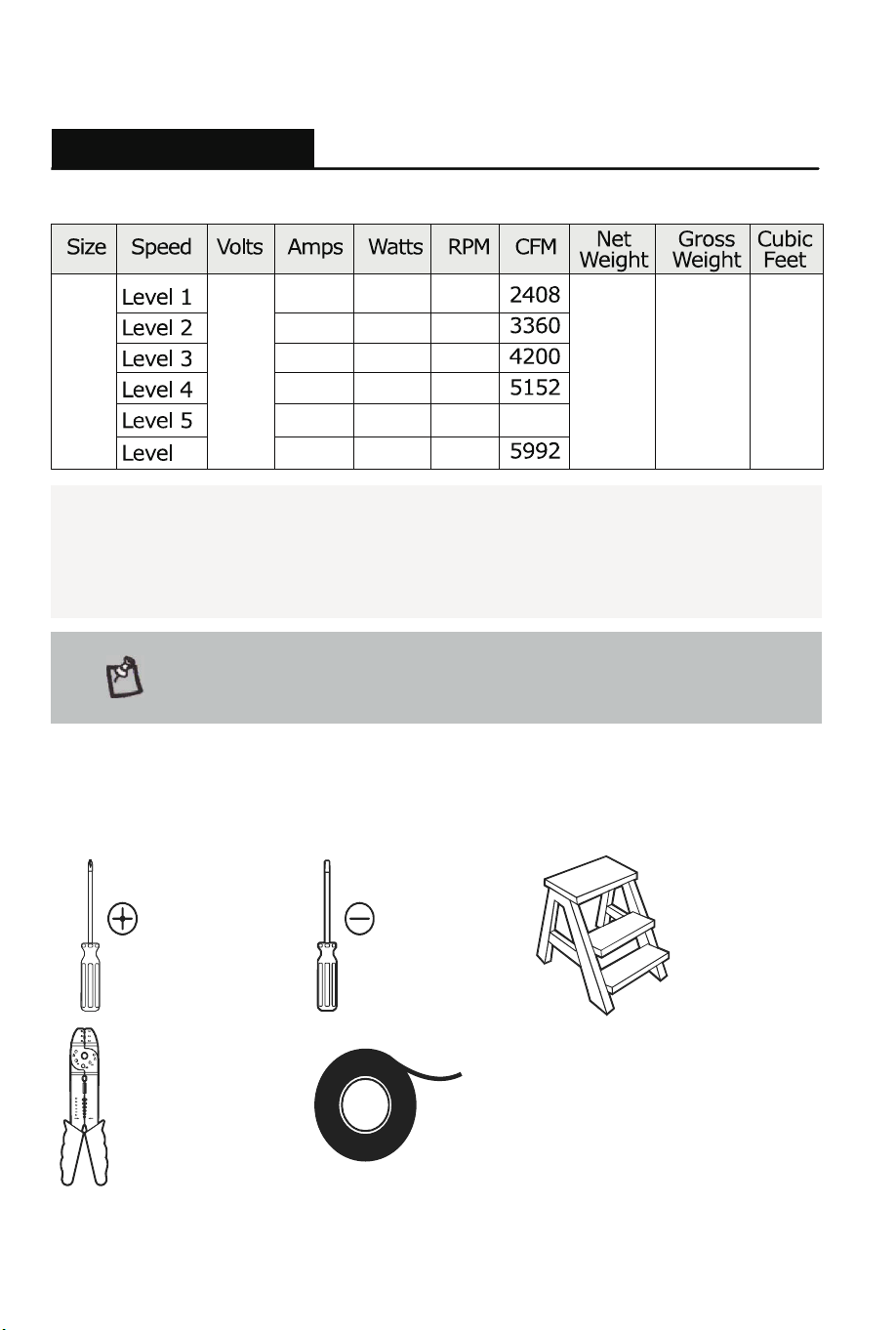

SPECIFICATION
The above data are for reference only, actually the motor speed of each
ceiling fan is a little different. Any product is subject to actual products
as standard.
NOTE: These are a pproximate measures. They do not
include the amps and wattage used by the light kit.
Specifications & measurements shown are subject to± 5% variations.
Phillips
TOOLS REQUIRED
screwdriver
Wire stripper
Flat blade
screwdriver
Electrical tape
Step ladder
02
03
To avoid possible electric shock,
turn the electricity off at the
main fuse box before wiring. If
you feel you do not have enough
electrical wiring knowledge or
experience, contact a licensed
electrician.
52-Inch
0.10
0.12
0.18
0.27
0.30
0.35
12.6
15.6
22.4
32.1
39.6
48.8
103
122
135
153
175
185
120
6
5.5KG
12.12LBS 14.99LBS
6.8KG
.
cu ft
2.57
5694
with any solid-state speed control
device.
Safety Information
1.To reduce the risk of electric
shock,the electricity has been
turned off at the circuit breaker or
fuse box before begin.
2.The outlet box and support
structure must be securely
mounted and capable of reliably
supporting 35 lbs.
3.The fan must be mounted with a
minimum of 7.5ft clearance
from the trailing edge of the blades
to the floor.
4.Do not operate the reversing
switch while the fan blades are
in
motion. You must turn the fan off
and stop the blades before you
reverse the blade direction.
5.Do not place objects in the path
of the blades.
6.To avoid personal injury or
damage to the fan and other
items, please be careful when
walking around or cleaning the fan.
7.After making electrical
connections, spliced conductors
should be turned upward and
pushed carefully up into the outlet
box. The wires should b
e spread
apart with the grounded
conductor and the
equipment-grounding conductor on
one side of the outlet box.
8.All setscrews must be checked
and retightened where necessary
before installation.
To reduce the risk of personal
injury, do not bend the blade
brackets (also referred to as
flanges) during assembly or after
installation. Do not insert objects
in the path of the blades.
Remove the rubber motor stops
on the bottom of the fan before
installing the blades or testing the
motor.
To reduce the risk of fire or
electric shock,do not use this fan
To reduce the risk of fire, electric
shock, or personal injury, mount
to outlet box marked "Acceptable
for fan support of 35 lbs or less"
and use the screws provided with
the outletbox.
WARNING:
Pre-Installation
SPECIFICATION
The above data are for reference only, actually the motor speed of each
ceiling fan is a little different. Any product is subject to actual products
as standard.
NOTE: These are a pproximate measures. They do not
include the amps and wattage used by the light kit.
Specifications & measurements shown are subject to± 5% variations.
Phillips
TOOLS REQUIRED
screwdriver
Wire stripper
Flat blade
screwdriver
Electrical tape
Step ladder
02
03
To avoid possible electric shock,
turn the electricity off at the
main fuse box before wiring. If
you feel you do not have enough
electrical wiring knowledge or
experience, contact a licensed
electrician.
Washers
not?Yes,and install.
Pre-Installation (continued) Pre-Installation (continued)

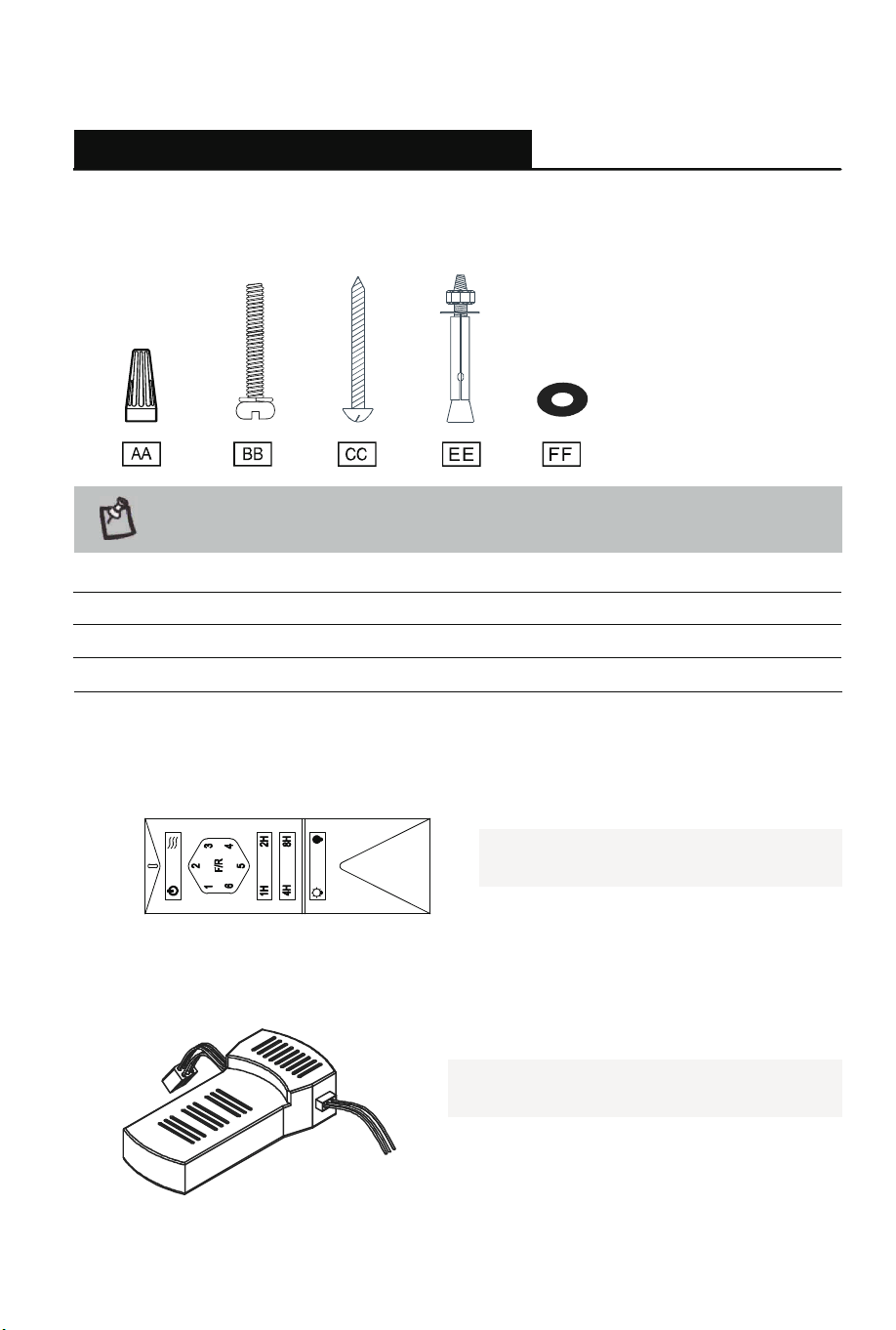

PACKAGE CONTENTS HARDWARE INCLUDED
components table
NOTE: Hardware not shown to actual size
AA
BB
CC
EE
FF
Remote control (Transmitter)x1

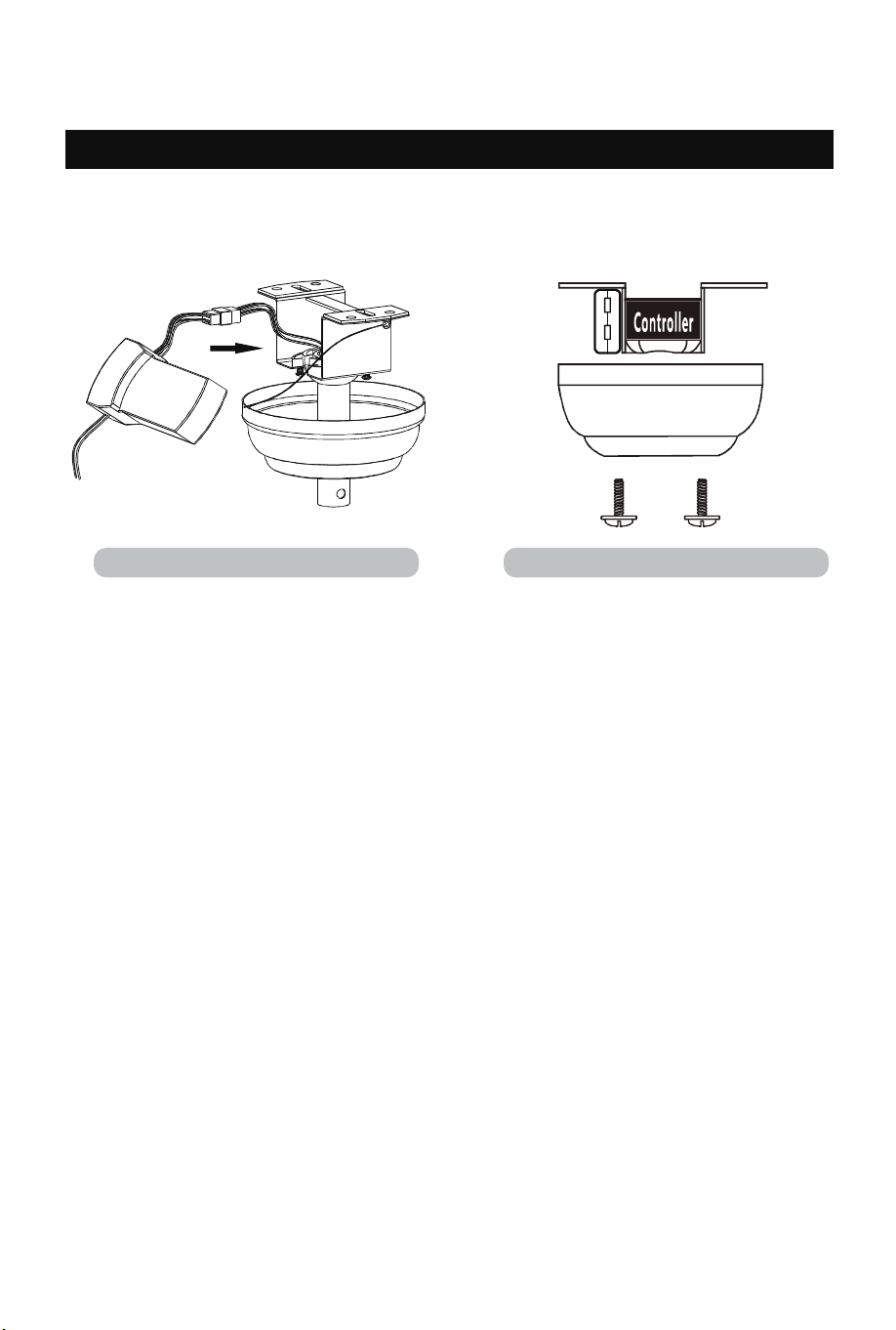

Remote control (receiver)x1
3
7
4
2
7
Plastic wire nut (not to scale)

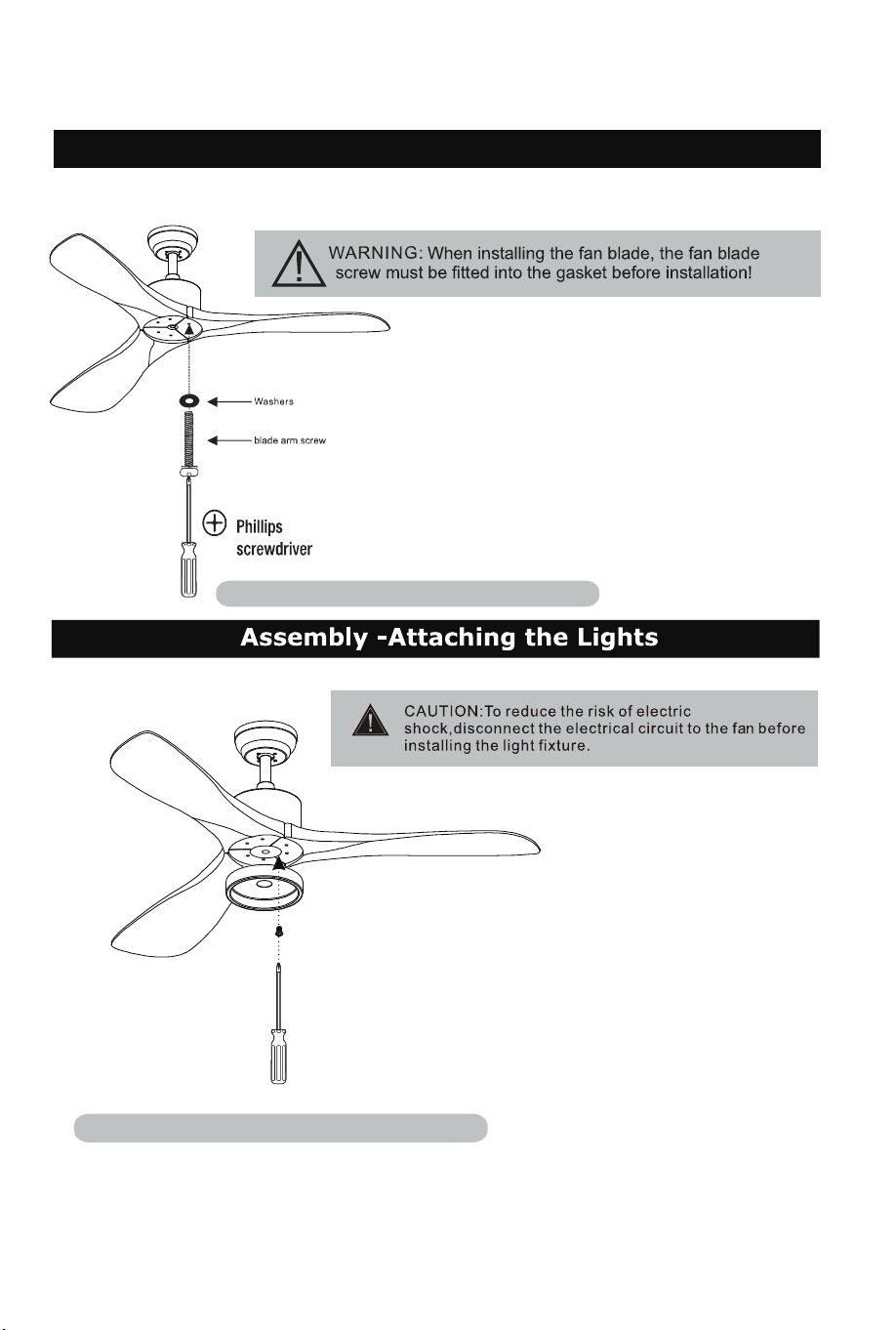

Blade arm screw and lock washer
Mounting screws
Expansion Bolts

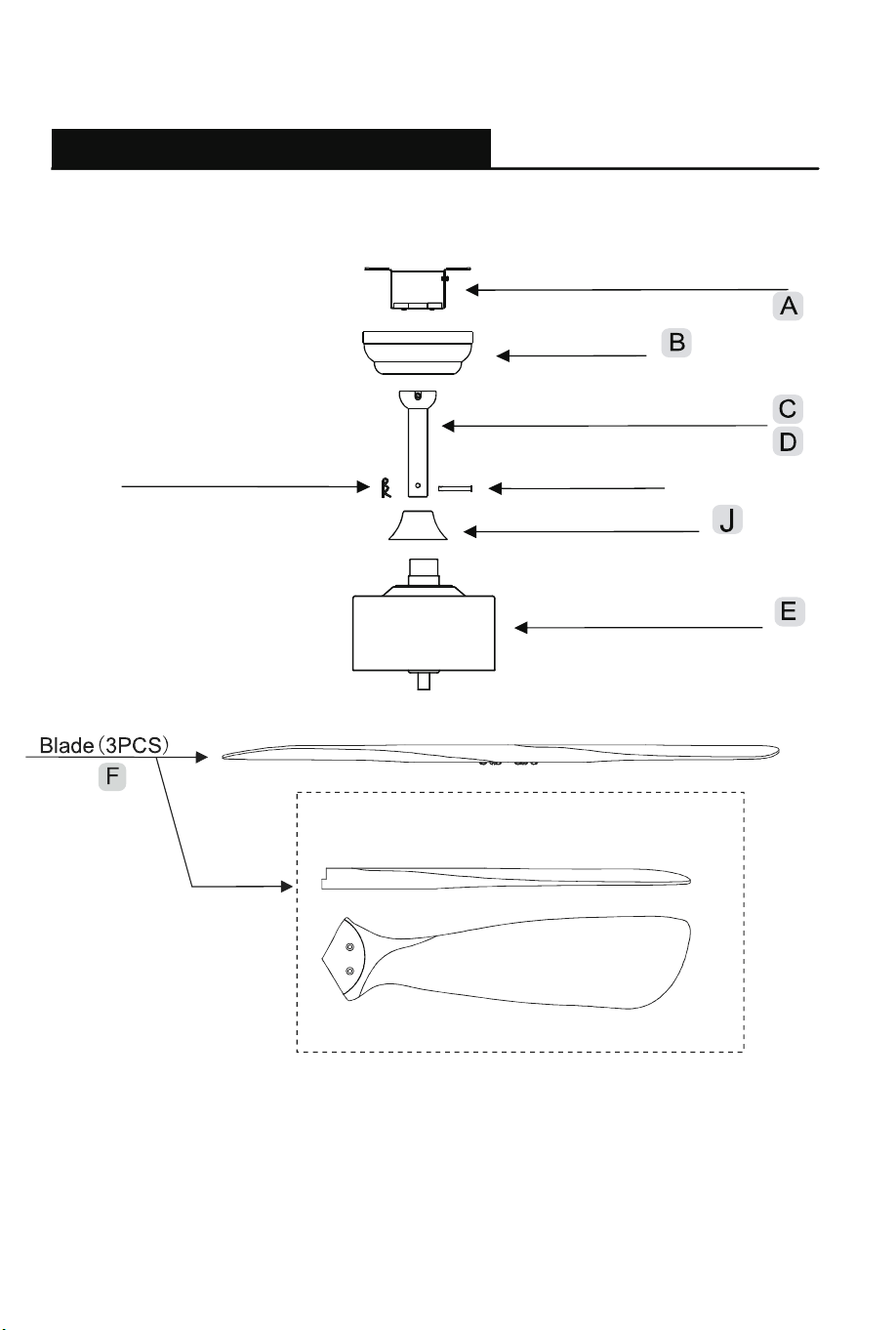

Slide-on mounting bracket
Canopy
5.1” Ball/downrod assembly
Hanging Pin
Coupling cover
Fan-motor assembly
"R"Locking Pin
10” Ball/downrod assembly(standby)
Please check whether above accessories are completed or
5040
Washers
not?Yes,and install.
Pre-Installation (continued) Pre-Installation (continued)
PACKAGE CONTENTS HARDWARE INCLUDED
components table
NOTE: Hardware not shown to actual size
AA
BB
CC
EE
FF
Remote control (Transmitter)x1
Remote control (receiver)x1
3
7
4
2
7
Plastic wire nut (not to scale)
Blade arm screw and lock washer
Mounting screws
Expansion Bolts
Slide-on mounting bracket
Canopy
5.1” Ball/downrod assembly
Hanging Pin
Coupling cover
Fan-motor assembly
"R"Locking Pin
10” Ball/downrod assembly(standby)
Please check whether above accessories are completed or
5040
Installation of the hanging bracket (suspension part)
WOODEN CEILING
CONCRETE CEILING
SWITCH OFF THE ELECTRICAL MAINS AT THE CIRCUIT
BREAKER FUSE BOX.
SWITCH OFF THE ELECTRICAL MAINS AT THE CIRCUIT
BREAKER FUSE Box

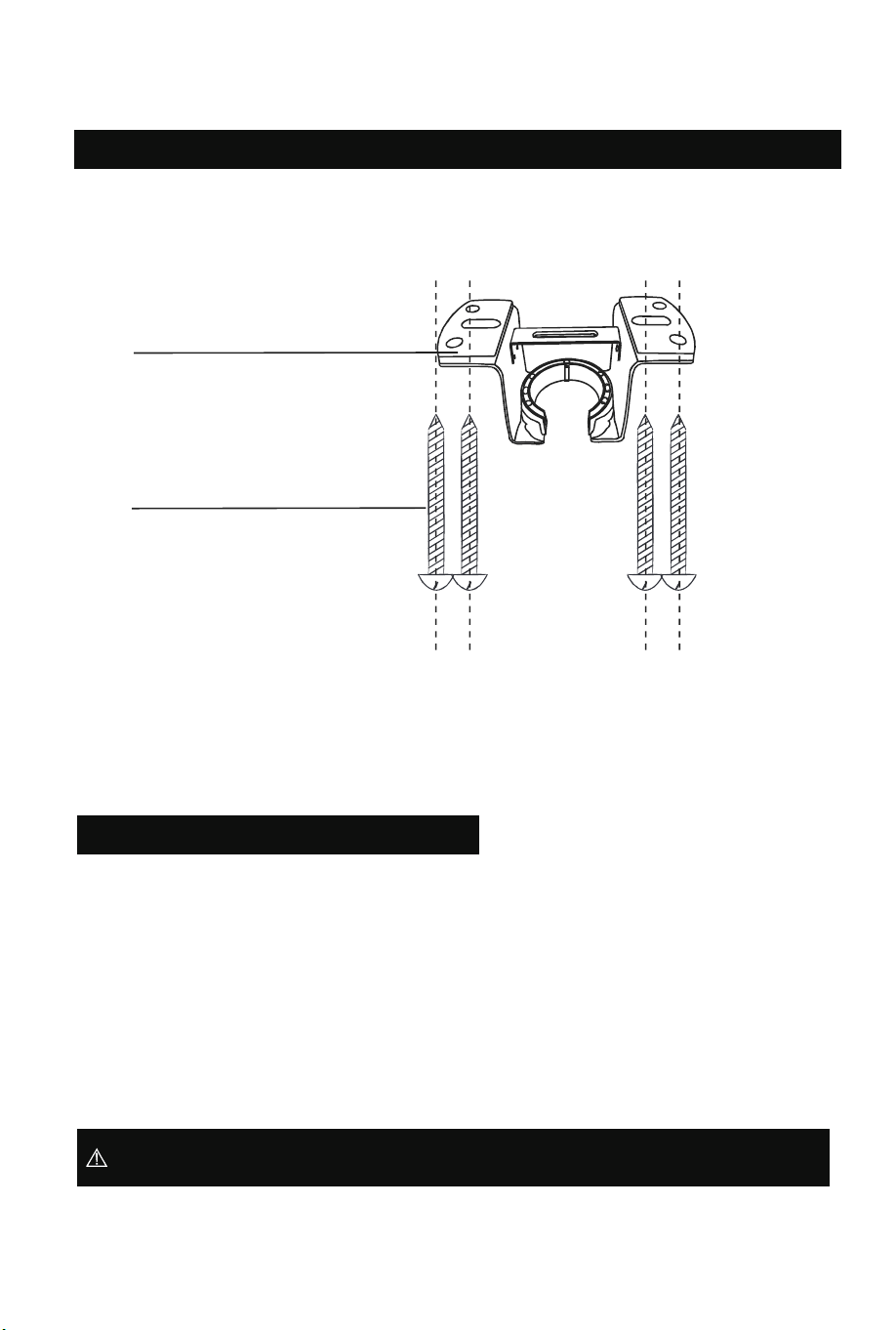

STEP 1 A-WOODEN CEILING
STEP 2 A-CONCRETE CEILING
IMPORTANT: SCREWS MUST BE TIGHTENED TILL SNUG
IMPORTANT: SCREWS MUST BE TIGHTENED TILL SNUG
Mounting Bracket(A)
Self tapping screw<B>
For wooden ceiling, use wood screw to drill on the wooden beam or the
"junction box" to fix the hanging
bracket (selection is made according to
actual requirements of the customers).
1) Use the Mounting Bracket (A) as a guide, mark the spots where the 4
Self Tapping Screws (B) will be drilled.
2) Remove the Mounting Bracket (A), drill 4 holes for 3MM diameter, install
the mounting bracket onto wooden ceiling with the 4 Self Tapping Screws
(B).
Mounting Bracket(A)

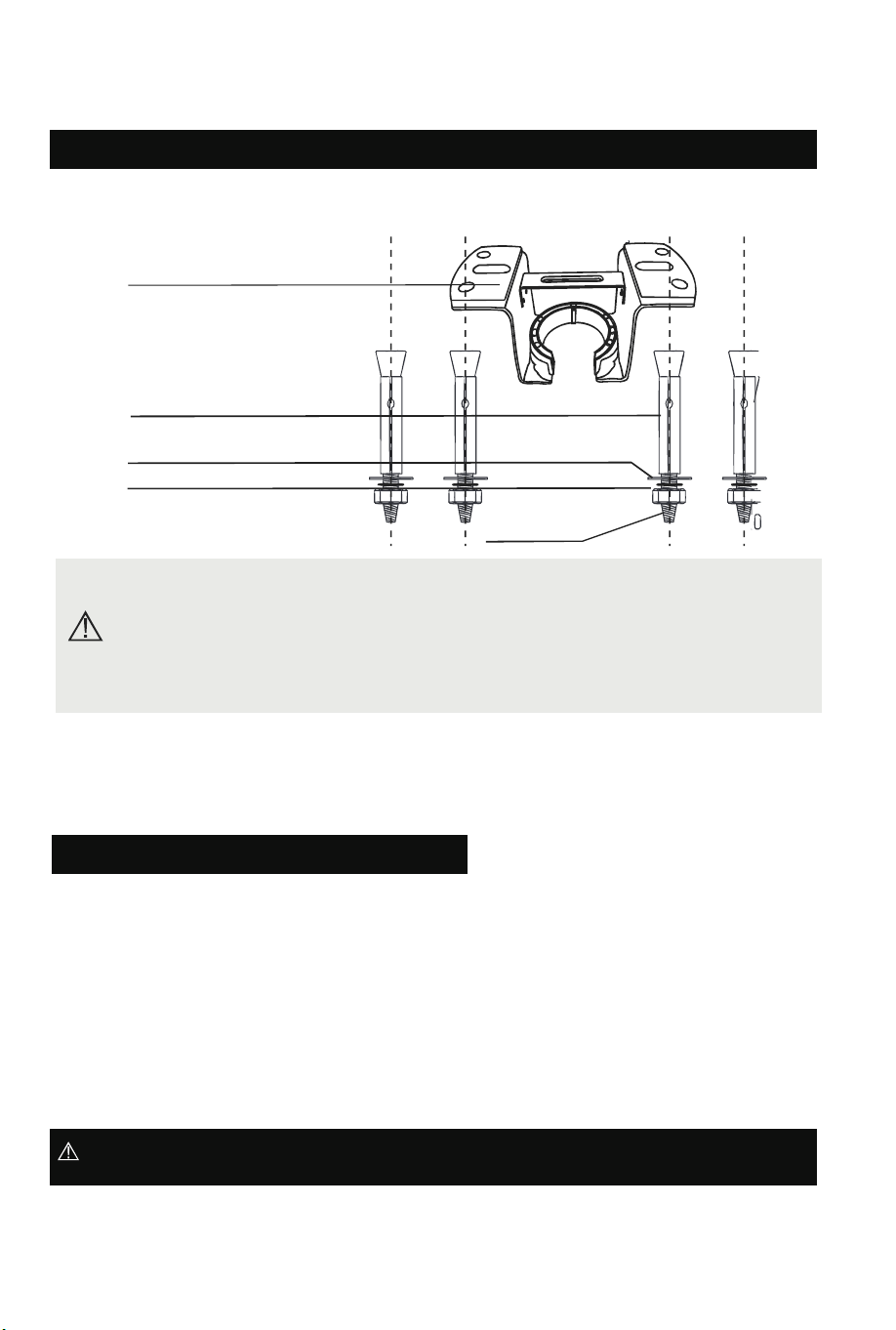

Installation of the hanging bracket (suspension part)
Expension Bolts<B>
Flat Washers <C>
Spring Washers<D>
Nuts<E>
Note: According to the ceiling of different materials, use different
screws to fix the hanging bracket.Don't fix the hanging bracket on
the wood ceiling less than 0.5” to prevent danger caused by
loosening of screws.
After the hanging bracket is completed, ensure that it can withstand
the tension test of more than 150 LBS for safety.
For concrete ceiling, use the percussion
bit with diameter 0.3” to drill holes
according to the length of expansion screws. Then use the attached
expansion screws to fix the hanging bracket onto the ceiling (selection is
made according to actual requirements of the customers).
1)Use the Mounting Bracket (A) as a guide, mark the spots where the 4
Expansion Bolts (B) will be drilled.
2)Remove the Mounting Bracket (A), drill 4 holes and insert 4 Expansion
Bolts (
B) into the concrete ceiling, install the mounting bracket and secure
with Flat Washers (C), Spring Washers (D) and Nuts (E)
7060
Installation of the hanging bracket (suspension part)
WOODEN CEILING
CONCRETE CEILING
SWITCH OFF THE ELECTRICAL MAINS AT THE CIRCUIT
BREAKER FUSE BOX.
SWITCH OFF THE ELECTRICAL MAINS AT THE CIRCUIT
BREAKER FUSE Box
STEP 1 A-WOODEN CEILING
STEP 2 A-CONCRETE CEILING
IMPORTANT: SCREWS MUST BE TIGHTENED TILL SNUG
IMPORTANT: SCREWS MUST BE TIGHTENED TILL SNUG
Mounting Bracket(A)
Self tapping screw<B>
For wooden ceiling, use wood screw to drill on the wooden beam or the
"junction box" to fix the hanging
bracket (selection is made according to
actual requirements of the customers).
1) Use the Mounting Bracket (A) as a guide, mark the spots where the 4
Self Tapping Screws (B) will be drilled.
2) Remove the Mounting Bracket (A), drill 4 holes for 3MM diameter, install
the mounting bracket onto wooden ceiling with the 4 Self Tapping Screws
(B).
Mounting Bracket(A)
Installation of the hanging bracket (suspension part)
Expension Bolts<B>
Flat Washers <C>
Spring Washers<D>
Nuts<E>
Note: According to the ceiling of different materials, use different
screws to fix the hanging bracket.Don't fix the hanging bracket on
the wood ceiling less than 0.5” to prevent danger caused by
loosening of screws.
After the hanging bracket is completed, ensure that it can withstand
the tension test of more than 150 LBS for safety.
For concrete ceiling, use the percussion
bit with diameter 0.3” to drill holes
according to the length of expansion screws. Then use the attached
expansion screws to fix the hanging bracket onto the ceiling (selection is
made according to actual requirements of the customers).
1)Use the Mounting Bracket (A) as a guide, mark the spots where the 4
Expansion Bolts (B) will be drilled.
2)Remove the Mounting Bracket (A), drill 4 holes and insert 4 Expansion
Bolts (
B) into the concrete ceiling, install the mounting bracket and secure
with Flat Washers (C), Spring Washers (D) and Nuts (E)
7060

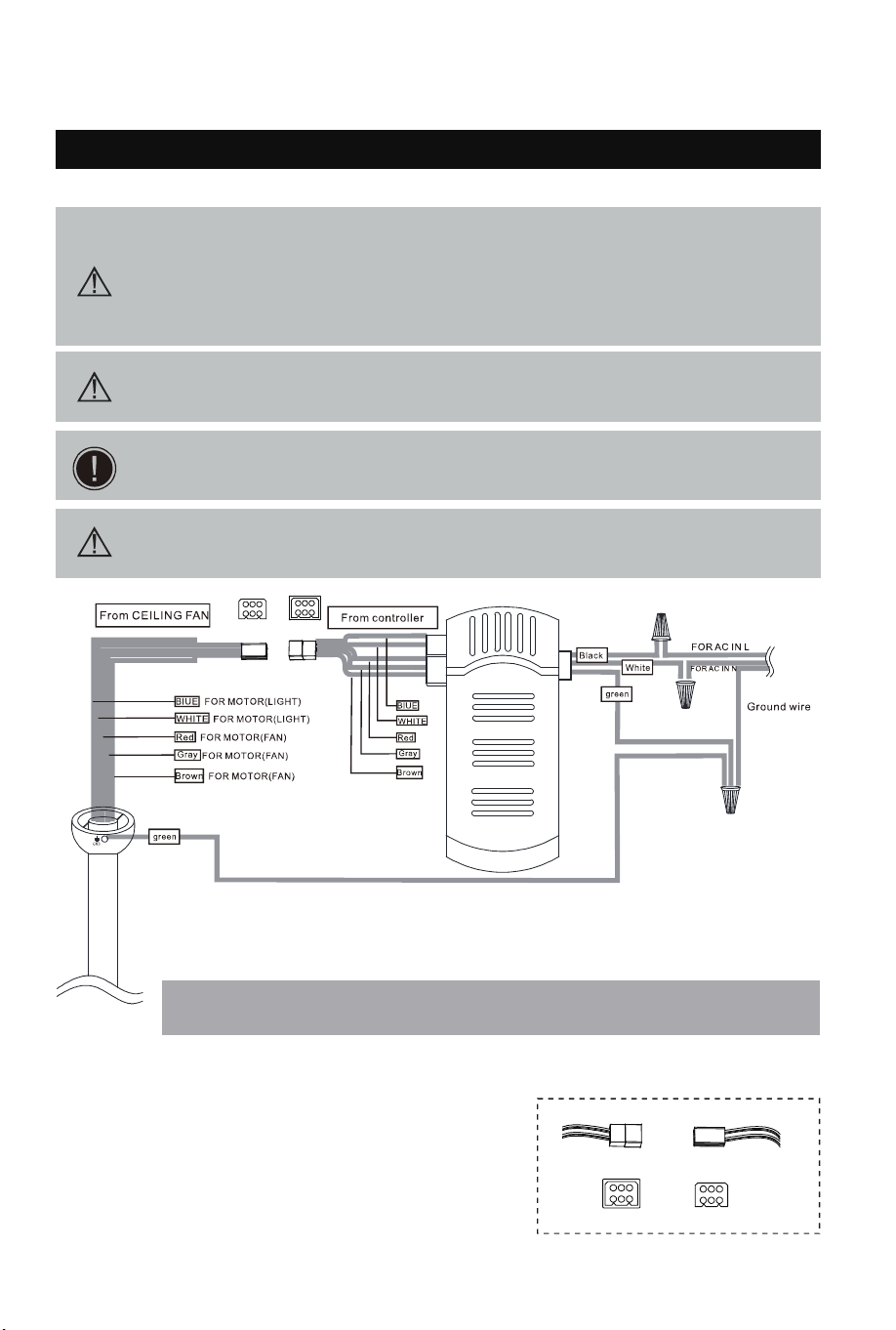

Making the electrical connections
Make wire connections
Phillips

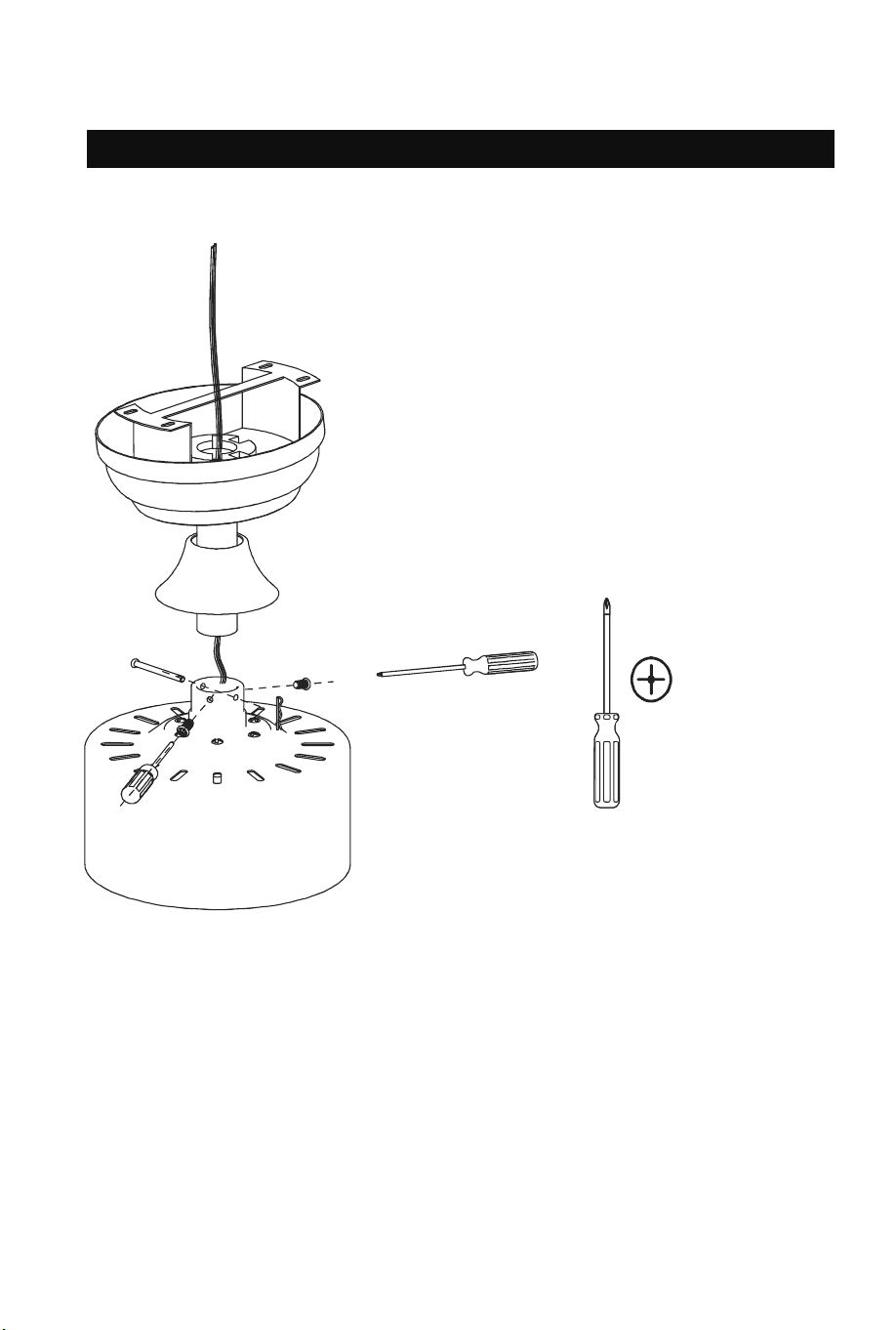

1. Thread the suspender through the suspended clock and coupling cover.
1.Raise the fan and place the hanger ball onto mounting bracket.
2.Rotate the fan until the notch on hanger ball snaps into the
slot on mounting bracket and sits firmly.
NOTE: THE DOWNROD AND HANGER BALL SHOULD NOT ROTATE
IF THIS STEP IS DONE CORRECTLY.
Install the hanging part of the ceiling fan
Assembly - Hanging the Fan(continued)
2.Then insert the tail of the suspender from the lifting head of the motor.
3.After the lateral pin is threaded out from the suspended head position,
insert R type pin.
4.Tighten the lifting head screws.
5.Hang the fan of the hanging pipe into the hanger.
screwdriver
WARNING: Each wire not supplied with this fan is designed
to
accept up to one 12-gauge house wire and two wires from the
fan.lf you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
WARNING: Remove the rubber motor stops on the bottom of
fan before installing the blades or testing the motor.
IMPORTANT: Use the plastic wire connectors supplied with your
fan.
Secure the connectors with electrical tape and ensure there
are no loose strands or connections.
WARNING: Ensure that the wires are firmly connected
without looseness.
9080
3.Loose the safety wire clamp.
4.Route the safety wire through the side fan
hole on the mounting bracket, and retighten
the safety wire with safety wire clamp.
5.Connect the wire connector plugs correctly.
The wire connector plugs design with
misplug-proof device, please don’t force to
plug. Otherwise it may affect the normal use
of the light fan or burn the fan motor.
Making the electrical connections
Make wire connections
Phillips
1. Thread the suspender through the suspended clock and coupling cover.
1.Raise the fan and place the hanger ball onto mounting bracket.
2.Rotate the fan until the notch on hanger ball snaps into the
slot on mounting bracket and sits firmly.
NOTE: THE DOWNROD AND HANGER BALL SHOULD NOT ROTATE
IF THIS STEP IS DONE CORRECTLY.
Install the hanging part of the ceiling fan
Assembly - Hanging the Fan(continued)
2.Then insert the tail of the suspender from the lifting head of the motor.
3.After the lateral pin is threaded out from the suspended head position,
insert R type pin.
4.Tighten the lifting head screws.
5.Hang the fan of the hanging pipe into the hanger.
screwdriver
WARNING: Each wire not supplied with this fan is designed
to
accept up to one 12-gauge house wire and two wires from the
fan.lf you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
WARNING: Remove the rubber motor stops on the bottom of
fan before installing the blades or testing the motor.
IMPORTANT: Use the plastic wire connectors supplied with your
fan.
Secure the connectors with electrical tape and ensure there
are no loose strands or connections.
WARNING: Ensure that the wires are firmly connected
without looseness.
9080
3.Loose the safety wire clamp.
4.Route the safety wire through the side fan
hole on the mounting bracket, and retighten
the safety wire with safety wire clamp.
5.Connect the wire connector plugs correctly.
The wire connector plugs design with
misplug-proof device, please don’t force to
plug. Otherwise it may affect the normal use
of the light fan or burn the fan motor.
1: Fasten the arm to the fan-motor assembly by inserting
the alignment post into the slot on the bottom of the motor
and tightening the pre-installed arm screws.
2: Repeat this step for the remaining blade assemblies.
1. Remove the pre installed screws and
install the lamp panel to the specified position
Install light source
Attaching the blades to the arms
1.Carefully push the canopy to the
bottom of the mounting bracket,
make two sliding holes aligned to
the two prominent screws on the
mounting bracket, and then turn
clockwise until tight.
2.Push the canopy ring to the
bottom of the canopy,slide the
inner holes aligned to the two
prominent screws on the mounting
bracket again, and turn the canopy
ring clockwise until tight.
1. Remove t
he mounting bracket
from the canopy by loosening the
two canopy screws locatedin the
L shaped slots.
2. Remove and save the two
canopy screws in the round holes.
This will enable you to remove
the mountingbracket
Assembly - Hanging the Fan (continued)
Install remote control
Preparing for mounting
Assembly - Attaching the Fan Blades
Fastening the blade arms to the motor
10
11
Preparing for mounting
1. Attaching the blades to the arms
1: Fasten the arm to the fan-motor assembly by inserting
the alignment post into the slot on the bottom of the motor
and tightening the pre-installed arm screws.
2: Repeat this step for the remaining blade assemblies.
1. Remove the pre installed screws and
install the lamp panel to the specified position
Install light source
Attaching the blades to the arms
1.Carefully push the canopy to the
bottom of the mounting bracket,
make two sliding holes aligned to
the two prominent screws on the
mounting bracket, and then turn
clockwise until tight.
2.Push the canopy ring to the
bottom of the canopy,slide the
inner holes aligned to the two
prominent screws on the mounting
bracket again, and turn the canopy
ring clockwise until tight.
1. Remove t
he mounting bracket
from the canopy by loosening the
two canopy screws locatedin the
L shaped slots.
2. Remove and save the two
canopy screws in the round holes.
This will enable you to remove
the mountingbracket
Assembly - Hanging the Fan (continued)
Install remote control
Preparing for mounting
Assembly - Attaching the Fan Blades
Fastening the blade arms to the motor
10
11
Preparing for mounting
1. Attaching the blades to the arms

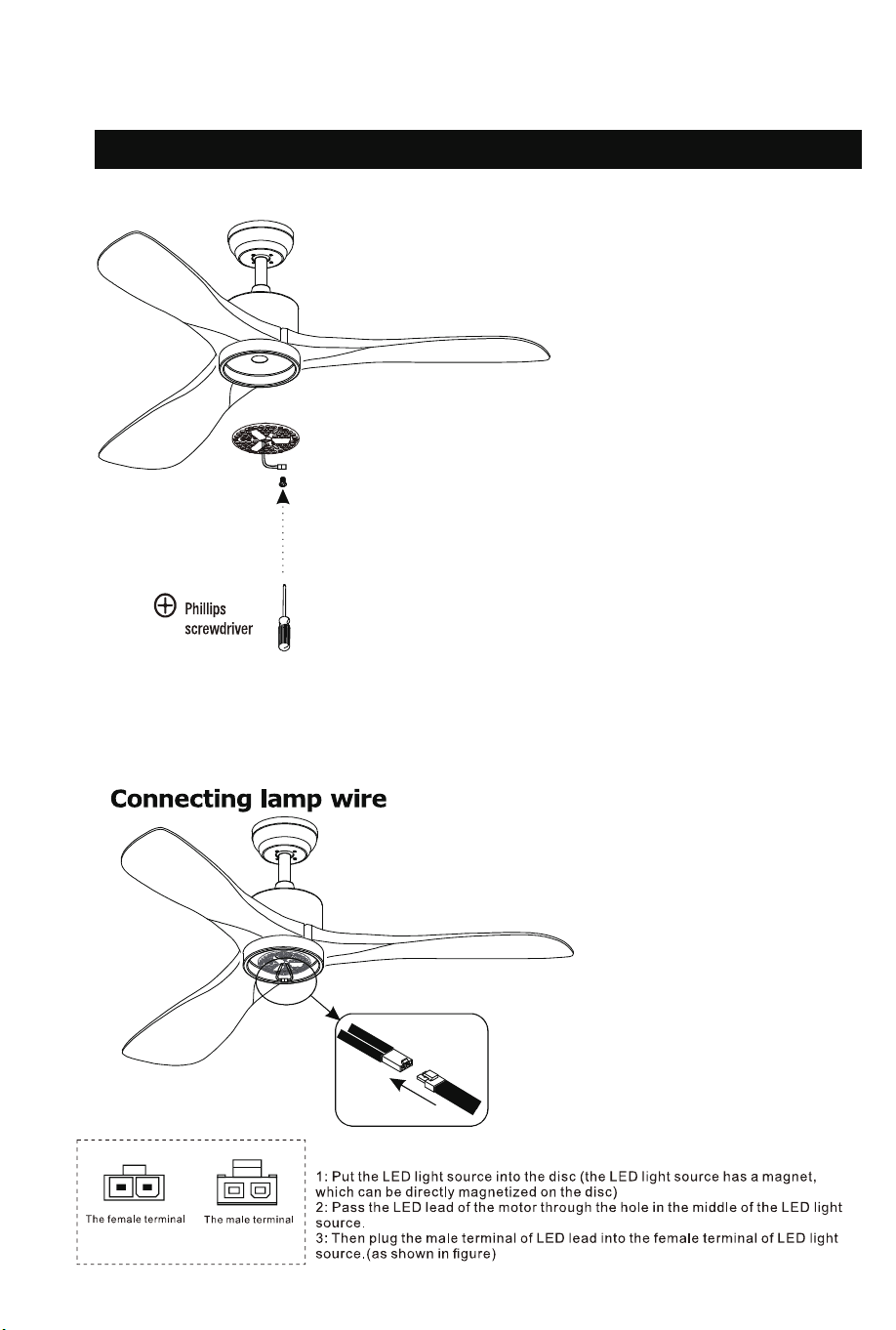

1.Remove the pre installed screws and install the lamp at the
specified position

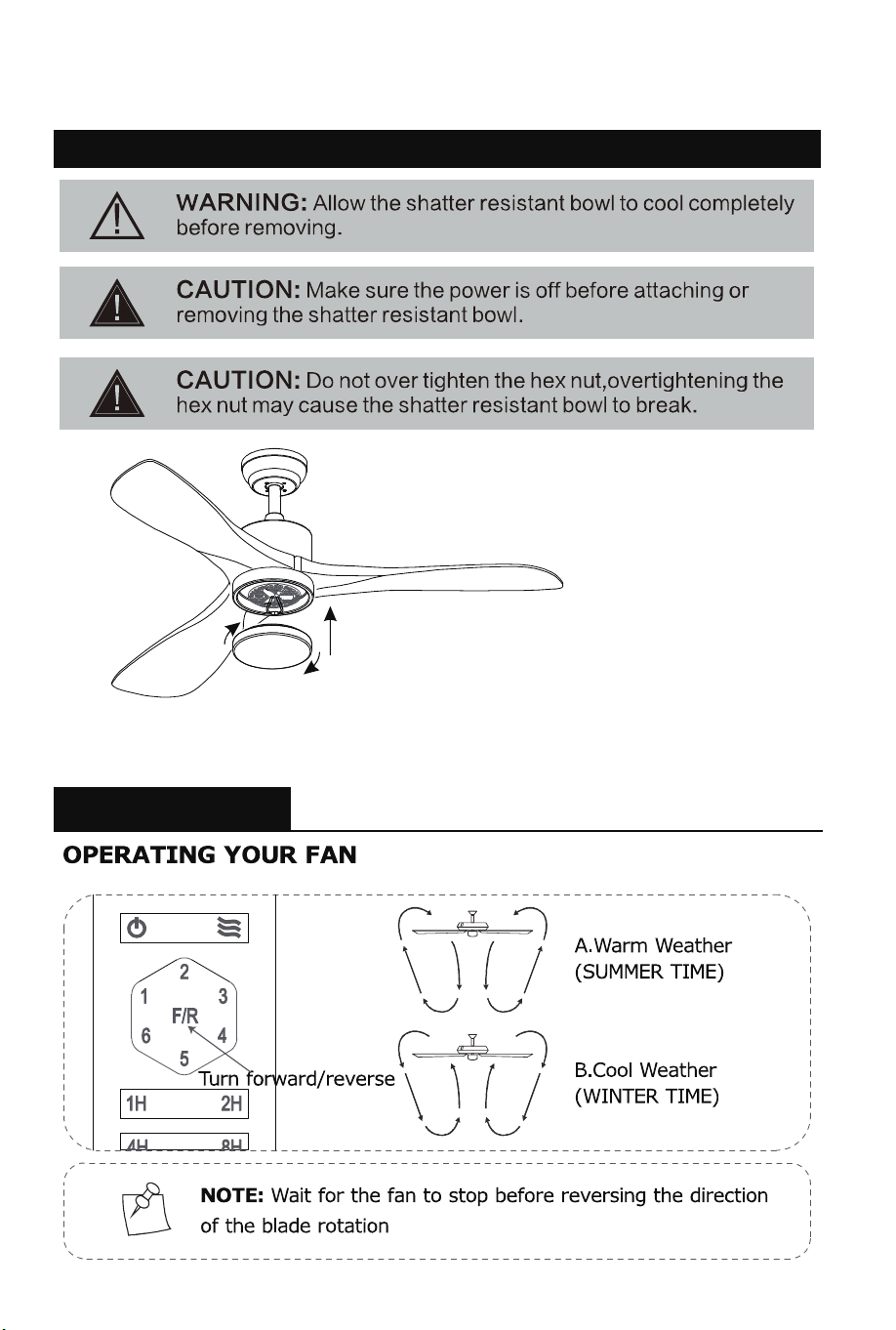

1 Rotate and install the glass lamp cover to the fan..
Assembly - Attaching the Lights (continued)
Assembly - Attaching the Lights
Assembly - Attaching the Lights
3121
Operation
Install light source
1.Remove the pre installed screws and install the lamp at the
specified position
1 Rotate and install the glass lamp cover to the fan..
Assembly - Attaching the Lights (continued)
Assembly - Attaching the Lights
Assembly - Attaching the Lights
3121
Operation
Install light source
Care and Cleaning
WARNING: Make sure the power is off before cleaning your fan.
Because of the fan's natural movement, some connections
may become loose.Check the support connections,brackets,
and blade attachments twice a year. Make sure they are
secure. It is not necessary to remove the fan from the
ceiling.
Clean your fan periodically to help maintain its new
appearance over the years. Do not use water when c
leaning,
as this could damage the motor or the wood, or possibly
cause an electrical shock. Use only a soft brush or lint-free
cloth to avoid scratching the finish. The plating is sealed
with a lacquer to minimize discoloration or tarnishing.
You can apply a light coat of furniture polish to the wood for
additional protection and enhanced beauty. Cover small
scratches with a light application of shoe polish.
You d
o not need to oil your fan. The motor has
permanently-lubricated sealed ball bearings.
TROUBLESHOOTINGUse of Remote Control
noituloS melborP
The fan
will not
start
The fan
wobbles
-Check the main and branch circuit fuses or breakers.
-Check the line wire connections to the fan and switch
wire connections in the switch housing.
-Ensure all motor housing screws are snug.
-Ensure the screws that attach the fan blade bracket to
the motor hub are tight.
-Ensure the wire nut connections are not ratting
against each other or the interi
or wall of the switch
housing.
-Allow a 24-hour "breaking in" period. Most noises
associated with a new fan disappear during this time.
-If you are using the Ceiling Fan light kit,ensure the
screws securing the glassware are tight.
Check that the light bulbs are also secure.
-Ensure the canopy is a short distance from the
ceiling.It should not touch the ceiling.
-Ensure your outlet box is secure and rubber isolator
pads were used between the mounting plate and outlet
box.
-Check that all blades and blade arm screws are
secure.
-Most fan wobble problems are caused when blade
levels are unequal.
-Check this level by selecting a point on the ceiling
above the tip of the blades.
-Measure from a point on the center of each blade to
the point on the ceiling.Measure this distance .Rotate
the fan until the next blade is p
ositioned for
measurement.
-Repeat for each blade.Any measurement deviation
should be within 1/8 inch.
-Run the fan for ten minutes. If the fan continues to
wobble, please contact the qualified technician.
5141
Fan Speed Level 6
Fan On/off
Fan Speed Level 2
Fan Speed Level 3
Fan Speed Level 4
Fan Speed Level 5
Turn forward/reverse
Fan Speed Level 1
Natural Wind
Auto off after 1hr
Auto off after 2hrs
Auto off after 8hrs
Auto off after 4hrs
Light ON Light OFF
Care and Cleaning
WARNING: Make sure the power is off before cleaning your fan.
Because of the fan's natural movement, some connections
may become loose.Check the support connections,brackets,
and blade attachments twice a year. Make sure they are
secure. It is not necessary to remove the fan from the
ceiling.
Clean your fan periodically to help maintain its new
appearance over the years. Do not use water when c
leaning,
as this could damage the motor or the wood, or possibly
cause an electrical shock. Use only a soft brush or lint-free
cloth to avoid scratching the finish. The plating is sealed
with a lacquer to minimize discoloration or tarnishing.
You can apply a light coat of furniture polish to the wood for
additional protection and enhanced beauty. Cover small
scratches with a light application of shoe polish.
You d
o not need to oil your fan. The motor has
permanently-lubricated sealed ball bearings.
TROUBLESHOOTINGUse of Remote Control
noituloS melborP
The fan
will not
start
The fan
wobbles
-Check the main and branch circuit fuses or breakers.
-Check the line wire connections to the fan and switch
wire connections in the switch housing.
-Ensure all motor housing screws are snug.
-Ensure the screws that attach the fan blade bracket to
the motor hub are tight.
-Ensure the wire nut connections are not ratting
against each other or the interi
or wall of the switch
housing.
-Allow a 24-hour "breaking in" period. Most noises
associated with a new fan disappear during this time.
-If you are using the Ceiling Fan light kit,ensure the
screws securing the glassware are tight.
Check that the light bulbs are also secure.
-Ensure the canopy is a short distance from the
ceiling.It should not touch the ceiling.
-Ensure your outlet box is secure and rubber isolator
pads were used between the mounting plate and outlet
box.
-Check that all blades and blade arm screws are
secure.
-Most fan wobble problems are caused when blade
levels are unequal.
-Check this level by selecting a point on the ceiling
above the tip of the blades.
-Measure from a point on the center of each blade to
the point on the ceiling.Measure this distance .Rotate
the fan until the next blade is p
ositioned for
measurement.
-Repeat for each blade.Any measurement deviation
should be within 1/8 inch.
-Run the fan for ten minutes. If the fan continues to
wobble, please contact the qualified technician.
5141
Fan Speed Level 6
Fan On/off
Fan Speed Level 2
Fan Speed Level 3
Fan Speed Level 4
Fan Speed Level 5
Turn forward/reverse
Fan Speed Level 1
Natural Wind
Auto off after 1hr
Auto off after 2hrs
Auto off after 8hrs
Auto off after 4hrs
Light ON Light OFF
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
