ENG
02 PRODUCT OVERVIEW
Front Panel / Top Panel of the
Soundbar
Volume
Multi Function Button
In standby mode, press the (Multi Function)
button to turn on the Soundbar.
Press the (Multi Function) button to change
the mode.
LED Indicator
White On -> Off
“TV ARC” or
“eARC”
White On -> Off
“Wi-Fi”
White On -> Off
“Bluetooth”
White On -> Off
“Digital Audio In”
Mic On/Off Button
Press the (Mic On/Off) button to turn on or off
the microphone.
LED Indicator
Red On
“Mic Off”
“Mic On”
To switch to Bluetooth Pairing state in “Bluetooth”
mode, press and hold the (Mic On/Off) button
on the top of the Soundbar for more than 5 seconds.
LED indicator
The LED Indicator ashes, glows, or changes color
depending on the Soundbar's current mode or
status.
Bottom Panel of the Soundbar
SERVICE
DC 19V
DIGITAL
AUDIO IN
(OPTICAL)
HDMI
(eARC)
SERVICE
DC 19V
DIGITAL
AUDIO IN
(OPTICAL)
HDMI
(eARC)
SERVICE
DC 19V
DIGITAL
AUDIO IN
(OPTICAL)
HDMI
(eARC)
DC 19V (Power Supply In)
Connect the AC/DC power adapter.
SERVICE
Connect a USB storage device to upgrade the
product's software.
DIGITAL AUDIO IN (OPTICAL)
Connect to the digital (optical) output of an
external device.
HDMI (eARC)
Connect to the HDMI (eARC) port on a TV.
03 CONNECTING THE
SOUNDBAR
Connecting Electrical Power
• For more information about the required electrical
power and power consumption, refer to the label
attached to the product. (Label: Bottom of the Soundbar
Main Unit)
SERVICE
DC 19V
Bottom of the Soundbar
Main Unit
SERVICE
DC 19V
DIGITAL
AUDIO IN
(OPTICAL)
HDMI
(eARC)
04 CONNECTING WITH A
CABLE
Connecting using an HDMI Cable
Bottom of the
Soundbar
HDMI Cable
TV
HDMI IN
(eARC)
HDMI OUT
OPTICAL OUT
HDMI 입력
(eARC)
HDMI 출력
OPTICAL 출력
SERVICE
DC 19V
DIGITAL
AUDIO IN
(OPTICAL)
HDMI
(eARC)
White On -> Off
“TV ARC” or “eARC”
Connecting using an Optical Cable (D.IN)
SERVICE
DC 19V
DIGITAL
AUDIO IN
(OPTICAL)
HDMI
(eARC)
TV / BD / DVD player
/ Set-top box / Game
console
Bottom of the
Soundbar
Optical Cable
(not supplied)
HDMI IN
(eARC)
HDMI OUT
OPTICAL OUT
HDMI 입력
(eARC)
HDMI 출력
OPTICAL 출력
White On -> Off
“Digital Audio In”
NOTES
• When the TV sound is not output, press the (Multi
Function) button at the top of the Soundbar or the
(Source) button on the remote control to select the
“TV ARC” or “eARC” mode.
• The recommended cable is an HDMI cable certied by
HDMI.org.
• When you use an optical cable and the terminals have
covers, be sure to remove the covers.
Using the Q-Symphony Function
When the Soundbar connects to a Samsung TV that
supports the Q-Symphony function, you can play the
sound simultaneously through the Soundbar and the TV.
If you use the Q-Symphony function, the surround sound
played on the TV allows you to enjoy a richer, more three-
dimensional surround sound effect.
When the Soundbar is connected, “Q-Symphony” menu
appears on the TV. (The message displayed may differ
with the TV model.)
Settings ( ) → All Settings ( )→ Sound → Sound
Output
05 USING A WIRELESS
CONNECTION
Connecting via Bluetooth
OR
OR
When in “Bluetooth” mode
5 Sec
SOUND
MODE
WOOFER
TONE
CONTROL
CH LEVEL
• Search for the Bluetooth device on your TV or mobile
device.
Red → Green →
Blue Blinks
Cyan Blinks X3
Pairing
Connection is complete
“Ready to connect via Bluetooth.”
NOTE
• If asked for a PIN code when connecting a Bluetooth
device, enter <0000>.
Connecting via Wi-Fi (Wireless
Network)
To connect a Soundbar to a mobile device via a wireless
network (Wi-Fi), the SmartThings app is required.
1. Connect your mobile device (smartphone, tablet, etc.)
to the Wi-Fi network the TV is connected to.
2. Install and launch the SmartThings app on your mobile
device (smartphone, tablet, etc.).
3. Follow the instructions in the app screen on the mobile
device to connect the Soundbar to your Wi-Fi network.
06 TROUBLESHOOTING
Before seeking assistance, check the following.
Soundbar does not turn on.
• Check whether the power cord of the Soundbar is
correctly inserted into the outlet.
Soundbar works erratically.
• After removing the power cord, insert it again.
• Power cycle the external device and try again.
• If there is no signal, the Soundbar automatically turns
off after a certain period of time. Turn on the power.
Remote control does not work.
• Point the remote directly at the Soundbar.
• Replace the batteries with new ones.
The red LED indicator light on the soundbar stays on.
• The microphone is turned off. Turn on the microphone.
LED Indicator
Red On
“Mic Off”
“Mic On”
The Soundbar does not output any sound.
• The volume of the Soundbar is too low or muted.
Adjust the volume.
• When any external device (STB, Bluetooth device,
mobile device, etc.) is connected, adjust the volume of
the external device.
• For sound output of the TV, select Soundbar.
(Samsung TV: Home ( ) → Menu → Settings ( ) →
All Settings ( )→ Sound → Sound Output → Select
Soundbar)
• Remove the cable from the Soundbar and then
reconnect it.
If the TV is not connected via HDMI (eARC).
• Check whether the HDMI cable is correctly connected
to the eARC terminal.
• Connection may not be possible due to the connected
external device (set-top box, game console, etc.).
Directly connect the Soundbar.
• HDMI-CEC may not be activated on the TV. Turn on the
CEC on the TV menu.
(Samsung TV: Home ( ) → Menu → Settings ( )
→ All Settings ( ) → Connection → External Device
Manager → Anynet+ (HDMI-CEC) ON)
The Soundbar will not connect via Bluetooth.
• When connecting a new device, switch to Bluetooth
Pairing for connection. (Press the PAIR button
on the remote control or press the (Mic On/Off)
button on the body for at least 5 seconds.)
• Reconnect it after removing the Bluetooth speaker
list on the device to connect. (Samsung TV: Home
( ) → Menu → Settings ( ) → All Settings ( ) →
Sound → Sound Output → Bluetooth Speaker List)
The sound drops out when connected via Bluetooth.
• Some devices can cause radio interference if they are
located too close to the Soundbar. e. g. microwaves,
wireless routers, etc.
• If your device that is connected via Bluetooth moves
too far away from the Soundbar, it may cause the
sound to drop out. Move the device closer to the
Soundbar.
• If a part of your body is in contact with the Bluetooth
transceiver or the product is installed on metal
furniture, the sound may drop out. Check the
installation environment and conditions for use.
Unable to connect to Wi-Fi.
• Make sure the wireless router is turned on and then
reconnect the wireless router after rebooting.
• The Soundbar will not connect if the wireless signal
is too weak. Try moving the router closer to the
Soundbar, or eliminating any obstacles that are
between the Soundbar and the router, if possible.
The Soundbar does not turn on automatically with the
TV.
• When you turn off the Soundbar while watching TV,
power synchronization with the TV is disabled. First
turn off the TV.
07 IMPORTANT NOTES
ABOUT SERVICE
Figures and illustrations in this User Manual are provided
for reference only and may differ from actual product
appearance.
08 SPECIFICATIONS AND
GUIDE
Specications
Model Name
HW-S60D / HW-S61D
Weight
6.0 lbs (2.7 kg)
Dimensions (W x H x D)
26.4 x 2.4 x 4.1 inches
(670.0 x 62.0 x 105.0 mm)
Operating Temperature
Range
+50 °F to +104 °F
(+10 °C to +40 °C)
Operating Humidity
Range
10 % to 80 %,
non-condensing
Storage Temperature Range
-4 °F to +113 °F
(-20 °C to +45 °C)
Storage Humidity Range
5 % to 95 %,
non-condensing
AMPLIFIER
Rated Output power
200W
Supported play formats
Dolby 5.1ch / Dolby Digital Plus / Dolby TRUE HD /
Dolby ATMOS / DTS 5.1ch / LPCM 8ch
NOTES
• Samsung Electronics Co., Ltd reserves the right to
change the specications without notice.
• Weight and dimensions are approximate.
Precaution : The Soundbar will restart automatically
if you turn on/turn off Wi-Fi or Bluetooth.
Wi-Fi
Port deactivation method
Press the CH LEVEL button on the remote control of the
Soundbar for 30 seconds to turn Wi-Fi On / Off.
Bluetooth
Port deactivation method
Press the TONE CONTROL button on the remote control
of the Soundbar for 30 seconds to turn Bluetooth On
/ Off.
[ENERGY STAR]
ENERGY STAR qualied model only
– Your Samsung product is ENERGY STAR
qualied in its factory default setting.
Change to certain features, settings
and functionality in this product can
change the power consumption, possibly beyond the
limits required for ENERGY STAR qualication.
– Environmental Protection Agency and Department
of Energy. ENERGY STAR is a joint program of the
Government agencies, designed to promote energy
efcient products and practices.
Refer to www.energystar.gov for more information of the
ENERGY STAR Program.
ENERGY STAR qualied model only (The other models)
– As an ENERGY STAR Partner, Samsung has determined
that this product or product models meets the ENERGY
STAR guideline for energy efciency.
© 2024 Samsung Electronics Co., Ltd. All rights reserved.
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care
Center.
HEADQUARTERS
Samsung Electronics Canada Inc. 2050 Derry Road West, Mississauga, Ontario L5N 0B9 Canada
TEL: 1-800-SAMSUNG (1-800-726-7864)
www.samsung.com/ca/support
Country/Region Samsung Service Center
Web Site
CANADA 1-800-SAMSUNG (726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com/us/support
PRECAUTIONS
1. Make sure to rest the AC/DC Adapter at on a table or
the oor. If you place the AC/DC Adapter so that it is
hanging with the AC cord input facing upwards, water
or other foreign substances could enter the Adapter
and cause the Adapter to malfunction.
2. Ensure that the AC power supply in your house
complies with the power requirements listed on
the identication sticker located on the bottom of
your product. Install your product horizontally, on a
suitable base (furniture), with enough space around it
for ventilation (3~4 inches). Make sure the ventilation
slots are not covered. Do not place the unit on
ampliers or other equipment which may become hot.
This unit is designed for continuous use.
To fully turn off the unit, disconnect the AC plug from
the wall outlet. Unplug the unit if you intend to leave it
unused for a long period of time.
3. During thunderstorms, disconnect the AC plug from
the wall outlet. Voltage peaks due to lightning could
damage the unit.
4. Do not expose the unit to direct sunlight or other heat
sources. This could lead to overheating and cause the
unit to malfunction.
5. Protect the product from moisture (i.e. vases), and
excess heat (e.g. a replace) or equipment creating
strong magnetic or electric elds. Unplug the power
cable from the AC wall socket if the unit malfunctions.
Your product is not intended for industrial use. It
is for personal use only. Condensation may occur if
your product has been stored in cold temperatures.
If transporting the unit during the winter, wait
approximately 2 hours or until the unit has reached
room temperature before using.
6. The battery used with this product contains chemicals
that are harmful to the environment. Do not dispose
of the battery in the general household trash. Do not
expose the battery to excess heat, direct sunlight, or
re. Do not short circuit, disassemble, or overheat the
battery. CAUTION : Danger of explosion if the battery
is replaced incorrectly. Replace only with the same or
equivalent type.
CAUTION (for Canada)
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including
interference that may cause undesired operation of
the device. This device and its antenna(s) must not be
co-located or operation in conjunction with any other
antenna or transmitter. This device may automatically
discontinue transmission if there is no information to
transmit, or an operational failure. Note that this is
not intended to prohibit the transmission of control or
signaling information or the use of repetitive codes where
required by the technology.
This Class B digital apparatus complies with Canadian
ICES-003.
Radiation Exposure Statement
This equipment complies with IC RSS-102 radiation
exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with
minimum distance 20 cm between the radiator & your
body.
01 CHECKING THE
COMPONENTS
• Soundbar Main Unit
• Soundbar Remote
Control
• Batteries
• Power Cord
• AC/DC Adapter
• HDMI Cable
• Wall Mount Guide
• Holder-Screw X 2
• Bracket-Wall Mount X 2
• Screw (M4 x L10) X 2
NOTES
• For more information about the power supply and power
consumption, refer to the label attached to the product.
(Label: Bottom of the Soundbar Main Unit)
• To purchase additional components or optional cables,
contact a Samsung Service Center or Samsung Customer
Care.
• Design, specications, and App screen are subject to
change without prior notice.
LIMITED WARRANTY TO ORIGINAL PURCHASER
Samsung Electronics Canada Inc.(SECA), warrants that this product is free from
defective material and workmanship.
SECA further warrants that if this product falls to operate properly within the speci ed
warranty period and the failure is due to improper workmanship or defective
materials, SECA will repair or replace the product at its option.
All warranty repairs must be performed by a SECA Authorized Service Center. (The name and
address of the location nearest you can be obtained by calling toll free: 1- 800- SAMSUNG)
LABOR
One year (Carry- in)
PARTS
One year
On carry-in models, transportation to and from the service center is the customer’s
responsibility.
The original dated sales receipt must be retained by the customer and is the only
acceptable proof of purchase. It must be presented to the authorized service center at
the time service is requested.
EXCLUSIONS (WHAT IS NOT COVERED)
This warranty does not cover damage due to accident, re, ood and/ or other acts of
God; misuse, incorrect line voltage, improper installation, improper or unauthorized
repairs, commercial use or damage that occurs in shipping. Exterior and interior nish,
lamps, glass are not covered under this warranty. Customer adjustments which are
explained in the instruction manual are not covered under the terms of this warranty.
This warranty will automatically be voided for any unit found with a missing or altered
serial number. This warranty is valid only on products purchased and used in Canada.
Samsung Electronics Canada Inc
2050 Derry Rd West
Mississauga, On. L5N 0B9
Tel: 1-800-SAMSUNG (726-7864)
Fax: (905) 542- 1199
Website: www.samsung.com/ca

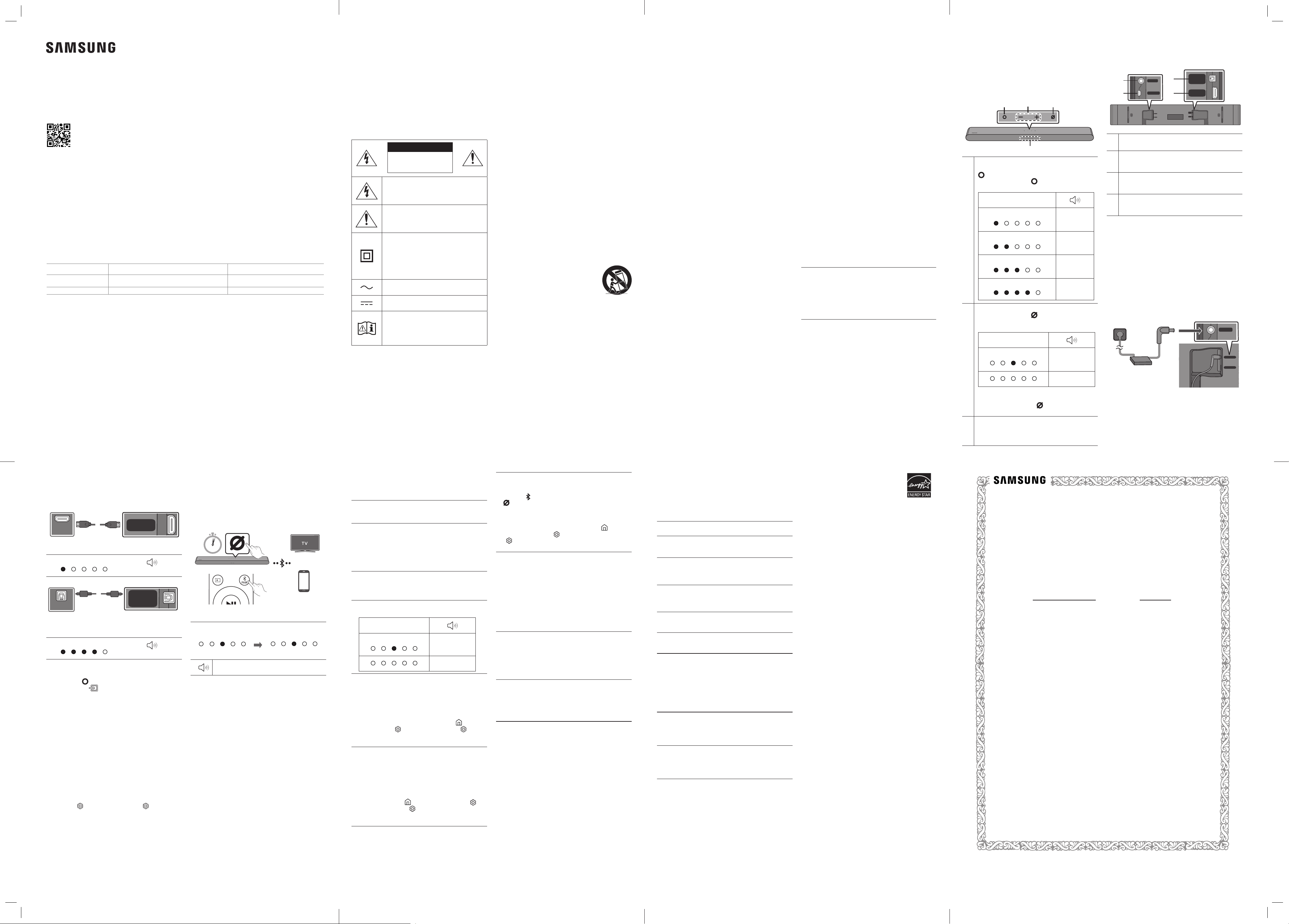

Simple User Guide
HW-S60D / HW-S61D
You can access the User guide on Samsung’s on-line customer support center by scanning the QR code on
the left. To see the manual on your PC or mobile device, download the manual in document format from
Samsung’s website. (http://www.samsung.com/support)
AH81-17430B-00
SAFETY INFORMATION
SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
Refer to the table below for an explanation of symbols
which may be on your Samsung product.
CAUTION
RISK OF ELECTRIC
SHOCK.
DO NOT OPEN.
This symbol indicates that high voltage is
present inside. It is dangerous to make any
kind of contact with any internal part of
this product.
This symbol indicates that this product has
included important literature concerning
operation and maintenance.
Class II product : This symbol indicates
that it does not require a safety
connection to electrical earth (ground).
If this symbol is not present on a product
with a power cord, the product MUST have
a reliable connection to protective earth
(ground).
AC voltage : This symbol indicates that the
rated voltage marked with the symbol is
AC voltage.
DC voltage : This symbol indicates that the
rated voltage marked with the symbol is
DC voltage.
Caution, Consult instructions for use : This
symbol instructs the user to consult the
user manual for further safety related
information.
WARNING
• To reduce the risk of re or electric shock, do not expose
this appliance to rain or moisture.
• To prevent injury, this apparatus must be securely set on
a solid surface or attached to a wall in accordance with
the installation instructions.
CAUTION
• Do not expose this apparatus to dripping or splashing.
Do not put objects lled with liquids, such as vases, on
the apparatus.
• To turn this apparatus off completely, you must pull the
power plug out of the wall socket. Consequently, the
power plug must be easily and readily accessible at all
times.
Important Safety Instructions
Read these operating instructions carefully before using
the unit. Follow all the safety instructions listed below.
Keep these operating instructions handy for future
reference.
1. Read these instructions.
2. Keep these Instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9. Do not hinder in any way the safety purpose of the
polarized or grounding-type plug.
A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug
does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the
manufacturer.
12. Use only with the cart, stand,
tripod, bracket, or table specied
by the manufacturer, or sold with
the apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
Loading ...
