Full Manual Soundbar PRODUCT OVERVIEW

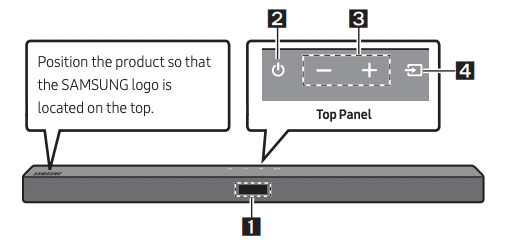

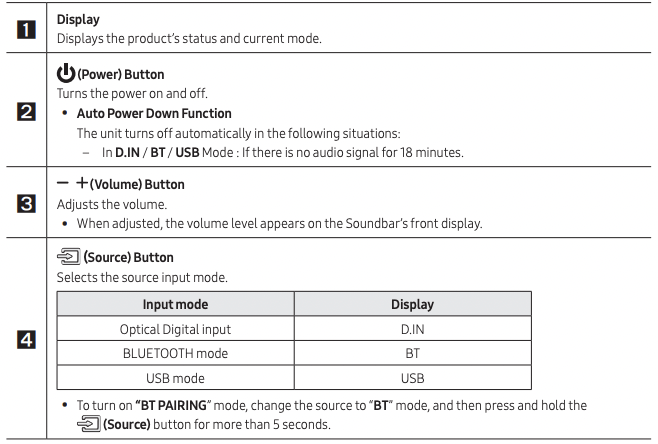

Front Panel / Top Panel of the Soundbar

• When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

• If you want to enjoy sound only from the Soundbar, you must turn off the TV’s speakers in the Audio Setup menu of your TV. Refer to the owner’s manual supplied with your TV.

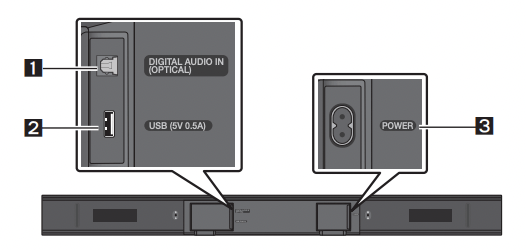

Bottom Panel of the Soundbar

1 DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device.

2USB (5V 0.5A)

Connect a USB device here to play music files stored on the USB device through the Soundbar.

3POWER

Connect the Soundbar's AC power cable.

• When disconnecting the power cord from a wall outlet, pull the plug. Do not pull the cable.

• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

CONNECTING THE SOUNDBAR

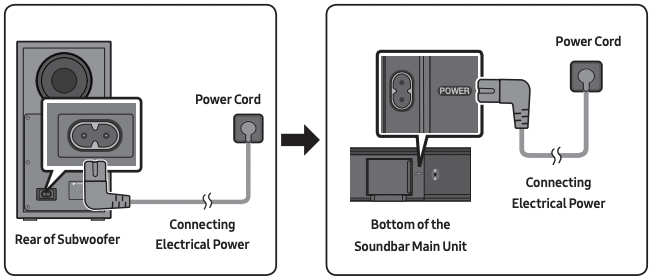

Connecting Electrical Power

Use the power components to connect the Subwoofer and Soundbar to an electrical outlet in the following order:

  • 1. Connect the power cord to the Subwoofer.
  • 2. Connect the power cord to the Soundbar.

See the illustrations below.

• For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)

Connecting the Soundbar to the Subwoofer

When the subwoofer is connected, you can enjoy rich bass sound.

Automatic connection between the Subwoofer and the Soundbar

When you turn the power on after connecting the power cables to the Soundbar and subwoofer, the subwoofer is automatically connected to the Soundbar.

• When auto pairing is complete, the blue indicators at the rear of the subwoofer turn on.

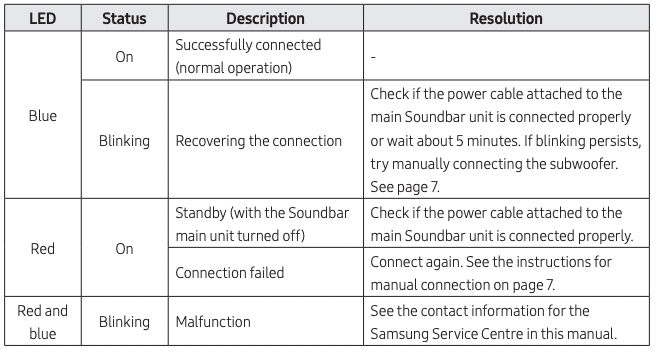

LED Indicator Lights on the Rear of Subwoofer

Manually connecting the Subwoofer if automatic connection fails

Before performing the manual connection procedure below:

• Check whether the power cables for the Soundbar and subwoofer are connected properly.

• Make sure that the Soundbar is turned on.

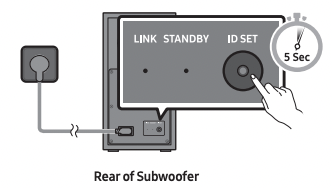

  • 1. Press and hold ID SET on the rear of the subwoofer for at least 5 seconds.

• The red indicator on the rear of the subwoofer turns off and the blue indicator blinks

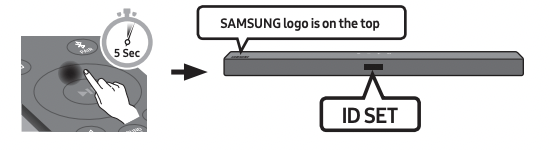

  • 2. Press and hold the Up button on the remote control for at least 5 seconds.

• The ID SET message appears on the display of the Soundbar for a moment, and then it disappears.

• The Soundbar will automatically power on when ID SET is complete.

  • 3. Check if the LINK LED is solid blue (connection complete).

The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar and the Wireless Subwoofer.

NOTES

• Do not connect the power cord of this product or your TV to a wall outlet until all connections between components are complete.

• Before moving or installing this product, be sure to turn off the power and disconnect the power cord.

• If the main unit is powered off, the wireless subwoofer will go into stand-by mode and the STANDBY LED on the rear of the sub-woofer will turn red after blinking blue several times.

• If you use a device that uses the same frequency (5.8GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption.

• The maximum transmission distance of the main unit’s wireless signal is about 10 m, but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all because the wireless signal cannot penetrate metal.

PRECAUTIONS

• Wireless receiving antennas are built into the wireless subwoofer. Keep the unit away from water and moisture.

• For optimal listening performance, make sure that the area around the wireless subwoofer and the Wireless Receiver Module (sold separately) is clear of any obstructions.

Connecting an SWA-9100S (Sold Separately) to your Soundbar

Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-9100S, sold separately) to your Soundbar.

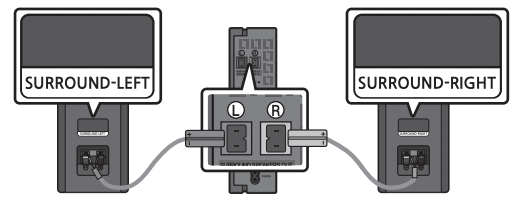

  • 1. Connect the Wireless Receiver Module to 2 Surround Speakers.

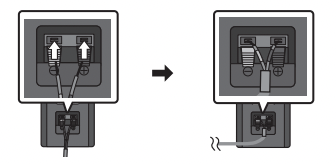

– When connecting the speaker cable, connect the core wire to the speaker.

– The speaker cables are colour coded.

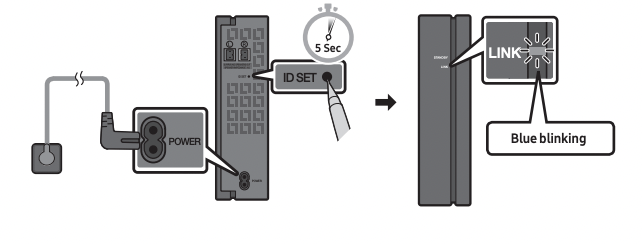

  • 2. Check the standby status of the Wireless Receiver Module after plugging it into an electrical outlet.

• The LINK LED indicator (blue LED) on the Wireless Receiver Module blinks. If the LED does not blink, press the ID SET button on the back of the Wireless Receiver Module with a pen tip for 5~6 seconds until the LINK LED indicator blinks (in Blue). For more about the LED, please refer to the SWA-9100S user manual.

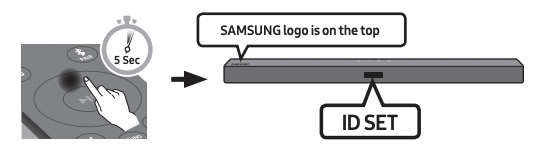

  • 3. Press and hold the Up button on the remote control for at least 5 seconds.

• The ID SET message appears on the display of the Soundbar for a moment, and then it disappears.

• The Soundbar will automatically power on when ID SET is complete.

CAUTION

• If your Soundbar was playing music when it connects to the SWA-9100S, you may hear some stuttering from the woofer as the connection finalises.

  • 4. Check if the LINK LED is solid blue (connection complete).

The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar and the Wireless Receiver Module.

  • 5. If the SWA-9100S is not connected, repeat the procedure from Step 2.

CONNECTING TO YOUR TV

Hear TV sound from your Soundbar through wired or wireless connections.

• When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using the TV’s remote control.

– This feature is supported by 2017 and later Samsung Smart TVs that support Bluetooth when you connect the Soundbar to the TV using an optical cable.

– This function also allows you to use the TV menu to adjust the sound field and various settings as well as the volume and mute.

Method 1. Connecting with a Cable

When the audio in a broadcast is encoded in Dolby Digital and the “Digital Output Audio Format” on your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on the TV is changed, you will experience better sound quality. (The TV menu may use different words for Dolby Digital and PCM depending on the TV manufacturer.)

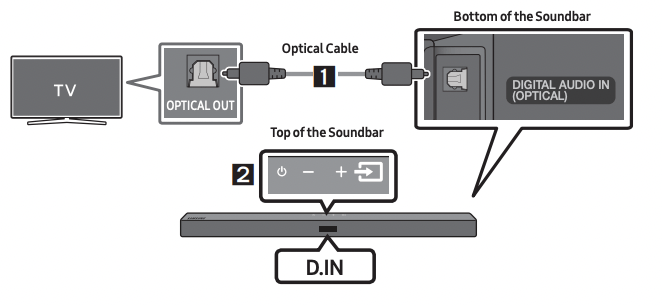

Connecting using an Optical Cable

Pre-connection Checklist

• When you use an optical cable and the terminals have covers, be sure to remove the covers.

  • 1. Connect the DIGITAL AUDIO IN (OPTICAL) port on the Soundbar to the OPTICAL OUT port of the TV with a digital optical cable.
  • 2. Press the (Source) button on the top panel or remote control, and then select the “D.IN” mode.

Method 2. Connecting Wirelessly

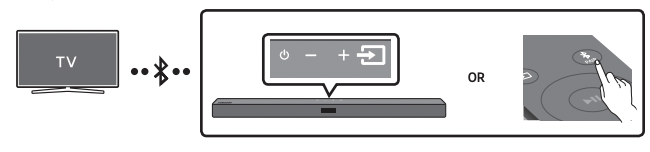

Connecting a TV via Bluetooth

When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

• Only one TV can be connected at a time.

The initial connection

1. Press the PAIR button on the remote control to enter the “BT PAIRING” mode. (OR)

  • a. Press the (Source) button on the top panel and then select “BT”. “BT” changes to “BT PAIRING” in a few seconds automatically or changes to “BT READY” if there is a connect record.
  • b. When “BT READY” appears, press and hold the (Source) button on the top panel of the Soundbar for more than 5 seconds to display “BT PAIRING”.

2. Select Bluetooth mode on the TV. (For more information, see the TV’s manual.)

3. Select “[AV] Samsung Soundbar A4-Series” from the list on TV’s screen. An available Soundbar is indicated with “Need Pairing” or “Paired” on the TV’s Bluetooth device list. To connect the TV to the Soundbar, select the message, and then establish a connection.

• When the TV is connected, [TV Name] → “BT” appears on the Soundbar’s front display.

4. You can now hear TV sound from the Soundbar.

If the device fails to connect

• If a previously connected Soundbar listing (e.g. “[AV] Samsung Soundbar A4-Series”) appears in the list, delete it.

• Then repeat steps 1 through 3.

NOTE

• After you have connected the Soundbar to your TV the first time, use the “BT READY” mode to reconnect.

Disconnecting the Soundbar from the TV

Press the (Source) button on the top panel or on the remote control and switch to any mode but “BT”.

• Disconnecting takes time because the TV must receive a response from the Soundbar. (The time required may differ, depending on the TV model.)

• To cancel the automatic Bluetooth connection between the Soundbar and TV, press the Left button on the remote control for 5 seconds with the Soundbar in “BT READY” status. (Toggle On → Off)

What is the difference between BT READY and BT PAIRING?

• BT READY : In this mode, you can search for previously connected TVs or connect a previously connected mobile device to the Soundbar.

• BT PAIRING : In this mode, you can connect a new device to the Soundbar. (Press the PAIR button on the remote control or press and hold the (Source) button on the top of the Soundbar for more than 5 seconds while the Soundbar is in “BT” mode.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter .

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 m.

• The Soundbar automatically turns off after 18 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

– If there is a strong electrical field around the Soundbar.

– If several Bluetooth devices are simultaneously paired with the Soundbar.

– If the Bluetooth device is turned off, not in place, or malfunctions.

• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

CONNECTING AN EXTERNAL DEVICE

Connect to an external device via a wired connection or Bluetooth connection to play the external device’s sound through the Soundbar.

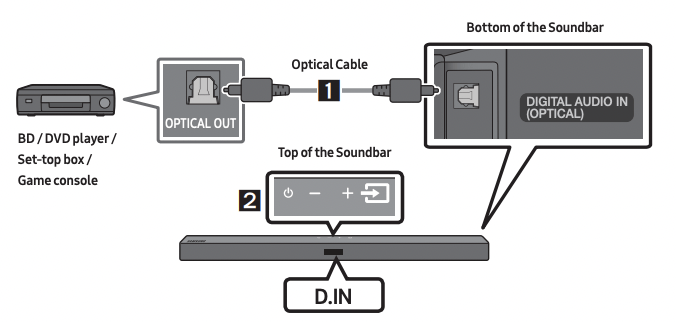

Connecting using an Optical Cable

  • 1. Connect DIGITAL AUDIO IN (OPTICAL) on the main unit to the OPTICAL OUT port of the Source Device using a digital optical cable.
  • 2. Select “D.IN” mode by pressing the (Source) button on the top panel or on the remote control.

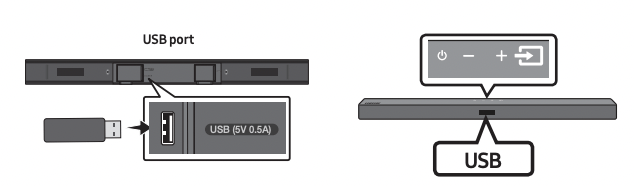

CONNECTING A USB STORAGE DEVICE

You can play music files located on USB storage devices through the Soundbar.

  • 1. Connect the USB device to the USB port on the bottom of the product.
  • 2. Press the (Source) button on the top panel or on the remote control, and then select “USB”.
  • 3. “USB” appears in the display screen.
  • 4. Play music files from the USB storage device through the Soundbar.

• The Soundbar automatically turns off (Auto Power Down) if no USB device has been connected for more than 18 minutes

CONNECTING A MOBILE DEVICE

Connecting via Bluetooth

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

• You cannot connect more than one Bluetooth device at a time.

The initial connection

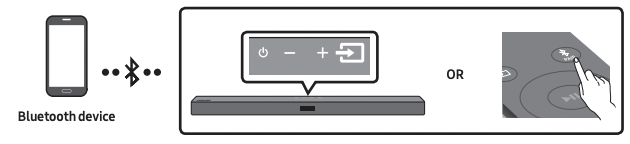

1. Press the PAIR button on the remote control to enter the “BT PAIRING” mode.

(OR)

  • a. Press the (Source) button on the top panel and then select “BT”. “BT” changes to “BT PAIRING” in a few seconds automatically or changes to “BT READY” if there is a connect record.
  • b. When “BT READY” appears, press and hold the (Source) button on the top panel of the Soundbar for more than 5 seconds to display “BT PAIRING”.

2. On your device, select “[AV] Samsung Soundbar A4-Series” from the list that appears.

• When the Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] → “BT” appears in the front display.

3. Play music files from the device connected via Bluetooth through the Soundbar

If the device fails to connect

• If a previously connected Soundbar listing (e.g. “[AV] Samsung Soundbar A4-Series”) appears in the list, delete it.

• Then repeat steps 1 and 2.

NOTE

• After you have connected the Soundbar to your mobile device the first time, use the “BT READY” mode to reconnect.

What is the difference between BT READY and BT PAIRING?

• BT READY : In this mode, you can search for previously connected TVs or connect a previously connected mobile device to the Soundbar.

• BT PAIRING : In this mode, you can connect a new device to the Soundbar. (Press the PAIR button on the remote control or press and hold the (Source) button on the top of the Soundbar for more than 5 seconds while the Soundbar is in “BT” mode.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter .

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 m.

• The Soundbar automatically turns off after 18 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

– If there is a strong electrical field around the Soundbar.

– If several Bluetooth devices are simultaneously paired with the Soundbar.

– If the Bluetooth device is turned off, not in place, or malfunctions.

• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

• The Soundbar supports SBC data (44.1kHz, 48kHz).

• Connect only to a Bluetooth device that supports the A2DP (AV) function.

• You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.

• Once you have paired the Soundbar to a Bluetooth device, selecting “[AV] Samsung Soundbar A4-Series” from the device’s scanned devices list will automatically change the Soundbar to “BT” mode.

– Available only if the Soundbar is listed among the Bluetooth device’s paired devices. (The Bluetooth device and the Soundbar must have been previously paired at least once.)

• The Soundbar will appear in the Bluetooth device’s searched devices list only when the Soundbar is displaying “BT READY”.

• The Soundbar cannot be paired to another Bluetooth device if already in Bluetooth mode and paired to a Bluetooth device.

Bluetooth Power On (SOUND MODE)

If a previously paired Bluetooth device tries to pair with the Soundbar when the Bluetooth Power On function is on and the Soundbar is turned off, the Soundbar turns on automatically.

  • 1. Press and hold the SOUND MODE button for more than 5 seconds on the remote while the Soundbar is turned on.
  • 2. “ON-BLUETOOTH POWER” appears on the Soundbar’s display

Disconnecting the Bluetooth device from a Soundbar

You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device’s user manual.

• The Soundbar will be disconnected.

• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display “BT DISCONNECTED” on the front display

Disconnecting the Soundbar from the Bluetooth device

Press the (Source) button on the top panel or on the remote control, and then change to any mode except “BT”.

• Disconnecting takes time because the Bluetooth device must receive a response from the Soundbar. (Disconnection time may differ, depending on the Bluetooth device)

• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display “BT DISCONNECTED” on the front display.

NOTES

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 m.

• The Soundbar automatically turns off after 18 minutes in the Ready state.

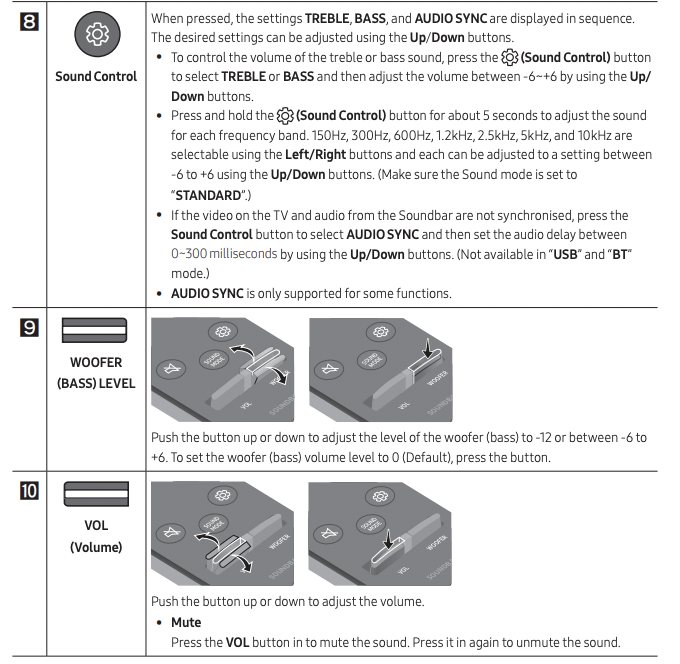

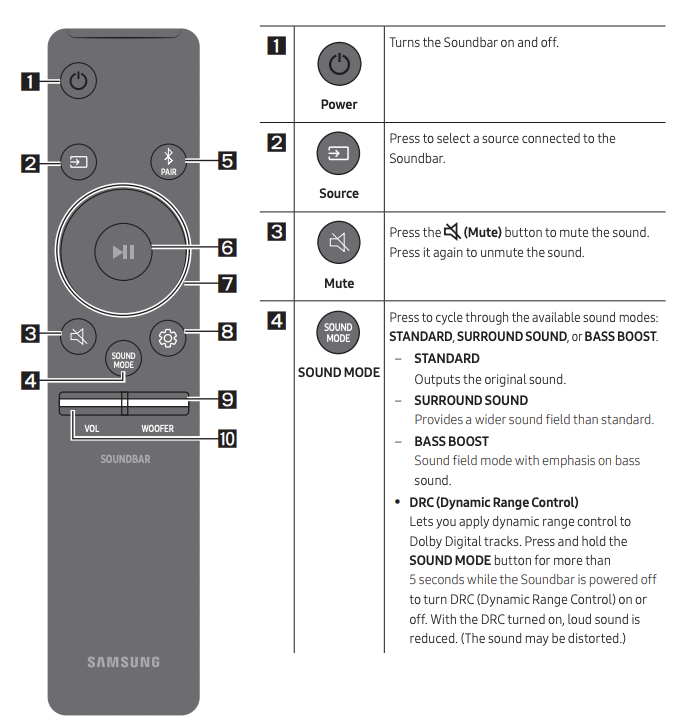

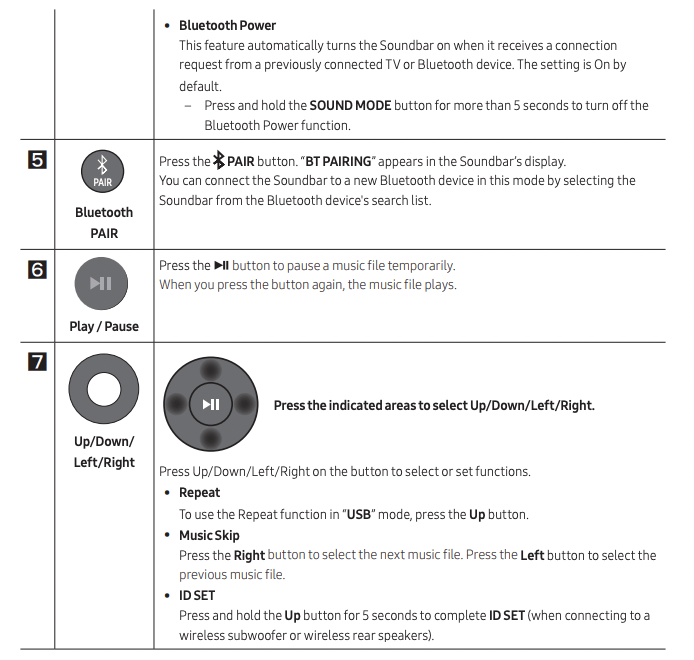

USING THE REMOTE CONTROL

How to Use the Remote Control

Adjusting the Soundbar volume with a TV remote control

Adjust the Soundbar volume using the TV’s remote control.

• This function can be used with IR remote controls only. Bluetooth remote controls (remote controls that require pairing) are not supported.

• Set the TV speaker to External Speaker to use this function.

• Manufacturers supporting this function: VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, Hisense, RCA

  • 1. Turn Off the Soundbar.

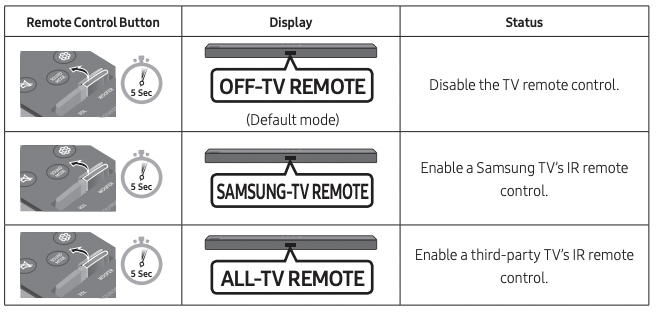

  • 2. Push up and hold the WOOFER button for 5 seconds. Each time you push the WOOFER button up and hold it for 5 seconds, the mode switches in the following order: “OFF-TV REMOTE” (Default mode), “SAMSUNG-TV REMOTE”, “ALL-TV REMOTE”.

INSTALLING THE WALL MOUNT

Installation Precautions

• Install on a vertical wall only.

• Do not install in a place with high temperature or humidity.

• Verify whether the wall is strong enough to support the product’s weight. If not, reinforce the wall or choose another installation point.

• Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.

• Purchase wall mounting screws according to the type and thickness of the wall you want to mount the Soundbar on.

– Diameter: M5

– Length: 35 mm or longer recommended.

• Connect cables from the unit to external devices before you install the Soundbar on the wall.

• Make sure the unit is turned off and unplugged from the power source before you install it. Otherwise, it may cause an electric shock.

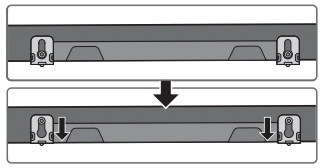

Wallmount Components

Wall Mount Guide​​​​​​​

Bracket-Wall Mount

1. Place the Wall Mount Guide against the wall surface.

• The Wall Mount Guide must be level.

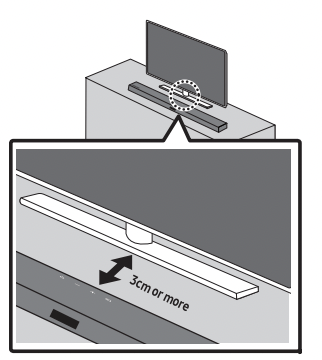

• If your TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.

2. Align the Wall Mount Guide’s Centre Line with the centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.

• If you are not mounting below a TV, place the Centre Line in the centre of the installation area.

3. Push a pen tip or sharpened pencil tip through the centre of the B-TYPE images on each end of the Guide to mark the holes for the supporting screws, and then remove the Wall Mount Guide

4. Using an appropriately sized drill bit, drill a hole in the wall at each marking.

• If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors into the holes before you insert the support screws. If you use anchors, make sure the holes you drill are large enough for the anchors you use.

5. Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole.

6. Install the 2 Bracket-Wall Mounts in the correct orientation on the bottom of the Soundbar using 2 Screws.

• When assembling, make sure the hanger part of the Bracket-Wall Mounts are located behind the rear of the Soundbar.

7. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall.

8. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

• Insert the Holder-Screws into the wide (bottom) part of the Bracket-Wall Mounts, and then slide the Bracket-Wall Mounts down so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

PLACING THE SOUNDBAR ON A TV STAND

Place the Soundbar on a TV stand.

As illustrated in the image, align the centre of the Soundbar with the centre of the TV, carefully place the Soundbar onto the TV stand. For optimal sound quality, position the Soundbar at least 3 cm away from the TV front.

NOTE

• Make sure the Soundbar is placed on a flat and solid surface

TROUBLESHOOTING

Before seeking assistance, check the following.

Soundbar does not turn on.

Check whether the power cord of the Soundbar is correctly inserted into the outlet.

Soundbar works erratically.

After removing the power cord, insert it again.

Remote the power cord from the external device and try again.

If there is no signal, the Soundbar automatically turns off after a certain period of time. Turn on the power. (See page 3.)

In case the remote control does not work.

Point the remote directly at the Soundbar.

Replace the batteries with new ones.

Soundbar does not output any sound.

The volume of the Soundbar is too low or muted. Adjust the volume.

When any external device (STB, Bluetooth device, mobile device, etc.) is connected, adjust the volume of the external device.

For sound output of the TV, select Soundbar. (Samsung TV: Home ( ) → Settings () → Sound → Sound Output → Select Soundbar)

The cable connection to the Soundbar may not be loose. Remove the cable and connect again.

Remove the power cord completely, reconnect, and turn the power on.

Reset the product and try again. (See page 28.)

Subwoofer does not output any sound.

Check whether the LED indicator on the rear of the Subwoofer is on in blue.Reconnect the Soundbar and Subwoofer if the indicator is blinking slowly in blue or turned red. (See page 7.)

You may experience an issue if there is an obstacle between the Soundbar and Subwoofer. Move devices to an area away from obstacles.

Other devices sending radio frequency signals in proximity may interrupt the connection. Keep your speaker away from such devices.

Remove and reconnect the power plug.

The Subwoofer volume is too low.

The original volume of the content you are playing may be low. Try adjusting the Subwoofer level. (See page 22.)

Bring the Subwoofer speaker closer to you.

Soundbar does not connect via Bluetooth.

When connecting a new device, switch to "BT PAIRING” for connection. (Press the PAIR button on the remote control or press the (Source) button on the body for at least 5 seconds.)

If the Soundbar is connected to another device, disconnect that device first to switch the device.

Reconnect it after removing the Bluetooth speaker list on the device to connect. (Samsung TV: Home () → Settings () Sound → Sound Output → Bluetooth Speaker List)

Remove and reconnect the power plug, then try again.

Reset the product and try again. (See page 28.)

Sound drops out when connected via Bluetooth.

Some devices can cause radio interference if they are located too close to the Soundbar. e. g. microwaves, wireless routers, etc.

If your device that is connected via Bluetooth moves too far away from the Soundbar, it may cause the sound to drop out. Move the device closer to the Soundbar.

If a part of your body is in contact with the Bluetooth transceiver or the product is installed on metal furniture, sound may drop out. Check the installation environment and conditions for use

Soundbar does not turn on automatically with the TV.

When you turn off the Soundbar while watching TV, power synchronization with the TV is disabled. First turn off the TV.



See other models: HW-A450/XU HW-A550/XU UN75AU8000FXZC UN65AU8000FXZC UN55AU8000FXZC

Samsung HW-A430/XU | Series: A-series | Pages: 150 | Created on: 2021-02-22 | File type: PDF | Filename: 40661542_hw-a430-xu.pdf | Size: 18.81 MB | Language: English, French, German, Italian

Download User Manual

Product Infomation and Reviews - HW-A430/XU photo

HW A430 XU Photo

View more photos

Samsung in United States

1-800-726-7864 Mon - Fri: 8AM - 12AM (EST) / Sat - Sun: 9AM - 11PM (EST) Sat - Sun: HOME APPLIANCE 9AM - 6PM (EST)

Samsung HW-A430/XU Questions and Answers

Find answers or Ask a question.
  • Total questions: 1
  • Questions unAnswered : 1

#1 How to connect Bluetooth devices to your Samsung TV?
Samsung TVs can connect to variety of Bluetooth devices, including speakers, soundbars, headphones, keyboards and mice, and gamepads. This can enhance the audio of your TV or make it easier to navigate the menu.
Depending on your TV this feature could be called SoundConnect, SoundShare, or Bluetooth Audio.

Find out how to connect a mobile device to your TV.

Please note: not all Samsung TVs support Bluetooth connections. Some Samsung TVs support connections from Bluetooth audio devices, but not from Bluetooth HID devices (mouse, keyboards, and gamepads). If your TV doesn't support Bluetooth, you will not be able to connect Bluetooth devices wirelessly and may have to use a cable. USB Bluetooth transmitter receivers are not supported

#2 How to setup & connect a Soundbar to a TV using WiFi?
There are several ways to connect a Samsung soundbar. All of the ways have their own benefits, but the most organized way to connect your devices is definitely a wireless connection through a Wi-Fi network. In addition, there are also other advantages of a Wi-Fi connection. Let's take a look at how to connect via a Wi-Fi network.

Benefits of using Wi-Fi
If you are thinking about how to connect your soundbar to a TV, we recommend that you consider a Wi-Fi connection among the many methods. When you connect your devices using a Wi-Fi network, you can have the following benefits.

Wider range: Wi-Fi allows you a wider range than Bluetooth. In general, a Bluetooth connection is only possible within 30 feet. However, Wi-Fi relies only on the strength of the Wi-Fi signal, so if your devices are within the network, you can play music.
Multiple connections: When you use Wi-Fi, you can connect multiple soundbars to your network. It is possible because of the wide range of Wi-Fi. Therefore, you can use Wireless Audio 360 systems simultaneously and enjoy a high quality sound.

Check before connecting the soundbar
There are three things to check before you try to connect your Samsung soundbar to Wi-Fi. Check out the below things.

Ensure that your TV model was released after 2013. This feature is available only for models after 2013.
Ensure that your TV is connected to the working Wi-Fi network.
Ensure that your TV and Soundbar are connected to the same wireless router/frequency.

How to connect your soundbar to Wi-Fi
Step 1. Click the Source button on the back of the soundbar, or click the Source button on the remote to select Wi-Fi mode.

Note: For the 2016-2018 TV models, if you select Wi-Fi mode when the TV is turned on, the automatic connection method will be displayed on the screen.
Step 2. Connect your mobile device to the same Wi-Fi that your TV is connected to.

Step 3. Download Samsung SmartThings app on your mobile device.

Step 4. Open the SmartThings app on your mobile device and tap the Add icon (+).

Step 5. Tap Device, which is the first selection on the screen.

Step 6. Tap AV and select the brand of your soundbar among Samsung and Samsung Harman Kardon. Then, tap Soundbar.

Step 7. Tap Start and select the location and room. Then, your mobile device will search for the soundbar and connect.
Note:

The SmartThings app is supported from the 2017 Soundbar, and older models are supported only by using the Multiroom app.
Wi-Fi using the DPS channel cannot connect the TV and soundbar.
If the 5 Hz Wi-Fi connection is not smooth, try to use the 2.3 Hz bandwidth.
