PDIC68FG - PDIC88FG
6.5’’ In-Wall/In-Ceiling Hi-Fi Speakers
Dual In-Wall / In-Ceiling Hi-Fi Speakers
High Performance Full Range Stereo Speaker System
with Magnetic Grills
PDIC68FG - 6.5" inch
PDIC88FG - 8" inch
www.PyleUSA.com
1
PDIC68FG SPL
PDIC68FG IMP
2.0
10.0
20.0
30.0
40.0
20HZ 100 1K 10K 20K
Frequency Response
50.0
60.0
70.0
80.0
90.0
100.0
110.0
120.0
100
1K
11K
Frequency Response
9.21 (234mm)
”
7.9 (201mm)
”
Side View
3.66 (93mm)
”
3.78 (96mm)
”
www.PyleUSA.com
2
PDIC88FG SPL
PDIC88FG IMP
11K20
50.0
60.0
70.0
80.0
90.0
100.0
110.0
120.0
100 1K
Frequency Response
20 100 1K 10K 20K
2.0
10.0
20.0
30.0
Frequency Response
Side View
11.06 (281mm)
”
9.53 (242mm)
”
4.06 (103mm)
”
3.74 (95mm)
”
www.PyleUSA.com
3
• Speaker Installation
Cutting
guide
1
N S
2
3 4
5 6
www.PyleUSA.com
4

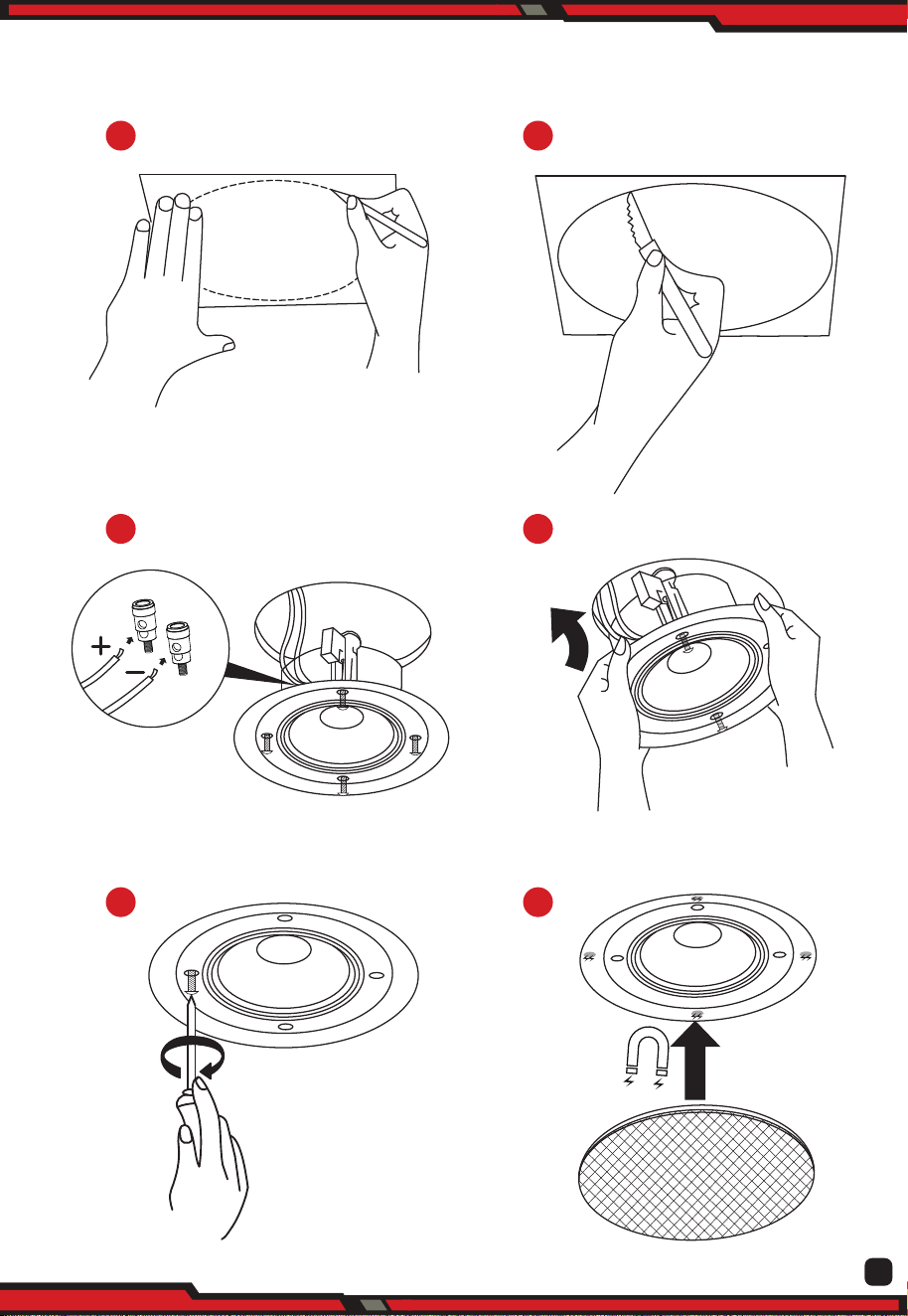

1. Position the cutting guide against the required speaker
placement and trace around.
2. Cut out the traced area using a pad saw or other suitable tool.
3. Take the speaker unit out of the packaging and remove the
grille. Connect the speaker wire to the appropriate “+” and “-”
connections (select the desired tapping for 100V units).
4. Locate the speaker unit into the cut-out, ensuring that the 4
rotating xing clamps stay turned inward.
5. Once located, turning the 4 xing screws clockwise will cause
the xing clamps to rotate outward and tighten onto the
mounting surface.
6. Put the speaker grille onto speaker in place by magnetism.
www.PyleUSA.com
5
PDIC68FG - PDIC88FG
6.5’’ In-Wall/In-Ceiling Hi-Fi Speakers
Dua In-Wall / In-Ceiling Hi-Fi Speakers - High Performance Full
Range Stereo Speaker System with Magnetic Grills
Features:
• In-Wall / In-Ceiling Speaker System
• Universal Flush Mount for Any Flat Surface
• Flat & Thin, Slim-Style Removable Speaker Grill
• Convenient Magnetic Speaker Grill Quickly Attaches
/ Detaches
• High-Fidelity (Hi-Fi) Sound Processing Technology
• 2-Way Full Range Stereo Sound Reproduction
• Built-In Electronics Crossover Network
• Woven Glass Fiber Cone with Rubber Edge
• 1’’ -inch High Compliance Silk Dome Tweeters
MODEL PDIC68
PDIC88
Speaker Size 6.5’’ inch 8’’ inch
Power Output
Frequency Response
Sensitivity
Cut-out Diameter
Mounting Depth
Total Speaker Size
(Diameter x Depth)
300 Watt MAX 360 Watt MAX
70Hz-22kHz 55Hz-22kHz
91 +/- 2 dB @ 1M/1W 93 +/- 2 dB @ 1M/1W
7.9'' -inches 9.53'' -inches
3.66'' -inches 3.74'' -inches
9.21" x 3.78"
-inches (Each)
11.06" x 4.06"
-inches (Each)
www.PyleUSA.com
6
• Integrated Clamp-Type Mounting Brackets
• Quick Connect Spring-Loaded Speaker Terminals
• Environmentally Friendly ABS Construction
• Perfect for Custom Audio Applications
• Used for Home, Oce & Business
What’s in the Box:
• (2) Hi-Fi Speakers
• (2) Magnetic Speaker Grills
• (3) Speaker Connection Wires, 9.8’ ft.
• Cut-Out Template
• Warranty Card
Technical Specs:
• Speaker Style: Round / Circle
• Impedance: 8 Ohm
• Sold as: Pair
