PDIC83T
8’’ In-Wall / In-Ceiling 70V Speaker
Flush Mount Low-Profile Speaker
with 70 Volt Transformer (600 Watt)
1

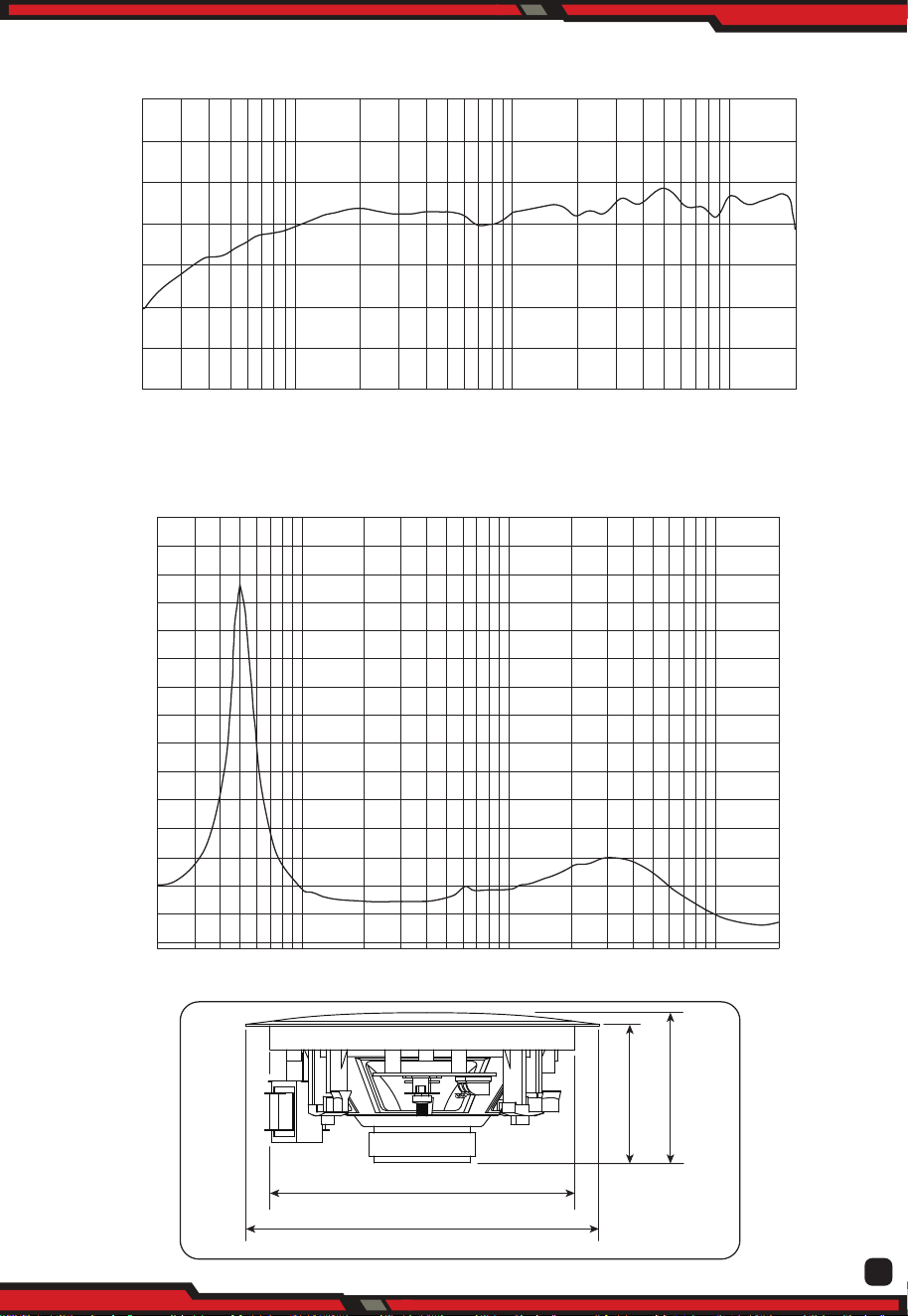

PDIC83T SPL
PDIC83T IMP
Frequency Response
100 1K 10K20 20K
50.0
90.0
80.0
70.0
60.0
120.0
110.0
100.0
Frequency Response
20HZ 100 1K 10K 20K
2.0
40.0
30.0
20.0
10.0
Side View
10.67 (271mm)
”
9.29 (236mm)
”
3.94 (100mm)
”
3.54 (90mm)
”
www.PyleUSA.com
• Speaker Installation
2
Cutting
guide
1 2
3 4
5 6
www.PyleUSA.com
www.PyleUSA.com
3

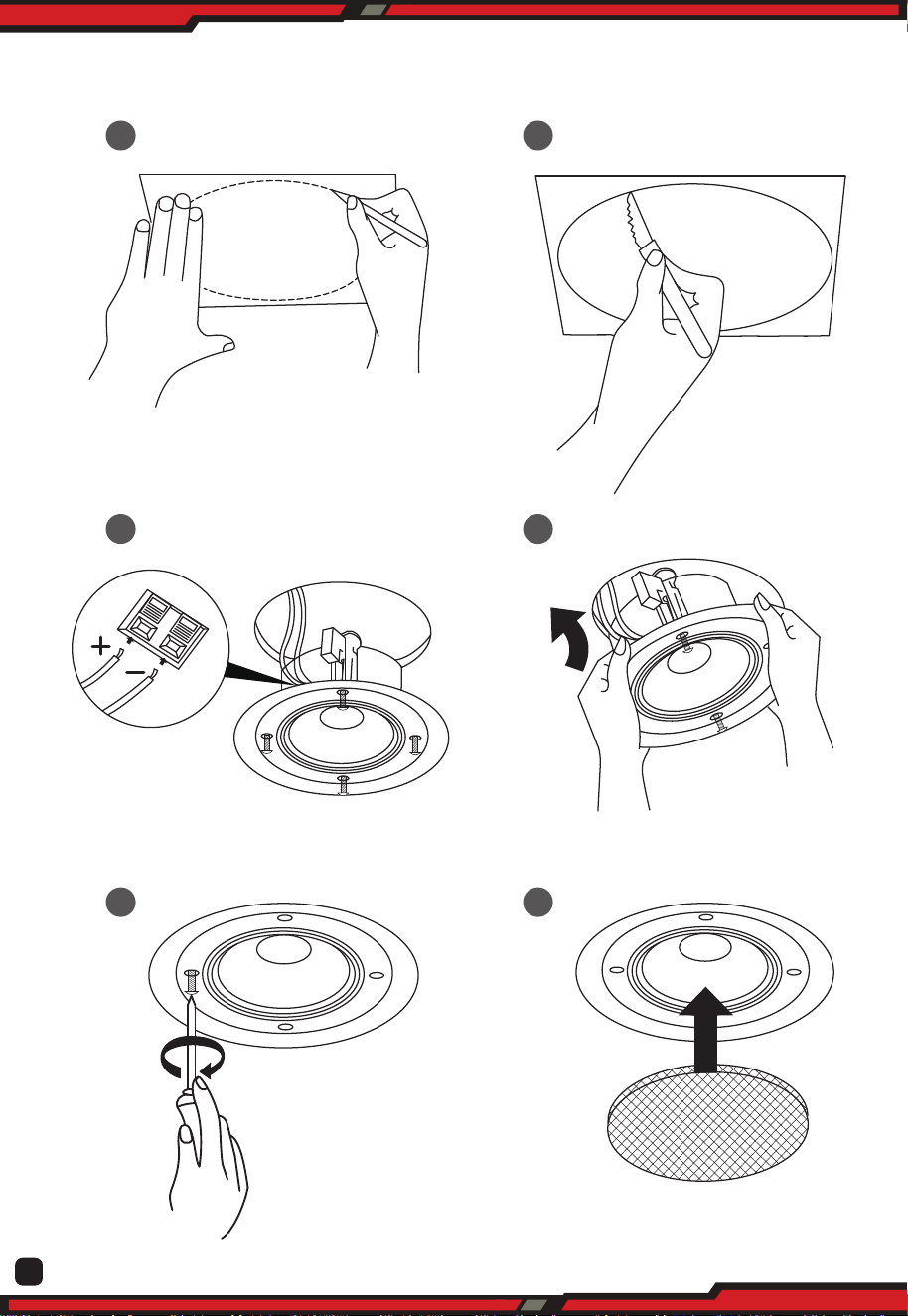

1. Position the cutting guide against the required speaker
placement and trace around.
2. Cut out the traced area using a pad saw or other suitable tool.
3. Take the speaker unit out of the packaging and remove the
grille. Connect the speaker wire to the appropriate “+” and “-”
connections (select the desired tapping for 70V device).
4. Locate the speaker unit into the cut-out, ensuring that the 4
rotating xing clamps stay turned inward.
5. Once located, turning the 4 xing screws clockwise will cause
the xing clamps to rotate outward and tighten onto the
mounting surface.
6. Push the speaker grille into place by applying
even pressure around the rim.
www.PyleUSA.com
4
PDIC83T
8’’ In-Wall / In-Ceiling 70V Speaker
Flush Mount Low-Prole Speaker
with 70 Volt Transformer (600 Watt)
Features:
• In-Wall / In-Ceiling Speaker System
• Built-in 70 Volt Transformer Tapping
• Flush Mount, Slim Low-Prole Design
• 2-Way Full Range Stereo Sound
• High-Impedance, Line-Matching Transformer
• Used for Amplier / PA Speaker Public Address Systems
• Mounts Flush on Walls or Ceilings
• 1/2'' High Compliance Dome Tweeter
• Poly Mica Cone with High-Sensitivity Foam Edge
• Cut-Out Size Template for Easy Installation
• Environmentally Friendly ABS Construction
• Used for Home, Oce & Business Applications
Technical Specs:
• Power Output: 600 Watt MAX
• Speaker Size: 8.0’’ -inches
• 70V Transformer Tapping at 20W/15W/10W/5W/2.5W
and 8OHM
• Frequency Response: 55Hz-20kHz
• Sensitivity: 91 dB
• Magnet: 20 oz.
• Cut-Out Diameter: 9.29'' -inches
• Mounting Depth: 3.54'' - inches
• Total Speaker Size (Diameter x Depth):
10.67" x 3.94" -inches
• Sold as: 1
