PDIC6LT
6.5’’ In-Wall / In-Ceiling 70V Speaker
Flush Mount Low-Profile Speaker
with 70 Volt Transformer, Magnetic Grill (500 Watt)
1
PDIC6LT SPL
PDIC6LT IMP

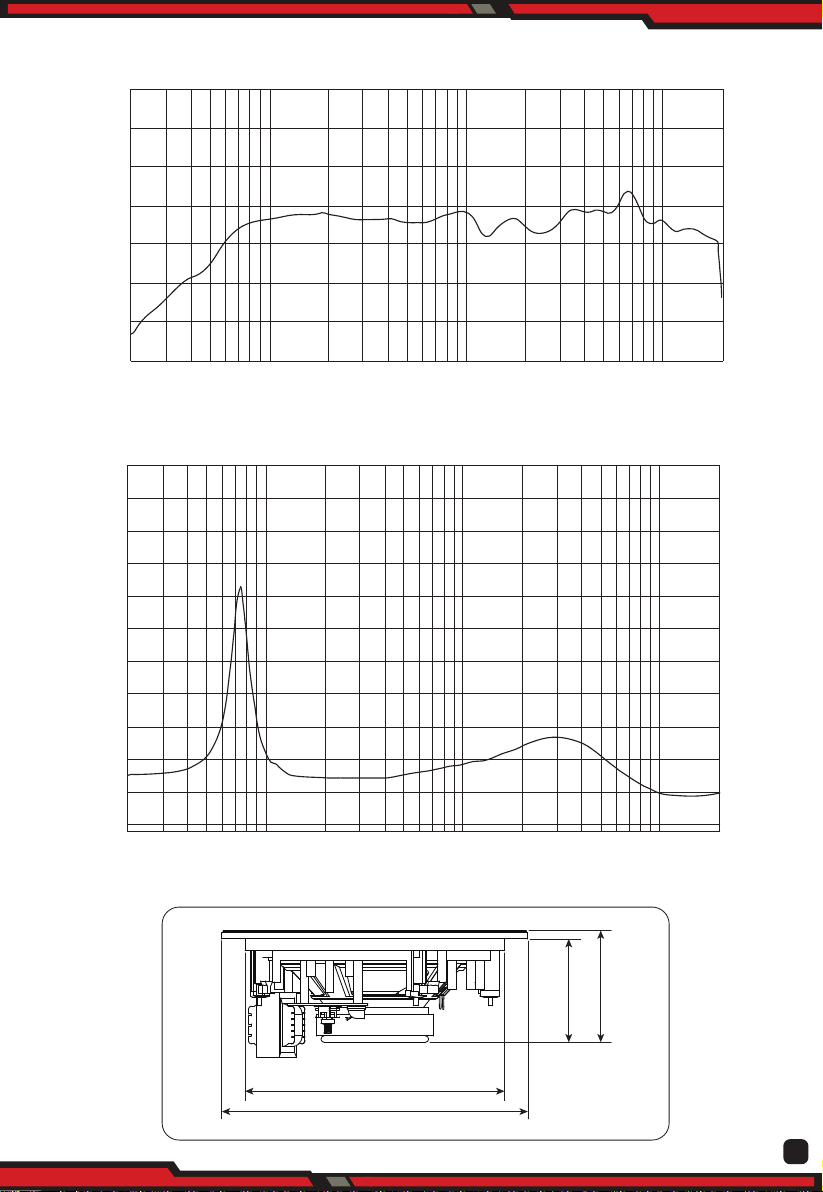

Frequency Response
Frequency Response
100 1K 10K20 20K
50.0
60.0
70.0
80.0
90.0
100.0
110.0
120.0
20HZ 100 1K 10K 20K
2.0
10.0
20.0
30.0
9.21 (234mm)
”
8.03 (204mm)
”
Side View
4.09 (104mm)
”
4.21 (107mm)
”
www.PyleUSA.com
• Speaker Installation
2
Cutting
guide
1 2
3 4
5 6
N S
www.PyleUSA.com
3

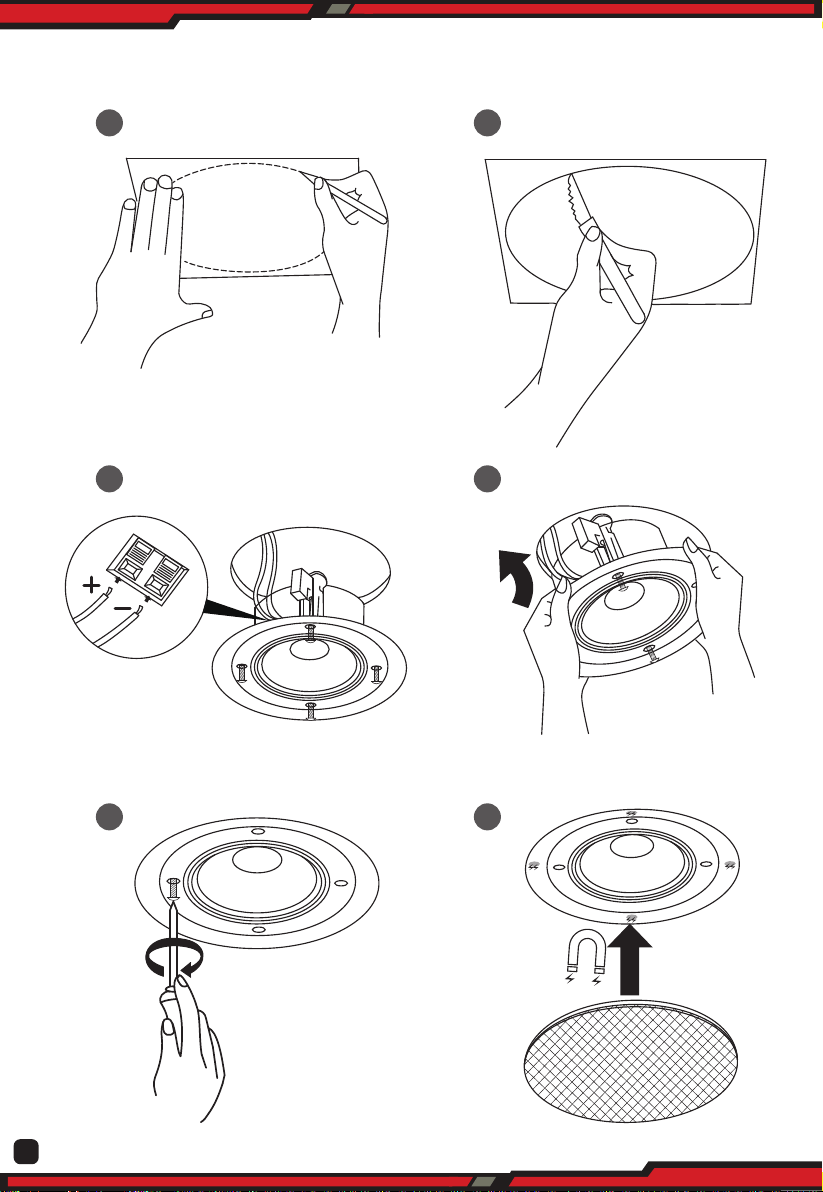

1. Position the cutting guide against the required speaker
placement and trace around.
2. Cut out the traced area using a pad saw or other suitable tool.
3. Take the speaker unit out of the packaging and remove the
grille. Connect the speaker wire to the appropriate “+” and “-”
connections (select the desired tapping for 70V units).
4. Locate the speaker unit into the cut-out, ensuring that the 4
rotating xing clamps stay turned inward.
5. Once located, turning the 4 xing screws clockwise will cause
the xing clamps to rotate outward and tighten onto the
mounting surface.
6. Put the speaker grille onto speaker in place by magnetism.
www.PyleUSA.com
4
PDIC6LT
6.5’’ In-Wall / In-Ceiling 70V Speaker
Flush Mount Low-Prole Speaker
with 70 Volt Transformer, Magnetic Grill (500 Watt)
Features:
• In-Wall / In-Ceiling Speaker System
• Built-in 70 Volt Transformer Tapping
• High-Impedance, Line-Matching Transformer
• 2-Way Full Range Stereo Sound
• Detachable Magnetic Speaker Grill Cover
• Used for Amplier / PA Speaker Public Address Systems
• Slim-Style, Low Prole Design
• Mounts Flush on Walls or Ceilings
• 1/2'' High Compliance Dome Tweeter
• Poly Mica Cone with High-Sensitivity Foam Edge
• Cut-Out Size Template for Easy Installation
• Environmentally Friendly ABS Construction
• Used for Home, Office & Business Applications
Technical Specs:
• Power Output: 500 Watt MAX
• Speaker Size: 6.5’’ -inches
• 70V Transformer Tapping at 20W/15W/10W/5W/2.5W and 8OHM
• Frequency Response: 75Hz-20kHz
• Sensitivity: 89 dB
• Magnet: 16 oz.
• Cut-Out Diameter: 8.03'' -inches
• Mounting Depth: 4.09'' -inches
• Total Speaker Size (Diameter x Depth): 9.21'' x 4.21'' -inches
•
Sold as: 1
