6.5’’ In-Wall / Ceiling Speakers
PDIC63T
Visit Our Website
SCAN ME
PyleUSA.com
www.PyleUSA.com
2
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.
RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE.
FEATURES:
• In-Wall / In-Ceiling Speaker System
• Built-in 100 Volt Transformer Tapping
• Flush Mount, Slim Low-Prole Design
• 2-Way Full Range Stereo Sound
• High-Impedance, Line-Matching Transformer
• Used for Amplier / PA Speaker Public Address Systems
• Mounts Flush on Walls or Ceilings
• 1/2'' High Compliance Dome Tweeter
• Poly Mica Cone with High-Sensitivity Foam Edge
• Cut-Out Size Template for Easy Installation
• Environmentally Friendly ABS Construction
• Used for Home, Oce & Business Applications
TECHNICAL SPECS:
• Power Output: 500 Watt MAX
• Speaker Size: 6.5’’ -inches
• 100V Transformer Tapping at 20W/15W/10W/5W/2.5W and 8OHM
• Impedance: 8 Ohm
• Frequency Response: 75Hz-20kHz
• Sensitivity: 92 dB
• Magnet: 8 oz.
• Cut-Out Diameter: 7.6'' -inches
• Mounting Depth: 3.35'' -inches
• Total Speaker Size (Diameter x Depth): 8.94" x 3.94" -inches
California Prop 65 Warning
WARNING:
This product may expose you to chemicals, which is known to
the state of California to cause cancer, birth defects and other
reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
www.PyleUSA.com
3
FCC INFORMATION
WARNING:
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This unit generates, uses, and can radiate radio frequency energy, and
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that
may cause undesired operation.
PRECAUTIONS
• Do not expose the speaker to moisture, rain, or excessive humidity.
• Turn o all power before installing or adjusting any wiring.
• Avoid using the speaker system at high volume for extended periods to prevent
damage.
• Only use compatible ampliers or PA systems.
www.PyleUSA.com
4

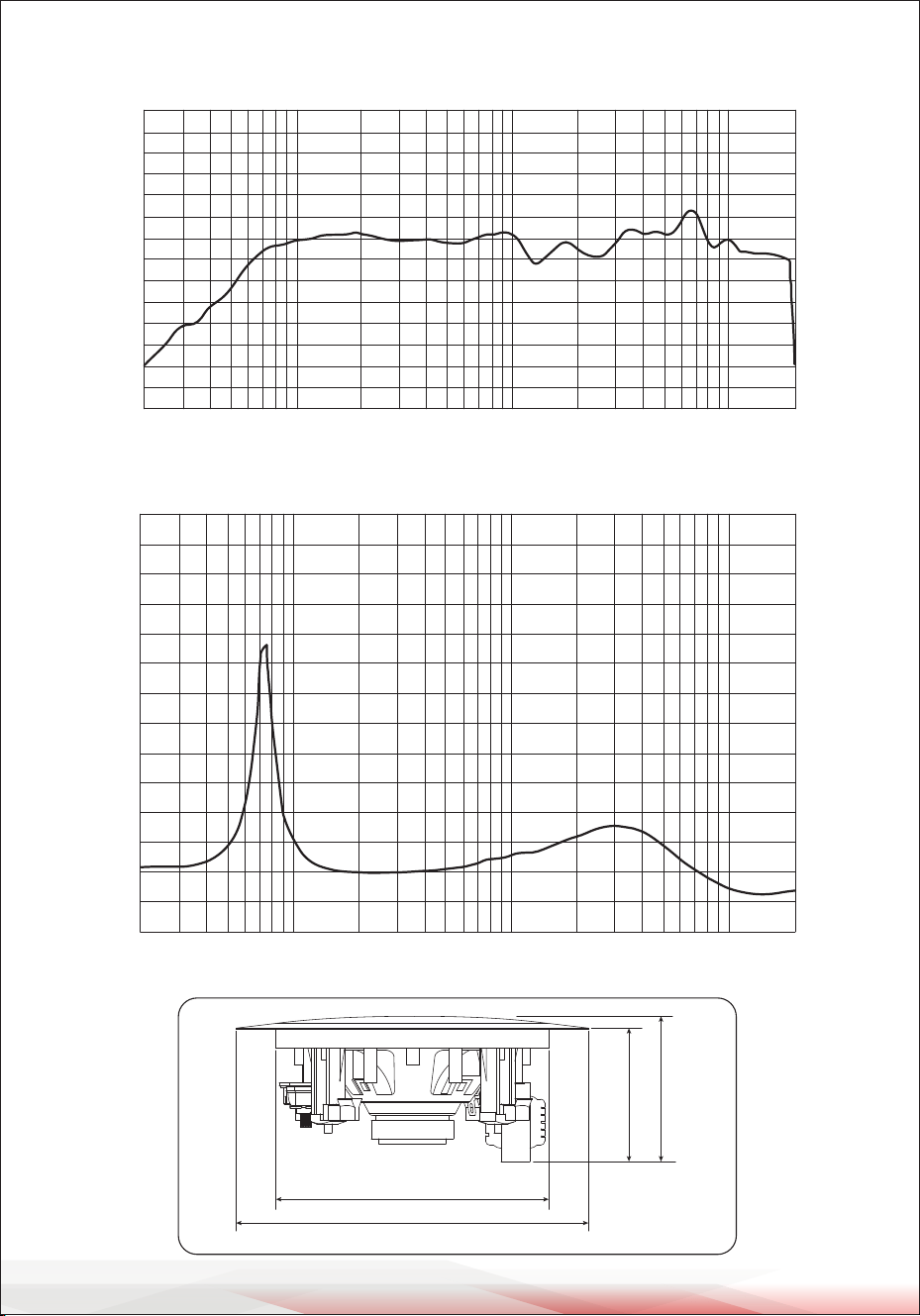

PDIC63T SPL
PDIC63T IMP
Frequency Response
100 1K 10K20 20K
50.0
90.0
80.0
70.0
60.0
120.0
110.0
100.0
Frequency Response
20HZ 100 1K 10K 20K
2.0
30.0
20.0
10.0
8.94 (227mm)
”
7.64 (194mm)
”
Side View
3.23 (82mm)
”
3.62 (92mm)
”
www.PyleUSA.com
5
Cutting
guide
SPEAKER INSTALLATION GUIDE

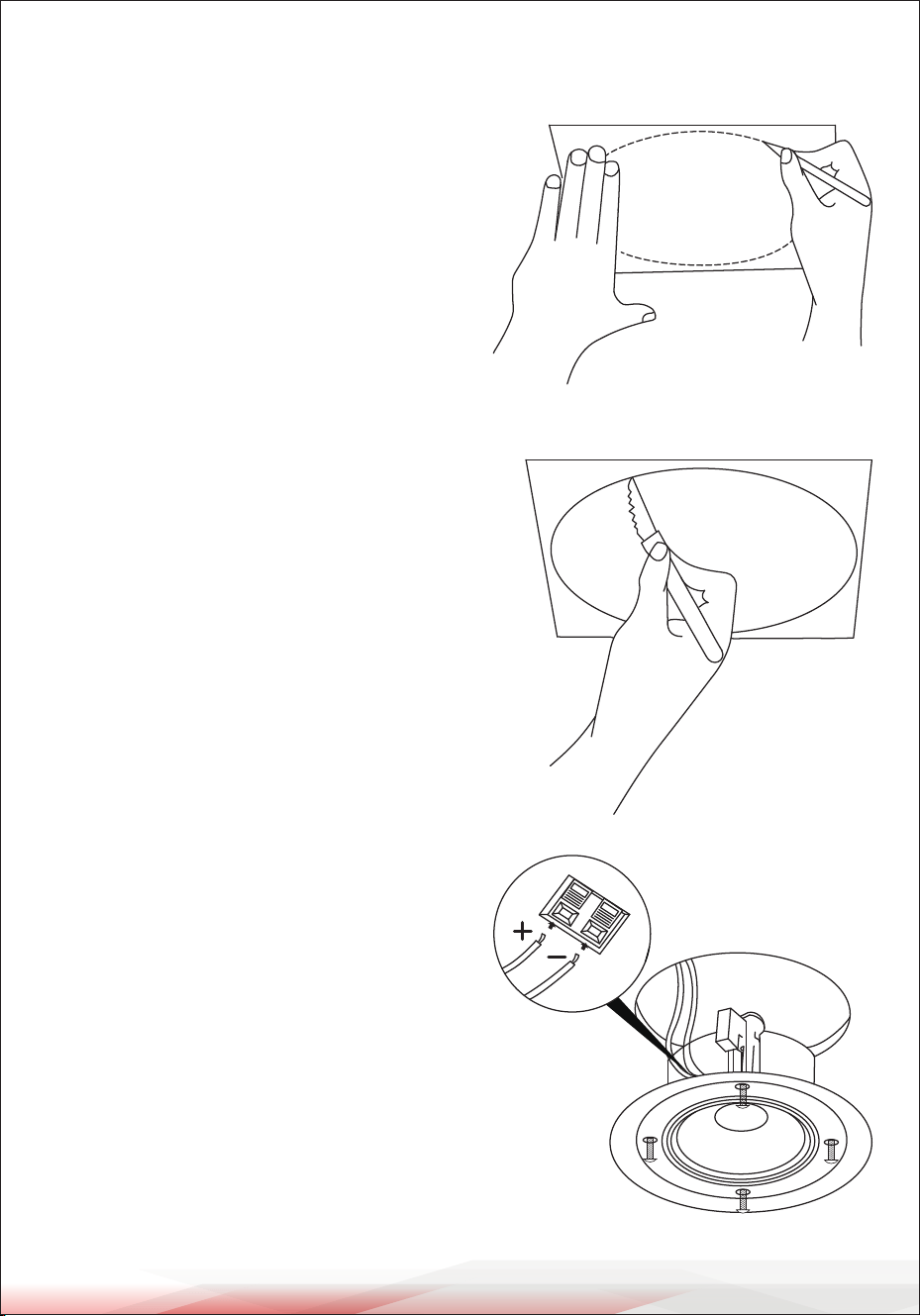

1. Mark Cut-Out:
Use the provided cutting template to
mark the desired speaker placement
on your wall or ceiling.
2. Cut Opening:
Use a pad saw or another suitable
cutting tool to cut along the traced
outline.
3. Prepare Speaker Wires:
Remove the speaker from the packaging
and take o the grille.
Connect your speaker wire to the correct
“+” and “-” terminals. For 100V systems,
select the appropriate transformer
tapping (20W / 15W / 10W / 5W / 2.5W)
based on your setup.
www.PyleUSA.com
6

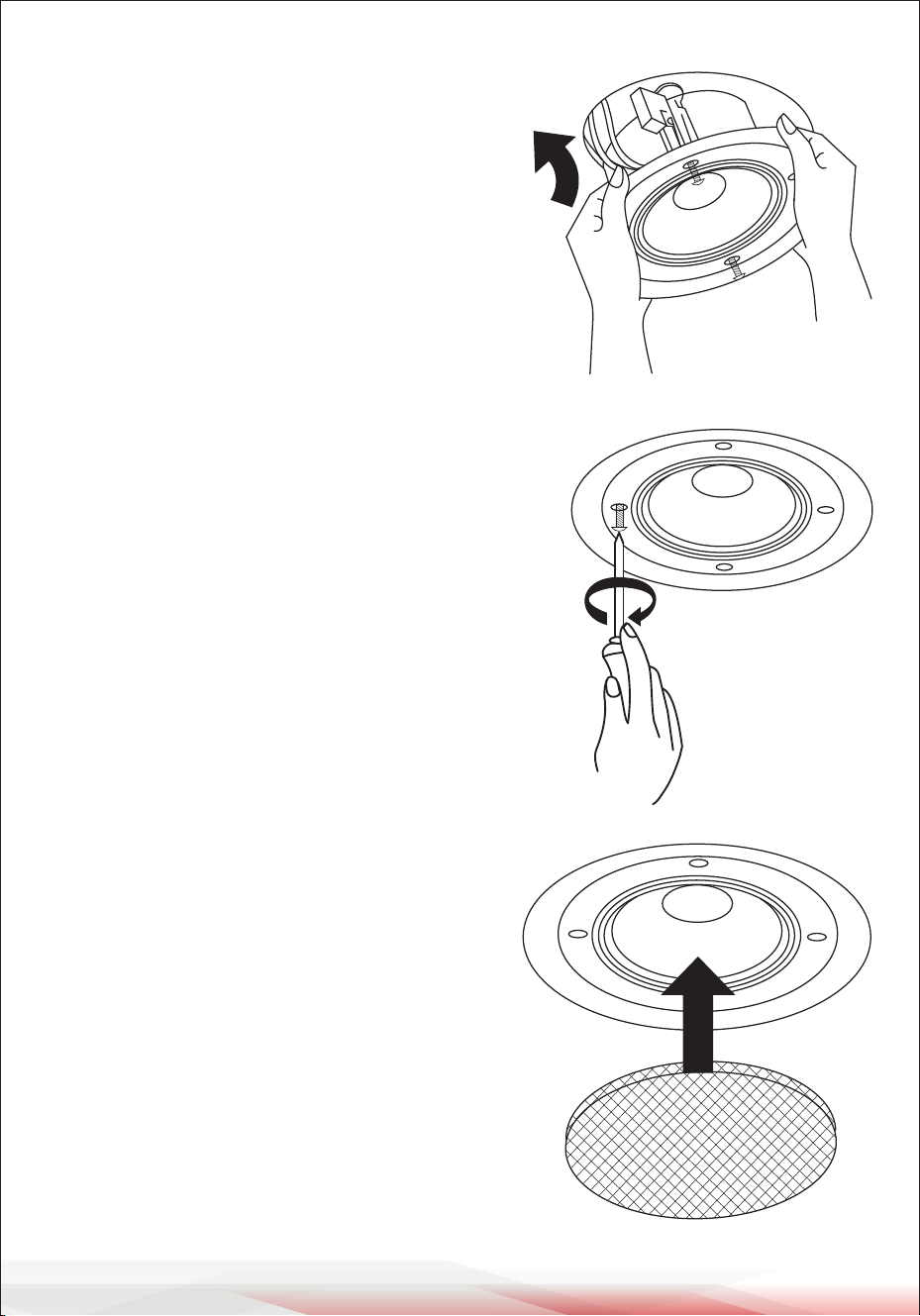

4. Insert Speaker into Cut-Out:
Position the speaker into the cut-out area,
ensuring the four rotating clamps are
turned inward.
5. Secure the Speaker:
Tighten the four mounting screws
clockwise. The clamps will rotate outward
and anchor the speaker securely against
the wall or ceiling.
6. Attach the Grille:
Gently press the grille back into place using
even pressure around the rim until it snaps
in securely.
www.PyleUSA.com
7
CLEANING GUIDE
• Use a soft, dry cloth to wipe the outer surface and grille.
• Avoid using liquid cleaners or solvents which may damage the ABS enclosure
or grille nish.
• If necessary, gently remove the grille and clean with a lightly dampened cloth,
then dry thoroughly before reinstallation.
MAINTENANCE
• Periodically inspect the speaker wires and terminals for signs of corrosion or wear.
• Ensure mounting screws remain tight over time, especially in high-vibration
environments.
• Keep the speaker grille free of dust buildup to maintain audio clarity.
STORAGE
• If not in use for an extended period, store the speaker in a cool, dry place.
• Protect from direct sunlight, moisture, and excessive heat.
• Repackage in the original box or use protective padding to avoid physical
damage during storage or transport.
Register Product
Thank you for choosing PyleUSA. By registering your product, you
ensure that you receive the full benets of our exclusive warranty
and personalized customer support.
Complete the form to access expert support and to keep your
PyleUSA purchase in perfect condition.
Start Here
Model Number:
PDIC63T
PyleUSA.com/pages/register
Questions or Comments?
We are here to help!
Phone: 1.718.535.1800
PyleUSA.com/ContactUs
