9 Inch Desk Fan
Model No. COL1586
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2
9 Inch Desk Fan
Model No. COL1586
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety instructions.
Failure to do so may result in personal injury or damage to the
product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
Only use the product as described in this user manual. Any other
use is considered improper and may result in damage to
property or persons.
The manufacturer or vendor cannot be held liable for damages
or injury incurred through improper or incorrect use.
• Read and familiarise yourself with all operating instructions
before using this 9 Inch Desk Fan.
• Before plugging your unit into the mains, visually check that
the unit is intact and has not suffered any transit damage.
• DO NOT use this product with a programmer, timer,
separate remote-control system or any other device.
• Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
• Close supervision is required when using this appliance near
children.
• Never leave this appliance within reach of children
• Children of less than 3 years should be kept away unless
continuously supervised.
• DO NOT immerse the appliance or its cord in water or any
3
9 Inch Desk Fan
Model No. COL1586
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
other liquids.
• DO NOT leave the appliance unattended during use.
• DO NOT leave the appliance unattended whilst connected
to the mains supply.
• Always use this appliance on solid, level, surface.
• DO NOT use this appliance outdoors.
• It is imperative to unplug the power cord after the appliance
has been used, before it is cleaned and whilst being
repaired.
• Repairs to electrical appliances should be performed by a
qualified electrician. Improper repairs may place user at
serious risk.
• DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
• Regular, periodic checks should be carried out on the mains
cable to ensure no damage is evident. Should there be any
signs of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced by
the manufacturer or a suitable qualified-after-sales service
in order to avoid a hazard.
• DO NOT allow the mains cable to hang over sharp edges or
come in contact with hot surfaces.
• DO NOT run the mains cable under carpets, rugs, etc.
• This appliance is intended for household use only and
should not be used for industrial purposes.
• DO NOT use any accessories or attachments with this
appliances other than those supplied or recommended by
the supplier.
• DO NOT use this appliance for anything other than intended
use.
• DO NOT push objects (including fingers) into the fan grill or
any openings as this could risk injury or damage to the
appliance.
• Unplug after each use. Grasp the plug not the cord.
4
9 Inch Desk Fan
Model No. COL1586
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

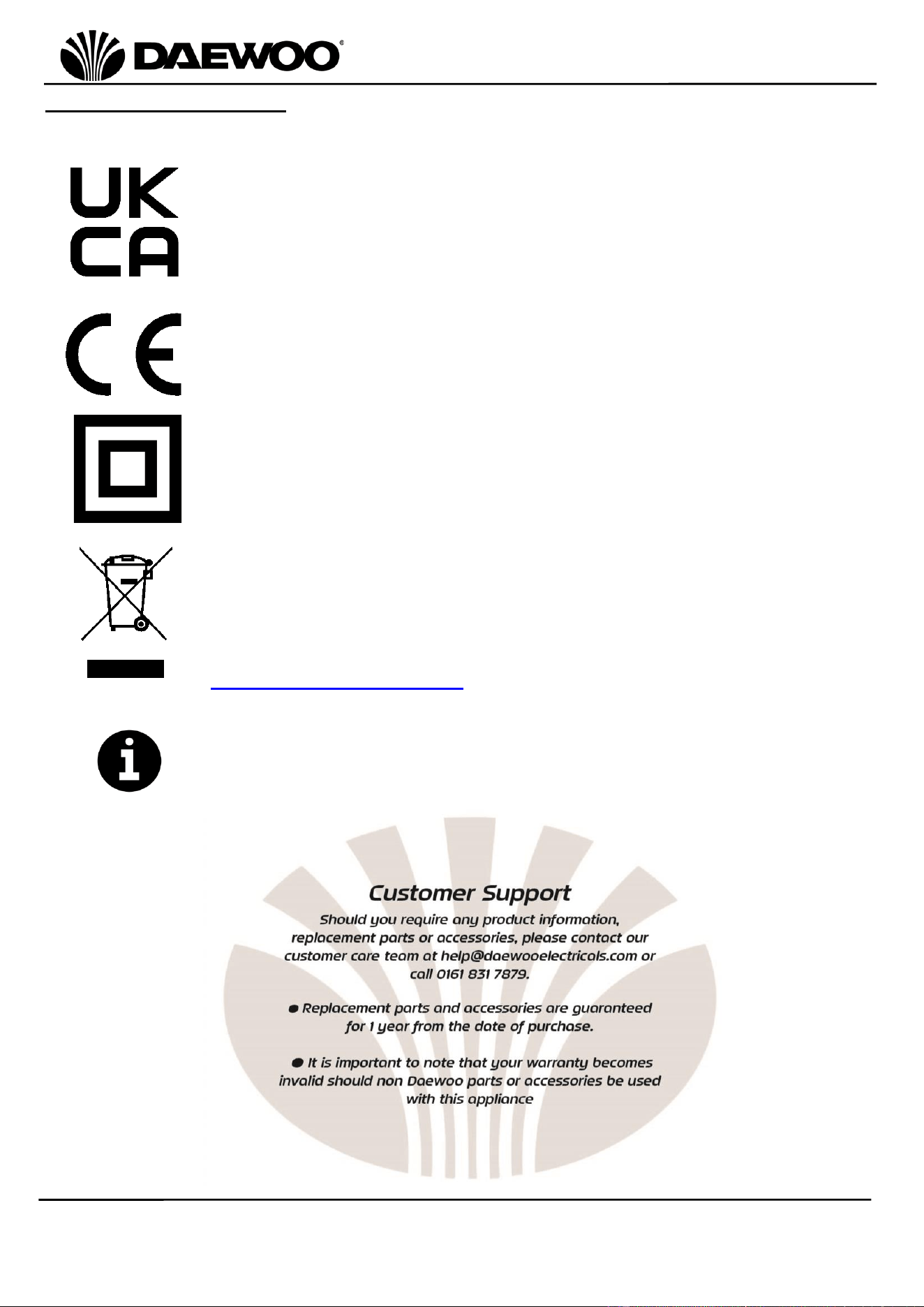

Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable
provisions of the European Economic Area.
This Class 2 symbol indicates that the product is electrically double
insulated and does not require an earth connection.
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with
your Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk enter your postcode to find out your
nearest recycling site.
This symbol provides useful additional information on the
use of this product.
5
9 Inch Desk Fan
Model No. COL1586
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1
8
8

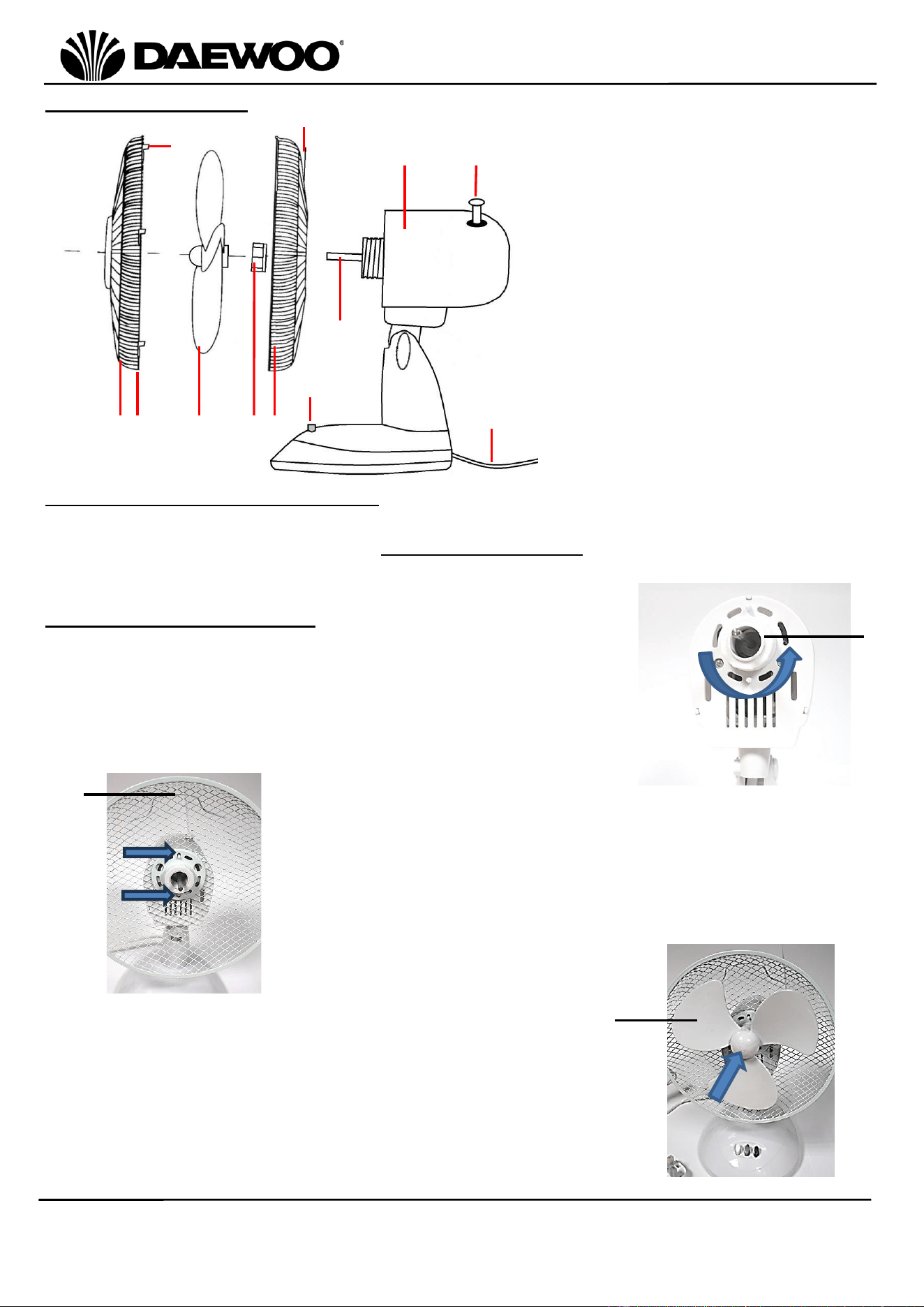

Description of Parts
Before first use of Your Desk Fan
Remove all packing materials and discard responsibly.
Ensure all parts are present - see Description of Parts above.
Check that there is no damage to the mains cable or product.
Assembling Your Desk Fan
1. Remove the Rear Guard Fixing Nut (4) by unscrewing
Anticlockwise.
2. Note the Rear Guard (5) locating pins on the motor
housing.
3. Place the Rear Guard (5) over the two pins on the motor
housing (arrowed left) and attached it using the Rear
Guard Fixing Nut (4) by screwing it on clockwise. Ensure
the Rear Guard (5) is fitted with the Carry Handle (11) at
the top.
4. Remove the protective sleeving from the Motor
Spindle (10), push the Fan Blade (3) onto the Motor
Spindle (10) in the direction of the arrow shown.
2
8
8
3
8
8
4
8
8
5
8
8
7
8
8
8
8
8
9
8
8
10
88
11
88
12
88
6
8
8
1 Front Guard
2 Guard Nut and Screw
3 Fan Blade
4 Rear Guard Fixing Nut
5 Rear Guard
6 Motor Housing
7 Oscillating Control
8 Power cord
9 Speed Control Switches
10 Motor Spindle
11 Carry Handle
12 Guard Fastening Clips
4
8
8
11
88
3
8
8
6
9 Inch Desk Fan
Model No. COL1586
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

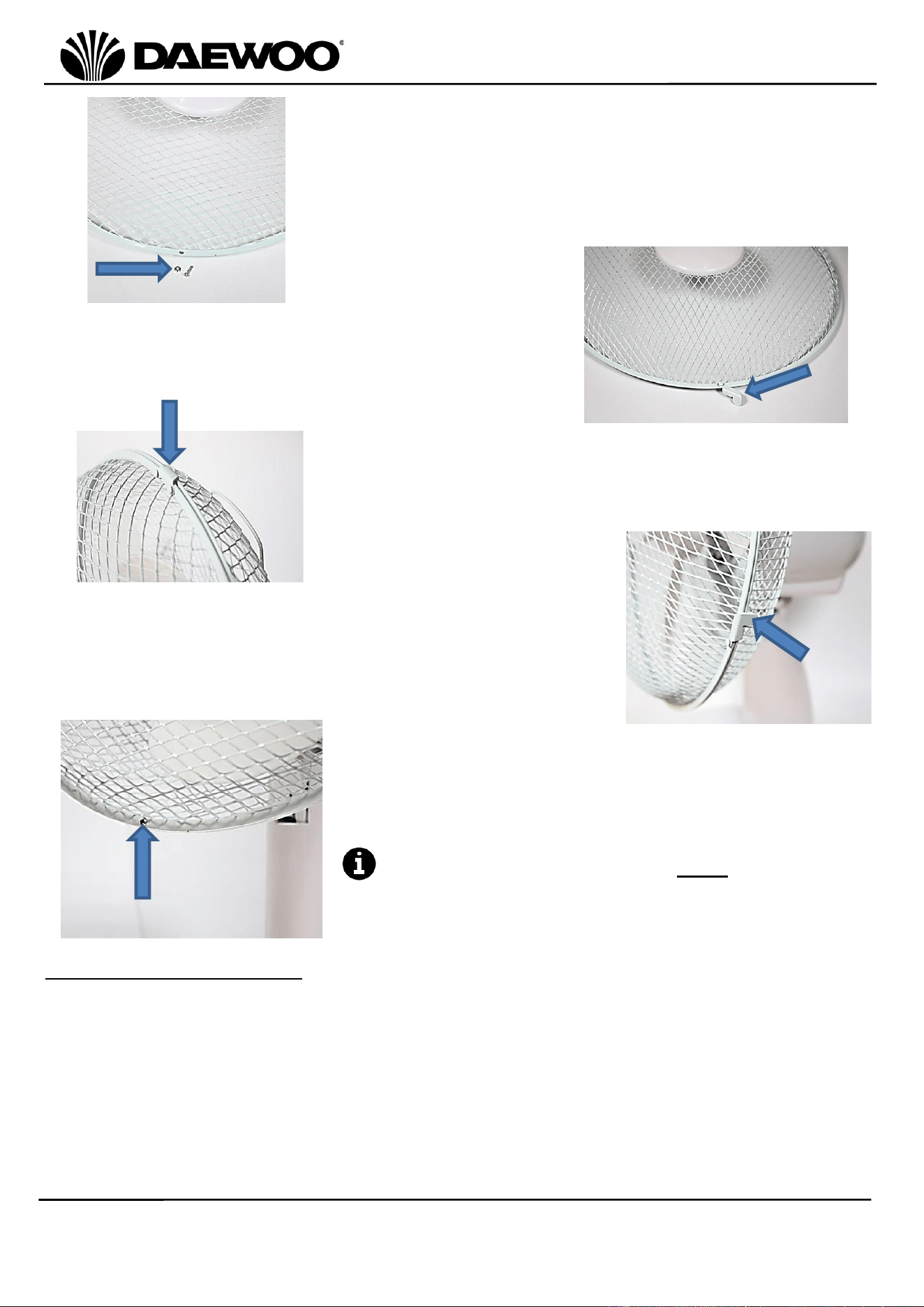

5. Remove the small Guard Nut and Screw (2) from the
Front Guard (1).
6. Move the Guard Fastening Clips (12) at the edge
of the Front Guard (1) outwards.
7. Hang the Front Guard (1) by its hook over the top of
the Rear Guard (5).
8. Bring the Front Guard (1) down to meet the Rear
Guard (5) and push the Guard Fastening Clips (12)
inwards until the Front Guard (1) is fastened to the
Rear Guard (5).
9. Finally fit the Guard Nut and Screw (2) through
the holes in the bottom edge of the guards and
tighten with a suitable pozidrive screwdriver (not
supplied).
The Guard Nut and Screw (2) must be fitted so
that the guard cannot be removed accidentally.
Operating Your Desk Fan
Place the fan in the desired position ensuring that it is stable. If desired, the fan
guard can be tilted up and down to alter the direction of the airflow. NB do not
adjust the fan whilst connected to the mains and/or switched on. Press the ‘0’
button on the base to ensure the fan is off. Insert the mains plug into the nearest
socket. Press the ‘1’ button for the low speed. Press the ‘2’ button for the high
speed. NB Press the ‘0’ button to switch the fan off. To enable your fan to oscillate
from side to side Press the oscillation control (7). Pull the control up to stop the
fan oscillating.
7
9 Inch Desk Fan
Model No. COL1586
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

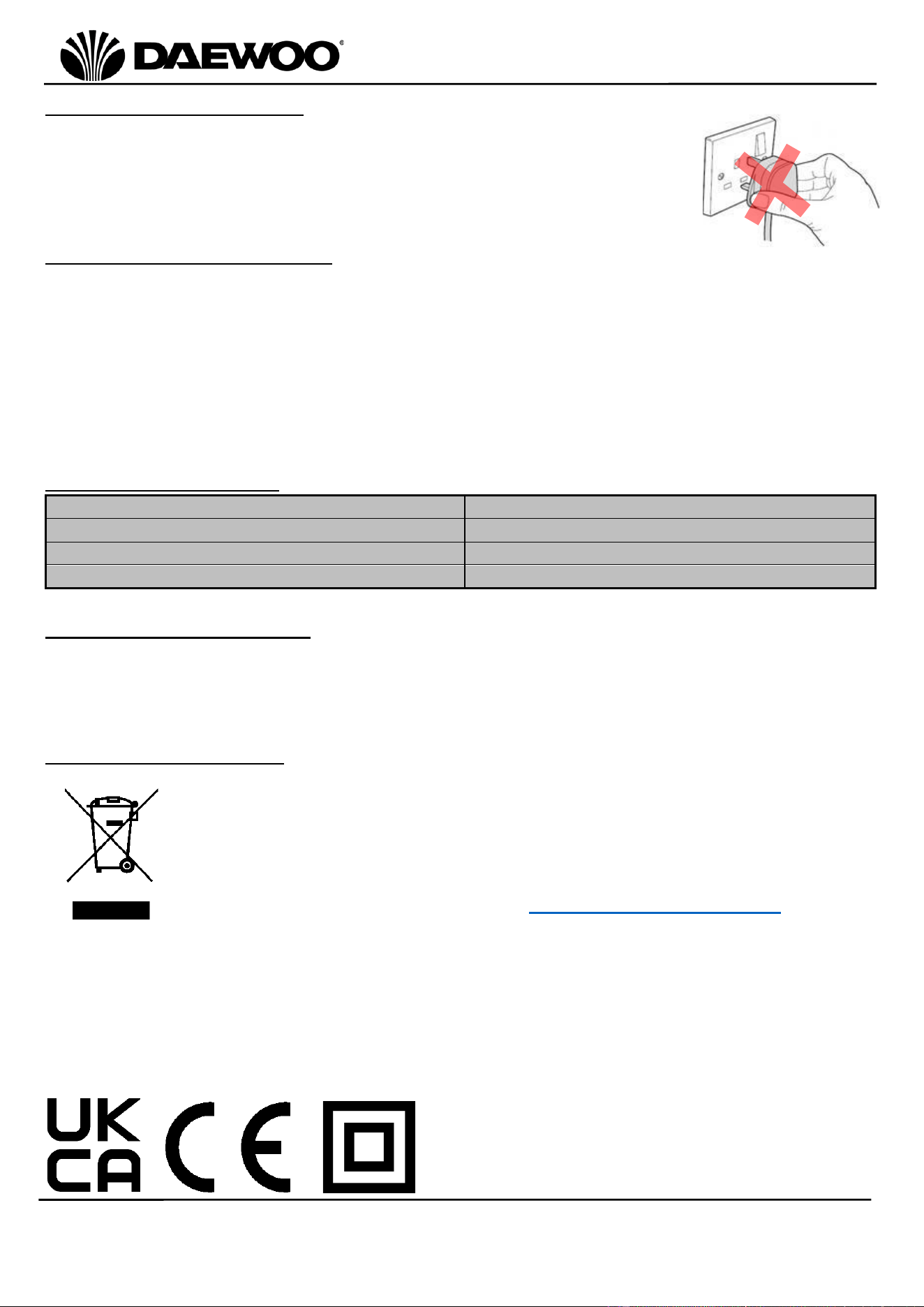

Care and Use of your Fan
Ensure that the fan is switched off and it is not connected to the
mains supply before cleaning.
Wipe the fan body clean with a clean, soft damp cloth.
Do not immerse the fan or its cord in water or any other liquid.
Non-Rewireable Mains Plug
If your appliance is supplied with a non-rewireable plug fitted to the mains lead
and should the fuse needed replacing, you must use an ASTA approved one
(conforming to BS 1362 of the same rating). Never use a plug with the fuse cover
missing. If in doubt, consult a qualified electrician.
If you need to remove the plug -DISCONNECT FROM THE MAINS- and then cut it
off the mains lead and immediately dispose of it safely. Never attempt to reuse
the plug or insert it into a socket outlet as there is a danger of electric shock.
Technical Specification
Model No.
COL1586
Voltage
220-240V~ 50/60Hz
Rated Power
25W
Protection Class
Class II
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
Dispose of non-recyclable plastics in the appropriate plastics collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken to
a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk, enter
your postcode to find out your nearest recycling site.
8
9 Inch Desk Fan
Model No. COL1586
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARRANTY
Thank you for purchasing your Daewoo product.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof
of purchase or receipt. If any defect should occur due to faulty workmanship or material, your
faulty product should be returned to the place of purchase, replacement or refund is at the
discretion of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the
requirements contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and
covers the main body and housing). If you do not register your product within 28 days of the
original purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28
days of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
