12 Inch Desk Fan Chrome
Model No. COL1607
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2
12 Inch Desk Fan Chrome
Model No. COL1607
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
READING AND STORING THE USER MANUAL
Before using this product, please read this manual carefully
paying particular attention to the safety instructions. Failure to
do so may result in personal injury or damage to the product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
Only use the product as described in this user manual. Any other
use is considered improper and may result in damage to property
or persons.
The manufacturer or vendor cannot be held liable for damages or
injury incurred through improper or incorrect use.
• Read and familiarise yourself with all operating
instructions before using this 12” Desk Fan.
• Before plugging your unit into the mains, visually check
that the unit is intact and has not suffered any transit
damage.
• DO NOT use this product with a programmer, timer,
separate remote-control system or any other device.
• Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
• Close supervision is required when using this appliance
near children.
• Never leave this appliance within reach of children
• Children of less than 3 years should be kept away unless
continuously supervised.
• DO NOT immerse the appliance or its cord in water or any
3
12 Inch Desk Fan Chrome
Model No. COL1607
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
other liquids.
• DO NOT leave the appliance unattended during use.
• DO NOT leave the appliance unattended whilst connected
to the mains supply.
• Always use this appliance on solid, level, surface.
• DO NOT use this appliance outdoors.
• It is imperative to unplug the power cord after the
appliance has been used, before it is cleaned and whilst
being repaired.
• Repairs to electrical appliances should be performed by a
qualified electrician. Improper repairs may place user at
serious risk.
• DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
• Regular, periodic checks should be carried out on the
mains cable to ensure no damage is evident. Should there
be any signs of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced
by the manufacturer or a suitable qualified-after-sales
service in order to avoid a hazard.
• DO NOT allow the mains cable to hang over sharp edges
or come in contact with hot surfaces.
• DO NOT run the mains cable under carpets, rugs, etc.
• This appliance is intended for household use only and
should not be used for industrial purposes.
• DO NOT use any accessories or attachments with this
appliance other than those supplied or recommended by
the supplier.
• DO NOT use this appliance for anything other than
intended use.
• DO NOT push objects (including fingers) into the fan grill
or any openings as this could risk injury or damage to the
appliance.
• Unplug after each use. Grasp the plug not the cord.
4
12 Inch Desk Fan Chrome
Model No. COL1607
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

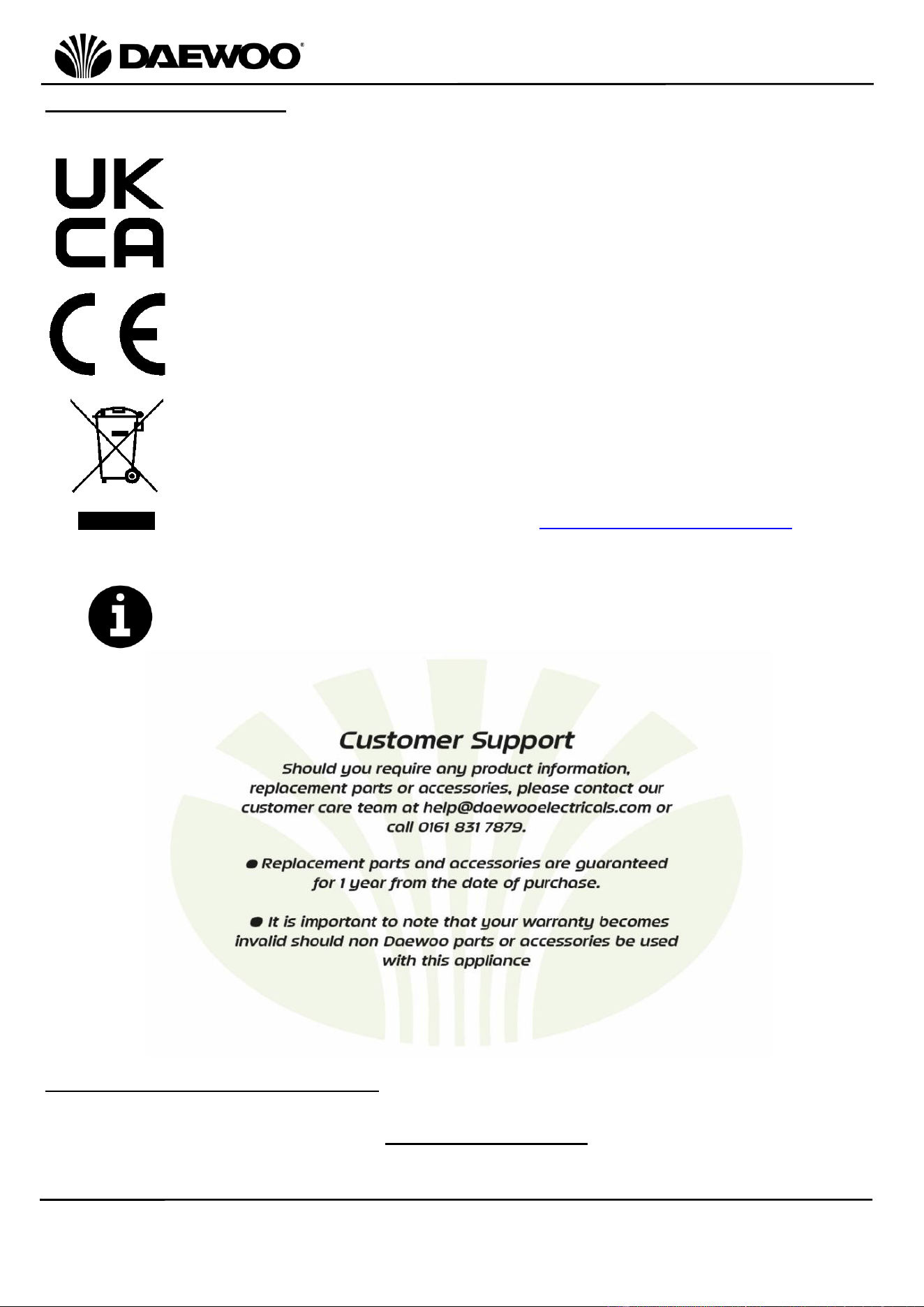

Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable provisions
of the European Economic Area.
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken to
a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk and
enter your postcode to find out your nearest recycling site.
This symbol provides useful additional information on the use of
this product.
Before first use of Your Desk Fan
Remove all packing materials and discard responsibly.
Ensure all parts are present – see Description of parts above.
Check that there is no damage to the mains cable or product.
5
12 Inch Desk Fan Chrome
Model No. COL1607
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

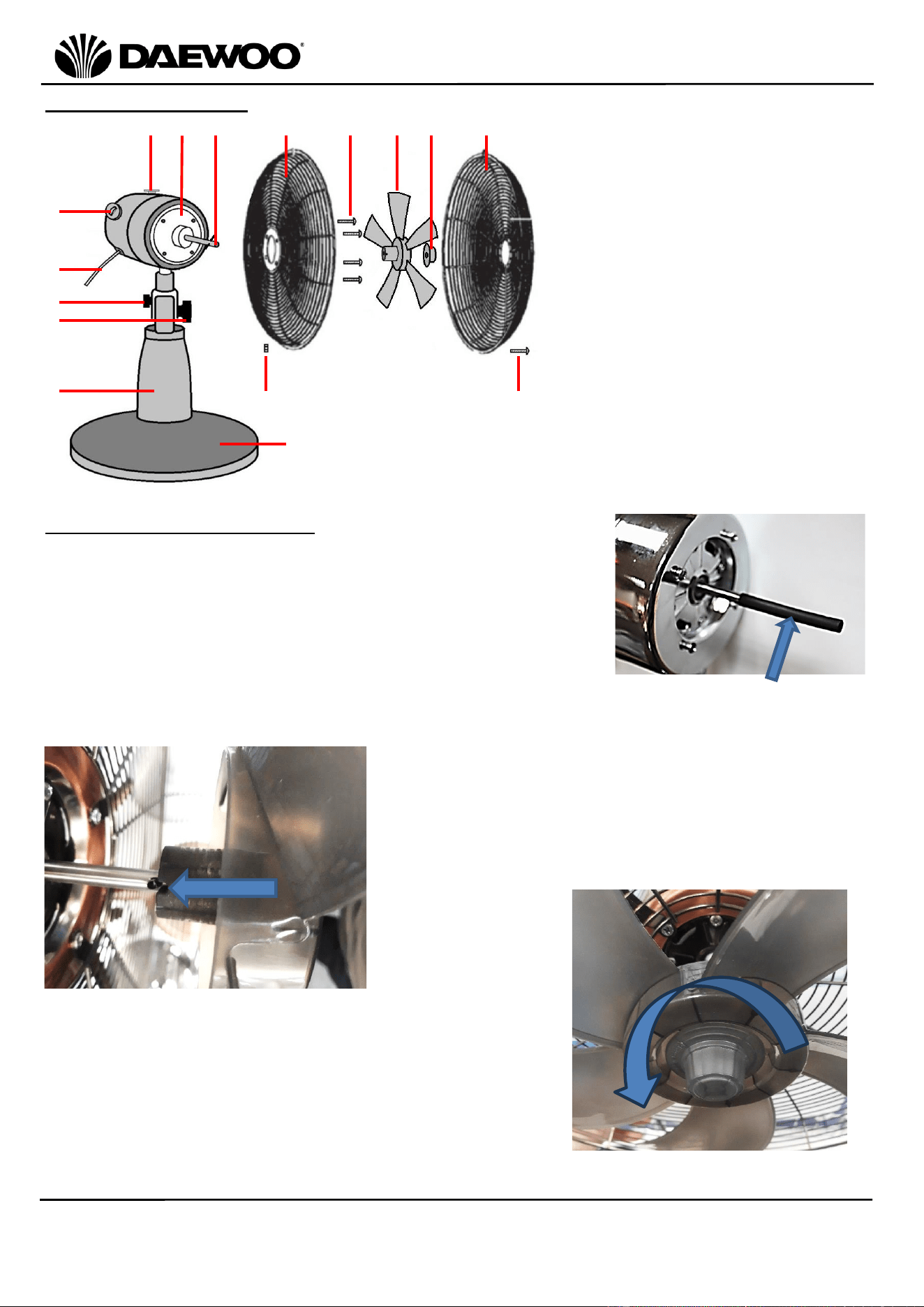

Description of Parts
Assembling your Desk Fan
1. Right: Remove any protective sleeving (arrowed
if fitted) from the Motor Spindle (9) and discard
responsibly.
2. Remove the four Rear Guard Fixing Screws (11) from
the front of the Motor Housing (8).
3. Attach the Rear Guard (10) to the Motor
Housing (8) using the four screws removed.
Ensure the carry handle on the Rear Guard (10) is uppermost.
4. Left: Push the Acrylic Fan Blade (12) over the
Motor Spindle (9) ensuring that the spline in
the spindle aligns with the notch (arrowed left)
in the fan blade as it is pushed onto the spindle.
5. Right: Screw on the Fan Blade Retaining Nut (13
– arrowed right) and tighten.
NB the Fan Blade Retaining Nut (13) is reverse
threaded, i.e. it screws on anticlockwise.
1. Base
2. Support Pillar
3. Pivot Screw
4. Pivot Stop Screw
5. Mains Cable
6. On/Off Speed Switch
7. Oscillate Control
8. Motor Housing
9. Motor Spindle
10. Rear Guard
11. Rear Guard Fixing Screws
12. Acrylic Fan Blade
13. Fan Blade Retaining Nut
14. Front Guard
15. Guard Safety Nut & Screw
1
2
3
4
6
7
8
9
5
11
12
13
15
15
14
10
6
12 Inch Desk Fan Chrome
Model No. COL1607
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

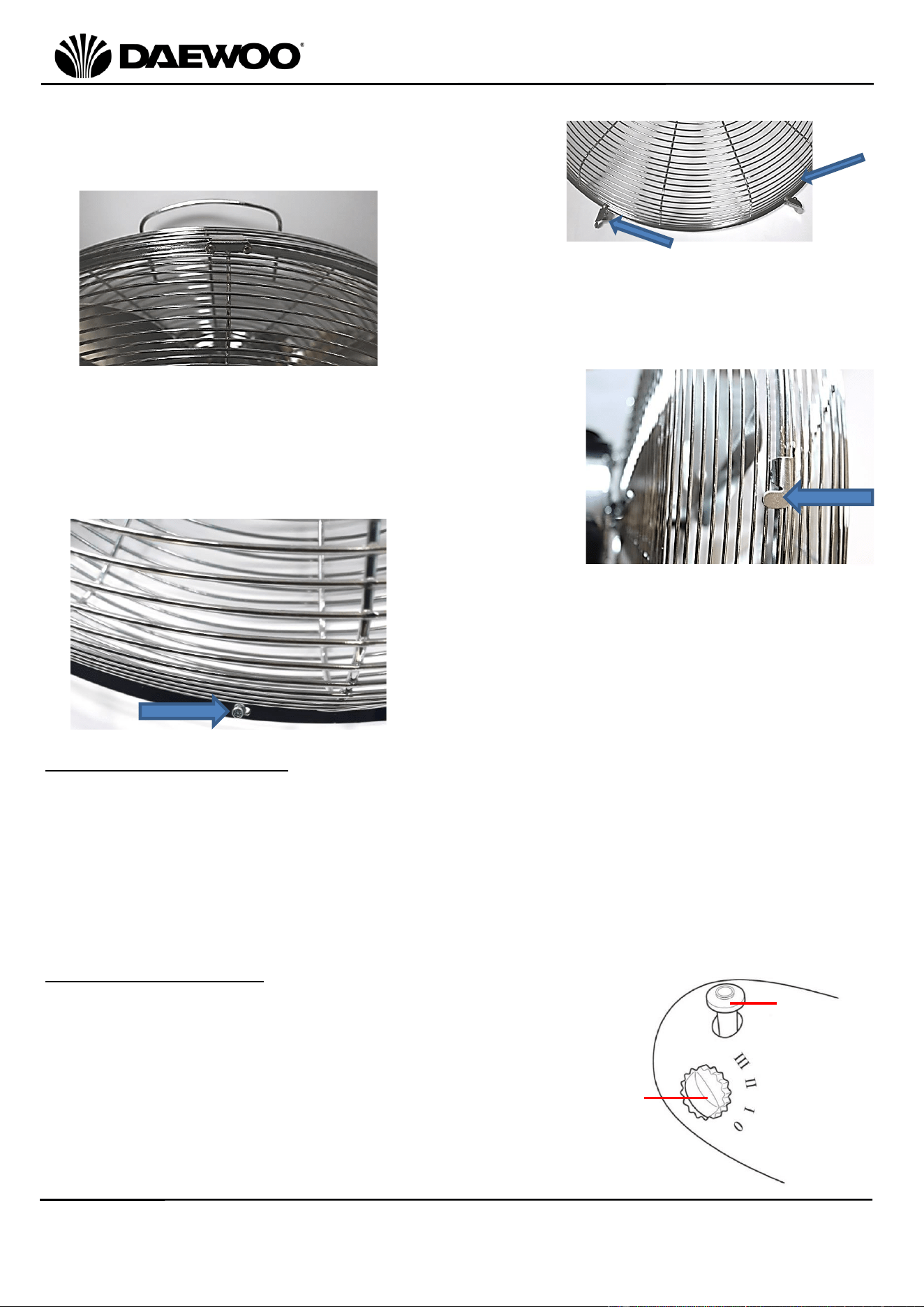

6. Remove the small Guard Safety Nut & Screw (15) from the Front Guard (14).
7. Right: Turn the clips around the outer edge of
the Front Guard (14) outwards.
8. Left: Hang the Front Guard (14) by its hook
over the top of the Rear Guard (10).
9. Right: Bring the Front Guard (14) down to
meet the Rear Guard (10) and push the guard
clips inwards until the Front Guard (14) is
fastened to the Rear Guard (10).
10. Left: Finally fit the Guard Safety Nut and
Screw (15) through the holes in the bottom
edge of the guard and tighten with a
suitable pozidrive screwdriver (not
supplied).
Adjusting Your Desk Fan
1. Place the fan on a stable, level surface.
2. To adjust the direction of airflow, slacken the Pivot Screw (3) and adjust the
Motor Housing (8) up or down. Tighten the Pivot Screw (3) to fix the fan into
place once the fan is in the desired position.
NOTE the Pivot Stop Screw (4) should be just slack enough to allow the fan to
move but tight enough to limit the back forth travel of the fan.
Setting the Fan Speed
1. Ensure that the On/Off/Speed Control (6) is in the ‘0’
position.
2. Insert the mains plug into the nearest available socket.
3. Adjust the On/Off/Speed Control (6) to select from:
• Position I for Low Speed
• Position II for Medium Speed
• Position III for High Speed
6
7
7
12 Inch Desk Fan Chrome
Model No. COL1607
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Oscillation Mode
Press the Oscillation Control (7) down to enable the fan to
oscillate from side to side.
Pull the control up to stop the fan oscillating.

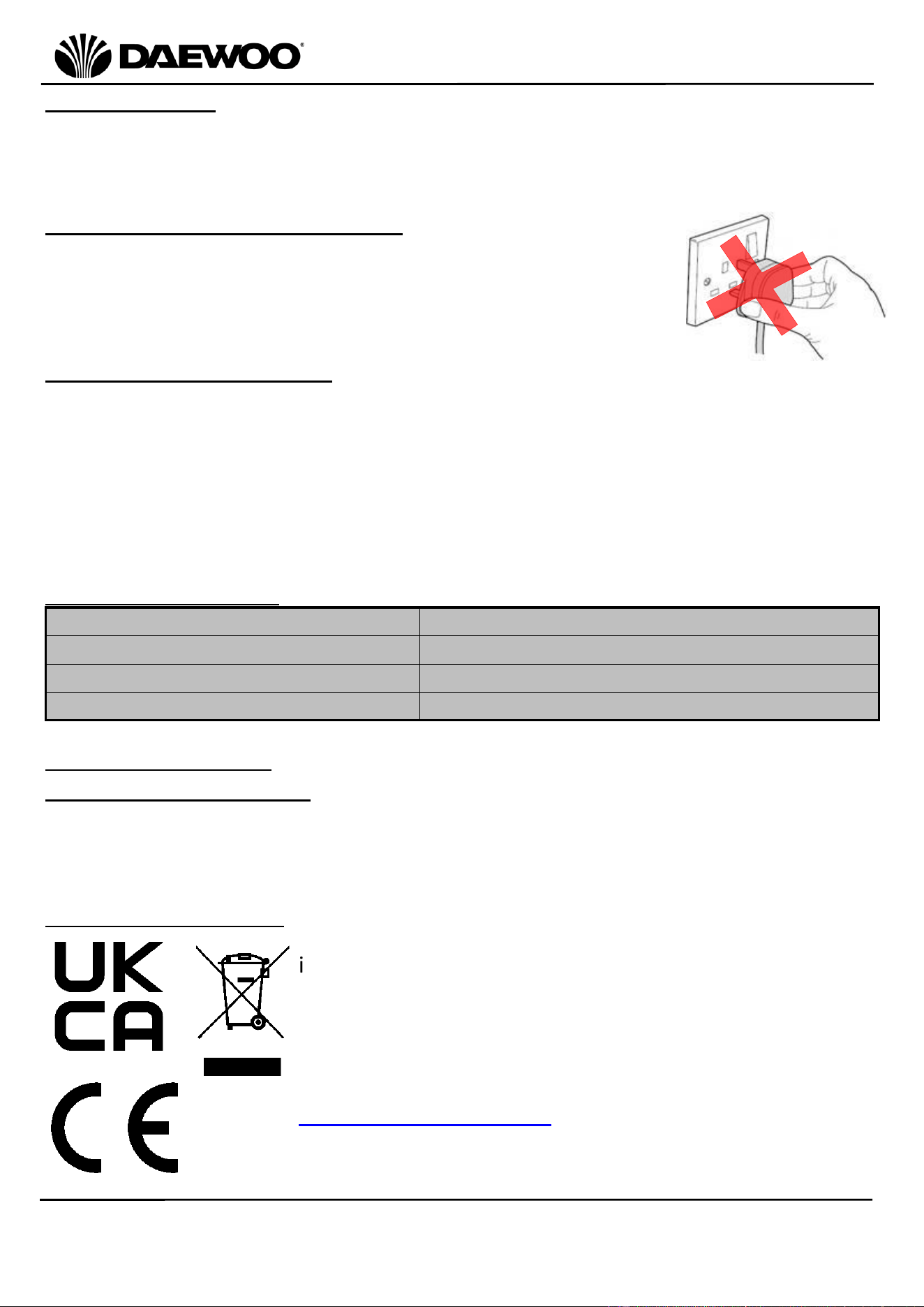

Care and Maintenance of Your Fan
Ensure that the fan is switched off and it is not connected to
the mains supply before cleaning.
Wipe the fan body clean with a clean, soft damp cloth.
Do not immerse the fan or its cord in water or any other liquid.
Non-Rewireable Mains Plug
If your appliance is supplied with a non-rewireable plug fitted to the mains lead
and should the fuse needed replacing, you must use an ASTA approved one
(conforming to BS 1362 of the same rating). If in doubt, consult a qualified
electrician who will pleased to do this for you. If you need to remove the plug -
DISCONNECT FROM THE MAINS - and then cut it off the mains lead an
immediately dispose of it safely. Never attempt to reuse the plug or insert it into a
socket outlet as there is a danger of electric shock.
Technical Specification
Model No.
COL1607
Voltage
220-240V ~ 50-60Hz
Rated Power
35W
Protection Class
Class I – This Appliance Must be Earthed
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
Dispose of non-recyclable plastics in the appropriate plastics collection service.
Disposal of the Product
You should now recycle your waste electrical goods and
in doing so help the environment. This symbol means
waste electrical products at the end of their useful life
should not be disposed of with normal household waste
and not sent to landfill. Please ensure it is taken to a
suitable facility for disposal. Check with your Local
Authority or retailer for recycling advice or visit
www.recycle-more.co.uk and enter your postcode to find
out your nearest recycling site.
8
12 Inch Desk Fan Chrome
Model No. COL1607
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARRANTY
Thank you for purchasing your Daewoo product.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo vacuum product is guaranteed for 1 year from the date of original purchase,
with proof of purchase or receipt. If any defect should occur due to faulty workmanship or
material, your faulty vacuum should be returned to the place of purchase, replacement or refund is
at the discretion of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the
requirements contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and
covers the main body and housing). If you do not register your product within 28 days of the
original purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28
days of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
