Ductless Split Systems
Single and multi zone systems
SmartQuietCool
BUILT-IN WI-FI
ULTRA QUIET
EASY TO INSTALL
READY
2 | FLOATING AIR
®
SERIES DUCTLESS
WATCH VIDEO ON
CONNECT TO
FRIEDRICHGO
™
RESIDENTIAL
APPLICATIONS
COMMERCIAL
APPLICATIONS
WI-FI CONTROL*
ANYTIME, ANYWHERE.
*Available on Premier and Pro wall-mounted models,
and on Pro ceiling cassette models
FLEXIBLE, EASY-TO-INSTALL ZONED
COMFORT SOLUTIONS FROM THE LEADER
IN ROOM AIR CONDITIONING
Whether you're heating and cooling a single room or multiple rooms, you won't nd quieter, more
energy-efcient solutions than Friedrich ductless split systems. Choose from sleek wall-mounted
models, ceiling cassettes that mount ush with the ceiling, and ducted units that install out of sight.
3
Zero duct loss
According to the DOE, ducted
systems lose an average of 25-40% in
performance due to leaks, cracks or
disconnections in ductwork.
No ductwork means that ductless systems do not
experience duct loss, saving energy and money.
No dirty air ducts*
With a ductless system, there’s no need to clean
dirty air ducts that can harbor dust,
germs and allergens that are eventually
blown into your home or office.
Zone cooling flexibility
Independently condition up to four separate zones
using only a single outdoor unit. Cool or
heat only the zones that are in use. Set
individual comfort levels for each zone.
FreshAire
®
IAQ ready
Easy-to-install FreshAire IAQ accessories improve
the health and quality of indoor air. UVL1 light kit
removes bacteria, viruses, mold and fungus from
circulated air. APWM1 air purication kills mold,
bacteria and viruses, and effectively removes odors
and VOCs.
Available built-in Wi-Fi
Easily adjust settings and power units off and on
with your smartphone. The FriedrichGo™ app is
easy to set up and use. Compatible with
Amazon Alexa or Google Home.
Wi-Fi available on Premier and Pro wall-
mounted models, and on Pro ceiling
cassette models.
Friedrich Precision Inverter
®
delivers
exceptional energy efficiency and smooth
performance
Precision Inverter technology varies the
compressor, the outdoor and the indoor fan speeds,
eliminating constant compressor start-ups/shut-
downs that traditional systems require to maintain
the set temperature.
Each system can adjust capacity and cooling output
to provide only the amount of cooling needed at a
given time. The result is optimal comfort with low
energy costs.
Soft start technology
Friedrich soft start technology starts the
compressor with significantly reduced amperage at
start up, saving energy versus compressors utilizing
locked rotor amperage (LRA).
THE ADVANTAGES OF INVERTER
DUCTLESS SPLIT SYSTEMS
TRADITIONAL SYSTEM INVERTER SYSTEM
At initial start up, a xed capacity
system slowly reaches the set
temperature.
At initial start up, utilizes
variable capacity to
quickly reach the set
temperature.
Complete shutdown once set
temperature is achieved.
Reduces capacity as set
temperature is achieved.
Temperature within the space
rises until 2nd system start up.
Variable capacity
maintains set
temperature keeping
space comfortable
with reduced energy
consumption.
System works at full capacity to
again reach set temperature.
System cycles on and off
continually to maintain the set
temperature.
ALL OF THE ADVANTAGES OF DUCTLESS SPLIT
SYSTEMS AND FRIEDRICH QUALITY
4 | FLOATING AIR
®
SERIES DUCTLESS
A UNIQUE DESIGN MAKES FRIEDRICH—
WATCH VIDEO ON
THE EASIEST DUCTLESS TO
INSTALL, CLEAN & SERVICE
EXCLUSIVELY ON
FLOATING AIR PRO AND
PREMIER SERIES
The Problem
On typical ductless indoor units,
accessing the indoor coils is
extremely difficult and takes so much
time that a thorough cleaning may be
next to impossible.
Access to piping, wire terminal
blocks, the fan and fan components is
also a challenge.
The Solution:
Friedrich FastPro was designed with
the HVAC technician in mind. In a few
easy steps that can be performed
in minutes, the entire blower wheel
assembly can be removed for easier,
faster cleaning and service.
Also, you'll have easy access to the
terminal blocks. FastPro will save you
hours on the job site.
*Faster than similar installation, cleaning and service performed on standard ductless wall-mounted units.
40%
FASTER
*
TO INSTALL
45%
FASTER
*
TO CLEAN
50%
FASTER
*
TO SERVICE
5
IN A FEW EASY STEPS
• Alignment arrows on the
Friedrich wall bracket help you
mark and drill the hole in the
wall accurately, and with total
confidence
• Easy-to-remove modular drain
pan assembly
• Quick access to tangential blower
and motor makes repairs easier
• Clear access to piping
• Built-in Wi-Fi models available
• Easy access to the wire terminal
blocks
• Included kickstand tilts unit away
from the wall providing ample
space for your hands to work
• Onboard error codes help to
ensure trouble-free operation
• Advanced corrosion protection
• Auto clean
• Washable, antimicrobial air filters
Back out electrical panel screws Remove electrical access panels (2) Lock the access panel
Unplug the wire harness Remove screws then slide out the blower wheel assembly Complete access to the coils for easy cleaning
You can access the blower wheel assembly and slide it out
for full access to the indoor coil
UNIQUE FEATURES
FOR FASTER
INSTALLATION AND
EASIER SERVICE
6 | FLOATING AIR
®
SERIES DUCTLESS
Friedrich has three exceptional lines of ductless with unique features for easy installation.
For contractors, this means less time on the job, and the opportunity to provide your customer with
maintenance agreements on equipment that is cleaning and service friendly.
THE CONTRACTOR'S CHOICE FOR DUCTLESS
SINGLE ZONE
SINGLE ZONE
AND MULTI ZONE
SINGLE ZONE
FLOATING AIR
®
PRO
FLOATING AIR
®
SELECT
Wall-mounted
FLOATING AIR
®
PREMIER
• Highest efficiencies
• FastPro
®
design for fast
installation, cleaning and service
• Built-in Wi-Fi
• FreshAire
®
IAQ ready
• Extended operating ranges,
heating and cooling
• Excellent efficiencies
• FastPro
®
design for fast
installation, cleaning
and service
• Built-in Wi-Fi
• FreshAire
®
IAQ ready
• Extended operating
ranges, heating and
cooling
• 115V wall-mounted
heat pumps
• 18.0 SEER
• Moderate pricing
• Exceptional value
• FreshAire
®
IAQ ready
• 115V wall-mounted
heat pumps
Wall-mounted
Ceiling Cassettes
The Insider
®
Concealed Ducted
Units
Wall-mounted
Home or away, you’re in control with the FriedrichGo
™
app.
Integrated Wi-Fi control from your smartphone. Also compatible with Amazon Alexa
and Google Home. Power your unit on and off, change temperature, system mode,
and adjust fan speeds no matter where you are.
Ok Google
works with
7
FP HS W 09 A 1 A - A
Model Type:
FR- Floating Air Premier
FP- Floating Air Pro
FS- Floating Air Select
Function:
HS – Heat Pump Single
HM – Heat Pump Multi
HF – Heat Pump Flex Single and
Multizone
Application:
W- Wallmounted
D- Ducted (Insider)
C- Cassette
R- Remote Condenser
Approximate
Cooling
BTU/HR
Model
Introductory
Character:
A- 2019
B- 2020
C- 2021
D- 2022
Voltage
1- 115 Volts
3- 230 Volts
Marketing Suffix:
A- Standard unit
B- Built-in Wi-Fi
MODEL
IDENTIFICATION
GUIDE
Feature not available on FPHSW36A3C. (9K/12K/18K -4°F) (18K/24K -13°F) 42K operates as low as 4°F
SYSTEM TYPE WALL-MOUNTED CASSETTE CONCEALED DUCTED
Zones SINGLE ZONE MULTI ZONE SINGLE ZONE MULTI ZONE SINGLE ZONE MULTI ZONE
Floating Air
®
Series Premier Pro Select Pro Pro Pro
Pro
The Insider™
Pro
The Insider™
Installation
Wall Wall Wall Wall Ceiling Ceiling Concealed Concealed
FastPro
®
Design
—
— — — —
Heat pump
115 volt models
—
— — — — —
SEER
Up to 28.0 Up to 23.3 Up to 18.0 Up to 22.0 Up to 19.0 Up to 22.0 Up to 17.6 Up to 21.0
Low ambient cooling operation
0° F 5° F 0° F 5° F 5° F 14° F 5° F -4° F
Low ambient heating operation
-13° F -4° F -4° F -13° F -4° F -13° F -4° F -13° F
Inverter driven compressor
Built-in Wi-Fi models, FriedrichGo™ app
—
— —
Google Home/Amazon Alexa compatible
—
— —
FreshAire
®
IAQ ready
— — — —
Auto changeover
—
—
—
24- Hr. Programmable timer
Remote control
— —
Wall controller option
Included Included
7-Day Programmability
— — — — — —
(with wall control)
*
Auto restart
Surge cool/heat
Dry mode
Auto Clean
Advanced Corrosion Protection
4-way auto swing
— —
Washable, antimicrobial air lters
A feature-by-feature comparision to help you select the best ductless system for your application.
FEATURE COMPARISON
8 | FLOATING AIR
®
SERIES DUCTLESS

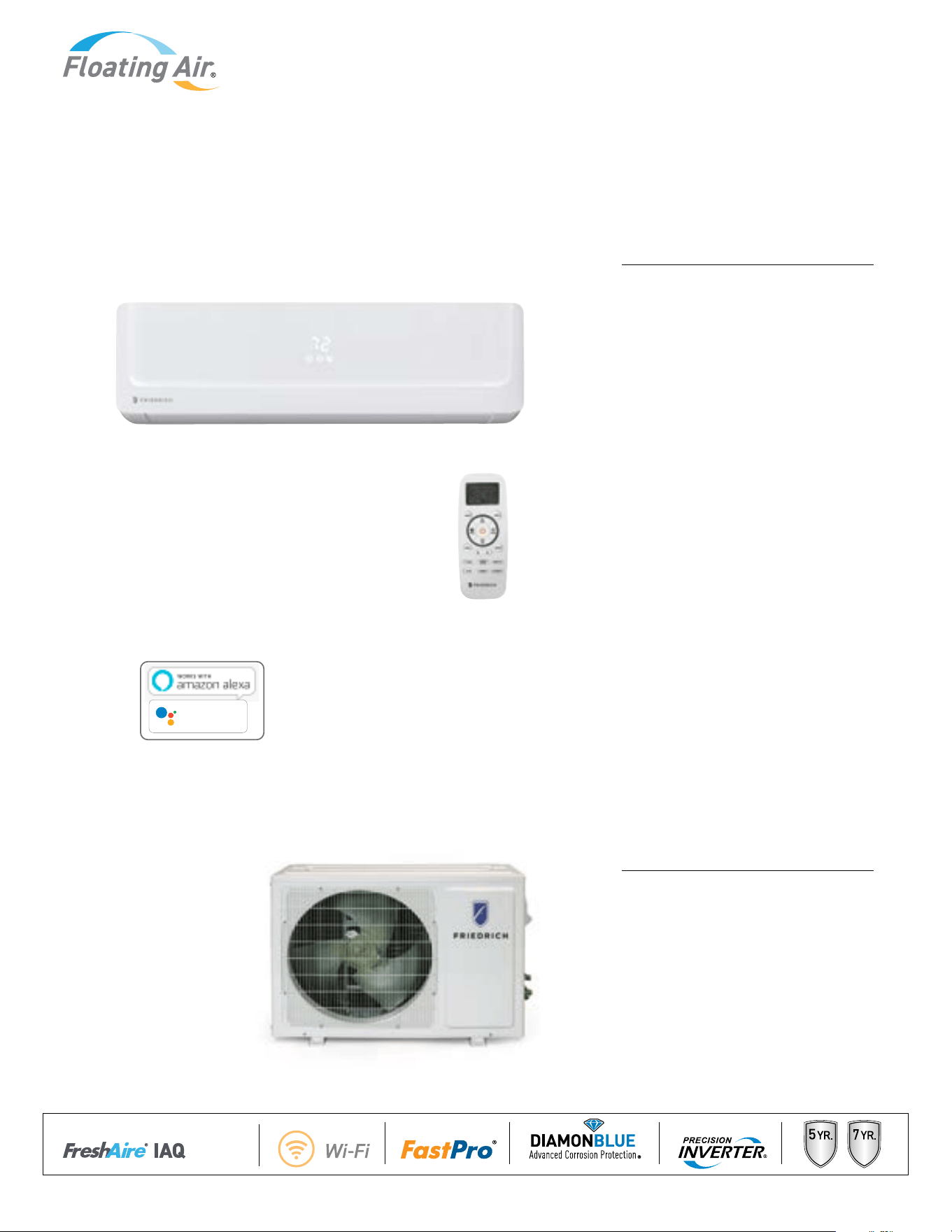

PREMIER SERIES | DUCTLESS SPLIT SYSTEMS
SINGLE ZONE • WALL-MOUNTED HEAT PUMPS
Top cooling and heating performance in extreme climates.
28.0 SEER - our highest efficiencies ever!
Features for comfort and
convenience
• Precision Inverter
®
technology
(variable speed compressor)
• Fast Pro
®
design for the fastest
access for maintenance of any
wall-mounted ductless system
• Soft start compressor
• BLDC motor
• Our highest efficiencies for the
lowest operating cost
• DiamonBlue Advanced Corrosion
Protection
®
• Auto Clean indoor coil
• Cooling/Heating/Fan/Auto mode
• Surge Cool/Heat
• Natural air flow
• Ultra quiet operation
• Sleep mode
• Auto restart
• Auto changeover
• 24-hour on/off timer
• ENERGY STAR
®
qualified model
• Hidden display (only visible during
operation)
Operates in extreme conditions
• Low ambient operation down to
0°F (Cooling mode)
• Low ambient operation down to
-13°F (Heating mode)
• Low temperature compressor
start-up protection
WIRELESS REMOTE
WITH THE ABILITY
TO CHANGE TO A
COOL-ONLY REMOTE
Built-in Wi-Fi for control anytime,
anywhere
• Easy to use FriedrichGo™ app
• Create customizable, 7-day schedules
• Control with smartphone
• Compatible with Amazon Alexa
and Google Home
Ok Google
works with
READY
PRECISION
PARTS
WARRANTY
COMPRESSOR
WARRANTY
9
PERFORMANCE RATINGS Single Zone Wall-Mounted - Heat Pumps
9k 12k
SYSTEM MODEL NO.
FRHW093A Wi-Fi FRHW123A Wi-Fi
INDOOR MODELS
FRHSW09A3B Wi-Fi FRHSW12A3B Wi-Fi
OUTDOOR MODEL FRHSR09A3A FRHSR12A3A
SPECIFICATIONS
CAPACITY COOLING (RATED) Btu 9000 12000
CAPACITY COOLING (MIN~MAX) Btu 3600-10000 4000-13500
CAPACITY HEATING
@
47
0
F (RATED) Btu 10500 13000
CAPACITY HEATING
@
17
0
F (RATED) Btu 6500 8000
CAPACITY HEATING (MIN~MAX) Btu 3600-10500 4000-14000
SENSIBLE HEAT RATIO 76% 77%
HSPF 12.5 12.0
SEER 28.0 25.0
EER 16.1 15.4
ENERGY STAR YES YES
MOISTURE REMOVAL Pts/h 1.9 2.5
AIRFLOW (QUIET, LOW, MED, HIGH) CFM 416/384/355/279 598/536/446/345
SOUND RATING - INDOOR dB-A 39/34/31 45/41/39
SOUND RATING - OUTDOOR dB-A 55 55
OPERATING RANGE (COOLING) °F 0˚-115˚ 0˚-115˚
OPERATING RANGE (HEATING) °F -13˚-75˚ -13˚-75˚
EST. YEARLY OPERATING COST $ 50 70
ELECTRICAL DATA
POWER SOURCE V-Hz-Phase 230/208-60-1 230/208-60-1
MINIMUM AMPACITY A 10A 12A
COOLING WATTS W 559 779
COOLING AMPS 2.3 4.6
HEATING WATTS W 905 856
HEATING AMPS 3.4 4.8
MAX. TD FUSE/ BREAKER A 15A 15A
POWER AND COMMUNICATION CABLE
No. x AWG
4 x 14AWG 4 x 14AWG
REFRIGERATION SYSTEM
REFRIGERANT R410a R410a
COMPRESSOR TYPE Rotary Rotary
CONNECTIONS Flare Flare
LIQUID LINE O.D. in
1
/4
1
/4
SUCTION LINE O.D. in
3
/8
3
/8
FACTORY PRECHARGE ft 25 25
REFRIGERANT CHARGE oz 38.8 45.9
MIN./MAX. LINE LENGTH ft 10-66 10-66
MAX. HEIGHT DIFFERENCE ft 33 33
DIMENSIONS & WEIGHT
INDOOR UNIT
W X H X D in 33
7
/8 x 11
1
/8 x 8
1
/2 38
1
/8 X 13
1
/8 X 10
NET WEIGHT lbs 22 28.5
SHIPPING WEIGHT lbs 26.5 34
OUTDOOR UNIT
W X H X D in 31
7
/8 x 23 x 11 31
7
/8 x 23 x 11
NET WEIGHT lbs 75 84
SHIPPING WEIGHT lbs 81.5 92.5
TOTAL NET WEIGHT lbs 97 112.5
TOTAL SHIPPING WEIGHT lbs 108 126.5
Your operating costs will depend on your utility rates and use.
The estimated operating cost is based on a electricity cost of $.12 per kWh.
For more information, visit www.ftc.gov/energy.
Due to continuing research in new energy-saving technology, specications are
subject to change without notice.
PREMIER SERIES SPECIFICATIONS
PREMIER SERIES | DUCTLESS SPLIT SYSTEMS

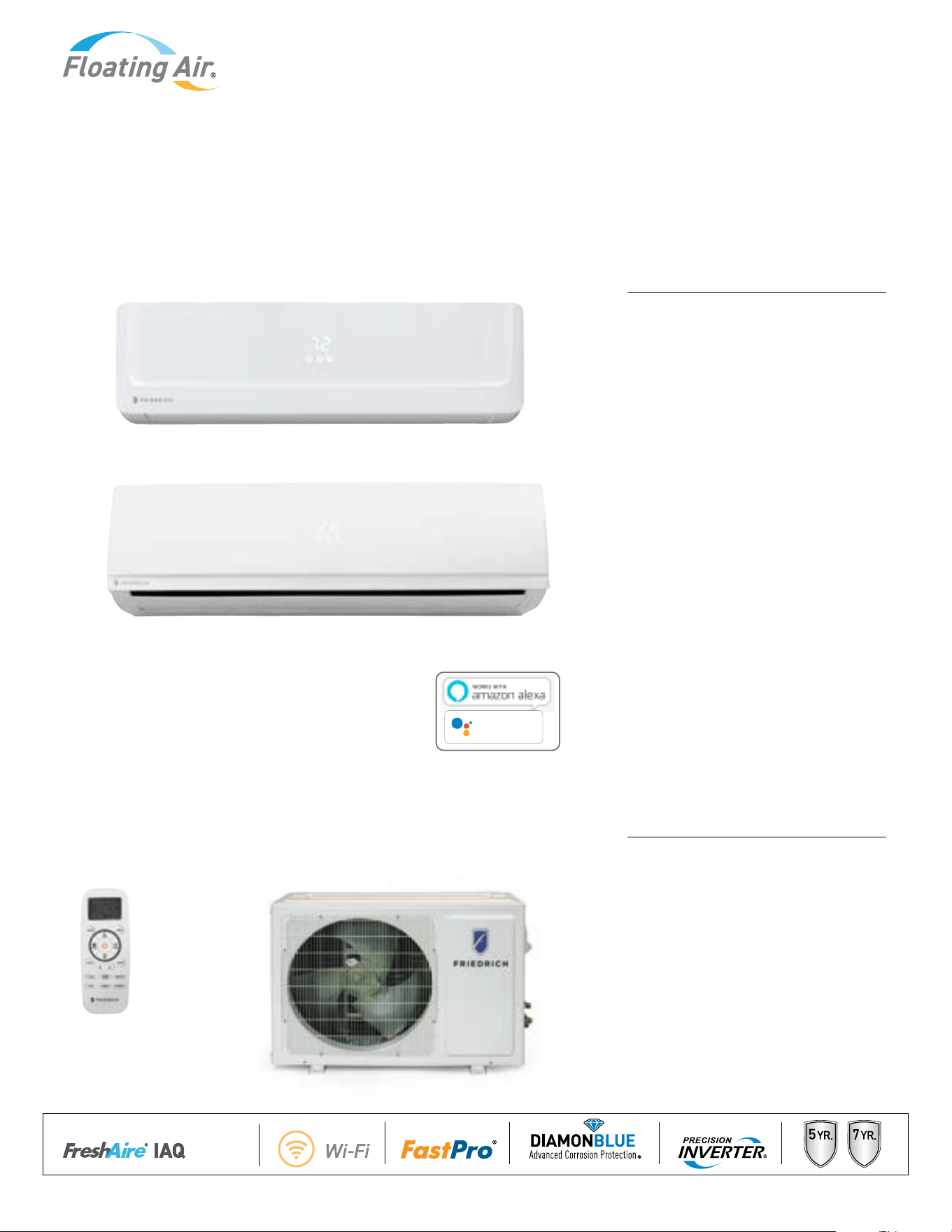

10 | FLOATING AIR
®
SERIES DUCTLESS
SINGLE ZONE • WALL-MOUNTED HEAT PUMPS
The contractor’s line with extensive features to make installation
and service faster and easier. Exceptional efficiency and dependable
performance.
PRO SERIES | DUCTLESS SPLIT SYSTEMS
Features for comfort and
convenience
• Precision Inverter
®
technology
(variable speed compressor)
• Fast Pro
®
design for the fastest
access for maintenance of any
wall-mounted ductless system
• Soft start compressor
• BLDC motor
• Auto Clean indoor coil
• Cooling/Heating/Fan/Auto mode
• LCD remote
• Surge Cool/Heat
• Tangential fan for optimum air flow
• Ultra quiet operation
• Sleep mode
• Auto restart
• Auto changeover
• 24-hour on/off timer
• ENERGY STAR
®
qualified models
• Easy-to-read temperature display
Operates in extreme conditions
• Low ambient operation down to 5°F
(Cooling mode)
• Low ambient operation down to
-4°F (Heating mode)
• Low temperature compressor
start-up protection
WIRELESS REMOTE
WITH THE ABILITY
TO CHANGE TO A
COOL-ONLY REMOTE
Built-in Wi-Fi for control anytime,
anywhere
• Easy to use FriedrichGo™ app
• Create customizable, 7-day schedules
• Control with smartphone
• Compatible with Amazon Alexa
and Google Home
Ok Google
works with
READY
PRECISION
PARTS
WARRANTY
COMPRESSOR
WARRANTY
11
PRO SERIES SPECIFICATIONS
Your operating costs will depend on your utility rates and use. The estimated operating cost is based on a electricity cost of $ .12 per kWh. For more infor-
mation, visit www.ftc.gov/energy.
Due to continuing research in new energy-saving technology,
specications are subject to change without notice.
PERFORMANCE RATINGS 115 volt models 230/208 volt models
SYSTEM MODEL NO.
FPHW091A
Wi-Fi
FPHW121A
Wi-Fi
FPHW093A
Wi-Fi
FPHW123A
Wi-Fi
INDOOR MODEL
FPHSW09A1B
Wi-Fi
FPHSW12A1B
Wi-Fi
FPHFW09A3B
Wi-Fi
FPHFW12A3B
Wi-Fi
OUTDOOR MODEL
FPHSR09A1A FPHSR12A1A FPHSR09A3A FPHSR12A3A
SPECIFICATIONS
CAPACITY COOLING (RATED) Btu
9000 12000 9000 12000
CAPACITY COOLING MIN - MAX Btu
3600-10000 4000-13500 3600-10000 4000-13500
CAPACITY HEATING (RATED) @ 47°F Btu
9500 13000 9500 13000
CAPACITY HEATING (RATED) @ 17°F Btu
5000 7500
5000
7500
CAPACITY HEATING MIN - MAX Btu
3600-10500 4000-14000 3600-10500 4000-14000
SENSIBLE HEAT RATIO
76% 77% 76% 77%
COP
3.56 3.46
3.88
3.42
HSPF
10.0 10.5 10.7 10.5
SEER
19.5 22.0 22.5 22.0
EER
12.8 13.0 13.7 13.0
ENERGY STAR
YES YES YES
YES
MOISTURE REMOVAL Pts/h
1.9 2.5 1.9 2.5
AIRFLOW (HIGH/MED/LOW/QUIET) CFM
424/382/323/247 424/382/323/247 424/382/323/247 424/382/323/247
SOUND RATING - INDOOR (HIGH/MED/LOW/QUIET) dB-A
39/32/29/26 39/32/29/26 39/32/29/26 39/32/29/26
SOUND RATING - OUTDOOR dB-A
53 53 53 53
OPERATING RANGE (HEATING) °F
(-4° – 75°) (-4° – 75°) (-4° – 75°) (-4° – 75°)
OPERATING RANGE (COOLING) °F
(5° – 115°) (5° – 115°) (5° – 115°) (5° – 115°)
EST. YEARLY OPERATING COST U.S. $
$61 $72 $53 $83
ELECTRICAL DATA
POWER SOURCE V-Hz-Phase
115-60-1 115-60-1
230/208-60-1 230/208-60-1
MIN. AMPACITY A
13.5 16.5 10 10
COOLING WATTS W
700 950 655 960
COOLING AMPS
6.3 8.3 2.9 4.3
HEATING WATTS W
780 1100 720 1110
HEATING AMPS
7.0 9.7 3.1 5.0
MAX. TD FUSE/ BREAKER A
20 25 15 15
POWER AND COMMUNICATION CABLE No. x AWG
4 x 14AWG 4 x 14AWG 4 x 14AWG 4 x 14AWG
REFRIGERATION SYSTEM
REFRIGERANT
R410a R410a R410a R410a
COMPRESSOR TYPE
Rotary Rotary Rotary Rotary
CONNECTIONS
Flare Flare Flare Flare
LIQUID LINE O.D. in
1
/4
1
/4
1
/4
1
/4
SUCTION LINE O.D. in
3
/
8
3
/
8
3
/
8
3
/
8
REFRIGERANT CHARGE oz.
33.5 40.9 33.5 40.9
FACTORY PRECHARGE ft.
25 25 25 25
MIN. / MAX. LINE LENGTH ft
9.8-50 9.8-50 9.8-50 9.8-50
MAX. HEIGHT DIFFERENCE ft
33 33 33 33
DIMENSIONS & WEIGHT
INDOOR UNIT
W x H x D in
33
7
/8 x 11
1
/8 x 8
1
/2 33
7
/8 x 11
1
/8 x 8
1
/2
NET WEIGHT lbs
20 20 20 20
SHIPPING WEIGHT lbs
24.25 24.25 24.25 24.25
OUTDOOR UNIT
W x H x D in
28
1
/8 x 19 x 9
1
/2 31
7
/8 x 23 x 11 28
1
/8 x 19 x 9
1
/2 31
7
/8 x 23 x 11
NET WEIGHT lbs
65 78 59.5 72.5
SHIPPING WEIGHT lbs
68 82.5 65 79
TOTAL NET WEIGHT lbs
85 98 79.5 92.5
TOTAL SHIPPING WEIGHT lbs
92.25 106.75 89.25 103.25
12 | FLOATING AIR
®
SERIES DUCTLESS
PRO SERIES | DUCTLESS SPLIT SYSTEMS
SINGLE ZONE • WALL-MOUNTED HEAT PUMPS
The contractor’s line with extensive features to make installation
and service faster and easier. Exceptional efficiency and dependable
performance.
Features for comfort and
convenience
• Precision Inverter
®
technology
(variable speed compressor)
• Fast Pro
®
design for the fastest
access for maintenance of any
wall-mounted ductless. Feature not
on model
FPHSW36A3C
• Soft start compressor
• BLDC motor
• Auto Clean indoor coil
• Cooling/Heating/Fan/Auto mode
• LCD remote
• Surge Cool/Heat
• Tangential fan for optimum air flow
• Ultra quiet operation
• Sleep mode
• Auto restart
• Auto changeover
• 24-hour on/off timer
• ENERGY STAR
®
qualified model
• Easy-to-read temperature display
Operates in extreme conditions
• Low ambient operation down to 5°F
(Cooling mode)
• Low ambient operation down to
-4°F (Heating mode)
• Low temperature compressor
start-up protection
FPHFW18A3A, FPHFW24A3A, FPHFW18A3B, FPHFW24A3B
FPHSW36A3C (Not available with FastPro design feature)
WIRELESS REMOTE
WITH THE ABILITY
TO CHANGE TO A
COOL-ONLY REMOTE
Built-in Wi-Fi for control anytime,
anywhere
• Easy to use FriedrichGo™ app
• Create customizable, 7-day schedules
• Control with smartphone
• Compatible with Amazon Alexa
and Google Home
Ok Google
works with
READY
PRECISION
PARTS
WARRANTY
COMPRESSOR
WARRANTY
13
PRO SERIES SPECIFICATIONS
Your operating costs will depend on your utility rates and use. The estimated operating cost is based on a electricity cost of $ .12 per kWh.
For more information, visit www.ftc.gov/energy.
Due to continuing research in new energy-saving technology,
specications are subject to change without notice.
PERFORMANCE RATINGS 230/208 volt models
SYSTEM MODEL NO.
FPHW183A
Wi-Fi
FPHW243A
Wi-Fi
FPHW363B
Wi-Fi
INDOOR MODEL
FPHFW18A3B
Wi-Fi
FPHFW24A3B
Wi-Fi
FPHSW36A3C
Wi-Fi
OUTDOOR MODEL
FPHSR18A3A FPHSR24A3A FPHSR36A3B
SPECIFICATIONS
CAPACITY COOLING (RATED) Btu
18000 23500 35000
CAPACITY COOLING MIN - MAX Btu
6500-19500 8000-26500 12000-38000
CAPACITY HEATING (RATED) @ 47°F Btu
19000 26000 35000
CAPACITY HEATING (RATED) @ 17°F Btu
11600 14500 15000
CAPACITY HEATING MIN - MAX Btu
6500-20000 8000-26500 12000-38000
SENSIBLE HEAT RATIO
80% 76% 79%
COP
3.40 3.05
3.05
HSPF
11.6 10.5 8.8
SEER
23.3 21.0 16.4
EER
13.0 12.5 8.6
ENERGY STAR YES YES
—
MOISTURE REMOVAL Pts/h
3.2 5.1 6.8
AIRFLOW (HIGH/MED/LOW/QUIET) CFM
618/565/482/382 735/665/559/441 1030/824/706/588
SOUND RATING - INDOOR (HIGH/MED/LOW/QUIET) dB-A
45/41/37/34 47/42/36/33 50/45/40/38
SOUND RATING - OUTDOOR dB-A
55 58 60
OPERATING RANGE (HEATING) °F
-4° – 75° -4° – 75° -4° – 75°
OPERATING RANGE (COOLING) °F
5° – 115° 5° – 115° 5° – 115°
EST. YEARLY OPERATING COST U.S. $
$124 $169 $290
ELECTRICAL DATA
POWER SOURCE V-Hz-Phase 230/208-60-1 230/208-60-1 230/208-60-1
MIN. AMPACITY A
15 20 30
COOLING WATTS W
1385 1880 4186
COOLING AMPS
6.3 8.3 18.5
HEATING WATTS W
1638 2500 3459
HEATING AMPS
7.2 11.1 16
MAX. TD FUSE/ BREAKER A
20 30 35
POWER AND COMMUNICATION CABLE No.x AWG
4 x 14AWG 4 x 14AWG 4 x 14AWG
REFRIGERATION SYSTEM
REFRIGERANT
R410a R410a R410a
COMPRESSOR TYPE
Rotary Rotary Rotary
CONNECTIONS
Flare Flare Flare
LIQUID LINE O.D. in
1
/
4
3
/
8
3
/
8
SUCTION LINE O.D. in
1
/
2
5
/
8
5
/
8
REFRIGERANT CHARGE oz.
54.7 66.3 81.2
FACTORY PRECHARGE ft.
25 25 25
MIN. / MAX. LINE LENGTH ft
10-66 10-66 10-66
MAX. HEIGHT DIFFERENCE ft
33 33 33
DIMENSIONS & WEIGHT
INDOOR UNIT
W x H x D in
45
1
/8 x 13
1
/8 x 10 50
5
/8 X 13
5
/8 X 10
1
/4
NET WEIGHT lbs
33 33 40
SHIPPING WEIGHT lbs
38.5 38.5 48
OUTDOOR UNIT
W x H x D in
33
7
/8 x 25
1
/2 x 12
1
/8 34
7
/8 x 31
1
/4 x 14
3
/8 34
7
/8 x 31
1
/4 x 14
3
/8
NET WEIGHT lbs
99 123.5 141
SHIPPING WEIGHT lbs
108 141 152
TOTAL NET WEIGHT lbs
132 156.5 181
TOTAL SHIPPING WEIGHT lbs
146.5 179.5 200
14 | FLOATING AIR
®
SERIES DUCTLESS
PRO SERIES | DUCTLESS SPLIT SYSTEMS
SINGLE ZONE • CEILING CASSETTE HEAT PUMPS
Compact cassette units install in a drop ceiling and mount flush
to the ceiling for a clean look and efficient installation.
• 24-hour on/off timer
• Precision Inverter
®
technology
(variable speed compressor)
• Soft start compressor
• Natural air flow
• 4-way cooling
• Surge Cool/Heat
• Cooling/Heating/Fan mode
• Dry mode
• Sleep mode
• Independent vane control
• 3 fan speeds
• Ultra-quiet turbo fan
• Evaporator frost control
• Auto restart
• Auto changeover
• DiamonGold Advanced
Corrosion Protection
™
• Clean, modern look
• Flexible installation
• ENERGY STAR
®
qualified models
• Precise air distribution
Operates in extreme
conditions
• Built-in low ambient, down to
5°F on 9k/12k/18k models, down
to -4°F on 24k/36k models
(Cooling mode)
• Low ambient operation down to
-4°F (Heating mode)
NOTE: Cassette grilles
are sold separately.
Features for comfort and convenience
WIRELESS REMOTE
WITH THE ABILITY
TO CHANGE TO A
COOL-ONLY REMOTE
Built-in Wi-Fi for control anytime,
anywhere
• Easy to use FriedrichGo™ app
• Create customizable, 7-day schedules
• Control with smartphone
• Compatible with Amazon Alexa
and Google Home
Ok Google
works with
PARTS
WARRANTY
COMPRESSOR
WARRANTY
PRECISION
15
PRO SERIES SPECIFICATIONS
Your operating costs will depend on your utility rates and use. The estimated operating cost is based on a electricity cost of $ .12 per kWh. For more information, visit
www.ftc.gov/energy. *System meets ENERGY STAR® published minimums. **Models require grille. Sold separately.
Due to continuing research in new energy-saving technology, specications
are subject to change without notice.
PERFORMANCE RATINGS
Single Zone Cassette - Heat Pumps
SYSTEM MODEL NO.
FPHC093A
Wi-Fi
FPHC123A
Wi-Fi
FPHC183A
Wi-Fi
FPHC243A
Wi-Fi
FPHC363A
Wi-Fi
INDOOR MODEL
FPHFC09A3B
Wi-Fi
FPHFC12A3B
Wi-Fi
FPHFC18A3B
Wi-Fi
FPHFC24A3B
Wi-Fi
FPHSC36A3B
Wi-Fi
OUTDOOR MODEL FPHFR09A3A FPHFR12A3A FPHFR18A3A FPHFR24A3A FPHFR36A3A
SPECIFICATIONS
CAPACITY COOLING (RATED) Btu 9000 12000 18000 24000 36000
CAPACITY COOLING (MIN~MAX) Btu 4850-11600 5800-13100 4200-21000 8600-25200 15000-42600
CAPACITY HEATING @47
0
F (RATED) Btu 10000 12000 19000 24000 36000
CAPACITY HEATING @17
0
F (RATED) Btu 6000 7000 11000 19600 27200
CAPACITY HEATING (MIN~MAX) Btu 4340-12280 4400-14400 5600-24000 7600-28400 15000-42600
SENSIBLE HEAT RATIO 76% 77% 76% 76% 79%
COP (@47°F) . 4.13 3.80 3.91 3.61 3.31
HSPF 10.00 11.50 11.00 11.50 10.50
SEER 22.0 23.0 22.0 19.0 19.5
EER 12.85 12.5 12.5 12.5 10.6
ENERGY STAR * YES YES YES YES —
MOISTURE REMOVAL Pts/h 2.0 3.0 1.9 5.1 7.61
AIRFLOW (LOW, MED, HIGH ) CFM 309/274/232 324/294/235 588/500/394 647/530/400 941/794/676
SOUND RATING - INDOOR H/M/L dB(A) 39/32/29 42/37/33 39/32/29 44/40/38 49/43/39
SOUND RATING - OUTDOOR dB(A) 52 54 68 54 61
OPERATING RANGE (COOLING) °FDB 5-118 5-118 5-118 5-118 5-118
OPERATING RANGE (HEATING) °FWB -4-75 -4-75 -4-75 -4-75 -4-75
EST. YEARLY OPERATING COST $ 59 83 119 167 244
ELECTRICAL DATA
POWER SOURCE V 230/208-60-1 230/208-60-1 230/208-60-1 230/208-60-1 230/208-60-1
MINIMUM AMPACITY A 23 23 23 23 27
COOLING WATTS W 700 960 1420 1920 3380
COOLING AMPS 3.6 4.3 6.5 8.6 14.6
HEATING AMPS 3.5 4.1 6.3 8.6 14.0
MAX. TD FUSE/BREAKER A 15 20 20 35 45
POWER AND COMMUNICATION CABLE No. x AWG 4 x 14AWG 4 x 14AWG 4 x 14AWG 4 x 14AWG 4 x 14AWG
REFRIGERATION SYSTEM
REFRIGERANT R410a R410a R410a R410a R410a
COMPRESSOR TYPE Rotary Rotary Rotary Rotary Rotary
CONNECTIONS Flare Flare Flare Flare Flare
LIQUID LINE O.D. in 1/4 1/4 1/4 3/8 3/8
SUCTION LINE O.D. in 3/8 3/8 1/2 5/8 3/4
FACTORY PRECHARGE ft 25 25 25 25 25
REFRIGERANT CHARGE oz 33.5 45.9 56.5 75 111
MIN./MAX. LINE LENGTH ft 10-82 10-82 10-98 10-164 10-164
MAX. HEIGHT DIFFERENCE ft 33 49 49 98 98
DIMENSIONS & WEIGHT
INDOOR UNIT
W X H X D in
22 1/2 x 8 1/2 x 22 1/2 22 1/2 x 8 1/2 x 22 1/2 33 1/8 x 9 3/4 x 33 1/8 33 1/8 x 9 3/4 x 33 1/8 33 1/8 x 11 3/4 x 33 1/8
NET WEIGHT lbs
32 39.7 56 59.5 70.5
SHIPPING WEIGHT lbs
38.5 46.3 76 79.5 90.4
INDOOR UNIT GRILLE** W X H X D in
24-1/2 x 24-1/2 x 10 24-1/2 x 24-1/2 x 10 35-7/8 x 35-7/8 x 13 1/2 35-7/8 x 35-7/8 x 13 1/2 35-7/8 x 35-7/8 x 13 1/2
INDOOR UNIT GRILLE** NET WEIGHT lbs
13.2 13.2 22.0 22.0 22.0
INDOOR GRILLE PART NUMBER
FPCG0912 FPCG182436
OUTDOOR UNIT
W X H X D in
37 x 25 x 16 1/2 37 x 25 x 16 1/2 39 x 17 3/4 x 28 3/4 43 x 36 1/4 x 18 1/8 43 x 36 1/4 x 18 1/8
NET WEIGHT lbs
75 75 108 155 192
SHIPPING WEIGHT lbs
85 82 117 166 215
TOTAL NET WEIGHT lbs
107 108 164 214.5 262.5
TOTAL SHIPPING WEIGHT lbs
123.5 121 191 245.5 305.4
16 | FLOATING AIR
®
SERIES DUCTLESS
WIRED WALL
CONTROLLER
SINGLE ZONE • THE INSIDER
®
CONCEALED DUCTED HEAT PUMPS

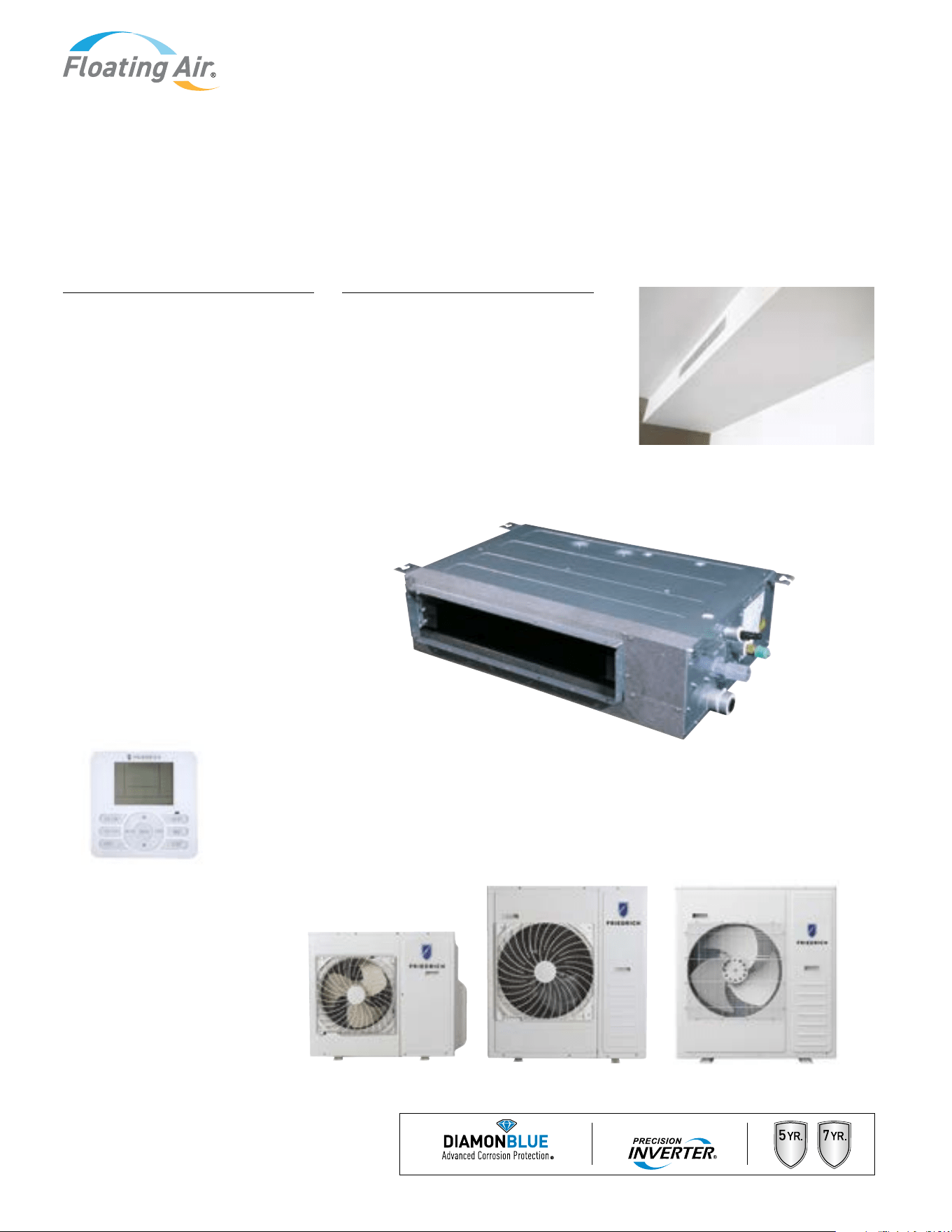

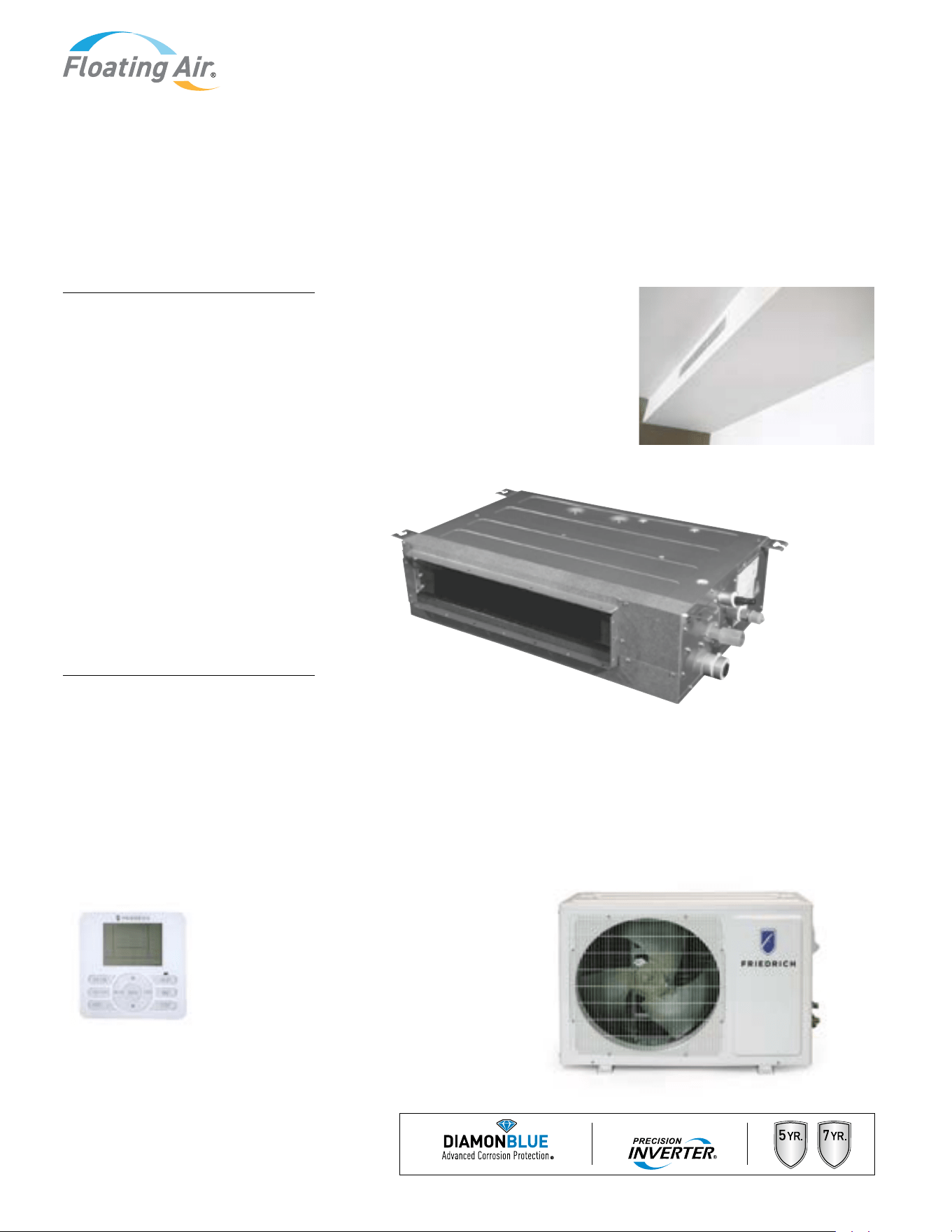

Indoor unit is installed in the ceiling or furr down, totally concealed, for
unobtrusive installation.
Features
• Precision Inverter
®
technology
(variable speed compressor)
• Soft start compressor
• BLDC motor
• Cooling/Heating/Fan mode
• Dry mode
• 3 fan speeds
• Auto restart
• Auto changeover
• DiamonGold Advanced Corrosion
Protection™
• Control lock function on controller
• External Static Pressure Range
0-.40
Operates in extreme conditions
• Built-in low ambient, down to
5°F on 9k/12k/18k models, down
to -4°F on 24k/36k models
(Cooling mode)
• Low ambient operation down to
-4°F (Heating mode)
PRO SERIES | DUCTLESS SPLIT SYSTEMS
PRECISION
PARTS
WARRANTY
COMPRESSOR
WARRANTY
17
PRO SERIES SPECIFICATIONS
PERFORMANCE RATINGS Single Zone - The Insider
®
Concealed Ducted Heat Pumps
SYSTEM MODEL NO.
FPHD093 FPHD123 FPHD183 FPHD243 FPHD363
INDOOR MODEL
FPHFD09A3A FPHFD12A3A FPHFD18A3A FPHFD24A3A FPHSD36A3A
OUTDOOR MODEL
FPHFR09A3A FPHFR12A3A FPHFR18A3A FPHFR24A3A FPHFR36A3A
SPECIFICATIONS
CAPACITY COOLING (RATED) Btu
9000 12000 18000 24000 36000
CAPACITY COOLING (MIN~MAX) Btu
4850-11600 5800-13100 4200-21000 8600-25200 12500-37300
CAPACITY HEATING
@
47
0
F (RATED) Btu
11000 12000 18000 28000 36000
CAPACITY HEATING
@
17
0
F (RATED) Btu
6000 6600 12000 19200 26000
CAPACITY HEATING (MIN~MAX) Btu
4340-12280 4400-14400 5600-24000 7600-28400 15000-39800
SENSIBLE HEAT RATIO
76% 76% 76% 76% 76%
SEER
20.0 19.5 19.5 18.0 18.0
EER
12.00 11.00 11.80 10.50 10.90
COP (@47°F) .
3.2 3.2 3.3 3.61 3.01
HSPF
10.00 10.00 10.00 11.00 9.50
ENERGY STAR
— — — — —
MOISTURE REMOVAL Pts/h
2.0 3.0 5.0 1.9 7.61
AIRFLOW (LOW, MED, HIGH ) CFM
309/259/208 324/285/235 529/441/371 706/588/500 883/735/617
SOUND RATING - INDOOR H/M/L dB(A)
35/33/32 36/34/33 38/37/36 42/38/36 43/40/38
SOUND RATING - OUTDOOR dB(A)
52 54 68 54 61
OPERATING RANGE (COOLING) °F
5-118 5-118 5-118 5-118 5-118
OPERATING RANGE (HEATING) °F
-4-75 -4-75 -4-75 -4-75 -4-75
EST. YEARLY OPERATING COST $
63 83 122 176 376
ELECTRICAL DATA
POWER SOURCE
230/208-60-1 230/208-60-1 230/208-60-1 230/208-60-1 230/208-60-1
MINIMUM AMPACITY A
23.0 23.0 23.0 23.0 21.0
COOLING WATTS W
750 1091 1670 2200 3300
COOLING AMPS
3.7 4.8 7.6 10.3 14.35
HEATING AMPS
3.2 4.8 7.3 8.7 15.2
MAX. TD FUSE/BREAKER A
15 20 20 35 45
POWER AND COMMUNICATION CABLE No. x AWG
4 x 14AWG 4 x 14AWG 4 x 14AWG 4 x 14AWG 4 x 14AWG
REFRIGERATION SYSTEM
REFRIGERANT
R410a R410a R410a R410a R410a
COMPRESSOR TYPE
Rotary Rotary Rotary Rotary Rotary
CONNECTIONS
Flare Flare Flare Flare Flare
LIQUID LINE O.D. in
1/4 1/4 1/4 3/8 3/8
SUCTION LINE O.D. in
3/8 3/8 1/2 5/8 3/4
FACTORY PRECHARGE ft
25 25 25 25 25
REFRIGERANT CHARGE oz
33.5 45.9 56.5 75.0 111
MIN./MAX. LINE LENGTH ft
10-82 10-82 10-98 10-164 10-164
MAX. HEIGHT DIFFERENCE ft
33 49 49 98 98
DIMENSIONS & WEIGHT
INDOOR UNIT
W X H X D in
35 7/8 x 7 1/2 x 17 5/8 35 7/8 x 7 1/2 x 17 5/8 46 1/2 x 7 1/2 x 17 5/8 35 3/8 x 10 5/8 x 28 3/8 51 1/8 x 13 3/4 x 31 1/2
NET WEIGHT lbs
39.7 39.7 49.6 66.1 112.4
SHIPPING WEIGHT lbs
46.3 46.3 57.3 77.2 132.3
OUTDOOR UNIT
W X H X D in
37 x 25 x 16 1/2 37 x 25 x 16 1/2 39 x 17 3/4 x 28 3/4 43 x 36 1/4 x 18 1/8 43 x 36 1/4 x 18 1/8
NET WEIGHT lbs
75 75 108 155 192
SHIPPING WEIGHT lbs
85 82 117 166 215
TOTAL NET WEIGHT lbs
107 108 108 214.5 262.5
TOTAL SHIPPING WEIGHT lbs
123.5 121 158 245.5 305.4
Your operating costs will depend on your utility rates and use. The estimated operating cost is based on a electricity cost of $ .12 per kWh.
For more information, visit www.ftc.gov/energy.
Due to continuing research in new energy-saving technology, specications are subject to change without notice.
18 | FLOATING AIR
®
SERIES DUCTLESS
Friedrich multi zone systems utilize wall-mounted, ceiling cassette
and concealed ducted models in up to 5 zones
MULTI ZONE SYSTEMS PROVIDE TOTAL INSTALLATION FLEXIBILITY.
Zone cooling and heating
provides unmatched
customized comfort and
energy savings
Occupants have the ability to
set the temperature of each
zone to their preferred
comfort level*, or turn off
units in unoccupied rooms
without affecting other zones.
That’s the beauty and
efficiency of a Friedrich
Ductless Multi Zone System.
*Multi zone units cannot heat and cool
simultaneously
MULTI ZONE CONFIGURATION, AHRI RATINGS
Friedrich
Model
AHRI
Reference
Number Indoor Type
System
Capacity EER SEER
High Heat
47 °F HSPF
Low Heat
17°F
FPHMR18A3A
205150429
Non-ducted Indoor Units
18000 12.50 22.00 18000 11.00 12200
205150428
Ducted Indoor Units
18000 11.50 19.00 18000 9.60 12200
205150430
Mixed Ducted and Non-ducted
Indoor Units
18000 12.00 20.50 18000 10.30 12200
FPHMR24A3A
204101246
Non-ducted Indoor Units
24000 12.50 22.00 24000 11.00 15400
204005731
Ducted Indoor Units
24000 12.10 21.00 24000 10.00 15400
203999079
Mixed Ducted and Non-ducted
Indoor Units
24000 12.30 21.50 24000 10.50 15400
FPHMR36A3A
204101247
Non-ducted Indoor Units
32000 12.50 21.00 36000 11.00 23200
203996910
Ducted Indoor Units
32000 12.00 19.50 36000 10.80 22600
203999080
Mixed Ducted and Non-ducted
Indoor Units
32000 12.25 20.25 36000 10.90 22600
FPHMR42A3A
205141512
Non-ducted Indoor Units
42000 10.50 20.00 42000 10.00 24000
205141511
Ducted Indoor Units
41000 10.00 18.00 42000 9.50 24000
205141513
Mixed Ducted and Non-ducted
Indoor Units
41500 10.25 19.00 42000 9.75 24000
PRO SERIES | DUCTLESS SPLIT SYSTEMS
19
CEILING CASSETTE WALL-MOUNTED THE INSIDER
®
9,000 18,000 7,000 18,000 9,000 18,000
12,000 24,000 9,000 24,000 12,000 24,000
12,000
MULTI ZONE CONFIGURATION GUIDELINES
FPHMR24A3A
36,000 Btu MAX.
CONNECTED CAPACITY
TRI-ZONE MAX.
FPHMR36A3A
48,000 Btu MAX.
CONNECTED CAPACITY
DUAL/TRI-ZONE/FOUR ZONE.
Select a combination of indoor units that does not exceed the maximum connected capacity,
and is within the recommended parameters:
FOR (2) ZONES:
Select two (2) 18,000 Btu indoor
units
FOR (3) ZONES:
Select any combination of (3)
indoor units with no more than
(2) 18,000 Btu indoor units plus
(1) other indoor unit.
FOR (4) ZONES:
Select any combination of (4)
indoor units.
Combinations SHOULD NOT:
Exceed the maximum allowable
total indoor unit connected
capacity of 48,000 Btu.
FOR (2) ZONES:
MINIMUM combination must
be 50% of nameplate capacity
FOR (3) ZONES:
Select any combination of (3)
indoor units.
Combinations SHOULD NOT:
Exceed the maximum
allowable total indoor unit
connected capacity of
36,000 Btu.
WORKSHEET EXAMPLE
MAX.CONDENSER
CAPACITY
50% OF
NAMEPLATE
CAPACITY
ZONE 1
Unit Btu
ZONE 2
Unit Btu
ZONE 3
Unit Btu
ZONE 4
Unit Btu
ZONE 5
Unit Btu
24,000 12,000
DUAL ZONE ONLY
36,000 18,000
TRI-ZONE MAX.
48,000 24,000
4-ZONE MAX
54,000 27,000
FPHMR18A3A
24,000 Btu MAX.
CONNECTED CAPACITY
DUAL ZONE ONLY
FOR (2) ZONES:
MINIMUM combination must
be 50% of nameplate capacity
Combinations SHOULD NOT:
Exceed the maximum
allowable total indoor unit
connected capacity of
24,000 Btu.
FPHMR42A3A
54,000 Btu MAX.
CONNECTED CAPACITY
TRI-ZONE/FOUR/FIVE ZONE
WITH NO BRANCH BOXES
FOR (3) ZONES:
Select any combination of (3)
indoor units with no more than
(2) 18,000 Btu indoor units plus
(1) other indoor unit.
FOR (4) ZONES:
Select any combination of (4)
indoor units.
FOR (5) ZONES:
Select any combination of (5)
indoor units.
Combinations SHOULD NOT:
Exceed the maximum allowable
total indoor unit connected
capacity of 54,000 Btu.
20 | FLOATING AIR
®
SERIES DUCTLESS
FPHMR18A3A
ZONE 1 ZONE 2 TOTAL
7 7 14
7 9 16
7 12 19
9 9 18
9 12 21
12 12 24
FPHMR243A
ZONE 1 ZONE 2 ZONE 3 TOTAL
7 7 14
7 9 16
7 12 19
7 18 25
9 9 18
9 12 21
9 18 27
9 24 33
12 12 24
12 18 30
18 18 36
7 7 7 21
7 7 9 23
7 7 12 26
7 7 18 32
7 9 9 25
7 9 12 28
7 9 18 34
7 12 12 31
7 12 18 37
9 9 9 27
9 9 12 30
9 9 18 36
9 12 12 33
12 12 12 36
FPHMW07A3B
FPHFW09A3B
FPHFW12A3B
FPHFW18A3B
FPHFW24A3B
FPHFC09A3B
FPHFC12A3B
FPHFC18A3B
FPHFC24A3B
FPHFD09A3A
FPHFD12A3A
FPHFD18A3A
FPHFD24A3A
FPHMR36A3A
ZONE 1 ZONE 2 ZONE 3 ZONE 4 TOTAL
18 18 36
7 7 7 21
7 7 9 23
7 7 12 26
7 7 18 32
7 7 24 38
7 9 9 25
7 9 12 28
7 9 18 34
7 9 24 40
7 12 12 31
7 12 18 37
7 12 24 43
7 18 24 49
9 9 9 27
9 9 12 30
9 9 18 36
9 9 24 42
9 12 12 33
9 12 18 39
9 12 24 45
9 18 24 51
12 12 12 36
12 12 18 42
12 12 24 48
12 18 24 54
18 18 7 43
18 18 9 45
18 18 12 48
7 7 7 7 28
7 7 7 9 30
7 7 7 12 33
7 7 7 18 39
7 7 7 24 45
7 7 9 9 32
7 7 12 12 35
7 7 9 18 41
7 7 9 24 47
7 7 12 12 38
7 7 12 18 44
7 7 12 24 50
7 9 9 9 34
7 9 9 12 37
7 9 9 18 43
7 9 9 24 49
7 9 12 12 40
7 9 12 18 46
7 9 12 24 52
7 12 12 12 43
7 12 12 18 49
9 9 9 9 36
9 9 9 12 39
9 9 9 18 45
9 9 9 24 51
9 9 12 12 42
9 9 12 18 48
9 9 12 24 54
9 12 12 12 45
9 12 12 18 51
12 12 12 12 48
12 12 12 18 54
INDOOR UNITS
2 ZONES
ONLY
2 OR 3
ZONES
2, 3 OR 4
ZONES
OUTDOOR UNITS
18000 BTU
24000 BTU Max. connected capacity
24000 BTU
36000 BTU Max. connected capacity
36000 BTU
48000 BTU Max. connected capacity
42000 BTU
54000 BTU Max. connected capacity

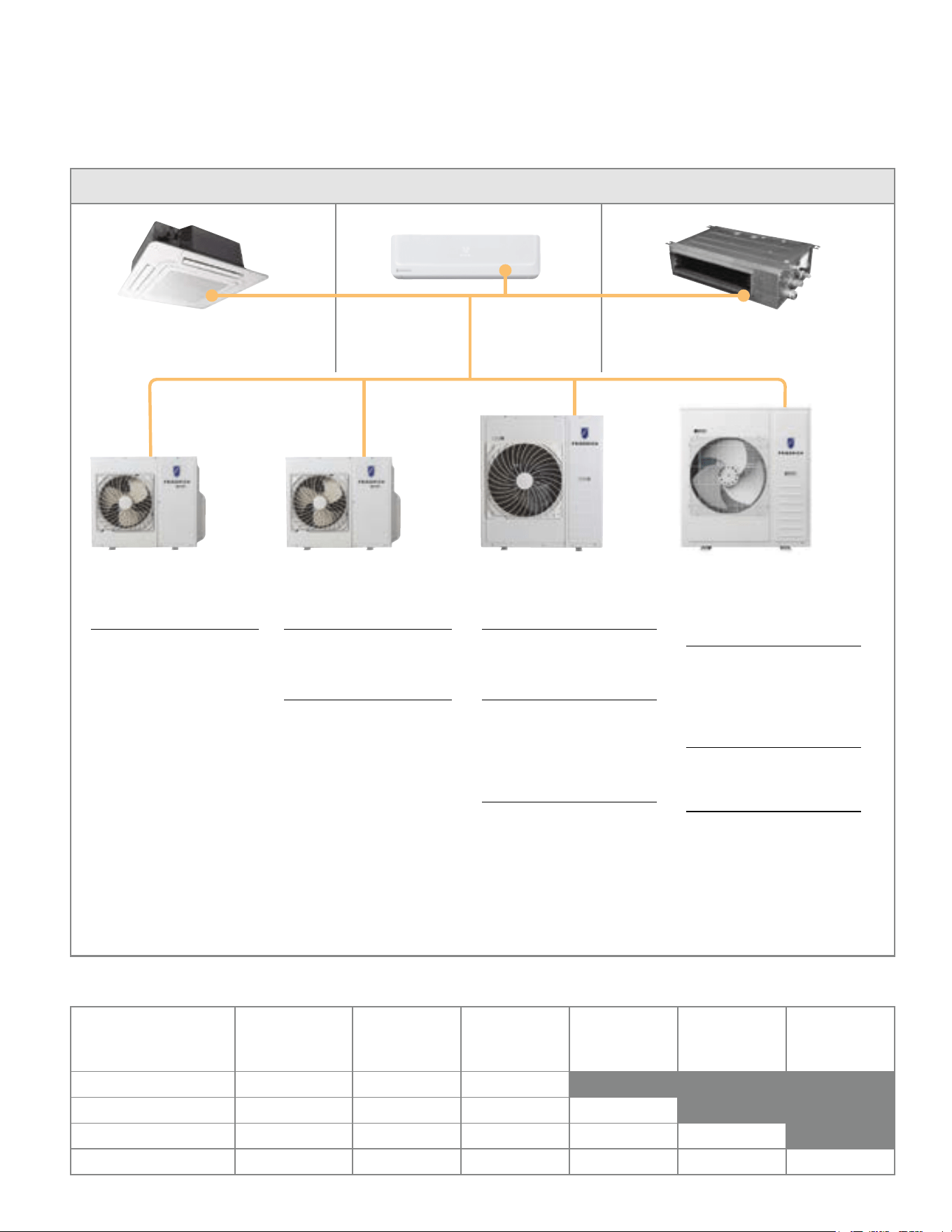

Select the outdoor unit that is applicable
to the number of indoor spaces you want
to condition. Mix-and-match exibility
lets you select the type of indoor units
best suited to the application. Select
from wall-mounted, ceiling cassette or
concealed ducted heat pumps.
Wall-mounted
Ceiling cassette
Concealed ducted
Floating Air
®
Multi Zone allowable
combinations that exceed our
100% ratio.

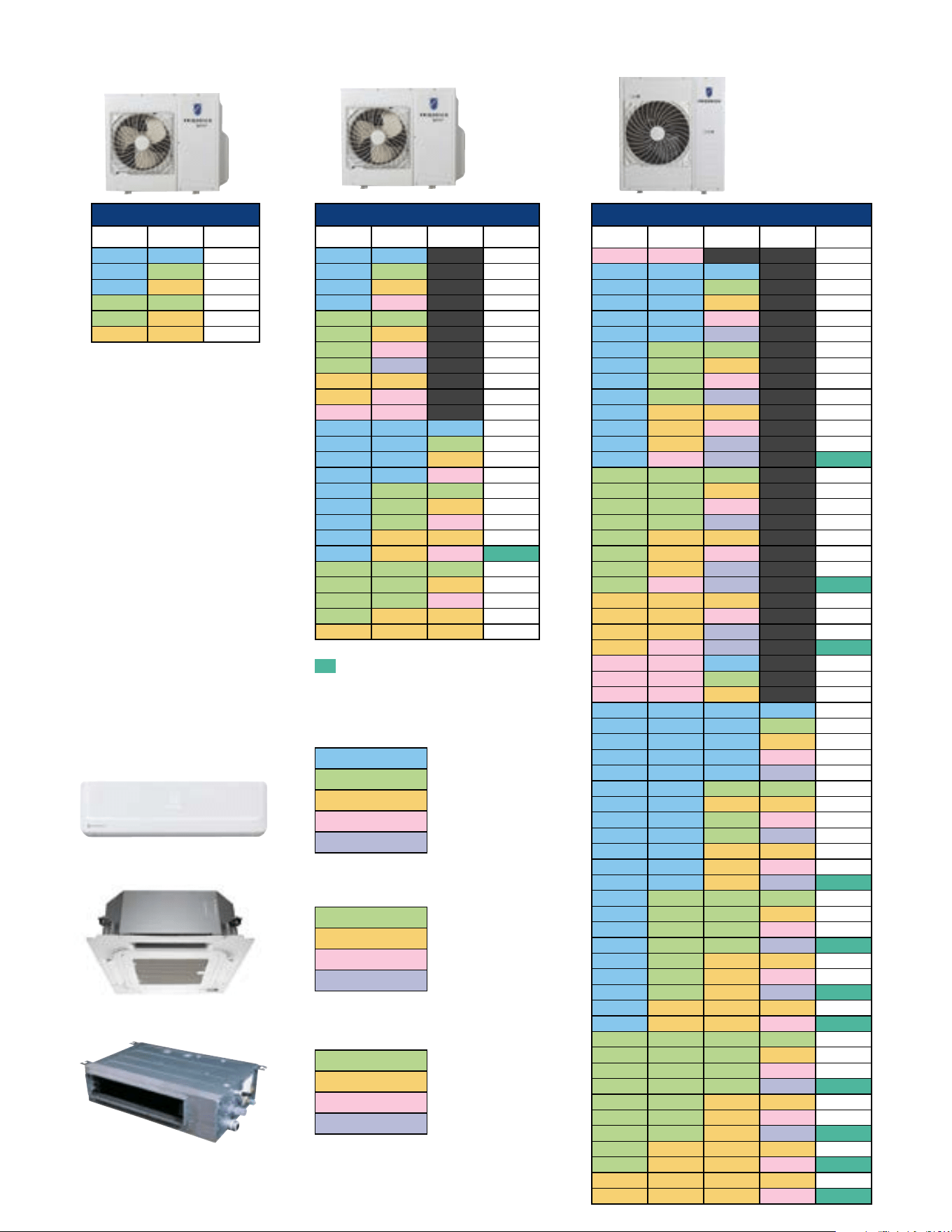

MULTI ZONE ALLOWABLE CONFIGURATIONS
21
FPHMR42A3A
ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 TOTAL
7 7 7 21
7 7 9 23
7 7 12 26
7 7 18 32
7 7 24 38
7 9 9 25
7 9 12 28
7 9 18 34
7 9 24 40
7 12 12 31
7 12 18 37
7 12 24 43
7 18 18 43
7 18 24 49
9 9 9 27
9 9 12 30
9 9 18 36
9 9 24 42
9 12 12 33
9 12 18 39
9 12 24 45
9 18 18 45
9 18 24 51
12 12 12 36
12 12 18 42
12 12 24 48
12 18 18 48
12 18 24 54
7 7 7 7 28
7 7 7 9 30
7 7 7 12 33
7 7 7 18 39
7 7 7 24 45
7 7 9 9 32
7 7 9 12 35
7 7 9 18 41
7 7 9 24 47
7 7 12 12 38
7 7 12 18 44
7 7 12 24 50
7 7 18 24 56
7 9 9 9 34
7 9 9 12 37
7 9 9 18 43
7 9 9 24 49
7 9 12 12 40
7 9 12 18 46
7 9 12 24 52
7 9 18 24 58
7 12 12 12 43
7 12 12 18 49
7 12 12 24 55
7 12 18 24 61
9 9 9 9 36
9 9 9 12 39
9 9 9 18 45
9 9 9 24 51
9 9 12 12 42
9 9 12 18 48
9 9 12 24 54
9 9 18 24 60
9 12 12 12 45
9 12 12 18 51
9 12 12 24 57
9 12 18 24 63
12 12 12 12 48
12 12 12 18 54
FPHMR42A3A
ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 TOTAL
7 7 7 7 7 35
7 7 7 7 9 37
7 7 7 7 12 40
7 7 7 7 18 46
7 7 7 7 24 52
7 7 7 9 9 39
7 7 7 9 12 42
7 7 7 9 18 48
7 7 7 9 24 54
7 7 7 12 12 45
7 7 7 12 18 51
7 7 9 9 9 41
7 7 9 9 12 44
7 7 9 9 18 50
7 7 9 12 12 47
7 7 12 12 12 50
7 9 9 9 9 43
7 9 9 9 12 46
7 9 9 9 18 52
7 9 9 12 12 49
7 9 12 12 12 52
9 9 9 9 9 45
9 9 9 9 12 48
9 9 9 9 18 54
9 9 9 12 12 51
9 9 12 12 12 54
3, 4 OR 5
ZONES
MULTI ZONE ALLOWABLE CONFIGURATIONS
22 | FLOATING AIR
®
SERIES DUCTLESS

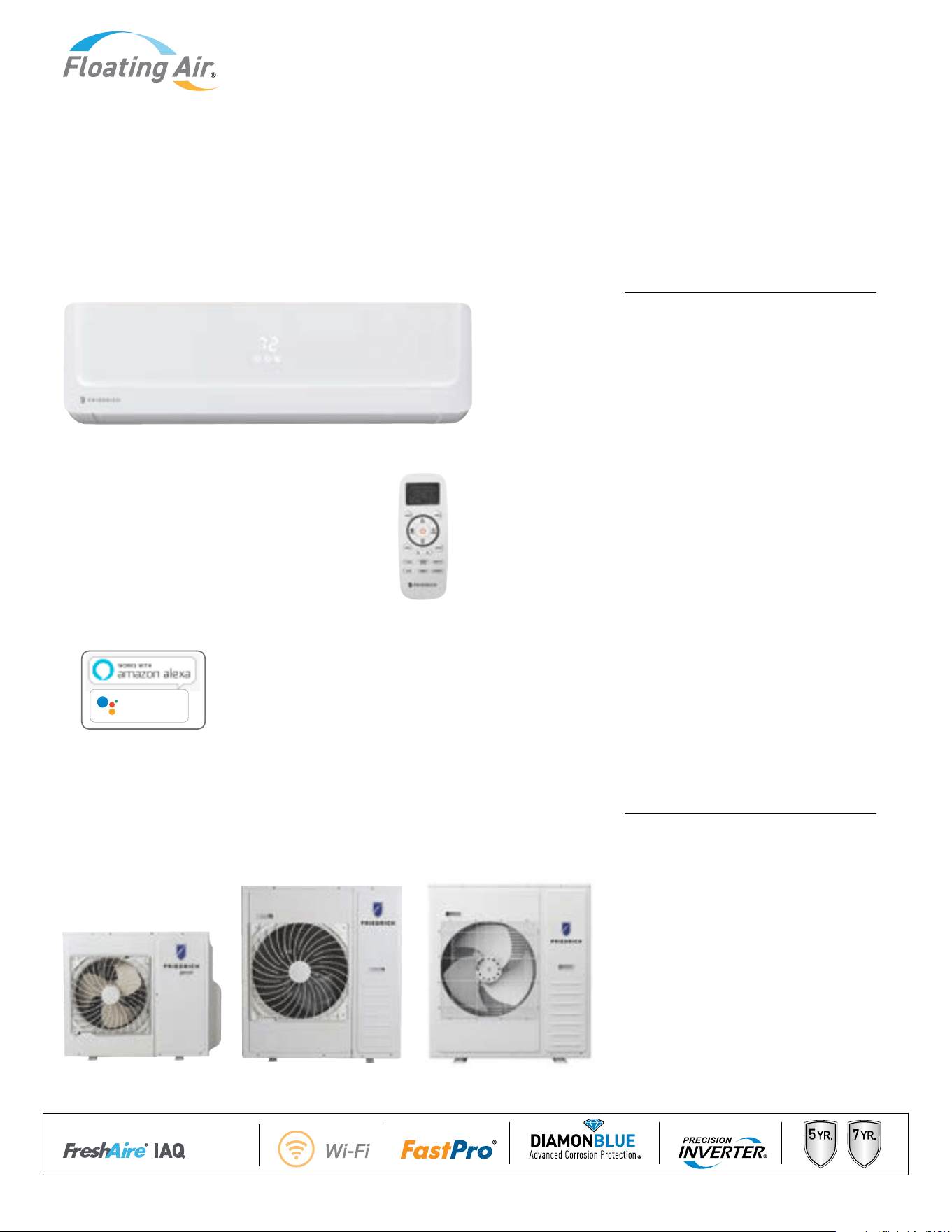

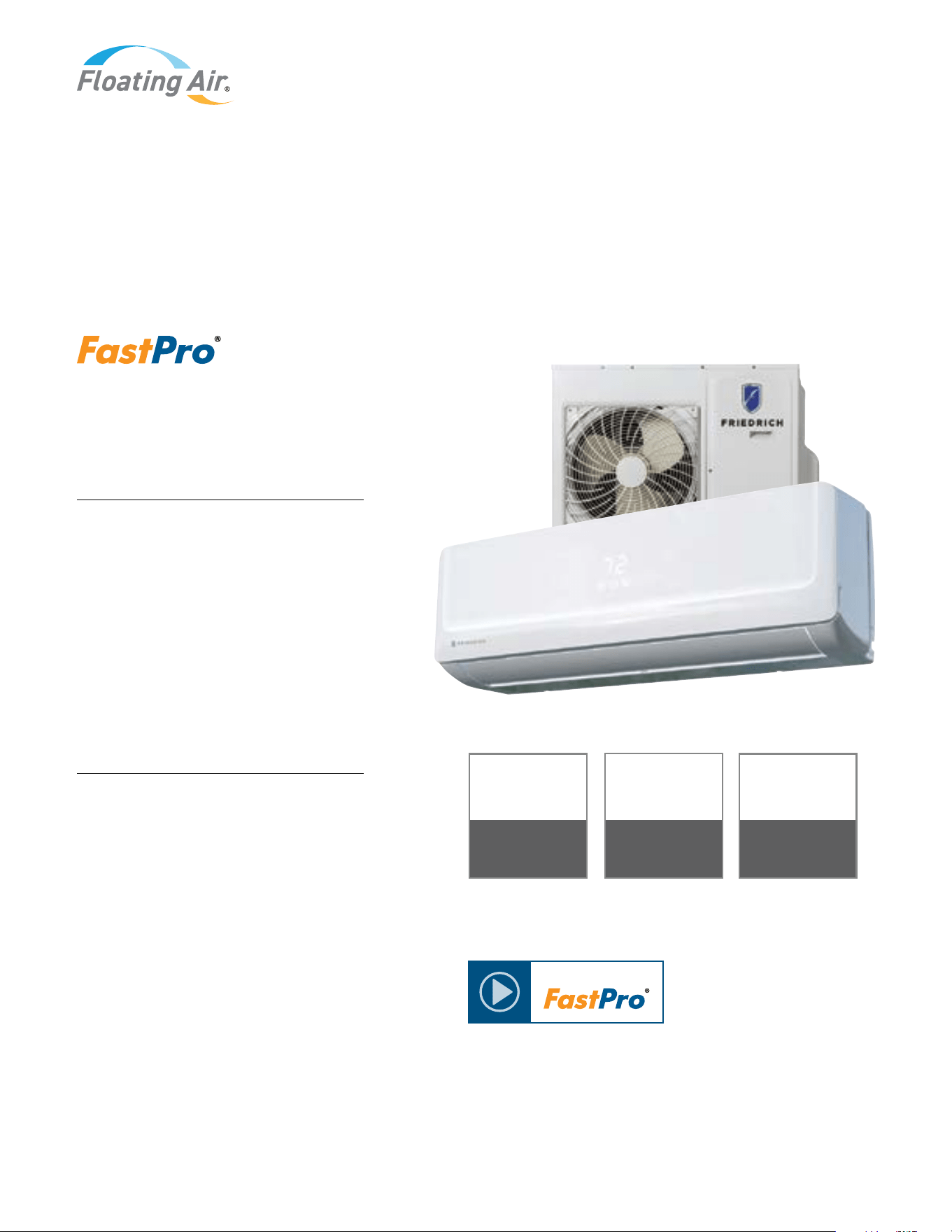

PRO SERIES | DUCTLESS SPLIT SYSTEMS
MULTI ZONE HEAT PUMP SYSTEMS
The contractor’s line with extensive features to make installation
and service faster and easier. Exceptional efficiency and dependable
performance.
Features for comfort and
convenience
• Precision Inverter
®
technology
(variable speed compressor)
• Fast Pro
®
design for the fastest
access for maintenance of any
wall-mounted ductless system
• Soft start compressor
• BLDC motor
• Auto Clean indoor coil
• Cooling/Heating/Fan/Auto mode
• Surge Cool/Heat
• Natural air flow
• Ultra quiet operation
• Sleep mode
• Auto restart
• Auto changeover
• 24-hour on/off timer
• ENERGY STAR
®
qualified model
• Hidden display (only visible during
operation)
Operates in extreme conditions
• Low ambient operation down to
14°F (Cooling mode)
• Low ambient operation down to
-13°F (Heating mode)
• Low temperature compressor
start-up protection
FPHMR18A3A , FPHMR24A3A FPHMR36A3A FPHMR42A3A
WIRELESS REMOTE
WITH THE ABILITY
TO CHANGE TO A
COOL-ONLY REMOTE
Built-in Wi-Fi for control anytime,
anywhere
• Easy to use FriedrichGo™ app
• Create customizable, 7-day schedules
• Control with smartphone
• Compatible with Amazon Alexa
and Google Home
Ok Google
works with
READY
PRECISION
PARTS
WARRANTY
COMPRESSOR
WARRANTY
23
PRO SERIES SPECIFICATIONS
Your operating costs will depend on your utility rates and use. The estimated operating cost is based on a electricity cost of $ .12 per kWh.
For more information, visit www.ftc.gov/energy.
Due to continuing research in new energy-saving technology, specications are subject to change without notice.
PERFORMANCE RATINGS Multi Zone Wall-Mounted - Heat Pumps
7k 9k 12k 18k 24k
INDOOR MODEL
FPHMW07A3B
Wi-Fi
FPHFW09A3B
Wi-Fi
FPHFW12A3B
Wi-Fi
FPHFW18A3B
Wi-Fi
FPHFW24A3B
Wi-Fi
SPECIFICATIONS
CAPACITY COOLING (RATED)
Btu 7000 9000 12000 18000 24000
CAPACITY HEATING (RATED)
Btu 8500 9500 13000 19000 24200
MOISTURE REMOVAL
Pts/h 2.5 2.5 3.2 4.2 5.3
AIRFLOW
CFM 424/382/323/247 424/382/323/247 424/382/323/247 618/565/482/382 735/665/559/441
SOUND RATING (HIGH/MED/LOW)
dB-A 38/32/29 38/32/29 39/32/29 45/41/37 48/45/40
ELECTRICAL DATA
POWER SOURCE
V-Hz-Phase
230/208~60-1 230/208~60-1 230/208~60-1 230/208~60-1 230/208~60-1
REFRIGERATION SYSTEM
CONNECTIONS
Flare Flare Flare Flare Flare
LIQUID LINE O.D.
in
1
/
4
1
/
4
1
/
4
1
/
4
3
/
8
SUCTION LINE O.D.
in
3
/
8
3
/
8
3
/
8
1
/
2
5
/
8
DIMENSIONS & WEIGHT
W x H x D
in
37
3
/
8
"x 10
3
/
4
"x 8
1
/
8
" 48"x 12
5
/
8
"x 9
1
/
4
"
48"x 12
5
/
8
"x 9
1
/
4
"
NET WEIGHT
lbs
18.7 18.7 18.7 32 32
SHIPPING WEIGHT
lbs
24.3 24.3 24.3 37.5 37.5
PERFORMANCE RATINGS Multi Outdoor
18k
24k 36k 42K
OUTDOOR MODEL
FPHMR18A3A
FPHMR24A3A FPHMR36A3A
FPHMR42A3A
SPECIFICATIONS
POWER SOURCE
208~230/60/1 208~230/60/1 208~230/60/1 208~230/60/1
EST. YEARLY OPERATING COST
$ $90 $172 $259 $277
RUNNING CURRENT COOLING RATED
A
6.5
8.7 11
17.5
RUNNING CURRENT HEATING RATED
A
7.3
8.7 13
17
POWER INPUT COOLING MIN. – RATED – MAX.
W 1440 (510
~
2610) 1920 (420
~
2640)
2520 (700~5000)
4020 (700~5000)
POWER INPUT HEATING MIN. – RATED – MAX.
W 1530 (450
~
3510) 1920 (420
~
4020)
3060 (600~6000)
3870 (600~6000)
POWER AND COMMUNICATION CABLE
No. x AWG
4 x 14AWG 4 x 14AWG 4 x 14AWG 4 x 14AWG
DIMENSIONS W x H x D
in
33
7
/8 x 26
3
/8 x 12
1
/4 37
3
/8 x 33 x 13
3
/8
37
3
/8 x 41
3
/8 x 13
3
/8 37
3
/8 x 41
3
/8 x 13
3
/8
NET WEIGHT
lbs 108 159 186 196
SHIPPING WEIGHT
lbs 119 170 216 225
REFRIGERATION SYSTEM
REFRIGERANT
R410A R410A R410A R410A
FACTORY PRECHARGE
oz
63 81 106 120
FACTORY PRECHARGE
ft
50
75 100
125
LIQUID LINE O.D.
in
1
/4
1
/4
1
/4
1
/4
SUCTION LINE O.D.
in
3
/8
3
/8
3
/8
3
/8
MIN./MAX. LINE LENGTH (EACH)
ft
25/82
25/66 25/66
25/66
LINE LENGTH (TOTAL)
ft
164
197 197
262
MAX. HEIGHT DIFFERENCE
ft
49
49 49
49
SOUND PRESSURE LEVEL COOLING
dB
55
59 59
59
SOUND PRESSURE LEVEL HEATING
A
55
59 59
59
OPERATING RANGE COOLING
°F DB
14
~
115
14~115 14~115 14~115
OPERATING RANGE HEATING
°F WB -13~75 -13~75 -13~75
4-75
MINIMUM AMPACITY
A
21A
25A 32A 35A
MAX. TD FUSE/ BREAKER
A
30A
30A 50A 50A
24 | FLOATING AIR
®
SERIES DUCTLESS

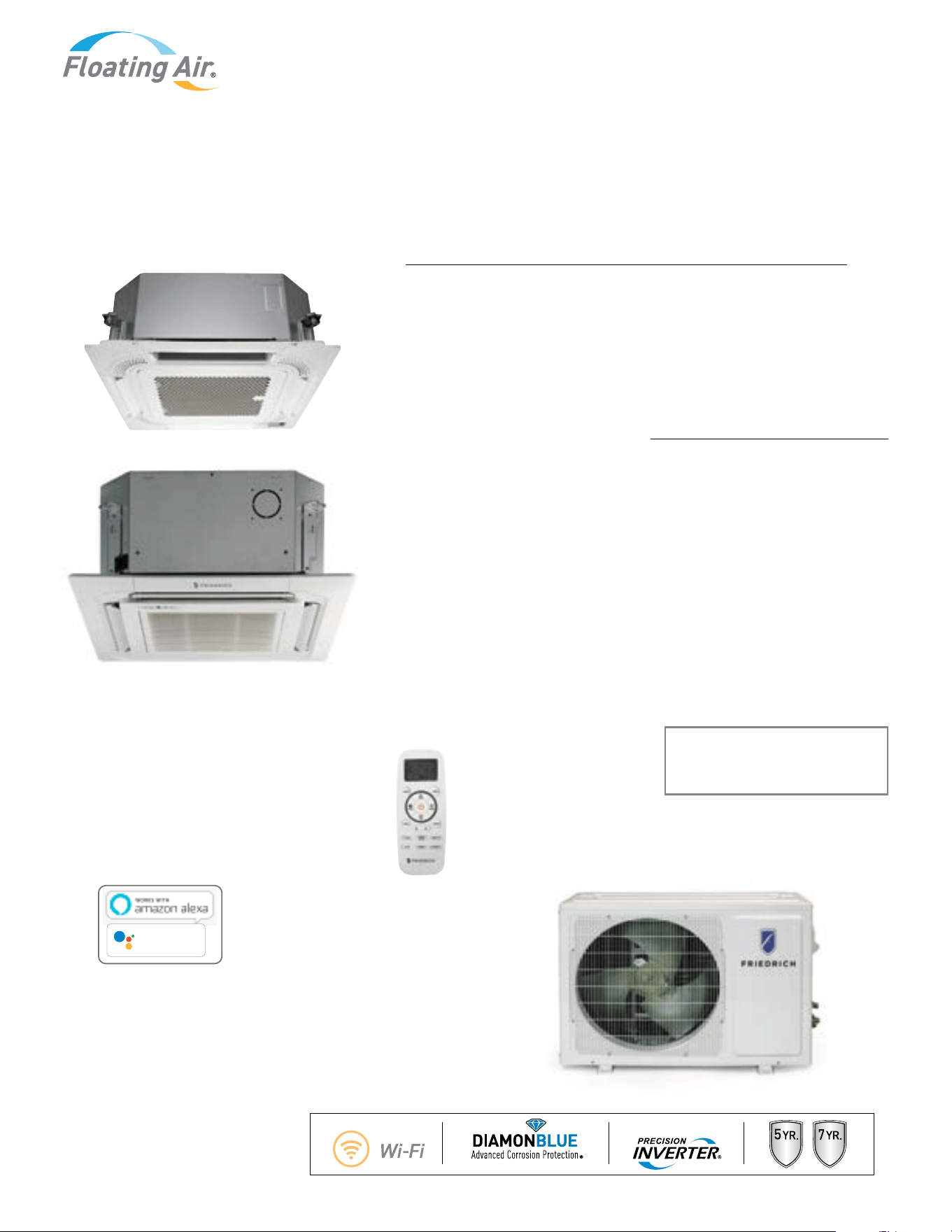

MULTI ZONE • CEILING CASSETTE HEAT PUMPS
Compact cassette units install in a drop ceiling and mount flush
to the ceiling for a clean look and efficient installation.
• 24-hour on/off timer
• Precision Inverter
®
technology
(variable speed compressor)
• Soft start compressor
• Natural air flow
• 4-way cooling
• Surge Cool/Heat
• Cooling/Heating/Fan mode
• Dry mode
• Sleep mode
• Independent vane control
• 3 fan speeds
• Ultra-quiet turbo fan
• Evaporator frost control
• Auto restart
• Auto changeover
PRO SERIES | DUCTLESS SPLIT SYSTEMS
• DiamonBlue Advanced
Corrosion Protection
®
• Clean, modern look
• Flexible installation
• ENERGY STAR
®
qualified models
• Precise air distribution
Operates in extreme
conditions
• Built-in low ambient standard,
down to 14°F (Cooling mode)
• Low ambient operation down to
-13°F (Heating mode)
• Low temperature compressor
start-up protection
Features for comfort and convenience
NOTE: Cassette grilles
are sold separately.
Wi-Fi available on select models
for control anytime, anywhere
• Easy to use FriedrichGo™ app
• Create customizable, 7-day schedules
• Control with smartphone
• Compatible with Amazon Alexa
and Google Home
FPHMR18A3A , FPHMR24A3A FPHMR36A3A FPHMR42A3A
Ok Google
works with
PARTS
WARRANTY
COMPRESSOR
WARRANTY
PRECISION
25
PRO SERIES SPECIFICATIONS
Your operating costs will depend on your utility rates and use. The estimated operating cost is based on a electricity cost of $ .12 per kWh.
For more information, visit www.ftc.gov/energy.
Models require grille. Sold separately.
Due to continuing research in new energy-saving technology, specications are subject to change without notice.
PERFORMANCE RATINGS Multi Zone Cassette - Heat Pumps
9k 12k 18k 24k
INDOOR MODEL
FPHFC09A3B Wi-Fi FPHFC12A3B Wi-Fi FPHFC18A3B Wi-Fi FPHFC24A3B Wi-Fi
SPECIFICATIONS
CAPACITY COOLING (RATED) Btu 9000 12000 18000 24000
CAPACITY HEATING (RATED) Btu 10200 13500 20400 27000
MOISTURE REMOVAL Pts/h 1.9 2.5 3.2 5.0
AIRFLOW (HIGH) CFM 306 471 559 1100
SOUND RATING (MAX.-MIN.) dB-A 40/28 40/28 40/28 40/28
ELECTRICAL DATA
POWER SOURCE V-Hz-Phase 230/208-60-1 230/208-60-1 230/208-60-1 230/208-60-1
POWER AND COMMUNICATION CABLE No. x AWG 4 x 14AWG 4 x 14AWG 4 x 14AWG 4 x 14AWG
REFRIGERATION SYSTEM
CONNECTIONS Flare Flare Flare Flare
LIQUID LINE O.D. in
1
/4
1
/4
1
/4
3
/8
SUCTION LINE O.D. in
3
/8
3
/8
1
/2
5
/8
DIMENSIONS & WEIGHT
W X H X D in 22
1
/2 x 8
1
/2 x 22 33 x 9
3
/4 x 33
NET WEIGHT lbs 31.9 34 61.8 59.5
SHIPPING WEIGHT lbs 38.5 40.7 81.6 79.5
PACKAGE DIMENSIONS W X H X D in 28
3
/4 x 11
1
/2 x 26 39
1
/4 x 37 x 14 39
1
/4 x 37 x 14
1
/2
PERFORMANCE RATINGS Multi Outdoor
18k
24k 36k 42K
OUTDOOR MODEL
FPHMR18A3A
FPHMR24A3A FPHMR36A3A
FPHMR42A3A
SPECIFICATIONS
POWER SOURCE
208~230/60/1 208~230/60/1 208~230/60/1 208~230/60/1
EST. YEARLY OPERATING COST
$ $90 $172 $259 $277
RUNNING CURRENT COOLING RATED
A
6.5
8.7 11
17.5
RUNNING CURRENT HEATING RATED
A
7.3
8.7 13
17
POWER INPUT COOLING MIN. – RATED – MAX.
W 1440 (510
~
2610) 1920 (420
~
2640)
2520 (700~5000)
4020 (700~5000)
POWER INPUT HEATING MIN. – RATED – MAX.
W 1530 (450
~
3510) 1920 (420
~
4020)
3060 (600~6000)
3870 (600~6000)
POWER AND COMMUNICATION CABLE
No. x AWG
4 x 14AWG 4 x 14AWG 4 x 14AWG 4 x 14AWG
DIMENSIONS W x H x D
in
33
7
/8 x 26
3
/8 x 12
1
/4 37
3
/8 x 33 x 13
3
/8
37
3
/8 x 41
3
/8 x 13
3
/8 37
3
/8 x 41
3
/8 x 13
3
/8
NET WEIGHT
lbs 108 159 186 196
SHIPPING WEIGHT
lbs 119 170 216 225
REFRIGERATION SYSTEM
REFRIGERANT
R410A R410A R410A R410A
FACTORY PRECHARGE
oz
63 81 106 120
FACTORY PRECHARGE
ft
50
75 100
125
LIQUID LINE O.D.
in
1
/4
1
/4
1
/4
1
/4
SUCTION LINE O.D.
in
3
/8
3
/8
3
/8
3
/8
MIN./MAX. LINE LENGTH (EACH)
ft
25/82
25/66 25/66
25/66
LINE LENGTH (TOTAL)
ft
164
197 197
262
MAX. HEIGHT DIFFERENCE
ft
49
49 49
49
SOUND PRESSURE LEVEL COOLING
dB
55
59 59
59
SOUND PRESSURE LEVEL HEATING
A
55
59 59
59
OPERATING RANGE COOLING
°F DB
14
~
115
14~115 14~115 14~115
OPERATING RANGE HEATING
°F WB -13~75 -13~75 -13~75
4-75
MINIMUM AMPACITY
A
21A
25A 32A 35A
MAX. TD FUSE/ BREAKER
A
30A
30A 50A 50A
26 | FLOATING AIR
®
SERIES DUCTLESS
PRO SERIES | DUCTLESS SPLIT SYSTEMS
MULTI ZONE • THE INSIDER
®
CONCEALED DUCTED HEAT PUMPS
Indoor unit installs in the ceiling or furr down for unobtrusive installation.
Conditioned or non-conditioned air can be added to ducting to allow fresh
air into the conditioned space whenever required.
Features
• Precision Inverter
®
technology
(variable speed compressor)
• Soft start compressor
• BLDC motor
• Cooling/Heating/Fan mode
• Dry mode
• 3 fan speeds
• Auto restart
• Auto changeover
• DiamonBlue Advanced Corrosion
Protection
®
• Control lock function on controller
• External Static Pressure Range
(ESP)
- 9K/12K/18K (0 – .40) WC
- 24K (0 – .40) WC
Operates in extreme conditions
• Built-in low ambient standard,
down to 14°F (Cooling mode)
• Low ambient operation down to
-13°F (Heating mode)
• Low temperature compressor
start-up protection
FPHMR18A3A , FPHMR24A3A FPHMR36A3A FPHMR42A3A
WIRED WALL
CONTROLLER
PRECISION
PARTS
WARRANTY
COMPRESSOR
WARRANTY
27
PRO SERIES SPECIFICATIONS
PERFORMANCE RATINGS Multi Zone - The Insider
®
Concealed Ducted Heat Pumps
9k 12k 18k 24k
INDOOR MODEL FPHFD09A3A FPHFD12A3A FPHFD18A3A FPHFD24A3A
SPECIFICATIONS
CAPACITY COOLING (RATED) Btu 9000 12000 18000 24000
CAPACITY HEATING (RATED) Btu 9000 12000 18000 24000
MOISTURE REMOVAL Pts/h 2.0 3.0 5.0 5.1
AIRFLOW CFM 235/285/309 235/285/338 370/440/529 501/574/647
SOUND RATING (MAX.-MIN.) dB-A 29/27/26 36/33/30 38/35/33 38/36/34
ELECTRICAL DATA
POWER SOURCE V-Hz-Phase 230/208-60-1 230/208-60-1 230/208-60-1 230/208-60-1
POWER AND COMMUNICATION CABLE No. x AWG 4 x 14AWG 4 x 14AWG 4 x 14AWG 4 x 14AWG
REFRIGERATION SYSTEM
CONNECTIONS Flare Flare Flare Flare
LIQUID LINE O.D. in 1/4 1/4 1/4 3/8
SUCTION LINE O.D. in 3/8 3/8 1/2 5/8
DIMENSIONS & WEIGHT
W X H X D in
35 7/8 x 7 1/2 x 17 5/8
48 7/16 x 7 1/2 x 17 5/8 39 x 10 5/8 x 30
NET WEIGHT lbs 39.7 39.7 49.6 70.5
SHIPPING WEIGHT lbs 46.3 47.4 56.2 81.6
Your operating costs will depend on your utility rates and use. The estimated operating cost is based on a electricity cost of $ .12 per kWh.
For more information, visit www.ftc.gov/energy.
Due to continuing research in new energy-saving technology, specications are subject to change without notice.
PERFORMANCE RATINGS Multi Outdoor
18k
24k 36k 42K
OUTDOOR MODEL
FPHMR18A3A
FPHMR24A3A FPHMR36A3A
FPHMR42A3A
SPECIFICATIONS
POWER SOURCE
208~230/60/1 208~230/60/1 208~230/60/1 208~230/60/1
EST. YEARLY OPERATING COST
$ $90 $172 $259 $277
RUNNING CURRENT COOLING RATED
A
6.5
8.7 11
17.5
RUNNING CURRENT HEATING RATED
A
7.3
8.7 13
17
POWER INPUT COOLING MIN. – RATED – MAX.
W 1440 (510
~
2610) 1920 (420
~
2640)
2520 (700~5000)
4020 (700~5000)
POWER INPUT HEATING MIN. – RATED – MAX.
W 1530 (450
~
3510) 1920 (420
~
4020)
3060 (600~6000)
3870 (600~6000)
POWER AND COMMUNICATION CABLE
No. x AWG
4 x 14AWG 4 x 14AWG 4 x 14AWG 4 x 14AWG
DIMENSIONS W x H x D
in
33
7
/8 x 26
3
/8 x 12
1
/4 37
3
/8 x 33 x 13
3
/8
37
3
/8 x 41
3
/8 x 13
3
/8 37
3
/8 x 41
3
/8 x 13
3
/8
NET WEIGHT
lbs 108 159 186 196
SHIPPING WEIGHT
lbs 119 170 216 225
REFRIGERATION SYSTEM
REFRIGERANT
R410A R410A R410A R410A
FACTORY PRECHARGE
oz
63 81 106 120
FACTORY PRECHARGE
ft
50
75 100
125
LIQUID LINE O.D.
in
1
/4
1
/4
1
/4
1
/4
SUCTION LINE O.D.
in
3
/8
3
/8
3
/8
3
/8
MIN./MAX. LINE LENGTH (EACH)
ft
25/82
25/66 25/66
25/66
LINE LENGTH (TOTAL)
ft
164
197 197
262
MAX. HEIGHT DIFFERENCE
ft
49
49 49
49
SOUND PRESSURE LEVEL COOLING
dB
55
59 59
59
SOUND PRESSURE LEVEL HEATING
A
55
59 59
59
OPERATING RANGE COOLING
°F DB
14
~
115
14~115 14~115 14~115
OPERATING RANGE HEATING
°F WB -13~75 -13~75 -13~75
4-75
MINIMUM AMPACITY
A
21A
25A 32A 35A
MAX. TD FUSE/ BREAKER
A
30A
30A 50A 50A
28 | FLOATING AIR
®
SERIES DUCTLESS

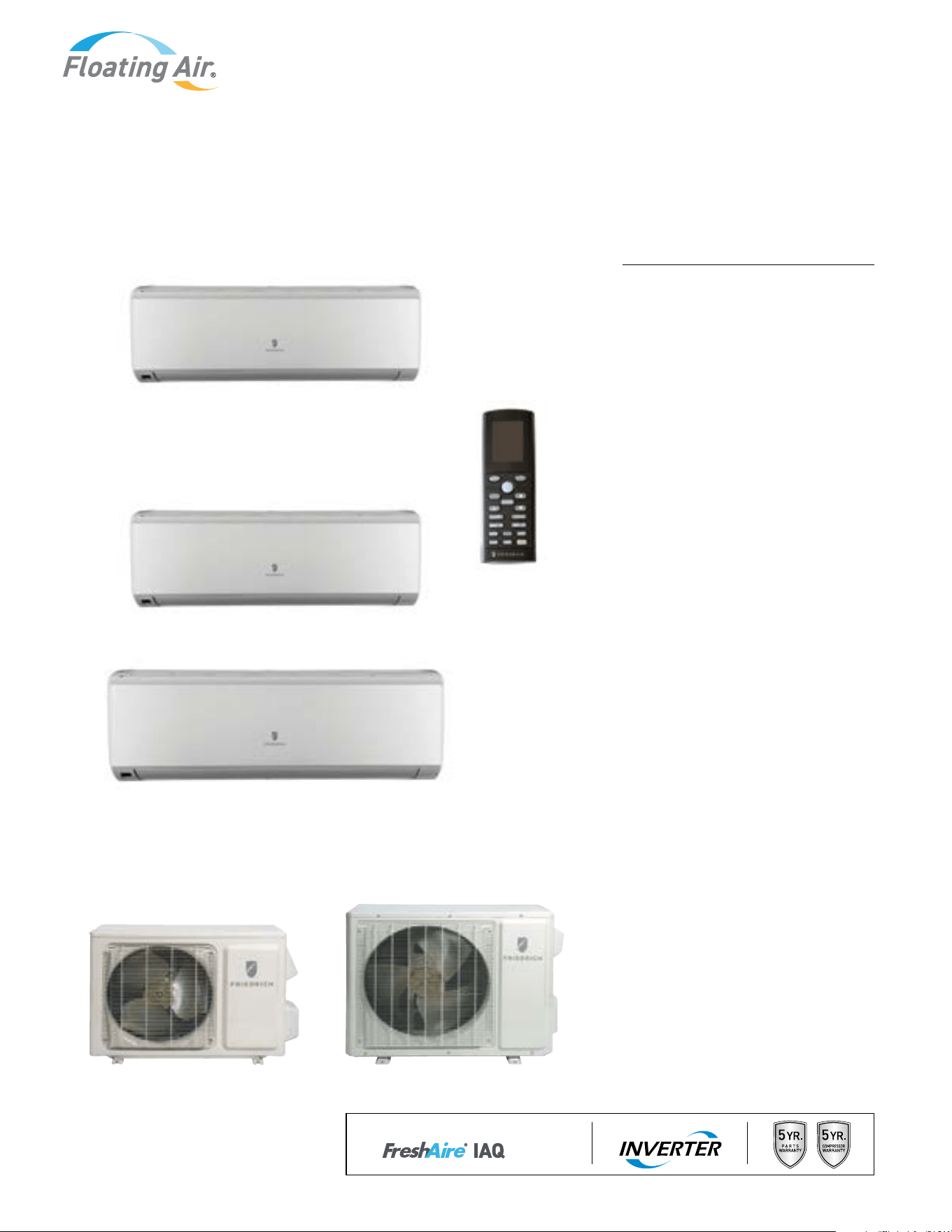

SELECT SERIES | DUCTLESS SPLIT SYSTEMS
Features
• Inverter technology is more energy
efficient and can self-adjust
capacity to match cooling needs
• Multiple operating modes
including: auto, cool, dry, fan only
and heat
• TURBO mode operates the unit at
maximum performance to quickly
bring the room to set temperature
• 4 fan speeds heating or cooling:
high, medium, low, “quiet”, plus
auto-fan
• Continuous ‘Air Sweep’ up & down
• LCD remote
• 24-hour timer and sleep timer
• Indoor unit will briefly display set
or room temperature
• Auto-restart after power
interruptions
• Auto-shut flaps close when unit is
off for a sleek appearance
• Washable antimicrobial air filters
• 115V/230V models will provide
cooling in outdoor temperatures
down to 0°F
SINGLE ZONE • WALL-MOUNTED HEAT PUMPS
Excellent efficiency and outstanding quality make Select a truly
exceptional value line
115 VOLT MODELS
FSHSW09A1A, FSHSW12A1A
FSHSW18A3A, FSHSW24A3A
WIRELESS
REMOTE CONTROL
230/208 VOLT MODELS
FSHSW36A3A
READY
29
PERFORMANCE RATINGS 115 volt models 230/208 volt models
SYSTEM MODEL NO.
FSHW091 FSHW121 FSHW183 FSHW243 FSHW363
INDOOR MODEL
FSHSW09A1A FSHSW12A1A FSHSW18A3A FSHSW24A3A FSHSW36A3A
OUTDOOR MODEL
FSHSR09A1A FSHSR12A1A FSHSR18A3A FSHSR24A3A FSHSR36A3A
SPECIFICATIONS
CAPACITY COOLING (RATED) Btu
9000 12000 18000 24000 36000
CAPACITY COOLING MIN - MAX Btu
3100-9600 3100-12500 3412-20472 8600-24000 7404-35997
CAPACITY HEATING (RATED) @ 47°F Btu
9500 13000 19800 24000 34600
CAPACITY HEATING (RATED) @ 17°F Btu
6800 7100 12800 14600 20200
CAPACITY HEATING MIN - MAX Btu
3100-12000 3412-15013 3412-21837 8600-26000 14979-35997
SENSIBLE HEAT RATIO
0.79 0.73 0.77 0.77 0.75
HSPF
9.0 9.0 9.0 10.0 9.0
SEER
18.0 18.0 18.0 18.0 18.0
EER
10.0 10.1 9.89 11.0 8.2
MOISTURE REMOVAL Pts/h
1.69 2.96 3.8 4.23 7.4
AIRFLOW (HIGH/MED/LOW/QUIET) CFM
318/288/241/171 400/318/241/194 500/441/383/294 588/441/306/206 883/765/647/559
SOUND RATING - INDOOR (HIGH/MED/LOW/QUIET) dB-A
43/38/34/28 43/39/35/29 47/44/41/35 49/46/42/36 54/49/44/37
SOUND RATING - OUTDOOR dB-A
52 53 57 58 65
OPERATING RANGE (HEATING) °F
-4-75 -4-75 -13-75 -13-75 -4-75
OPERATING RANGE (COOLING) °F
0-115 0-115 0-115 0-115 0-115
EST. YEARLY OPERATING COST U.S. $
$67 $113 $146 $198 $368
ELECTRICAL DATA
POWER SOURCE V-Hz-Phase
115-60-1 115-60-1
230/208-60-1 230/208-60-1 230/208-60-1
MIN. AMPACITY A
17 20 16 16 24
COOLING WATTS W
900 1194 1820 2010 4100
COOLING AMPS A
10.87 13.0 8.1 17.0 10.87
HEATING WATTS W
870 1250 2090 2130 3800
HEATING AMPS A
10.36 13.5 8.5 9.45 16.5
MAX. TD FUSE/ BREAKER A
25 30 25 25 40
REFRIGERATION SYSTEM
REFRIGERANT
R410A R410A R410A R410A R410A
COMPRESSOR TYPE
Inverter Inverter Inverter Inverter Inverter
CONNECTIONS
Flare Flare Flare Flare Flare
LIQUID LINE O.D. in
1/4" 1/4" 1/4" 1/4" 1/4"
SUCTION LINE O.D. in
3/8" 3/8" 1/2" 5/8" 5/8"
REFRIGERANT CHARGE oz.
24.7 31.8 45.68 56.4 91.71
FACTORY PRECHARGE ft
25 25 25 25 25
MIN. / MAX. LINE LENGTH ft
7/66 7/98 10/82 10/82 15/98
MAX. HEIGHT DIFFERENCE ft
32.8 49.2 65.0 65.6 32.8
DIMENSIONS & WEIGHT
INDOOR UNIT
W x H x D in
31
1
/8 x 10
7
/8 x 8 31
1
/8 x 11
3
/8 x 8 38 x 11
7
/8 x 9 42
1
/2 x 12
7
/8 x 10 53
1
/8 x 12
7
/8 x 10
NET WEIGHT lbs
20.9 23.2 30.9 37.5 42.0
SHIPPING WEIGHT lbs
25.4 27.6 37.5 45.2 51.8
OUTDOOR UNIT
W x H x D in
33
1
/2 x 21
1
/4 x 12
5
/8 37
5
/8 x 27
5
/8 x 15
5
/8
38
5
/8 x 3 1
1
/8 x 16
7
/8
NET WEIGHT lbs
62.8 67.3 97.0 103.6 161
SHIPPING WEIGHT lbs
68.4 72.8 106.9 113.5 171.9
TOTAL NET WEIGHT lbs
83.7 90.5 127.9 141.1 203
TOTAL SHIPPING WEIGHT lbs
93.8 100.4 144.4 158.7 223.7
SELECT SERIES SPECIFICATIONS
Your operating costs will depend on your utility rates and use. The estimated operating cost is based on a electricity cost of $ .12 per kWh.
For more information, visit www.ftc.gov/energy.
Due to continuing research in new energy-saving technology, specications are subject to change without notice.
30 | FLOATING AIR
®
SERIES DUCTLESS
TORQUE WRENCH SETTINGS
Outside Diameter Torque
mm inch ft-lbs. N·m
6.35
1
/4
13 – 18 17.6 – 24.5
9.52
3
/8
25 – 30 33.3 – 41.2
12.7
1
/2
40 – 47 53.9 – 64.7
15.88
5
/8
45 – 59 61.7 – 80.4
ACCESSORIES
REFRIGERATION LINE SETS (REQUIRED)
OUTSIDE DIMENSIONS
Floating Air
®
Pro Wall-mounted
SYSTEM MODEL
Liquid Suction 15’ Lineset Kit 35’ Lineset Kit
FPHW091A 1/4 3/8 T32150 T32350
FPHW121A 1/4 3/8 T32150 T32350
FPHW093A 1/4 3/8 T32150 T32350
PFHW123A 1/4 3/8 T32150 T32350
FPHW183A 1/4 1/2 T42150 T42350
FPHW243A 3/8 5/8 T53150 T53350
FPHW363B
3/8 5/8 T53150 T53350
Floating Air
®
Pro Multi Zone Outdoor
FPHMR18A3A 1/4 3/8 T32150 T32350
FPHMR24A3A 1/4 3/8 T32150 T32350
FPHMR36A3A 1/4 3/8 T32150 T32350
FPHMR42A3A 1/4 3/8 T32150 T32350
Floating Air
®
Premier Wall-mounted
FRHW093A 1/4 3/8 T32150 T32350
FRHW123A 1/4 3/8 T32150 T32350
Floating Air
®
Select Wall-mounted
FSHW091 1/4 3/8 T32150 T32350
FSHW121 1/4 3/8 T32150 T32350
FSHW183 1/4 1/2 T42150 T42350
FSHW243 1/4 5/8 T52150 T52350
FSHW363 1/4 5/8 T52150 T52350
Floating Air
®
Pro Cassette Single Zone
FPHC093A 1/4 3/8 T32150 T32350
FPHC123A 1/4 3/8 T32150 T32350
FPHC183A 1/4 1/2 T42150 T42350
FPHC243A 3/8 5/8 T53150 T53350
FPHC363A 3/8 3/4 T63150 T63350
Floating Air
®
Pro The Insider
®
Single Zone Concealed Ducted
FPHD093 1/4 3/8 T32150 T32350
FPHD123 1/4 3/8 T32150 T32350
FPHD183 1/4 1/2 T42150 T42350
FPHD243 3/8 5/8 T53150 T53350
FPHD363 3/8 3/4 T63150 T63350
REFRIGERATION LINE SETS
MIN./MAX. LENGTHS
Floating Air
®
Pro Wall-mounted
SYSTEM MODEL
Min. (ft.) Max. Each/Total (ft.)
FPHW091A 10 50
FPHW121A 10 50
FPHW093A 10 50
PFHW123A 10 50
FPHW183A 10 66
FPHW243A 10 66
FPHW363B 10 66
Floating Air
®
Pro Ceiling Cassette
FPHC093A 25 82
FPHC123A 25 82
FPHC183A 25 82
FPHC243A 25 164
FPHC363A 25 164
Floating Air
®
Pro The Insider
®
Concealed Ducted
FPHD093 25 82
FPHD123 25 82
FPHD183 25 82
FPHD243 25 164
FPHD363 25 164
Floating Air
®
Pro Outdoor
FPHMR18A3A 25 82/164
FPHMR24A3A 25 66/197
FPHMR36A3A 25 66/246
FPHMR42A3A 25 66/246
Floating Air
®
Premier
FRHW093A 10 66
FRHW123A 10 66
Floating Air
®
Select
FSHW091 10 66
FSHW121 10 66
FSHW183 10 82
FSHW243 10 82
FSHW363 15 98
31
FPWC1
Optional wired wall controller for Floating Air Premier single zone and Floating Air
®
Pro, single and multizone models.
Does not work with FPHSW36A3B at this time. Please check with your Friedrich representative for options.
FSWC1 Optional wired wall controller for Floating Air
®
Select single zone models.
DFACC LCD remote for cooling only operation of all Floating Air Select heat pump models.
CEILING CASSETTE GRILLES
(REQUIRED)
Decorative Grille
FPCG0912 FPCG182436
Fits
FPHFC09A3B
FPHFC12A3B
Fits
FPHFC18A3B
FPHFC24A3B
FPHFC36A3B
FPWC1 FSWC1
WIRELESS REMOTE ACCESSORY FOR
FLOATING AIR
®
SELECT MODELS
(OPTIONAL)
WALL CONTROLLERS
(OPTIONAL)
ACCESSORIES
AIR PURIFICATION
APWM1 FreshAire
®
Air Purication
iWave
®
features needlepoint bi-polar ionization to address any mold, bacteria, virus, allergens,
and VOC's that may be in your air stream to ensure delivery of healthy, clean, puried air.
Optional accessory for all Friedrich wall-mounted ductless models.
ULTRAVIOLET LED
UVL1 Ultraviolet LED
FreshAire UV systems are installed in the HVAC unit and are designed to disinfect surfaces
and the air as it circulates through the ventilation system. Our system is 3rd party tested and
validated against bacteria, viruses, mold, and fungus to achieve up to a *99.999% reduction on
microorganisms in surface and airstream applications. Optional accessory for all Friedrich
wall-mounted ductless models.
DFACC
READY
Introducing Friedrich FreshAire
®
IAQ.
Proven solutions that improve the health and quality of indoor air, and ease customer concerns about the air they breathe.
Easy-to-install FreshAire IAQ accessories improve the health and quality of indoor air.
BR_DSS_7-13-21 Printed in USA
Friedrich Air Conditioning Co. l 10001 Reunion Place, Suite 500 l San Antonio, TX 78216 l 877.599.5665 l www.friedrich.com
Many Friedrich ductless models qualify for rebates
Many utility companies offer rebates on ductless air conditioners. Contact your local energy provider for information on
ductless rebates or visit: http://www.dsireusa.org
Find a factory trained Friedrich ductless installer at www.friedrich.com
FRIEDRICH SERVICE DEALERS ENJOY EXCEPTIONAL BENEFITS
The Warranty & Service Provider Program is designed to encourage top dealers, nationwide, to become
part of a motivated team of industry professionals dedicated to the sale, installation, and support of
Friedrich Brand Product and equipment through rewards, exclusive benets, lead generation, priority
customer support, product training, and repair compensation.
ADVANTAGE
DEALER
