ENERGY FLEX MOTORIZED AUTO INCLINE
SMART TREADMILL
SF-T7724 SMART
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected] or 1-877-90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 8 feet (240 cm) of free space behind it
and 2 feet (60 cm) on each side. Do not place the treadmill on any surface that blocks air
openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment
during exercise, discontinue use of the equipment immediately and do not use until the
problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 275 lbs (125 kgs).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving is
required.
12. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only, it is not intended for commercial
use!
IMPORTANT NOTE:
The running belt must be lubricated before the first use! Please see Page 6 for instructions on how
to properly apply lubricant.
2

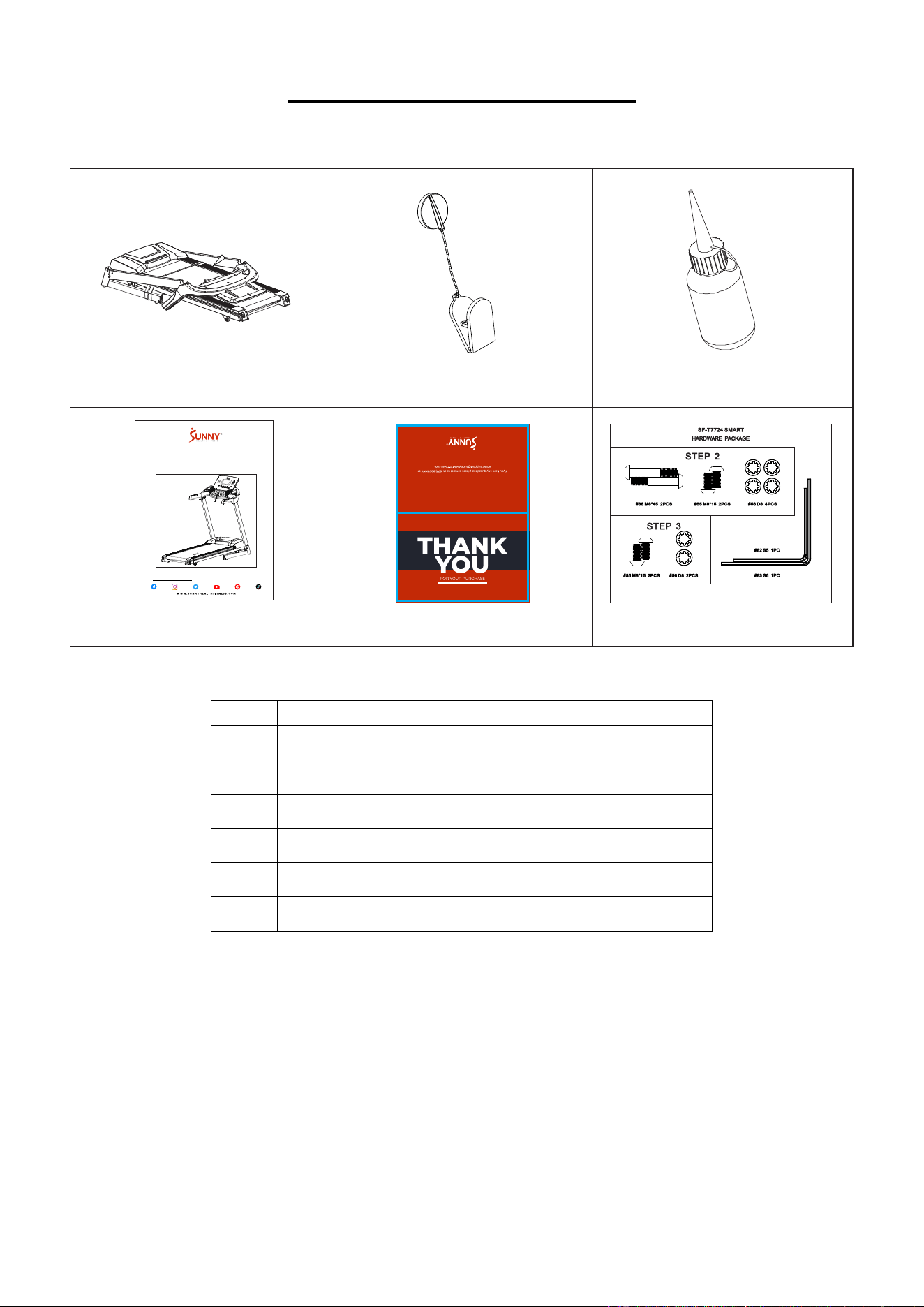

ASSEMBLY CONTENTS
WHEN YOU OPEN THE CARTON, YOU WILL FIND THE FOLLOWING PARTS:
No.
Description
Qty.
2
Main Frame
1
76
Safety Key
1
81
Silicone Oil
1
A
Manual
1
B
Thank You Card
1
C
Hardware Package
1
76
81
A
B
C
2
ENERGY FLEX MOTORIZED AUTO INCLINE
SMART TREADMILL
SF-T7724 SMART
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us
,
PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected] or 1
-
877-90SUNNY (877
-
907-8669)
.
3

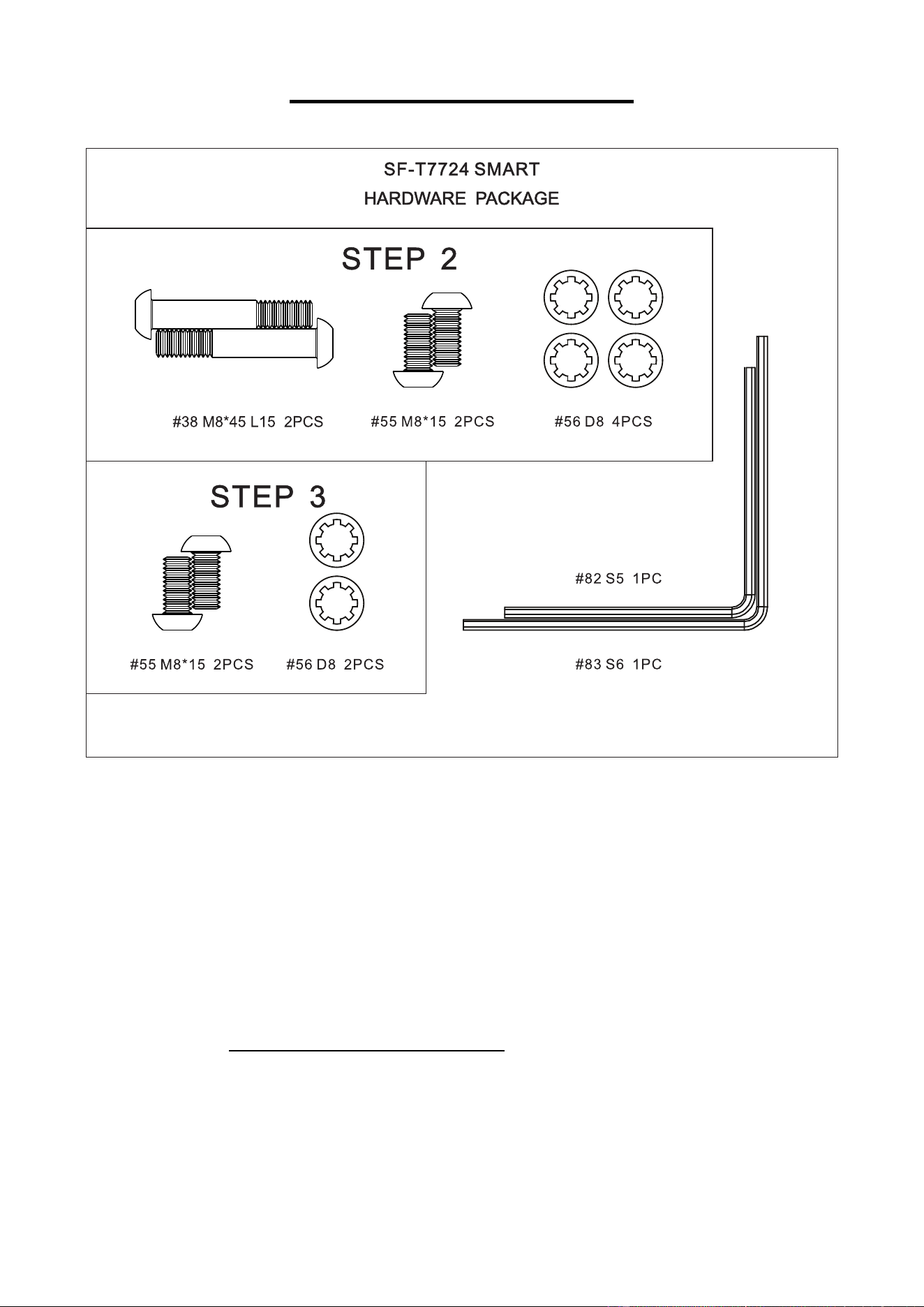

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓ The model number (found on cover of manual)
✓ The product name (found on cover of manual)

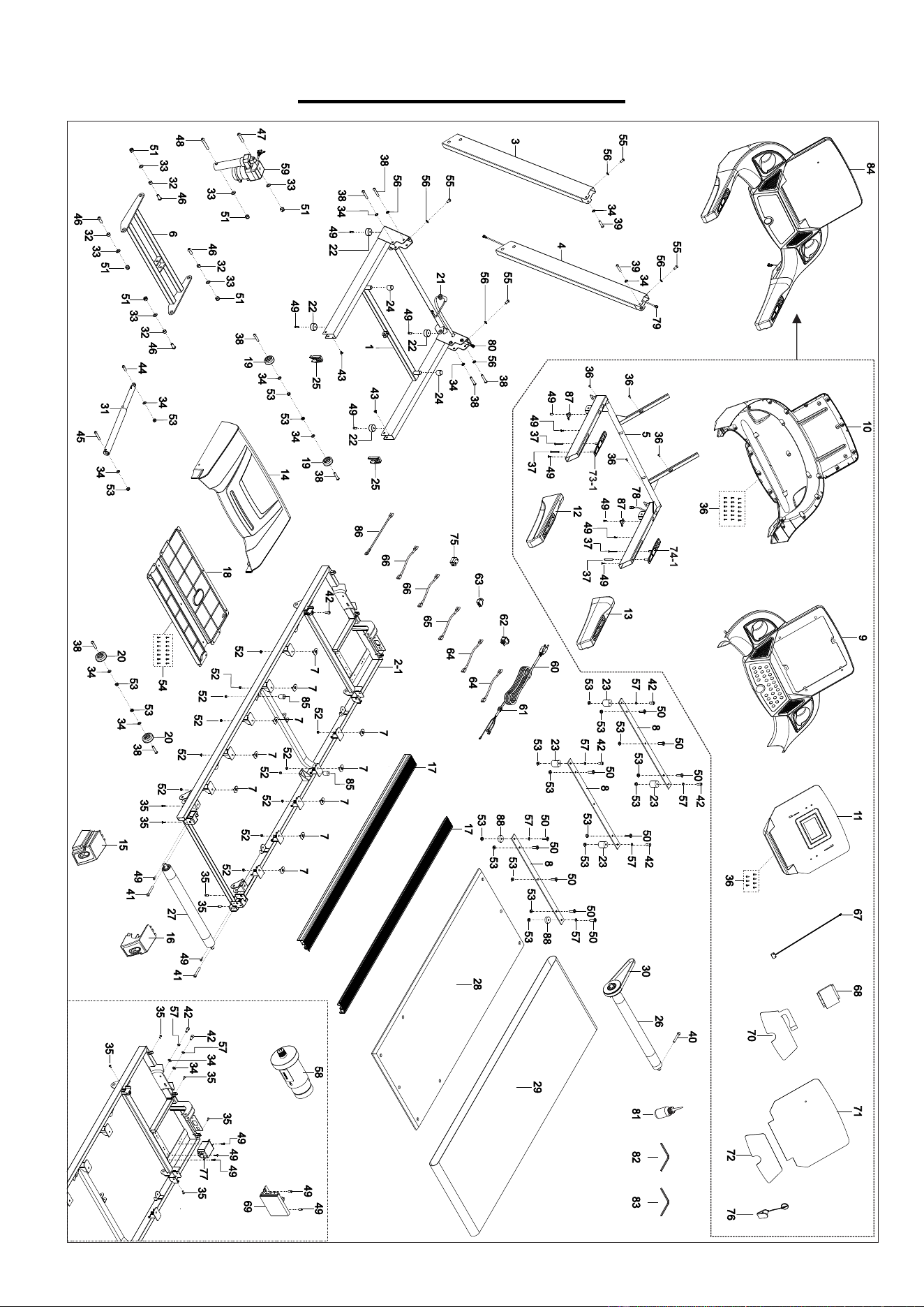

✓ The part number found on the “EXPLODED DIAGRAM” (page 20) and “PARTS LIST” (pages
21~22)
Please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).
4
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY (877-
907-8669).

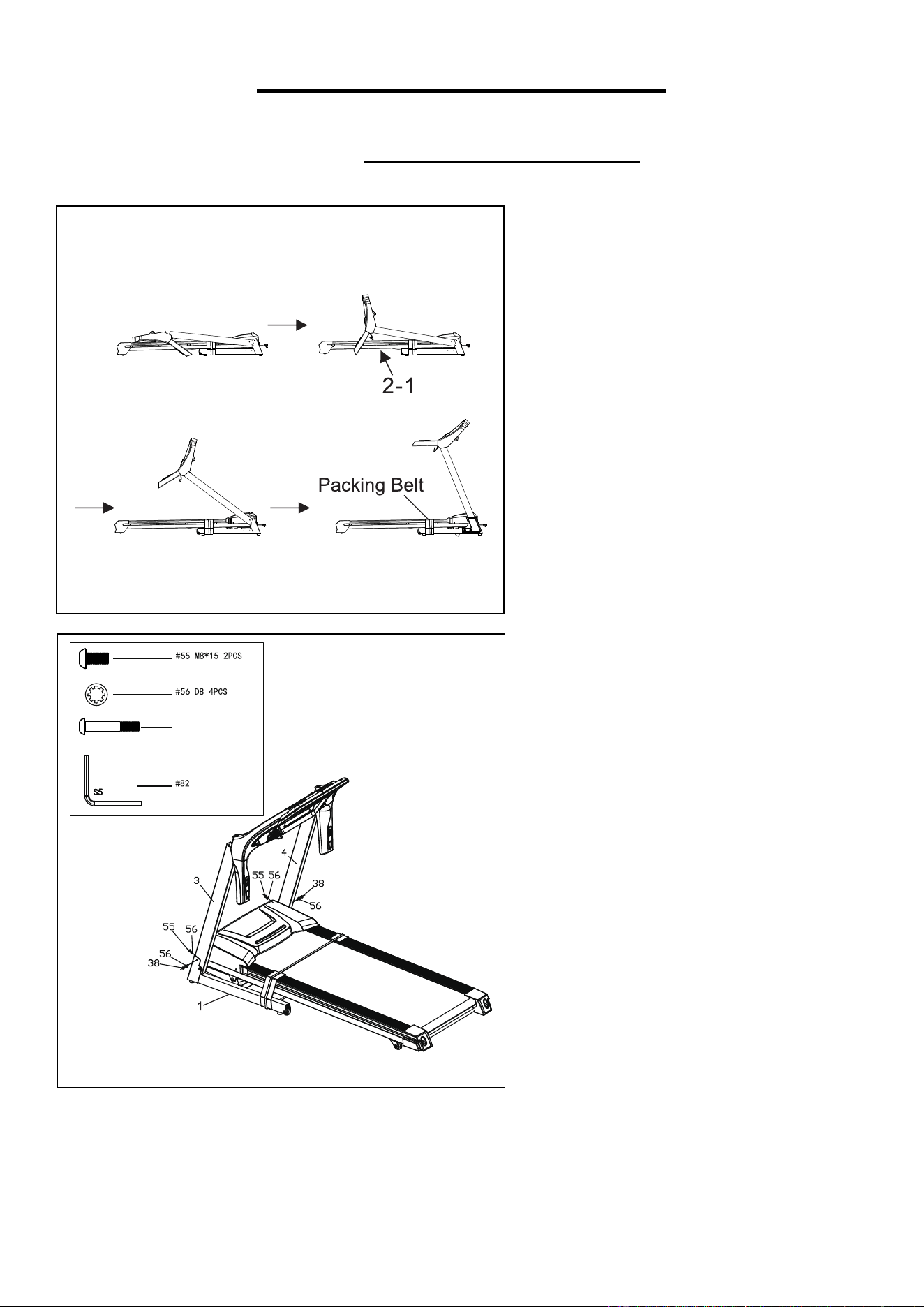

STEP 1:
Open the carton and take out all
contents. Place the Main Frame (No. 2-
1) on level ground and ensure that you
have a clean, adequate workspace.
Follow the diagram on the left to lift the
top console upright.
NOTE: Be careful not to puncture the
wires when unfolding! Do not remove the
packing belt yet.
STEP 2:
Secure the Left & Right Support Tubes
(No. 3 & No. 4) to the Base Frame (No.
1) using 2 Bolts (No. 55), 2 Bolts (No.
38), and 4 Serrated Gaskets (No. 56).
Tighten and secure with Allen Wrench
(No. 82).
#38 M8*45 L15 2PCS
5
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY (877-
907-8669).

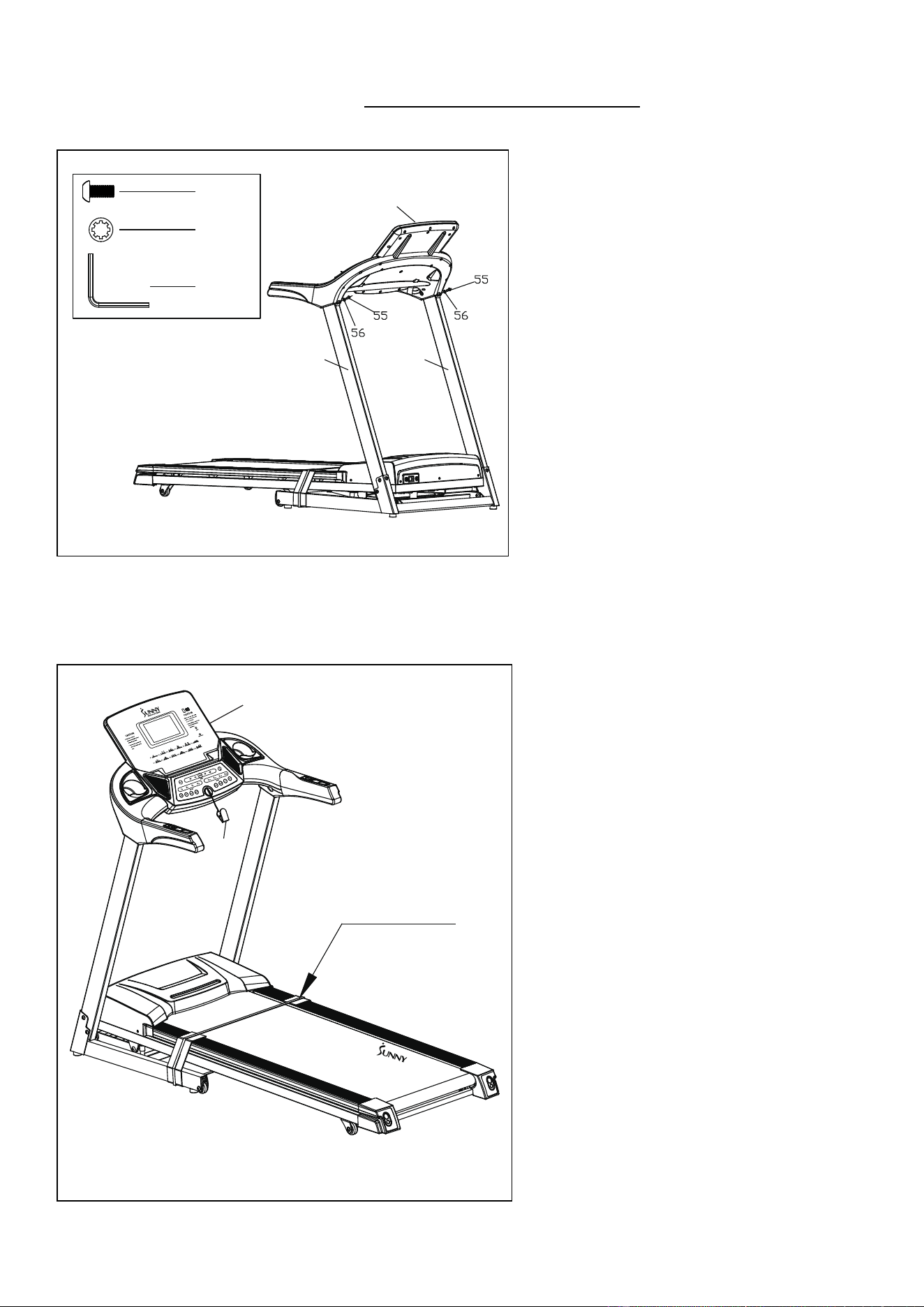

STEP 4:
You may now remove the packing
belt. Next, insert the Safety Key (No.
76) into the Top Console (No. 84).
NOTE: Attach the clip of the Safety Key
(No. 76) to your clothing when the
treadmill is in use.
NOTE: The running belt must be
lubricated before the first use! Please
see Page 6 for instructions on how to
properly apply lubricant.
The assembly is complete!
STEP 3:
Secure the Top Console (No. 84) to
Left & Right Support Tubes (No. 3 &
No. 4) using 2 Bolts (No. 55) and 2
Serrated Gaskets (No. 56). Tighten
and secure with Allen Wrench (No.
82).
845
84
3
84
4
3
#55 M8*15 2PCS
#56 D8 2PCS
#82
S5
Packing Belt
76
84
6
LUBRICATING THE TREADMILL
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use!
RUNNING BELT & TREADMILL LUBRICANT:
Lubricating the Running Belt (No. 29) & Running Board (No. 28) is essential as the friction
affects the life span and operations of the treadmill. Inspect the Running Belt (No. 29) regularly. If
you find any wear on the Running Board (No. 28), please contact us at:
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating, or
repairing the unit.

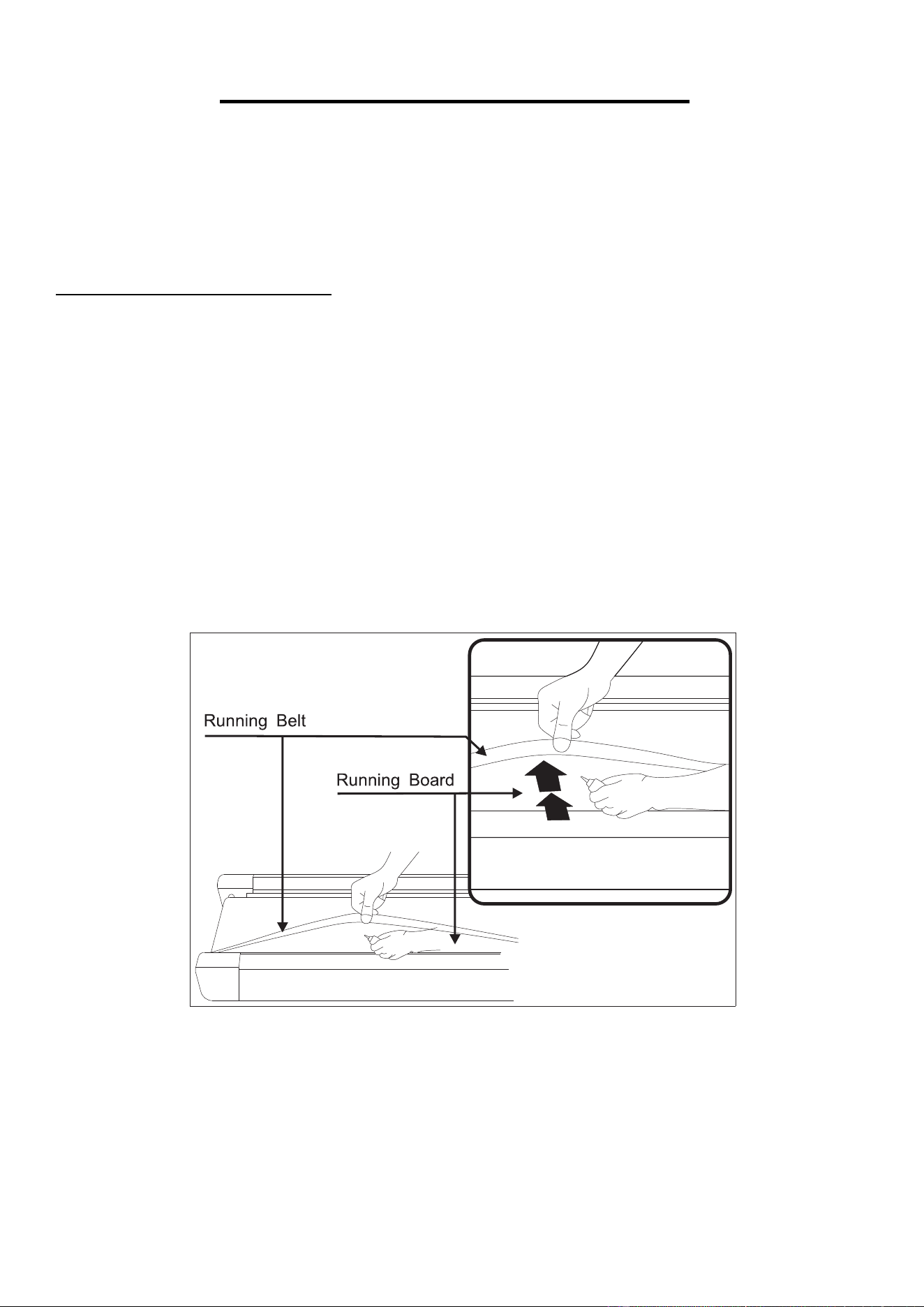

HOW TO LUBRICATE:
Raise the Running Belt (No. 29) up on one side and apply lubricant to the Running Board (No.
28). Use a rag to thoroughly wipe the lubricant over the Running Board (No. 28). Repeat this
process for the other side.
The following timetable is recommended:
Light user (less than 3 hours/ week) every 2 months
Medium user (3-5 hours/ week) every 45 days
Heavy user (more than 5 hours/ week) every month
NOTE:
DO NOT LOOSEN OR MAKE ANY ADJUSTMENTS TO THE RUNNING BELT WHILE
APPLYING LUBRICANT. A loose Running Belt (No. 29) will result in the runner sliding off during
use, while too tight of a Running Belt (No. 29) will negatively affect the motor’s performance and
create more friction between the roller and Running Belt (No. 29). The most suitable tightness for
the Running Belt (No. 29) is when it is pulled out 50-75mm from the Running Board (No. 28).
7
MAINTENANCE GUIDE
General cleaning will help to prolong the life and improve performance of your treadmill. Keep the
unit clean and maintained by dusting the components on a regular basis. Cleaning two exposed
sides of the Running Belt (No. 29) to prevent dust from accumulating underneath. Keep your
running shoes clean so no dirt will stay on the Running Board (No. 28) and Running Belt (No.
29). Clean the surface of the Running Belt (No. 29) by using a clean, damp cloth. Keep liquids
away from electrical parts and the Running Belt (No. 29).

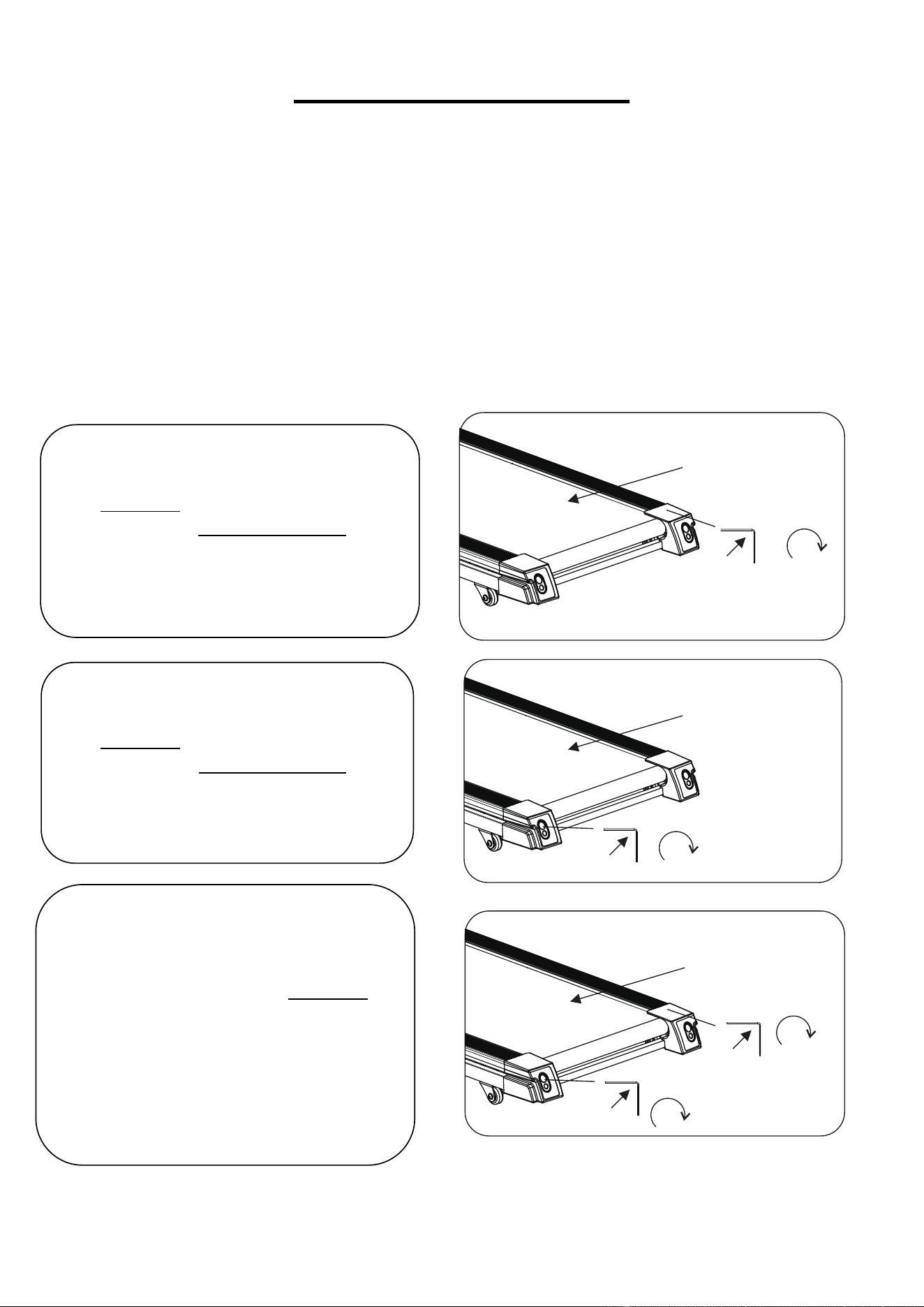

ADJUSTING THE RUNNING BELT
Place the treadmill on level ground and set it at 3-5 MPH (5-8 KM/H) to check and see if the
Running Belt (No. 29) drifts from the center. Adjust the Running Belt (No. 29) according to below
instructions with Allen Wrench (No. 83).
1. If the Running Belt (No. 29) drifts to
the right, turn the right adjusting bolt ¼
turn clockwise, then turn the left
adjusting bolt ¼ counter-clockwise. If
the Running Belt (No. 29) does not
move, repeat this step until it centers.
Refer to image A.
2. If the Running Belt (No. 29) drifts to
the left, turn the left adjusting bolt ¼
turn clockwise, then turn the right
adjusting bolt ¼ counter-clockwise. If
the Running Belt (No. 29) does not
move, repeat this step until it centers.
Refer to image B.
3. Over time, the Running Belt (No.
29) will loosen. To tighten the Running
Belt (No. 29), turn both the left & right
adjusting bolts one full turn clockwise.
Check the tension of the Running Belt
(No. 29). Continue this process until
Running Belt (No. 29) is at the correct
tension. Make sure to adjust both sides
equally to ensure even alignment.
Refer to image C.
83
29
A
83
29
B
83
29
83
C
8

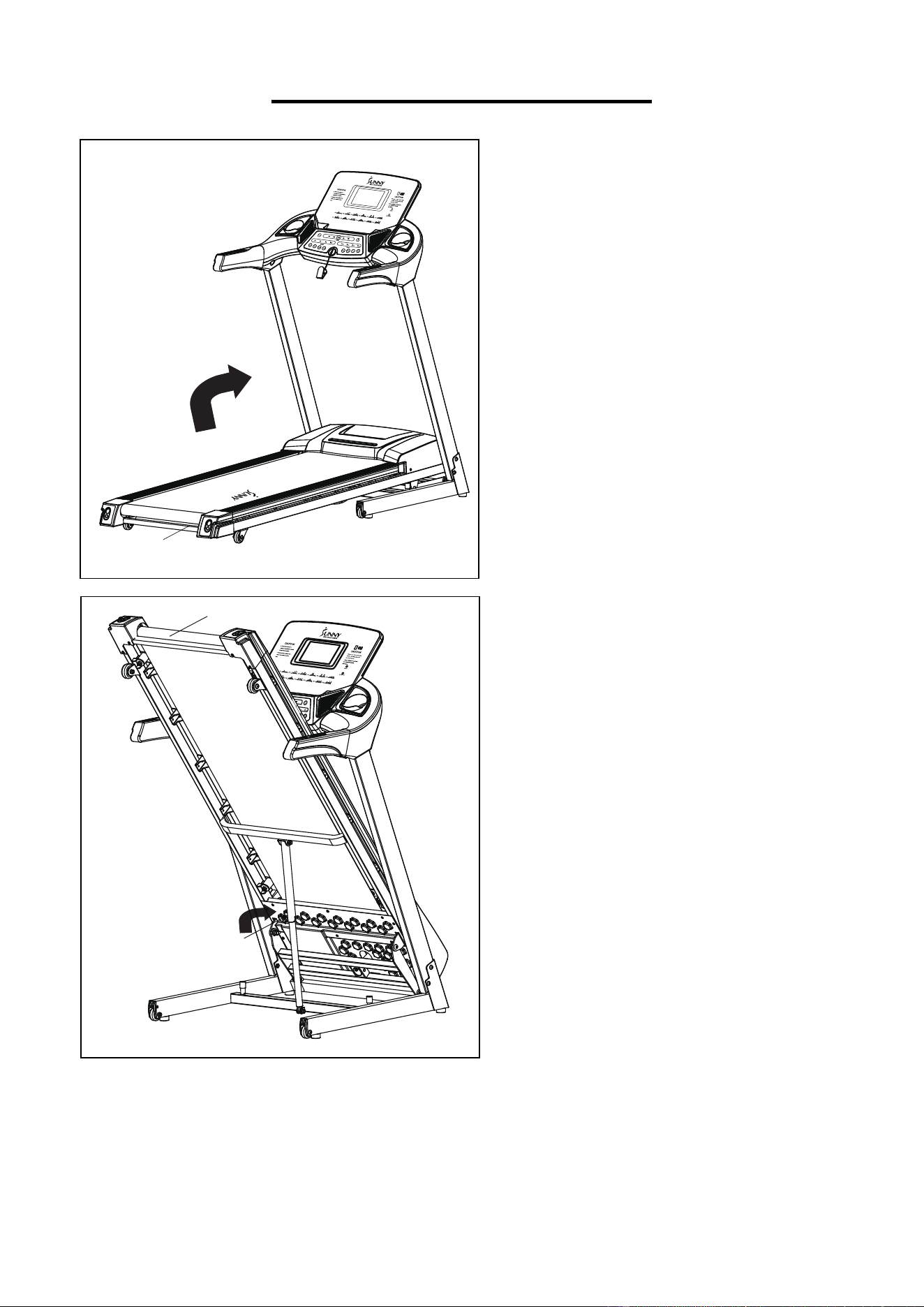

FOLDING INSTRUCTIONS
NOTE: Please make sure the incline is at
ZERO when folding and unfolding.
FOLDING:
To fold the treadmill, place your hands at
the end of the Running Board (No. 28)
and lift the Running Board (No. 28) all the
way up until you hear the safety lock “Click”
from the Cylinder (No. 31).
UNFOLDING:
To unfold the treadmill, simply give the
Cylinder (No. 31) a light kick and pull down
the Running Board (No. 28) at the same
time. With its soft drop system, the treadmill
will unfold slowly.
(Please keep everyone and all pets away
from the treadmill when unfolding the
treadmill).
28
31
28
9

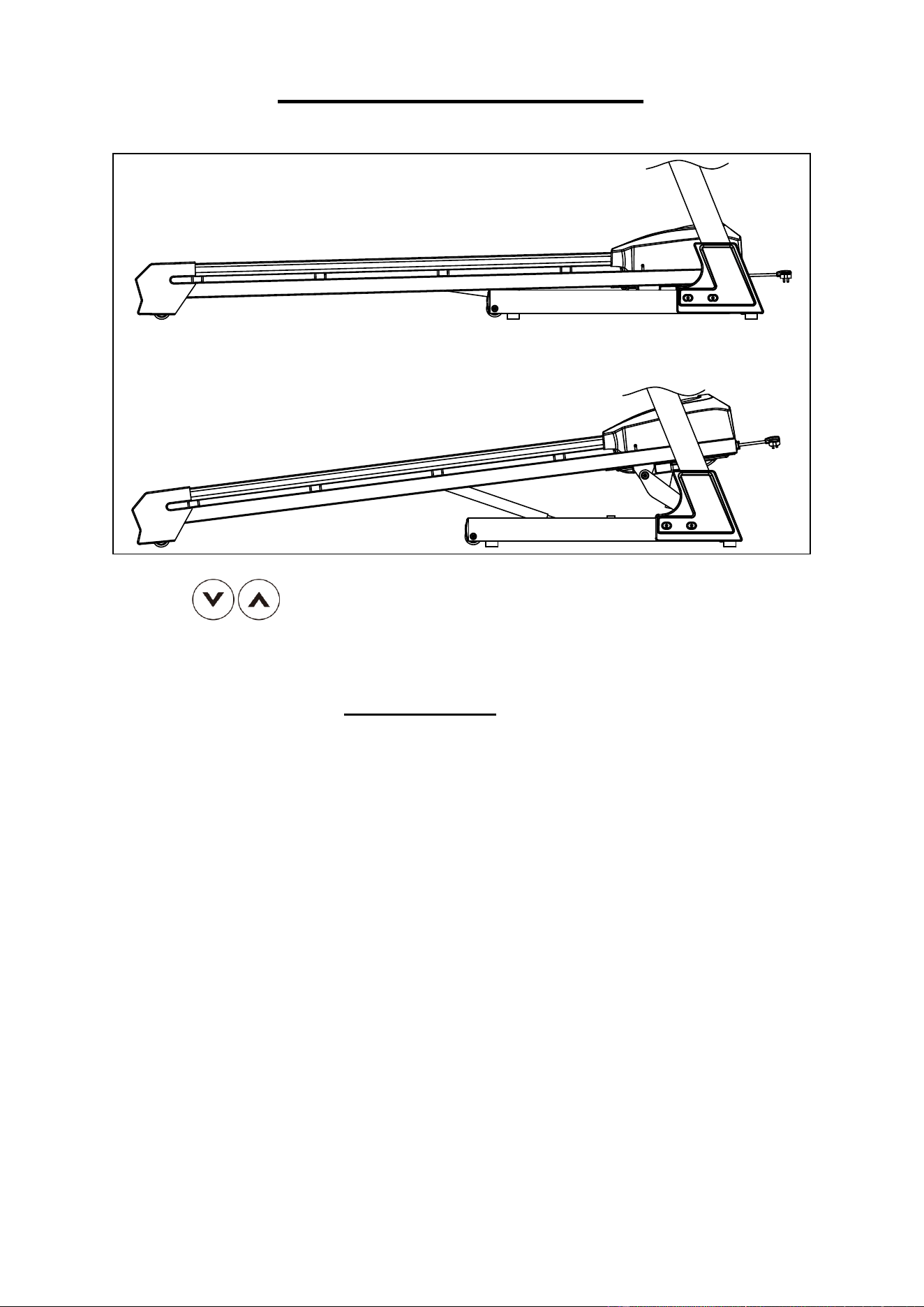

INCLINE INSTRUCTIONS

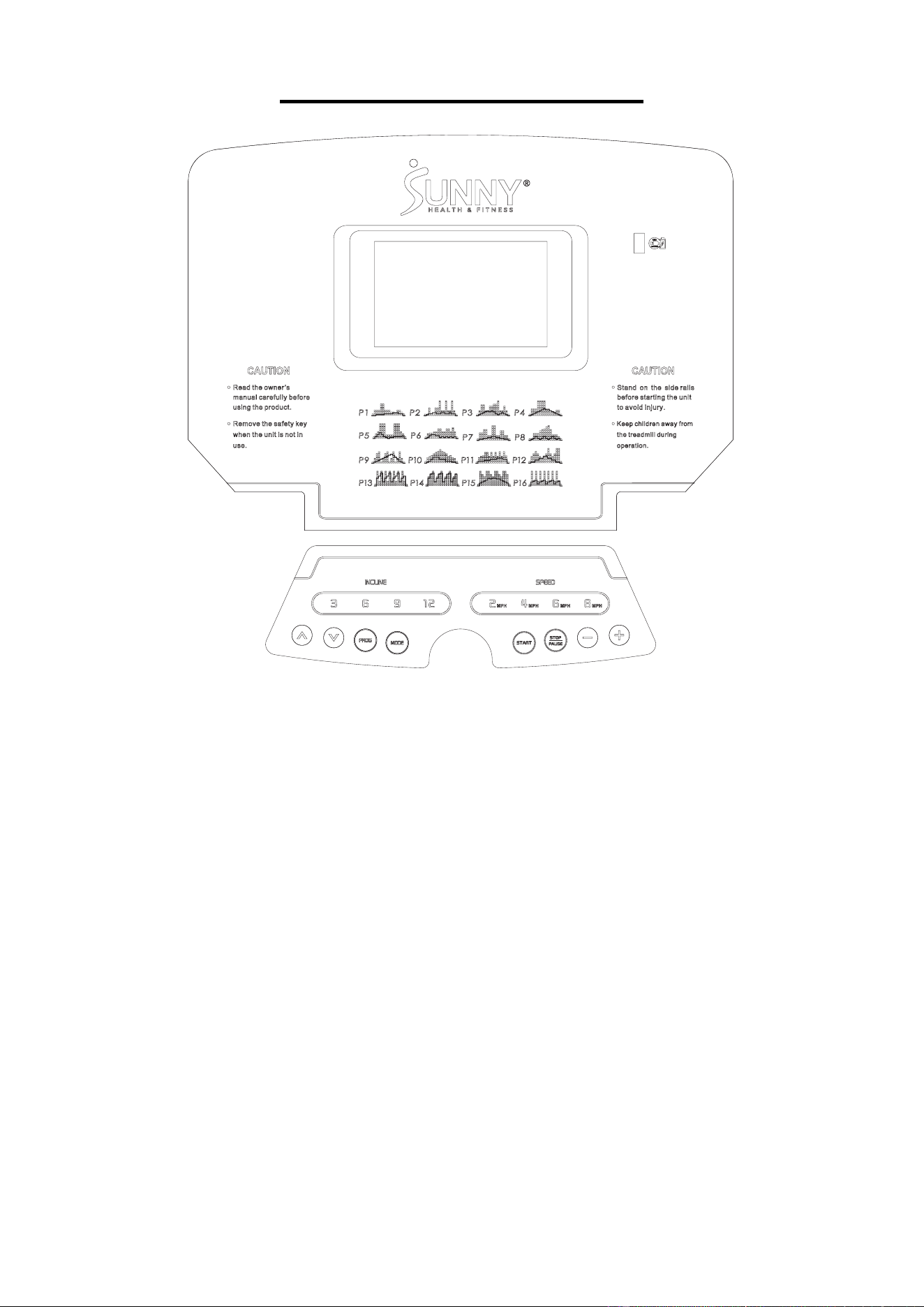

Console Keys and + - INCLINE Handrail Keys are used to control the incline level.
Increase or decrease the incline level by pressing the incline keys once per level or holding an
incline key down to skip through to the desired level.
INCLINE LEVELS
(0) = 2.23° (3.89%)
(1) = 2.49° (4.35%)
(2) = 2.70° (4.71%)
(3) = 2.93° (5.12%)
(4) = 3.14° (5.48%)
(5) = 3.36° (5.87%)
(6) = 3.62° (6.38%)
(7) = 3.88° (6.78%)
(8) = 4.15° (7.25%)
(9) = 4.45° (7.78%)
(10) = 4.79° (8.38%)
(11) = 5.14° (8.99%)
(12) = 5.51° (9.65%)
(13) = 5.94° (10.4%)
(14) = 6.42° (11.25%)
(15) = 6.80° (11.92%)
Quick 3, 6, 9, 12 INCLINE Keys give you the ability to instantly program a specific incline level
with the push of a key.
10

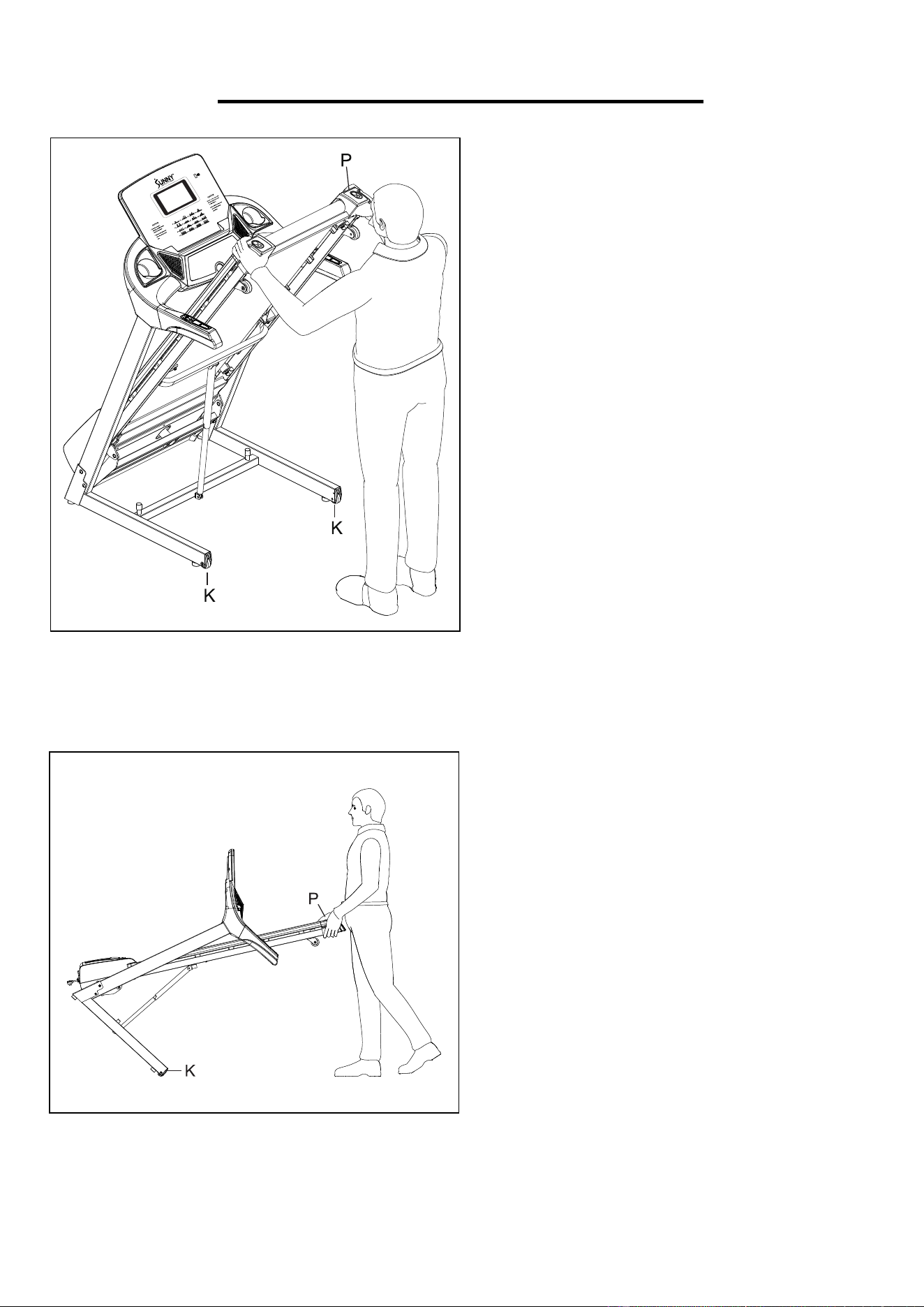

HOW TO MOVE THE TREADMILL
Before attempting to move the treadmill,
make sure that it has been properly folded.
Then, unplug the power cord.
To tilt, start by placing one hand at position
"P" to support the top end of the treadmill.
Next, place one foot at position "K" to hold
the bottom end of the treadmill steady. With
your foot at "K", slowly tilt the top of the
treadmill downward towards the ground.
Once the main frame "P" reaches a low
enough point, the transportation wheels of
the treadmill will touch the ground.
To transport, hold the treadmill from position
"P" and tilt until the transportation wheel’s
"K" are able to move on the ground.
11
IMPORTANT ELECTRICAL INFORMATION
IMPORTANT NOTE:
This treadmill requires a power source of 120 Volts in order to properly operate. For your safety,
as well as the safety of others, please verify that the power source is correct before powering the
equipment. Any power supply source above or below this level could cause significant damage to
the equipment and/or user.

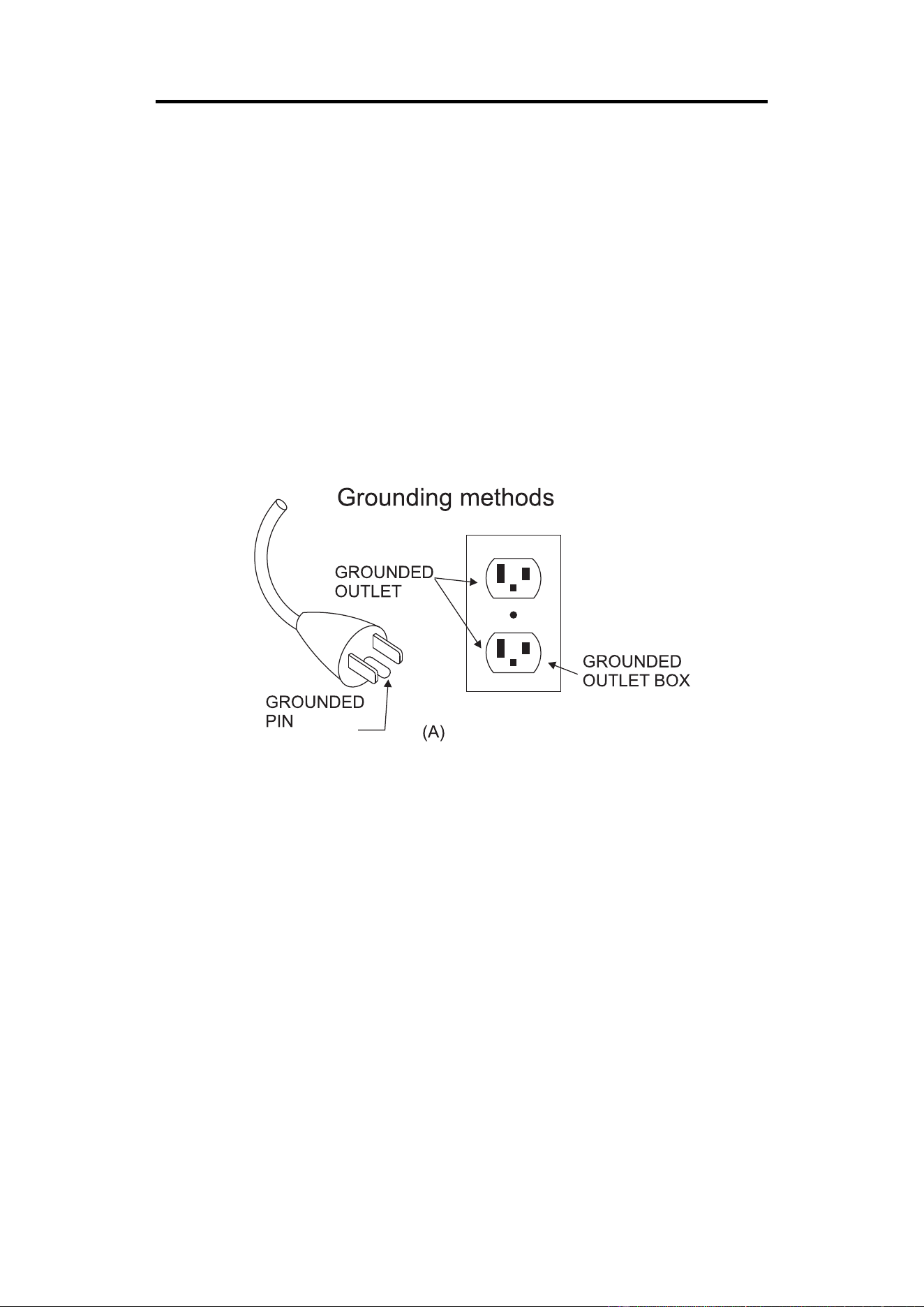

GROUNDING METHODS:
This product must be grounded. Should the treadmill malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric shock. This
product is equipped with a plug that has an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
CAUTION:
Improper connection of the equipment can result in risk of electric shock. Check with a qualified
electrician or serviceman if you are unsure whether the product has been properly grounded. Do
not modify the plug provided with this product. If it will not fit the outlet, have a proper outlet
installed by a qualified electrician. Ensure that the product is connected to an outlet with the same
configuration as the plug. Do not use an adaptor for this product.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) outlet with this treadmill. Route the power cord
away from all moving parts of the treadmill, including the Air Pressure Cylinder and transportation
wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover on this treadmill without first disconnecting the power cord.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for outdoor use
or use in any high humidity environment.
12
THE DISPLAY CONSOLE
DISPLAY
The treadmill will start after a 3 seconds countdown.
1. PROGRAM: In addition to manual mode, there are 16 preset programs (P1-P16) and 3 user
programs (U1-U3).
2. SPEED: The speed range is 0.6 MPH -10 MPH (1.0-16 KM/H). The initial default speed is 0.6
MPH (1.0 KM/H).
3. TIME: Displays the time elapsed (0:00-99:59 MINS). If the time reaches 99:59, the treadmill
will stop smoothly and display “End” then automatically reset to 0:00 after 10 seconds. When in
Countdown Mode, it will count from the set time to 0:00. When the clock reaches 0:00, the
treadmill will stop smoothly and display “End” then automatically reset itself after 10 seconds.
4. DISTANCE: Displays the total distance traveled or distance countdown (0.00-99.9 MILES)
(0.00 -99.9 KM). Displayed every 5 seconds.
5. CALORIES: Displays total calories burned or calories countdown (0.0-999 KCAL). Displayed
every 5 seconds.
6. INCLINE: Displays the current incline (0-15 INCLINE).
7. PULSE: Displays your pulse data when hands are placed on the sensors (50-200 BPM).
8. SAFETY KEY: The safety key lock acts as an emergency stop function. In case of emergency,
simply remove the Safety Key (No. 76) from the console and the console will beep twice and
bring the running belt to a complete stop.
9. STEP: Displays the total steps (1-99999 steps). Displayed every 5 seconds.
13
UNIT CONVERTIONS FROM IMPERIAL TO METRIC SYSTEM
First, remove the Safety Key (No. 76) from Top Console (No. 84) then press “PROG
(PROGRAM)” and “MODE” keys together for 5 seconds. The display will show “10.0” or “16.0”. For
Imperial System, return the Safety Key (No. 76) to Top Console (No. 84) when “10.0” is
displayed. For Metric system, return the Safety Key (No. 76) to Top Console (No. 84) when
“16.0” is displayed.
NOTE: If treadmill is converted to Metric System, speed and distance will be measured in
Kilometers and Kilometers/Hour.
FUNCTION KEYS/MANUAL MODE
1. START: Insert the Safety Key (No. 76) into the Top Console (No. 84) and press “START” key
to start the treadmill. The treadmill will initiate at the default running speed of 0.6 MPH (1.0
KM/H).
2. STOP/PAUSE: This key has functions of PAUSE and STOP. When in use, press this key once
to PAUSE your workout and the current workout data will still be shown. Press “STOP/PAUSE”
key again to terminate your workout session completely and all data will be deleted and reset to
the initial setting.
3. SPEED +/- KEYS: During use, use these keys to increase or decrease your speed. The speed
will adjust 0.1 MPH (0.1 KM/H) at a time.
4. PROG (PROGRAM) KEY: Press the “PROG (PROGRAM)” key while the treadmill is not
running to manually cycle through and choose a program. Programs range from P1-P16, and 3
personalized user programs U1-U3 and FAT calculation.
5. MODE: Press this key to choose which Countdown Mode to preset before starting the
treadmill.
a. Press the “MODE” key to set the desired H-1 (TIME), H-2 (DISTANCE), or H-3 (CALORIES)
setting to countdown from.
i. H-1 (TIME): Countdown is set at the initial time setting of 30:00 MINS. You may
increase or decrease the set time by pressing the SPEED +/- keys. The time setting
range is from 5:00-99:00 MINS.
ii. H-2 (DISTANCE): Countdown is set at the initial distance setting of 1.00 MILE (1.00
KM). You may increase or decrease the set distance by pressing the SPEED +/- keys.
The distance setting range is from 1.00-99.0 MILES (1.00-99.0 KM).
iii. H-3 (CALORIES): Countdown is set at the initial calories setting of 50.0 KCAL. You
may increase or decrease the set calories by pressing the SPEED +/- keys. The
calories setting range is from 20.0-990 KCAL.
b. Press “START” key to begin this exercise.
6. 2MPH, 4MPH, 6MPH, 8MPH (QUICK SPEED KEYS): Use these quick speed keys to instantly
bring the running belt to the desired speed of 2MPH, 4MPH, 6MPH or 8MPH. If the treadmill is
converted to Metric System, the quick speed buttons will display 3 KM/H, 6 KM/H, 9 KM/H, 12
KM/H.
7. 3, 6, 9, 12 (QUICK INCLINE KEYS): Use these quick incline keys to instantly bring the
treadmill to an incline of 3, 6, 9, or 12.
8. USB CHARGER: Connect the USB input to charge your mobile device.
14
USER PROGRAMS (U1-U3):
User program is made up of 16 segments. You are allowed to personalize each segment of your
exercise by programming each individual segment’s time duration, desired speed, and incline.
1. Press the “PROG (PROGRAM)” key to select U1, U2, or U3.
2. Press “MODE” key to enter the setting mode and set the time of the 1
st
segment.
3. Next, set the desired speed of the 1
st
segment by pressing the SPEED +/- keys.
4. Set the incline by pressing the INCLINE +/- keys.
5. Press “MODE” key and your 1
st
segment is set.
6. Repeat the instructions above (3 to 5) until you’ve completed programming all 16 segments.
7. Press “START” key to save and start your exercise.
BODY FAT CALCULATION:
1. Press the “PROG (PROGRAM)” key until the window displays FAT.
2. Press “MODE” key to enter below by pressing the SPEED +/- keys to set the data accordingly:
a. F1 – Gender
b. F2 – Age
c. F3 – Height
d. F4 – Weight
3. Hold the hand pulse sensors, it will start calculating and provide you with your BODY FAT.
NOTE: Average Body Fat score is 20-25
F1
Sex
01 MALE
02 FEMALE
F2
Age
10 to 99 years old
F3
Height
40----80 inches (100-220 cm)
F4
Weight
44----330 lbs (20-150 kgs)
F5
Body Fat
≤19
Underweight
Body Fat
=(20---25)
Average Weight
Body Fat
=(26---29)
Overweight
Body Fat
≥30
Obesity
15
PROGRAMS
Each program is divided into 16 exercise segments in an equal time division. Please use below
chart for Imperial or Metric system.
Program in Imperial System (Miles/Hour)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
SPEED 1.2 3.1 3.1 3.1 6.2 6.2 3.1 3.1 3.1 1.9 1.9 1.2 3.1 3.1 1.9 1.2
INCLINE 0 0 1 1 1 1 2 2 2 2 3 3 3 2 2 0
SPEED 1.2 1.2 4.3 1.2 1.2 4.3 4.3 7.5 2.5 2.5 7.5 2.5 2.5 7.5 2.5 1.2
INCLINE 0 1 2 2 3 3 2 2 3 3 2 2 3 2 2 0
SPEED 1.2 2.5 5.6 5.6 2.5 2.5 5 5 6.2 6.2 7.5 2.5 2.5 5 2.5 1.2
INCLINE 0 1 2 3 4 5 4 5 4 2 1 2 3 2 1 0
SPEED 1.2 3.7 3.7 3.7 7.5 7.5 7.5 7.5 3.7 3.7 1.9 1.9 1.9 3.1 3.1 1.2
INCLINE 0 1 2 3 4 5 6 7 6 6 5 4 3 2 1 0
SPEED 1.2 2.5 3.7 7.5 7.5 7.5 1.9 1.9 1.9 1.9 7.5 7.5 7.5 3.7 2.5 1.2
INCLINE 0 2 4 6 4 2 1 0 1 1 2 2 2 2 3 0
SPEED 1.2 2.5 3.1 3.1 3.7 3.7 5 5 3.7 3.7 5 5 3.7 5.6 3.7 1.2
INCLINE 0 1 3 4 4 3 3 1 2 1 2 1 2 1 2 0
SPEED 1.2 4.3 4.3 5.6 5.6 2.5 2.5 7.5 7.5 2.5 2.5 5 5 2.5 2.5 1.2
INCLINE 0 1 1 2 2 3 3 4 4 3 3 2 2 1 1 0
SPEED 1.2 1.2 3.7 3.7 3.7 5 5.6 6.2 6.8 7.5 5.6 3.1 3.1 3.1 1.9 1.2
INCLINE 0 1 2 4 2 1 2 4 2 1 2 4 2 1 2 0
SPEED 1.2 2.5 5 6.2 1.2 2.5 5 6.2 1.2 2.5 6.2 1.2 2.5 6.2 2.5 1.2
INCLINE 0 1 2 3 4 5 6 7 8 9 8 6 4 2 1 0
SPEED 1.2 3.1 3.7 4.3 5 5.6 6.2 6.8 6.2 5.6 5 3.7 4.3 3.1 2.5 1.2
INCLINE 0 1 2 4 6 6 6 4 4 4 2 2 2 1 1 0
SPEED 1.2 3.1 3.7 4.3 5.6 5.6 3.7 5.6 3.7 5.6 3.7 6.2 3.7 6.2 4.3 1.2
INCLINE 0 2 2 2 3 3 3 4 4 4 5 5 5 4 4 0
SPEED 1.2 3.7 5 6.2 5 3.7 2.5 3.7 5 7.5 5 3.7 5 7.5 7.5 1.2
INCLINE 0 1 1 3 3 5 5 7 7 5 5 3 3 1 1 0
SPEED 1.2 7.5 2.5 7.5 2.5 7.5 2.5 7.5 2.5 7.5 2.5 7.5 2.5 7.5 2.5 1.2
INCLINE 0 8 10 13 4 8 10 13 4 8 10 13 4 8 10 0
SPEED 1.2 5 6.2 7.5 2.5 5 6.2 7.5 2.5 5 6.2 7.5 2.5 5 6.2 1.2
INCLINE 0 8 12 13 4 8 12 13 4 8 12 13 4 8 12 0
SPEED 1.2 7.5 6.2 5 7.5 7.5 6.2 5 7.5 7.5 6.2 5 7.5 7.5 6.2 1.2
INCLINE 0 3 4 5 6 8 7 8 8 7 7 6 5 4 3 0
SPEED 1.2 7.5 2.5 7.5 2.5 7.5 2.5 7.5 2.5 7.5 2.5 7.5 2.5 7.5 2.5 1.2
INCLINE 0 4 5 6 2 4 5 6 2 4 5 6 2 4 5 0
P16
P10
P11
P12
P13
P14
P15
P4
P5
P6
P7
P8
P9
P1
P2
P3
SET TIME/16
16

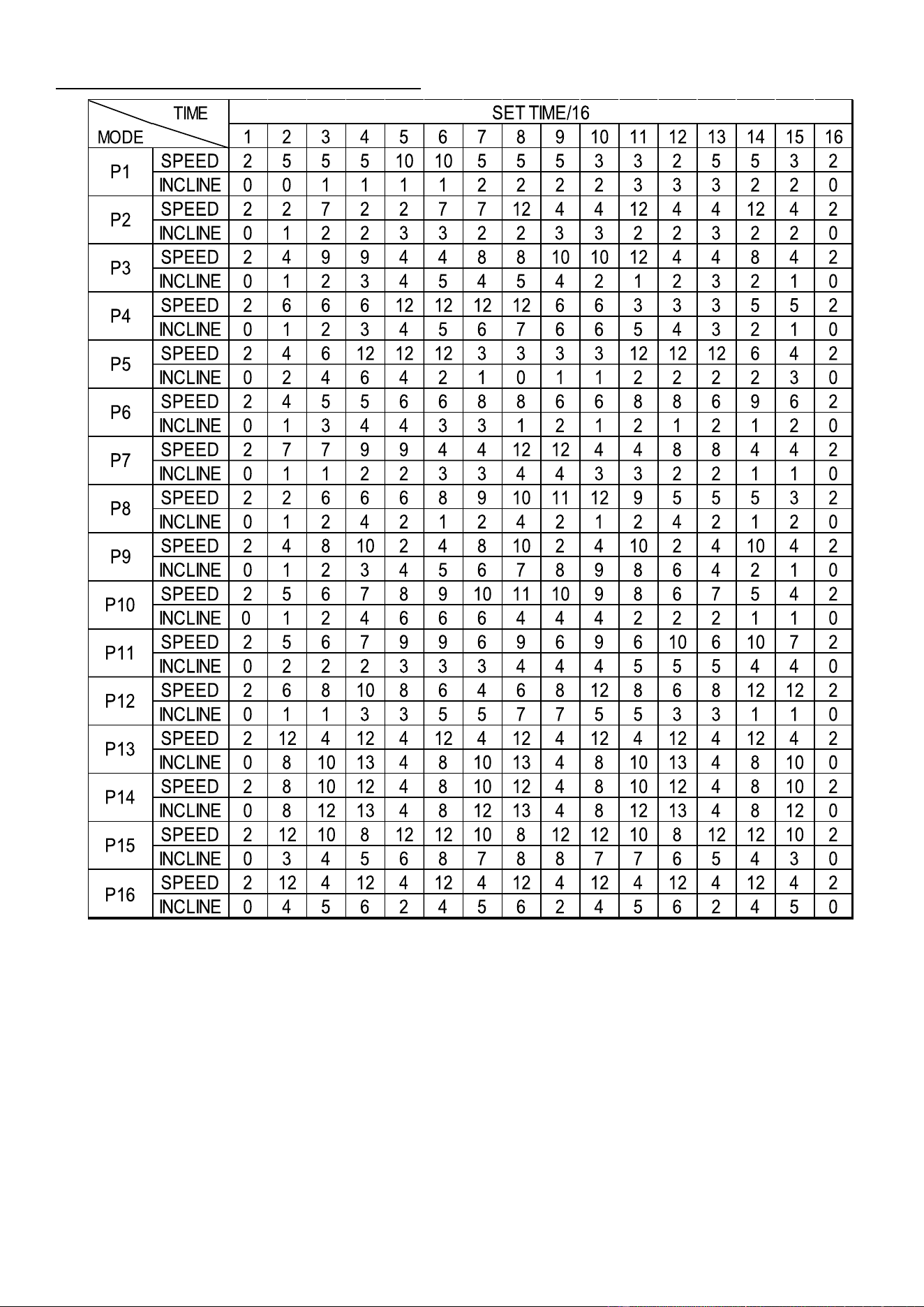

Program in Metric System (Kilometers/Hour)
17
APP CONNECTION
CONNECT SMART EQUIPMENT TO SUNNYFIT APP:
1. Scan to download SunnyFit from the app store
.
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your
free SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen
prompts to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your course/session,
and recorded in your account profile!
TROUBLESHOOTING:
1. If you are having trouble connecting your smart equipment, visit www.sunnyfit.com/guide or
scan the QR code below:
2. If you require additional support, please contact [email protected].
TECHNICAL DATA
Connectivity: Bluetooth LE
Frequency Range: 2400~2483.5 Mhz
Transmitting Power: 0 dBm
18
EXERCISE INSTRUCTIONS
GETTING STARTED:
Before starting any exercise programs, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the treadmill properly. Be aware of your body’s signals. Incorrect or excessive exercise can
damage your health. Stop exercising immediately if you experience any of the following symptoms:
pain, tightness in your chest, irregular heartbeat, extreme shortness of breath, lightheadedness,
dizziness, or feelings of nausea.
Turn on the power switch located next to the power cord. Get to know your treadmill. Before
attempting to use the treadmill, take some time to stand alongside it and familiarize yourself with
the controls. Once you feel comfortable to get on, you can stand with your feet on the foot rails and
balance yourself by putting your hands on the handrails.
Next, attach the clip end of the Safety Key (No. 76) to your clothing and insert the magnetic end of
the key into the console. Press the “START” key to start the treadmill. The treadmill will start at the
default speed of 0.6 MPH (1.0 KM/H). Once you feel comfortable, you may slowly increase the
speed. When you are finished with your exercise, press the “STOP/PAUSE” key or remove the
magnetic end of Safety Key (No. 76) to stop the treadmill.
SAFETY LOCK:
Remove the Safety Key (No. 76) from the console to stop the treadmill immediately. Once the
treadmill reaches a full stop, the window display on the console will show “---“and the treadmill will
beep. To start the treadmill again, insert the magnetic end of Safety Key (No. 76) into the console
and press “START” key.
POWER SAVE FUNCTION:
Once the treadmill has been inactive for 10 minutes, it will adjust to Power Saving Mode. When the
treadmill is in Power Saving Mode, the window display on the console will shut off. To reactivate,
press any key.
POWER OFF:
Power to the treadmill can be turned off at any time without risk during or after an exercise.
CAUTION!
1. We recommend that you maintain a slow speed at the beginning of a session and hold the
handrails until you become comfortable and familiar with the treadmill.
2. Insert the magnetic end of the Safety Key (No. 76) into the console and attach the opposite
end with the safety clip to your clothing before beginning your workout. To end your workout,
press the “STOP/PAUSE” key or remove the Safety Key (No. 76). The treadmill will stop
immediately.
19
TROUBLESHOOTING
Code
Description
How to Troubleshoot
-----
Safety key fault.
1. Insert the safety key properly.
2. Replace the safety key sensor or safety key. If
there is still a problem, replace the console.
E01
Communication abnormality:
no communication from the
console to the control board.
Possible Reasons: Communication obstructed
between control board and console, please check
to make sure the wires are connected properly, and
the wires are without any punctures or damage.
If this does not resolve the issue, check the control
board and PCB IC to see if there’s any damage.
Replace if necessary.
E02
Motor fault or control board
fault.
1. Check if the motor wire is well connected.
Reconnect the wire and restart.
2. Check the motor or the control board for any
damage. Replace if necessary.
E04
Incline failure: the incline
wire is damaged or the wire
for the incline motor is not
properly connected.
Check incline motor sensor wire and AC wire to
see if they are properly connected. Make sure the
incline motor wire does not have any punctures or
damage.
E05
Current overload protection.
Possible Reasons: Excessive current load, the
incoming voltage is too low or too high. The control
board is damaged. A moving part of the treadmill is
stuck, and the motor is unable to function properly.
Press the Overload Protector (No. 63) to restart
the treadmill. Also, check if there’s any burnt odors
around the motor and control board. Make sure the
power and voltage comply with the standard.
Inspect moving parts to ensure they are operating
correctly. Listen for unfamiliar noises from the
motor.
E06
Burst clash protection.
Possible Reasons: The power voltage is less than
normal by 50% or the controller has problems.
Make sure the motor wires are connected. Check
the control board for any damage or burnt odors.
Replace if necessary.
No display
in console
Control board abnormality.
1. Check if the overload button switch is off, if so,
press it to turn it on.
2. Check the wire on the power switch, overload
protector, and control board to see if it is
connected properly.
3. Check the console wires and all cables between
the console and control board.
4. Check the transformer and replace if necessary.
20
EXPLODED DIAGRAM
-1
-1
-1
-1
21
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Base Frame
1
39
Bolt
M8*35
2
2-1
Main Frame
1
40
Bolt
M8*50
1
3
Left Support Tube
1
41
Bolt
M8*55
2
4
Right Support Tube
1
42
Roundhead Hex Bolt
M8*15
7
5
Computer Bracket
1
43
Screw
ST4.2*8
2
6
Incline Bracket
1
44
Bolt
M8*25
1
7
Side Rail Support
10
45
Bolt
M8*45 L10
1
8
Retainer Plate
3
46
Bolt
M10*25
4
9
Computer Upper Cover
755*537*115
1
47
Bolt
M10*45
1
10
Computer Bottom Cover
755*559*138
1
48
Bolt
M10*60
1
11
Computer Panel
429*337*20
1
49
Screw
M5*15
17
12
Left Handrail Bushing
323*97*54
1
50
Screw
M8*30
10
13
Right Handrail Bushing
323*97*54
1
51
Lock Nut
M10
6
14
Motor Cover
607*396*123
1
52
Lock Nut
M6
12
15
End Cap (L)
133*96*91
1
53
Lock Nut
M8
20
16
End Cap (R)
133*96*91
1
54
Screw
ST4.2*19
14
17
Side Rail
1215*70*17
2
55
Half-roundhead Hex
Bolt
M8*15
4
18
Motor Bottom Cover
605*345*22
1
56
Serrated Gasket
D8
6
19
Transportation Wheel
Ø45*Ø8.2*20
2
57
Spring Washer
M8
8
20
Moving Wheel
Ø51.5*Ø8.2*22
2
58
DC Motor
1
21
Cable Protector
Ø24*Ø18*9
1
59
Incline Motor
1
22
Flat Foot Pad
Ø31*Ø6*16
4
60
Power Line
2100mm
1
23
Cushion
Ø30*32*M8
4
61
Power Line Plug
6N-3
1
24
Round Cushion
Ø20*Ø16*17.5
2
62
Power Switch
250V/16A
1
25
Transportation Wheel
Cover
60*30*18.8
2
63
Overload Protector
250V/16A
1
26
Front Roller
46*558
1
64
Single Blue Wire
250mm
2
27
Rear Roller
46*550
1
65
Single Blue Wire
100mm
1
28
Running Board
1210*480*18
1
66
Single Brown Wire
250mm
2
29
Running Belt
2785*460*1.6
1
67
Safety Key Sensor
1
30
Motor Belt
210-J6
1
68
Computer Chip
1
31
Cylinder
610*260-35 kgs
1
69
Controller
1
32
Incline Bushing
Ø15*Ø10*9
4
70
Metal Dome Array
1
33
Flat Washer
Ø20*Ø 10.5*2
6
71
Overlay
1
34
Flat Washer
Ø16*Ø 8.5*1.2
12
72
Key Panel Sticker
1
35
Screw
ST4.2*13
9
73-1
Incline Hand Pulse
1
36
Screw
ST4.2*16
29
74-1
Speed Hand Pulse
1
37-1
Screw
ST4*35
4
75
Magnetic Ring
1
38
Bolt
M8*45 L15
8
76
Safety Key
1
22
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
77
Filter
10A
1
83
Allen Wrench
S6
1
78
Upper Computer Wire
1
84
Top Console
1451G
1
79
Middle Computer Wire
1
85
Cushion
Ø20*20*M6
2
80
Lower Computer Wire
1
86
Grounded Line
1
81
Silicone Oil
1
87
Computer Cover Support
2
82
Allen Wrench
S5
1
88
Round Cushion
Ø30*Ø8.2*10
2
Version
2.1
