Fast Fit Air Supply Ring Main System
Install your own workshop compressed air ring main quickly and easily with our fast fit compressed air fittings.
A professional compressed air system can be installed quickly and easily, considerably reducing the need for specialist staff and with extensive
disruption and downtime reduced to a minimum.
Lightweight yet strong acetal copolymer fittings and
nylon pipe runs make handling and assembly far
easier than for an equivalent system in galvanised steel.
The system is:
Quick to install save up to 40% in time and cost
Safe, secure and leak proof
Simple to reconfigure
Lightweight and easy to handle
Corrosion resistant and maintenance free
Available in 15 and 22mm OD
Simple push action pipe fittings do away with preparing
threaded tubes or applying solvents and the installed
system is immediately ready for use.
Complex pipe and fitting configurations are also assembled
more rapidly since the fittings can be disassembled and
reconfigured in a flash.
WARNING!
This system MUST NOT be used with explosive
gases, petroleum spirits or other fuels.
It is also not suitable for central heating systems.
2.1. Pipe (Nylon 12, Blue)
Pipe OD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15mm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22mm
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3mtr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3mtr
Max/Min. Working Temperature . . . . . . . . . . . . . . . . . . . . . . . . . .+70/-20
O
C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+70/-20
O
C
Max. Working Pressure . . . . . . . . . . . . . . . . . . . . .10 bar(145psi) @ <23
O
C . . . . . . . . . . . . . . . . . . . .10 bar(145psi) @ <23
O
C
7 bar(100psi) @ 23-70
O
C 7 bar(100psi) @ 23-70
O
C
Air Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40cfm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78cfm
2.2. Fittings
Bore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15mm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22mm
Acceptable Pipe OD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14.90-15.05mm . . . . . . . . . . . . . . . . . . . . . . . . . .21.90-22.05mm
Max. Torque (threaded fittings) . . . . . . . . . . . . . . . . . . . . . . . .3Nm (plastic) . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Nm (plastic)
4Nm (met
al) 5Nm (metal)
Note: Fittings may also be used with plastic and soft metal pipes provided that the outside diameter of the pipe is within the limits shown above and
the outer surface is good quality and undamaged.
AIR SUPPLY
RING MAIN SYSTEM
1. INTRODUCTION
2. SPECIFICATIONS
3.
JOINTING PROCEDURE

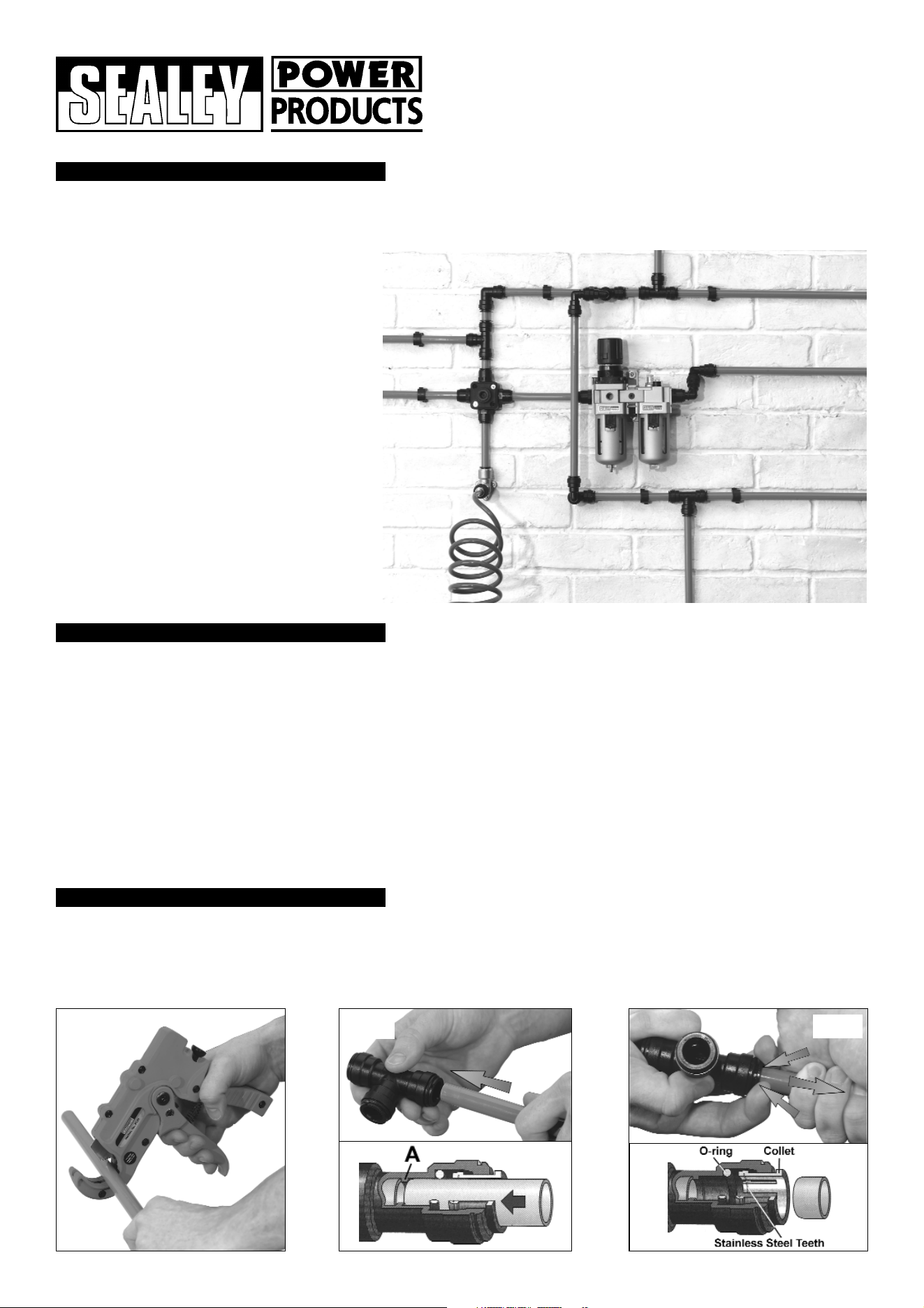

3.1.
The end of the pipe must be cut square and must be free from burrs and outer surface damage. To achieve this result for every joint use
the recommended Sealey Plastic Pipe Cutter PC35 (fig. 1).
3.2. Push the end of the pipe fully into the fitting (fig. 2). There is an internal stop in the fitting which the pipe end must contact (fig. 2.A).
3.3. Try to pull the pipe from the fitting to check that the joint has made correctly.
3.4. To disassemble a joint, press the collet rim down and hold while withdrawing the pipe (fig. 3).
fig. 1
fig. 2
fig. 3
AIR RING
MAIN
SYSTEM - 2 - 030305
5. SYSTEM COMPONENTS
4. INSTALLATION

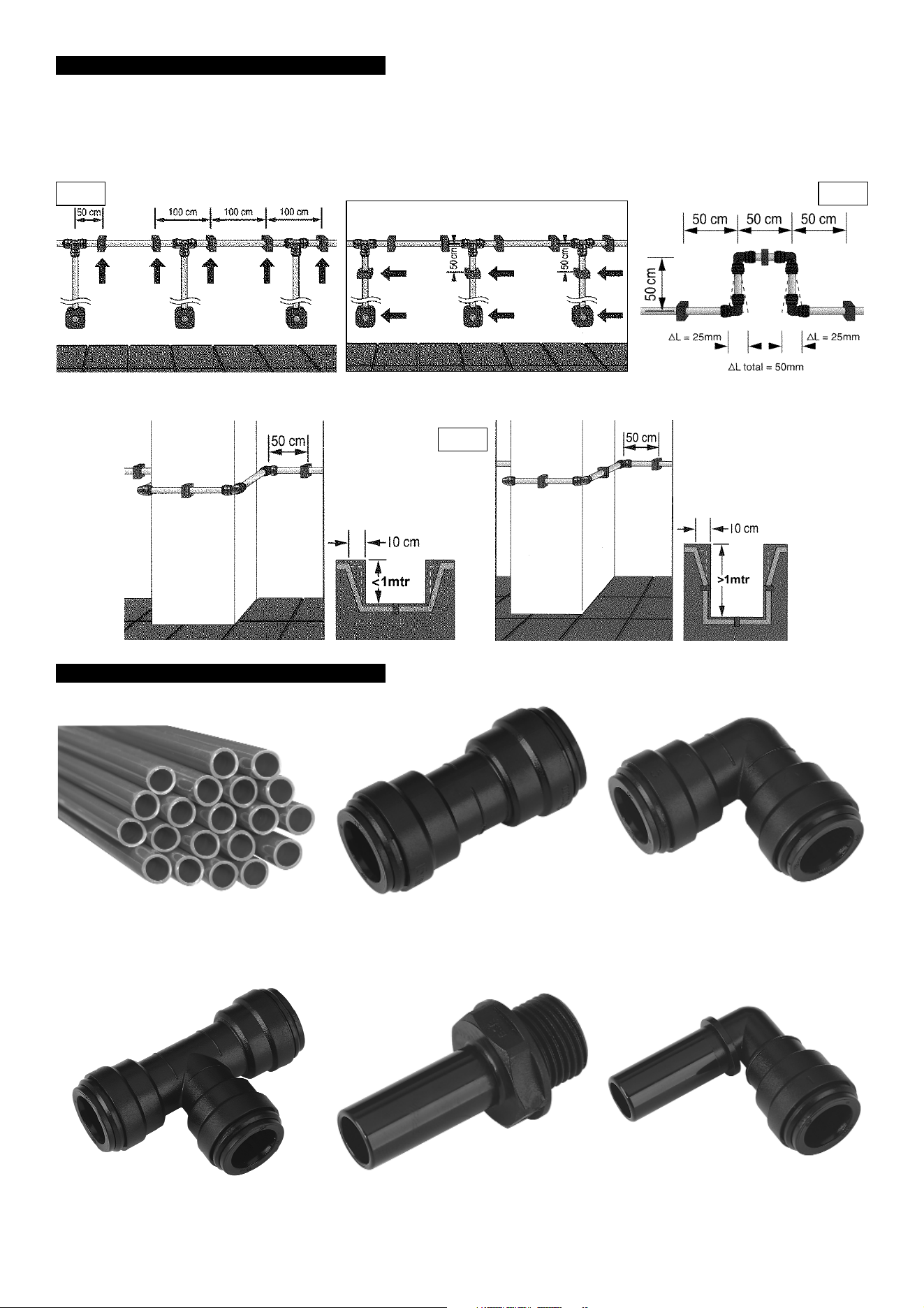

4.1. Clips and clip spacers are available to support the piping (see Section 5) and these should be used within the following parameters:
Distance between fitting centre and clip centre should be 50cm (fig. 4)
Distance between clip centres should be 100cm (fig. 4)
Clip horizontal runs first (fig. 4) and then clip vertical runs with the system lightly pressurised (fig. 5). This will ensure that vertical runs are vertical.
Long pipe runs should include an expansion loop every 25mtr (fig. 6).
fig. 4
fig. 5
fig. 6
CAS15NP 15mm x 3mtr Pipe - Pack of 5
CAS22NP 22mm x 3mtr Pipe - Pack of 5
CAS15ET 15mm Equal Tee - Pack of 5
CAS22ET 22mm Equal Tee - Pack of 5
CAS15SC 15mm Straight Connector
Pack of 5
CAS22SC 22mm Straight Connector
Pack of 5
CAS15EE 15mm Equal Elbow
Pack of 5
CAS22EE 22mm Equal Elbow
Pack of 5
CAS15STA 15mmx1/2BSP Stem Adaptor
Pack of 2
CAS22STA 22mmx3/4BSP Stem Adaptor
Pack of 2
CAS15SE 15mm Stem Elbow
Pack of 2
CAS22SE 22mm Stem Elbow
Pack of 2

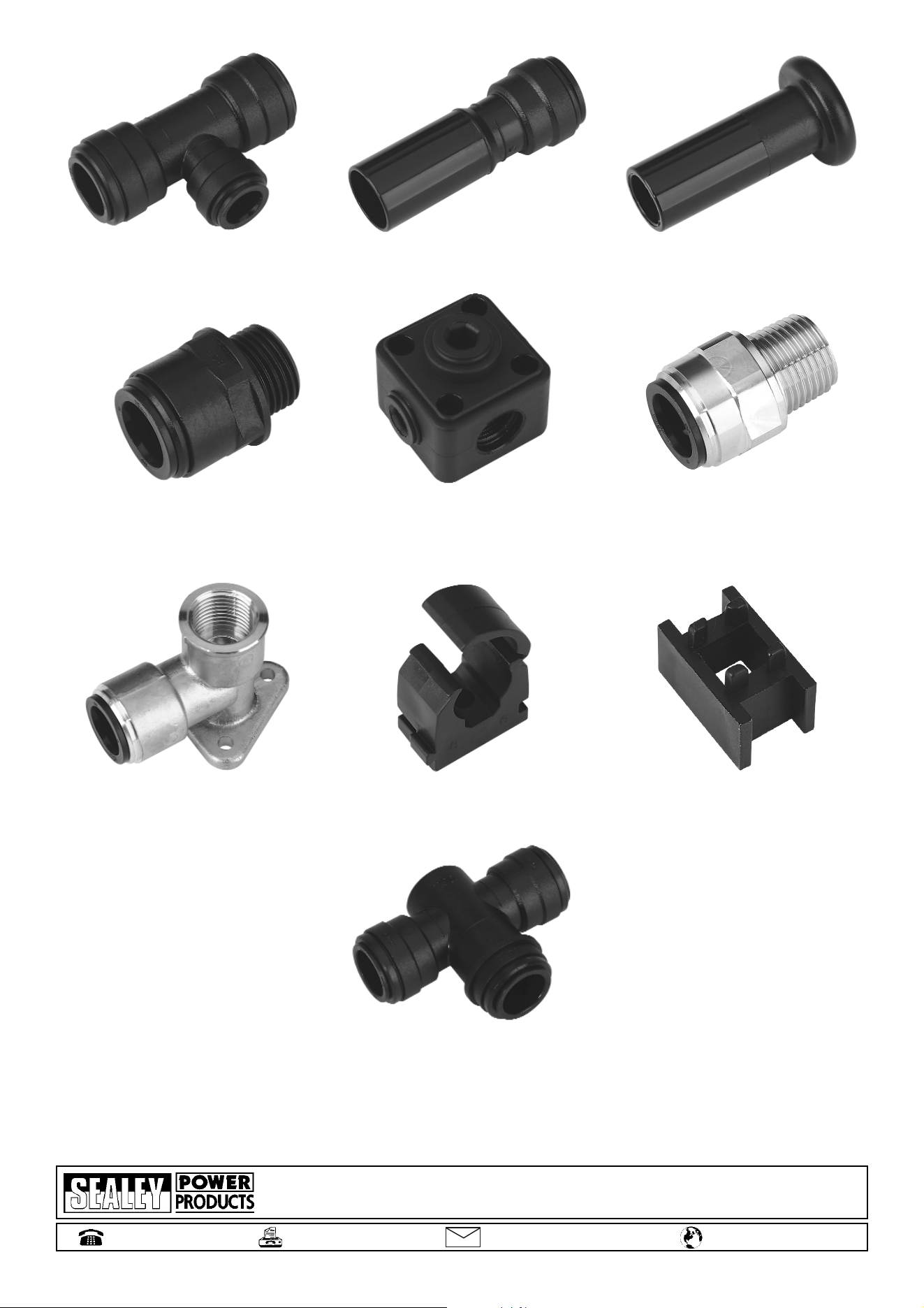

The Sealey CAS System offers the following components:
4.2. When routing pipe around pillars etc. gaps between the pipe and the pillar must be provided to allow for expansion, as shown in fig. 7.
fig. 7
AIR RING MAIN SYSTEM - 2 - 030305
CAS2215 22-15mm Reducer
Pack of 2
Sole UK Distributor,
Sealey Group,
Bury St. Edmunds, Suffolk.
01284 757500
sales@sealey.co.uk
www.sealey.co.uk
01284 703534
W
e
b
e-mail
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this equipment.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
CAS15BSA 15mmx1/2BSPT
Brass Straight Adaptor - Pack of 1
CAS22BSA 22mmx3/4BSPT
Brass Straight Adaptor - Pack of 1
CAS15BWE 15mmx1/2BSP
Brass Wingback Elbow - Pack of 1
CAS15SA 15mmx1/2BSP Straight Adaptor
Pack of 2
CAS22SA 22mmx3/4BSP Straight Adaptor
Pack of 2
CAS15P 15mm Black Plug - Pack of 5
CAS22P 22mm Black Plug - Pack of 5
CAS15PC 15mm Pipe Clip - Pack of 20
CAS22PC 22mm Pipe Clip - Pack of 20
CAS22BWE 22mmx3/4BSP
Brass Wingback Elbow - Pack of 1
CAS22WTT 22mm Water Trap
CASS Pipe Clip Spacer - Pack of 20
CASPB Porting Block
5x1/2BSP Connections + 3 Blanking
Plugs - Pack of 1
CAS2215T 22-15mm Reducing Tee
Pack of 5
AIR RING MAIN SYSTEM - 2 - 030305
