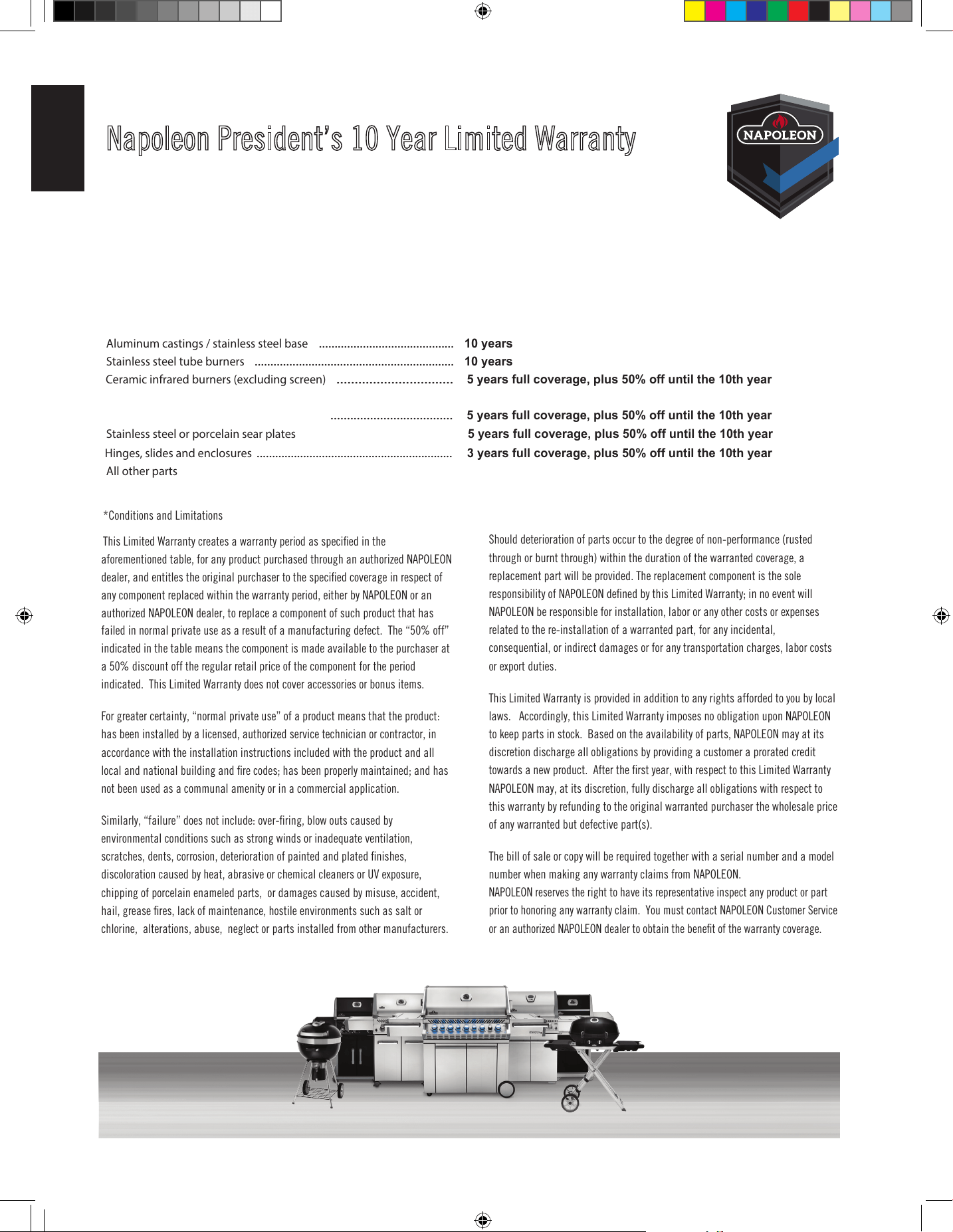

Napoleon President’s 10 Year Limited Warranty
NAPOLEON products are designed with superior components and materials, and are assembled by trained
craftsmen who take great pride in their work. This product has been thoroughly inspected by a qualified
technician before packaging and shipping to ensure that you, the customer, receive the quality product you
expect from NAPOLEON.
NAPOLEON warrants that components in your new NAPOLEON product will be free from defects in material and
workmanship from the date of purchase, for the following period:
.............................................
2 years
................................................................................
Porcelain-enameled cast iron cooking grids
Stainless steel lid, door and drawer panels
....................................
5 years full coverage, plus 50% off until the 10th year
3
EN
www.napoleon.com
N415-0416 DEC 08.21
!
WARNING!
This product can expose you to chemicals including nickel, which are known to the
State of California to cause cancer, and chemicals including bisphenol A, which are known to the
State of California to cause birth defects or other reproducve harm. For more informaon go to
www.P65Warnings.ca.gov.
!
!
PLANNING YOUR NAPOLEON MODULAR OUTDOOR ISLAND
With the Napoleon Outdoor Modular Islands, you can transform your backyard into a true barbecue oasis. The
versale modules can be arranged in a way that ts your grilling needs. The modules can be freestanding as an
outdoor kitchen or mounted against a non-combusble wall.
The cabinets are designed to be easy to assemble and install by either the home owner or private contractor.
Consider the following:
• All cabinets are 35” (889 mm) tall by 24” (610 mm) deep and 24” (610 mm) wide, except for the BUILT-IN
grill cabinets whose width correspond to the width of the grill head unit it was designed for.
• The fridge cabinet has a removable panel which allows access to the temperature control located at the
back of the fridge. Access to the panel must be ensured when the cabinet is installed.
• Each cabinet has 4 leveling feet for adjustment on even surfaces.
• The 2 drawer cabinets are made to t the Napoleon BUILT-IN series of grills only, which are available in
dierent sizes. Grill head installaon and operaon instrucons are detailed in the Owner’s Manual that
comes with it.
• The BUILT-IN series of grills can be ordered in either propane or natural gas conguraon. Knockouts are
present in the side and rear panels for easy piping and installaon. For those who order a propane grill, a
propane tank cabinet is available.
• The cabinets can be installed against a NON-COMBUSTIBLE wall of a house, a masonry or stucco half-wall,
or freestanding in an island conguraon.
• Ensure there is adequate venlaon behind the fridge cabinet – a minimum gap of 6” (150 mm) is required
between the back of the cabinet and adjacent structures.
• An oponal 4” (102 mm) spacer panel can be purchased and installed to ensure enough clearance for the
grill lid to open when installing against a wall. It also prevents debris or rodents from entering behind the
cabinets.
• A powder-coated 2” (51 mm) wide end panel can be purchased to cover the knockouts and mounng holes
in the outside panels in a run of cabinets, oering a nished look.
WARNING! All gas modicaons and/or installaons must be done by a qualied gas installer.
WARNING! Never block the vents located on the back of the fridge cabinet. Failure to do so can
result in the fridge overheang.
WARNING! Never place the fridge and fridge cabinet next to the grill head and grill head cabinet.
It is recommended to use the false top-drawer module IM-2DC when:
• Doors and drawers get in the way of each other if placed next to a 45
o
or 90
o
transion.
• A drawer, door, or paper towel/garbage module is placed next to the grill and the control panel prevents
them from fully opening and possible damages them.
• A side burner kit (oponal through your Napoleon Gas Grill dealer), or a sink will be installed. The space
behind the false drawer oers enough
clearance for the side burner valve and hose roung and for the
sink’s piping.
Counter top: must be ordered and supplied locally by the homeowner.
• It must be made of NON-COMBUSTIBLE material for a grill to be installed into it.
• It can be ordered in advance by drawing out the cabinet’s arrangement oor plan and adding up the width
measurements, allowing 1-2 inches (25 mm - 51 mm) of counter top overhang.
TIP! Most counter top manufacturers are willing to come and take measurements aer assembling the
cabinets to ensure a perfect t. Granite is a recommended choice of counter top material.
• For the drip pan to slide in and out properly, the grill head must be supported by a counter top with a
thickness between ½” (13 mm) and 1 ½” (38 mm).
• The built-in grill head comes with stainless steel brackets and hardware that allow the unit to rest on the
counter top above the corresponding island cabinet.
Decorave counter tops made of ceramic le set on top of cement ling board can be made to match your sur-
rounding backyard furniture colors.
4
EN
www.napoleon.com
N415-0416 DEC 08.21
3/8” (10mm)
TOOLS REQUIRED FOR ASSEMBLY (tools not included)
GAS AND ELECTRICAL PIPING
The piping up to the gas grill is the responsibility of the installer and piping should be located as shown
in the built-in instrucons. Do not use hose to connect the unit. It must be connected with either rigid
pipe, copper tube or an approved exible metal connector. The installaon must comply with CAN B149.1
Natural Gas and Propane installaon code in Canada, or to the Naonal Fuel Gas code, ANSI Z223.1 in the
United States. The minimum recommended piping size is NPS 1/2” for rigid pipe, and 1/2” OD for copper
tubing (based on a 20 run). Longer runs may require larger sizes to conform with CAN B149.1. Propane
Gas Installaon Code in Canada or to the Naonal Fuel Gas Code, ANSI Z223.1 in the United States.
Look to the manual that came with the gas grill for further instrucons.
To ease installaon and piping, removable knockouts have been provided in the side panels and in the
center of each backpanel. The knockouts in the side panels should be removed before the cabinets are
bolted in a row. Only remove the knockouts that are required for the piping of any gas, plumbing or
electrical lines.
KNOCKOUTS
5
EN
www.napoleon.com
N415-0416 DEC 08.21
IM-UTC
Knockouts have been punched in the sides and back panels to provide easy roung of gas or electrical piping.
Once the knockout has been removed a bushing must be installed to prevent the gas or electrical line being cut
on the edge of the hole. Gas piping and installaon must be done by a qualied gas installer.
PROPANE SUPPLY HOSE ROUTING
N105-0012
x2
CABINET TO CABINET ASSEMBLY
N570-0086
x4
6
EN
www.napoleon.com
N415-0416 DEC 08.21
FRIDGE PANEL ATTACHMENT
IM-FMPD-CN / FEPD-CN
IM-FMP-CN / FEP-CN
N570-0086
x4
N105-0024
x1
2
1
3
IM-FMP-CN / IM-FMPD-CN
IM-FEP-CN/IM-FEPD-CN
7
EN
www.napoleon.com
N415-0416 DEC 08.21
CABINET 45 DEGREE CONNECTION
IM-45T
N570-0086
x8
CABINET 90 DEGREE CONNECTION
IM-45T X 2
N570-0086
x12
N105-0012
x1
N105-0012
x2
8
EN
www.napoleon.com
N415-0416 DEC 08.21
CABINET 45 DEGREE CONNECTION
IM-45LT
N570-0086
x8
CABINET 90 DEGREE CONNECTION
IM-45LT X 2
N570-0086
x12
N105-0012
x1
N105-0012
x2
9
EN
www.napoleon.com
N415-0416 DEC 08.21
CABINET END PANEL KIT
IM-CEP
N570-0086
x4
CABINET END PANEL KIT
IM-CEP / IM-WSF
SHOWN WITH REAR PANEL REMOVED
N570-0086
x6
10
EN
www.napoleon.com
N415-0416 DEC 08.21
CABINET LEVELING PROCEDURE
N370-1064 Adapter Kit BIB18RT to BIB12RT
2
1
3
5
4
6
11
EN
www.napoleon.com
N415-0416 DEC 08.21
IM-UGC18-CN
1
2
2
1
4
3
N570-0086
x4
x2
N570-0013
12
EN
www.napoleon.com
N415-0416 DEC 08.21
COUNTERTOP TO BE FASTENED AS PER MANUFACTURER’S INSTRUCTIONS. HOLES HAVE BEEN PLACED ON
THE TOP FLANGE OF THE SIDE PANELS TO ALLOW FOR FASTENERS.
REFER TO BUILT-IN MANUAL THAT ACCOMPANIES THE GRILL FOR COMPLETE INSTRUCTIONS.
GAS PIPING MUST BE DONE BY A LICENSED GAS INSTALLER.
WE RECOMMEND USING THE IM-45LT WHEN MOUNTING GAS APPLIANCES IN 45˚ CORNERS.
THE IM-45T CAN BE USED FOR OTHER CABINETS.
13
EN
www.napoleon.com
N415-0416 DEC 08.21
DOOR REVERSAL
3
5
6
4
7 8
1 2
14
EN
www.napoleon.com
N415-0416 DEC 08.21
Notes
KEEP YOUR RECEIPT AS PROOF OF PURCHASE TO VALIDATE YOUR WARRANTY.
Ordering Replacement Parts
Warranty Informaon
MODEL:
DATE OF PURCHASE:
SERIAL NUMBER:
(Record informaon here for easy reference)
For replacement parts and warranty claims, contact the Napoleon dealer where the product was purchased.
Before contacting the dealer, check the Napoleon Grills Website for more extensive cleaning, maintenance,
troubleshooting and parts replacement instructions at www.napoleon.com.
To process a claim, the following informaon is required:
1. Model and serial number of the unit.
2. Part number and descripon.
3. A concise descripon of the problem (‘broken’ is not sucient).
4. Proof of purchase (photocopy of the invoice).
In some cases, Napoleon could request to have the parts returned to the factory for inspecon before
providing replacement parts.
Before contacng Napoleon dealer, please note that the following items are not covered by the warranty:
• Costs for transportaon, brokerage or export dues.
• Labour costs for removal and reinstallaon.
• Costs for service calls to diagnose problems.
• Discolouraon of stainless steel parts.
• Part failure due to lack of cleaning and maintenance, or use of improper cleaners (oven
cleaner or other harsh chemicals).
29
www.napoleon.com
N415-0416 DEC 08.21
2
3
4
5
6
7
1
8
# Part # Descripon IM-UDC
1 N475-0223-CN1HR side panel / panneau avant x
2 N475-0224-CN1HR back panel / panneau arrière x
3 N570-0086 #14 x 1/2" screw / vis #14 x 1/2" x
4 N010-0575-CN1HR boom shelf assembly / ensemble de tablee inférieur x
5 N570-0130 leveling foot / mise à niveau du pied x
6 N525-0018-CN1HR top/boom rail / support superior/inférieur x
7 N105-0011 door bushing / bagues de porte x
8 N555-0023 door pivot rod / ge-pivot de porte x
9 N010-0590 door assembly / ensemble de porte x
10 N430-0002 magnec catch / loquet magnéque x
11 N080-0232-CN1HR door magnet bracket / support de magnéque x
12 N570-0013 #8 x 5/8" screw / vis #8 x 5/8" x
N105-0024 bushing with aps / douille avec rabat x
N105-0025 bushing / bague x
5
4
2
3
1
11
9
12
8
3
7
6
10
1
2
7
13
4
14
8
9
1011
12
6
3
5
# Part # Descripon IM-UTC
1 N475-0223-CN1HR side panel / panneau avant x
2 N475-0237-CN1HR back panel / panneau arrière x
3 N570-0086 screw , #14 x 1/2" / vis #14 x 1/2" x
4 N010-0575-CN1HR assembly, boom shelf / ensemble de tablee inférieur x
5 N570-0130 leveling foot / mise à niveau du pied x
6 N525-0018-CN1HR top/boom rail / support superior/inférieur x
7 N105-0011 door bushing / bagues de porte x
N105-0012 1.5" bushing / bagues de porte 1.5" x
8 N555-0023 door pivot rod / ge-pivot de porte x
9 N010-0590 door assembly / ensemble de porte x
10 N430-0002 magnec catch / loquet magnéque x
11 N080-0232-CN1HR door magnet bracket / support de magnéque x
12 N570-0013 #8 x 5/8" screw / vis #8 x 5/8" x
13 N010-0938 tank tray/ plateau de réservoir x
14 N010-0095-CN1HR tank tray support / support de bac à réservoir x
Parts List / Liste des pièces
# Part # Descripon IM-FMP-CN IM-FEP-CN IM-FMPD-CN IM-FEPD-CN
1 N475-0404-CN1HR
side panel / pan-
neau avant
x x
2 N570-0086
#14 x 1/2" screrw /
vis #14 x 1/2"
x x x x
3 N525-0055-CN1HR
boom rail / sup-
port inférieur
x x
N525-0076-CN1HR
boom rail / sup-
port inférieur
x x
4 N545-0005 rivet / rivet x x x x
5 N570-0130
leveling foot / mise
à niveau de pied
x x
6 N450-0046 nut / écrou x x
7 N475-0403-CN1HR
back panel / pan-
neau arrière
x x
N615-0016-CN1HR
back panel / pan-
neau arrière
x x
8 N105-0012
1.5" bushing /
bagues de porte
1.5"
x x x x
9 N105-0024
bushing with aps
/ douille avec rabat
x x x x
10 N105-0025 bushing / bague x x x x
30
www.napoleon.com
N415-0416 DEC 08.21
2
4
8
1
5
7
6
3
2
4
9
8
1
10
7
5
6
3
# Part # Descripon IM-3DC
1 N010-0678-CN side panel / panneau avant x
2 N475-0224-CN1HR back panel / panneau arrière x
3 N525-0018-CN1HR top/boom rail / support superior/inférieur x
4 N570-0130 leveling foot / mise à niveau du pied x
5 N010-0575-CN1HR assembly, boom shelf / ensemble de tablee inférieur x
6 N010-0677-CN drawer assembly / assemblage du roir x
7 N570-0086 #14 x 1/2" screw / vis #14 x 1/2" x
8 N610-0010 drawer slide / glisser, roir x
N105-0024 bushing with aps / douille avec rabat x
N105-0025 bushing / bague x
# Part # Descripon IM-2DC
1 N010-0678-CN side panel / panneau avant x
2 N475-0224-CN1HR back panel / panneau arrière x
3 N525-0018-CN1HR top/boom rail / support superior/inférieur x
4 N570-0086 #14 x 1/2" screw / vis #14 x 1/2" x
5 N010-0574 false drawer front / avant faux de roir x
6 N570-0008 #8 x 1/2" screw / vis #8 x 1/2" x
7 N010-0677-CN drawer assembly / assemblage du roir x
8 N010-0575-CN1HR boom shelf assembly / ensemble de tablee inférieur x
9 N570-0130 leveling foot / mise à niveau du pied x
10 N610-0010 drawer slide / glisser roir x
N105-0024 bushing with aps / douille avec rabat x
N105-0025 bushing / bague x
5
4
7
6
12
11
10
14
15
13
2
1
16
3
8
# Part # Descripon IM-UTC-CE
1 N010-0575-CN1HR assembly, boom shelf / ensemble de tablee inférieur x
2 N010-1154 assembly tank tray slide / assy plateau rail support x
3 N010-1153-CN1HR tank tray CE grey / plateau du bonbonne CE gris x
4 N475-0223-CN1HR side panel / panneau avant x
5 N475-0237-CN1HR back panel / panneau arrière x
6 N525-0018-CN1HR top/boom rail / support superior/inférieur x
7 N570-0086 screw , #14 x 1/2" / vis #14 x 1/2" x
8 N010-0590-CN door assembly / ensemble de porte x
10 N555-0023 door pivot rod / ge-pivot de porte x
11 N105-0011 door bushing / bagues de porte x
12 N570-0130 leveling foot / mise à niveau du pied x
13 N430-0002 magnec catch / loquet magnéque x
14 N080-0232-CN1HR door magnet bracket / support de magnéque x
15 N570-0013 #8 x 5/8" screw / vis #8 x 5/8" x
16 N325-0016 handle / poignée x
Parts List / Liste des pièces
31
www.napoleon.com
N415-0416 DEC 08.21
2
10
10
9
4
3
11
1
5
5
4
6
4
4
7
8
13
2
14
4
7
12
8
11
1
10
5
16
6
3
17
9
15
# Part # Descripon
IM-WDC
1 N010-0678-CN side panel / panneau avant x
2 N475-0224-CN1HR back panel / panneau arrière x
3 N525-0018-CN1HR top/boom rail / support superior/inférieur x
4 N570-0086 #14 x 1/2" screw / vis #14 x 1/2" x
5 N555-0032 paper towel rod / ge pour essuie-tout x
6 N485-0012 coer pin / vis x
7 N010-0576-CN1HR paper towel housing assembly / assemblage de la porte du compar-
ment à essuie-tout
x
8 N570-0008 #8 x 1/2" screw / vis #8 x 1/2" x
9 N010-0578 paper towel door assembly / assemblage de comparment pour
essuie-tout
x
10 N555-0031 pivot rod / ge-pivot x
11 N010-0679-CN drawer assembly, trash can / assemblage du roir, panier à déchets x
12 N570-0130 leveling foot / mise à niveau du pied x
13 N010-0575-CN1HR assembly, boom shelf / ensemble de tablee inférieur x
14 N610-0010 drawer slide / glisser roir x
15 N080-0228-CN1HR paper towel hoursing bracket / support roir de serviee en papier x
16 N080-0230-CN1HR door stop bracket / support cale-porte x
17 N160-0018 paper towel bracket / support de serviee en papier x
N185-0004 waste bin / poubelle x
N105-0024 bushing with aps / douille avec rabat x
N105-0025 bushing / bague x
Parts List / Liste des pièces
# 665 730 Descripon
1 N010-0678-CN N010-0678-CN side panel / panneau avant x
2 N475-0392-CN1HR N475-0233-CN1HR back panel / panneau arrière x
3 N525-0020-CN1HR N525-0021-CN1HR top rail / support superior x
4 N570-0086 N570-0086 #14 x 1/2” screw / vis #14 x 1/2” x
5 N010-0682-CN N010-0683-CN drawer assembly / assemblage du roir x
6 N525-0023-CN1HR N525-0024-CN1HR boom rail / support inférieur x
7 N570-0130 N570-0130 leveling foot / mise à niveau du pied x
8 N010-0581-CN1HR N010-0583-CN1HR boom shelf / tablee inférieur x
9 N585-0051-CN1HR N585-0052-CN1HR drawer dripshield / écran an-égouement pour roir x
10 N570-0013 N570-0013 #8 x 5/8” screw / vis #14 x 5/8” x
11 N610-0010 N610-0010 drawer slide / glisser roir x
N105-0012 N105-0012 1.5” bushing / bagues de porte 1.5” x
N485-0007 N485-0007 black plug / bouchon noir x
N105-0024 bushing with aps / douille avec rabat x
N105-0025 bushing / bague x
32
www.napoleon.com
N415-0416 DEC 08.21
# 245/300 485-1 500 Descripon
1 N010-0678-CN N010-0678CN N010-0678-CN side panel le / panneau avant gauche x
2 N475-0224-CN1HR N475-0550-CN1HR N475-0550-CN1HR back panel / panneau arrière x
3 N525-0031-CN1HR N525-0042-CN1HR N525-0041-CN1HR top rail / support superior x
4 N570-0086 N570-0086 N570-0086 #14 x 1/2" screw / vis #14 x 1/2" x
5 N010-0677CN N010-0745-CN N010-0745-CN drawer assembly / assemblage du roir x
6 N525-0018-CN1HR N525-0040-CN1HR N525-0040-CN1HR boom rail / support inférieur x
7 N570-0130 N570-0130 N570-0130 leveling foot / mise à niveau du pied x
8 N010-0575-CN1HR N010-0744-CN1HR N010-0744-CN1HR boom shelf / tablee inférieur x
9 N585-0062-CN1HR N585-0085-CN1HR N585-0084-CN1HR drawer dripshield / écran an-égouement pour roir x
10 N570-0013 N570-0013 N570-0013 #8 x 1/2" screw / vis #8 x 1/2" x
N610-0010 N610-0010 N610-0010 slide, drawer / glisser, roir x
N485-0007 N485-0007 N485-0007 black plug / bouchon noir x
N105-0012 N105-0012 N105-0012 1.5" bushing / bagues de porte 1.5" x
N710-0066 dripan, replaces pan included with BI300 / roir d'égouement, remplace le roir inclus avec
le BI300
x
N105-0024 N105-0024 bushing with aps / douille avec rabat x
N105-0025 N105-0025 bushing / bague x
# Descripon 825
1 N010-0678-CN side panel le / panneau avant gauche x
2 N570-0086 screw , #14 x 1/2" / vis #14 x 1/2" x
3 N010-0677-CN drawer assembly / assemblage du roir x
4 N570-0130 leveling foot / mise à niveau du pied x
5 N570-0013 screw, #8 X 5/8" / vis #8 X 5/8" x
6 N475-0260-CN1HR divider / diviseur x
7 N475-0393-CN1HR back panel / panneau arrière x
8 N010-0839-CN1HR boom shelf / tablee inférieur x
9 N475-0394 front fascia / fascia avant x
10 N585-0099-CN1HR drawer dripshield / écran an-égouement pour roir x
11 N525-0061-CN1HR top rail / support superior x
12 N525-0052-CN1HR boom rail / support inférieur x
13 N610-0010 drawer slide / glisser roir x
N105-0012 1.5" bushing / bagues de porte 1.5" x
N105-0024 bushing with aps / douille avec rabat x
N105-0025 bushing / bague x
5
2
4
3
3
13
10
11
1
2
7
5
6
9
6
12
2
8
5
Parts List / Liste des pièces
33
www.napoleon.com
N415-0416 DEC 08.21
Parts List / Liste des pièces
1
5
7
8
2
9
10
6
4
1
11
12
3
# Part # Descripon BIB18
1 N010-1416-CN side panel / panneau avant x
2 N475-0549-CN1HR back panel / panneau arrière x
3 N010-0677-CN drawer assembly / assemblage du roir x
4 N610-0010 drawer slide / glisser roir x
5 N525-0018-CN1HR top/boom rail/ support superior/inférieur x
6 N525-0070-CN1HR top rail / support superior x
7 N585-0166-CN1HR drawer shield / bouclier de roir x
8 N010-0575-CN1HR boom shelf / tablee inférieur x
9 N570-0130 leveling foot / mise à niveau du pied x
10 N570-0013 screw, #8 X 5/8” / vis #8 X 5/8” x
11 N570-0086 screw , #14 x 1/2” / vis #14 x 1/2” x
N105-0012 1.5” bushing / bagues de porte 1.5” x
12 N370-1064 kit adapter / kit adaptateur
9
7
5
1
2
3
6
8
11
10
4
1
# Part # Descripon BIG32 BIG38 BIG44
1 N010-1416-CN side panel / panneau avant x x x
2 N475-0550-CN1HR back panel / panneau arrière x
N475-0551-CN1HR back panel / panneau arrière x
N475-0553-CN1HR back panel / panneau arrière x
3 N010-0745-CN drawer assembly / assemblage du roir x
N010-1412-CN1HR drawer assembly / assemblage du roir x
N010-1414-CN1HR drawer assembly / assemblage du roir x
4 N610-0010 drawer slide / glisser roir x x x
5 N525-0040-CN1HR boom rail / support inférieur x
N525-0073-CN1HR boom rail / support inférieur x
N525-0075-CN1HR boom rail / support inférieur x
6 N525-0071-CN1HR top rail / support superior x
N525-0072-CN1HR top rail / support superior x
N525-0074-CN1HR top rail / support superior x
7 N585-0167-CN1HR drawer shield / bouclier de roir x
N585-0164-CN1HR drawer shield / bouclier de roir x
N585-0165-CN1HR drawer shield / bouclier de roir x
8 N010-0744-CN1HR boom shelf / tablee inférieur x
N010-1411-CN1HR boom shelf / tablee inférieur x
N010-1413-CN1HR boom shelf / tablee inférieur x
9 N570-0130 leveling foot / mise à niveau du pied x x x
10 N570-0013 screw, #8 X 5/8” / vis #8 X 5/8” x x x
11 N570-0086 screw , #14 x 1/2” / vis #14 x 1/2” x x x
N105-0012 1.5” bushing / bagues de porte 1.5” x x x
36
www.napoleon.com
N415-0416
