Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! The blade used by this cutter is razor sharp and should be treated with due
caution.
9 Store the cutter in a safe childproof place when not in use.
9 Use in a suitable, clean and tidy work area, free from unrelated materials. Ensure there is adequate lighting.
9 Use the cutter for rubber and soft vinyl pipes only.
8 DO NOT use cutter on hard reinforced pipe. If the blade does not penetrate the pipe, then the material used to make the pipe is too hard.
Applying excessive pressure may cause the pipe to shatter.
8 DO NOT continue to attempt cutting any pipe that withstands penetration.
8 DO NOT insert a finger into the cutting area at any time.
8 DO NOT turn the pipe whilst cutting.
8 DO NOT allow untrained people to use the cutter.
8 DO NOT allow children to use or play with the cutter.
8 DO NOT use the cutter for tasks it is not designed to perform.
8 DO NOT operate cutter if any parts are damaged or missing as this may cause failure and/or personal injury.
8 DO NOT
operate the cutter when you are tired or under the influence of alcohol, drugs or intoxicating medication.
2. INTRODUCTION
Pistol-type, ratchet action, die-cast aluminium alloy body with heat treated AUS-8 stainless steel blade honed and shaped for smooth cutting action.
Ratchet cutting action avoids crushing pipe. Long-life blade suitable for cutting extrusions and pipes. Textured grip with rubber inlay gives added
comfort and control.
3. SPECIFICATION
Model: .....................................................................PC40.V2
Capacity: ................................................................ Ø6-42mm
Length: .......................................................................210mm
4. OPERATION
Original Language Version
© Jack Sealey Limited
Refer to
instructions

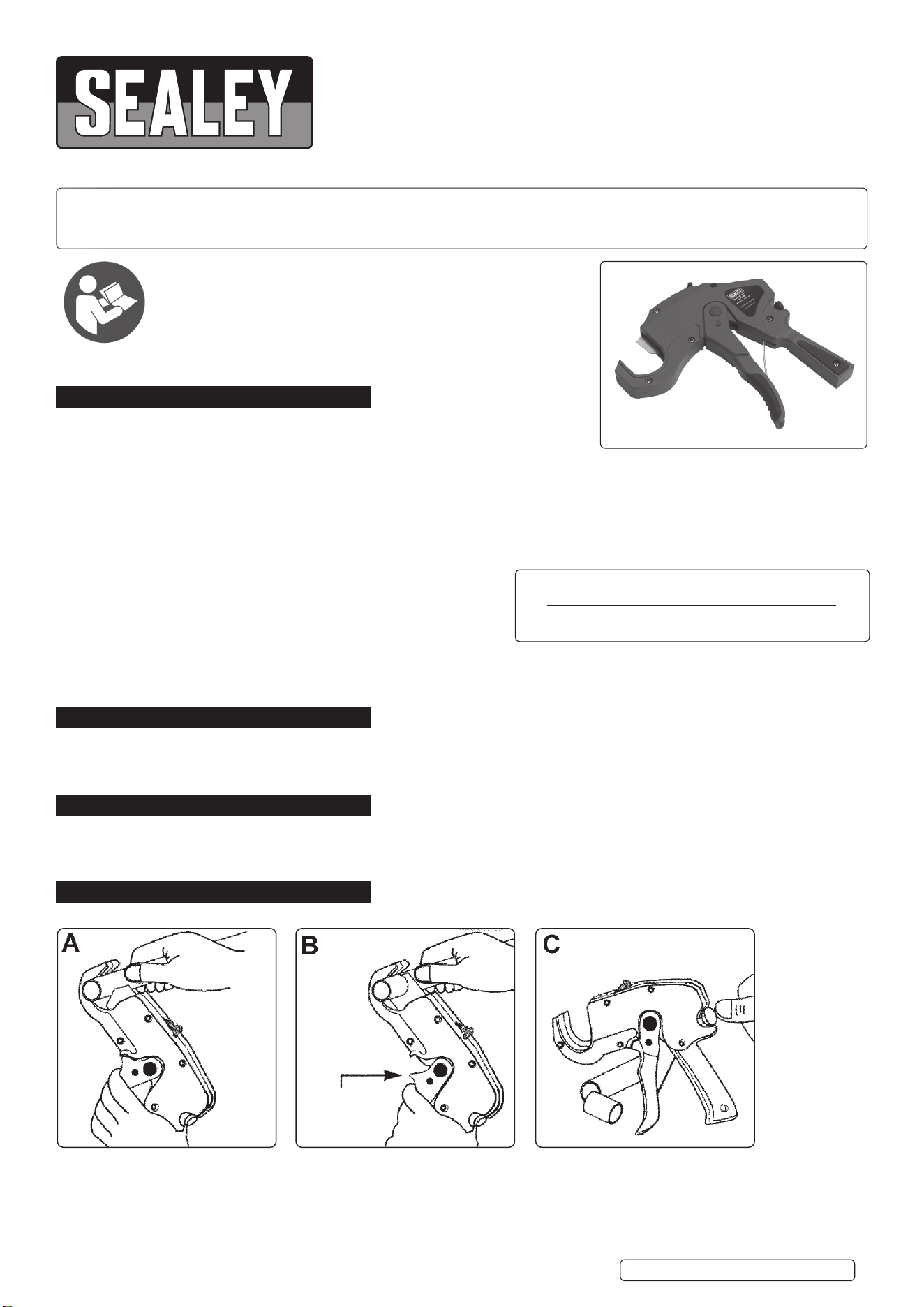

PLASTIC PIPE AND EXTRUSION CUTTER
MODEL No: PC40.V2
PART NUMBER FOR SPARE BLADE
PC40/B
PLACE PLASTIC PIPE INTO
‘U’ JAW WITH THE BLADE
POINT ALIGNED WITH THE
TUBE CENTRE
SQUEEZE TRIGGER HANDLE
REPEATEDLY TO PIERCE AND
CUT THROUGH THE PIPE
TO RETRACT THE BLADE
PUSH THE BUTTON AT THE
REAR OF THE TOOL
PC40.V2 Issue 4 25/07/22
Original Language Version
© Jack Sealey Limited

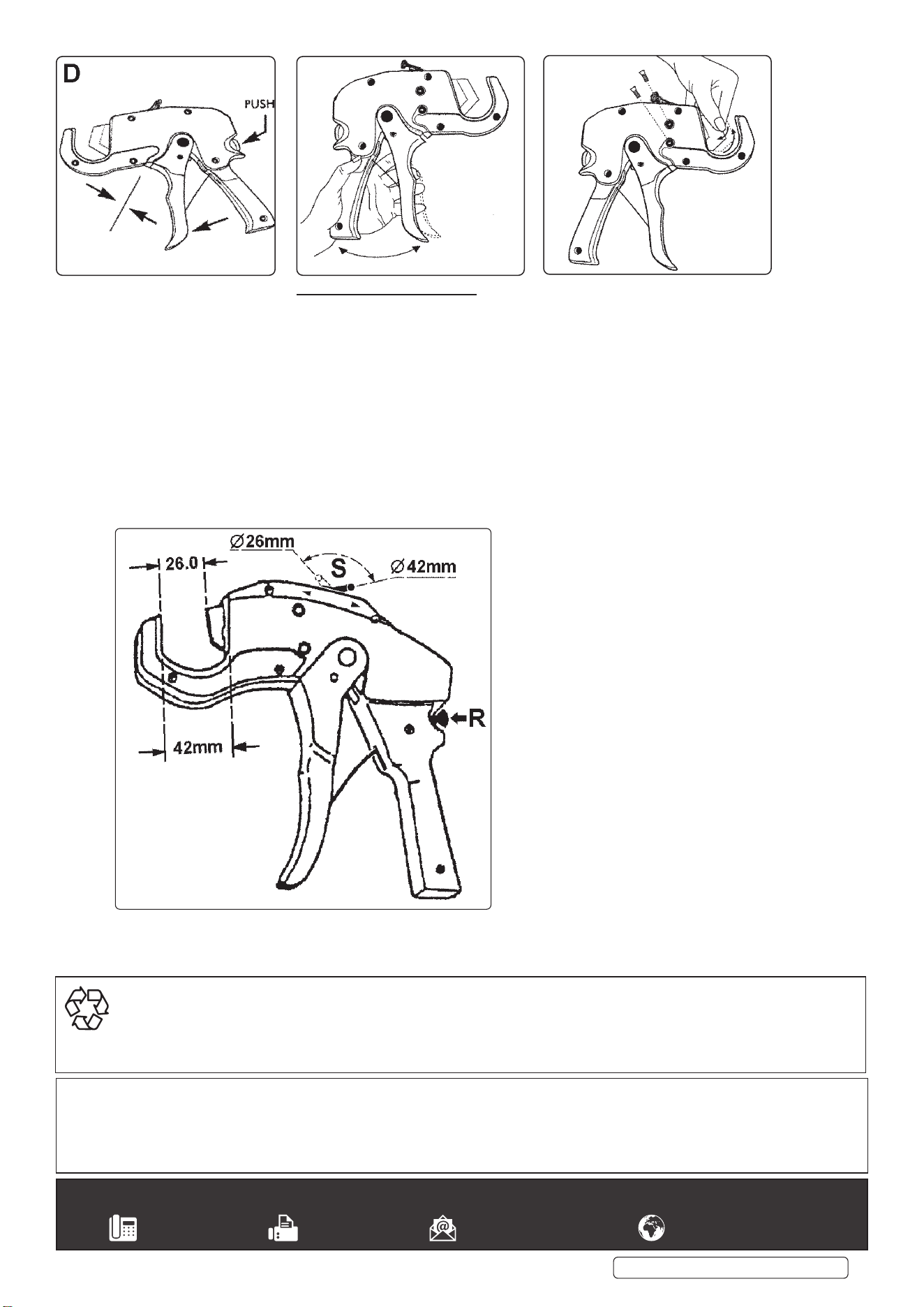

4.1. ADJUSTING PC40.V2 TO CUT SMALLER PIPE SIZES
UNDER 26MM
4.1.1. The PC40 has a switch on its top surface which adjusts the starting position of the blade to more conveniently cut pipe sizes of 26mm
or less.
4.1.2. Toselectthe26mmpositionrstretractthebladebypressingtheretractionbutton(Seeg.1-R).
4.1.3. Now squeeze the handle/trigger fully six times, then move the switch to the 26mm position. The blade will only now retract
sucientlytoallowa26mmtubetobeinserted.
4.1.4. Toreturntothe42mmpositionrstpresstheretractionbuttonwhichwillpartiallyretracttheblade.
4.1.5. Now squeeze the handle/trigger fully three times, then move the switch to the 42mm position. The blade will now fully retract when the
retraction button is pressed.
DO NOT SQUEEZE THE
TRIGGER HANDLE WHILST
PUSHING THE BUTTON
UNDO THE FIXING SCREWS
WITH 2.5MM ALLEN KEY AND
CAREFULLY LIFT OUT BLADE
REPLACEMENT IS A REVERSAL
OF THIS PROCEDURE
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceableandrequiresdisposal,drainanyfluids(ifapplicable)intoapprovedcontainersanddisposeoftheproductandfluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call
our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
TO CHANGE THE BLADE
SQUEEZE THE TRIGGER
HANDLE THREE TIMES
PC40.V2 Issue 4 25/07/22
