1 6
8
20
1
(3x)
6
10
8
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- M4 x 16mm Pan Hd. Phillips Screw (3)
6 --------------- Blade Pin (1)
8 --------------- Blade Return Spring (1)
10 48-22-4221 1-5/8" Ratcheting Pipe Cutter
Replacement Blade (Accessory) (1)
20 14-46-4220 Hardware Kit (1)
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 2
WARNING! Cutting blade (10) is very sharp.
Care must be taken when installing or removing.
No. 48-22-4220

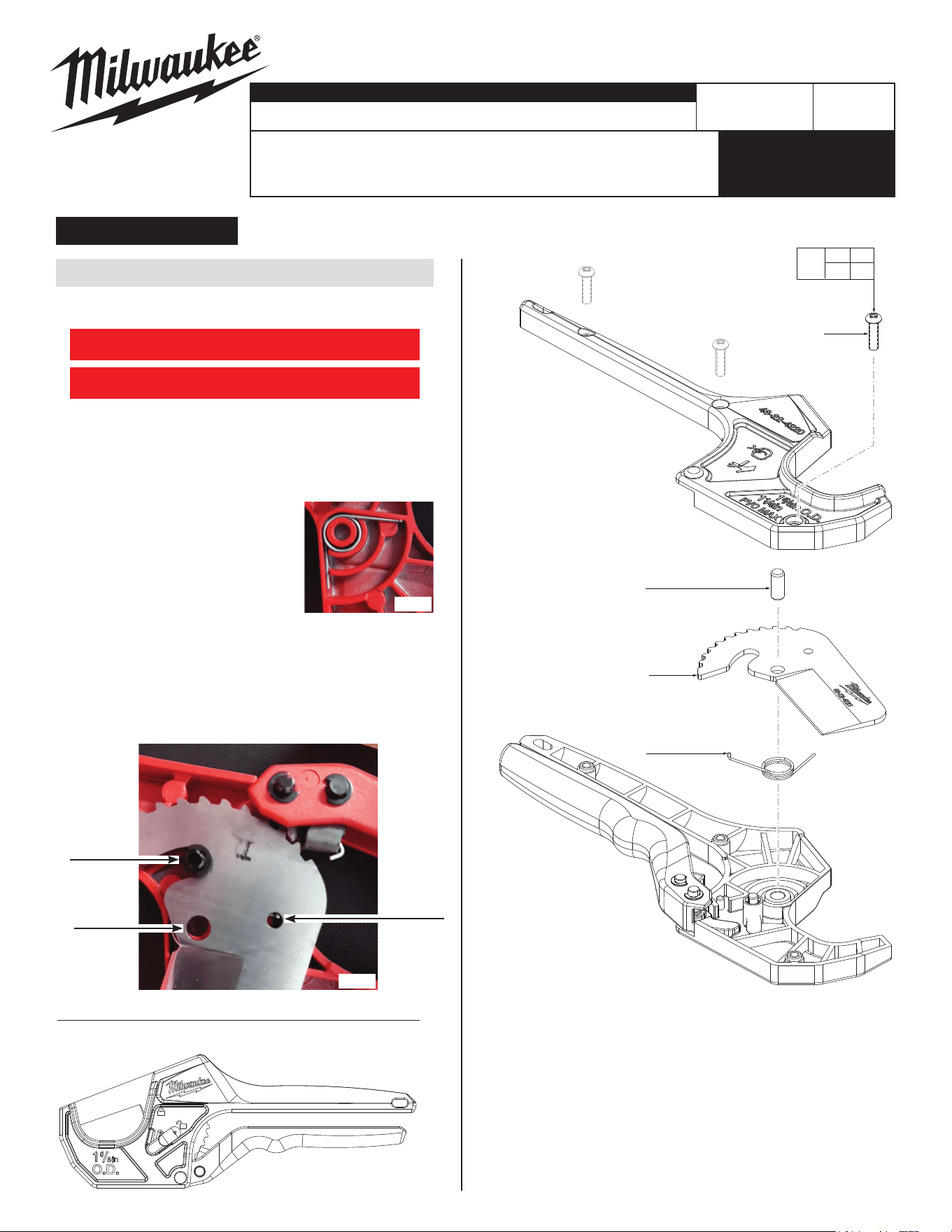

BLADE REPLACEMENT INSTRUCTIONS
CAT. NO. 48-22-4220
REMOVE BLADE:
- Remove the three Screws (1) from the housing.
- Remove the Blade Pin (6).
- Pull the movable handle away to make room for blade.
- Lift the Blade (10) up a bit and remove it.
INSTALL NEW BLADE:
- Make sure the Spring (8) is positioned
correctly in the spring slot of the
housing. (See Fig. A)
- Pull the movable handle away slightly
to make room for the Blade (10).
- Place the Blade (10) around the locking mechanism and make
sure the spring pin end portion sticks up through the smaller
hole of the blade. (See Fig. B)
- Put the black Blade Pin (6) back in the large hole of the blade.
- Replace cover of tool on top and replace the three Screws (1)
back into the housing.
Fig. A
Fig. B
Locking
Mechanism
Spring pin
end coming
through the
small blade
hole.
Larger hole in
blade for the
black blade
pin (6)
WARNING! Protective eyewear is recommended due
to the potential risk of the spring being under load.
- Make sure the Handle Lock Switch is in the "Unlock" position.
54-49-9005
SERVICE PARTS LIST
BULLETIN NO.
48-22-4210 1-5/8" OD Ratcheting Pipe Cutter
48-22-4215 2-3/8" OD Ratcheting Pipe Cutter
48-22-4220 1-5/8" OD Ratcheting Pipe Cutter
Ratcheting Pipe Cutter
Feb. 2026
REVISED BULLETIN
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
For the following materials:
PVC, CPVC, PEX, ABS and
Rubber Hose
1 2
3
4
3
(2x)
1
(3x)
5
2
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- M4 x 16mm Pan Hd. Phillips Screw (3)
2 --------------- Blade Return Spring (1)
3 --------------- Blade Pin (2)
4 14-46-4210 Hardware Kit (1)
5 48-22-4211 1-5/8" Ratcheting Pipe Cutter
Replacement Blade (Accessory) (1)
48-22-4216 2-3/8" Ratcheting Pipe Cutter
Replacement Blade (Accessory) (1)
No. 48-22-4210
Prior to installing right housing, be sure blade (5) is positioned
as shown, with inside corner of blade against bottom blade pin
(3) and blade return spring (2) engaged in tear shaped hole.
Place right housing onto left housing/blade assembly. Secure
with three screws (1) and tighten to 15-16 kg-cm (13-14 in-lbs).
Place blade return spring (2)
into the channel of housing.
Rotate the spring arm as shown
until it catches raised ledge.
With the arm of blade return spring (2) resting
on ledge in left housing, place round hole of
blade (5) onto top blade pin(3).
Rotate blade so 'tear shaped' hole
catches spring arm as shown.

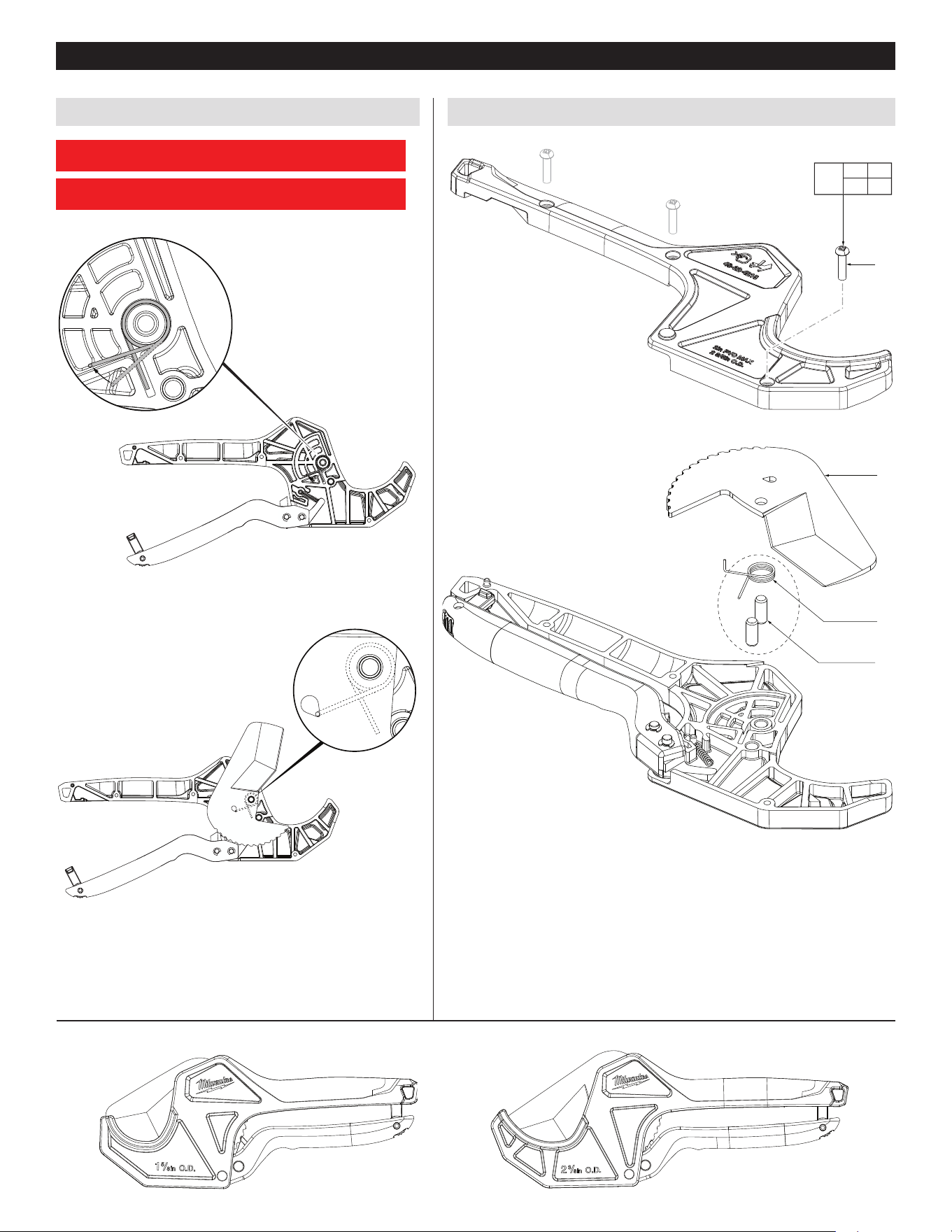

BLADE REPLACEMENT INSTRUCTIONS
Ratcheting Pipe Cutter - CAT. NO. 48-22-4210 and 48-22-4215
EXPLODED VIEW AND BILL OF MATERIALS (BOM)
No. 48-22-4215
WARNING! Cutting blade (10) is very sharp.
Care must be taken when installing or removing.
WARNING! Protective eyewear is recommended due
to the potential risk of the spring being under load.
