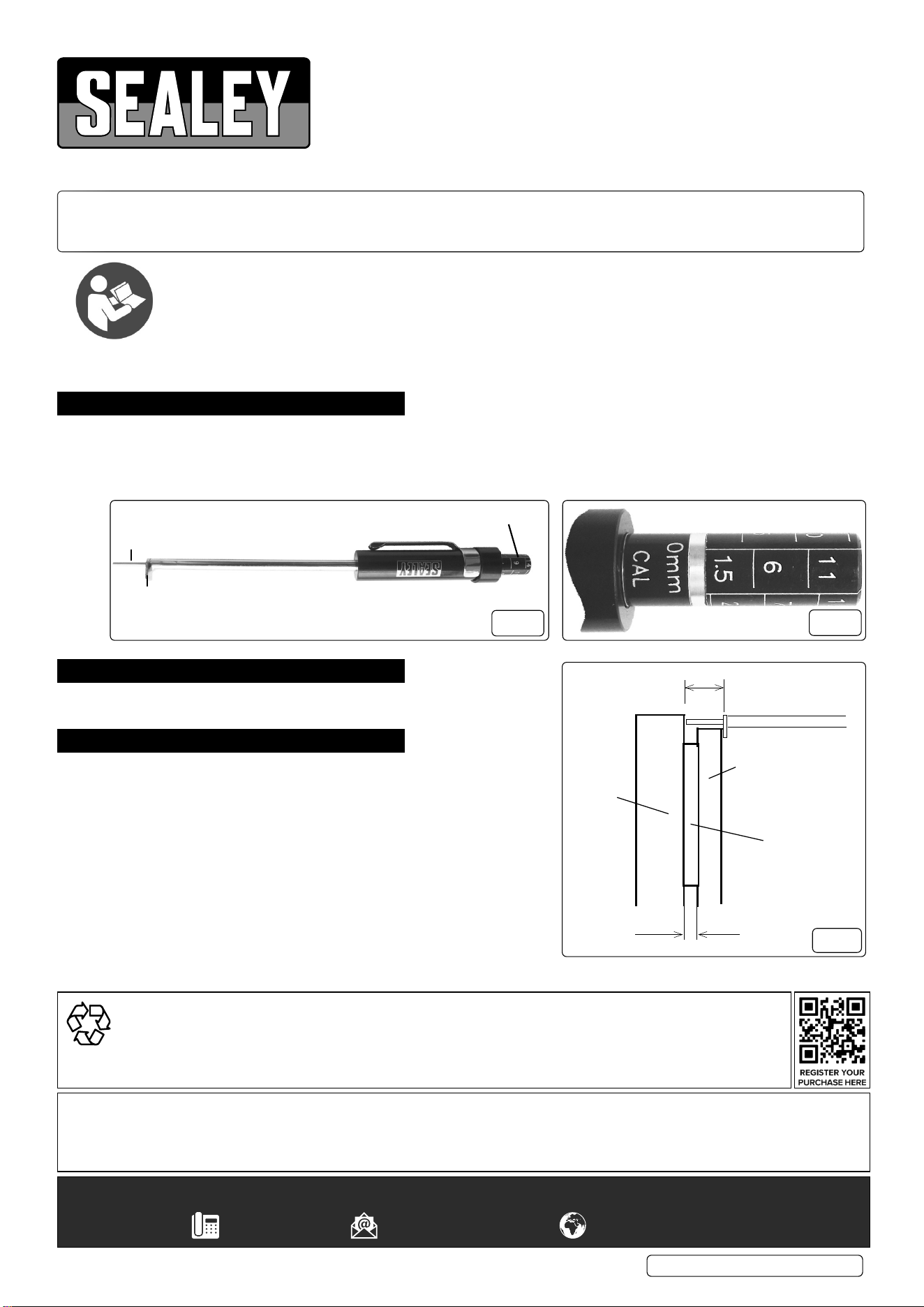

1. INTRODUCTION
Ingenious time-saving tool and essential for any garage. Measures the brake pad lining on the vehicle without removing the road
wheel. Slim design enables the tool to locate the rear of the pad backing plate, allowing the probe to measure the distance between
the underside of the backing plate and brake disc. Suitable for both internal and external brake pads. Features calibration line, plus
minimum 1.5mm pre-MOT check mark. Designed for brake pads that have a normal 6mm thick backing plate (Class IV, V).
Toe
Probe
Linear Scale
FIG.1
FIG.2
2. SPECIFICATION
Model No: .......................................................VS058.V1
Range: ............................................................1.5-13mm
3. OPERATION
3.1. Calibrate by depressing the probe, ush with toe.
3.2. Sit the toe on the pad backing plate edge.
3.3. Depress the linear scale fully to brake disc.
3.4. Read the scale in mm = pad thickness.
3.5. If 1.5mm or the silver band shows, replace pads.
*Scale calibrated for 6mm Backing Plate.
BRAKE PAD THICKNESS GAUGE
MODEL NO: VS058
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
VS058 Issue 2 (H,F) 07/09/23
Original Language Version
© Jack Sealey Limited
Pad + *6mm
Brake
Disc
Pad Dimension
*6mm Backing Plate
Pad
FIG.3
