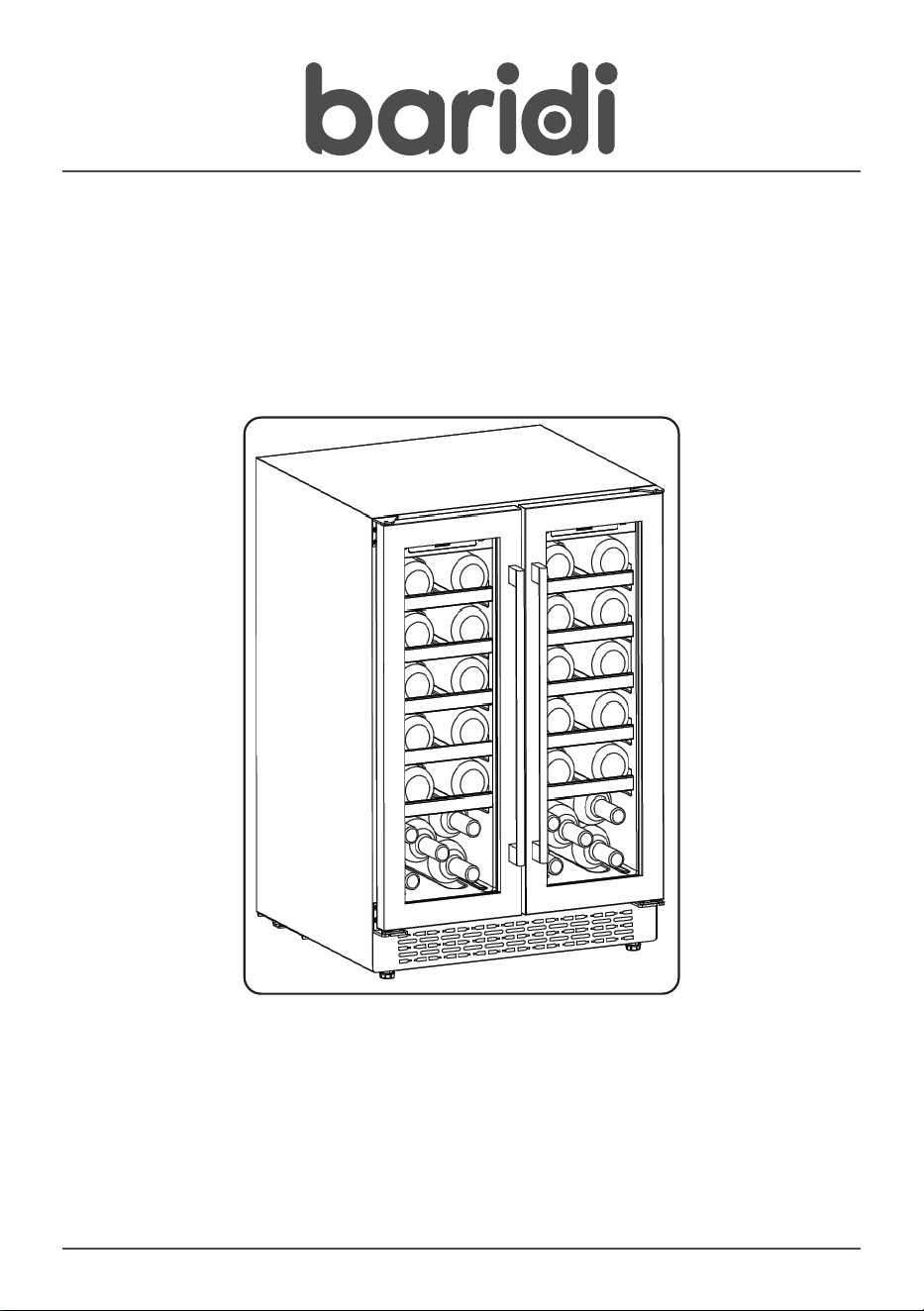

Baridi 60cm Dual zone Wine Cooler 40
Bottle Under Counter Freestanding Fridge
Model No. DH96
Thank you for purchasing a Baridi product from the Dellonda range. Manufactured to a high standard,
this product will, if used according to these instructions, and properly maintained, give you years of
trouble free performance.
DH96 Issue 2 23/06/2022
2
Important Information
Please read these instructions carefully and note any safe operational requirements, warnings &
cautions. Use the product correctly and with care for the purpose for which it is intended. Failure
to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to
check the following:
• Check all electrical equipment and appliances
to ensure that they are safe before using.
Inspect power supply leads, plugs and all
electrical connections for wear and damage.
Del that an RCD (Residual Current Device) is
used with all electrical products. You may
obtain an RCD by contacting your local
domestic stockist. If the product is used in
the course of business duties, it must be
maintained in a safe condition and routinely
PAT (Portable Appliance Test) tested.
• Electrical safety information: It is important
that the following information is read and
understood.
• Ensure that the insulation on all cables and on
the appliance is safe before connecting it
to the power supply.
• Regularly inspect power supply cables and
plugs for wear or damage and check all
connections to ensure that they are secure.
• Important: Ensure that the voltage rating on
the appliance suits the power supply to be
used and that the plug is tted with the correct
fuse - see fuse rating in these instructions.
• DO NOT pull or carry the appliance by the
power cable.
• DO NOT pull the plug from the socket by the
cable.
• DO NOT use worn or damaged cables, plugs or
connectors.
• Ensure that any faulty item is repaired or
replaced immediately by a qualied electrician.
• This product is tted with a BS1363/A 13 Amp
• 3 pin plug. If the cable or plug is damaged
during use, switch off the electricity supply
and remove from use. Ensure that repairs are
carried out by a qualied electrician.
• Replace a damaged plug with a BS1363/A 13
amp 3 pin plug. If in doubt contact a qualied
electrician.
A) Connect the GREEN/YELLOW
earth wire to the earth terminal ‘E’.
B) Connect the BROWN live wire to the
live terminal ‘L’.
C) Connect the BLUE neutral wire to
the neutral terminal ‘N’.
• Ensure that the cable outer sheath extends
inside the cable restraint and that the restraint
is tight.
• Dellonda recommend that repairs are carried
out by a qualied electrician.
• GENERAL SAFETY
• DO NOT store explosive substances such as
aerosol cans with a ammable propellant in
this appliance.
• WARNING: Ensure the supply cord is not
trapped or damaged.
• WARNING: DO NOT locate multiple portable
socket-outlets or portable power supplies at
the rear of the appliance.
• This appliance is intended to be used in
household and similar applications such as
staff kitchen areas in shops, ofces and other
working environments; holiday homes, hotels
and other residential settings; and catering
and similar non-retail applications.
Replacement fuse
rating:
13A
Refer to
instructions
Indoor use
only
3
• This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of knowledge and
experience if they have been given supervision
or instruction concerning the use of the
appliance in a safe way and understand the
hazards involved. Children shall not play with
the appliance. Cleaning and user maintenance
shall not be made by children without
supervision.
• INTRODUCTION
• Add style to your kitchen with this 60cm slim
built dual zone-under wine cooler! Fits under
standard height worktops and door at the
perfect height to sit above standard height
kick plates. Dual cooling zones with digital
temperature control between 5-20°C allowing
you to chill up to 40 bottles of wine to the
perfect temperature. Stylish stainless steel
door handle, wooden shelves and internal LED
light. Super quiet compressor cooling with a
noise level of just 41dB.
• SPECIFICATION
Model no: DH96
Capacity: 40 bottles
Max. bottle height: 300mm
Volume: 112L
Temperature range: 5 -20°C
Rated Current: 0.8A
Voltage: 230V
Frequency: 50Hz
Energy: eciency class: G
Noise level: 41dB
Dimensions (WxDxH): 595 x 570 x 825mm
• ASSEMBLY
• The door handles are delivered separately.
• On the door interior, gently and carefully pull
out the door seal to expose the mounting
holes for the handle.
• Align the holes in the handle with the holes in
the door frame.
• Insert the screws supplied and tighten using a
cross head screw driver (not supplied).
• Press the door seal back in place, ensuring the
the seal is in full contact with the door.
• INSTALLATION
• The unit is designed to be free-standing.
Ventilation space required is minimum width
605mm, depth 575mm and height 870mm.
• This will maximise the efciency, performance
and life of the fridge and also ensure that there
is sufcient space for the hinges to operate
effectively.
• DO NOT locate the unit in a damp or moist
location.
• DO NOT cover the grill in the base.
• DO NOT locate the unit in direct sunlight.
• Ensure that the oor surface is strong and
stable enough to support the unit when it is
fully loaded.
• Level the unit when in location by using the
adjustable levelling feet in each corner.
• Once in position allow the unit to rest for an
hour before turning it on.
• Allow the unit 2 - 3 hours to reach set
temperature after switching on before placing
any items in the compartment.
• OPERATION
• To lock/unlock the key pad for use, press both
keys simultaneously and hold for 3 seconds.
• To turn the unit on/off, press .
Press for 3 seconds and the unit will go into
standby mode. Press for another 3 seconds
and the unit will return to normal working.
• To turn the light on and off press . In
stand by mode the key is invalid.
• Press the up button once and the display
panel will show the current set temperature.
Each press of the up button will increase the
set temperature by 1
o
C.
Door
Frame
Handle
Door
Seal
Screw
4
• After 5 seconds the ashing will stop and the
temperature will be saved. The display will
then show the actual temperature inside the
unit.
• Press the down button once and the
display panel will show the current set
temperature. Pressing the button will decrease
the set temperature by 1
o
C. After 5 seconds
the ashing will stop and the temperature will
be saved. The display will then show the actual
temperature inside the unit.
• To switch the display from Fahrenheit to
Celsius press both keys for 3 seconds
• MAINTENANCE
• Remove the power plug from the supply when
performing cleaning or maintenance.
• DO NOT use abrasive or chemical cleaning
materials on any surface of the unit.
• Wipe interior and exterior surfaces with a
damp cloth and dry thoroughly with a clean
dry cloth.
• For more soiled surfaces use a neutral
detergent, wipe down with a clean damp cloth
and dry thoroughly with a clean dry cloth.
Dellonda Limited, Sole UK Distributor of Baridi
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
5
Troubleshooting
Environment Protection, Waste Electrical and Waste
Electronic Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has
reached the end of its useful life, please dispose of in an environmentally friendly way.
Drain any uids (if applicable) into approved containers, in accordance with local waste
regulations. It is our policy to continually improve products and we reserve the right to alter
data, specications and parts without prior notice. No liability is accepted for incorrect use
of this product. Guarantee is 12 months from purchase date, proof of which is required for
any claim.
Symptom Solution
Unit does not operate. Not plugged in.
Fuse/circuit breaker failure.
Turns on and off frequently.
Poor cooling.
Room temperature higher than normal.
Door opened too often.
Door not properly closed.
Temperature control incorrectly set.
Door gasket not sealing.
Not enough space around unit.
Vibrations Check to assure unit is level.
Noisy unit Contraction/expansion of panels.
Unit not level.
Check fan operation.
Check heat pump.
Door will not close properly Unit not level.
Gasket distorted.
Internals out of position.
