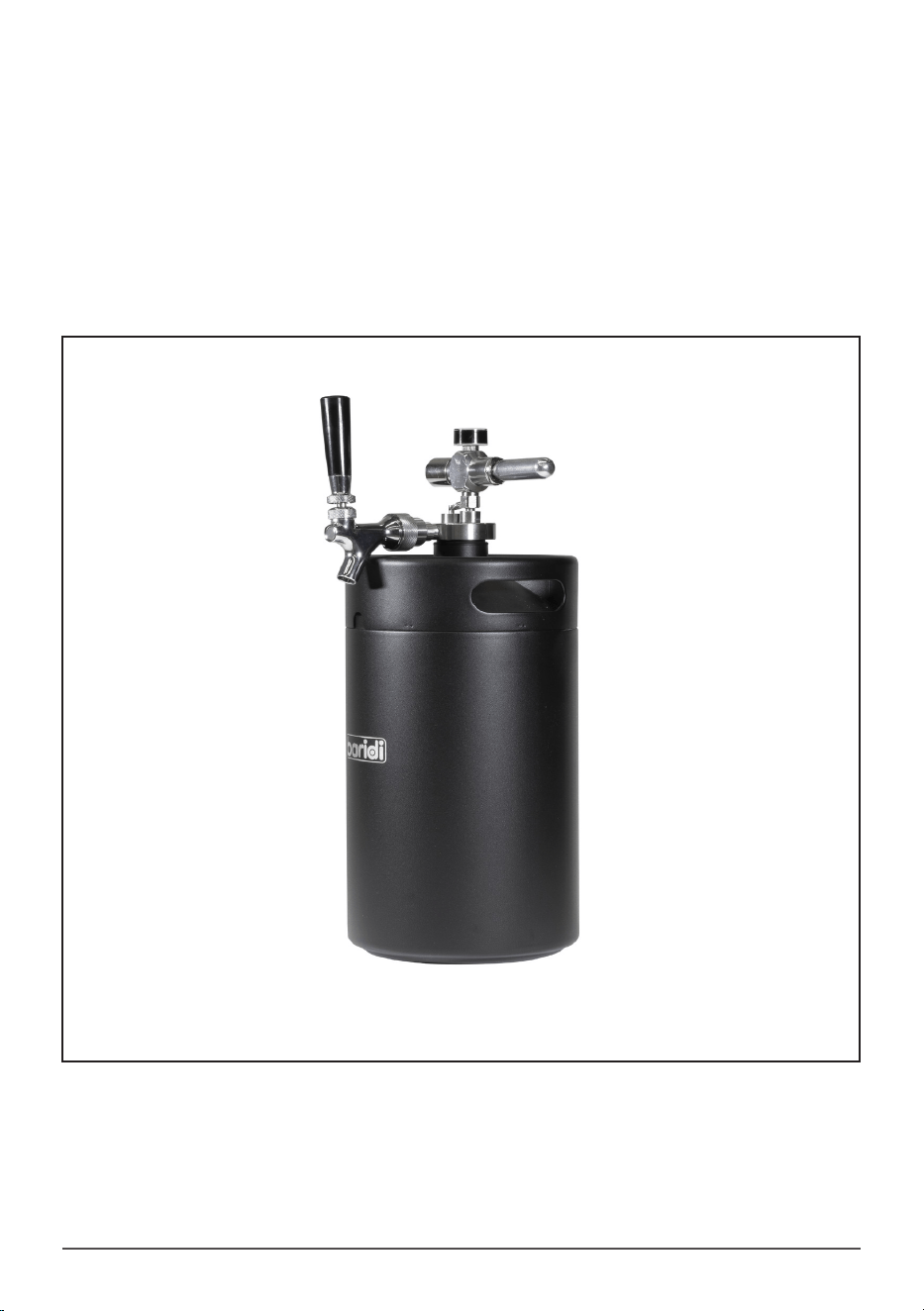

Dellonda Mini Keg UK Beer Tap
and CO2 Regulator
Model No. DH102
Thank you for purchasing a product from the Dellonda range. Manufactured to a high standard, this
product will, if used according to these instructions, and properly maintained, give you years of trouble
free performance.
DH102 Issue 2 21/06/2022
2
Important Information
Please read these instructions carefully and note any safe operational requirements, warnings &
cautions. Use the product correctly and with care for the purpose for which it is intended. Failure
to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
• GENERAL SAFETY
• DO NOT remove keg until fully empty.
• DO NOT remove gas cartridge until fully empty.
• DO NOT cover the unit while working.
• DO NOT place in direct sunlight.
• Children should be supervised at all times
around this equipment.
• INTRODUCTION
• 304 Stainless steel beer faucet with pressure
releasing valve. The kit works at 25psi
maximum that can be controlled to pour the
perfect beer. 5-8psi is suggested to dispense
beer. The pack comes with a set of spare seals
and suction tube. 16g CO2 threaded canister
sold separately.
• Works with Baridi model no.s: DH99, DH101,
DH104 and many other branded kegs/growlers
that accept an M33 x 1.5mm thread.
• SPECIFICATION
• Model no: DH102
• Noise Power/Pressure: Max. 25psi
• CONTENTS
• ASSEMBLY
• Assemble items 6 and 7 and screw assembled
items to item 1.
• Screw item 4 to item 1.
• Fit item 3 to inlet on item 1 ensuring full
engagement.
• Cut tube (item 3) to suit keg height. Make sure
tube touches bottom of keg.
• OPERATION
• Read this document thoroughly and assemble
the unit accordingly.
• Check that the unit is fully assembled and
installed in the appropriate location.
• Place item 2 into port inside neck of growler
and screw unit (item 1) onto growler ensuring
a good t.
• Ensure that valve on item 5 is fully closed.
• Fit gas canister (not supplied) into item 5
and screw tightly onto the port on item 5. A
light ‘pop’ will be heard when the canister is
punctured.
• Adjust pressure to suit using the regulator on
item 5.
• CLEANING AND MAINTENANCE
• Cleaning the internals of the unit is imperative
to meet hygiene requirements. Clean before
rst use or long periods of non-use.
Refer to
instructions
1 Head Unit
2 O-Ring seal
3 Delivery tube
4 Safety valve (25psi)
5 Regulator/Cartridge Carrier
6 Tap
7 Handle
3
• Clean internals ONLY with warm, clean water.
• Cleaning the unit when changing is also
recommended to improve your drinking
experience.
• Disconnect the gas feed hose from the
dispensing unit and hold the tap in the open
position. Rinse through with clean, warm
water, force water through the tube and out
through the tap. Repeat until satised that the
unit is clean.
• DO NOT use abrasive or chemical cleaning
materials on any surface of the unit.
• Wipe interior and exterior surfaces with a
damp cloth and dry thoroughly with a clean
dry cloth.
• For more soiled surfaces use a neutral
detergent, wipe down with a clean damp cloth
and dry thoroughly with a clean dry cloth.
• TROUBLESHOOTING
• NOTE: Always close pressure regulator when
performing any maintenance/cleaning
Symptom Solution
Lack of foaming and/or discharge.
Replace gas cartridge
Gas leakage Re-tighten cartridge carrier
Slow delivery Clean any sediment from internals.
Replace gas cartridge
Gas cartridge does not pierce Reposition cartridge and re-tighten.
Too much foam Turn off regulator,pull pressure release valve ring. Set
regulator to 3 -5psi.
Dellonda Limited, Sole UK Distributor of Baridi
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
Environment Protection, Waste Electrical and Waste
Electronic Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has
reached the end of its useful life, please dispose of in an environmentally friendly way.
Drain any uids (if applicable) into approved containers, in accordance with local waste
regulations. It is our policy to continually improve products and we reserve the right to alter
data, specications and parts without prior notice. No liability is accepted for incorrect use
of this product. Guarantee is 12 months from purchase date, proof of which is required for
any claim.
