Innovations– Made in Germany
The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made high-resolution video systems
cost ecient.
MOBOTIX AG • D-67722 Langmeil • Phone: +49 6302 9816-103 • Fax: +49 6302 9816-190 • [email protected]
Quick Install DualMount
MX-OPT-FM-PW
31.822 _EN_V4__12/2014
Installation
Before installing the sensor modules, make sure that the sensor cables will reach the intended mounting position without placing a strain
on the cables. Separate the sensor modules from the sensor cables before installing the modules.
Further information on the individual camera connectors can be found in Section 2.2.1, “Overview Of Cable Connections” of the S14/S15
camera manuals. Install the base module as described in Section 2.3.1
Max. 10cm!
Ceiling
Seal
Seal
Ceiling
Backing plate
For the S14D/S15D FlexMount cameras, two sensor modules with integrated lens, image sensor, LEDs and microphone are connected
(via connector plugs) to the camera housing, which is installed hidden behind a wall or ceiling panel.
With the MOBOTIX DualMount two sensor modules are positioned directly next to each other and in parallel. This orientation of the sensor
modules for the same area being surveilled makes the S14D/S15D a suitable camera for day and night use– the same image area can
be seen as a color image during the day and as a black/white image at night.
The DualMount can be used with all available sensor modules and enables an installation of the lenses on the ceiling with a downward
tilt of 25°. The DualMount can also be installed outdoors, e.g., under eaves, bridges, etc.
Delivered Parts
Item Number Part Name
1.1 1 Housing
1.2 1 Backing plate
1.3 1 Seal
1.4 1 Allen wrench 1.5mm
1.5 1 Allen wrench 3mm
1.6 5 Stainless steel wood screws 4x40
1.7 5 Dowels 6mm
1.8 5 Stainless steel Allen screws M4x30
1.9 1 Removal tool
1.1
1.2
1.3
1.5
1.7
1.6
1.8
1.9
1.4

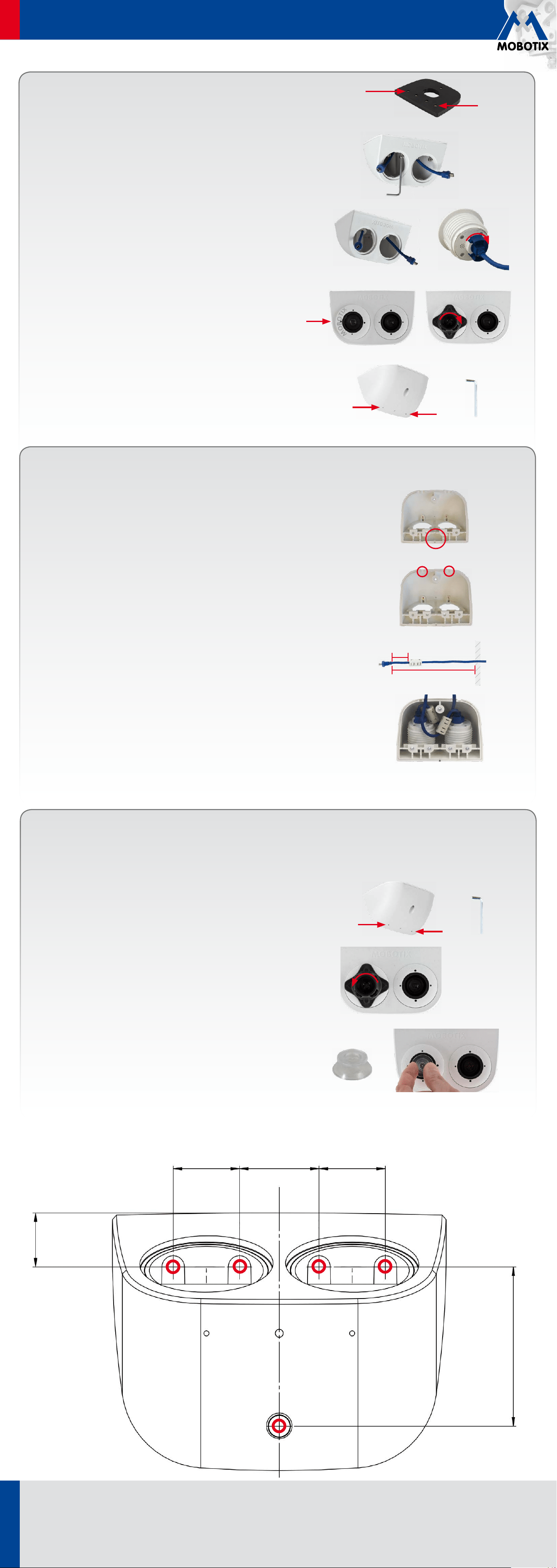

1. Prepare opening
Prepare an opening at the desired mounting position of the SurroundMount
that is large enough (diameter about 30 to 40mm) to allow the sensor cables
to pass through so that you can connect them.
2. Lead the sensor cables through the opening
Lead the sensor cables through the opening in the ceiling and allow them to
protrude through (the longer they extend, the easier the installation).
3. Attach the hinged ferrites
Attach one hinged ferrite to each sensor cable (maximum distance to the
connector 10cm).
4. Select mounting type
Select the appropriate mounting type. Depending on the material and the
thickness of the mounting surface, you can mount the DualMount
• directly to the ceiling using the five stainless steel wood screws (item
1.6) with or without the dowels (item 1.7).
• to the ceiling (max. thickness 12mm) using the backing plate (item 1.2)
and the five stainless steel Allen screws (item 1.8). To do this, you have
to push the screws through the ceiling and tighten them to the backing
plate positioned to the back of the ceiling.
• For surveillance of one area with two optical sensor modules
(in particular, for day and night)
• All available optical sensor modules (S14D or S15D) can be
installed in the DualMount
• Concealed cabling, weatherproof from -30 to +60 °C (IP65)
• Suitable for ceiling installation, with a 25° tilt of the lenses
Day/Night Mount for Two Optical
MOBOTIX Sensor Modules
Mount for two parallel optical sensor modules for MOBOTIX
cameras S15D/S14D (not included)
Viewing direction tilted downwards by 25 degrees,
weatherproof and temperature-resistant for indoor and
outdoor applications
