USER MANUAL
Read the manual carefully and ensure you have fully understood its contents before operating this device for the first time.
English
A
Paragraphs beginning with the symbol indicate important instructions, tips or conditions for the following settings.
For your own safety and the optimal performance of your device, ensure to read the safety instructions before performing any
installation.
Compatibility with 3rd party products, software and services are not guaranteed. We cannot be held liable for any damage or loss
suered whilst operating, using or connecting to incompatible devices or apps.
The recording and playback of content on this or any other device may require permission from the owner of the copyright or other
such rights in that content. It is your responsibility to ensure that your use of this or any other device complies with applicable
copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved
or contact the owner of the rights of the content you wish to record or playback.
Read these instructions
Follow all instructions
Heed all warnings
Keep these instructions
All rights reserved.
▌Important Notice
▌Safety Instructions
To ensure safe and correct use of this product, always comply with the following precautions to avoid dangerous situations and
damage to your unit:
The lightning flash with arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
B
The intended use and ambient conditions for this device
This device is intended for the rendering of video and audio signals, on a table-top, in a home or oce environment. It must not be
used in rooms with a high level of humidity or dust concentration. The warranty is only valid if used as intended by the manufacturer.
WARNING
High humidity and dust concentration may lead to current leaks in the device. To reduce the risk of re or electrical shock:
- Do not expose this unit to rain, moisture, dripping or splashing water, and do not place objects lled with liquids, such as vases,
cups, etc. on or over the unit.
- Do not touch the device with wet hands.
- Do not expose to direct air-conditioning and keep candles or other naked ames away from the device at all times.
If the device is moved from a cold environment to a hot environment, leave it switched o for at least an hour to avoid condensation.
If used outside, make sure it is protected from moisture.
If you notice anything unusual, immediately remove the power plug.
In case of re, use preferably a CO
2
gas or powder re extinguisher. If such extinguishers are not accessible, try to isolate the electrical
supply before using a water re extinguisher.
Never place a Laser Cinema in an unstable location. A Laser Cinema may fall, causing serious personal injury or death. Many
injuries, particularly to children, can be avoided by taking simple precautions such as:
- Using cabinets or stands recommended by the manufacturer of the Laser Cinema.
- Only using furniture that can safely support the Laser Cinema.
- Ensuring the Laser Cinema is not overhanging the edge of the supporting furniture.
- Not placing the Laser Cinema on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and
Laser Cinema to a suitable support.
- Not placing the Laser Cinema on cloth or other materials that may be located between the Laser Cinema and supporting furniture.
- Educating children about the dangers of climbing on furniture to reach the Laser Cinema or its controls.
If your existing Laser Cinema is being retained and relocated, the same considerations as above should be applied.
C
Power Supply
Incorrect voltages can damage the device. Only connect this unit
to a power supply with the correct voltage and frequency noted
on the type plate, using the supplied power cable.
The power plug must be easily accessible so that the device can
be disconnected at all time. The unit is live, even if in standby
mode, as long as the unit is connected to a power outlet.
It is recommended that this unit is placed on a dedicated circuit.
- Do not overload the power outlets by connect too many
appliances to the same outlet. Overloaded wall outlets,
extension cords, etc. are dangerous and can result in electric
shock and re.
After power o, don't turn it on again in 5 seconds. Frequent
switching power supply in a short period of time can cause
abnormal device.
Power plug and power cable
- Do not touch the power plug with wet hands.
- Do not place heavy objects on the power cable. Route the
cable so that it is not kinked or laid over sharp edges, walked
on or exposed to chemicals. A power cable with damaged
insulation can cause electric shock and re.
- Pull the power plug, NOT on the cable when disconnecting.
The cable can become damaged and cause a short circuit if
pulled on.
- Do not place the power cable near a high temperature object.
- Do not move the device with the power cable plugged into a
socket.
- Do not use a damaged or loose power cable, or a damaged
socket outlet.
- Do not use any power cords other than the one supplied with
this unit.
Air ventilation and high temperatures
Install your device only where there is proper ventilation, and ensure
that there is at least 20 cm free space on the sides and 15 cm
free space on the back unit for air circulation. Excessive heat and
obstruction of ventilation could lead to re or early failure of some
electric components.
- Do not block any ventilation openings with newspapers,
tablecloths, curtains, etc.
- Do not dry clothing etc. on top of the unit.
- Take care not to touch the ventilation openings since they may
D
become hot.
- Do not insert foreign objects into the device through the vents.
Warning about o-gassing
New furniture, carpet, paint, building materials and electronics
can release chemicals into the air through evaporation. After
you set your device up and turn it on for the rst time, you may
notice a slight smell within a couple of hours. This is because
some components of device are heating up for the rst time. The
materials that we use fully meet the environmental requirements
and regulations. Your device is working just ne and the fumes
from the o-gassing will diminish eventually.
Supervision
- Do not let children play unsupervised close to the device. It
could tip over, be pushed o or pulled down from the stand
surface and injure someone.
- Do not allow a switched-on device to run unattended.
Volume
Loud music and noises can lead to irreversible damage to your
ears. Avoid extreme volume, especially over long periods and
when using headphones.
If you hear a drumming noise in your ears, turn down the volume
or temporarily stop using headphones.
Thunder Storms
Pull out the power plug and all connected antenna cables from
the device during a thunderstorm. Overvoltage caused by
lightning strikes can damage the device via the antenna system,
as well as the wall socket.
Long periods of absence
As long as the power plug is connected to a live socket outlet,
the device will consume power even in standby mode. The power
plug and all connected antenna cables should be disconnected
out during long periods of absence.
Cleaning and care
CAUTION:
Unplug the power cord prior to cleaning the device.
Clean the device, the screen, and the remote control with a
soft, moist, clean and color-natural cloth only. Do not use any
chemicals.
- Do not subject the surfaces to insect repellent, solvent,
thinner or other volatile substances. This may degrade the
surface quality.
- Do not spray water or other liquids directly on the device.
Liquid inside the device could lead to product failure.
- The surface of the display panel is treated and may be easily
damaged. Take care not to scratch it with ngernails or other
hard objects.
E
- Also wipe the power plug with a dry cloth at regular intervals.
Service/Repair
Never remove the cover/back of the device; there are no user
serviceable parts inside. Refer all service to qualied service
personnel.
Packaging
Keep the anti-moisture materials and plastic bags out of reach of
children.
Plastic bags can cause suocation and the anti-moisture material
is harmful if swallowed. If swallowed by mistake, force the patient
to vomit and visit the nearest hospital.
Modication
Do not attempt to modify this product in any way. Unauthorized
modication could void the warranty of this unit, cause electric
shock and res.
Remote Control batteries
- Incorrect installation may cause battery leakage, corrosion
and explosion.
- Replace only with the same or equivalent type.
- Do not mix old and new batteries.
- Do not mix dierent battery types.
- Do no use rechargeable batteries.
- Do not burn or break up batteries.
- Be sure to dispose of batteries correctly.
- Do not expose batteries to excessive heat such as sunshine,
re or the like.
Disposal
Refer to the recycling section of this manual.
Laser
Do not look directly at the lens when this device is on
because the laser light may damage your eyes!
- This product comes with a laser module. Do not tear or
modify this device in any manner; otherwise, it may result in
personal injury.
RG2
As with any bright light source, DO NOT STARE INTO THE
BEAM IEC 62471-5: 2015
CLASS 1 LASER PRODUCT
λ = 459~471nm/519~531nm/635~651nm
Wavelength 459~471nm/519~531nm/635~651nm
CLASS 1 LASER PRODUCT IEC 60825-1: 2014
CAUTION:
Use of controls or adjustments or performance of procedures
other than those specied herein may result in hazardous
radiation exposure.
- If this device requires a repair, please wear laser eye
F
protection with an optical density OD that is 4 or higher and
has a wave length of 459-651 nm.
- Do not place any water-containing vessel on this device,
such as cosmetics or liquid medicine.
- If any object or water enters this device, please unplug this
device and contact the service sta of Hisense.
- Do not place any exposed re source (e.g. burning candle)
on this device. Keep away from high temperature and heat.
- Do not expose the battery to direct sunlight or candle light.
- Keep air vents on both sides clear from any objects to
prevent the device from overheating inside.
- To avoid a short circuit, product damage or electric shock,
do not use any sharp object or metal to touch the ports or
other openings on the Laser Cinema.
- If this device has been in a warm environment, allow any
built-up condensation to evaporate rst BEFORE you
switch the device on.
- Do not allow a child to stand on or climb up this device.
- Do not place any object above or in front of the lens
because the laser light could cause the object to become
ammable.
- Clean the lens periodically with a clean cloth and make
sure the Laser Cinema is turned o before you start.
AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
Class II product: This symbol indicates that it does not require a safety connection of protective earthing (ground).
1
Table of Contents
Accessories List 2
Laser Cinema Diagram 3
STEP 1. Mount the Screen 4
STEP 2. Install the Laser Cinema 4
STEP 3. Adjust the Display Image and the Screen 9
STEP 4. Use Your Remote 13
STEP 5. Proceed through the Screen Setup Menu 15
Maintenance & Quick Problem-Solving Tips 17
Product Specications 19
Recycling / Licenses 21
Congratulations on the purchase of your new Laser Cinema! This Manual will walk you through a few easy steps to set
up your Laser Cinema.
Please visit Hisense ocial website for more details.
Product image is only for reference, actual product may vary in appearance.
Parts of the software function changes with the system upgrade.
2
Accessories List
NOTE: The accessories may be dierent from the list above due to dierent models, countries/regions. Please refer to the actual
accessory bag.
• Laser Cinema × 1
• Remote control × 1
• AAA batteries × 2
• Gloves for handling the Laser Cinema × 2
• Power Cord × 1
• Wrench to adjust the bottom of the Laser Cinema × 1
• Audio Out Cable × 1
• Laser Cinema User Manual × 1
• Laser Cinema European Guarantee × 1
• Cleaning kit for the lens × 1
• C-shaped blocks × 2
• C-shaped Block Installing Instruction × 1
3
We strongly recommend that two people handle this device when moving it from one place to another. Be sure to
protect the lens when you handle this device.
Laser Cinema Diagram
Remote control receiver
Power Indicator
Air vents
Power button
Lens with laser
Eye protection sensor
Eye protection sensor
4
STEP 2 Set up the Laser Cinema
To begin setting up the Laser Cinema, we strongly recommend that TWO people move it from one place to another
because of the weight. Be sure to protect the lens when you handle this device.
STEP 1 Mount the Screen
If you purchased a screen from Hisense to include with your Laser Cinema, then refer to the Screen Installation Guide
that’s included in the package.
1. Now, to get started, we recommend that you connect all cables to the
ports on the back of the Laser Cinema before you position it. (Audio,
video, Ethernet cables and external devices are not included.)
2. Position the Laser Cinema so it is parallel with the screen
surface.
3. Plug the power cord into a wall outlet.
4. Press the POWER button to turn on the Laser Cinema.
8 in8 in
6 in
WARNING: Insufficient ventilation space will cause this device
to overheat or become damaged.
• Do not block the air vents or place any object on this device.
• Do not place this device in any narrow, enclosed or poorly
ventilated space.
At a minimum, leave the amount of space shown in the diagram
below for this device to have proper ventilation.
Laser beam
Power Cord
Wall Outlet
5

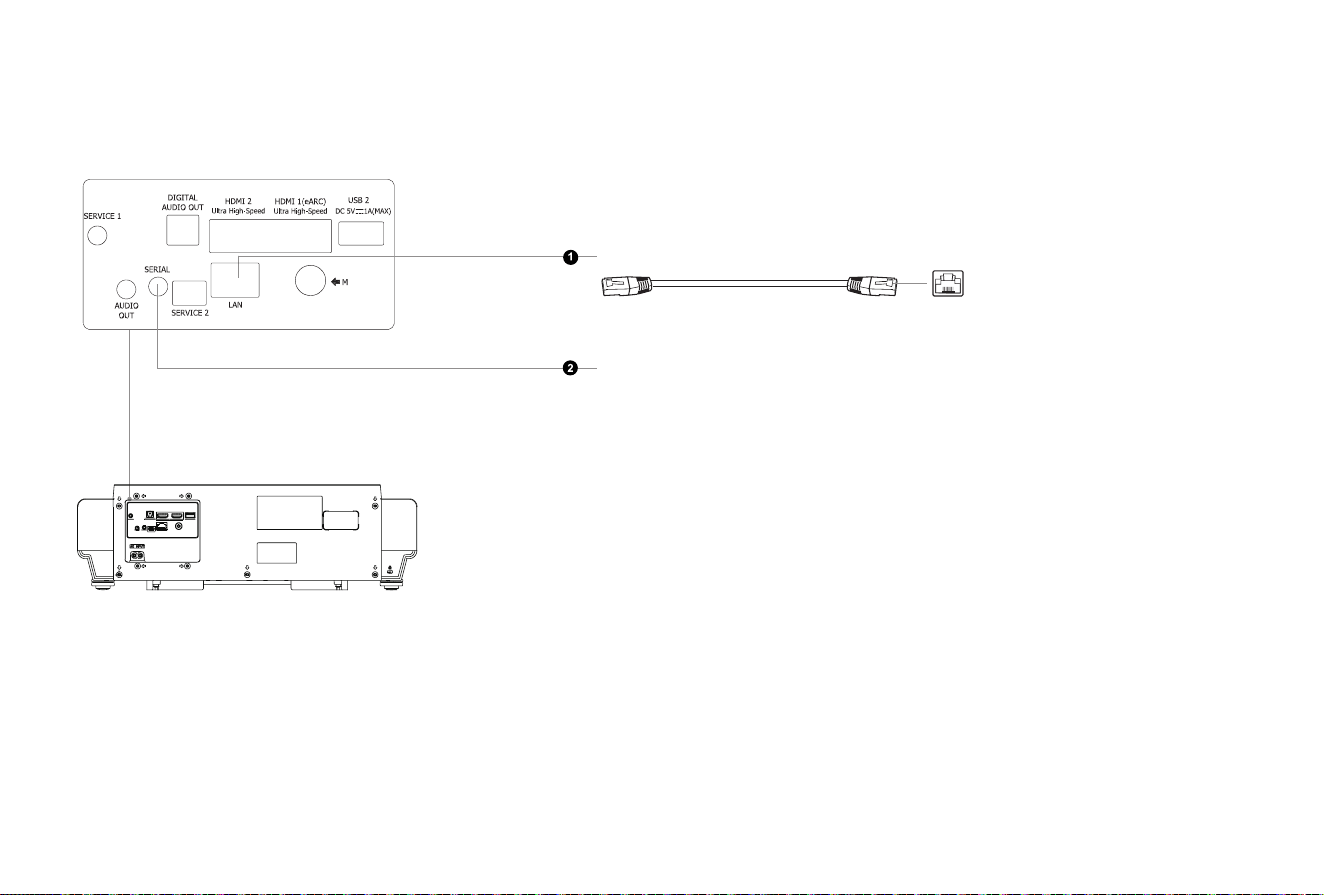

Ports to connect certain cables to
Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can
aect the quality of the picture image and color.
Ethernet (you will need a router for Internet connectivity)
It may be used to connect to a home automation system or Custom
Integrated Audio/Video (A/V) system. It is recommended that it
should only be completed by a professional installer.
6

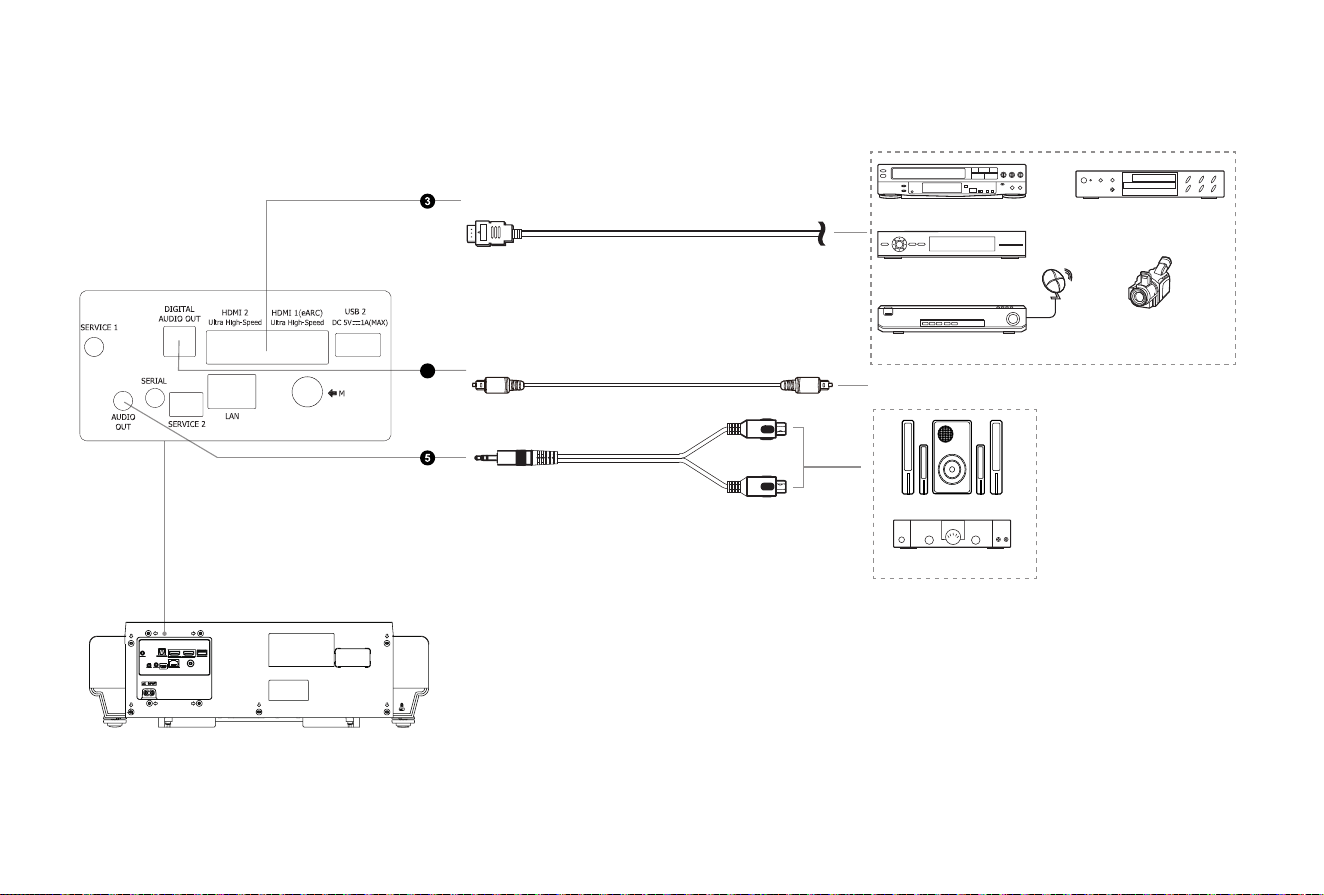

Video Camera
DVD Player
External AV devices
VCR
Set-top Box
Satellite Receiver
HDMI
Digital audio adapter
External audio devices
Audio Amplier
Speakers
audio adapter
Red
White
4
7
NOTE:
Use the USB extension cable (included) for easier connection and disconnection.
When connecting a hard disk or a USB hub, always connect the mains adapter of
the connected device to the power supply. Exceeding a total current consumption
may result in damage. The USB2.0 device maximum current consumption is 500mA.
The USB3.0 device maximum current consumption is 1A.
If the impulse current for an individual non-standard high-capacity mobile hard disk
is greater than or equal to 1A, it may cause the Laser Cinema to reboot or lock.
The USB port supports a voltage of 5V.
USB devices for browsing photos, music and movies. This unit only recognizes USB Memory
Sticks.
8
LAN (
Wired setup
)
Connect your Laser Cinema to your network by connecting the LAN port on the back of your Laser Cinema to an external modem
or router using a LAN (Ethernet/Cat 5) cable. See the illustration below.
Wireless setup
Connect your Laser Cinema to your network wirelessly, you need a wireless router or modem. See the illustration below.
Wireless router with DHCP
LAN Cable
Wireless LAN Adapter
built-in Laser Cinema
Laser Cinema PORT
Modem CableLAN CableLAN Cable
External Modem
(ADSL / VDSL / Cable TV)
IP Sharer (Router)
(with DHCP server)
LAN
NOTE:
You must use the built-in Wireless LAN Adapter to use a wireless network because the set doesn’t support external USB network
adapters.
If the wireless router supports DHCP, your Laser Cinema can connect more easily to the wireless network.
If you apply a security system other than the systems listed below, it will not work with the Laser Cinema.
security system: WPA, WEP, WPA2.
In order to guarantee smooth network, the distance between router and Laser Cinema should be less than 10 metres.
9
FIT THE BOTTOM OF THE IMAGE TO THE SCREEN
• If the image shifts to the left side, then move the Laser
Cinema to the right.
If the image shifts to the right side, then move the Laser
Cinema to the left.
STEP 3 Adjust the Display Image and the Screen
Follow the steps in the order shown below, only if they apply to your situation.
NOTE: Before adjusting, fold the wall-mount bracket wands so that screen is vertically level. Rotate feet from an overlooking view,
but do not look directely at the lens when the Laser Cinema is on because the laser light may damage your eyes.
PARALLEL THE BOTTOM OF THE IMAGE WITH THE SCREEN
If the bottom of the image is lower on the left and higher on the
right, rotate the device counterclockwise.
If the bottom of the image is lower on the right and higher on the
left, rotate the device clockwise.
10
ADJUST THE UPPER-RIGHT CORNER OF THE IMAGE
1. If the top of the image is lower on the left and higher on the
right, then use the wrench to rotate the front-right foot and
the back-right foot clockwise to the same height.
2. Now, rotate the Laser Cinema counterclockwise so that the
bottom of the image is parallel with the screen.
3. Repeat the steps above until the top of the image is parallel
with the screen.
back-right foot
front-right foot
• If the bottom of the image is wider than the screen, then
move the Laser Cinema closer to the screen.
If the bottom of the image is narrower than the screen, then
move the Laser Cinema farther from the screen.
NOTE: Make sure the bottom of the image always stays
parallel with the screen. If not, rotate the Laser Cinema
following previous instructions.
11
height.
2. Now, rotate the Laser Cinema clockwise so that the bottom of
the image is parallel with the screen.
3. Repeat the steps above until the top of the image parallel
with the screen.
4. If the upper-left corner is inside the screen after adjusting, use
the wrench to rotate the front-left foot and the back-left foot
counterclockwise to the same height, and rotate the Laser
Cinema counterclockwise, to make the image is parallel with
the screen.
4. If the upper-right corner is inside the screen after adjusting,
use the wrench to rotate the front-right foot and the back-
right foot counterclockwise to the same height, and rotate
the Laser Cinema clockwise, to make the image parallel with
the screen.
ADJUST THE UPPER-LEFT CORNER OF THE IMAGE
1. If the top of the image is higher on the left and lower on the
right, then use the wrench to rotate the front-left foot and the
back-left foot of the Laser Cinema clockwise to the same
back-left foot
front-left foot
12
If the top of the image is narrower than the screen, then use
the wrench to rotate the left- and right-back feet of the Laser
Cinema clockwise, until the left and right borders of the image
are parallel with the screen borders.
Next, move the projector further from the screen to ll the image
to screen width.
If the back feet are already at their maximum height, rotate the
left- and right-front feet of the Laser Cinema counterclockwise.
Rotate the back feet clockwise Rotate the front feet
counterclockwise
FILL THE TOP OF THE IMAGE TO THE SCREEN
If the top of the image is wider than the screen, then use
the wrench to rotate the left- and right-front feet of the Laser
Cinema clockwise.
Do not look directly at the lens when this device is on because the laser light may damage your eyes!
13
STEP 4 Use Your Remote
BUTTONS ON YOUR REMOTE
NOTE: The button labels are provided as a reference. The actual appearance of the remote that is included with the Laser Cinema, may dier from
this diagram.
1
Power on/off
14
Display the Home screen
2
Press to enter your customized input source/
app
Press and hold to enter customization
settings
15
Brightness (up/down)
3
D-pad (up/down/left/right navigation buttons)
16
Press to Mute or restore sound
Press and hold to display Accessibility menu
4
Return to the previous place in the menu or
app
17
Quick access to sound mode
5
Volume (up/down)
6
Media content control function buttons
7
Quick access to picture mode
8
Quick access buttons to apps
9
Change Laser Cinema input source
10
Google Assistant of Laser Cinema
11
Enter Channels/input numbers and special
function buttons
12
Confirmation button
13
Press to enter Menu
Press and hold to pair the bluetooth remote
NOTE: The included remote will vary depending on models, countries/regions. Check information
according to the actual remote in the accessory bag.
3
6
14
5
16
8
10
12
17
1
4
7
9
11
15
13
2
14
IMPORTANT INFORMATION ABOUT THE REMOTE AND
BATTERIES
• Discard batteries in a designated disposal area. Do not
throw them into a re.
• Remove old batteries immediately to prevent them from
leaking into the battery compartment.
• If you do not intend to use the remote control for a long time,
then remove the batteries.
• Battery chemicals can cause a rash. If the batteries leak,
clean the battery compartment with a cloth. If chemicals
touch your skin then wash it immediately.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc) or rechargeable
(NiCd, NiMH, etc.) batteries.
• Do not continue using the remote if it gets warm or hot.
• Call our Support Center immediately on the support website.
REMOTE CONTROL RANGE INFORMATION
• The remote control can work at a distance of up to 8 metres
in front of the Laser Cinema. (This distance is used by
infrared means
in an unpaired state
.
)
• The remote control angle: taking the remote sensor as an
apex, 6 metres away, its controlled horizontal angle is within
±30°, while the vertical angle is within ±15°. (This angle is
used by infrared means in an unpaired state.)
PAIRING THE REMOTE CONTROL (ONLY FOR BLUETOOTH
REMOTE CONTROL)
1. Pair the remote to the Laser Cinema after you power it on.
Keep the remote control within 3 metres from the Laser
Cinema. Press and hold the [ ] button at least 3 seconds
to start pairing.
2. If the remote paired successfully then a conrmation will
display on the screen. If it did not pair successfully then an
'unsuccessful' message will display. Repeat step 1.
NOTE:
• If an unknown error occurred with the remote then it could
have been caused by interference. Try to remove what's
causing the interference and pair it again.
• If an unknown error occurred in the remote control while the
battery power is normal, you can take out the batteries and
press any key for 1~2 seconds, then the remote control can
work normally.
• The remote cannot be paired to the Laser Cinema while the
Laser Cinema is in standby mode.
1. Press and slide the back cover to
open the battery compartment of
the remote control.
2. Insert two AAA size batteries.
Make sure to match the (+) and
(-) ends of the batteries with the
(+) and (-) ends indicated in the
battery compartment.
3. Restore the battery compartment.
15
STEP 5 Proceed through the Screen Setup
Menu
PROJECTION MODE
If you need to ip the image over top-to-bottom and/or left-to-
right, select the Projection Mode.
AUTO GEOMETRIC CORRECTION
Before you use Auto Geometric Correction function, ensure that
the Laser Cinema and your mobile device are connected to the
same Wi-Fi network.
1. Adjust the Laser Cinema position by using the levelling feet
as needed, ensure the frame of the screen is located inside
the rectangular border.
2. Click Next to continue.
3. Scan the QR Code with your mobile device to begin
automatic geometric correction. When the app loads, the
Laser Cinema will display an alignment grid.
4. Click "+" on your mobile device to take a photo of the entire
screen and image. For best results, stand about 10 feet
away from the screen and use landscape mode.
5. Click "upload" on your mobile device to complete the
automatic geometric correction.
NOTE:
• Please ensure you are standing in front of the screen to take
the photo, no deviation of more than 25° from the center of
the screen.
• Please ensure the whole Laser Cinema screen is fully visible
on the photo, including the Frame of the display.
• Please ensure all the 16 points of the grid on the screen are
all in focus when taking the photo.
• Please ensure the Laser Cinema screen image must take up
at least 60% of the overall photo size for correct geometric
correction.
MANUAL GEOMETRIC CORRECTION
Select points and move to t the projected image into the
screen.
NOTE:
Manual Geometric Correction is only applicable in some models/
countries/regions.
Alignment grid
16
1. Press
/ / < / >
buttons on your remote to move focus, and
press OK button to choose a point you need to adjust.
2. Long press
/ / < / >
buttons: quick adjustment of the
projected image;
Short press
/ / < / >
buttons: precise adjustment of the
projected image.
3. Press button to save your adjustment, and you can select
other points to adjust the image.
If you want to return the image position to the factory default,
select Reset button on the screen.
EYE PROTECTION
In order to protect your eyes, keep the Eye Protection setting
on, and do not look into the lens. If you get too close to the
projector, the light output will be temporarily disabled after 5
second countdown.
FOCUS ADJUSTMENT
You can adjust the focus parameters by pressing the up and
down buttons on the remote. The focus eect is adjusted in real
time according to the displayed background image card.
17
Quick Problem-Solving Tips
When you experience an issue with your Laser Cinema, turn it o and on again. If this does not resolve the problem, then refer to
the tips below.
When I turn on my Laser Cinema, there is a delay for a few seconds before the picture appears. Is this normal?
Yes, this is normal. The Laser Cinema is initializing and searching for previous setting information.
No sound or picture
1. Check if the power cord is plugged into a powered AC outlet.
2. Press the Power button on the remote control to activate the unit from 'Standby' mode.
3. Check to see if the LED light is on or not. If it is, then the Laser Cinema is receiving power.
I have connected an external source to my Laser Cinema and I get no picture and/or sound.
1. Check for the correct output connection on the external source and for the correct input connection on the Laser Cinema.
Maintenance
• Do not touch this device when it is running or just turned o because it may be hot.
• Do not wipe this device with oil because it may deteriorate the exterior or damage the paint. Contact with rubber or ethylene
products for a long time may cause stains on this device.
• If the outside of the Laser Cinema is dirty, turn o the Laser Cinema and wipe with a damped soft cloth.
• Do not touch the lens with your hands.
• Do not touch or wipe the lens with ordinary cleaning cloth. Use a dust blower to remove the dust on the lens. Grease, dirt and
ngerprints should be cleaned carefully by the professional by using optical cleaning cloth, lens wiping paper or professional
cleaning solutions to avoid destroying the optical lming and aecting the image quality.
• To turn o this device, press the Power button on the remote control. Do not cut o the power directly when the device is working.
18
2. Make sure you have made the correct selection for the input mode for the incoming signal.
The picture is normal but there is no sound
1. Check the volume settings.
2. Check if 'Mute' mode is set to On.
Sound but no picture or black and white picture
1. If the picture is black and white, unplug the Laser Cinema from the AC outlet and replug it after 60 seconds.
2. Check that the Colour is set to 50 or higher.
3. Try dierent Laser Cinema channels.
The sound and/or picture is distorted or appears wavy
1. An electric appliance may be aecting the Laser Cinema. Turn o any appliances that are nearby and move it farther away from
the Laser Cinema.
2. Insert the power plug of the Laser Cinema set into another power outlet.
The sound and picture is blurry or cuts out
1. If using an external antenna, check the direction, position and connection of the antenna.
2. Adjust the direction of your antenna or reset or ne tune the channel.
The plastic cabinet makes a "clicking" type of sound
The 'click' sound can occur when the temperature of the Laser Cinema changes. This change causes the Laser Cinema cabinet to
expand or contract, which makes the sound. This is normal and the Laser Cinema is OK.
The remote control does not work
1. Conrm that Laser Cinema still has power and is operational.
2. Change the batteries in the remote control.
3. Check if the batteries are correctly installed.
19
Product Specifications
Model Name
PX1G
Dimension
(W × H × D)
20.5 × 6.3 × 12.8 inches
(520 × 160 × 324 mm)
Weight
20.3 lbs (9.2 kg)
Active Screen Size (Diagonal)
90 ~ 130 inches
Screen resolution
3840 × 2160
Audio power
2 × 15 W
Power consumption
185 W
Power supply
120-240V ~ 50/60Hz
Wireless
LAN Module
specifications
Model
MW510-1
Frequency Range
2.4G WiFi (20 MHz): 2412 - 2472 MHz
2.4G WiFi (40 MHz): 2422 - 2462 MHz
5G WiFi (20 MHz): 5180 - 5320 MHz, 5500 - 5700 MHz
5G WiFi (40 MHz): 5190 - 5310 MHz, 5510 - 5670 MHz
5G WiFi (80 MHz): 5210 - 5290 MHz, 5530 - 5610 MHz
5.8G Non-Specific SRD: 5745 - 5825 MHz
Output Power (Max.)
2.4G WiFi: 19.20 dBm EIRP
5G WiFi (5150-5350 MHz): 18.50 dBm EIRP
5G WiFi (5470-5725 MHz): 18.70 dBm EIRP
5.8G Non-specific SRD: 12.66 dBm EIRP
20
Disclaimer: All products, product specications, and data are subject to change without notice to improve reliability, function, design or otherwise.
Bluetooth
Module
specifications
Model
MW510-1
Frequency Range
2402~2480MHz
Output Power (Max.)
11.10 dBm EIRP
Remote
Control
specifications
Model
ERF3AA90H
Frequency Range
2.4~2.4835GHz
Output Power (Max.)
2.4~2.4835GHz 5dBm
Environmental conditions
Temperature: 41°F - 104°F (5°C - 40°C)
Humidity: 20% - 80% RH
Atmospheric pressure: 86 kPa - 106 kPa
HDMI Input
RGB / 60 Hz (640×480, 800×600, 1024×768)
YUV / 60 Hz (480i, 480p, 720p, 1080i, 1080p)
YUV / 50Hz (576i, 720p, 1080i, 1080p)
3840×2160 / 24Hz
,
3840×2160 / 25Hz, 3840×2160 / 30Hz
3840×2160 / 50Hz,
3840×2160 / 60Hz
Network Standby Power Consumption
≤ 2.0 W
Power Consumption in Standby Mode
≤ 0.5 W
WIFI
IEEE802.11 a/b/g/n/ac
Bluetooth
BT4.2
21
Recycling / Licenses
WEEE (Waste Electronic Electric Equipment)
European Directive 2012/19/EU
This symbol on the product or on its packaging indicates that
this product must not be disposed of with your household
waste. Instead, it is your responsibility to dispose of your
waste equipment by handing it over to a designated
collection point for the recycling of waste electrical and
electronic equipment. The separate collection and recycling
of your waste equipment at the time of disposal will help to
conserve natural resources and ensure that it is recycled in
a manner that protects human health and the environment.
For more information about where you can drop o your
waste equipment for recycling, please contact your local city
oce, your household waste disposal service or the shop
where you purchased the product.
Batteries
In accordance with the Battery Directive, used batteries
should not be disposed of in the domestic waste. Dispose
your batteries in the collection containers specic for this
purpose in retail stores.
ROHS (Restriction of Hazardous Substance)
European Directive 2011/65/EU
This European directive limits the use of dangerous and
hazardous substances which are dicult to recycle.
This allows recycling easily the EEE and contributes to
the safeguard of the environment.
Substances included in this product match to the RoHS
directive.
The terms HDMI and HDMI High-Denition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United
States and other countries.
Dolby, Dolby Atmos, and the double-D
symbol are registered trademarks of
Dolby Laboratories Licensing Corporation.
Manufactured under license from Dolby
Laboratories. Condential unpublished works.
Copyright © 2012–2022 Dolby Laboratories.
All rights reserved.
For DTS patents, see http://patents.dts.
com. Manufactured under license from DTS
Licensing Limited. DTS, DTS-HD Master
Audio, DTS-HD, Virtual:X, and the DTS-HD
logo are registered trademarks or trademarks
of DTS, Inc. in the United States and other
countries. © 2021 DTS, Inc. ALL RIGHTS
RESERVED.
22
Hereby, Hisense Visual Technology Co., Ltd. declares that the radio equipment type [PX1 / PX1-PRO / PX1G / PX1G-
PRO / PX1GU / ERF3AA90H] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet address: http://global.hisense.com/downloads.
SIMPLIFIED EU DECLARATION OF CONFORMITY
For Great Britain:
SIMPLIFIED UK DECLARATION OF CONFORMITY
Hereby, Hisense Visual Technology Co., Ltd. declares that the radio equipment type [PX1 / PX1-PRO / PX1G / PX1G-
PRO / PX1GU / ERF3AA90H] is in compliance with Radio Equipment Regulations 2017. The full text of the UK
declaration of conformity is available at the following internet address: http://global.hisense.com/downloads.
23
