MICROWAVE OVEN
MMB12S2AS
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement. Consult
with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
functions that your new appliance offers in a safe way.
THANK YOU LETTER
CONTENTS
THANK YOU LETTER
SAFETY INSTRUCTIONS
SPECIFICATION
PRODUCT OVERVIEW
PRODUCT INSTALLATION
OPERATION INSTRUCTIONS
TROUBLE SHOOTING
EN-0 1
EN-02
EN-1 1
EN-1 2
EN-1 3
EN-1 9
EN-2 5
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT
EN-26
EN-2 7
--------------------------------------------------
---------------------------------------------
----------------------------------------------------------
-------------------------------------------------
-------------------------------------------
----------------------------------------
--------------------------------------------------
--
----------------------------------------
DATA PROTECTION NOTICE
EN-01
Danger
This symbol indicates that there are dangers to the life and health of
persons due to extremely flammable gas.
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of
persons due to voltage.
Warning
The signal word indicates a hazard with a medium level of risk which, if
not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which, if
not avoided, may result in minor or moderate injury.
Attention
The signal word indicates important information (e.g. damage to
property), but not danger.
Observe instructions
This symbol indicates that a service technician should only operate and
maintain this appliance in accordance with the operating instructions.
Intended Use
SAFETY INSTRUCTIONS
Read these operating instructions carefully and attentively before using/commissioning the
unit and keep them in the immediate vicinity of the installation site or unit for later use!
The following safety guidelines are intended to prevent unforeseen risks or damage from
unsafe or incorrect operation of the appliance. Please check the packaging and appliance
on arrival to make sure everything is intact to ensure safe operation. If you find any
damage, please contact the retailer or dealer. Please note modifications or alterations to
the appliance are not allowed for your safety concern. Unintended use may cause
hazards and loss of warranty claims.
Explanation of Symbols
SAFETY INSTRUCTIONS
EN-02
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE
ENERGY
a. Do not attempt to operate this oven with the
door open since open door operation can result in
harmful exposure to microwave energy.
It is important not to defeat or tamper with the
safety interlocks.
b. Do not place any object between the oven front
face and the door or allows soil or cleaner residue
to accumulate on sealing surfaces.
c. Do not operate the oven if it is damaged. It is
particularly important that the oven door close
properly and that there is no damage to the:
- DOOR (bent)
- HINGES AND LATCHES (broken or loosened)
- DOOR SEALS AND SEALING SURFACES
d. The oven should not be adjusted or repaired by
anyone except properly qualified service personnel.
EN-03
IMPORTANT SAFETY
INSTRUCTIONS
When using electrical appliances basic safety
precautions should be followed, including the
following:
WARNING
To reduce the risk of burns, electric shock, fire, injury
to persons or exposure to excessive microwave energy:
• Read all instructions before using the appliance.
• Read and follow the specific: "PRECAUTIONS
TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY" found on page 3.
• This appliance must be grounded. Connect only to
properly grounded outlet. See
"GROUNDING INSTRUCTIONS" found on page 7.
• Install or locate this appliance only in accordance
with the provided installation instructions.
• Some products such as whole eggs and sealed
containers - for example, closed glass jars - are able
to explode and should not be heated in this oven.
• Use this appliance only for its intended use as
described in the manual. Do not use corrosive
chemicals or vapors in this appliance. This type of
oven is specifically designed to heat, cook or dry
food. It is not designed for industrial or laboratory
use.
• As with any appliance, close supervision is necessary
when used by children.
• Do not operate this appliance if it has a damaged
cord or plug, if it is not working properly, or if it has
been damaged or dropped.
EN-04
• This appliance should be serviced only by qualified
service personnel. Contact nearest authorized service
facility for examination, repair, or adjustment.
• Do not cover or block any openings on the appliance.
• Do not store this appliance outdoors. Do not use this
product near water - for example, near a kitchen sink,
in a wet basement, near a swimming pool, or similar
location.
• Do not immerse cord or plug in water.
• Keep cord away from heated surface.
• Do not let cord hang over edge of table or counter.
• When cleaning surfaces of door and oven that
comes together on closing the door, use only mild,
nonabrasive soaps, or detergent applied with a
sponge or soft cloth.
• To reduce the risk of fire in the oven cavity:
- Do not overcook food. Carefully attend appliance
when paper, plastic, or other combustible
materials are placed inside the oven to facilitate
cooking.
- Remove wire twist-ties from paper or plastic bag
before placing bag in oven.
- If material inside of the oven ignite, keep oven
door closed, turn oven off, and disconnect the
power cord, or shut off power at the fuse or circuit
breaker panel.
- Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food in
the cavity when not in use.
• Liquids, such as water, coffee, or tea are able to
be overheated beyond the boiling point without
appearing to be boiling. Visible bubbling or boiling
when the container is removed from the microwave
oven is not always present.
EN-05
THIS COULD RESULT IN VERY HOT LIQUID
SUDDENLY BOILING OVER WHEN THE CONTAINER
IS DISTURBED OR A UTENSIL IS INSERTED INTO
THE LIQUID.
To reduce the risk of injury to persons:
- Do not overheat the liquid.
- Stir the liquid both before and halfway through
heating it.
- Do not use straight-sided containers with narrow
necks.
- After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
- Use extreme care when inserting a spoon or other
utensil into the container.
• Do not operate any heating or cooking appliance
beneath the appliance.
(Exception: A microwave oven investigated for use
above another heating appliance.)
• Do not mount unit over or near any portion of
heating or cooking appliance.
(Exception: A microwave oven investigated for use
above another heating appliance.)
• Do not mount over sink.
• Do not store anything directly on top of the
appliance surface when the appliance is in operation.
SAVE THESE INSTRUCTIONS
EN-06
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current. This appliance is equipped with a cord
having a grounding wire with a grounding plug. The
plug must be plugged into an outlet that is properly
installed and grounded.
WARNING
Improper use of the grounding can result in a risk
of electric shock. Consult a qualified electrician or
serviceman if the grounding instructions are not
completely understood, or if doubt exists as to
whether the appliance is properly grounded. If it is
necessary to use an extension cord, use only a 3-wire
extension cord that has a 3-blade grounded plug,
and 3-slot receptacle that will accept the plug on the
appliance. The marked rating of the extension cord
shall be equal to or greater than the electrical rating of
the appliance.
DANGER
Electric Shock Hazard
Touching some of the internal components can cause
serious personal injury or death. Do not disassemble
this appliance.
WARNING
Electric Shock Hazard
Improper use of the grounding can result in electric
shock. Do not plug into an outlet until appliance is
properly installed and grounded.
EN-07
• A short power-supply cord is provided to reduce
the risks resulting from becoming entangled in or
tripping over a longer cord.
• Longer cord sets or extension cords are available and
may be used if care is exercised in their use.
• If a long cord or extension cord is used:
- The marked electrical rating of the cord set or
extension cord should be at least as great as the
electrical rating of the appliance.
- The extension cord must be a grounding-type
3-wire cord.
- The longer cord should be arranged so that it will
not drape over the counter top or tabletop where
it can be pulled on by children or tripped over
unintentionally.
RADIO INTERFERENCE
• Operation of the microwave oven may cause
interference to your radio, TV or similar equipment.
• When there is interference, it may be reduced or
eliminated by taking the following measures:
- Clean door and sealing surface of the oven
- Reorient the receiving antenna of radio or
television.
- Relocate the microwave oven with respect to the
receiver.
- Move the microwave oven away from the receiver.
- Plug the microwave oven into a different outlet so
that microwave oven and receiver are on different
branch circuits.
This device complies with part 18 of the FCC Rules.
EN-08
UTENSILS
CAUTION
Personal Injury Hazard
Tightly-closed utensils could explode. Closed
containers should be opened and plastic pouches
should be pierced before cooking.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test
the utensil in question following the procedure below.
Utensil Test:
• Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
• Cook on maximum power for 1 minute.
• Carefully feel the utensil. If the empty utensil is warm,
do not use it for microwave cooking.
• Do not exceed 1 minute cooking time.
EN-09
Materials You Can Use In Microwave Oven
Utensils Remarks
Browning dish
Follow manufacturer’s instructions. The bottom of browning
dish must be at least 3/16 inch (5mm) above the turntable.
Incorrect usage may cause the turntable to break.
Dinnerware
Microwave-safe only. Follow manufacturer's instructions. Do
not use cracked or chipped dishes.
Glass jars
Always remove lid. Use only to heat food until just warm.
Most glass jars are not heat resistant and may break.
Glassware
Heat-resistant oven glassware only. Make sure there is no
metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags
Follow manufacturer’s instructions. Do not close with metal
tie. Make slits to allow steam to escape.
Paper plates and cups
Use for short–term cooking/warming only. Do not leave
oven unattended while cooking.
Paper towels
Use to cover food for reheating and absorbing fat. Use with
supervision for a short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic
Microwave-safe only. Follow the manufacturer’s instructions.
Should be labeled "Microwave Safe". Some plastic
containers soften, as the food inside gets hot. "Boiling bags"
and tightly closed plastic bags should be slit, pierced or
vented as directed by package.
Plastic wrap
Microwave-safe only. Use to cover food during cooking to
retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Materials To Be Avoided In Microwave Oven
Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal
handle
May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed
utensils
Metal shields the food from microwave energy. Metal trim
may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam
Plastic foam may melt or contaminate the liquid inside
when exposed to high temperature.
Wood
Wood will dry out when used in the microwave oven and
may split or crack.
EN-10
SPECIFICATION
MODEL MMB12S2AS
Rated Voltage
Microwave Input 1500 W
Microwave Output 1000 W
EN-11
120V~ 60Hz
PRODUCT OVERVIEW
Names Of Oven Parts And Accessories
(In case of any differences between the appliance and the pictures in this manual, the
product shall prevail.)
Remove the oven and all materials from the carton and oven cavity. Your oven comes
with the following accessories:
A
B
C
D
E
F
G
H
I
J
K
Defrosting Rack( Only be used in defrosting function
and do not use for cooking. Do not use without food )
A) Control Patch
B) Control Box
C) Right Mounting Plate
D) Cavity
E) Handle
F) Windows
G) Door Frame
H) Automatic putter
I) Drawer
J) Hinge Joint Board
K) Left Mounting Plate
EN-12
PRODUCT INSTALLATION
Special Warning
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE this installation manual FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Clearances And Dimensions
For SAFETY CONSIDERATIONS do not install drawer in any combustible cabinetry, which
is not in accord with the stated clearances and dimensions on pages 15. See Figure 1.
Unpacking Your Microwave Drawer
• Remove all packing materials from inside the Microwave Drawer.DO NOT REMOVE
THE WAVEGUIDE COVER, which is located on the top of the Microwave Drawer.
• Remove the feature sticker, if there is one .Check the drawer for any damage, such
as misaligned or bent drawer, damaged drawer seals and sealing surfaces, broken or
loose Microwave Drawer guides and dents inside the cavity or on the front side of the
drawer. If there is any damage, do not operate the Microwave Drawer and contact your
dealer or a MIDEA AUTHORIZED SERVICER.
Important Notes To The Installer
• Read all of the Installation Manual before installing the Microwave Drawer.
• Remove all packing material before connecting the electrical supply.
• Observe all governing codes and ordinances.
• Be sure to leave these instructions with the consumer.
Important Notes To The Consumer
Keep this manual with your Operation Manual for future reference.
• As when using any microwave oven generating heat, there are certain safety
precautions you should follow. These are listed in the Operation Manual. Read all and
follow carefully.
• Be sure your Microwave Drawer is installed and grounded properly by a qualified
installer or service technician.
EN-13
Important Safety Instructions
WARNING
If the information in this manual is not followed exactly, a fire or electrical shock may
result that could cause property damage, personal injury or death.
WARNING
To reduce the risk of tipping ,the Microwave Drawer must be secured by a properly
installed Anti-Tip block.
• This Microwave Drawer must be electrically grounded in accordance with local codes.
• Make sure the wall coverings and the cabinets around the Microwave Drawer can
withstand the heat generated by the Microwave Drawer.
WARNING
Never leave children alone or unattended in the area where a Microwave Drawer is in use.
Never leave the drawer open when the microwave is unattended.
WARNING
Stepping ,leaning or sitting on the drawer may result in serious injuries and can also
cause damage to the Microwave Drawer.
• Do not use the Microwave Drawer as a storage space .This creates a potentially
hazardous situation.
• Check that the time-of-day is in the display. IF not, touch Stop/Clear to prevent
unintended use.
Clearances And Dimensions

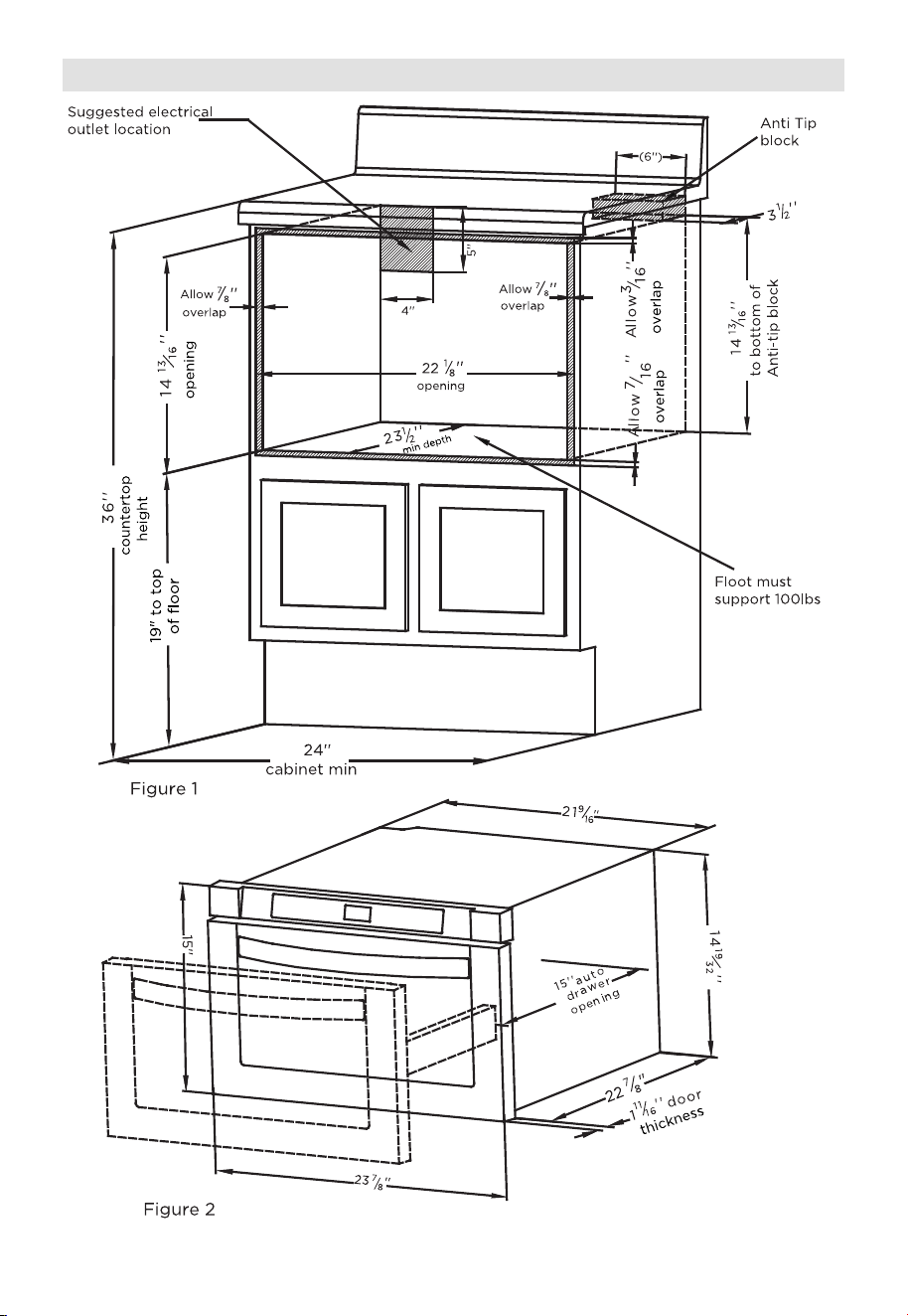

• Dimensions that are shown in Figure 1 must be used. Given dimensions provide
minimum clearance. Locate electrical outlet in the shaded area in the upper left-hand
corner of the cutout. See Figure 3.
• Contact surface must be solid and level. Pay special attention to the floor on which the
Microwave Drawer will sit. The floor of the opening should be constructed of plywood
strong enough to support the weight of the oven (about 100 pounds).
• Check location where the Microwave Drawer will be installed for proper electrical
supply
• Your oven can be built into a cabinet or wall by itself or under a gas or electric wall
oven.
• Be sure that the clearance of the floor between the wall oven and the microwave
drawer is a minimum of 2-inches.
• The microwave interior will easily accommodate a 9" x 13" oblong dish or a bag of
microwave popcorn.
EN-14
Microwave Drawer Measurements
EN-15
Anti-Tip Block
NORMAL INSTALLATION STEPS
ANTI-TIP BLOCK INSTALLATION INSTRUCTIONS To reduce the risk of tipping of the
drawer, the Anti-Tip block must be properly installed located 14
13/16-inches above the floor on which the Microwave Drawer will sit. The 6-inch Anti-Tip
block must be provided by the installer. See Figures 1 and 3. The Anti-Tip block prevents
serious injury that might result from spilled hot liquids.
If the Microwave Drawer is ever moved to a different location, the Anti-Tip block must
also be moved and installed , When installed to the wall make sure that the screws
completely penetrate the dry wall and are secured in wood or metal so that the block is
totally stable. When fastening, be sure that the screws do not penetrate electrical wiring
or plumbing.
Figures 1 and 2 contain many Microwave Drawer measurements for reference when
planning the drawer's location .This Microwave Drawer can be installed below any electric
or gas wall oven.
*Can also be installed using an electrical outlet in an adjacent cabinet within the area
where tire providedelectric al cord can reach. Power cord access hole in cabinet should
be a minimum l 1/2" diameter hole and debarred of all sharp edges.
IMPORTANT
Always allow sufficient power cord length to the electrical outlet to prevent tension
Always check electrical codes for requirements.
EN-16
The electrical requirements are a 120 volt 60 Hz, AC only, I5 amp. or more protected
electrical supply. It is recommended that a separate circuit serving only this appliance be
provided.
The drawer is equipped with a 3-prong grounding plug, It must be plugged into a wall
receptacle that is properly installed and grounded. Should you only have 2-prong outlet,
have a qualified electrician install a correct wall receptacle.
NOTE
If you have any questions about the grounding or electrical
Instructions, consult a qualified electrician or service person.
*Can also be installed using an electrical outlet in an adjacent cabinet within the area
where the provided electrical cord can reach.
Always check electrical codes ,for requirements.
Grounding Instructions
This appliance must be grounded. The Microwave Drawer is equipped with a cord having
a grounding wire with a grounding plug. It must be plugged into a wall receptacle that
is properly installed and grounded in accordance with the National Electrical Code and
local codes and ordinances. In the event of an electrical short circuit, grounding reduces
risk of electric shock by providing an escape wire for the electric current.
WARNING
Improper use of the grounding plug can result in a risk of electric shock .Do not use
an extension cord .If the power supply cord is too short ,have a qualified electrician or
serviceman install an outlet near the appliance.
Electrical OutlEt
EN-17
1. Place the drawer adjacent to the wall or cabinet opening.Plug the power supply cord
into the electrical outlet.
2. Carefully guide the drawer into the prepared opening. Avoid pinching the cord
between the oven and the wall.

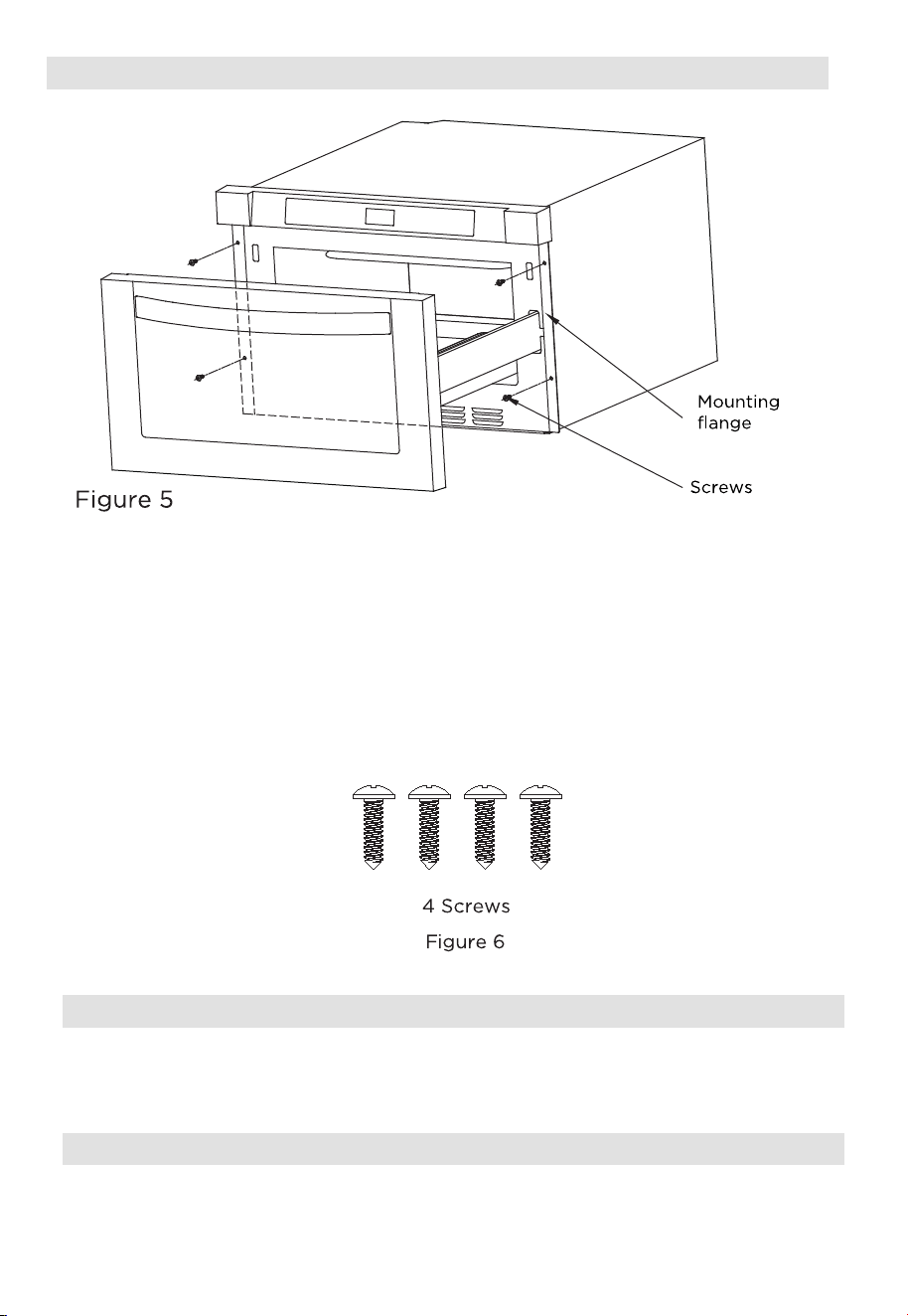

3. Slide the drawer all the way until the mounting flange is flush with the face of the
cabinet.
See Figure 5.
4. Open the drawer. Using the 4 holes on the drawer as a template , pre drill the cabinet
using a 1/16" bit. See Figure 5.
5. Secure the drawer with the 4 screws supplied. See Figure 6.
Model And Serial Number Location
The name plate includes model and serial number. Open the Microwave Drawer fully. The
label is beyond the back wall of the microwave cavity facing up from the flat surface.
Care,Cleaning And Maintenance
Refer to the Operation Manual for cleaning instructions.
Drawer Installation
EN-18
OPERATION INSTRUCTIONS
Control Panel And Features
(5)
(2)
(3)
(4) (9) (10)
(6)
(7)
(1)
(11) (12)
(8)
(3)
(8)
(1) Open
(2
) Setu
p
(3) A
uto Menu
(4) W
eight Defrost
(5) Clos
e
(6) Clock/Kitchen timer
(7) Time Defrost
(8) N
umber keys
(9) P
ower
(10
) Start
/ +30sec.
(11) Time C
ook
(12) Stop/Cancel
EN-19
Power On
1. When the microwave oven is plugged into an outlet, buzzer sounds once. Screen
displays "WELCOME". Then the oven turns into standby mode. The screen displays
"00:00".
2. In standby mode, the screen will display the current time if the clock has been set.
Otherwise, "00:00" will display.
3. Press "OPEN" to open the drawer, and screen displays "OPEN". The screen will display
"PLEASE CLOSE" when the drawer is fully opened.
Press "CLOSE" to close the drawer, and the screen displays "CLOSE". The screen will
display the current time or "00:00" when the drawer is fully closed.
If there are mistakes to open or close the drawer, buzzer will sound five times, and the
screen will display "CLOSE OR OPEN ".
Setting The Clock
1. Press "CLOCK/KITCHEN TIMER" once. The first hour figure will flash and other "0" will
light.
2. Press the number keys to enter the correct time. The input time should be between
01:00-12:59.
3. Press "CLOCK/KITCHEN TIMER" to confirm. The clock is set.
NOTE
1. In the process of clock setting, if the "STOP/CANCEL" is pressed or if there is no
operation within 1 minute, the setting is invalid.
2. To reset the clock, please repeat step 1 to step 3.
3. If the clock is not set, it would not work when powered.
Setting The Kitchen Timer
1. Press "CLOCK/KITCHEN TIMER" twice, "00:00" will display.
2. Press the number keys to enter the time. The maximum cooking time is "99:99"
3. Press "START/+30SEC." to confirm. The timer starts counting down.
NOTE
1. The kitchen timer is differ from 12-hour system. Kitchen Timer is a timer.
2. Any other program can’t be set during kitchen timer.
3. "STOP/CANCEL" can be pressed to cancel the Kitchen Timer.
Microwave Cooking
11 power levels are available.
Level Power Display
10 100% PL100
9 90% PL90
EN-20
8 80% PL80
7 70% PL70
6 60% PL60
5 50% PL50
4 40% PL40
3 30% PL30
2 20% PL20
1 10% PL10
0 0% PL00
1. Press "TIME COOK" once, "00:00" will display.
Press number keys to enter the cooking time. The maximum cooking time is "99:99".
2. Press "POWER" and then press number keys to adjust the power level.
The 11 power levels are available
3. Press "START/+30SEC." to start cooking.
Example: To cook the food with PL50 for 15 minutes.
• Press "TIME COOK" once.
• Press "1", "5", "0", "0" in order.
• Press "POWER" and then press "5" to select PL50.
• Press "START/+30SEC." to start cooking.
NOTE
In the process of setting, if the "STOP/CANCEL" is pressed or if there is no operation
within 1 minute, the setting is invalid.
Speedy Cooking
1. In standby mode, press “START/+30SEC." to cook food with 100% power level for
30 seconds. Each press on the same key can increase 30 seconds.
2. During microwave cooking and defrosting by time, "START/+30SEC." can be pressed
to increase cooking time. Each press will increase 30 seconds.
NOTE
"START/+30SEC." cannot be pressed to increase cooking time for defrost by weight and
Auto menu.
Defrost By Weight
1. Press "DEFROST WEIGHT" once. "WEIGHT DEFROST" will display.
2. Press numeber keys to input the weight of the food. The input weight should be
between 0.1-6.0 lbs.
3. Press "START/+30SEC." to start defrosting.
4. Once defrosting has finished, the buzzer will sound five times and “FINISH" will
display.
EN-21
NOTE
The buzzer will sound to remind you to turn the food over during defrosting.
If no operation, the oven will continue working.
Defrost By Time
1. Press "DEFROST TIME" once, “TIME DEFROST" will display.
2. Press number keys to set the desired defrost time. The maximum time value is “99:99".
3. Press "START/+30SEC." to start defrosting.
4. Once defrosting has finished, the buzzer will sound five times and “FINISH" will
display.
NOTE
The defrost power is P30.
Auto Menu--Beverage
1. Press "BEVERAGE" once. The screen displays "1". "AUTO MENU" and " "
indicators will light.
2. Continue to press "BEVERAGE", "1" or "2" will display in order.
3. Press "START/+30SEC." to start cooking. Buzzer sounds once. The cooking time starts
counting down. Once cooking has finished, buzzer sounds five times and "FINISH"
displays.
Auto Menu--Popcorn
1. Press "POPCORN" once. The screen displays "1.75". "AUTO MENU" and "OZ" indicators
will light.
2. Continue to press "POPCORN", "1.75", "3" or "3.5" will display in order.
3. Press "START/+30SEC." to start cooking. Buzzer sounds once. The cooking time starts
counting down. Once cooking has finished, buzzer sounds five times and "FINISH"
displays.
Auto Menu--Melt
1. Press "MELT" once. The screen displays "BUTTER". "AUTO MENU" indicator will light.
2. Continue to press "MELT", "BUTTER", "CHOCOLA", "CHEESE" or "MARSHMA" will
display in order.
3. Press "START/+30SEC." to confirm the selection.
4. Press "MELT" to select the weight. "OZ" will light except butter menu.
5. Press "START/+30SEC." to start cooking. Buzzer sounds once. "OZ" will go out. The
cooking time starts counting down. Once cooking has finished, buzzer sounds five
times and "FINISH" displays.
EN-22
The menu chart:
Menu Display Weight
Butter/Margarine BUTTER
1(STICH)
2(STICHS)
3(STICHS)
Chocolate CHOCOLA
4
8
Cheese CHEESE
8
16
Marshmallows MARSHMA
5
10
Auto Menu-Soften
1. Press "SOFTEN"once. The screen displays "BUTTER". "AUTO MENU" indicator will
light.
2. Continue to press "SOFTEN", "BUTTER", "ICE-CRE" or "CHEESE" will display in order.
3. Press "START/+30SEC." to confirm the selection.
4. Press "SOFTEN"to select the weight. "OZ" will light except butter menu.
5. Press "START/+30SEC." to start cooking. Buzzer sounds once. "OZ" will go out. The
cooking time starts counting down. Once cooking has finished, buzzer sounds five
times and "FINISH" displays.
Menu Display Weight
Butter BUTTER
1(STICH)
2(STICHS)
3(STICHS)
Ice cream/ Frozen juice ICE-CRE
8
16
32
Cream Cheese CHEESE
3
8
Silent mode
To activate the silent mode:
1. Press "SETUP " once, the screen displays "BUZ OFF".
2. Press "START/+30SEC.". The oven will turn to standby mode. Buzzer is turned off.
No beep will sound.
EN-23
To deactivate the silent mode:
1. Press "SETUP" once, the screen displays "BUZ ON".
2. Press "START/+30SEC.". The oven will turn to waiting state. Buzzer is turned on.
Buzzer will sound normally.
Lock Function for Children
You can use this function to prevent children from accidentally turning the oven on.
To activate the lock:
In standby mode, press and hold "STOP/CANCEL" for three seconds. A beep sounds
and the locked icon will display.
To deactivate the lock:
In locked state, press and hold "STOP/CANCEL" for three seconds. A beep sounds.
NOTE
The lock function for children cannot be set when the oven door has opened.
Inquiring Function
1. If the clock has been set, the current time will display for three seconds by pressing
"CLOCK/KITCHEN TIMER" in the cooking state.
2. In the microwave cooking state, press "POWER" to inquire the power level. It will
display for three seconds. In defrosting state and auto menu, the power level cannot
be inquired.
OTHER SPECIFICATIONS
1. The buzzer sounds once by efficient press, inefficient press will be no responce.
2. In cooking state, "OPEN" cannot be pressed to open the drawer unless
"STOP/CANCEL" is pressed to pause the cooking. Press "CLOSE" to close the drawer.
Then "START/+30SEC." must be pressed to continue cooking.
3. If the cooking programme has been set, "START/+30SEC." is not pressed within 1
minute, The setting is invalid.
4. If the oven door is open, the lamp will light until the oven is powered off.
EN-24
TROUBLE SHOOTING
Check your problem by using the chart below and try the solutions for each problem. If
the microwave oven still does not work properly, contact the nearest authorized service
center.
TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
Oven will not start
• Electrical cord for oven is
not plugged in.
• Door is open.
• Wrong operation is set.
• Plug into the outlet.
• Close the door and try again.
• Check instructions.
Arcing or
sparking
• Materials to be avoided in
microwave oven were used.
• The oven is operated when
empty.
• Spilled food remains in the
cavity.
• Use microwave-safe cookware
only.
• Do not operate with oven
empty.
• Clean cavity with wet towel.
Unevenly
cooked
foods
• Materials to be avoided in
microwave oven were used.
• Food is not defrosted
completely.
• Cooking time, power level
is not suitable.
• Food is not turned or
stirred.
• Use microwave-safe cookware
only.
• Completely defrost food.
• Use correct cooking time,
power level.
• Turn or stir food.
Overcooked
foods
• Cooking time, power level
is not suitable.
• Use correct cooking time,
power level.
Undercooked
foods
• Materials to be avoided in
microwave oven were used.
• Food is not defrosted
completely.
• Oven ventilation ports are
restricted.
• Cooking time, power level
is not suitable.
• Use microwave-safe cookware
only.
• Completely defrost food.
• Check to see that oven
ventilation ports are not
restricted.
• Use correct cooking time,
power level.
Improper
defrosting
• Materials to be avoided in
microwave oven were used.
• Cooking time, power level
is not suitable.
• Food is not turned or
stirred.
• Use microwave-safe cookware
only.
• Use correct cooking time,
power level.
• Turn or stir food.
EN-25
logo, word marks, trade name, trade dress and all versions thereof are
trademarks, copyrights and other intellectual property rights, and all goodwill derived
from using any part of an Midea trademark. Use of Midea trademark for commercial
purposes without the prior written consent of Midea may constitute trademark
infringement or unfair competition in violation of relevant laws.
This manual is created by Midea and Midea reserves all copyrights thereof. No entity or
individual may use, duplicate, modify, distribute in whole or in part this manual, or
bundle or sell with other products without the prior written consent of Midea.
All the described functions and instructions were up to date at the time of printing this
manual. However, the actual product may vary due to improved functions and designs.
TRADEMARKS, COPYRIGHTS
AND LEGAL STATEMENT
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT
valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns
EN-26
DATA PROTECTION NOTICE
For the provision of the services agreed with the customer,
we
agree to comply without restriction with all stipulations of applicable data protection
law, in line with agreed countries within which services to the customer will be delivered.
Generally, our data processing is to fulfil our obligation under contract with you and for
product safety reasons, to safeguard your rights in connection with warranty and
product registration questions. In some cases, but only if appropriate data protection is
ensured, personal data might be transferred to recipients located outside of the
European Economic Area.
Further information are provided on request. You can contact our Data Protection
Officer via [email protected]. To exercise your rights such as right to object your
personal date being processed for direct marketing purposes, please contact us via
[email protected]. To find further information, please follow the QR Code.
DATA PROTECTION NOTICE
EN-27
PN:16170000A98282
