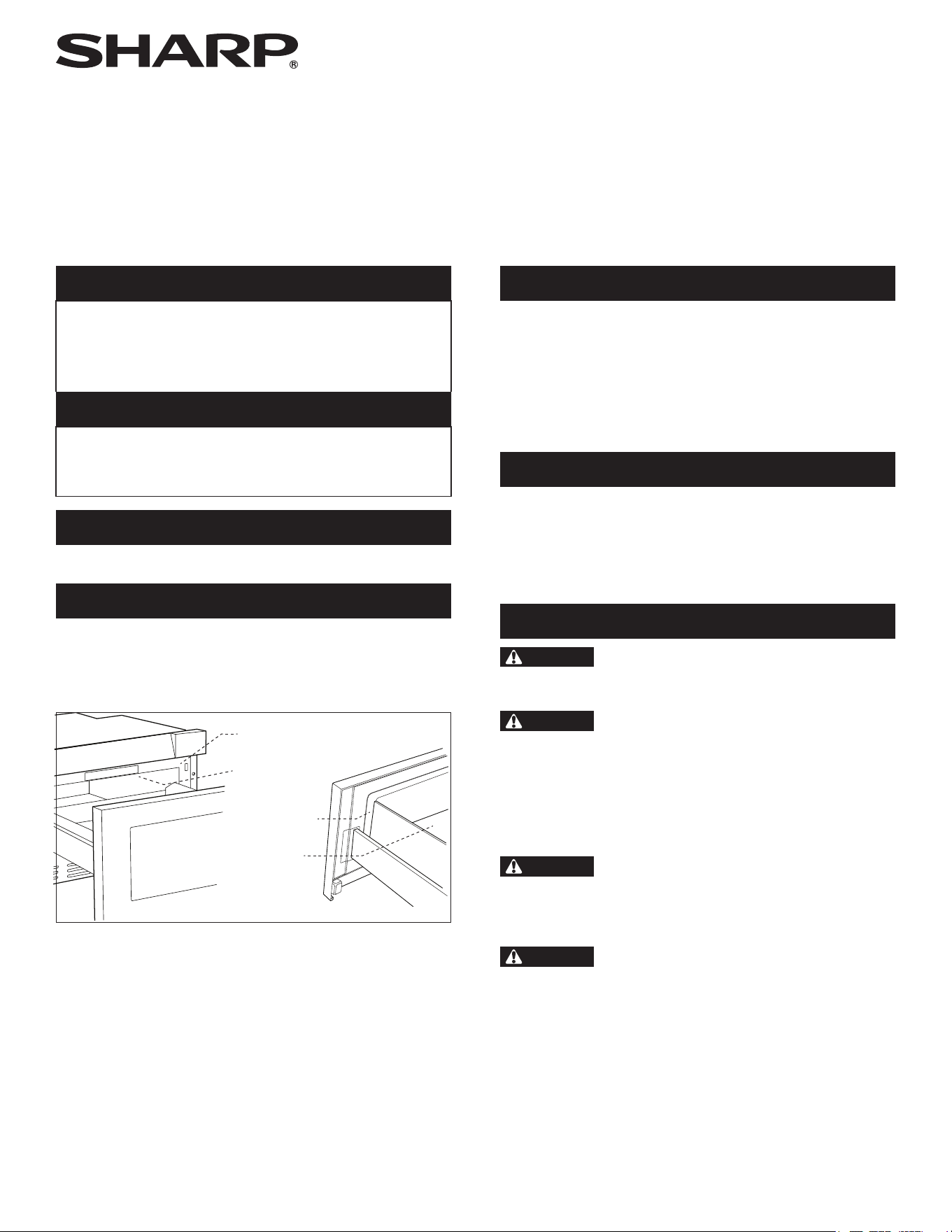

Sharp Microwave Drawer
™
Oven: SMD2420MS, SMD2430MS
INSTALLATION MANUAL
1
SPECIAL WARNING
Installation and service must be performed by a qualified
installer.
IMPORTANT: Save this installation manual for local
electrical inspector's use and future reference.
CLEARANCES AND DIMENSIONS
Do not install this appliance in any combustible cabinetry,
which is not in accord with the stated clearances and
dimensions on pages 2–5. See Figures 1–7.
SAFELY LIFT AND MOVE UNIT
Two people are required to safely lift and move this unit.
UNPACKING THE APPLIANCE
• Remove all packing materials from inside the Sharp Microwave
Drawer
™
Oven. DO NOT REMOVE THE WAVEGUIDE
COVER, which is located on the top of the Sharp Microwave
Drawer
™
Oven.
Sealing
Surface
Oven
Cavity
Waveguide
Cover
Sealing
Surface
• Remove the protective lm from the touch control area. Addition-
ally, remove the feature sticker, if there is one. Check the drawer
for any damage, such as misaligned or bent drawer, damaged
drawer seals and sealing surfaces, broken or loose drawer guides
and dents inside the cavity or on the front side of the drawer. If
there is any damage, do not operate the Sharp Microwave Drawer
™
Oven and contact your dealer or a Sharp authorized servicer.
IMPORTANT NOTES TO THE INSTALLER
• Read the entire Installation Manual before installing the Sharp
Microwave Drawer
™
Oven.
• Remove all packing material before connecting the electrical
supply. Manually pull open the drawer to ensure all packing
material is removed prior to connection and installation.
• Observe all governing codes and ordinances.
• Leave these instructions with the consumer.
IMPORTANT NOTES TO THE CONSUMER
Keep this manual with your Operation Manual for future reference.
• Read and follow the safety precautions listed in the operation
manual.
• Ensure your Sharp Microwave Drawer
™
Oven is installed and
grounded properly by a qualied installer or service technician.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
If the information in this manual is not followed
exactly, a re or electrical shock may result that could cause property
damage, personal injury or death.
WARNING
To reduce the risk of tipping, the Sharp Microwave
Drawer
™
Oven must be secured by a properly installed Anti-Tip block.
• This appliance must be electrically grounded in accordance with
local codes.
• Ensure the wall coverings and the cabinets around the appli-
ance can withstand the heat generated by the Sharp Microwave
Drawer
™
Oven.
WARNING
Never leave children alone or unattended
in the area where the Sharp Microwave Drawer™ Oven is
in use. Never leave the drawer open when the appliance is
unattended.
WARNING
Stepping, leaning or sitting on the drawer may
result in serious injuries and can also cause damage to the
Sharp Microwave Drawer
™
Oven.
• Do not use the Sharp Microwave Drawer
™
Oven as a storage space,
as this creates a potentially hazardous situation.
• Check that the time-of-day is in the display. If not, touch STOP/
CLEAR for safety reasons and to prevent unintended use.
2
D
G
A
B
C
H
I
F
E
J
B
C
E
D
B
C
D
E
F
G
H
I
I
J
K
L
M
N
O
P
A
A
F
Figure 1
Figure 2
A. 6"
B. Suggested electrical
outlet location*
C. Anti-Tip block
D. 5"
E. 3
1
/2"
F. 4"
G. 22
1
/8" opening
H. 14
13
/16" to bottom of
Anti-Tip block
I. Allow
7
/8" overlap
J. 23
1
/2" minimum depth
K. Allow
1
/4" overlap
L. 36" countertop height
M. Allow
1
/4" minimum
space
N. Floor must support
100 lb
O. 24" cabinet minimum
P. 14
13
/16" opening

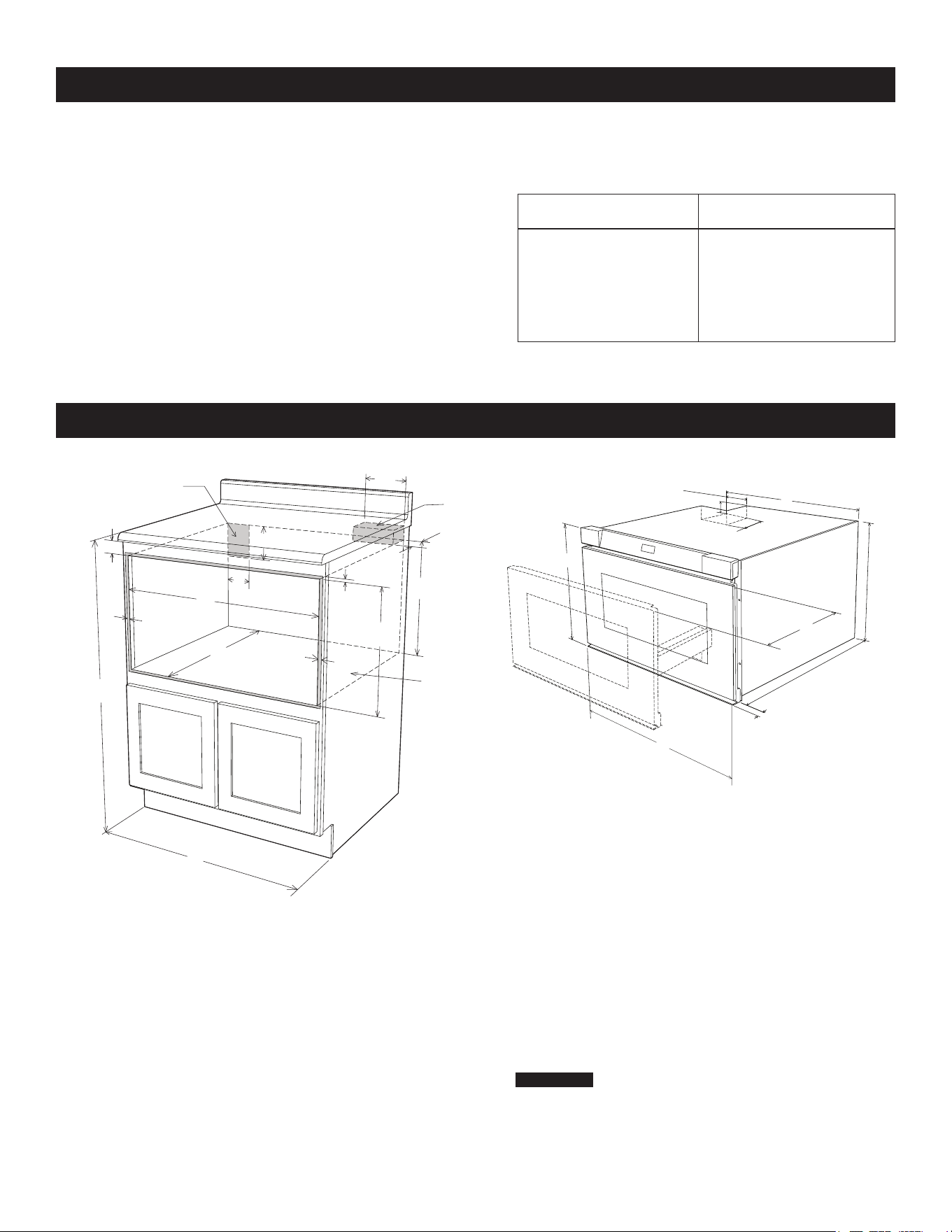

Figures 1 and 2 contain many measurements for reference when
planning the Sharp Microwave Drawer
™
Oven location.
* Can also be installed using an electrical outlet in an adjacent cabinet
within the area where the provided electrical cord can reach. Power
cord access hole in cabinet should be a minimum 1
1
/2" diameter hole
and deburred of all sharp edges.
IMPORTANT
Always allow sufcient power cord length to the
electrical outlet to prevent tension.
Always check electrical codes for requirements.
A. 21
5
/8"
B. 4
11
/16"
C. 1
3
/4"
D. 21
7
/8"
E. 23
5
/8"
F. 15
1
/16"
G. 14
5
/8"
H. 1
9
/16" door thickness
I. 15" auto drawer opening
J. 4"
CLEARANCES AND DIMENSIONS
• Dimensions shown in Figure 1 must be used. Given dimensions
provide minimum clearance. Locate electrical outlet in the shaded
area in the upper left-hand corner of the cutout. See Figure 9.
• Contact surface must be solid and level. Pay special attention to
the oor on which the Sharp Microwave Drawer
™
Oven will sit.
The oor of the opening should be constructed of plywood strong
enough to support the weight of the oven (about 100 pounds).
• Check location where the Sharp Microwave Drawer
™
Oven will
be installed for proper electrical supply.
• If installing below a wall oven, ensure the clearance of the oor
between the wall oven and the Sharp Microwave Drawer
™
Oven
is a minimum of 2".
• The oven can also be mounted ush. See page 4 for ush mounting
instructions.
• Your oven can be built into a cabinet or wall as a stand-alone unit.
It can be installed under gas or electric wall ovens and the Sharp
Combi Steam Oven/Wall Oven Models ovens or under the Sharp
cooktops listed below.
COMBI STEAM OVEN/
WALL OVEN MODELS
COOKTOP
MODELS
• SSC3088AS
• SSC2489DS
• SSC2489GS
• SWA 245 0 GS
• SWA3099MS
• SDH3042DB
• SDH3652DB
• SCH3043GB
• SCH2443GB
• SCR3042FB
• SCR2442FB
24" MICROWAVE DRAWER
™
STANDARD MOUNT AND MEASUREMENTS
3
B
C
E
D
B
C
D
E
F
G
H
I
I
J
K
L
M
N
O
P
A
A
F
Figure 3 represents a typical standard cabinet. If installed in
custom cabinets with extended countertops, take into account
visibility and access to controls. See Figure 4.
Move oven location downward for
extended countertops
Extended countertops
Figure 4
Figure 3
A. 25"
B.
1
/2" minimum
C. 15
1
/16"
D. 36"
E. 34
1
/2"
F. 24"
4
C
N
H
E
F
D
A
B
J
L
I
M
K
G

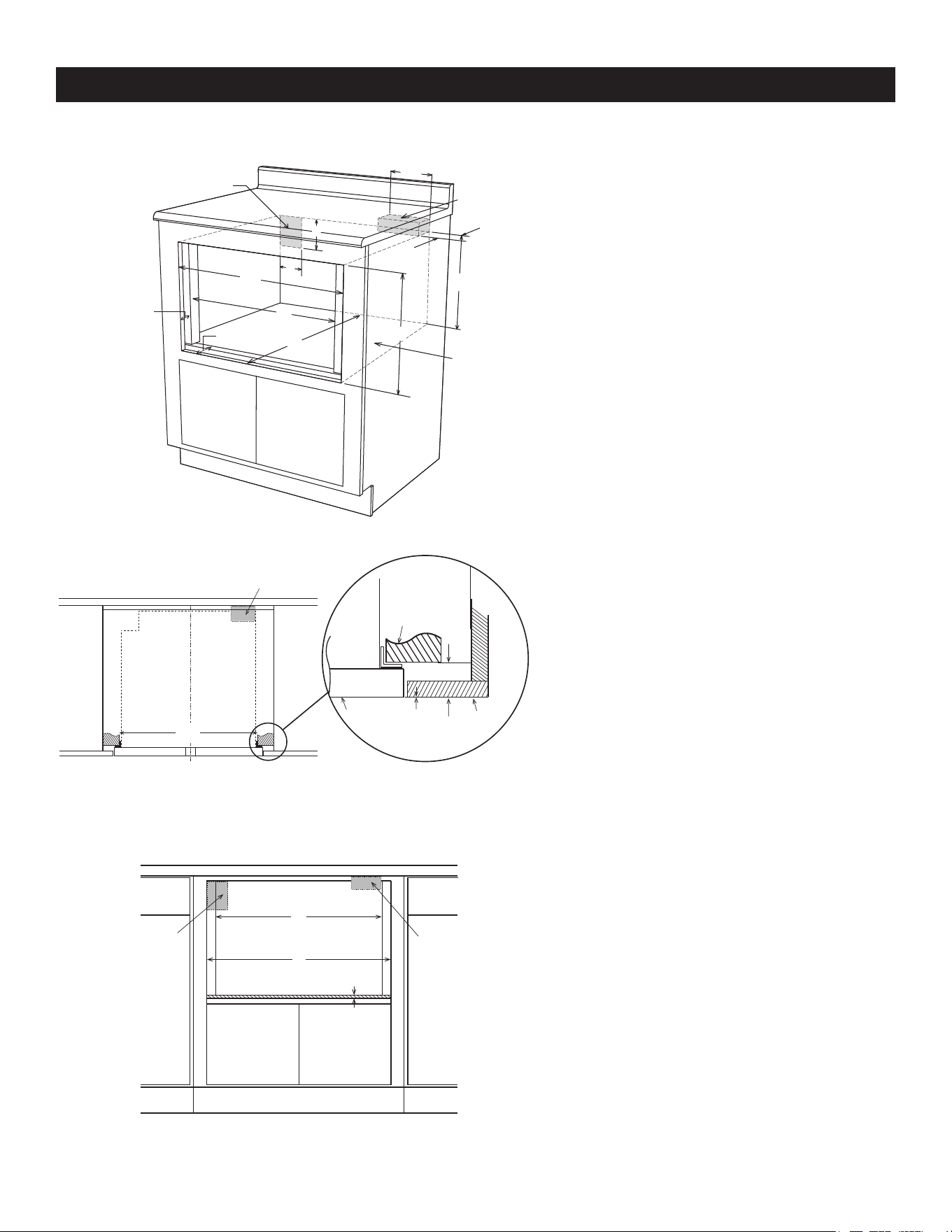

Prepare cabinet opening as shown in Figures 5, 6, 7
Figure 5
Figure 6
A. 6"
B. Suggested electrical outlet location
C. Anti-Tip block
D. 5"
E. 3
1
/2"
F. 4"
G. 23
7
/8"
H. 14
13
/16" to bottom of Anti-Tip block
I. 1
9
/16"
J. 23
1
/2" minimum depth
K. 22
1
/8"
L. 1
9
/16" to front of shelf
M. 15
5
/16" opening
N. Floor must support 100 lb
A. 22
1
/8" mounting cleat opening width
B. 0" ush
C. 1
9
/16" front of cleat to cabinet face
C
Front view
No oven shown
B
A
Suggested electrical
outlet location
Anti-Tip block
Figure 7
A. 22
1
/8" mounting cleat opening width
B. 23
7
/8" ush opening width
C.
1
/8" from opening to top of shelf
24" MICROWAVE DRAWER
™
FLUSH MOUNT AND MEASUREMENTS
C
L
Top view
A
Anti-Tip block
Mounting cleat
B
C
Drawer face
Cabinet
face
Note: The mounting surface of the nished cleat must
sit 1
9
/16" back from the face of the cabinet.
5

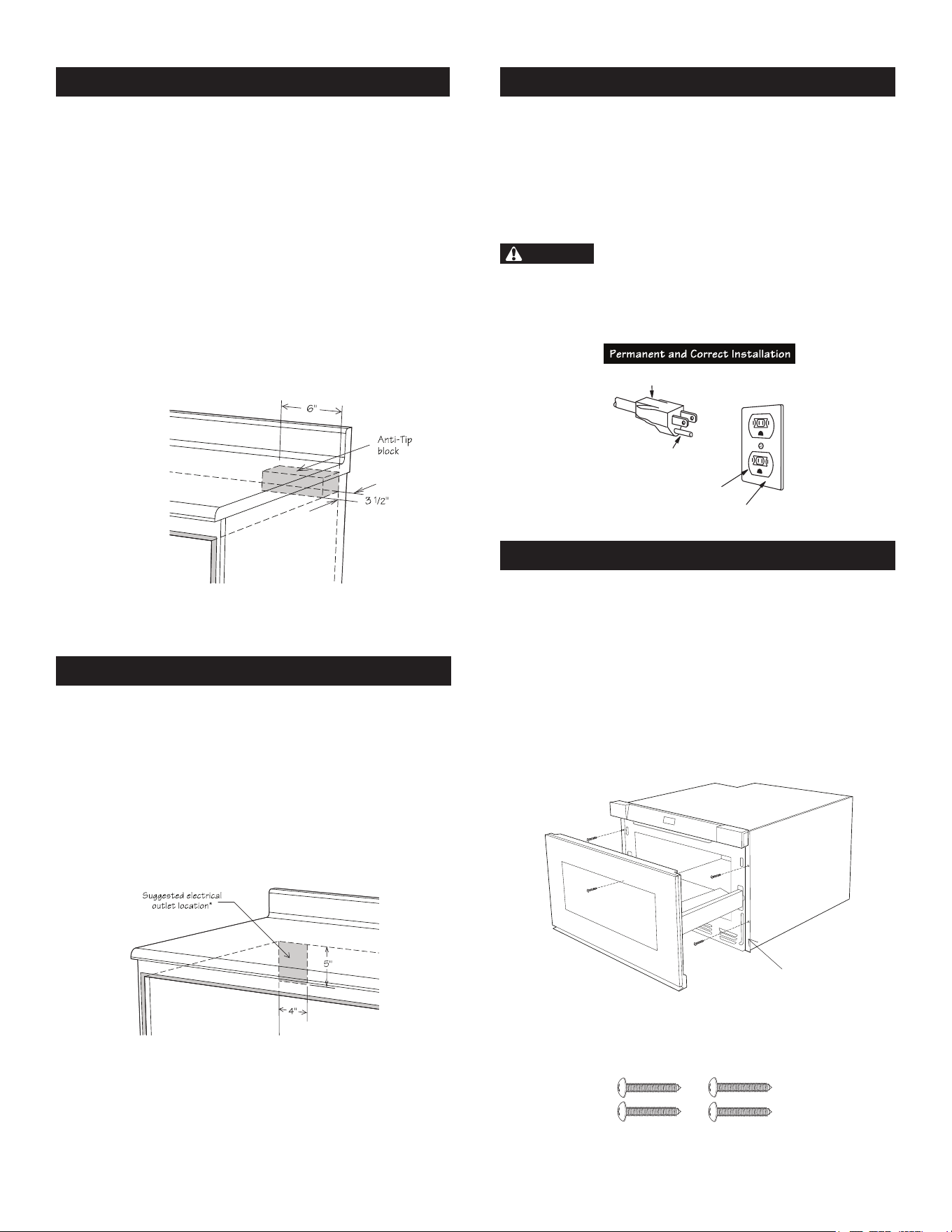

ANTI-TIP BLOCK
NORMAL INSTALLATION STEPS
ANTI-TIP BLOCK INSTALLATION INSTRUCTIONS
To reduce the risk of tipping of the drawer, the Anti-Tip block must
be properly installed located 14
13
/16" above the oor on which the
Sharp Microwave Drawer
™
Oven will sit. The 6" Anti-Tip block
must be provided by the installer. See Figure 1. The Anti-Tip block
prevents serious injury that might result from spilled hot liquids.
If the Sharp Microwave Drawer
™
Oven is ever moved to a
different location, the Anti-Tip block must also be moved and
installed. When installed to the wall, ensure the screws completely
penetrate the drywall and are secured in wood or metal so the
block is totally stable. When fastening, ensure the screws do not
penetrate electrical wiring or plumbing.
Figure 8
ELECTRICAL OUTLET
The electrical requirements are a 120 volt 60 Hz, AC only, 15
amp. or more protected electrical supply. It is recommended that
a separate circuit serving only this appliance be provided.
The drawer is equipped with a 3-prong grounding plug. It must be
plugged into a properly installed and grounded wall receptacle.
Should you only have a 2-prong outlet, have a qualied electrician
install a correct wall receptacle.
Note: If you have any questions about the grounding or electrical
instructions, consult a qualied electrician or serviceperson.
Figure 9
* Can also be installed using an electrical outlet in an adjacent
cabinet within the area where the provided electrical cord can
reach.
Always check electrical codes for requirements.
GROUNDING INSTRUCTIONS
This appliance must be grounded. The Sharp Microwave Drawer
™
Oven is equipped with a cord having a grounding wire with a
grounding plug. It must be plugged into a properly installed and
grounded wall receptacle in accordance with the National
Electrical Code and local codes and ordinances. In the event of
an electrical short circuit, grounding reduces risk of electric shock
by providing an escape wire for the electric current.
WARNING
Improper use of the grounding plug can result in
a risk of electric shock. Do not use an extension cord. If the
power supply cord is too short, have a qualied electrician or
serviceman install an outlet near the appliance.
3-Prong plug
Grounding pin
3-Prong receptacle
Grounded receptacle box
Grounding adapter
Grounded receptacle box
Screw
Tab for grounding screw
DRAWER INSTALLATION
1. Place the drawer adjacent to the wall or cabinet opening. Plug
the power supply cord into the electrical outlet.
2. Carefully guide the drawer into the prepared opening. Avoid
pinching the cord between the oven and the wall.
3. Slide the drawer all the way until the mounting ange is ush
with the face of the cabinet. See Figure 10.
4. Open the drawer. Using the 4 holes on the drawer as a template,
pre-drill the cabinet using a
1
/16" bit. See Figure 10.
5. Secure the drawer with the 4 screws supplied. See Figure 11.
Side
Rail
Figure 10
Parts supplied - 4 Screws
Figure 11
6
MODEL AND SERIAL NUMBER LOCATION
The nameplate includes model and serial number. Open the Sharp
Microwave Drawer
™
Oven fully. The label is beyond the back
wall of the microwave cavity facing up from the at surface.
CARE, CLEANING AND MAINTENANCE
Refer to the Operation Manual for cleaning instructions.
ACCESSORIES
UNDER THE COUNTER MICROWAVE DRAWER
™
PEDESTAL
SKMD24U0ES
Complete the installation with a two-drawer installation pedestal
that comes with sleek, stainless-steel drawer fronts. For a unied
look, the pedestal accepts custom front drawer panels. The
pedestal is installed in three easy steps into a 24" wide opening
under the counter and has exible mounting depths available,
including ush.
BEFORE YOU CALL FOR SERVICE
Read the BEFORE YOU CALL and operating instruction sections
in your Operation Manual. It may save you time and expense.
The list includes common occurrences that are not the result of
defective workmanship or materials in this microwave.
Please call or write if you have inquiries about your Sharp
Microwave Drawer
™
Oven and/or need to order parts.
CUSTOMER ASSISTANCE UNITED STATES ONLY
REGISTER YOUR PRODUCT
Registering your new product is easy and offers benets that help you get the most
out of your Sharp product including:
9 Convenience: If you ever need warranty support, your product information is already on le.
9 Communication:Stay up to date with important notications and special offers from SHARP.
9 Support: Quickly access support content including Owner’s Manuals, FAQ’s,
How-to Videos, and much more.
3 EASY WAYS TO REGISTER TODAY!
PRODUCT SUPPORT
If you have questions about the setup or operation of your product, please refer to
the corresponding section within this manual.
Additionally, visit https://support.sharpusa.com/s/ to access exclusive content about
your product including:
Æ FAQ’s and How-To Videos
Æ Find or Request Service
Æ Extended Warranty Options
Æ Downloads including the Installation Guide, Spec Sheet, and Owner’s Manual
CONTACT US
If at any time you have questions or comments concerning your SHARP product,
please contact the SHARP Customer Assistance Center. We are available to
assist you through multiple contact methods for your convenience:
Scan this QR Code on your mobile device Visit http://www.sharpusa.com/register
ONLINE
Visit our sites to
learn more about
your product at
sharpusa.com and
sbl.sharpusa.com
See the Contact Us section on our sites
U.S. | https://support.sharpusa.com/s/
Contact a Sharp Advisor on the phone
Contact a Sharp Advisor on the phone
CALL US
US 800-BE-SHARP
800-237-4277
Mon-Fri: 7am-7pm CST
Sat-Sun: 9am-7pm CST
CALL US
US 800-BE-SHARP
800-237-4277
Mon-Fri: 7am-7pm CST
Sat-Sun: 9am-7pm CST
EMAIL
Available 24/7
US: sharpusa.com
CHAT ONLINE
Mon-Fri: 7am-7pm CST
Sat-Sun: 9am-7pm CST
SCAN
Use the camera or
QR code scanning
application on your
mobile device
TGANEB010MRR2 Sep 24, 2025
TINSEB805MRR0 SEp 24, 2025
100 Paragon Drive, Montvale, NJ 07645, USA • 1-800-BE-SHARP (237-4277)
