Baridi 20L Integrated Microwave Oven, 800W, Stainless Steel
Model No. DH196
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
DH196 Issue:1 22/02/23
www.dellonda.co.uk
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instruction
manual
Warning:
Hot
Surface
SAFETY INSTRUCTIONS
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and all electrical
connections for wear and damage. Dellonda recommend that an RCD (Residual Current Device) is used with all electrical products. You may
obtain an RCD by contacting your local domestic stockist. If the product is used in the course of business duties, it must be maintained in a
safe condition and routinely PAT (Portable Appliance Test) tested.
• Electrical safety information: It is important that the following information is read and understood.
• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
• Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
• Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the correct fuse - see
fuse rating in these instructions.
• DO NOT pull or carry the appliance by the power cable.
• DO NOT pull the plug from the socket by the cable.
• DO NOT use worn or damaged cables, plugs or connectors.
• Ensure that any faulty item is repaired or replaced immediately by a qualied electrician.
• This product is tted with a BS1363/A 3 pin plug. If the cable or plug is damaged
during use, switch off the electricity supply and remove from use. Ensure that repairs are
carried out by a qualied electrician.

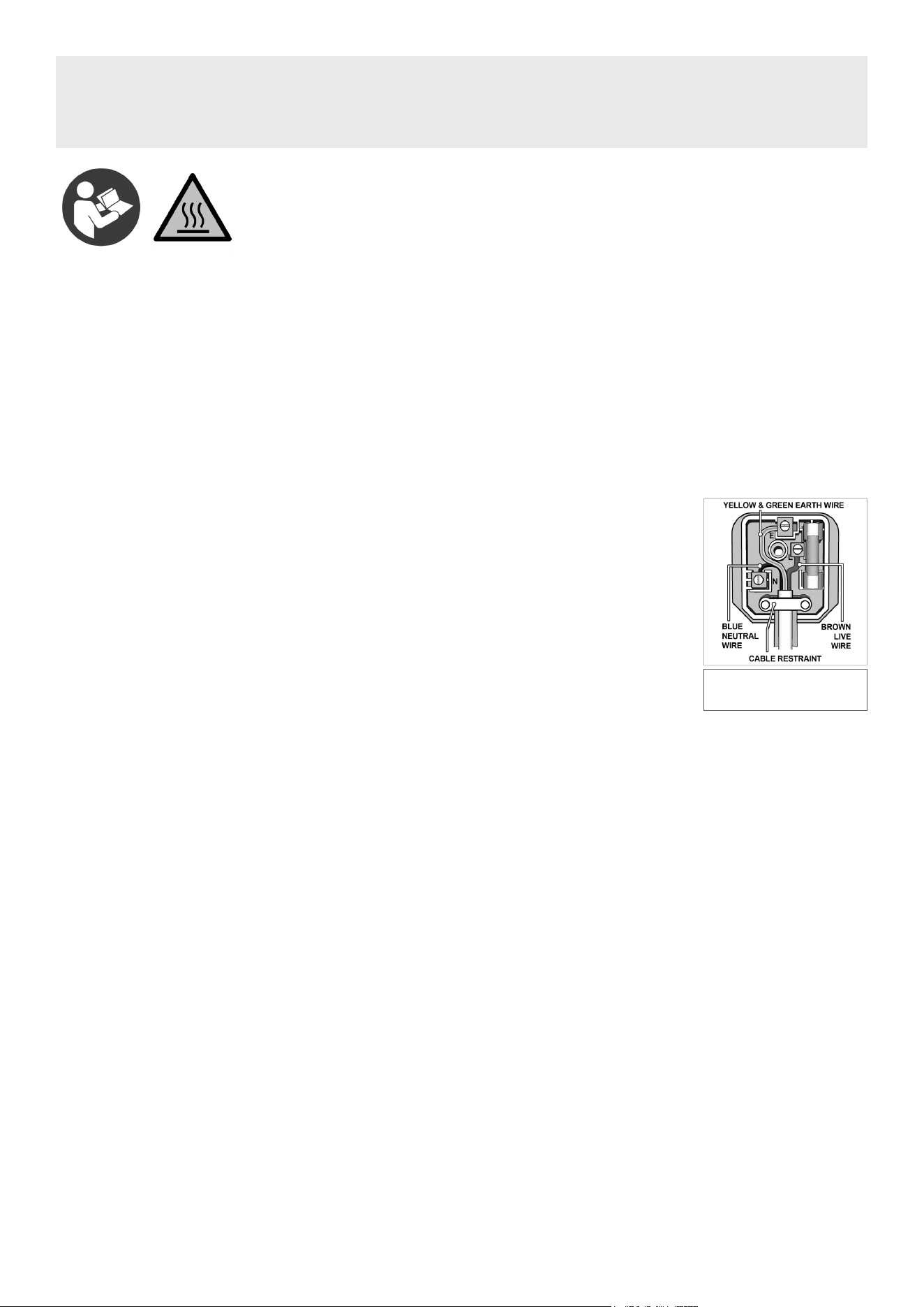

• Replace a damaged plug with a BS1363/A 3 pin plug. If in doubt contact a qualied electrician.
A) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
B) Connect the BROWN live wire to the live terminal ‘L’.
C) Connect the BLUE neutral wire to the neutral terminal ‘N’.
• Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
• Dellonda recommend that installation and repairs are carried out by a qualied electrician.
• GENERAL SAFETY
• WARNING! If the door or door seals are damaged, the oven must not be operated until it has been repaired by a trained person.
• WARNING! It is hazardous for anyone other than a trained person to carry out any service or repair operation, which involves the removal of any
cover, which gives protection against exposure to microwave energy.
• WARNING! Liquids or other food must not be heated in sealed containers since they are liable to explode.
• Only use utensils that are suitable for use in microwave ovens.
• Metallic containers for food and beverages are not allowed during microwave cooking.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges,
damp cloth and similar may lead to risk of injury, ignition or re.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stie any ames.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.
• The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order
to avoid burns.
• Eggs in their shell and whole hard boiled eggs shall not be heated in microwave ovens since they may explode, even after microwave heating has
ended.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and
possibly result in a hazardous situation.
• Care should be taken not to displace the turntable when removing containers from the appliance.
• The appliance shall not be cleaned with a steam cleaner.
• The appliance must not be installed equal or higher than 900 mm above the oor. Minimum height of free space necessary above the top surface
of the oven: See the installation drawing on the next page.
• WARNING! When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the
temperatures generated.
• CAUTION: HOT SURFACES
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person in order to avoid a
hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
Replacement fuse rating:
13A
• The plug must be easily accessible after installation of the appliance.
• This appliance must not be placed in a cabinet with a door.
• During use the appliances becomes hot. Care should be taken to avoid touching heating elements inside the oven.
• WARNING! Accessible parts may become hot during use. Young children should be kept away.
• WARNING! The appliance and its accessible parts become hot during use.
• Children less than 8 years of age shall be kept away unless continuously supervised.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in
shattering of the glass.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops and other working
environments; farm houses; by clients in hotels, motels and other residential environments; bed and breakfast type environments.
• The appliance must not be installed behind a decorative door in order to avoid overheating.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without details
indicating the correct installation of the shelves.

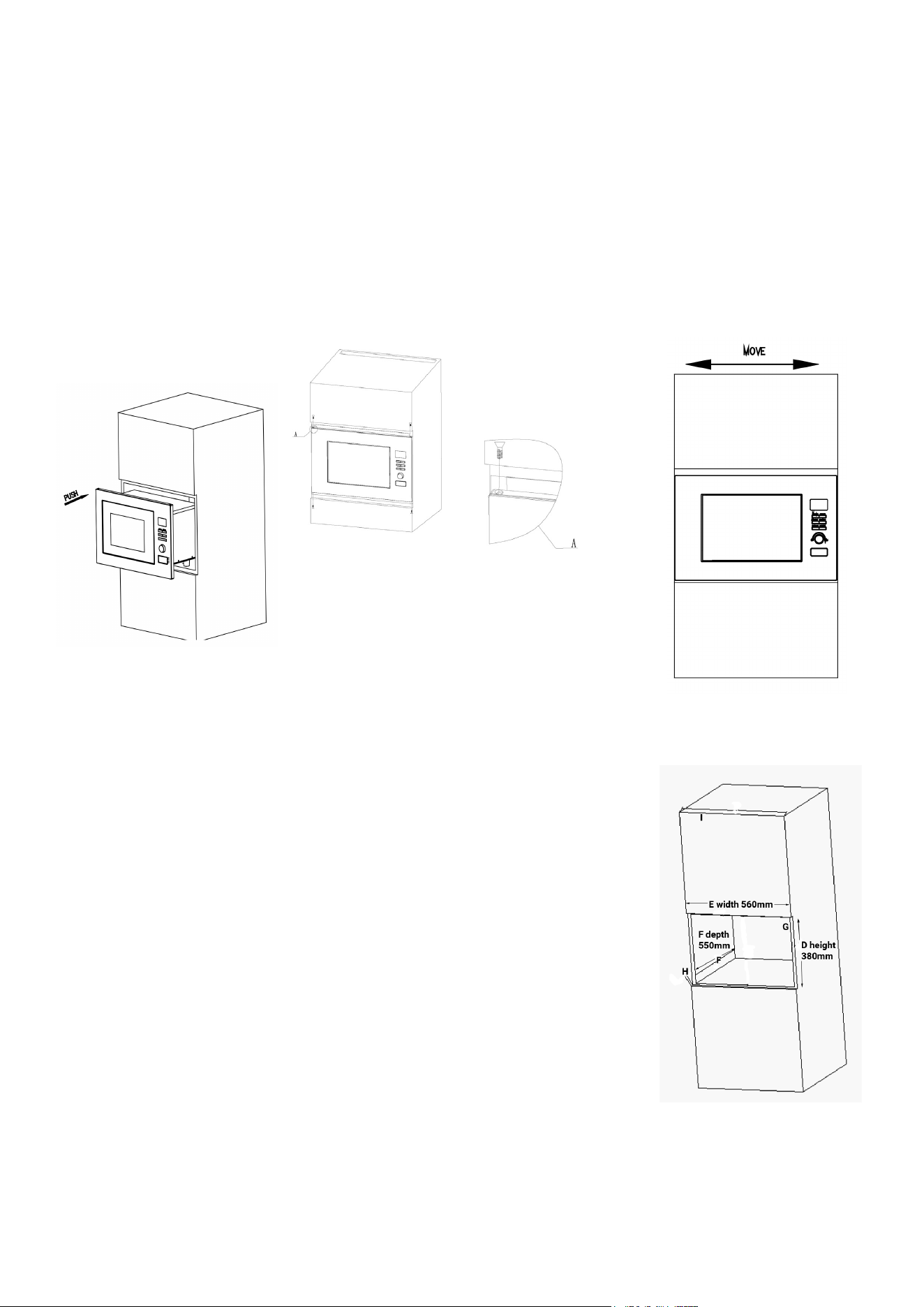

INSTALLATION
.
• The thickness of the bearing plate must be greater than 1.8 cm, and the minimum installation height is 85 cm. Do not block the air outlet and air
inlet of the cabinet.
• If the cabinet has a decorative door, the decorative door must be opened when the microwave oven is working.
• Cabinet details:
• Product size: (W)595x(H)390x(D)320(mm)
• Opening size: (D)380x (E)560 x (F)550 (mm) as shown to the right.
• G (The thickness of board): 20mm
• I (The thickness of board): 8mm
• H 21mm
CLEANING
• CAUTION: The oven should be cleaned regularly and any food deposits removed.
• a. WARNING! Remove the mains plug from the wall outlet before cleaning.
Don’t immerse the appliance in water or other uids when cleaning.
• b. Failure to maintain the oven in a clean condition could lead to deterioration of the surface
that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• c. Never use hard detergent, gasoline, abrasive powder or metal brushes to clean any part of the appliance.
• d. Do not remove the waveguide cover.
• e. When the microwave oven has been used for a long time, there may be some strange odours
in the oven, following 3 methods can get rid of them:
• 1) Place several lemon slices in a cup, then heat with high micro power for 2-3 min.
• 2) Place a cup of red tea in oven, then heat with high micro power.
• 3) Put some orange peel into oven, and then heat them with high micro power for 1 minute.
• f. When the product is not used, it should be placed in a dry and ventilated area.
• Details how to clean surfaces in contact with food:
• After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food
splashes and grease. Built-up grease may overheat and begin to cause smoke or catch re.
• TIPS FOR CLEANING
• Details for cleaning door seals, cavity and adjacent parts:
• Exterior:
• Wipe the enclosure with a dampened soft cloth.
• Door:
• Using a dampened soft cloth, wipe clean the door and window
• Wipe the door seals and adjacent parts to remove any spill or spatter.
Place into cabinet and push
forwards
Use screws to secure into the
cabinet
Make sure oven is centred
• Wipe the control panel with a slightly dampened soft cloth
• Interior walls:
• Wipe clean the interior surfaces with a dampened soft cloth
• Wipe clean the waveguide cover to remove any food splashed
• Turntable / Rotation ring / Rotation axis:
• Wash with mild soap water
• Rinse with clean water and allow drying thoroughly

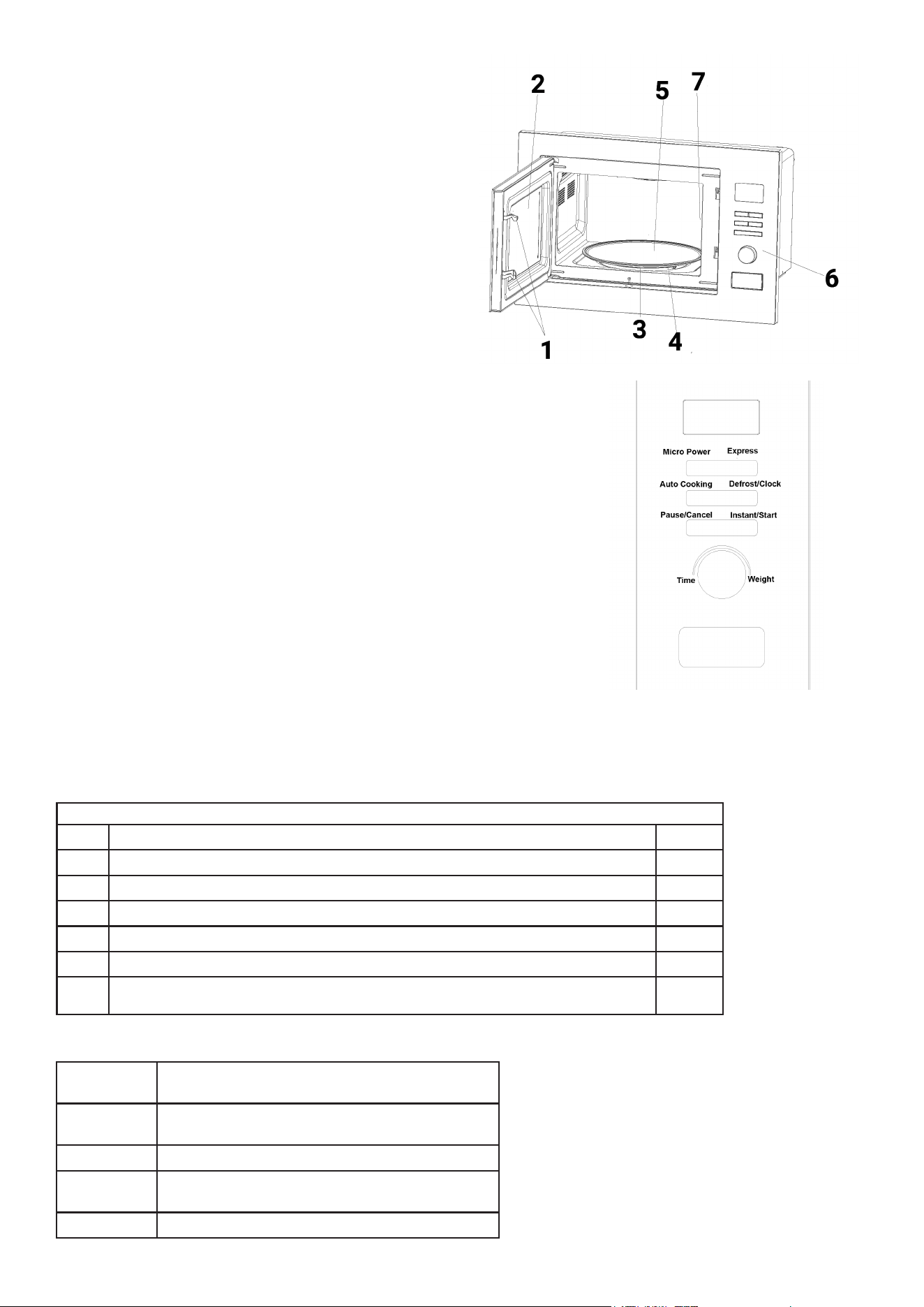

FEATURES
• 1) Door lock
• Microwave oven door must be properly closed in order for it to operate.
• 2) Viewing window
• 3) Rotating ring
• The glass turntable sits on its wheels; it supports the turntable and helps
it to balance when rotating
• 4) Rotating axis
• The glass turntable sits on the axis; the motor underneath it drives the
turntable
• 5) Turntable
• The food sits on the turntable, its rotation during operation helps to cook
food evenly - Place the rotating ring rst - Fit the turntable onto the rotating axis and make
sure that it is inserted properly
• 6) Control panel
• See diagram on right of page.
• 7) Waveguide cover
• Inside, next to the wall of control panel. Never remove the waveguide cover.
OPERATION
• 1. BEFORE COOKING
• The LED ashes 3 times when plugged in power supply. Then it ashes “1:00”, prompting
you to input the cooking menu and time.
• 2. TIME/WEIGHT KNOB
• You can increase or decrease cooking time, weight during operation by turning the knob.
• 3. PAUSE/CANCEL
• At the initial or input stage: press once to cancel input programs and resume initial stage.
• During cooking: press once to stop oven operation, press twice to cancel cooking
programs.
• 4. AUTO REMINDER
• When your preset cooking procedure have nished, the LED Display will show End and
three beeps sound will be heard to prompt you to take out food. If you do not press
Pause/Cancelbutton once or open the door, the beep will be sounded at an interval of 3
minutes.
• 5. INSTANT COOKING
• On the standby status, press Instant/Start button, the oven will start cooking with high power, system default cooking time is 1 minute. Increase
or decrease cooking time by turning the knob.
• 6. CLOCK SETTING
• Clock button: input current or preset time when “:” ashes onto LED display after oven is plugged in.
• 7. MICROWAVE COOKING
• This function is for cooking and heating food. Press Micro Power button, LED will cycle to show 100P—80P—60P—40P—20P.
• WHEN YOUR APPLIANCE IS CONNECTED TO YOUR MAINS SUPPLY FOR THE FIRST TIME, THE POWER
INDICATOR LIGHT WILL COME ON, AFTER SELECTING THE COOKING FUNCTION AND SETTING A
TEMPERATURE, THE OPERATING LIGHT WILL COME ON AND THE OVEN WILL START WORKING, FINALLY
SETTING THE COOKING TIME;(THE COOKING TIME IS FROM 0MIN TO 120MINS, REVOLVING THE KNOB IN
CLOCKWISE DIRECTION TO THE CORRESPONDING TIME ON PANEL WHEN SETTING THE COOKING TIME.
Example: to set 12:30
Steps Display
1
After power-up, the colon ashes
1:00
2
Press and hold Defrost/Clock button for 3 seconds
1:00
3
Turn Time/Weight knob to set exact hours.
12:00
4
Press Defrost/Clock button once again.
12:00
5
Turn Time/Weight knob to set exact minutes.
12:30
6
Press Defrost/Clock button once again or wait for 60 seconds, and the numbers will stop
ashing.
High Power 100% microwave power. Applicable for quick and thorough
cooking
Medium
High Power
80% microwave power. Applicable for medium express
cooking
Medium Power 60% microwave power. Applicable for steaming food
Medium
Low Power
40% microwave power. Applicable for defrosting food
Low Power 20% microwave power. Applicable for keeping warm
• CAUTION!
• a. The max time which can be set is 60minutes
• b. Never operate the oven empty.
• c. At the maximum microwave power, the oven will automatically lower the power after a certain time of cooking to lengthen the service life.
• d. If you turn the food during operation, press the Instant/Start button once and the preset cooking procedure will continue.
• e. If you intend to remove the food before the preset time, you must press Pause/Cancelbutton once to clear the preset procedure to avoid
unintended operation of next time use.
• 8. EXPRESS COOKING
• Press Express button LED display will cycle to show 0:30, 1:00, 1:30.
• This function will allow you to heat a cup of water or beverage conveniently, omitting the steps of setting time. Choose the proper time depending
on the beverage capacity.
• 9. DEFROST
• This function is used for defrosting food. Press the Defrost/Clock button and the LED display will cycle to show d.1-d.2-d.3.
• CAUTION!
• a. It is necessary to turn over the food during operation to obtain uniform effect.
• b. Usually defrosting will need longer time than that of cooking the food.
• c. If the food can be cut by knife, the defrosting process can be considered completed.
• d. Microwave penetrates around 4cm into most food
• e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again.
• 10. AUTO COOKING
• The oven has default cooking menu for simple operation. When the LED ashes colon, turn the Auto Cooking knob and LED will cycle to show
A.1,A.2 …… A.8
• Choose the appropriate menu according to the food type and weight and strictly observe the directions in below table, otherwise the cooking
effect will be largely inuenced.
Example: To cook at P80 for 10 minutes.
Steps Display
1
After power-up, the colon ashes
1:00
2
Select the desired microwave power by pressing Micro Power button consecutively
80P
3
Set cooking time by turning Time/Weight knob
10:00
4
Press Instant/Start button to start and LED will count down to show running time.
Example: to cook with express for 1 minute
Steps Display
1
After power up the colon ashes
:
2
Press Express button consecutively to select desired menu
1:00
3
Start cooking by pressing Instant/Start button
Display Food Method
A.1 Popcorn Suitable for popping a bag of corn, weighing 0.1kg.
A.2
Reheat
Reheat food weighing 0.2-1.0kg.
A.3
Beverage
Heating 1-3 cups of liquid. The liquid temperature is about 5-10°C. Use a big
mouth cup and do not seal
A.4
Pizza
Warm 1-2 pieces of chilled pizza.
A.5 Potato Cooking the potato strips, cut into 5mm width and height, length. Total
weight is about 0.45 or 0.65kg. Place the strips on a large dish and cover
the dish with a thin lm to prevent water loss.
Example: To defrost 0.4kg poultry
Steps Display
1
After power up the colon ashes
1:00
2
Press Defrost/Clock button once to set the food type. d.2
3
Turn Time/Weight knob to set the defrost weight 0.4
4 Start cooking by pressing Instant/Start
5 During defrosting, beep sounds will be heard two times to prompt you turn over the food. Open the door and turn
over the food. Then close the door. Press Instant/Start button again to continue defrosting
d.1
For defrosting meat, the weight range from 0.1 to 2.0 kg.
d.2 For defrosting poultry, the weight range from 0.2 to 3.0kg.
d.3 For defrosting seafood, the weight range from 0.1 to 0.9kg.
• CAUTION:
• a. The temperature of food before cooking would be 20-25℃. Higher or lower temperature of the food before cooking would require increase or
decrease of cooking time.
• b. The temperature, weight and shape of food will largely inuence the cooking effect. If any deviation has been found to the factor noted on
above menu, you can adjust the cooking time for best result.
• 11. AUTOMATIC STARTING (DELAYED FUNCTION)
• If you don’t want the setting to start immediately, you can preset the cooking menu and time and the preset menu will be automatically started at
your set time. The setting will consist of 2 steps:
• Setting the current clock;
• Setting the cooking menu and time.
• 12. MULTI-SEQUENCE COOKING
• To obtain best cooking result, some recipes call for different cook mode and time. You may program your personalized menu as follows:
Example: Steam 0.5kg sh
Steps Display
1
After power up the colon ashes
1:00
2
Press Auto Cooking button to set the cooking menu
A.8
3
Turn Time/Weight knob to set the set weight
0.5
4 Start cooking by pressing Instant/Start button, and LED will count down to show running time.
Example: Now it is 12:30 clock, if you want the microwave oven to
automatically start cooking with 100P microwave power for 9 minutes and 30
seconds at 14:20
Steps Display
1
After power-up, the colon ashes
1:00
1.1
Press and hold Defrost/Clock button for 3
seconds
1:00
1.2
Set hours by turning Time/Weight knob
12:00
1.3 Press Defrost/Clock button again to conrm
hours
12:00
1.4 Set minutes by turning Time/Weight knob 12:30
1.5 Automatic to exist after 10 seconds) 100P
2 Set the cooking menu and time
2.1 Select cooking power by pressing MicroPower
button
9.30
2.2 TurnTime/Weight knob to set cooking time
9.30
2.3 Press and hold Defrost/Clock button for 3
seconds to return to current clock
3 Set the time you expect to start. Repeat the
steps of 1.2, 1.3, 1.4
4 Press Defrost/Clock button to conrm the
delayed menu. Now the program has been
activated. And the setting will start at 14:20.
5 You may check the preset starting time by
pressing Defrost/Clockbutton.
A.6 Vegetable All together there are ve choices (0.1, 0.2------0.5Kg)
A.7 Meat All together there are ve choices (0.1, 0.2------0.5Kg)
A.8 Fish
All together there are five choices (0.1, 0.2------0.5Kg)
Example: You want cook food with 100P microwave for 3 minutes then 20P
for 9 minutes. This is a 2 sequence setting.
Steps Display
1
100P microwave for 3 min
1.1
Press Micro Power button to select power
level.
100P
1.2
Turn Time/Weight knob to set cooking time.
3:00
2 20P for 9min
2.1 Press Micro Power button to select desired
menu
20P
2.2 Turn Time/Weight to set cooking time 9:00
3 Start cooking by pressing Instant/Start
• a. When 100 microwave power cooking is nished, microwave oven will begin next operation automatically.
• b. Max 4 sequences can be set per time, repeat the steps.
• 13. CHILD LOCK FUNCTION
• Use this feature to lock the control panel when you are cleaning or so that children can not use the oven unsupervised. All the buttons are
rendered inoperable in this mode.
• 1) Set lock: Hold Pause/Cancel button about 3 seconds.
• 2) Cancel lock: Hold Pause/Cancel button about 3 seconds.
UTENSILS GUIDELINE
• It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which
are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking
and combination cooking as sparking is likely to occur. Refer to table below.
COOKING TIPS
• The following factors may affect the cooking result:
• FOOD ARRANGEMENT
• Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.
• COOKING TIME LENGTH
• Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual requirements. Over cooking may result in
smoke and burns.
• COOKING FOOD EVENLY
• Food such as chicken, hamburger or steak should be turned once during cooking. Depending on the type of food, if applicable, stir it from outside
to centre of dish once or twice during cooking.
• ALLOW STANDING TIME
• After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down
in a gradual manner.
• WHETHER THE FOOD IS DONE
• Color and hardness of food help to determine if it is done, these include:
• - Steam coming out from all parts of food, not just the edge
• - Joints of poultry can be moved easily
• - Pork or poultry shows no signs of blood
• - Fish is opaque and can be sliced easily with a fork
• BROWNING DISH
• When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage
to the turntable and rotating ring.
• MICROWAVE SAFE PLASTIC WRAP
• When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt
• MICROWAVE SAFE PLASTIC COOKWARE
• Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time
specied in the dish instruction manual must not be exceeded.
MAINTENANCE
• SERVICING
• Please check the following before contacting Dellonda.
• 1. Place one cup of water (approx.150ml) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is
closed properly. Let the oven work for 1 min.
• 2. Does the oven lamp light?
• 3. Does the cooling fan work?
• (Put your hand over the rear ventilation openings.)
• 4. Does the turntable rotate?
• (The turntable can rotate clockwise or counter clockwise. This is quite normal.)
• 5. Is the water inside the oven hot?
• If “NO” is the answer to any of the above questions, please check your wall socket and the fuses.
• If both the wall socket and the fuse are functioning properly, contact Dellonda.
Container
material
Microwave Notes
Heat-resistant
ceramic
Yes Never use the ceramics which are decorated with
metal rim or glazed
Heat-resistant
plastic
Yes
Cannot be used for microwave cooking for a long
cooking period
Heat-resistant
glass
Yes
Grill rack
No
Plastic lm Yes It should not be used when cooking meat or chops as
the over-temperature may do damage to the lm
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please dispose of it in
an environmentally friendly way. Drain any fluids (if applicable) into approved containers, in accordance with local waste regulations. Under the
Waste Batteries and Accumulators Regulations 2009, Dellonda would like to inform the user that this product contains one or more batteries. It
is our policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice. No liability is
accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
• SERVICING SAFEGUARDS
• CAUTION: MICROWAVE RADIATION
• 1. The high voltage capacitor remains charged after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a
screwdriver) to discharge before touching.
• 2. During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.
• Magnetron
• High voltage transformer
• High voltage capacitor
• High voltage diode
• High voltage fuse
• 3. The following conditions may cause undue microwave exposure during servicing.
• Improper tting of magnetron;
• Improper matching of door interlock, door hinge and door;
• Improper tting of switch support;
• Door, door seal or enclosure has been damaged.
