This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
A-FRAME JACK
- 2 -
SAFETY INSTRUCTIONS
1. The “WARNING” symbol above is a sign that a service or
maintenance procedure has a safety risk involved and may cause
death or serious injury if not performed safely and within the
parameters set forth in this manual.
2. Always wear eye protection when performing service or maintenance
to the vehicle. Other safety equipment to consider would be hearing
protection, gloves and possibly a full face shield, depending on the
nature of the service.
3. Never allow anyone unfamiliar with this product to install, operate or
service this product.
4. Never lift or level the trailer without a properly installed footpad.
5. Never crank the jack or couple the trailer without preventing the trailer
from rolling.
6. Never exert excessive side forces to the trailer jack.
7. Never allow anyone, including the operator, to put any body parts
under the trailer jack or the supported load during jack operation.
8. Never exceed the load capacity !
9. Never use trailer jack to lift the trailer for service or tire change.
10. Never move the trailer before the trailer jack is fully retracted.
11. Keep children and bystanders away from the work area while
operating the tool. Do not allow children to handle the jack.
12. Do not use the jack where there is a risk of causing a fire or an
explosion; e.g., in the presence of flammable liquids, gases, or dust.
The jack can create sparks, which may ignite the flammable liquids,
gases, or dust.
13. For use on flat, level, hard surface capable of supporting load.
14. Do not use blocks for additional ground clearance.
15. When using the drop foot or drop leg, make certain the supplied pin is
fully inserted through both sides of the inner tube and the drop tube
before using the jack.
16. If the trailer jack has a drop leg, never attempt to adjust the drop leg
- 3 -
when there is any load on the jack.
Note:
1. The jack is designed for vertical movement of the trailer only.
2. Rapid and continuous lifting is not recommended to avoid gear
heating and reduce service life.
MODEL AND PARAMETERS
Model
TJA-2000-B+JF-100-Z
Capacity
2000 lbs
Mounting Bracket Type
A-Frame Mounting Bracket
Crank Type
Top-Wind
Range
8.6-22.4"
Screw Travel
13.78"
Foot Size
6.3x4.3" (Rectangle)
Minimum Product Height
25"(Total Product Height)
- 4 -
STRUCTURE DIAGRAM

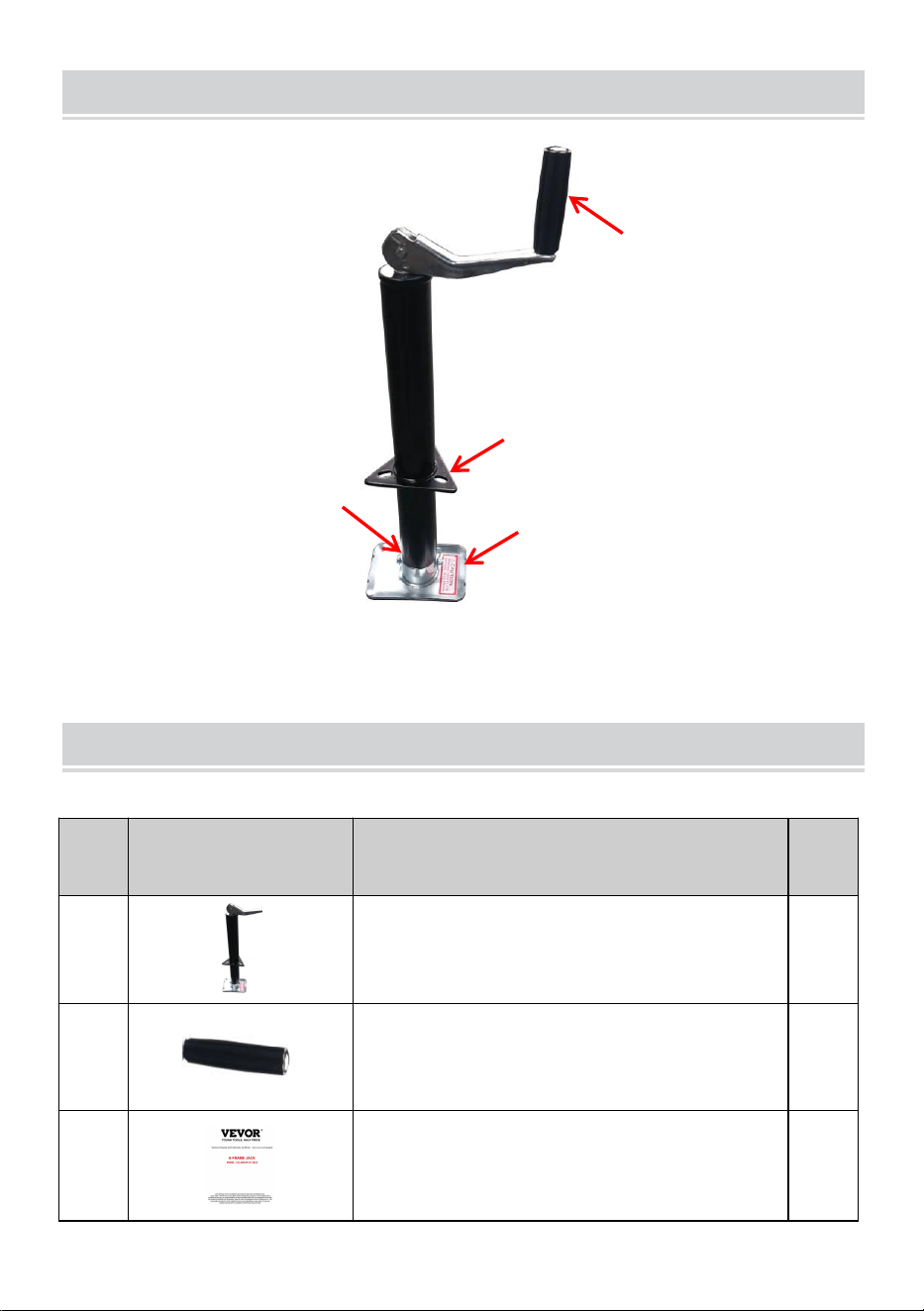

1.Handle 2.Connecting Plate 3.Pin 4.Foot Plate
COMPONENTS
No.
Name
Qty
1
Jack
1
2
Hand Rocker(Including bolt/nut/gasket)
1
3
User Manual
1
1
2
3
4
- 5 -
ASSEMBLY
1. When mounting trailer jack, it is best to hook up to the tow vehicle to
make sure the trailer is secure.

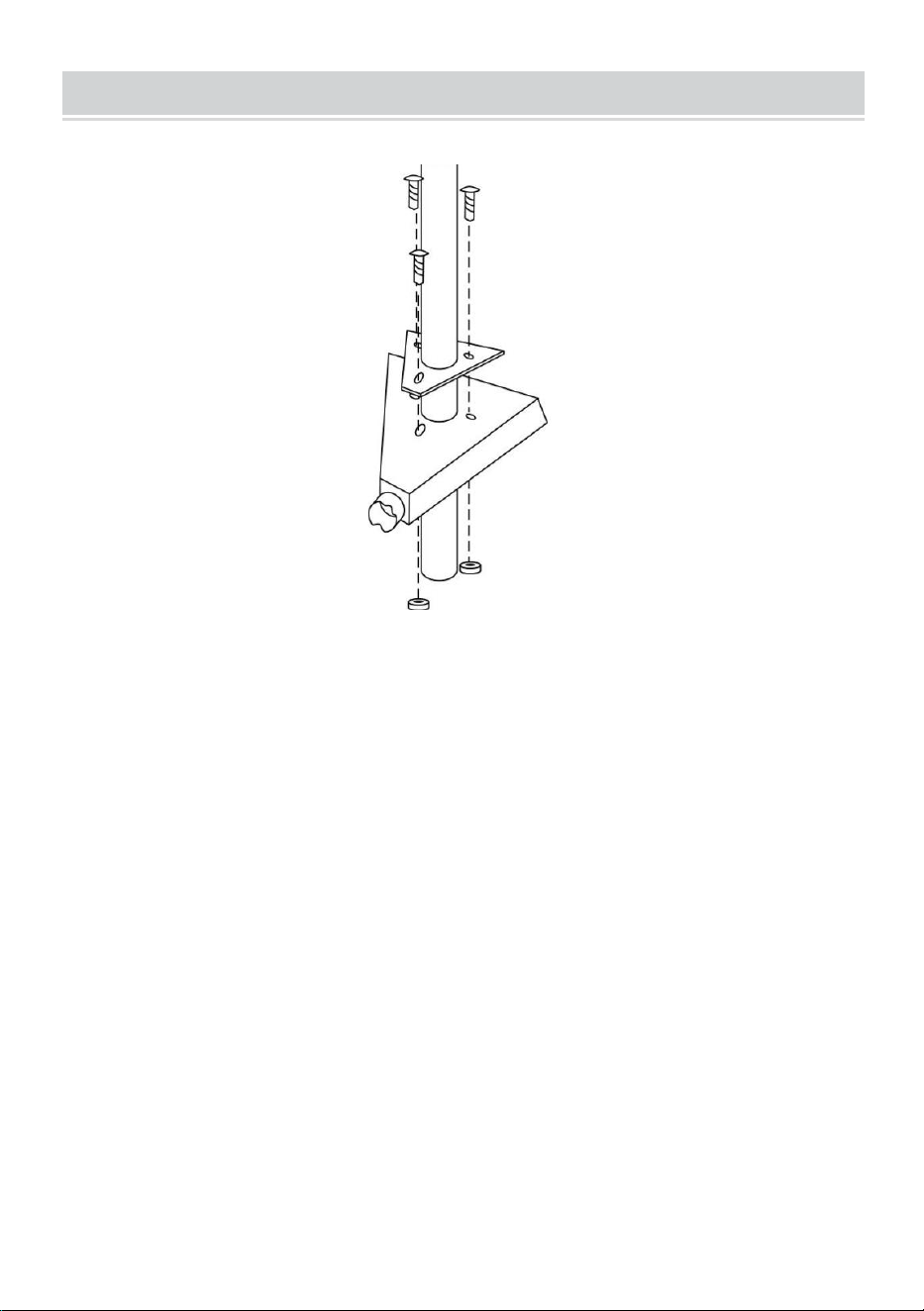

2. Mount jack based on drawing shown above.
3. Slide A-frame jack through hole on top of A-frame coupler.
4. Line up the three slotted holes on jack mounting plate to the three
holes in the coupler.
5. With three bolts and nuts (sold separately) secure jack tightly to the
top of the a-frame coupler. (Regularly check to ensure bolts/nuts are
tightened securely.)
6. After the jack is mounted to trailer, attach the handle assembly to jack
with bolt fastener provided.
- 6 -
OPERATION
1. Turn handle clockwise to raise.
2. Turn handle counterclockwise to lower.
MAINTENANCE
1. Occasional cleaning with mild soap and water along with light oil
lubrication of pivot points will prolong peak performance and
appearance.
2. Periodically check whether the screws are loose.
3. Before each use, inspect jack tubes and replace if bent or damaged.
4. The following procedures should be performed at least annually:

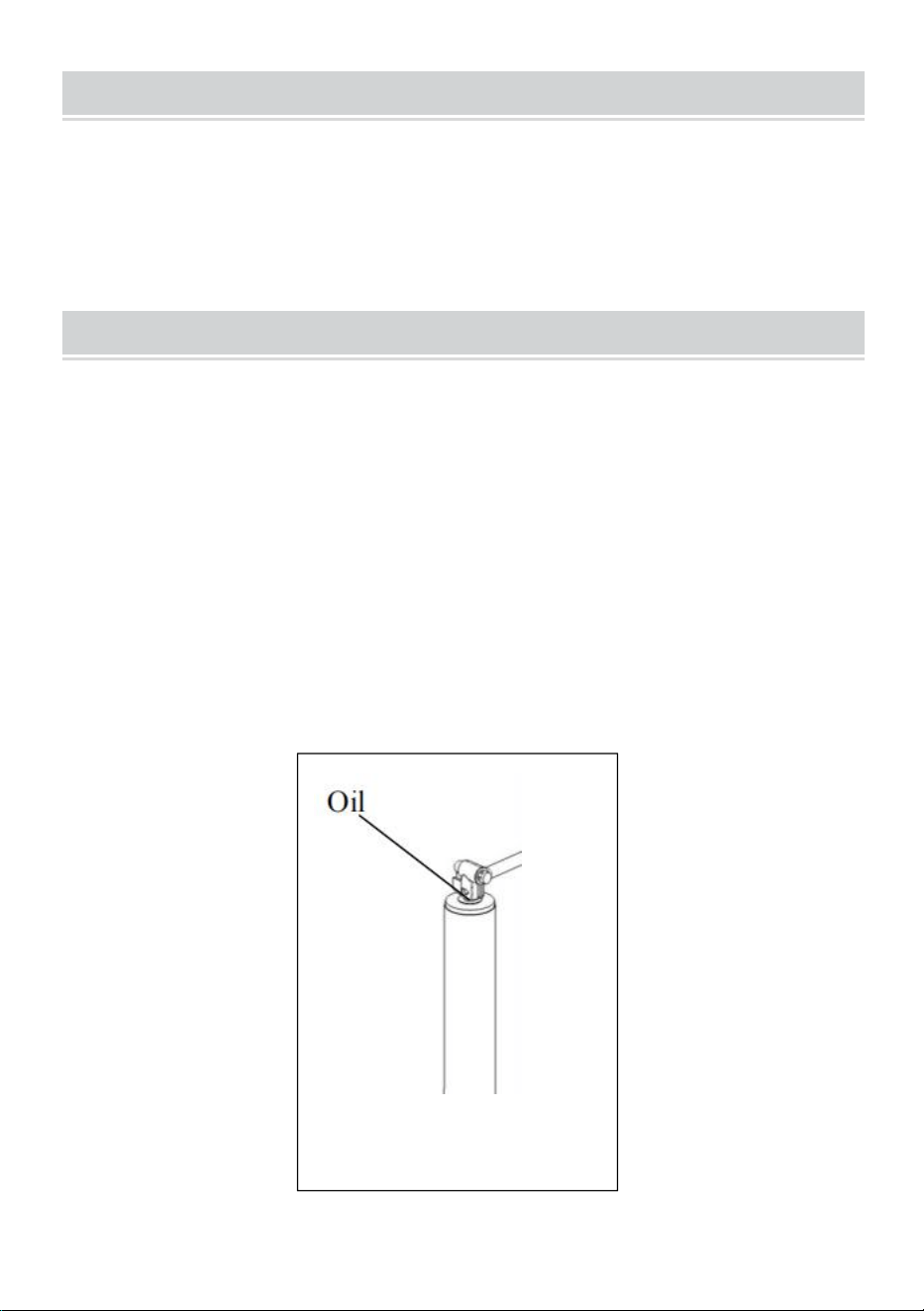

Apply a lightweight oil to the screw stem. If this product is used in a
marine environment, flush the jack assembly and bushings with fresh
water, and apply fresh lubricant.
