INSTRUCTION MANUAL
3 Series Upper Arm Blood
Pressure Monitor
Model BP7150
®
3145948-0A
ENGLISH
2
Table of Contents
Introduction ..................................................................................................3
Important Safety Information ........................................................................4
1. Know Your Monitor ................................................................................9
2. Preparation ..........................................................................................15
3. Using Your Monitor without a Smart Device ........................................19
4. Using Your Monitor with a Smart Device .............................................21
5. Using Memory Function .......................................................................24
6. Other Settings ......................................................................................25
7. Error Messages and Troubleshooting..................................................26
8. Maintenance ........................................................................................30
9. Optional Accessories ...........................................................................32
10. Specifications.......................................................................................34
11. FCC Statement ....................................................................................38
12. Limited Warranty..................................................................................39
13. Guidance and Manufacturer’s Declaration...........................................41
3
Introduction
Thank you for purchasing the OMRON BP7150 Upper Arm Blood Pressure Monitor.
This monitor can be used by multiple users. This blood pressure monitor uses the
oscillometric method of blood pressure measurement. This means this monitor
detects your blood movement through your brachial artery and converts the
movements into a digital reading.
Safety Instructions
This instruction manual provides you with important information about the OMRON
BP7150 Upper Arm Blood Pressure Monitor. To ensure the safe and proper use of
this monitor, READ and UNDERSTAND all of these instructions. If you do not
understand these instructions or have any questions, contact 1-800-634-4350
before attempting to use this monitor. For specific information about your
own blood pressure, consult with your physician.
Intended Use
The device is a digital monitor intended for use in measuring blood pressure and
pulse rate in adult patient population. The device detects the appearance of
irregular heartbeats during measurement and gives a warning signal with readings.
Environments of Use: Home
Patient Population: Adult
Receiving and Inspection
Remove this monitor and other components from the packaging and inspect for
damage. If this monitor or any other components is damaged, DO NOT USE and
contact 1-800-634-4350.
Symbols Glossary
For symbol information, visit:
OmronHealthcare.com/symbols-glossary
Contraindications
• This monitor is contraindicated for use in ambulatory environments.
• This monitor is contraindicated for use on aircraft.
4
Important Safety Information
Read the Important Safety Information in this instruction manual before using
this monitor.
Follow this instruction manual thoroughly for your safety.
Keep for future reference. For specific information about your own blood pressure,
CONSULT WITH YOUR PHYSICIAN.
Warning
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
• DO NOT use this monitor on infants, toddlers, children or persons who
cannot express themselves.
• DO NOT adjust medication (including altering your use of any drug or
treatment) based on readings from this blood pressure monitor. Take
medication as prescribed by your physician. ONLY a physician is qualified
to diagnose and treat high blood pressure and heart related conditions.
• NEVER diagnose or treat yourself based on your readings. ALWAYS consult
with your physician.
• If you are experiencing any symptoms or concerns, consult with your
physician.
• DO NOT postpone/stop regular checkups or physician visits based on the
results that you are getting from this monitor.
• DO NOT use this monitor on an injured arm or an arm under medical
treatment.
• DO NOT apply the arm cuff on your arm while on an intravenous drip or
blood transfusion.
• DO NOT use this monitor in areas containing high frequency (HF) surgical
equipment, magnetic resonance imaging (MRI) equipment, computerized
tomography (CT) scanners. This may result in incorrect operation of the
monitor and/or cause an inaccurate reading.
• DO NOT use this monitor in oxygen rich environments or near flammable
gas.
5
• Consult with your physician before using this monitor if you have common
arrhythmias such as atrial or ventricular premature beats or atrial
fibrillation; arterial sclerosis; poor perfusion; diabetes; pregnancy; pre-
eclampsia or renal disease. NOTE that any of these conditions in addition to
patient motion, trembling, or shivering may affect the measurement reading.
• To help avoid strangulation, keep the air tube and AC adapter cable away
from infants, toddlers and children.
• This product contains small parts that may cause a choking hazard if
swallowed by infants, toddlers and children.
Data Transmission
• After the pairing process is completed, this product emits radio frequencies
(RF) in the 2.4 GHz band. DO NOT use this product in locations where RF is
restricted, such as on an aircraft or in hospitals. Disable the Bluetooth
®
feature in this monitor, or remove the batteries and unplug the AC adapter
when in RF restricted areas. For further information on potential restrictions
refer to documentation on the Bluetooth usage by the FCC.
AC Adapter (optional accessory) Handling and Usage
• DO NOT use the AC adapter if this monitor or the AC adapter cable is
damaged. If this monitor or the cable is damaged, turn off the power and
unplug the AC adapter immediately.
• Plug the AC adapter into the appropriate voltage outlet. DO NOT use in a
multi-outlet plug.
• NEVER plug in or unplug the AC adapter from the electric outlet with wet
hands.
• DO NOT disassemble or attempt to repair the AC adapter.
Battery Handling and Usage
• Keep the batteries out of the reach of infants, toddlers and children.
Caution
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury to the user or
patient, or cause damage to the equipment or other property.
• Stop using this monitor and consult with your physician if you experience
skin irritation or discomfort.
6
• Consult with your physician before using this monitor on an arm where
intravascular access or therapy, or an arterio-venous (A-V) shunt, is present
because of temporary interference to blood flow which could result in
injury.
• Consult with your physician before using this monitor if you have had a
mastectomy or lymph node clearance.
• Consult with your physician before using this monitor if you have severe
blood flow problems or blood disorders as cuff inflation can cause bruising.
• DO NOT take measurements more often than necessary because bruising,
due to blood flow interference, may occur.
• ONLY inflate the arm cuff when it is applied on your upper arm.
• Remove the arm cuff if it does not start deflating during a measurement.
• DO NOT use this monitor for any purpose other than measuring blood
pressure.
• During measurement, make sure that no mobile device or any other
electrical device that emits electromagnetic fields is within 12 inches (30
cm) of this monitor. This may result in incorrect operation of the monitor
and/or cause an inaccurate reading.
• DO NOT disassemble or attempt to repair this monitor or other components.
This may cause an inaccurate reading.
• DO NOT use in a location where there is moisture or a risk of water
splashing this monitor. This may damage this monitor.
• DO NOT use this monitor in a moving vehicle such as in a car.
• DO NOT drop or subject this monitor to strong shocks or vibrations.
• DO NOT use this monitor in places with high or low humidity or high or low
temperatures. Refer to section 10.
• During measurement, observe the arm to ensure that the monitor is not
causing prolonged impairment to blood circulation.
• DO NOT use this monitor in high-use environments such as medical clinics
or physician offices.
• DO NOT use this monitor with other medical electrical (ME) equipment
simultaneously. This may result in incorrect operation of the devices and/or
cause an inaccurate reading.
• Avoid bathing, drinking alcohol or caffeine, smoking, exercising and eating
for at least 30 minutes before taking a measurement.
• Rest for at least 5 minutes before taking a measurement.
7
• Remove tight-fitting or thick clothing from your arm while taking a
measurement.
• Remain still and DO NOT talk while taking a measurement.
• ONLY use the arm cuff on persons whose arm circumference is within the
specified range of the cuff.
• Ensure that this monitor has acclimated to room temperature before taking
a measurement. Taking a measurement after an extreme temperature
change could lead to an inaccurate reading. It is recommended that you
wait for approximately 2 hours for the monitor to warm up or cool down
when the monitor is used in an environment within the temperature
specified as operating conditions after it is stored either at the maximum or
at the minimum storage temperature. For additional information on
operating and storage/transport temperature, refer to section 10.
• DO NOT use this monitor after the durable period has ended. Refer to
section 10.
• DO NOT crease the arm cuff or the air tube excessively.
• DO NOT fold or kink the air tube while taking a measurement. This may
cause an injury by interrupting blood flow.
• To unplug the air plug, pull on the plastic air plug at the base of the tube, not
the tube itself.
• ONLY use the AC adapter, arm cuff, batteries and accessories specified for
this monitor. Use of unsupported AC adapters, arm cuffs and batteries may
damage and/or may be hazardous to this monitor.
• ONLY use the approved arm cuff for this monitor. Use of other arm cuffs
may result in incorrect readings.
• Inflating to a higher pressure than necessary may result in bruising of the
arm where the cuff is applied. NOTE: refer to “If your systolic pressure is
more than 210 mmHg” in section 3 of this instruction manual for additional
information.
Data Transmission
• DO NOT replace the batteries or unplug the AC adapter while your readings
are being transferred to your smart device. This may result in incorrect
operation of this monitor and failure to transfer your blood pressure data.
AC Adapter (optional accessory) Handling and Usage
• Fully insert the AC adapter into the outlet.
• When unplugging the AC adapter from the outlet, be sure to safely pull from
the AC adapter. DO NOT pull from the AC adapter cable.
8
• When handling the AC adapter cable:
DO NOT damage it.
DO NOT break it.
DO NOT tamper with it.
DO NOT forcibly bend or pull it.
DO NOT twist it.
DO NOT use it if it is gathered in a bundle.
DO NOT pinch it.
DO NOT place it under heavy objects.
• Wipe any dust off of the AC adapter.
• Unplug the AC adapter when not in use.
• Unplug the AC adapter before wiping this monitor.
Battery Handling and Usage
• DO NOT insert batteries with their polarities incorrectly aligned.
• ONLY use 4 “AA” alkaline or manganese batteries with this monitor. DO
NOT use other types of batteries. DO NOT use new and used batteries
together. DO NOT use different brands of batteries together.
• Remove the batteries if this monitor will not be used for a long period of
time.
• If battery fluid should get in your eyes, immediately rinse with plenty of
clean water. Consult with your physician immediately.
• If battery fluid should get on your skin, wash your skin immediately with
plenty of clean, lukewarm water. If irritation, injury or pain persists, consult
with your physician.
• DO NOT use batteries after their expiration date.
• Periodically check the batteries to ensure they are in good working
condition.
9
1. Know Your Monitor
1.1 Contents/Product Includes
Monitor, Wide-Range D-Ring Cuff, instruction manual, quick start guide
1.2 Monitor and Arm Cuff
Front of the monitor
Display
[Connection] button
(Memory)
[START/STOP] button
a
b
c
a
b
c
10
Left side, back and bottom of the monitor
Arm cuff
(Upper arm circumference: 9" - 17" (22 - 42 cm))
Air jack
AC adapter jack
(for optional AC adapter)
Battery compartment
Air plug
Air tube
e
f
d
d
e
f
g
g
h
h
11
1.3 Display and Symbols
OK symbol
Flashes when your monitor is connected to your smart device
successfully.
Bluetooth ON symbol
Appears when your readings are being transferred.
Bluetooth OFF symbol
Appears when Bluetooth is disabled.
Systolic blood pressure reading
B
C
D
E
F
G
A
I
H
J
K
L
M
A
B
C
12
Diastolic blood pressure reading
Heartbeat symbol
Flashes while taking a measurement.
Deflation symbol
Appears during cuff deflation.
Sync symbol
• Flashes when the stored memory is almost full
• Appears when the stored memory is completely full
Once you pair your monitor with your smart device, transfer your
readings immediately before the monitor deletes the oldest reading.
Up to 14 readings can be stored in the internal memory of your
monitor.
Memory symbol
Appears when viewing readings stored in the memory.
High symbol
Appears if your systolic blood pressure is ≥ 130 mmHg or the
diastolic blood pressure is ≥ 80 mmHg. Refer to sub-section 1.4 for
more information.
Movement error symbol
Appears with your reading when your body is moving during a
measurement. If it appears, remove the arm cuff and wait for 2 to 3
minutes. Then, reapply the cuff, remain still and take another
measurement.
D
E
F
G
H
I
J
13
1.4 Classification of BP (Blood Pressure)
ACC/AHA 2017 Hypertension guidelines define categories of BP in adults as below.
Irregular heartbeat symbol
• Appears when irregular rhythm is detected 2 or more times during
a measurement.
• This symbol may be displayed when the monitor detects arm
movements while taking a measurement. Refer to section 7 for
more information.
An irregular heartbeat rhythm is defined as a rhythm that is 25 %
less or 25 % more than the average rhythm detected while your
monitor is measuring blood pressure.
If it continues to appear, it is recommended that you consult
with, and follow the directions of your physician.
Low battery symbol
Flashes when batteries are low.
Depleted battery symbol
Appears when batteries are depleted.
Pulse display / Memory number
• Pulse rate appears after the measurement.
• When pressing the button, the memory number appears for
approximately 2 seconds before the pulse rate appears on the display.
K
Short
Long
Irregular Heartbeat
Normal Heartbeat
L
M
14
Categories of BP in Adults*
Warning
• NEVER diagnose or treat yourself based on your readings. ALWAYS consult with
your physician.
BP Category Systolic BP Diastolic BP
Normal < 120 mmHg and < 80 mmHg
Elevated 120 - 129 mmHg and < 80 mmHg
Hypertension
Stage 1 130 - 139 mmHg or 80 - 89 mmHg
Stage 2 ≥ 140 mmHg or ≥ 90 mmHg
* Individuals with Systolic BP and Diastolic BP in 2 categories should be
designated to the higher BP category.
BP indicates blood pressure (based on an average of ≥ 2 careful readings obtained
on ≥ 2 occasions).
Source: ACC/AHA 2017 High Blood Pressure Clinical Practice Guideline
15
2. Preparation
2.1 Installing Batteries
Batteries are not included in this unit. You will need to supply your own 4 “AA”
batteries before using your monitor.
1. Remove the battery cover.
2. Insert 4 “AA” batteries as indicated
in the battery compartment.
3. Close the battery cover.
Note
• When the “ ” symbol flashes on the display, it is recommended that you
replace the batteries.
• To replace the batteries, turn your monitor off and remove all batteries. Then
replace with 4 new batteries at the same time.
• Replacing the batteries will not delete previous readings.
• The supplied batteries may have a shorter life span than new batteries.
• Disposal of used batteries should be carried out in accordance with local
regulations.
16
2.2 Blood Pressure Measurement Tips
To help ensure an accurate reading, follow these directions:
• Stress raises blood pressure. Avoid taking measurements during stressful times.
• Measurements should be taken in a quiet place.
• It is important to take measurements at the same times each day. Taking
measurements in the morning and in the evening is recommended.
• Remember to have a record of your blood pressure and pulse readings for your
physician. A single measurement does not provide an accurate indication of your
true blood pressure. It is recommended you take and record several readings
over a period of time.
Caution
• Avoid bathing, drinking alcohol or caffeine, smoking, exercising and eating for at
least 30 minutes before taking a measurement.
• Rest for at least 5 minutes before taking a measurement.
2.3 Applying the Arm Cuff
Note
• The following steps are for applying the arm cuff to your left arm. When you take a
measurement on your right arm, follow the cuff wrap instructions for use on your
right arm mentioned under “To take a measurement on your right arm” located at
the end of this sub-section.
• Blood pressure can differ between the right arm and the left arm, and the
measured blood pressure readings can be different. It is recommended that you
always use the same arm for measurement. If the readings between both arms
differ substantially, check with your physician to determine as to which arm to use
for your measurements.
Caution
• Remove tight-fitting or thick clothing from your arm while taking a measurement.
17
1. Plug the arm cuff into your monitor by
inserting the air plug into the air jack
securely until it clicks.
2. Place your hand through the cuff loop.
Pull the cuff until it reaches your upper left arm.
Note
• The bottom edge of the arm cuff
should be 0.5 inch (1 to 2 cm)
above the inside elbow. The air
tube is on the inside of your arm
and aligned with your middle
finger.
3. Make sure that the air tube is positioned on the
inside of your arm and wrap the cuff securely,
so it cannot move around your arm.
To take a measurement on your right arm
When you take a measurement on your right arm, the air tube should run along the
side of your elbow, along the bottom of your arm. Be careful not to rest your arm on
the air tube.
Click
Bottom edge
0.5 inch (1 to 2 cm)
18

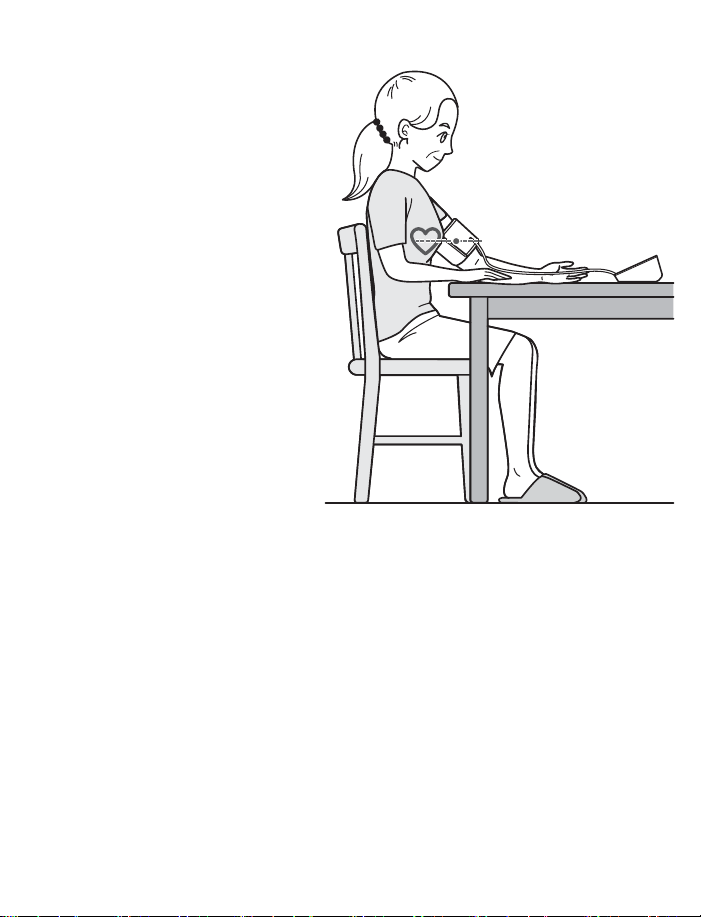

2.4 Sitting Correctly
To take a measurement, you need
to be relaxed and comfortably
seated in a room with a comfortable
temperature. Place your arm on the
table.
• Sit in a comfortable chair with your
back and arm supported.
• Keep your feet flat and your legs
uncrossed.
• The arm cuff should be placed on
your arm at the same level as your
heart, with the arm resting
comfortably on a table.
19
3. Using Your Monitor without a Smart Device
This monitor tracks readings for 1 user. If you are sharing with another, manually
track your readings separately.
3.1 Taking a Measurement
You can use your monitor without pairing to a smart device. To pair your monitor
with a smart device, refer to sub-section 4.1.
Note
• To stop the measurement, press the [START/STOP] button once to deflate the
arm cuff.
Caution
• DO NOT use this monitor with other medical electrical (ME) equipment
simultaneously. This may result in incorrect operation of the devices and/or cause
an inaccurate reading.
• Remain still and DO NOT talk while taking a measurement.
1. Press the [START/STOP] button.
All symbols except the battery symbol appear on the display before starting the
measurement.
20
2. Remain still and do not talk until the entire measurement process is
complete.
The “ ” symbol flashes at every heartbeat.
Your blood pressure and pulse rate are displayed.
If either the systolic or the diastolic reading is high (refer to sub-section 1.3),
the “ ” symbol appears.
3. Press the [START/STOP] button to turn your monitor off.
Note
• Your monitor automatically turns off after 2 minutes.
• Wait 2 - 3 minutes between measurements. The wait time allows the arteries
to return to their pre-measurement state. You may need to increase the wait
time depending on your individual physiological characteristics.
If your systolic pressure is more than 210 mmHg
If your systolic pressure is more than 210 mmHg, take a measurement manually.
After the arm cuff starts to inflate, press and hold the [START/STOP] button until the
monitor inflates 30 to 40 mmHg higher than your expected systolic pressure.
Note
• Do not inflate above 299 mmHg.
Caution
• Inflating to a higher pressure than necessary may result in bruising of the arm
where the cuff is applied.
INFLATINGSTART DEFLATING COMPLETED
21
4. Using Your Monitor with a Smart Device
This monitor tracks readings for 1 user. If you are sharing with another, manually
track your readings separately.
4.1 Pairing Your Monitor with a Smart Device
1. Enable Bluetooth on your smart device.
2. Scan the code below with your smart device camera or visit
OmronHealthcare.com/app to find the OMRON compatible app for
this product.
3. Download and install the compatible OMRON app onto your smart
device.
If you already have the compatible OMRON app and have created your
account, open the app and add your new monitor.
4. Open the app and follow the pairing instructions shown on your smart
device.
Review the list of compatible smart devices at
OmronHealthcare.com/connect
22
5. Confirm that your monitor is connected successfully.
When your monitor is connected successfully to your
smart device, the OK symbol appears.
6. Press the [START/STOP] button to turn your monitor off.
Note
• If the “Err” appears, follow the instructions in the app.
• Your monitor automatically turns off after 10 seconds.
• Be aware that OMRON will not be responsible for the loss
of data and/or information in the app.
• Only compatible OMRON apps should be used with this
monitor to help ensure correct data transfer.
4.2 Taking a Measurement
Refer to sub-section 3.1 to start a measurement. Open the app on your smart
device and follow the instructions.
Note
• Make sure that your monitor is within 16 ft. (5 m) of your smart device.
• When Bluetooth is enabled, the readings will be transferred to your smart device
after taking a measurement.
23
4.3 Disabling/Enabling Bluetooth
Warning
• This product emits radio frequencies (RF) in the 2.4 GHz band. DO NOT use this
product in locations where RF is restricted, such as on an aircraft or in hospitals.
Disable the Bluetooth feature in this monitor, or remove the batteries and unplug
the AC adapter when in RF restricted areas. For further information on potential
restrictions refer to documentation on the Bluetooth usage by the FCC.
Bluetooth is enabled as default.
1. When your monitor is off, press and hold the button for more than
10 seconds.
“oFF” flashes 3 times.
2. Press the [START/STOP] button to turn your monitor off.
Note
• To enable Bluetooth, press and hold the button for more than 3 seconds.
“on” appears on the display.
• Your monitor automatically turns off 10 seconds after the completion.
• When Bluetooth is disabled, the “ ” symbol appears.
24
5. Using Memory Function
Your monitor automatically stores up to 14 readings.
This monitor tracks readings for 1 user. If you are sharing with another, manually
track your readings separately.
5.1 Viewing the Readings Stored in Memory
1. Press the button.
The Memory number appears for 2 seconds before the pulse rate is displayed.
The most recent reading stored in the memory will be numbered as “1”.
Note
• If the reading was high (refer to sub-section 1.3), the “ ”
symbol appears.
• If there are no readings stored in the memory, the screen to
the right is displayed.
• If the memory is full, new readings will replace the old
readings, starting with the oldest reading.
2. Press the button repeatedly to scroll through the previous
readings stored in the memory.
25
6. Other Settings
6.1 Restoring Your Monitor to the Default Settings
To delete all the information stored in your monitor, follow the instructions below.
Make sure that your monitor is turned off.
1. Press the button.
After a memory number appears, the latest reading will appear.
2. While holding the button
down, press and hold the
[START/STOP] button for
more than 4 seconds.
The display to the right flashes.
3. While holding the button
down again, press and hold
the [START/STOP] button
for more than 4 seconds.
The display stops flashing, then
your monitor is restored to the
default settings.
4. Press the [START/STOP]
button to turn your monitor off.
Note
• Reverting to the default setting of your monitor does not delete the
information in the app.
• Your monitor automatically turns off after 10 seconds.
26
7. Error Messages and Troubleshooting
If any of the below problems occur during measurement, check to make sure that no
other electrical device is within 12 inches (30 cm) of the monitor. If the problem
persists, refer to the table below.
Display/Problem Possible Cause Solution
appears or the arm cuff
does not inflate.
The [START/STOP] button
was pressed while the arm
cuff is not applied.
Press the [START/STOP]
button again to turn the
monitor off.
Air plug is not completely
plugged into the monitor.
Insert the air plug securely.
The arm cuff is not applied
correctly.
Apply the arm cuff correctly,
then take another
measurement. Refer to sub-
section 2.3.
Air is leaking from the arm
cuff.
Replace the arm cuff with a
new one. Refer to section 9.
appears or a
measurement cannot
be completed after the
arm cuff inflates.
Moving or talking during a
measurement causes the
arm cuff to not inflate
sufficiently.
Remain still and do not talk
during a measurement. If
“E2” appears repeatedly,
inflate the arm cuff manually
until the systolic pressure is
30 to 40 mmHg above your
previous readings. Refer to
sub-section 3.1.
The systolic pressure is
above 210 mmHg and a
measurement cannot be
taken.
27
appears
The arm cuff is inflated
exceeding the maximum
allowable pressure.
Do not touch the arm cuff
and/or bend the air tube
while taking a
measurement. If inflating
the arm cuff manually, refer
to sub-section 3.1.
appears
Moving or talking during a
measurement results in
vibrations that disrupt the
measurement.
Remain still and do not talk
during a measurement.
appears
The pulse rate is not
detected correctly.
Apply the arm cuff correctly,
then take another
measurement. Refer to sub-
section 2.3.
Remain still and sit correctly
during a measurement.
If the “ ” symbol
continues to appear, it is
recommended that you
consult with your physician.
/
appears
does not flash during a
measurement
appears
The monitor has
malfunctioned.
Press the [START/STOP]
button again. If “Er” still
appears, contact customer
service. Refer to section 12.
appears
The monitor cannot connect
to a smart device or
transmit data correctly.
Follow the instructions
shown in the app. If the “Err”
still appears after checking
the app, contact customer
service. Refer to section 12.
Display/Problem Possible Cause Solution
28
flashes
The monitor is waiting for
pairing with the smart
device.
Refer to sub-section 4.1 for
pairing your monitor with
your smart device, or press
the [START/STOP] button to
cancel pairing and turn your
monitor off.
flashes
More than 11 readings are
not transferred.
Pair or transfer your
readings to the app so you
can keep them in memory in
the app, and this symbol
disappears.
Your monitor is not paired or
not connected with your
smart device.
appears
14 readings are not
transferred.
flashes
Batteries are low.
Replacing all 4 batteries
with new ones is
recommended. Refer to
sub-section 2.1.
Display/Problem Possible Cause Solution
29
and
appears or the monitor
is turned off
unexpectedly during a
measurement.
Batteries are depleted.
Immediately replace all 4
batteries with new ones.
Refer to sub-section 2.1.
Nothing appears on the
display of the monitor.
Batteries are depleted.
Battery polarities are not
properly aligned.
Check the battery
installation for proper
placement. Refer to sub-
section 2.1.
Readings appear too
high or too low.
Blood pressure varies constantly. Many factors including
stress, time of day, and/or how you apply the arm cuff,
may affect your blood pressure. Review sub-sections 2.2
- 2.4 and section 3.
Any other
communication issue
occurs.
Follow the instructions shown in the smart device, or visit
the “Help” section in the app for further help. If the
problem still persists, contact customer service. Refer to
section 12.
Any other problems
occur.
Press the [START/STOP] button to turn the monitor off,
then press it again to take a measurement. If the problem
continues, remove all batteries and wait for 30 seconds.
Then re-install the batteries.
If the problem still persists, contact customer service.
Refer to section 12.
Display/Problem Possible Cause Solution
30
8. Maintenance
8.1 Maintenance
To protect your monitor from damage, follow the directions below:
Caution
• DO NOT disassemble or attempt to repair this monitor or other components. This
may cause an inaccurate reading.
8.2 Storage
Store your monitor and other components in a clean, safe location.
1. Remove the arm cuff from the monitor.
The air plug is designed to fit securely into the monitor so it does not
accidentally unplug from the monitor when in use. When removing the arm cuff
from the monitor, pull the air plug out from the monitor in a straight motion,
holding the plug and not using the tube. You will hear a “click” sound as the
cuff plug is removed from the monitor.
Caution
• To unplug the air plug, pull on the plastic air plug at the base of the tube, not the
tube itself.
• Changes or modifications not approved by the manufacturer will void the user
warranty.
31
2. Gently fold the air tube into the arm
cuff.
Note
• Do not bend or crease the air tube
excessively.
Do not store your monitor and other components:
8.3 Wiping the Monitor
• Do not use any abrasive or volatile cleaners.
• Use a soft dry cloth or a soft cloth moistened with mild (neutral) detergent to wipe
your monitor and arm cuff and then wipe them with a dry cloth.
• Do not wash or immerse your monitor and arm cuff or other components in water.
• Do not use gasoline, thinners or similar solvents to wipe your monitor and arm cuff
or other components.
8.4 Disposal
Dispose of your monitor, other components and optional accessories according to
applicable local regulations.
Unlawful disposal may cause environmental pollution.
• If your monitor and other components are wet.
• In locations exposed to extreme temperatures, humidity, direct sunlight, dust
or corrosive vapors such as bleach.
• In locations exposed to vibrations or shocks.
32
9. Optional Accessories
Note
• Do not throw the air plug away. The air plug can be applicable to the optional cuff.
For further information, visit our website at OmronHealthcare.com
Small D-Ring Cuff Wide-Range D-Ring Cuff
Arm circumference
7" - 9" (17 - 22 cm)
Arm circumference
9" - 17" (22 - 42 cm)
Model:
HEM-CS24-B HEM-CS24-BZ
Model:
HEM-RML31-B HEM-RML31-BZ
•Same as the arm cuff provided with
the product.
AC Adapter
Model: HEM-ADPTW5
33
Using the AC Adapter (optional accessory)
Note
• Make sure not to place your monitor in a location where it is difficult to plug and
unplug the AC adapter.
1. Insert the AC adapter plug into the
AC adapter jack on the back side
of your monitor.
2. Plug the AC adapter into an
electrical outlet.
To unplug the AC adapter, unplug the
AC adapter from the electrical outlet
and then remove the AC adapter plug from the monitor.
Caution
• ONLY use the AC adapter, arm cuff, batteries and accessories specified for this
monitor. Use of unsupported AC adapters, arm cuffs and batteries may damage
and/or may be hazardous to this monitor.
34
10. Specifications
Model
BP7150 HEM-7142T2-Z
Display LCD digital display
Cuff pressure range 0 to 299 mmHg
Blood pressure
measurement range
SYS: 60 to 260 mmHg
DIA: 40 to 215 mmHg
Pulse measurement range 40 to 180 beats / min.
Accuracy
Pressure: ±3 mmHg
Pulse: ±5 % of display reading
Inflation Automatic by electric pump
Deflation Automatic pressure release valve
Measurement method Oscillometric method
Transmission method
Bluetooth
®
Low Energy
Wireless communication
Frequency range: 2.4 GHz (2400 - 2483.5 MHz)
Modulation: GFSK
Effective radiated power: < 20 dBm
Operation mode Continuous operation
IP classification Monitor: IP20 / Optional AC adapter: IP21
Rating DC6 V 4 W
Power source
4 “AA” batteries 1.5 V (not included) or optional AC
adapter (INPUT AC100 - 240 V 50 - 60 Hz
0.12 - 0.065 A)
Battery life
Approximately 500 measurements (using new alkaline
batteries and included arm cuff. Depending on the
type of battery and arm cuff size.)
35
Durable period (Service
life)
Monitor: 5 years or the time when reaching 10000
times of use.
Arm cuff: 5 years or the time when reaching 10000
times of use.
Optional AC adapter: 5 years
Operating conditions
+50 °F to +104 °F (+10 °C to +40 °C) / 15 to 90 % RH
(non-condensing) / 800 to 1060 hPa
Storage / Transport
conditions
-4 °F to +140 °F (-20 °C to +60 °C) / 10 to 90 % RH
(non-condensing)
Weight
Monitor: Approximately 8.8 oz. (250 g) not including
batteries
Arm cuff: Approximately 6 oz. (170 g)
Dimensions
Monitor: Approximately 4.1" (w) × 3.2" (h) × 5.5" (l)
(103 mm × 82 mm × 140 mm)
Arm cuff: Approximately 5.7" × 23.4" (air tube: 29.5")
(145 mm × 594 mm (air tube: 750 mm))
Cuff circumference
applicable to the monitor
Total arm circumference range: 7 to 17" (17 to 42 cm)
Included arm cuff: 9 to 17" (22 to 42 cm)
Optional arm cuff: 7 to 9" (17 to 22 cm)
Memory Stores up to 14 readings
Contents
Monitor, Wide-Range D-Ring Cuff, instruction manual,
quick start guide
Protection against electric
shock
Internally powered ME equipment (When using only
batteries)
Class II ME equipment (Optional AC adapter)
Applied part Type BF (arm cuff)
36
Note
• These specifications are subject to change without notice.
• This monitor is clinically investigated according to the requirements of ISO 81060-
2:2013 and complies with ISO 81060-2:2013 and ISO 81060-2:2018+A1:2020. In
the clinical validation study, K5 was used on 85 subjects for determination of
diastolic blood pressure.
• This monitor has not been validated for use on pregnant patients.
• IP classification is degrees of protection provided by enclosures in accordance
with IEC 60529. This monitor and optional AC adapter are protected against solid
foreign objects of 0.5 inch (12.5 mm) diameter and greater such as a finger. The
optional AC adapter is protected against vertically falling water drops which may
cause issues during a normal operation.
• Operation mode classification complies with IEC 60601-1.
• Please report to the manufacturer and the regulatory authority in which you are
established about any serious incident that has occurred in relation to this device.
About a wireless communication interference
The Bluetooth option in the product is used to connect to dedicated apps
on mobile devices to synchronize date/time data from mobile device to
the product, and to synchronize measurement data from the product to
mobile device. Further handling of the data on the mobile device is up to
the user's discretion. This product operates in an unlicensed ISM band at
2.4 GHz where any third party can intercept the radio waves, willfully or
accidentally, for any unknown purpose. In the event this product is used
near other wireless devices such as microwave and wireless LAN, which
operate on the same frequency band as this product, there is a possibility
that interference may occur. If interference occurs, stop the operation of
the other devices or relocate this product away from other wireless
devices before attempting to use it.
37
Pictogram on the Product
or
Types of marks used to indicate the correct positioning
of the artery for the upper arm
Identifies the type of cuff that is compatible with the
blood pressure monitor
38
11. FCC Statement
FCC CAUTION
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Note
• This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment and meets the FCC radio frequency (RF) Exposure
Guidelines. This equipment has very low levels of RF energy that are deemed to
comply without testing of specific absorption ratio (SAR).
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
39
12. Limited Warranty
Your BP7150 Blood Pressure Monitor, excluding the arm cuff, is warranted to be
free from defects in materials and workmanship appearing within 2 years from the
date of purchase, when used in accordance with the instructions provided with the
monitor. The arm cuff is warranted to be free from defects in materials and
workmanship appearing within 1 year from the date of purchase when the monitor is
used in accordance with the instructions provided with the monitor. The above
warranty extends only to the original retail purchaser, and only to products
purchased from an Omron authorized seller who is subject to and follows Omron’s
quality control standards, unless otherwise prohibited by law.
We will, at our option, replace without charge any monitor or arm cuff covered by the
above warranty. Replacement is our only responsibility and your only remedy under
the above warranty.
To obtain warranty service contact Customer Service by calling 1-800-634-4350 for
the address of the inspection center and the return shipping and handling fee that
may apply.
Enclose the original printed receipt. Include a letter, with your name, address, phone
number, and description of the specific problem. Pack the product carefully to
prevent damage in transit. Because of possible loss in transit, we recommend
insuring the product with return receipt requested.
THE FOREGOING IS THE SOLE WARRANTY PROVIDED BY OMRON IN
CONNECTION WITH THIS PRODUCT, AND OMRON HEREBY DISCLAIMS ANY
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NON-INFRINGEMENT. IMPLIED WARRANTIES AND OTHER
TERMS THAT MAY BE IMPOSED BY LAW, IF ANY, ARE LIMITED IN DURATION
TO THE PERIOD OF THE ABOVE EXPRESS WARRANTY.
OMRON SHALL NOT BE LIABLE FOR LOSS OF USE OR ANY OTHER
SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT COSTS, EXPENSES
OR DAMAGES.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION
OR EXCLUSION MAY NOT APPLY TO YOU.
40
This warranty provides you with specific legal rights, and you may have other rights
that vary by jurisdiction. Because of special local requirements, some of the above
limitations and exclusions may not apply to you.
FOR CUSTOMER SERVICE
Visit our web site at: OmronHealthcare.com
Call toll free: 1-800-634-4350
41
13. Guidance and Manufacturer’s Declaration
OMRON Battery-operated / AC Adapter-operated Blood Pressure Monitor
Information for Accompanying Documents in the Scope of IEC 60601-1-2
Important information regarding Electromagnetic Compatibility (EMC)
BP7150 conforms to IEC 60601-1-2 Electromagnetic Compatibility (EMC) standard.
Further documentation in accordance with this EMC standard is available at
https://healthcare.omron.com/electro-magnetic-compatibility. Refer to the EMC
information for BP7150 on the website.
The Bluetooth
®
word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by OMRON HEALTHCARE Co.,
Ltd. is under license. Other trademarks and trade names are those of their
respective owners.
OMRON HEALTHCARE Co., Ltd.
53, Kunotsubo, Terado-cho, Muko, Kyoto, 617-0002 JAPAN
Distributed by:
OMRON HEALTHCARE, INC.
2895 Greenspoint Pkwy. Hoffman Estates, IL 60169 USA
OmronHealthcare.com
© 2023 OMRON HEALTHCARE, INC.
Made in Vietnam
