Friedrich FRID9K31 User Manual
Friedrich FRID9K31 2 Room Mini Split System with Heat Pump, Precision Inverter Technology,

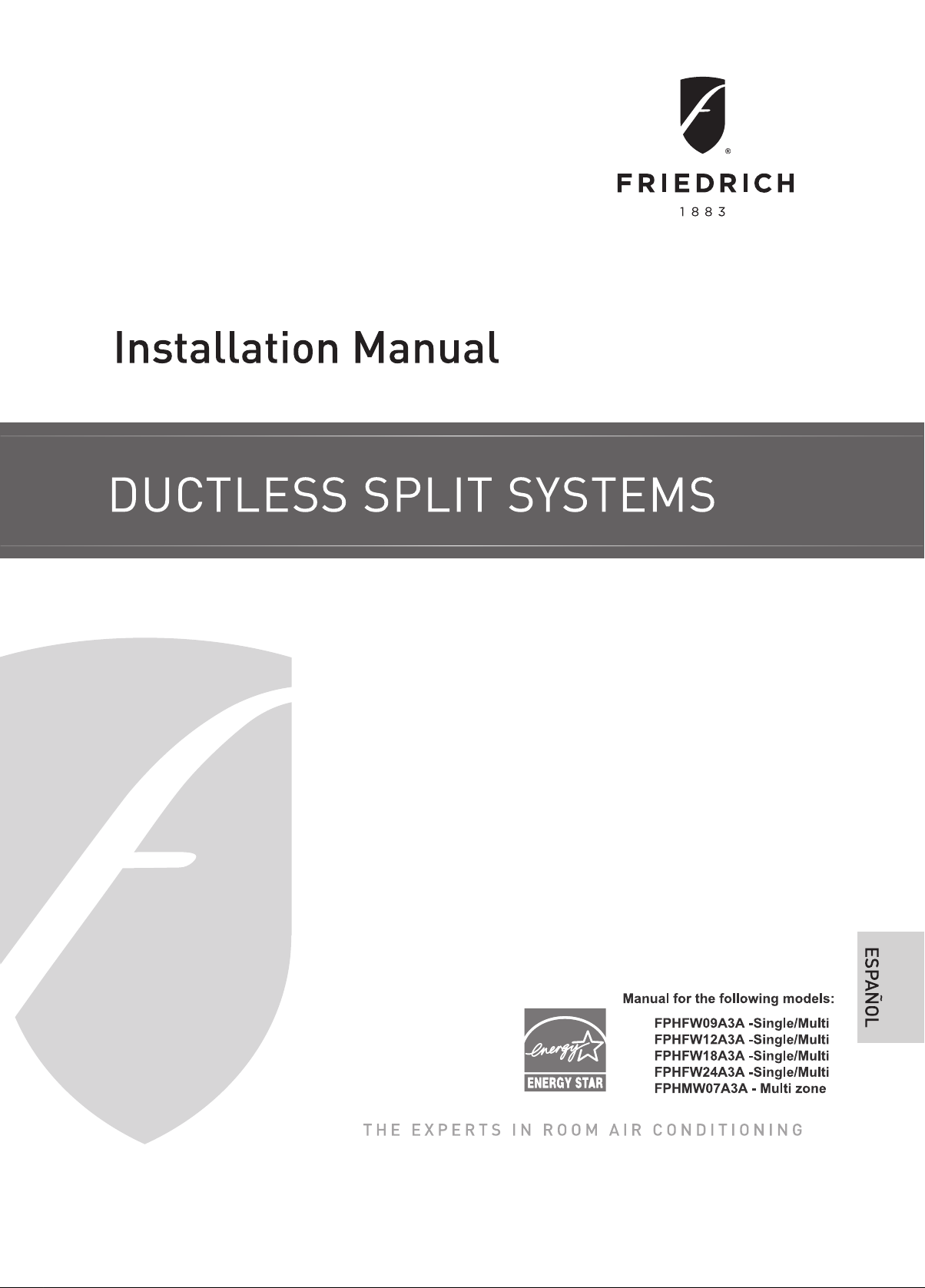

Installation Manual
For FRID9K31.
PDF File Manual
,
80 pages
,
Read Online
|
Download pdf file
Page 1/80
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Page 41
Page 42
Page 43
Page 44
Page 45
Page 46
Page 47
Page 48
Page 49
Page 50
Page 51
Page 52
Page 53
Page 54
Page 55
Page 56
Page 57
Page 58
Page 59
Page 60
Page 61
Page 62
Page 63
Page 64
Page 65
Page 66
Page 67
Page 68
Page 69
Page 70
Page 71
Page 72
Page 73
Page 74
Page 75
Page 76
Page 77
Page 78
Page 79
Page 80
Previous
Next
Bookmarks
Loading ...
Loading ...
Loading ...
File type: PDF
File name: 89543926_frid9k31.pdf
File size: 32.04 MB
File Language: English
Pages: 80
Author: Friedrich
File created: 2019-03-09
Published:
2024-05-11
Updated: 2024-05-11
Download File
Other documents for Friedrich FRID9K31
The following documents are available:
Installation Instruction
Installation Manual - (English)
Read Online
|
Download pdf
Other Documents
Warranty - (English)
Download
Brochure - (English)
Download
User Manual
Energy Guide - (English)
Download
Specification
Product Specification Sheet - (English)
Download
Product Specification Sheet - (English)
Download
Spec Sheet (web) - (English)
Read Online
Photos
Photos:
View Photos
Specifications
Brand:
Friedrich
Model: FRID9K31
Category:
Heating, Cooling & Air Quality
Width: 33 7/8 Inch
Depth: 12 1/4 Inch
Height: 26 3/8 Inch
Net Weight: 108 Lbs.
Shipping Weight: 119 Lbs.
Heating Capacity: 18,000 BTU
Min Connectable Capacity: 9,000 BTU
Max Connectable Capacity: 24,000 BTU
Liquid Line Outer Diameter: 1/4 Inch
Suction Line Outer Diameter: 3/8 Inch
Min. Line Length Each: 25 Ft.
Max. Line Length Each: 82 Ft.
Min. Line Length Total: 164 Ft.
Max. Line Length Total: 164 Ft.
Max. Height Diff. btwn. Indoor and Outdoor Units: 49 Ft.
Operation: Cooling with Heat Pump
Compressor Noise Level Cooling: 55 dB
Compressor Noise Level Heating: 55 dB
Energy Star Certified: Yes
Outside Temperature Range for Cooling Min.: 14 °F
Outside Temperature Range for Cooling Max.: 115 °F
Outside Temperature Range for Heating Min.: 13 °F
Outside Temperature Range for Heating Max.: 75 °F
Sleep Mode: Yes
Low Ambient Operating Threshold: 4
Parts Warranty: 5 Year
Operating Sound Level Quiet: 26 dB
Operating Sound Level Low: 29 dB
Operating Sound Level Medium: 32 dB
Operating Sound Level High: 39 dB
Program Timer: Yes
Self Cleaning Indoor Coil: Yes
Min No. of Connectible Indoor Units: 1
Max No. of Connectible Indoor Units: 2
WiFi Connected: Yes
Wireless Remote Control Included: Included
Refrigerant Connection Type: Flare
Power Input Cooling Min.: 510 Watts
Power Input Cooling Rated: 1,440 Watts
Power Input Cooling Max.: 2,610 Watts
Power Input Heating Min.: 450 Watts
Power Input Heating Rated: 1,530 Watts
Power Input Heating Max.: 3,510 Watts
Power and Communication Cable No.: 4
Power and Communication Cable AWG: 14
Factory Precharge: 63 Oz.
Voltage: 230/208 Volts
Auto Restart on Power Failure: Yes
