Model:
UPF1-08C
Thank you very much for selecting this new model of
Portable Air Conditioner,please read this Operation
Manual carefully before installing and using this appliance.
Please keep this Operation Manual properly for future reference.
TABL E OF CONTENTS
2
UPF1-08C
110V-120V
60Hz
2345W
200 sq.ft.
8,000(ASHRAE)
Width
: 14.7 in
Depth
: 13.5 in
Height
: 26.9 in
Weight
: 46.3 lbs
4.9ft
M
odel
N
o
.
Voltage
Frequency
Power
Dimensions
Cooling A
rea
BTU Rating
Power Cord Length
IMPORTANT
The air conditionerunit mustalways be storedand
transported upright, otherwise you may cause irreparable
damage to the compressor. In case of doubt, we suggest that
you wait for at least 24 hours before you start the air-
conditioning unit.
Safety Information & Warnings ......................................................................................3
Setting up your portable conditioner ..............................................................................6
Product features ............................................................................................................7
Installing your air conditioner...........................................................................................8
Using your air conditioner..............................................................................................12
Cleaning & Mainteance .................................................................................................14
Trouble shooting ............................................................................................................16
Limited Manufacturer’s Warranty ...................................................................................17
SPECIFICATIONS
3
SAFETY INFORMATION &WARNINGS
Please read the Manual carefully before operating the machine:
1. Read and keep these instructions.
2. Heed all warnings.
3. Follow all instructions.
4. Do not use this machine near water.
5. Clean it only with a damp cloth.
6. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
7. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus(including amplifiers)that produce heat.
8. Do not defeat the safety purpose of the polarized or grounding-type
plug.A polarized plug has two blades with one wider than the other. A
grounding-type plug has two blades and a third grounding prong.The wide
blade or the third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
9. Protect the power cord from being walked on or pinched particularly
at plugs,convenience receptacles, and the point where they exit from
the machine.
10. Do not attempt to modify or extend the power cord of this machine.
11. Unplug this machine during lightning storms or when it will not be
used for long periods of time.
12. Make sure that the available AC power matches the voltage
requirements of this machine.
13. Do not handle the plug with wet hands.This could result in an electric
shock.
14. Unplug the power cord by holding the plug, never by pulling the cord.
15. Do not turn the machine on or off by plugging or unpligging the power
cord.
16.Turn o he machine beforeunplugging i .
17.Refer all servicin o quali ed servicepersonnel. Servicing is required when
he machine has been damaged in any way,such as power-supply cord or plug
is damaged,liquid has been spilled or ob have fallen in o he machine, he
machine has been exposed o rain or moi ure, does no op normally, or
has been dropped.
18.To reduce he risk of reor el ic shock,dono po his machine orain,
moi ure , dripping,or splashing,andno ob edwi h liquids should be
placed on op of i .
19. ies o he con ol remo e should no be exposed oexcessiveh uch
as sunshine, re,or he like.
CAUTION: Danger of explosion if b ies are inco ly replaced.Replace only
wi h he sameor equivalen pe.
WARNING:
ELECTRIC SHOCK HAZARD
Failure to follow these instructions can result inelectric shock, fire, or death.
This unit must be properly grounded.
Do not, under any circumstances, cut or remove the
grounding plug.
If you do not have a properly grounded AC outlet, or if there
is any doubt that the outlet is not properly grounded, a
if necessary, install a properly grounded outlet.
only replacement parts.
Do not use an extension cord.
•
•
•
•
•
•
•
•
4

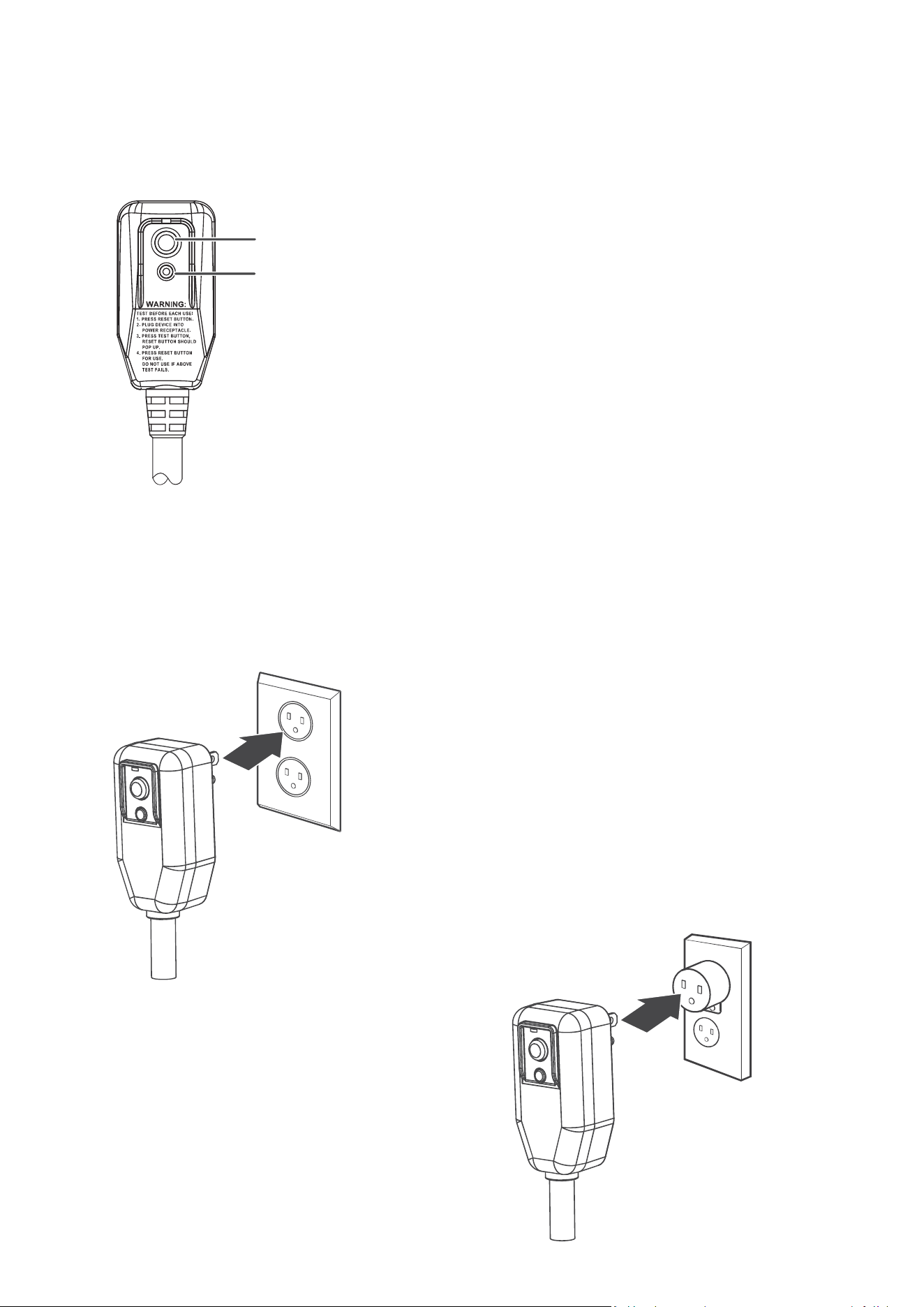

ELECTRICAL SAFETY
Integrated circuit breaker
For additional safety, the power cord on this air
conditioner features an integrated circuit breaker .
You can test and reset the circuit breaker using
the buttons provided on the plug case . Consult
a qualified electrician or service person if the
grounding instructions are not completely
understood , or if doubt exists as to whether the
air conditioner is properly grounded .
The circuit breaker should be tested periodicaly
by pressing the TEST button , then pressing the
RESET button . If the TEST button does not cause
the circuit breaker to trip , or if the RESET button
does not stay engaged , unplug the air
conditioner immediately .
Temporary grounding
Due to potential safety hazards,
we strongly discourage the use
of an adapter plug.
If an adapter
plug must be used for a
temporary connection , use only
a UL - listed adapter with a minimum
capacity of 120V~60Hz,13A, and
1560W. Make sure that the large
slot of the adapter is aligned with
the large slot in the outlet .
TEST button
RESET button
Preferred grounding method
Make sure that a proper
ground exists before use.
Make sure that a proper
ground exists before use.
5
6
SETTING UP YOUR PORTABLE AIR CONDITIONER
Before using your portable air conditioner
• Remove and store ( optional ) packing materials for reuse .
• Remove any shipping tape before using the air conditioner .
• Remove tape residue with liquid dish soap and a damp cloth .
Do not use sharp tools , alcohol , thinners , or abrasive cleaners
to remove adhesive , which could damage the finish .

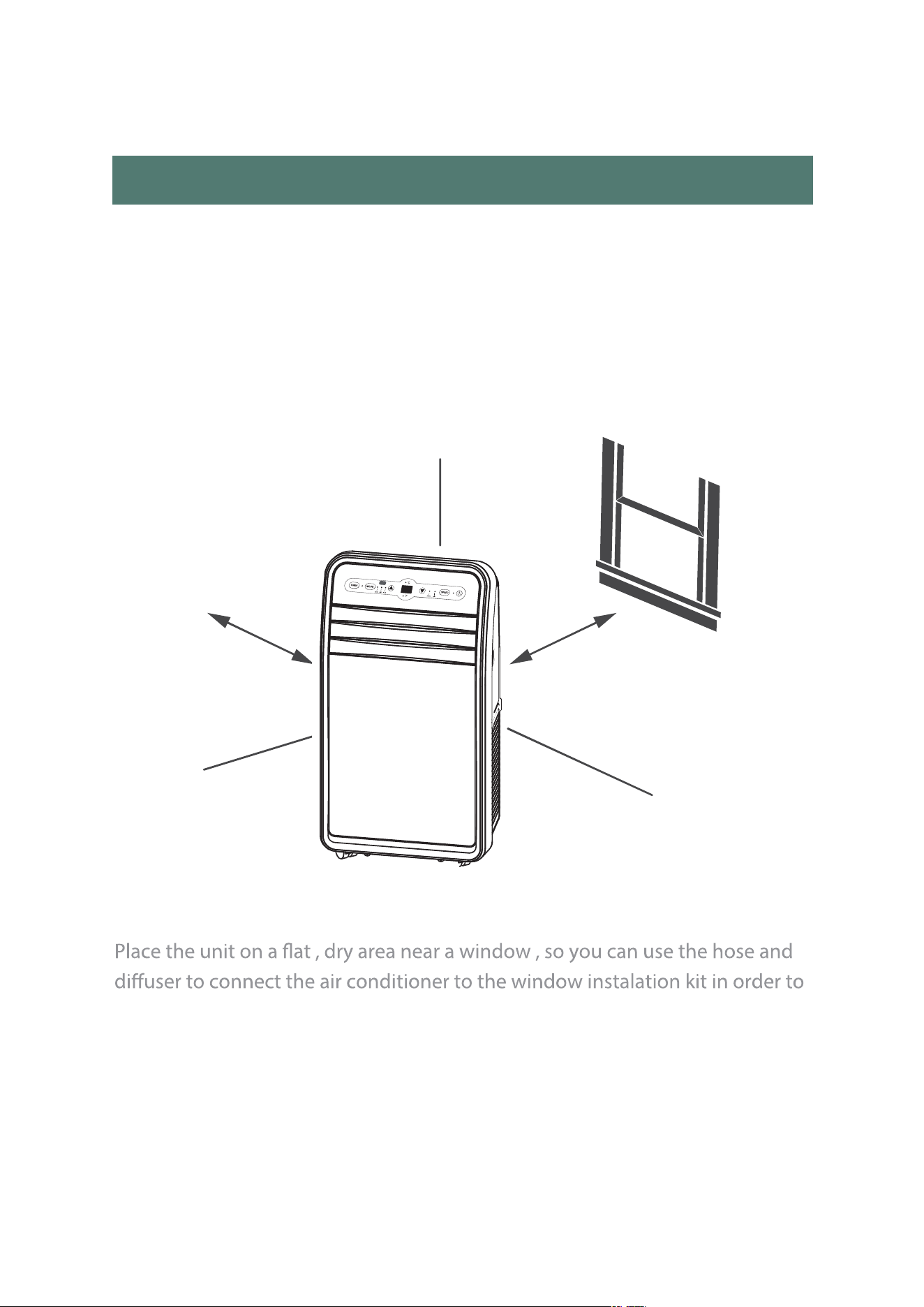

Placing your air conditioner
vent the exhaust air outside . To maintain good air circulation and optimum
machine performance , leave a 20 in .(50 cm ) space around it .
20 in. (50 cm)
20 in. (50 cm)

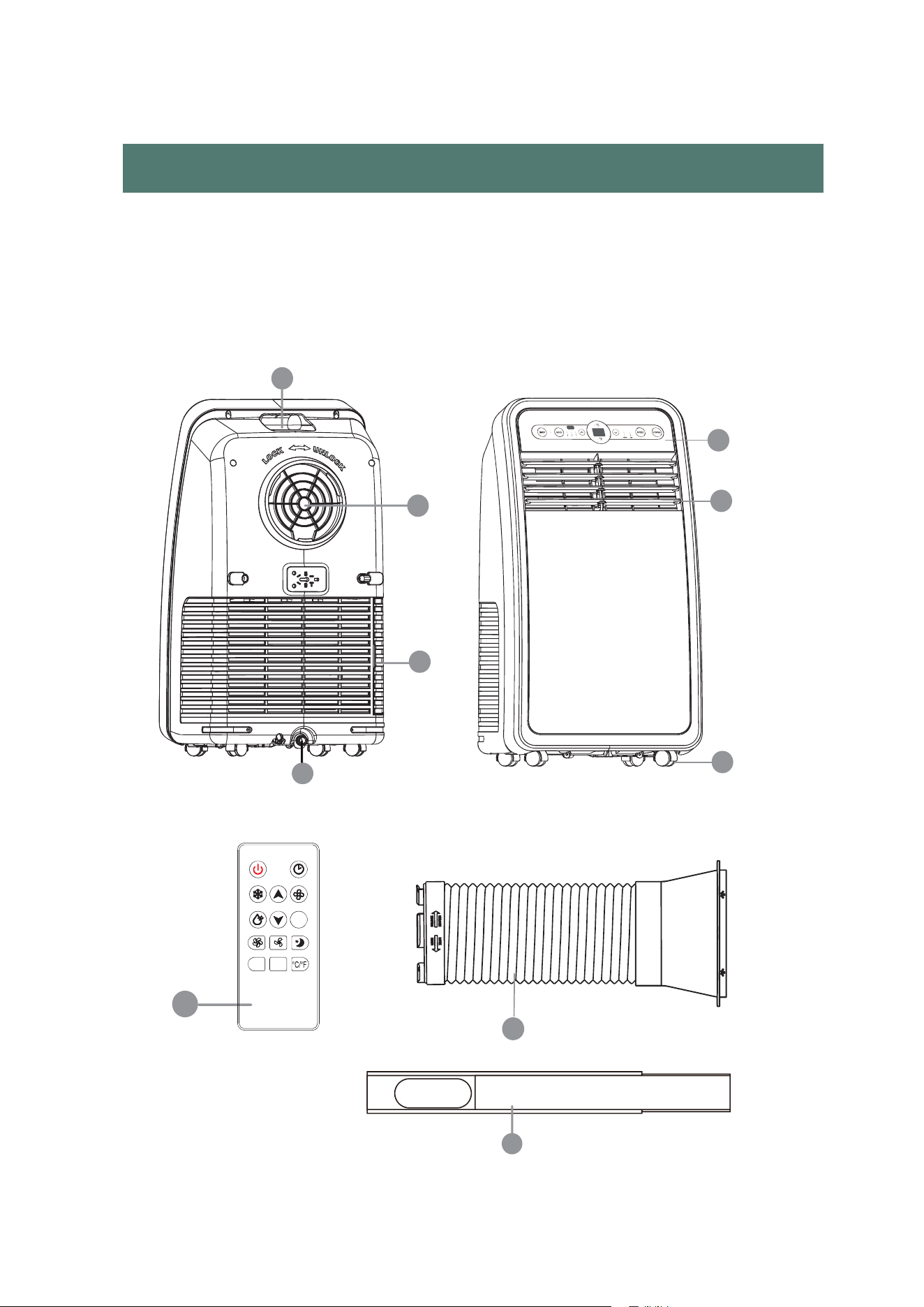

1.
Carrying Handle
2.
Control Panel
3.
Adjustable Front Grille
4.
Casters
5.
Exhaust Output
6.
Air Intake
7.
Moisture Drain Plug
8.
Remote Control
9.
Exhaust Duct
10.
Window Sealing Plate
PRODUCT FEATURES
1
5
7
6
8
10
9
COOL DRY FAN
2
3
4
7
OR

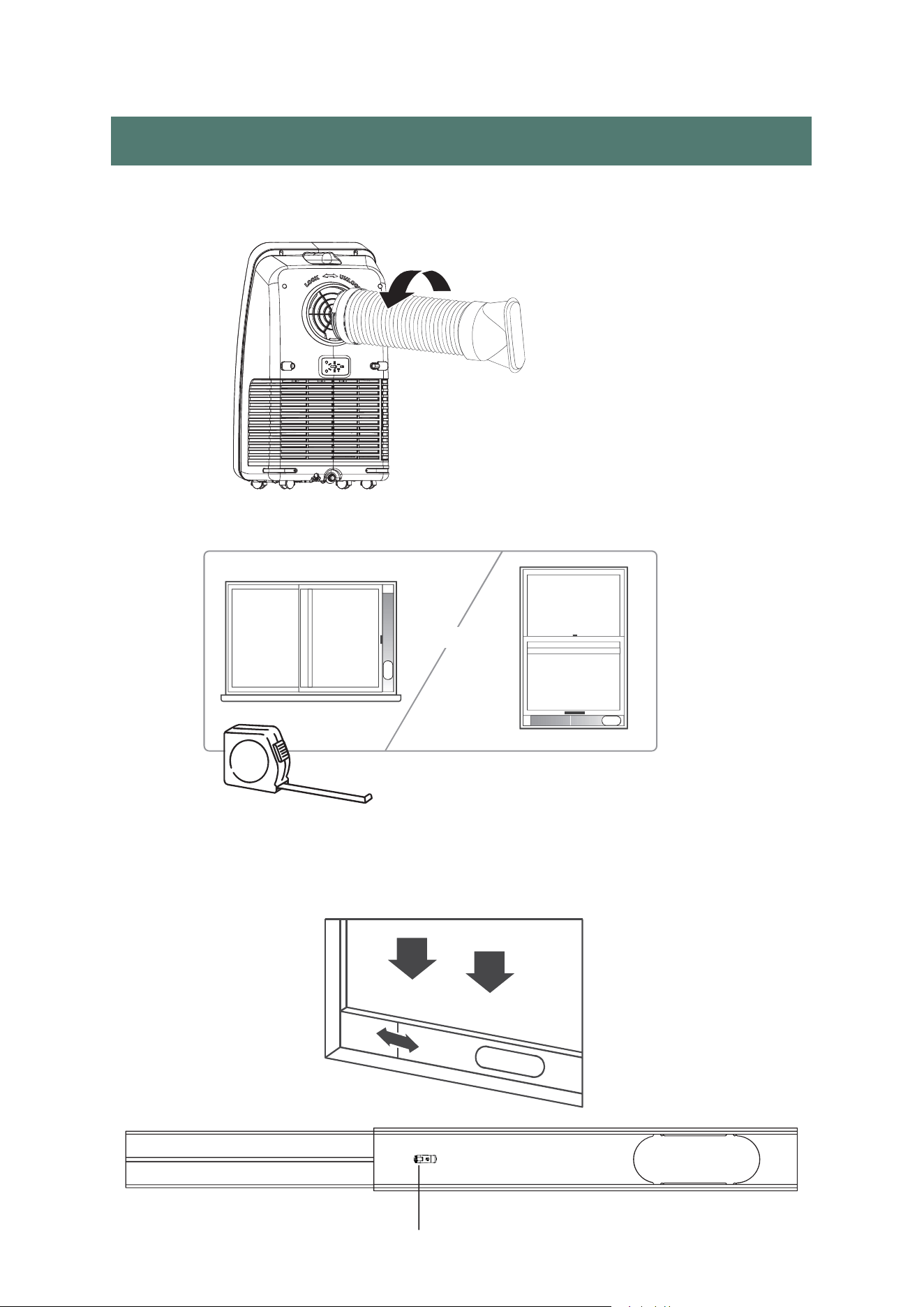

INSTALLING YOUR AIR CONDITIONER
Clip
1.Screw the exhaust hose to the exhaust outlet on the back of your air
conditioner, then screw the hose adapter to the other end of the hose.
2.Measure the window size.
3.Install the window sealing plate in the window opening,adjusting
the length to fit the window opening and securing it with“Clip”(provided).
Note:
The window sealing kit works with sliding windows.
8
9
If your window size is small , just between
67.5cm-98cm
(26.57in-38.58in)
, you can buy a piece of short board (40cm=15.75in)
and then assemble it with the one piece board with clip ;
If your window size is large and there is stil a gap on the side of
the window where the two sealing panels are instaled , you can buy
another long panel (67.5cm=26.57in), the size range after connection
is
135cm-187cm(53.15in-73.62in)
.
If your room has a
casement window
, you can also buy our
sealing cloth to use .
And in the packaging bag , we also prepared 4 piece of sealing
plate sponges . Just adjust the sealing plate to the size of the
window , then tear off the spacer paper of the sponge , and stick
the sponges along the circumference of the sealing plate . It can
well prevent hot air from entering room from outside , and keeping
the indoor temperature cool .
Usualy Portable air conditioner needs to be equipped with sliding
windows . We put two sealing plates in the packaging box of the machine,
and the size range after connection is
94cm-127.5cm
(37in-50.20in). We
also have two spare parts , one short (40cm=15.75in) and one long
(67.5cm=26.57in) with“Clip”
15.75in
26.57in

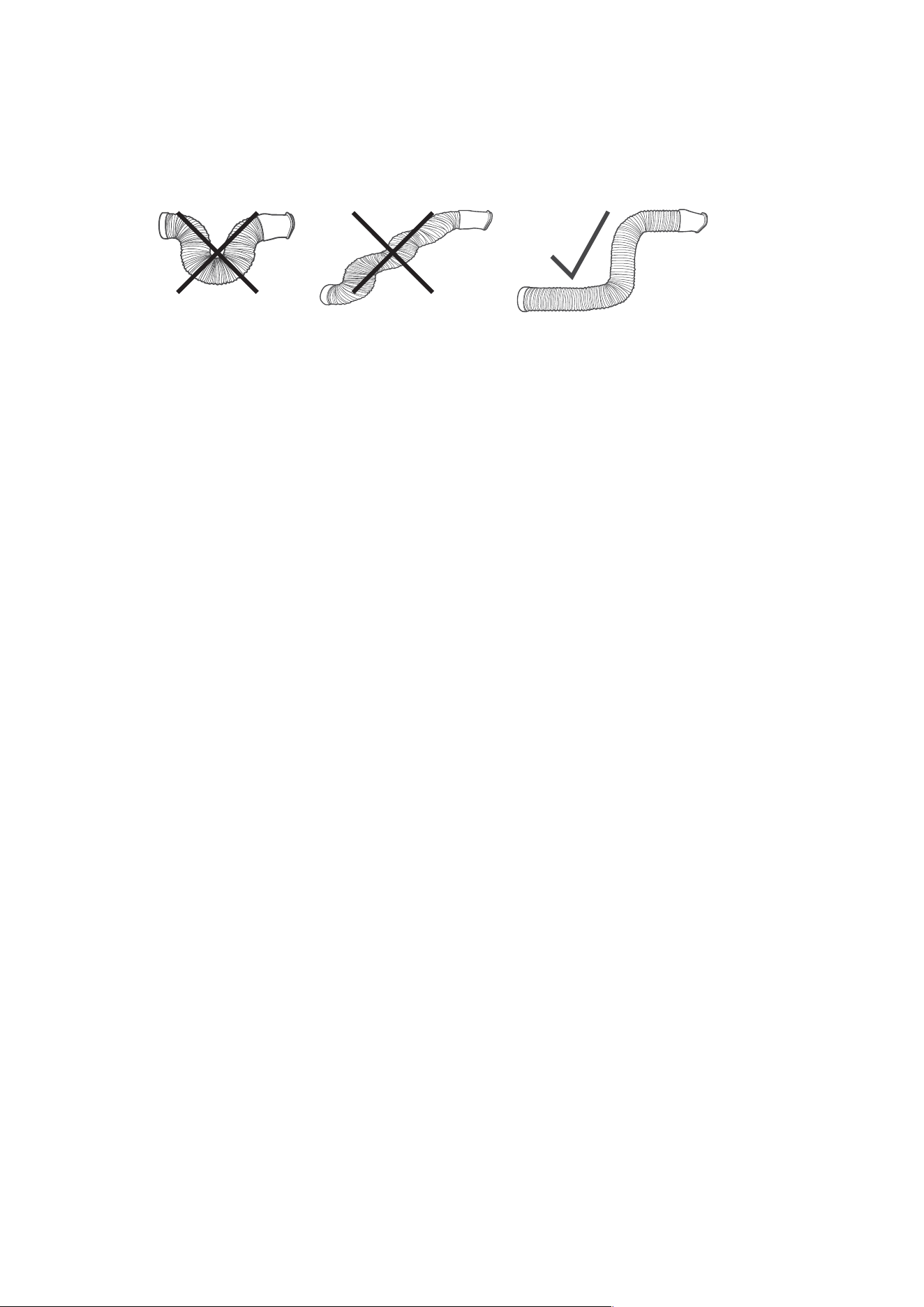

Note:For optimum performance,make sure the venting hose
is not twisted and is free of kinks.For better efficiency,shorten
the hose by squeezing its sections together.

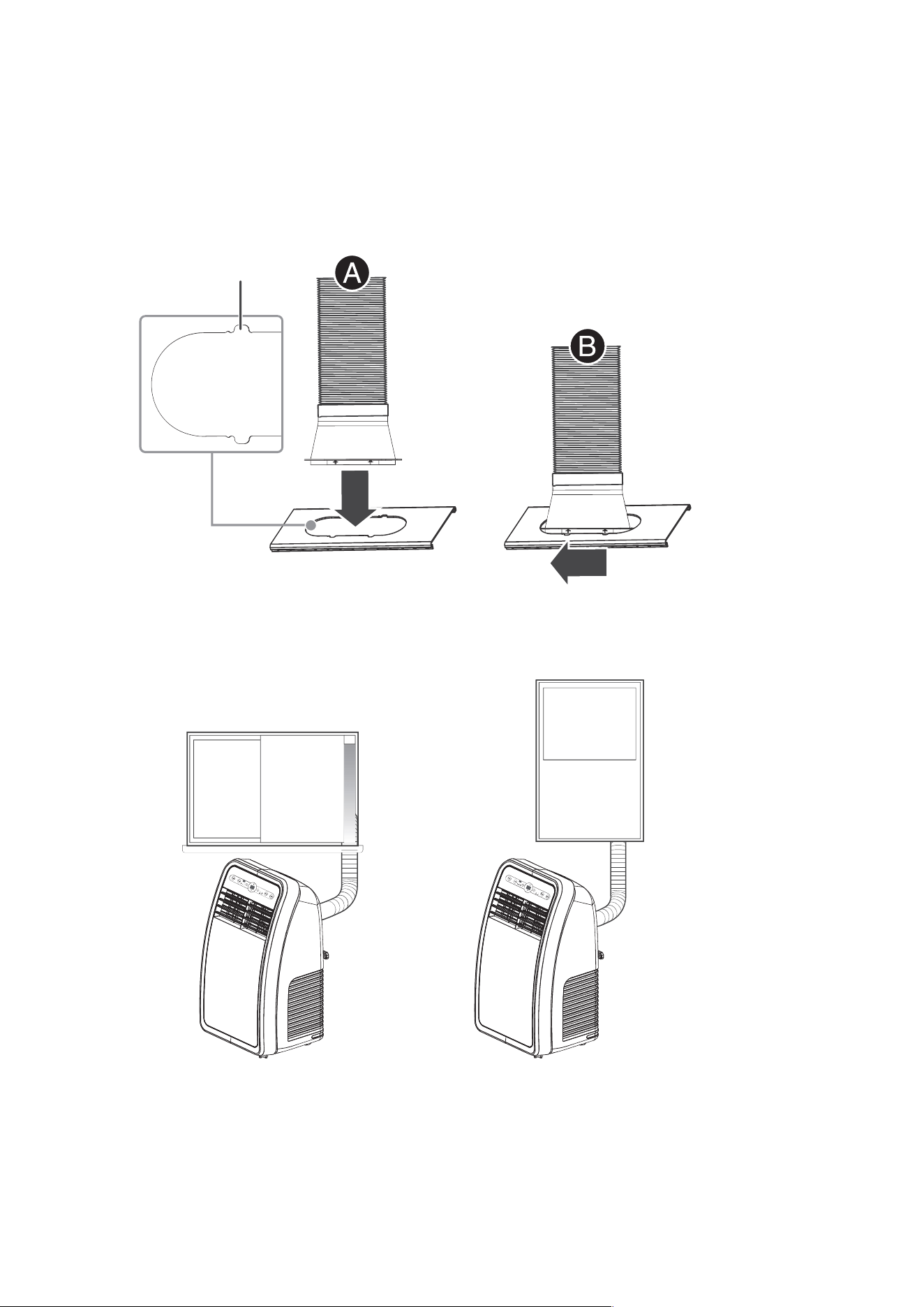

4.Insert the hose adapter into the vent panel(A),then slide the adapter
until it clicks into place(B).
Slide
(Optional):Secure the venting hose to the vent adapter using
the included screw.
C
O
O
L
D
R
Y
F
A
N
C
O
O
L
D
R
Y
F
A
N
Insert
Small gap
10
Caution:
The exhaust duct is designed especially for this air
conditioner. Replacing or lengthening the duct could result in
damage to your unit.
11
USING YOUR AIR CONDITIONER

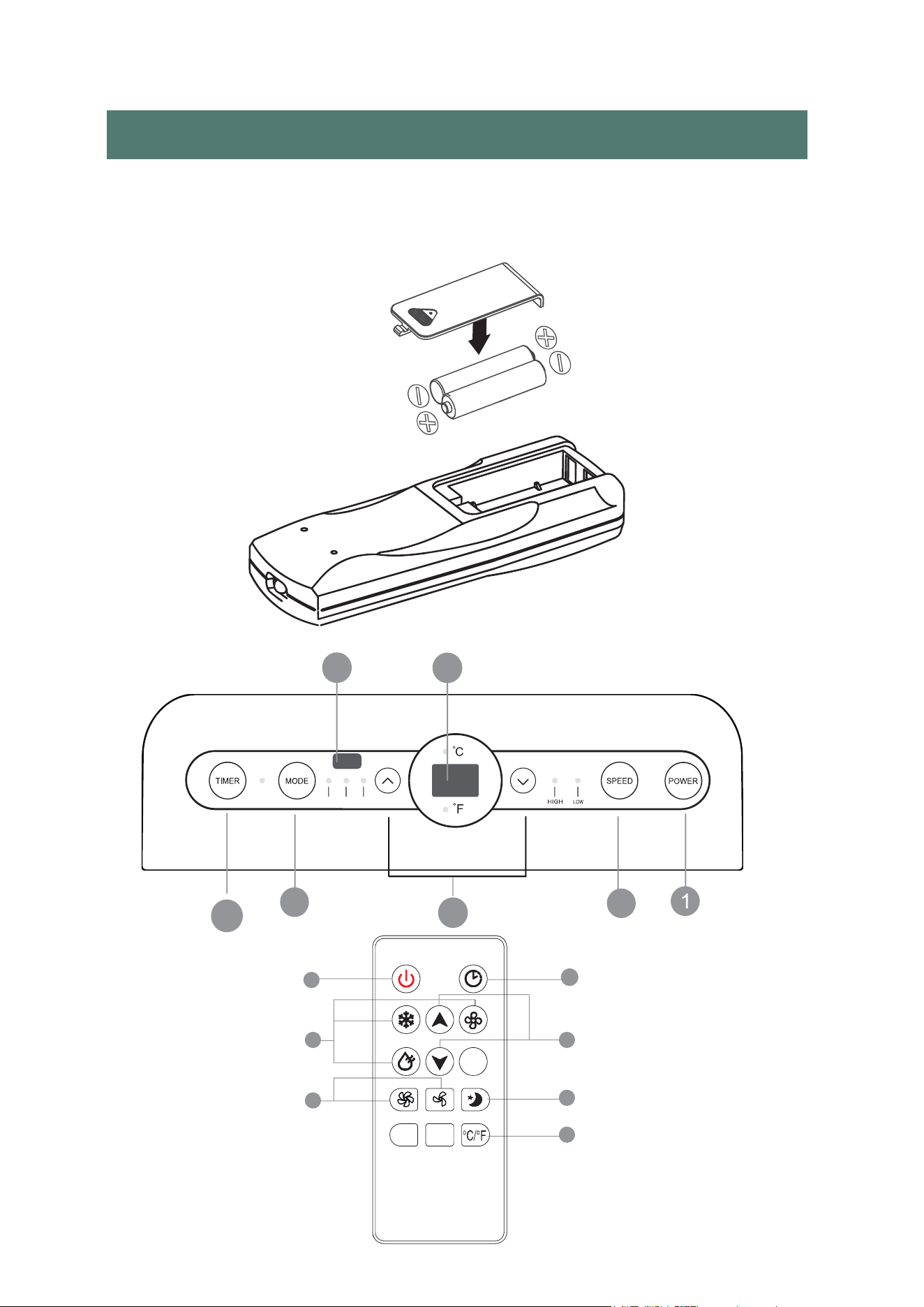

Inserting the batteries in the remote control
• Insert two AAA batteries (provided) into the remote control.
Make sure that you orient the
batteries correctly (+ and –)
when you install them.
12
COOL DRY FAN
5
2
3
1
5
2
3
4
9
8
7
44
6
13
1. Power button
Press this button to turn the unit on and off .
2. Mode button
Press this button to cycle between the 3 modes : cool ( full A \ C
cooling with temperature setting ), fan ( just fan operation without
any temperature setting ) and dry ( fan operation plus dehumidification ).
In dry mode , water wil collect inside the unit , and must be drained by
removing the plug from the bottom of the back of the unit . If the tank
is full ,“ FL ” wil appear on the display to indicate that it needs to be
drained . In dry mode , the unit will stay on low fan speed , and
maintain a temperature of 62 degrees .
3. Temperature buttons
Press these buttons to increase ad decrease the set temperature .
Press these buttons simultaneously to switch the temperature setting
between Fahrenheit and Celsius . This can also be switched by pressing
the C / F button on the remote control .
4. Speed button
Press this button to switch between the two fan speeds , high and low .
5. Timer Button
Press this button to set the unit to turn off after a specified amount of
time . Pressing this button while the unit is turned off will allow you to
set the unit to turn on after a specified amount of time . The timer can
be set anywhere between 1 and 24 hours .
6. Time/ Temperature Display
This window displays the set temperature , or the set time while using
the timer function .
7. Remote control sensor
Point the remote control toward this sensor when using it .
8. Temperature mode button
Press this button on the remote to switch between Fahrenheit and
Celsius on the temperature display window . This can also be switched
by pressing the temperature control buttons on the main control
panel simultaneously .
9. Sleep button
In cooling mode , you can press this button to enter sleep mode , which
wil decrease the fan speed .

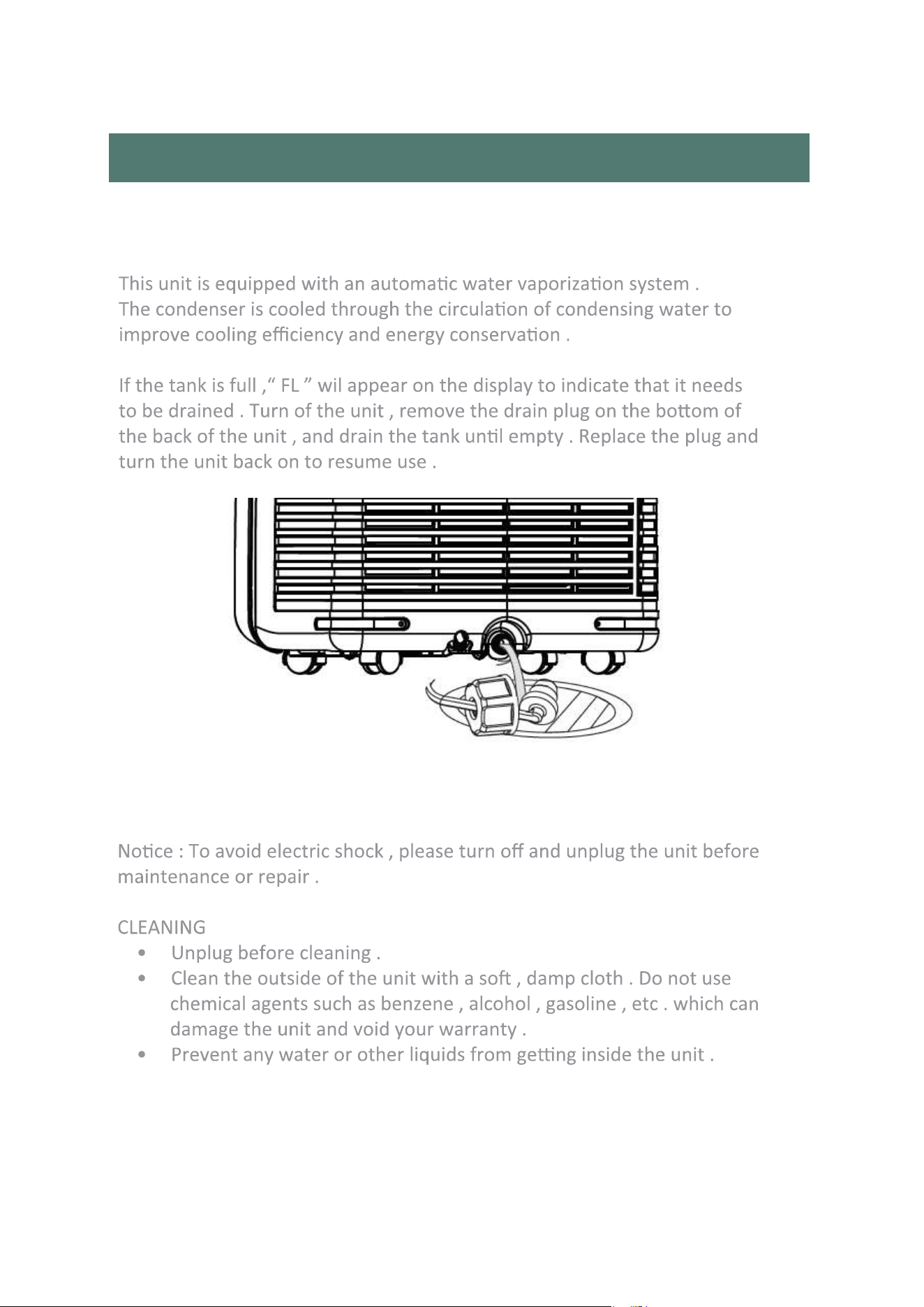

DRAINING THE WATER TANK
CLEANING & MAINTENANCE
MAINTENANCE
14

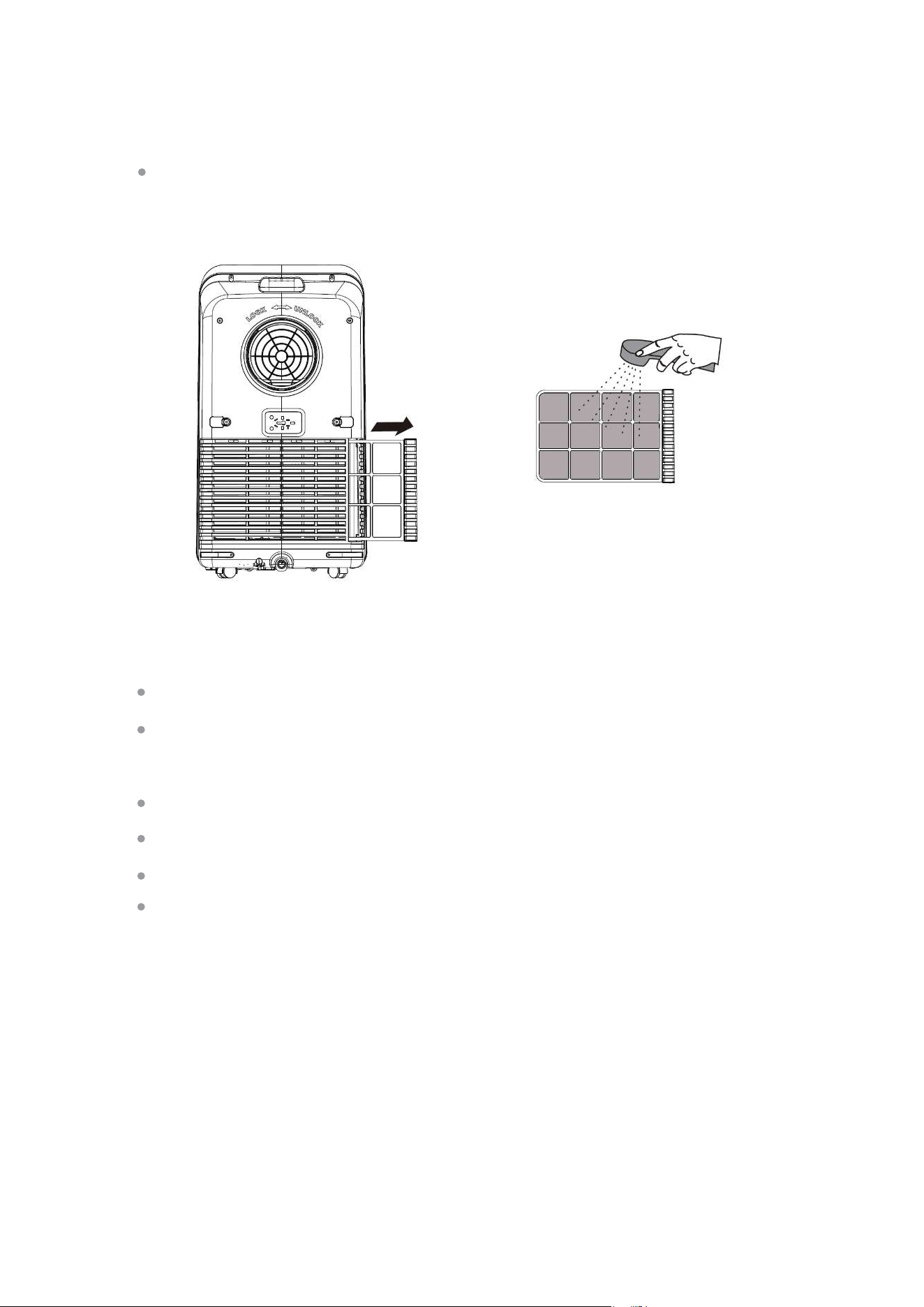

Once every two weeks , remove the dust filter from the back of the unit
and wash it . Neglecting to clean the dust filter may cause the unit to run
poorly over time .
If you are planning on putting the unit away long - term :
Pull the drain plug to drain any water left in the tank .
Run fan mode for 2 hours to help dry any collected moisture within the
unit .
Turn off the unit and unplug it .
Wash and replace the dust filter .
Take apart the exhaust duct .
Cover the unit and the exhaust duct pieces with something to keep dust
out .
DUST FILTER
SEASONAL CLEANING
15
Anti-freezing protection.The air conditioner coil temperature is
itself when the temperature reaches 46.4 (8°C).
The A/C doesn’t
work
The A/C starts
up too
frequently
Unit is not plugged
in
The display panel
displays“FL”
The timer was set,
and the unit shut
off.
The unit is in
direct sunlight.
Dust filter is dirty
Air intake or exhaust
output are clogged.
The unit isn’t placed
on a level surface .
Place it on even and firm ground ,
avoid shaking.
Notice :
For any issues not listed here that arise while using the A / C , turn the
unit off and unplug it , wait a few minutes , and try again . If problems persist ,
contact customer service .
Remove the exhaust tube and
check for any blockage .
The unit is
making too
much noise
Clean the dust filter
Too many
doors/windows are
open; a heat source
is affecting the unit.
Close doors and windows,
remove any heat sources placed
too close to the A/C.
Move the unit out of
direct sunlight.
Restart the unit 3minutes after it
automatically shuts off.
Plug the unit in
Restart the A/C after powering
off and draining, then it will
return to normal.
ISSUE CAUSE SOLUTION
16
In case of any of the following problems,please contact our customer
FL
E1
E2
E4
DESCRIPTION
The internal water tank is full and needs to be emptied.
Coil temperature sensor error.Turn off your air conditioner and
call a professional maintenance technician or service center.
Indoor temperature sensor error.Turn off your air conditioner and
call a professional maintenance technician or service center.
TROUBLE SHOOTING
ERROR CODE
CODE
Power failure
Damage when moving the appliance .
Improper power supply such as low voltage , defective household
wiring or inadequate fuses .
Accident , alteration , misuse , or abuse of the appliance such as
using non - approved accessories , inadequate air circulation in the
room or abnormal operating conditions ( extreme temperatures ).
Use in commercial or industrial applications .
Fire , water damage , theft , war , riot , hostility or acts of God such
as hurricanes , floods , etc .
Use of force or damage caused by external influences .
Partially or completely dismantled appliances .
Excess wear and tear by the user .
LIMITED MANUFACTURER 'S WARRANTY :
17
Warranty
:
We provide one-year warranty .
For technical support and warranty service , please email uhomeservice@yoau.cn.
Warranty Exclusions:
The warranty will not apply if the damage is caused by any of the following :
