WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY, OR LOSS OF LIFE.
– Do not store or use gasoline or other ammable vapors and liquids in vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call the re department.
– Installation and service must be performed by a qualied installer, service agency or the
gas supplier.
This appliance may be installed in an aftermarket, permanently located manufactured
(mobile) home, where not prohibited by local codes. This appliance is for use with the
type of gas indicated on the rating plate only. This appliance is not convertible for use
with other gases.
This is an unvented gas-red heater. It uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion and ventilation air must be provided.
Refer to Air For Combustion and Ventilation section on page 8 of this manual.
INSTALLER : DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER'S
FUTURE REFERENCE.
WARNING: This appliance is
equipped for (Natural and
Propane) gas. Field conversion is
not permitted other than between
natural or propane gases.
LS-ED200T2651B-0902
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-866-573-0674, 8:00 a.m - 4:30 p.m., EST,
Monday - Friday or e-mail [email protected].
ITEM #0293808
VENT-FREE GAS FIREPLACE SYSTEM
MODEL #SSD200TA2
Español p. 34
CAUTION - FOR YOUR SAFETY
2
TABLE OF CONTENTS
ITEM #0293808 VENT FREE GAS FIREPLACE SYSTEM
Input Rating 20,000 BTU/Hr 19,000 BTU/Hr
Gas Type Natural LP/Propane
Ignition Piezo/Automatic Piezo/Automatic
Manifold Pressure 4 in.W.C. 9 in.W.C.
Inlet Gas Pressure (*For purpose of inlet adjustment)
Maximum 10.5 in. 14 in.
Minimum 5 in. 11 in.
Dimension, inches (H x W x D)
Heater 37.48 in. x 29.13 in. x 13.9 in.
Carton 40.94 in. x 32.28 in. x 17.32 in.
Weight, lbs.
Stove 97
Shipping 104
Safety Information..........................................................................................................................3
Product Features............................................................................................................................6
Air For Combustion and Ventilation................................................................................................8
Installation ....................................................................................................................................11

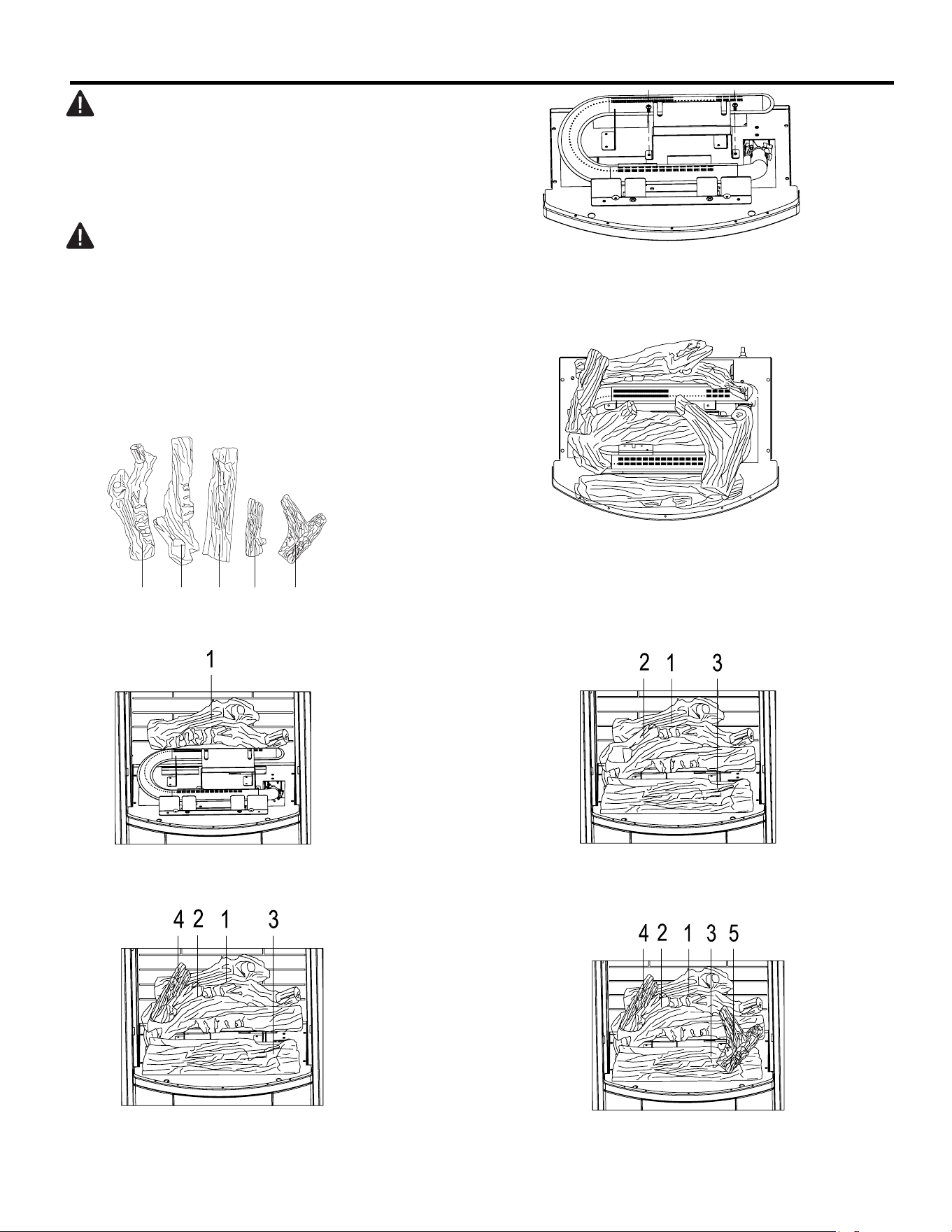

Installing Logs...............................................................................................................................17
Operation......................................................................................................................................18
Care and Maintenance.................................................................................................................22
Troubleshooting............................................................................................................................24

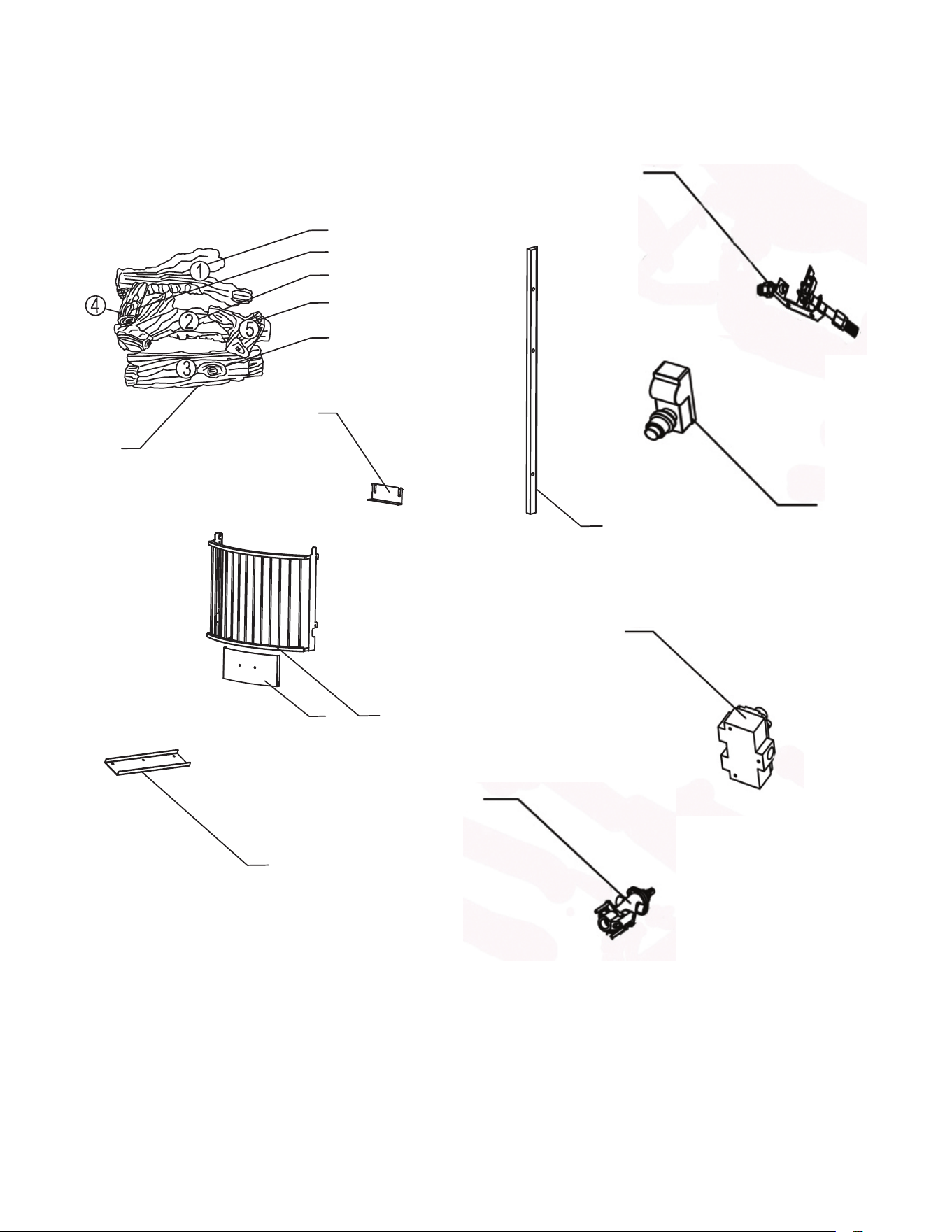

Replacement Parts.......................................................................................................................27
WARNING: Read the installation & operation instructions before using this
appliance.
IMPORTANT: Read instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible re
hazard and will void the warranty.
PRODUCT SPECIFICATIONS
3
SAFETY INFORMATION
IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble,
operate, or service this heater. Improper use of this heater can cause serious injury or death from
burns, re, explosion, electrical shock, and carbon monoxide poisoning.
Only a qualied installer, service agent, or local gas supplier may install and service this product.
WARNING: Do not store or use gasoline or other ammable vapors or liquids in the vicinity
of this or any other appliance.
WARNING: This appliance is for use with only the type of gas indicated on the rating plate.
This appliance is not convertible for use with other gases.
CARBON MONOXIDE POISONING: Early signs of carbon monoxide poisoning resemble the
u with headaches, dizziness, or nausea. If you have these signs, the heater may not be working
properly. Get fresh air immediately! Have heater serviced. Some people are more affected by
carbon monoxide than others. These include pregnant women, people with heart or lung disease,
people who are anemic, those under the inuence of alcohol, and those living in high altitudes.
NATURAL AND PROPANE/LP GAS: Natural and Propane/LP gases are odorless. An odor-
making agent is added to the gas. The odor helps you detect a gas leak. However, the odor added
to the gas can fade. Gas may be present even though no odor exists. Make certain you read and
understand all warnings. Keep this manual for reference. It is your guide to operating this heater
safely.
WARNING: Any change to this replace or its controls can be dangerous.
WARNING: Do not allow fans to blow directly into replace. Avoid any drafts that alter
burner ame patterns.
WARNING: Do not use a blower insert, heat exchange insert or other accessory not
approved for use with this heater.
Due to high temperatures, the appliance should be located out of trafc and away from furniture
and draperies. Do not place clothing or other ammable material on or near the appliance. Never
place any objects in the heater. Heater becomes very hot when running heater. Keep children and
adults away from hot surfaces to avoid burns or clothing ignition. Fireplace will remain hot for a
time after shutdown. Allow surfaces to cool before touching. Carefully supervise young children
when they are in the room with the heater.
4
1. Do not place Propane/LP supply tank(s) inside any structure. Propane/LP supply
tank(s) must be placed outdoors.
2. This heater needs fresh air ventilation to run properly. This heater has an Oxygen
Depletion Sensing (ODS) safety shut-off system. The ODS shuts down the heater if
not enough fresh air is available. See Air for Combustion and Ventilation, pages 8
through 10. If heater keeps shutting off, see Troubleshooting, pages 24 through 26.
3. Keep all air openings in front and bottom of heater clear and free of debris. This will
ensure enough air for proper combustion.
4. If heater shuts off, do not relight until you provide fresh, outside air. If heater keeps
shutting off, have it serviced.
5. Do not run heater:
• Where ammable liquids or vapors are used or stored.
• Under dusty conditions.
6. Before using furniture polish, wax, carpet cleaner, or similar products, turn heater off. If
heated, the vapors from these products may create a white powder residue within
burner box or on adjacent walls or furniture.
7. Do not use heater if any part has been under water. Immediately call a qualied service
technician to inspect the heater and to replace any part of the control system and
any gas control which has been under water.
8. Turn off and unplug heater and let cool before servicing. Only a qualied service
person should service and repair heater.
9. Operating heater above elevations of 4,500 ft. could cause pilot outage.
10. To prevent performance problems, do not use propane/LP fuel tank of less than 100 lb.
capacity.
11. This heater should not be installed in a bedroom or bathroom.
12. Do not use this heater as a wood-burning heater. Use only the logs provided with the
heater.
13. To prevent sooting, follow the instructions in Care and Maintenance (page 22).
5
14. Do not add extra logs or ornaments such as pine cones, vermiculite, or rock wool.
Using these added items can cause sooting. Do not add lava rock around base. Rock
and debris could fall into the control area of heater. After servicing, always replace
screen before operating heater.
15. This heater is designed to be smokeless. If logs ever appear to smoke, turn off heater
and call a qualied service person. Note: During initial operation, slight smoking could
occur due to log curing and the heater burning manufacturing residues.
QUALIFIED INSTALLING AGENCY
Only a qualied agency should perform installation and replacement of gas piping, gas
utilization equipment or accessories, and repair and servicing of equipment. The term
“qualied agency” means any individual, rm, corporation, or company that either in
person or through a representative is engaged in and is responsible for:
a) Installing, testing, or replacing gas piping or
b) Connecting, installing, testing, repairing, or servicing equipment; that is experienced
in such work; that is familiar with all precautions required; and that has complied with
all the requirement of the authority having jurisdiction.
6
SAFETY PILOT
This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system.
The ODS/pilot shuts off the heater if there is not enough fresh air.
PIEZO IGNITION SYSTEM
This heater is equipped with an electronic piezo control system. This system requires
AAA batteries (provided).
THERMOSTAT HEAT CONTROL
The control automatically cycles the burner on and off to maintain a desired room
temperature. See page 19.

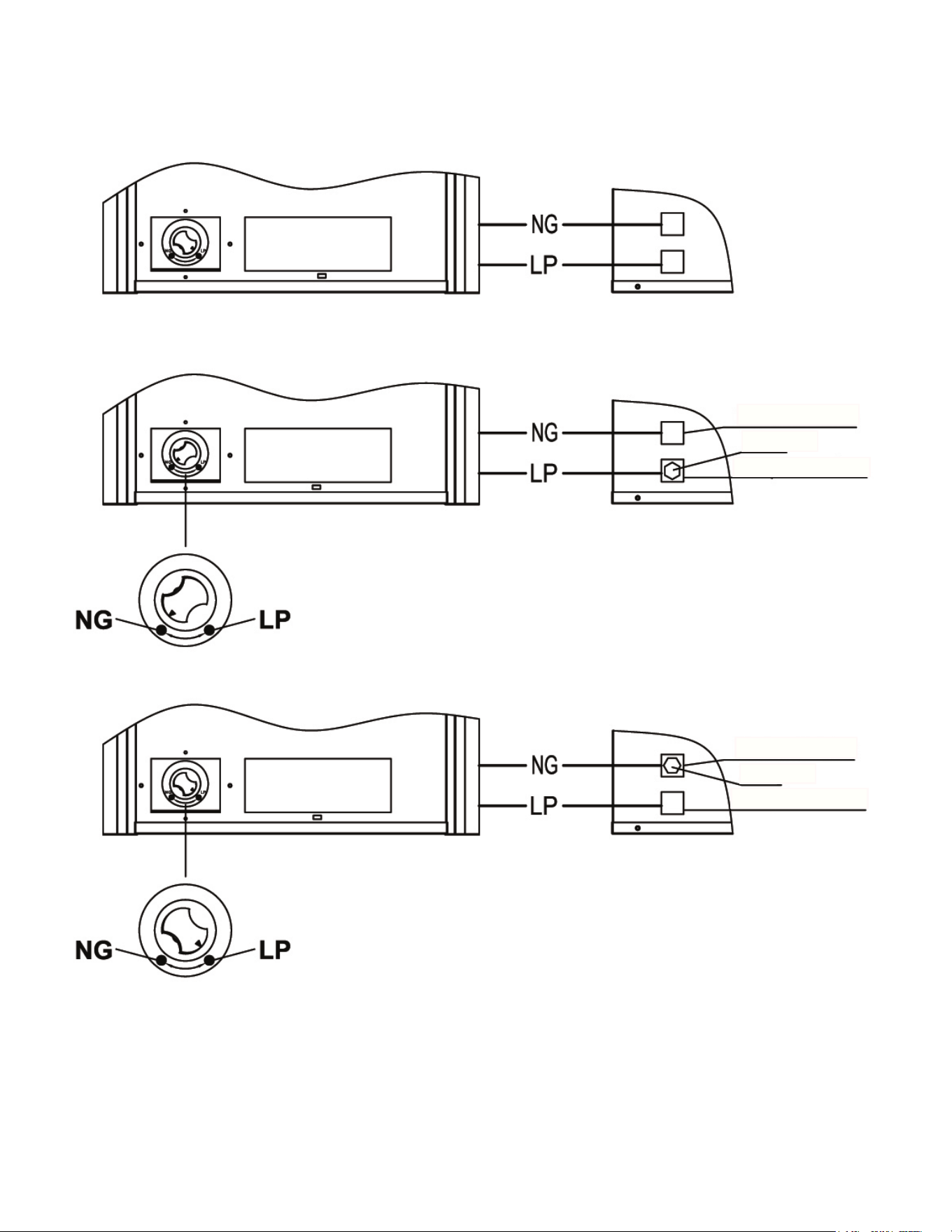

2 GAS OPTIONS CAPABLE
Your heater is equipped to operate on either propane or natural gas. The heater is
shipped from the factory ready for connecting to propane. The heater can easily be
changed to natural gas by having your qualied installer follow the instructions on page
14 and the markings on the heater.
State of Massachusetts: The installation must be made by a licensed plumber or gas
tter in the Commonwealth of Massachusetts. Sellers of unvented propane or natural gas-
red supplemental room heaters shall provide to each purchaser a copy of 527 CMR 30
upon sale of the unit.
In the State of Massachusetts, unvented propane or natural gas-red space heaters shall
be prohibited in bedrooms and bathrooms.
In the State of Massachusetts the gas cock must be a T-handle type. The State of
Massachusetts requires that a exible appliance connector cannot exceed three feet
in length.
LOCAL CODES
Install and use heater with care. Follow all codes. In the absence of local codes, use the latest
edition of The National Fuel Gas Code, ANSI Z223.1, also known as NFPA 54*.
*Available from:
American National Standard Institute, Inc National Fire Protection Association, Inc.
1430 Broadway 1 Batterymarch Park
New York, NY 10018 Quincy, MA 02269-9101
This heater is designed for vent-free operation. State and local codes in some areas prohibit the
use of vent-free heaters.
PRODUCT FEATURES
7

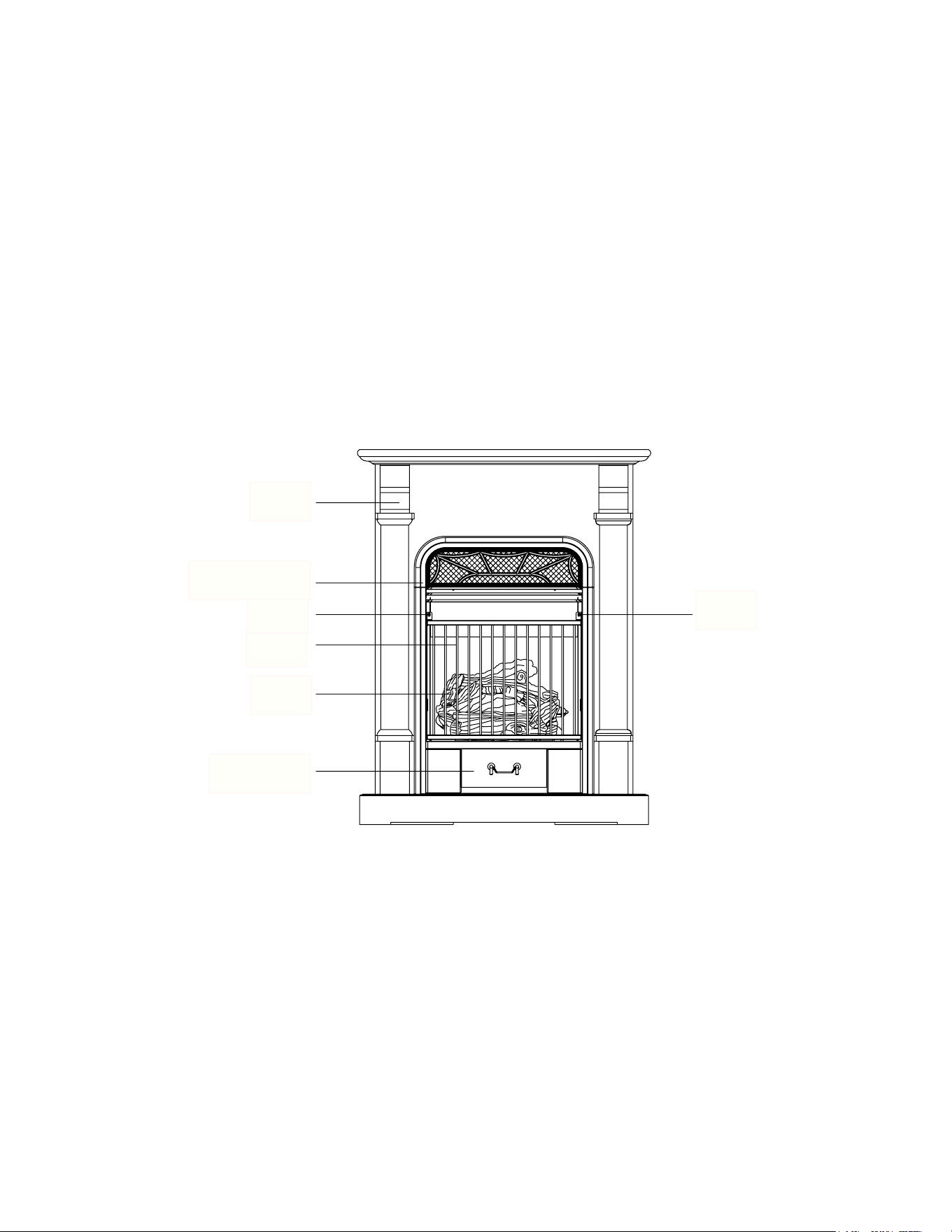

PRODUCT IDENTIFICATION
WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM HEATERS
Water vapor is a by-product of gas combustion. An unvented room heater produces
approximately one (1) ounce (30 mL) of water for every 1,000 BTUs (.3 kw) of gas input
per hour. An unvented room heater is recommended as a supplemental heater (a room)
rather than a primary heat source (an entire house). In most supplemental heat
applications, the water vapor does not create a problem. In most applications, the water
vapor enhances the low humidity atmosphere experienced during cold weather.
The following steps will help ensure that water vapor does not become a problem:
1. Be sure the heater is the proper size for the application, including adequate
combustion air and circulation air.
2. If there is high humidity, a dehumidier may be used to help lower the water vapor
content of the air.
3. Do not use an unvented room heater as the primary heat source.
1. Remove top inner pack.
2. Tilt carton so that heater is upright.
3. Remove protective side packaging.
4. Slide heater out of carton.
5. Remove protective plastic wrap.
6. Remove screws on the top of the screen
7. Hold the screen, lift, and pull forward.
8. Remove log set by cutting plastic ties.
9. Carefully unwrap log.
10. Check for any shipping damage. If heater or log is damaged, promptly inform your
dealer where you bought the heater.
UNPACKING
Fig. 1
Heater Controls
(Behind Door)
Logs
Screen
Screw
Screw
Decorative Frame
Mantel
8

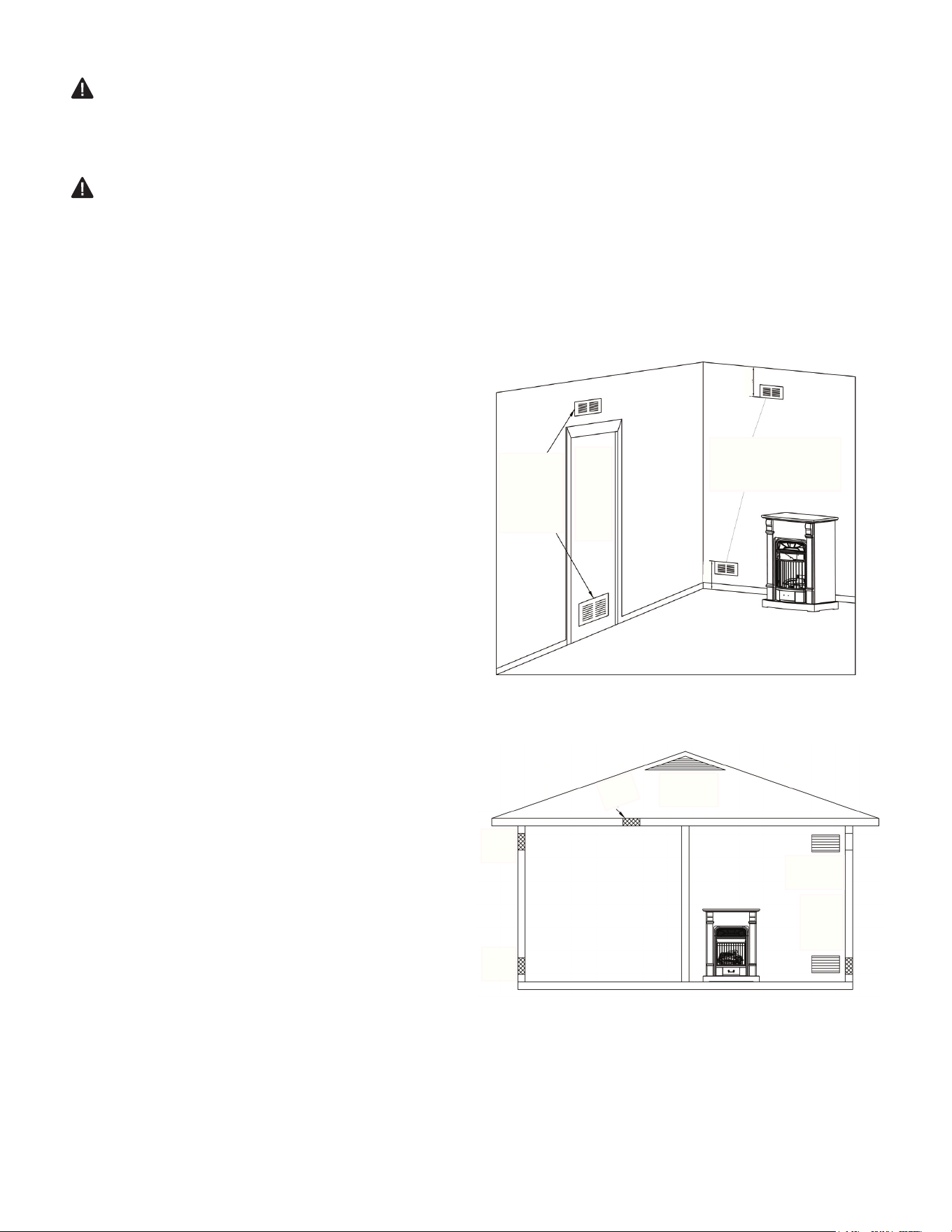

AIR FOR COMBUSTION AND VENTILATION
WARNING: This heater should not be installed in a conned space or unusually tight
construction unless provisions are provided for adequate combustion and ventilation
air. Read the following instructions to ensure proper fresh air for this and other fuel burning
appliances in your home.
PRODUCING ADEQUATE VENTILATION
This heater shall not be installed in a room or space unless the required volume of indoor
combustion air is provided by the method described in the NATIONAL FUEL GAS CODE,
ANSI Z223.1/NFPA 54, the INTERNATIONAL FUEL GAS CODE, or applicable local codes.
The following are excerpts from National Fuel Gas Code, NFPA 54/ANSI Z223.1,Section
5.3, Air for Combustion and Ventilation. All spaces in homes fall into one of the three
following ventilation classications:
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on pages 8 through 9 will help you classify your space and provide
adequate ventilation.
Conned and Unconned Space
The National Fuel Gas Code, ANS Z223.1 denes a conned space as a space whose
volume is less than 50 cu. ft. per 1,000 BTU/hr (4.8 m^3 per kw) of the aggregate input
rating of all appliances installed in that space and an unconning space as a space
whose volume is not less than 50 cu. ft. per 1,000 BTU/hr (4.8 m^3 per kw) of the
aggregate input rating of all appliances installed in that space. Rooms connecting
directly with the space in which the appliances are installed*, through openings not
furnished with doors, are considered a part of the unconned space.
This heater shall not be installed in a conned space or unusually tight construction
unless provisions are provided for adequate combustion and ventilation air.
* Adjoining rooms are connecting only if there are doorless passageways or
ventilation grills between them
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for
combustion and ventilation. However, in buildings of unusually tight construction, you
must provide additional fresh air.
Unusually tight construction is dened as construction where:
a) walls and ceilings exposed to the outside atmosphere have a continuous water vapor
retarder with a rating of one perm (6x10
-11
kg per pa-sec-m
2
) or less with openings
gasketed or sealed and
b) weather stripping has been added on windows that can be opened and on doors and
c) caulking or sealants are applied to areas such as joints around window and door frames,
between sole plates and oors, between wall-ceiling joints, between wall panels, at
penetrations for plumbing, electrical, and gas lines, and at other openings.
If your home meets all of the three criteria above, you must provide additional fresh air.
See “Ventilation Air From Outdoors” (page 10). If your home does not meet all of the
three criteria above, proceed to “Determining Fresh-Air Flow For Heater Location”.
9
DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION
Determining if You Have a Conned or Unconned Space
Use this worksheet to determine if you have a conned or unconned space.
Space: Includes the room in which you will install heater plus any adjoining rooms with
door-less passageways or ventilation grills between the rooms.
1. Determine the volume of the space Length × Width × Height = cu. ft. (volume of space)
Example: Space size 20 ft. (length) × 16 ft.(width) × 8 ft. (ceiling height) = 2560 cu. ft.
(volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the
volume of these rooms to the total volume of the space.
2. Divide the space volume by 50 cu. ft. to determine the maximum BTU/hr the space
can support.
_______ (volume of space) ÷ 50 cu. ft.= (Maximum BTU/hr the space can support)
Example: 2560 cu. ft. (volume of space) ÷ 50 cu. ft. = 51.2 or 51,200 (maximum
BTU/hr the space can support)
3. Add the BTU/hr of all fuel burning appliances in the space.
Vent-free heater ________ BTU/hr
Gas water heater* _______BTU/hr
Gas furnace ___________ BTU/hr
Vented gas heater _______BTU/hr Example:
Gas heater logs ________ BTU/hr Gas water heater 30,000 BTU/hr
Other gas appliances*+ ___BTU/hr Vent-free heater + 26,000 BTU/hr
Total =________________ BTU/hr Total = 56,000 BTU/hr
*Do not include direct-vent gas appliances. Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
4. Compare the maximum BTU/hr the space can support with the actual amount of BTU/hr
used.
_______ BTU/hr (maximum the space can support)
_______ BTU/hr (actual amount of BTU/hr used).
Example : 51,200 BTU/hr (maximum the space can support)
56,000 BTU/hr (actual amount of BTU/hr used)
The space in the above example is a conned space because the actual BTU/hr used is
more than the maximum BTU/hr the space can support.
You must provide additional fresh air. Your options are as follows:
a) Rework worksheet, adding the space of an adjoining room. If the extra space
provides an unconned space, remove door to adjoining room or add ventilation
grills between rooms. See “Ventilation Air From Inside Building,” page 10.
b) Vent room directly to the outdoors. See “Ventilation Air From Outdoors”, page 10.
c) Install a lower BTU/hr heater if lower BTU/hr size makes room unconned. If the
actual BTU/hr used is less than the maximum BTU/hr the space can support, the
space is an unconned space. You will need no additional fresh air ventilation.
10
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation
grills or duct. You must provide two
permanent openings: one within 12 in. of
the ceiling and one within 12 in. of the oor.
Connect these items directly to the outdoors
or spaces open to the outdoors. These
spaces include attics and crawl spaces.
Follow the National Fuel Gas Code NFPA
54/ANS Z223.1. Air for Combustion and
Ventilation for required size
of ventilation grills or ducts.
Ventilation Air From Inside Building
This fresh air would come from adjoining
unconned space. When ventilating to an
adjoining unconned space, you must
provide two permanent openings: one
within 12 in. of the wall connecting
the two spaces (see options 1 and 2,
Fig. 2). You can also remove door into
adjoining room (see option 3, Fig. 2).
Follow the National Fuel Gas Code
NFPA 54/ANS Z223.1. Air for Combustion
and Ventilation for required size of
ventilation grills or ducts.
IMPORTANT: Do not provide openings for
inlet or outlet air into attic if attic has a
thermostat-controlled power vent. Heated
air entering the attic will activate the
power vent. Rework worksheet, adding the
space of the adjoining unconned space.
The combined spaces must have enough
fresh air to supply all appliances in both
spaces.
Fig. 2 - Ventilation Air from
Inside Building
Fig. 3 - Ventilation Air from
Outdoors
WARNING: If the area in which the heater may be operated is smaller than that dened as
an unconned space or if the building is of unusually tight construction, provide adequate
combustion and ventilation air by one of the methods described in the National Fuel Gas
Code, ANS Z223.1, Section 5.3 or applicable local codes.
WARNING: If the area in which the heater may be operated does not meet the required
volume for indoor combustion air, combustion and ventilation air shall be provided by one
of the methods described in the NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54, the
INTERNATIONAL FUEL GAS CODE, or applicable local codes.
Ventilation
Grills
Into Adjoining
Room,
Option 1
Or
Remove
Door
Into
Adjoining
Room,
Option 3
Ventilation Grills
Into adjoining Room,
Option 2
Outlet
Air
Ventilated
Attic
To Attic
To
Crawl
Space
Outlet
Air
Inlet
Air
12 in.
12 in.
11
Fig. 4 - Minimum Clearance
to Wall and Ceiling
INSTALLATION
NOTICE: This heater is intended for use as supplemental heat. Use this heater along
with your primary heating system. Do not install this heater as your primary heat source.
If you have a central heating system, you may run system’s circulating blower while
using heater. This will help circulate the heat throughout the house.
WARNING: A qualied technician must install heater. Follow all local codes.
WARNING: Never install the heater:
• in a bedroom or bathroom
• in a recreational vehicle
• where curtains, furniture, clothing, or other ammable objects are less than 42
in. from the front, top or sides of the heater.
• in high trafc areas
• in windy or drafty areas
CAUTION: This heater creates warm air currents. These currents move heat to wall surfaces
next to heater. Installing heater next to vinyl or cloth wall coverings or operating heater where
impurities (such as tobacco smoke, aromatic candles, cleaning uids, oil or kerosene lamps,
etc.) in the air exist, may cause walls discolored.
WARNING: Maintain the minimum clearances. If you can, provide greater clearances from
oor, ceiling and adjoining side and back walls.
IMPORTANT: Vent-free heaters add moisture to the air. Although this is benecial, installing
heater in rooms without enough ventilation air may cause mildew to form from too much
moisture. See Air for Combustion and Ventilation, pages 8 through 10.
CHECK GAS TYPE
Use only the type of gas indicated on the plate. If your gas supply cannot meet that
requirement, do not install heater.
CLEARANCES TO COMBUSTIBLES
Carefully follow the instructions below. This heater is a wall mount unit designed to sit directly
on the oor or on a mantel base.
IMPORTANT: You must maintain minimum wall and ceiling clearances during installation. The
minimum clearances are shown in Fig. 4. Measure from outermost point of heater.
Minimum Wall and Ceiling Clearances (see Fig. 4)
A. Clearances from outermost point of heater to any
combustible side wall should not be less than 12
in.
B. Clearances from the heater to the ceiling should
not be less than 48 in.
48 in
Minimum
12 in
Minimum
12 in
Minimum
Ceiling
Side wall
Side wall
12
CONNECTING TO GAS SUPPLY
WARNING: A qualied technician must connect heater to gas supply. Follow all local
codes.
WARNING: This appliance requires a 3/8 in. NPT inlet connection to pressure regulator
(see Fig. 5).
CAUTION: Never connect heater directly to the gas supply. This heater requires an external
regulator (not supplied). The external regulator between the gas supply and heater must be
installed. Gas supplier provides external regulator for natural gas.
INSTALLATION ITEMS NEEDED
Before installing heater, make sure you have the items listed below.
• piping (check local codes) sealant
• (resistant to propane/LP gas)
• equipment shutoff valve*
• test gauge connection**
• sediment trap
• tee joint
• pipe wrench
• exible gas hose (check local code)
A CSA design-certied equipment shutoff valve with 1/8 in. NPT tap is an acceptable alternative
to test gauge connection. Purchase the optional CSA design certied equipment shutoff valve
from your dealer.
WARNING: Never connect heater to private (non-utility) gas wells. This gas is commonly
known as wellhead gas.
The installer must supply an external regulator for liquid propane. The external regulator is
provided by the gas supplier for natural gas. The external regulator will reduce incoming gas
pressure. You must reduce incoming gas pressure to between 11 and 14 in. of water column
for propane and between 5 and 10.5 in. of water column for natural gas. If you do not reduce
incoming gas pressure, heater regulator damage could occur. Install external regulator with the
vent pointing down as shown in Fig. 6. Pointing the vent down protects it from freezing rain or
sleet.

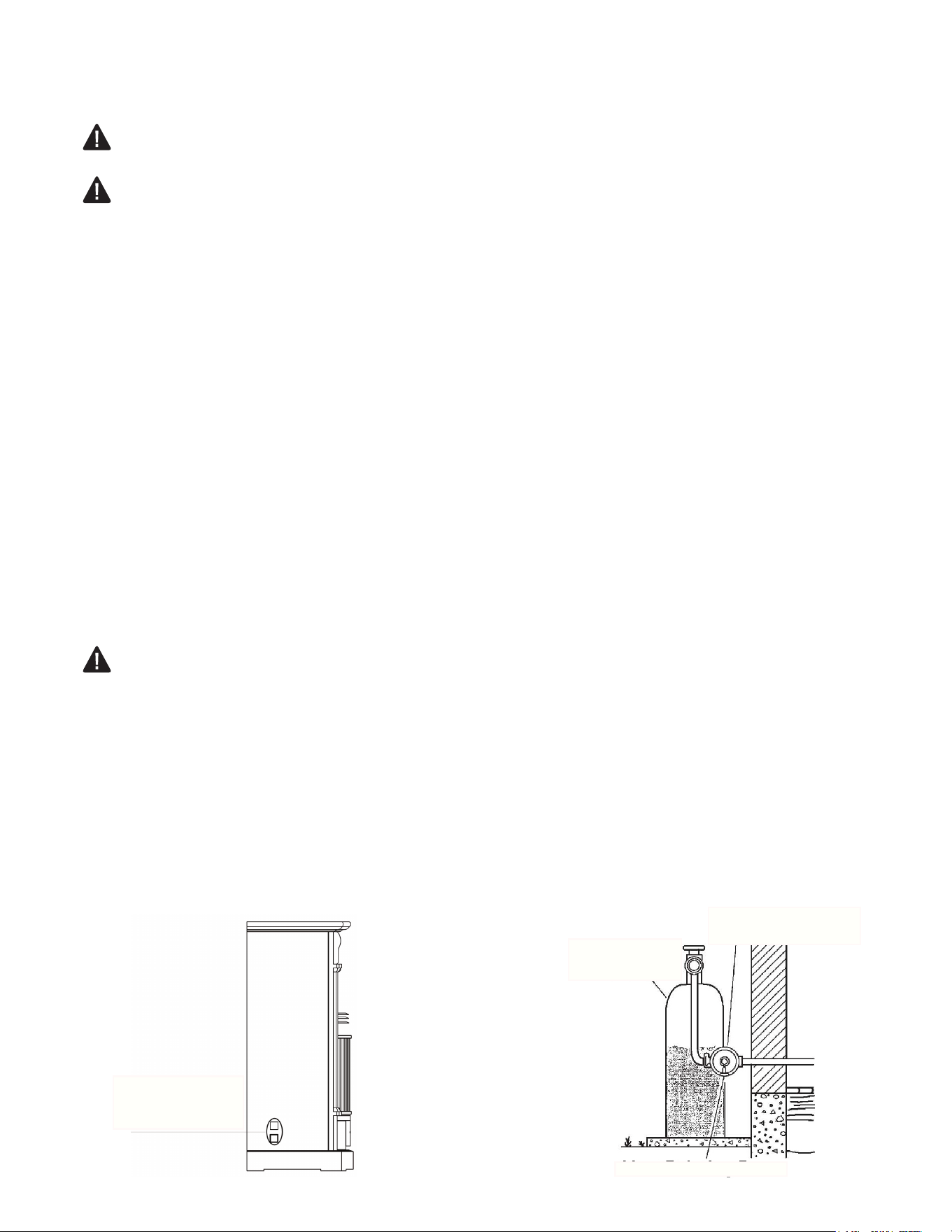

Fig. 5 -
Gas Regulator Location and Gas
Line Access Into Stove Cabinet
Fig. 6 -
External Regulator With Vent
Pointing Down
3/8 NPT Gas
Regulator
inlet Connector
Propane/LP
Supply Tank
External
Regulator
Vent Pointing Down
13

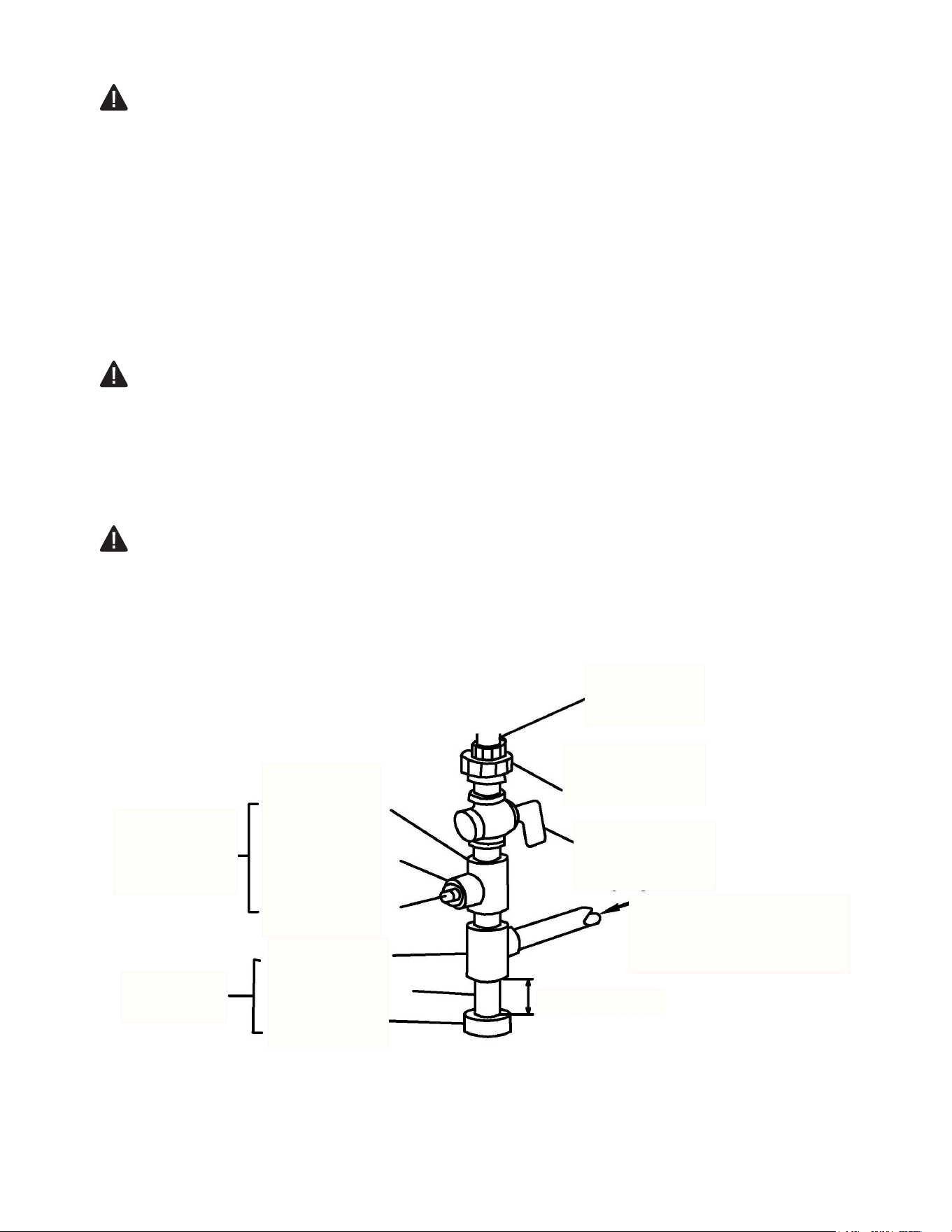

CAUTION: Use only new black iron or steel pipe. Internally tinned copper tubing
may be used in certain areas. Check your local codes. Use pipe of ½ in. diameter
or greater to allow proper volume gas to heater. If pipe is too small, loss of pressure
will occur. Installation must include an equipment shutoff valve, union, and plugged
1/8-in. NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must
be upstream from heater (see Fig. 7).
IMPORTANT: Install equipment shutoff valve in an accessible location. The equipment
shutoff valve is for turning on or shutting off the gas to the appliance. Apply pipe joint
sealant lightly to male threads. This will prevent excess sealant from going into pipe.
Excess sealant in pipe could result in clogged heater valves.
CAUTION: Use pipe joint sealant that is resistant to gas (PROPANE or NG). We
recommend that you install a sediment trap in a supply line as shown in Fig. 7.
Locate sediment trap where it is within reach for cleaning and not likely to freeze.
Install in the piping system between fuel supply and heater. A sediment trap traps
moisture and contaminants. This keeps them from going into heater controls. If
sediment trap is not installed or is installed incorrectly, heater may not run properly.
CAUTION: Avoid damage to regulator. Hold gas regulator with wrench when
connecting into gas piping and/or ttings. NG Models: 5 in. to 10.5 in. W.C. Gas
supplier provides external regulator for natural gas.
Fig. 7 - Gas Connection
3 in. Minimum**
Test
Gauge
Connection *
Sediment
Trap
Tee Joint
Reducer
Bushing to
1/8 in. NPT
1/8 in. NPT
Plug Tap
Tee Joint
Pipe Nipple
Gap
3/8 in. NPT
Pipe Nipple
Ground Joint
Union
Equipment
Shutoff
Valve
Inlet Pipe From Gas
Meter (11 in. W. C. to
14 in. W. C. Pressure)
*Purchase the optional CSA design-certied equipment shutoff valve from your dealer.
** Minimum inlet pressure for purpose of input adjustment.
14
CAUTION: Two gas line installations at the same time is forbidden. Do not open the
cover while the machine is running.
Heater is pre-set at factory for propane gas; no changes are required for connecting to
propane. Only a qualied installer or service technician can perform gas selection and
connecting to gas supply.
CAUTION: To avoid gas leakage at the inlet of regulator, a qualied installer or service
technician must use steel or metal hex plug with sealant. Overtightening of inlet gas line
can cause a crack in the internal regulator.
For changing from propane to natural gas supply
1. Remove bottom screw from cover plate, (see Fig. 8), and rotate to expose gas
selection valve.
2. For NATURAL GAS, press in knob using a at screwdriver with a blade the width of a
quarter and turn knob clockwise until the knob locks into the NG position (see Fig. 9).
3. Rotate and close cover over gas selection valve and reinstall screw.
4. Remove steel or metal hex plug (with wrench provided) from natural gas inlet of regulator
and install into LP inlet of regulator, use thread sealant to assure there are no leaks.
For changing from natural gas supply to propane supply
1. Remove bottom screw from cover plate, (see Fig. 8), and rotate to expose gas selection
valve.
2. For PROPANE GAS, press in knob using a at screwdriver with a blade the width of a
quarter and turn knob counterclockwise until the knob locks into the LP position
(see Fig. 10). Selection valve must be locked into either the LP position or the NG
position.
3. Rotate and close cover over gas selection valve and reinstall screw.
4. Remove steel or metal hex plug from LP gas inlet of regulator and install into NG inlet of
regulator, use thread sealant to assure there are no leaks.
15
Fig. 10
Fig. 9
Fig. 8
NATURAL GAS
PROPANE GAS
PLUG
NATURAL GAS
PROPANE GAS
PLUG
16
CHECKING GAS CONNECTIONS
WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct
all leaks immediately.
WARNING: Never use an open ame to check for a leak. Apply a mixture of liquid soap and
water to all joints. If bubbles form, there may be a leak. Correct all leaks immediately.
Pressure Testing Gas Supply Piping System
Test Pressures In Excess Of 1/2 PSIG ( 3.5kPa )
1. Disconnect heater with its appliance main gas valve (control valve) and equipment shutoff
valve from gas supply piping system. Pressures in excess of 1/2 PSIG will damage heater
regulator.
2. Cap off open end of gas pipe where equipment shutoff valve was connected.
3. Pressurize supply piping system by either using compressed air or opening gas supply
tank valve.
4. Check all joints of gas supply piping system. Apply mixture of liquid soap and water to gas
joints. If bubbles form, there may be a leak.
5. Correct all leaks immediately.
6. Reconnect heater and equipment shutoff valve to gas supply. Check reconnected
ttings for leaks.
Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Fig. 11).
2. Pressure supply piping system by either using compressed air or opening gas supply tank
valve.
3. Check all joints from gas meter to equipment shutoff valve (see Fig.12). Apply mixture
of liquid soap and water to gas joints. If bubbles form, there may be a leak.
4. Correct all leaks immediately.
Pressure Testing Heater Gas Connections
1. Open equipment shutoff valve (see Fig. 11).
2. Open gas supply tank valve.
3. Make sure control knob of heater is in the OFF position.
4. Check all joints from equipment shutoff valve to control valve (Fig. 12). Apply mixture of
liquid soap and water to gas joints. If bubbles form, there may be a leak.
5. Light heater (see Operation, page 18). Check all other internal joints for leaks.
6. Turn off heater (see "To Turn Off Gas to Appliance," page 20).

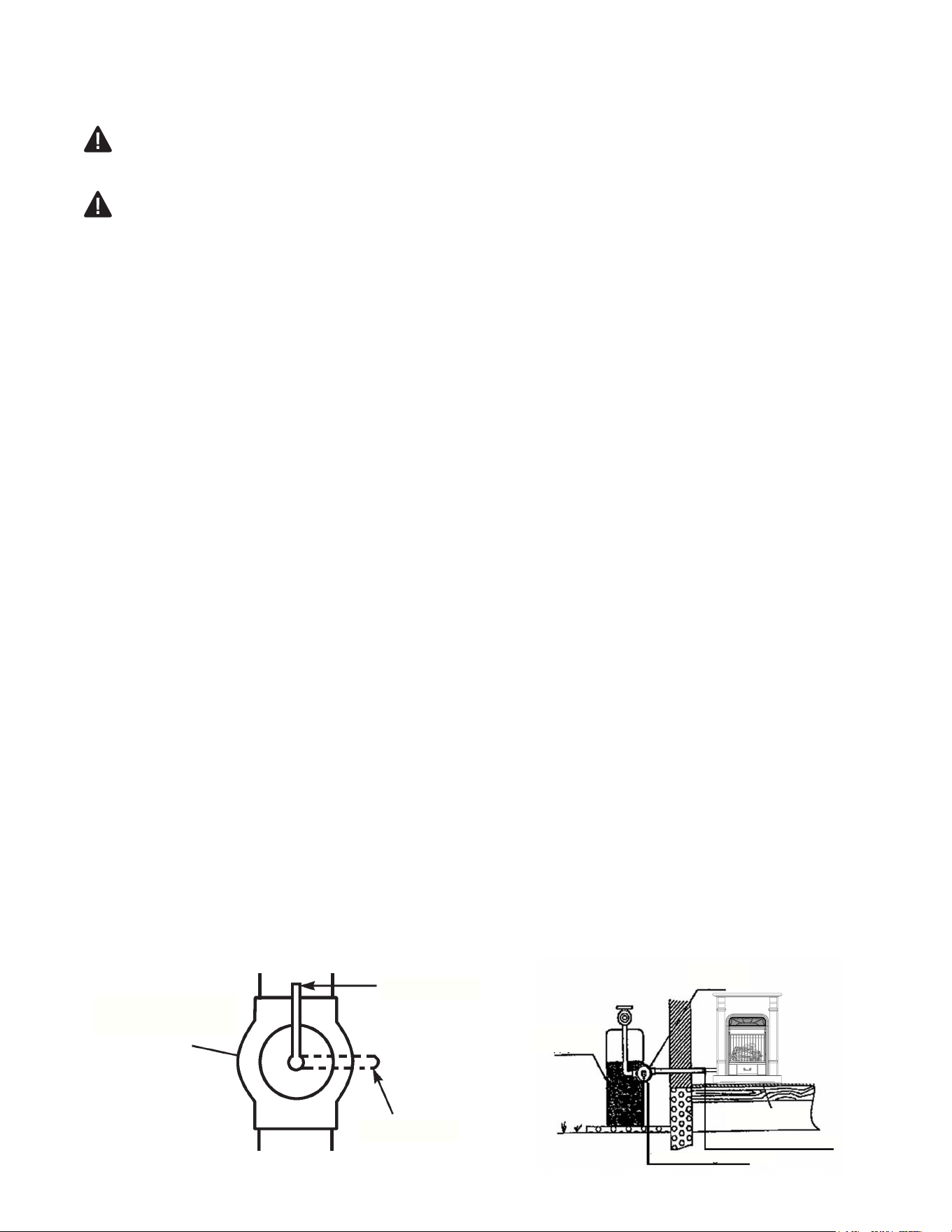

Fig. 11 - Equipment Shut -off Valve Fig. 12 - Checking Gas Joints
Equipment
Shutoff Valve
Open
Closed
External
Regulator
Propane/LP
Supply Tank
Control Valve
Location
Equipment Shut Off Valve
Vent Pointing Down
17
INSTALLING LOGS
Fig. 14 - Installing Log Set
IMPORTANT: Make sure log does not cover any
burner ports (see Fig. 14). It is very important
to install the logs exactly as instructed. Do not
modify logs. Use only logs supplied with heater.
STEP 1: Install log 1 onto the two slots in
the rear rebox panel.
All logs
STEP 2: Install log 2 onto the two slots in middle plate.
STEP 4: Insert the recessed hole on the
bottom of log 4 onto the pin on log
1, with the other end of log 4
placed on log 2, as shown.
STEP 5: Insert the recessed hole on the bottom of
log 5 onto the pin on log 2, with the other
end of log 5 placed on log 3, as shown.
1 2
3 5 4
WARNING: Failure to position the parts
in accordance with these diagrams or failure
to use only parts specically approved with
this heater may result in property damage
or personal injury.
CAUTION: After installation, and
periodically thereafter, check to ensure that no
ame comes in contact with any log. With the
heater set to high, check to see if ames
contact any log. If so, reposition logs
according to the log installation instructions
in this manual. Flames contacting logs will
create soot.
STEP 3: Install log 3 onto the two slots in front plate.
Fig. 13 - Installing Mid Log Bracket
Locate Mid Log Bracket and screws in hardware
package. Attach bracket in burner pan with two
screws. (See Figure 13)
18
OPERATION
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a re or explosion may result
causing property damage, personal injury, or loss of life.
NOTICE: During initial operation of new heater, burning logs will give off a paper
burning smell. Orange ame will also be present. Open a window to vent smell. This
will last only a few hours.
CAUTION: Do not try to adjust heating levels by using the equipment shutoff valve.
A. This appliance has a pilot which must be lit by the electronic ignitor. When
lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to
the oor because some gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the re department.
C. Use only your hand to push control. Never use tools. If the appliance does not operate,
don’t try to repair it. Call a qualied service technician or gas supplier. Forced or attempted
repair may result in a re or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a
qualied service technician to inspect the appliance and to replace any part of the
control system and any gas control, which has been under water.
Note: Please wait one minute after shutting off replace to allow the control valve to reset
before starting again.
19
LIGHTING INSTRUCTIONS
Unscrew ignitor cap and install a AAA battery (included) with the + pointing out. Replace cap.
1. STOP! Read the safety information on page 18.
2. Warning: You must operate this heater with the screen in place. Make sure screen
is installed before running heater.
3. Turn control knob clockwise to the OFF position, see Fig. 15, page 20.
4. Wait ve (5) minutes to clear out any gas. Then smell for gas around heater and
near oor. If you smell gas, STOP! Follow "B" in the safety information on Warnings
plate. If you don't smell gas, go to the next step.
5. Turn control knob counterclockwise to the PILOT position. Keep control knob
pressed in for ve (5) seconds.
Note: You may be running this heater for the rst time after hooking up to gas supply.
If so, the control knob may need to be pressed in for 30 seconds. This will allow air
to bleed from the gas system. If control knob does not pop up when released, contact
a qualied service person or gas supplier for repairs.
6. With control knob pressed in, push down and release ignitor button. This will light
pilot.The pilot is attached to the rear of the front burner. If needed, keep pressing
ignitor button until pilot lights.
Note: If pilot does not stay lit, contact a qualied service person or gas supplier
for repairs. Until repairs are made, light pilot with match.
7. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds,
release control knob.
Note: If pilot goes out, repeat steps 3 through 7. This heater has a safety interlock
system. Wait one (1) minute before lighting pilot again.
8. WARNING: Make sure that while the input gas type is NG, pilot burner NG ignites;
while the input type is LP, pilot burner LP ignites. Note: If you nd anything abnormal
in this step, repeat steps 2 through 8.
9. Turn control knob counterclockwise to the desired heating level. The main burner
should light. Set control knob to any heat level between HI and LO (5 –1).
THERMOSTATIC CONTROL OPERATION
The thermostatic control used on this model differs from standard thermostats. Standard
thermostats simply turn the burner on and off. The thermostat used on this heater senses the
room temperature. At times the room may exceed the set temperature. If so, the burner will shut
off. The burner will cycle back on when room temperature drops below the set temperature. The
control knob can be set to any comfort level between HIGH (5) and LOW (1).
Note: The thermostat sensing bulb measures the temperature depending on housing
construction.
20
TO TURN OFF GAS TO APPLIANCE
Shut off heater.
Turn Control Knob clockwise to the OFF position. Do not force.
MANUAL LIGHTING PROCEDURE
1. Remove screws on the top of the screen
2. Remove screen by lifting and pulling forward.
3. Follow steps 1 through 5 under Lighting Instructions.
4. With control knob in PILOT position, strike match, and hold near pilot. Press in
control knob; pilot should light.
5. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds,
release control knob.
6. Make sure the heater screen is in place before operating heater.

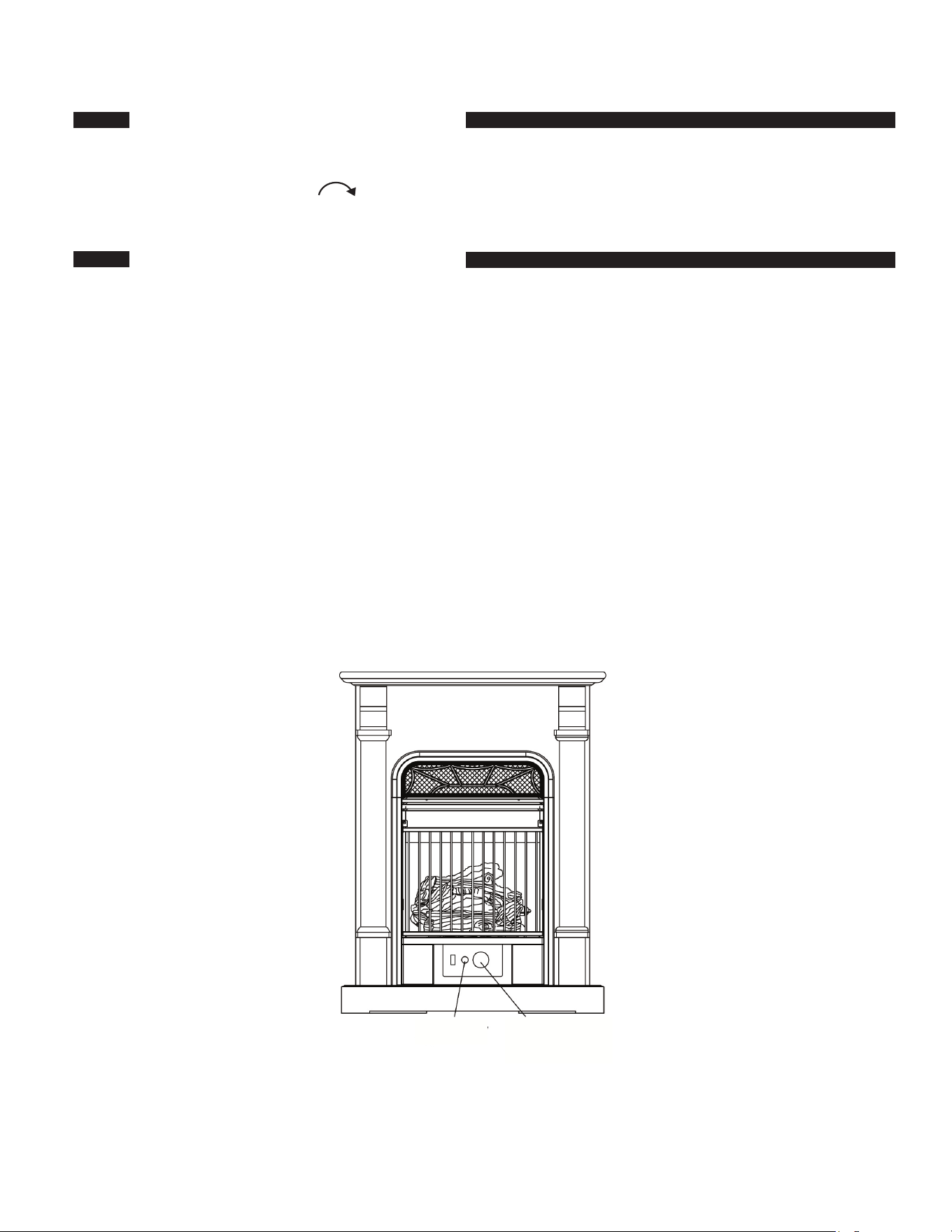

Fig. 15 - Control Knob Position
Ignitor
Control
Knob
21
INSPECTING BURNERS
Check pilot ame pattern and burner ame patterns often.

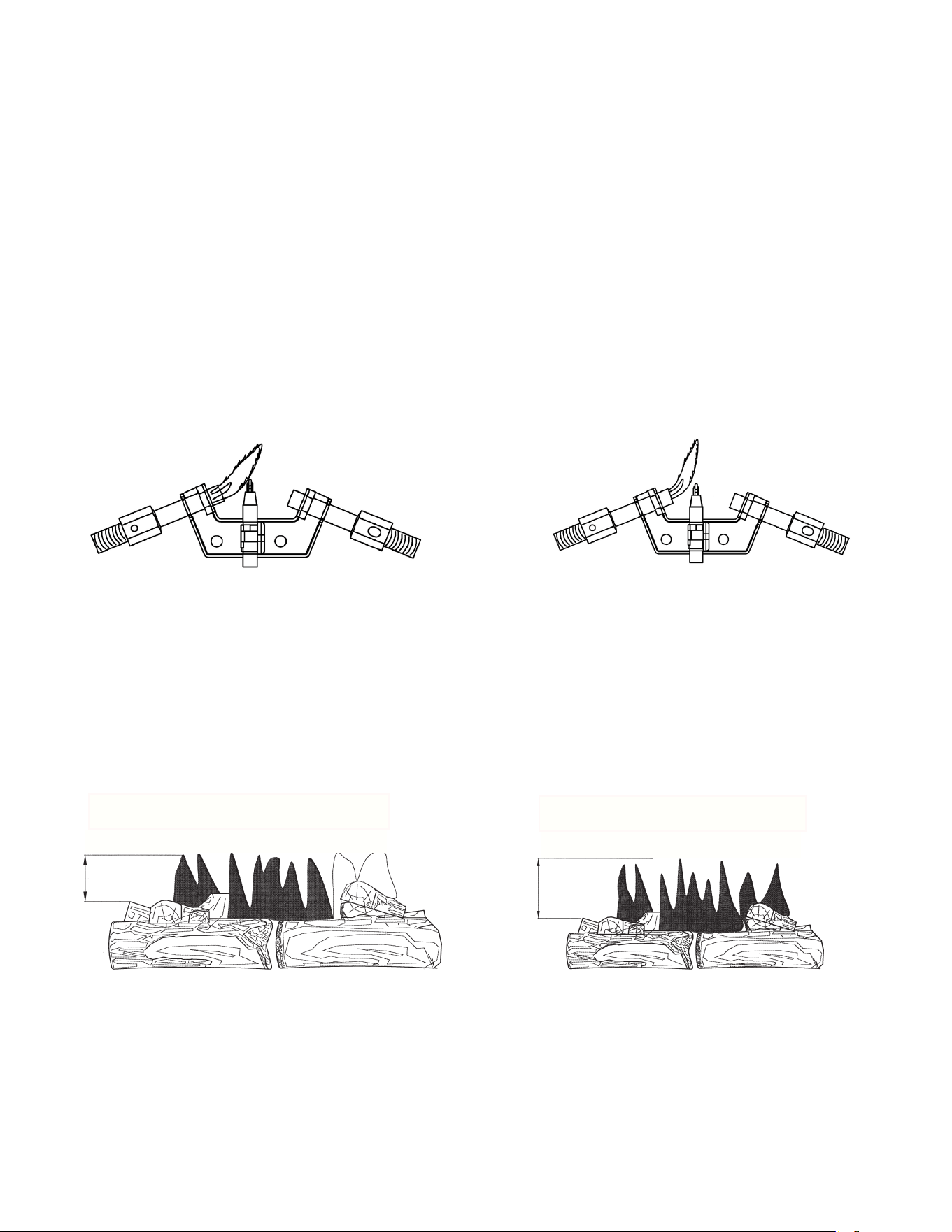

PILOT FLAME PATTERN
1. Turn control knob to pilot position.
2. Inspect pilot ame and refer to Fig. 16 and 17.
• Fig. 16 shows a correct pilot ame pattern.
• Fig. 17 shows an incorrect pilot ame pattern. The incorrect pilot ame is not touching the
thermocouple. This will cause the thermocouple to cool. When the thermocouple cools, the
heater will shut down.
• If the pilot ame is incorrect, as shown in Fig. 17, turn heater off (see “To Turn Off Gas to
Appliance, " page 20). See Troubleshooting, page 24 - 26.
Fig. 18 - Correct Pilot Flame Pattern with
Control Knob Set to High Flame (5)
Fig. 19 - Incorrect Pilot Flame Pattern
with Control Knob Set to High Flame (5)
BURNER FLAME PATTERN
Fig. 18 shows a correct burner ame pattern. Fig. 19 shows an incorrect burner ame pattern.
• If burner ame is incorrect, as shown in Fig. 19, turn heater off (see “To Turn Off Gas to
Appliance”, page 20).
• see Troubleshooting, pages 24 through 26.

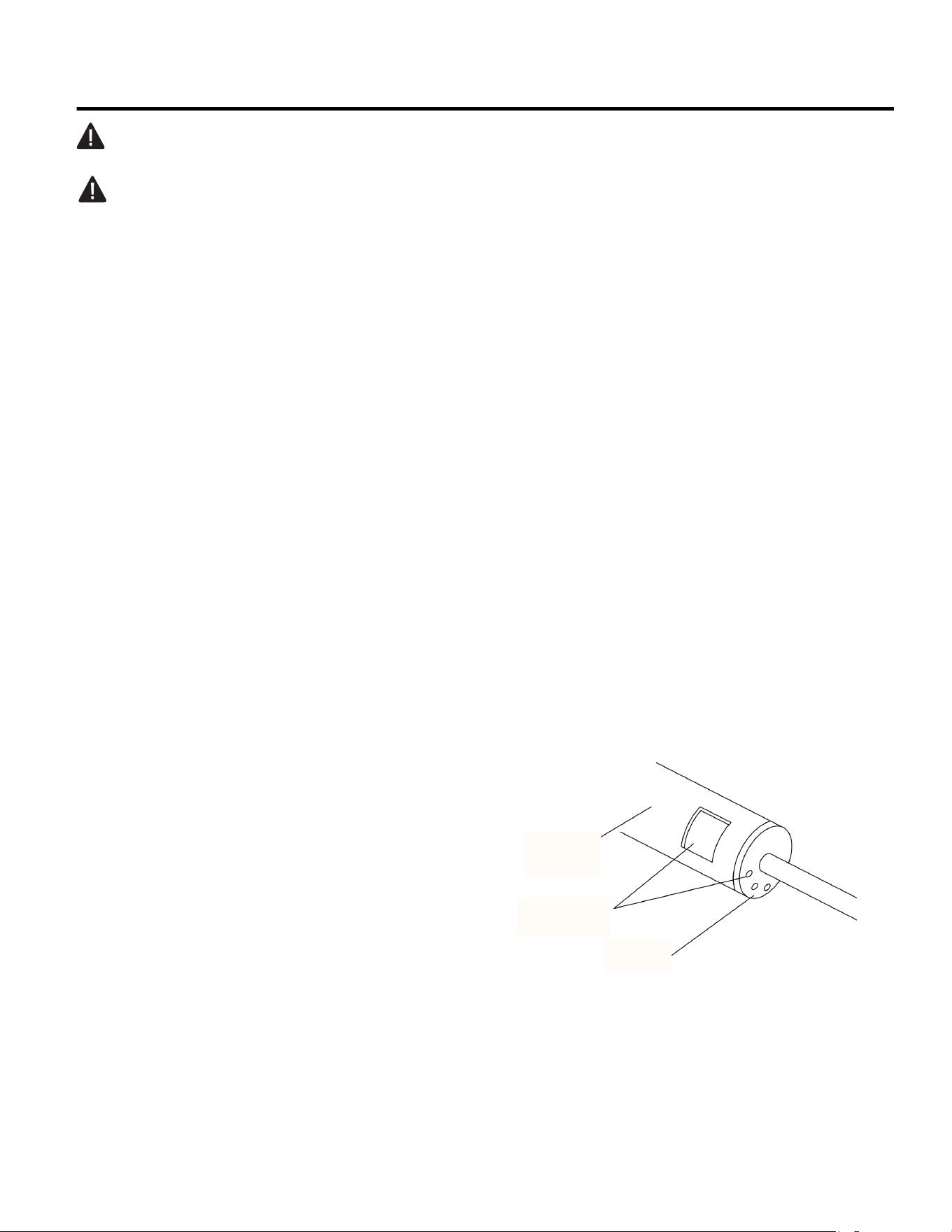

BURNER PRIMARY AIR HOLES
Air is drawn into the burner through the holes in the tting at the entrance to the burner.
These holes may become blocked with dust or lint. Periodically inspect these holes for
any blockage and clean as necessary. Blocked air holes will create soot.
Fig. 16 - Correct Pilot Flame Pattern Fig. 17- Incorrect Pilot Flame Pattern
More than 8 in. above top of logs
Approx. 3-6 in. above top of logs
22
CARE AND MAINTENANCE
CLEANING BURNER INJECTOR HOLDER AND PILOT AIR INLET HOLE
We recommend that you clean the unit every three months or after 2,500 hours of operation.
We also recommend that you keep the burner tube and pilot assembly clean and free of dust
and dirt. To clean these parts we recommend using compressed air no greater than 30 PSI.
You can use a vacuum cleaner in the blow position. If using compressed air in a can, please
follow the directions on the can. If you don't follow directions on the can, you could damage the
pilot assembly.
1. Shut off the unit, including the pilot. Allow the
unit to cool for at least thirty minutes.
2. Inspect burner, pilot, and primary air inlet
holes on injector holder for dust and dirt
(see Fig. 20).
3. Blow air through the ports/slots and holes
in the burner.
4. Check the injector holder located at the end
of the burner tube again. Remove any large
particles of dust, dirt, lint, or pet hair with a
soft cloth or vacuum cleaner nozzle.
5. Blow air into the primary air holes on the injector holder.
6. In case any large clumps of dust have now been pushed into the burner. Repeat steps 3
and 4. Clean the pilot assembly also.
WARNING: Failure to keep primary air openings of burners clean may result in sooting and
property damage.
CAUTION: You must keep control areas, burner, and circulating air passageways of heater
clean. Inspect these areas of heater before each use. Have heater inspected yearly by a
qualied service person. Heater may need more frequent cleaning due to excessive lint
from carpeting, bedding material, pet hair, etc.
The primary air inlet holes allow the proper amount of air to mix with the gas. This provides a
clean burning ame. Keep these holes clear of dust, dirt, and lint. Clean these air inlet holes
prior to each heating season. Blocked air holes will create soot. We recommend that you clean
the unit every 2,500 hours of operation or every three months.
MAIN BURNER
Periodically inspect all burner ame holes with the heater running. All slotted burner ame
holes should be open with yellow ame present. All round burner ame holes should be open
with a small blue ame present. Some burner ame holes may become blocked by debris or
rust, with no ame present. If so, turn off heater and let cool, either remove blockage or replace
burner. Blocked burner ame holes will create soot.
Fig. 20 - Injector holder on
Injector
Primary Air
Inlet Holes
Burner
tube
23
CLEANING ODS/PILOT
Use a vacuum cleaner, pressurized air, or a small, soft bristled brush to clean.
A yellow tip on the pilot ame indicates dust and dirt in the pilot assembly. There is a
small pilot air inlet hole about two inches from where the pilot ame comes out of the
pilot assembly (see Fig. 21). With the unit off, lightly blow air through the air inlet hole.
You may blow through a drinking straw if compressed air is not available
CABINET
Air Passageways
● Use a vacuum cleaner or pressurized air, and a small soft bristled brush to clean.
Exterior
● Use a soft cloth dampened with a mild soap and water mixture.
● Wipe the cabinet to remove dust.
LOGS
● If you remove logs for cleaning, refer to Installing Logs to properly replace logs.
● Replace log(s) if broken or chipped (dime-size or larger).
BLOWER - Item #0293809 (Optional Accessory Sold Separately)
Refer to blower manual.

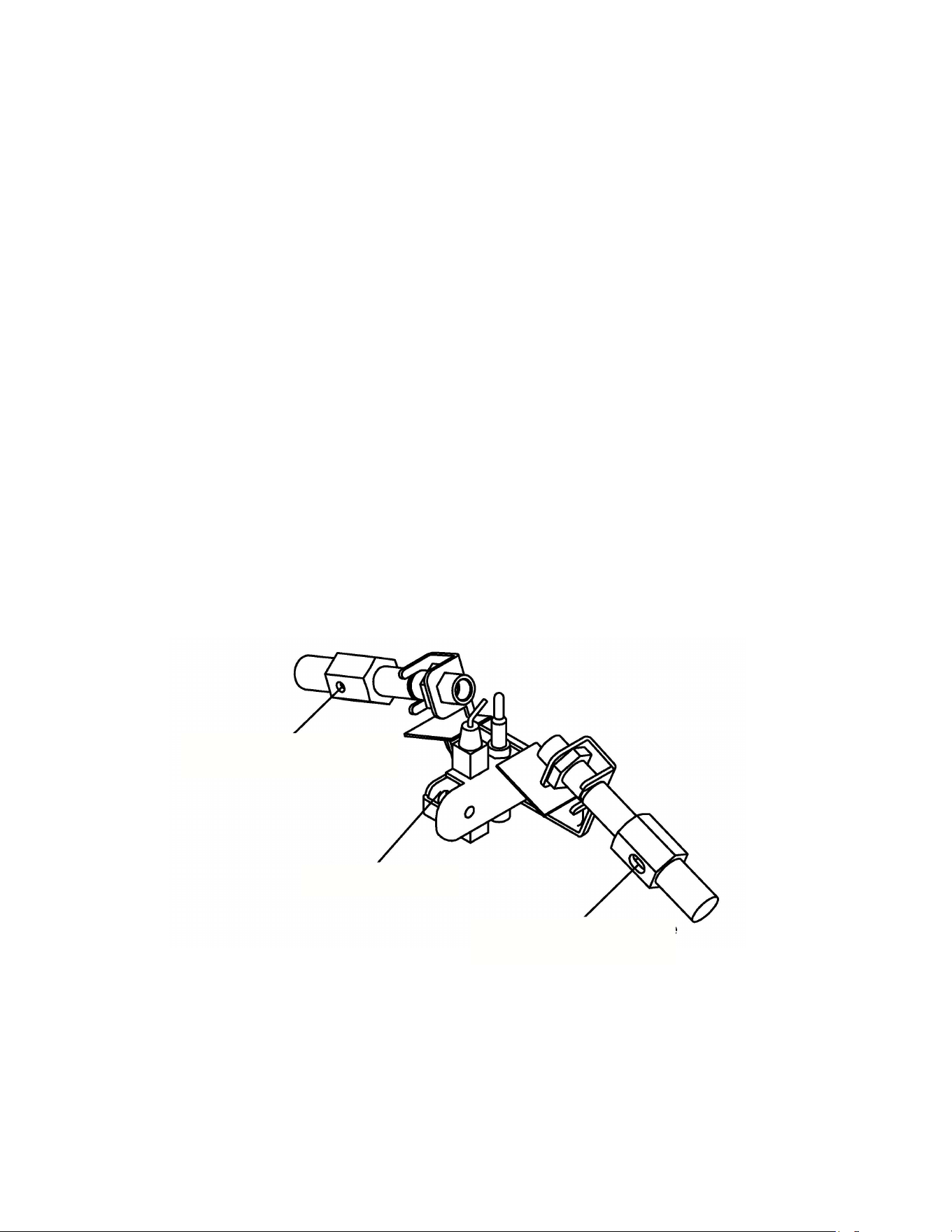

Fig. 21
NG Pilot Air Inlet Hole
Pilot Assembly
LP Pilot Air Inlet Hole
24
TROUBLESHOOTING
WARNING: If you smell gas:
• Shut off gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the re department.
IMPORTANT: Operating heater where impurities in air exist may create odors. Cleaning
supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc.,
create fumes. These fumes may mix with combustion air and create odors.
WARNING: Make sure that power is turned off before proceeding.
WARNING: Turn off and let cool before servicing. Only a qualied service person should
service and repair heater.
CAUTION: Never use a wire, needle, or similar object to clean ODS/pilot. This can
damage ODS/pilot unit.
Problem Possible Cause Corrective Action
When ignitor button is
pressed in, there is no
spark at ODS/pilot.
1. Ignitor electrode is positioned
wrong.
2. Ignitor electrode is broken.
3. Ignitor electrode is not
connected to ignitor cable.
4. Ignitor cable is pinched or wet.
5. Damaged ignitor cable.
6. Bad piezo ignitor.
7. Low battery.
1. Replace electrode.
2. Replace electrode.
3. Replace ignitor cable
4. Free ignitor cable if pinched
by any metal or tubing. Keep
ignitor cable dry.
5. Replace ignitor cable.
6. Replace piezo ignitor.
7. Replace battery.
When ignitor button
is pressed in, there
is a spark at a ODS/
pilot but no pilot ame
present.
1. Gas supply is turned off or
equipment shutoff valve is closed.
2. Control knob not fully pressed in
while pressing ignitor button.
3. Air in gas lines (new installation or
recent gas interruption).
4. ODS/pilot is clogged.
5. Incorrect inlet gas pressure or inlet
regulator is damaged.
6. Depleted gas supply.
1. Turn on gas supply or open
equipment shutoff valve.
2. Fully press in control knob
while pressing ignitor button.
3. Continue holding down
control knob for 30 seconds
to remove air.Repeat igniting
operation until air is removed.
4. Clean ODS/pilot (see Care
and Maintenance, page 22)
or replace ODS/pilot
assembly.
5. Check inlet gas pressure or
replace inlet gas regulator.
6. Contact local propane/LP
Gas Company.
25
Problem Possible Cause Corrective Action
ODS/pilot lights
but ame goes out
when control knob is
released.
1. Control knob is not fully pressed
in.
2. Control knob is not pressed in
long enough.
3. Equipment shut off valve is not
fully open.
4. Thermocouple connection is
loose.
5. Thermocouple damaged.
6. Control valve damaged.
1. Press in control knob fully.
2. After ODS/pilot lights, keep
control knob pressed
in 30
seconds.
3. Fully open equipment
shutoff valve.
4. Hand tighten until snug,
and then tighten ¼ turn
more.
5. Replace thermocouple.
6. Contact customer service.
Burner(s) does not
light after ODS/pilot
is lit.
1. Burner orice is clogged.
2. Burner orice diameter is
too small.
3. Inlet gas pressure is too low.
1. Clean Burner orice (see
Care and Maintenance,
page 22) or contact
customer service.
2. Replace burner orice.
3. Contact your gas supplier.
Delayed ignition of
burner(s).
1. Manifold pressure is too low.
2. Burner orice is clogged.
1. Contact your gas supplier.
2. Clean burner (see Care
and Maintenance,
page 22) or contact
customer service.
Burner backring
during combustion.
1. Burner orice is clogged
or damaged.
2. Burner is damaged.
3. Gas regulator is damaged.
1. Clean burner orice (see
Care and Maintenance,
page 22) or contact
customer service.
2. Contact dealer or customer
service.
3. Replace gas regulator.
High yellow ame
during burner
combustion.
1. Not enough air.
2. Gas regulator is defective.
3. Inlet gas pressure is too low.
1. Check burner for dirt and
debris. If found, clean
burner (see Care and
Maintenance, page 22).
2. Replace gas regulator.
3. Contact your gas supplier.
Gas odor during
combustion.
1. Foreign matter between
control valve and burner.
2. Gas leak. (See Warning
Statement at top of page 24).
1. Take apart gas tubing
and remove foreign matter.
2. Locate and correct all
leaks (see “Checking Gas
Connections,” page 16).
26
Problem Possible Cause Corrective Action
Slight smoke or
odor during initial
operation.
1. Residues from manufactur
ing
process.
1. Problem will stop after a
few hours of operation.
Heater produces a
whistling noise when
burner is lit.
1. Turning control knob to high (5)
position when burner is cold.
2. Air in gas line.
3. Air passageways on
heater are blocked.
4. Dirty or partially clogged
burner orice.
1. Turn control knob to low (1)
position and let warm up for
a minute.
2. Operate burner until air is
removed from line. Have
gas line checked by local
propane/LP gas company.
3. Observe minimum
installation
clearances
(Fig. 4, page 11)
4. Clean burner (see Care
and Maintenance, page 22)
or
contact customer
service.
Heater produces a
clicking/ticking noise
just after burner is lit
or shut off.
1. Metal is expanding while
heating or contracting while
cooling.
1. This is common with most
heaters. If noise is
excessive, contact qualied
service technician.
White powder residue
forming within burner
box or on adjacent
walls or furniture.
1. When heated, the vapors from
furniture polish, wax, carpet
cleaners, etc., turn into white
powder residue.
1. Turn heater off when using
furniture polish, wax, carpet
cleaner, or similar products.
Heater produces
unwanted odors.
1. Heater is burning vapors from
paint, hair spray, glues, etc.
(See IMPORTANT
statement,
page 24).
2. Gas leak. See Warning
Statement at the top of
page 24.
3. Low fuel supply.
1. Ventilate room. Stop using
odor causing products
while heater is running.
2. Locate and correct all
leaks (see “Checking Gas
Connections,” page 16).
3. Rell supply tank
(Propane /LP models).
Heater shuts off in
use (ODS operates).
1. Not enough fresh air is
available.
2. Low line pressure.
3. ODS/pilot is partially
clogged.
1. Open window and/or door
for ventilation.
2. Contact local gas supplier.
3. Clean ODS/pilot (see Care
and Maintenance,
page 22).
Gas odor exists even
when control knob is
in OFF position.
1. Gas leak. See Warning
Statement at top of page 24.
2. Control valve is defective.
1. Locate and correct all
leaks (see “Checking Gas
Connections”, page 16).
2. Contact customer service.
Moisture/
condensation
noticed on windows.
1. Not enough combustion
ventilation air.
1.
Refer to Air for Combustion
and Ventilation” requirements,
page 8
.
27
REPLACEMENT PARTS
NOTE: Use only original replacement parts. This will protect your warranty coverage for parts
replaced under warranty.
PARTS UNDER WARRANTY
Call Customer Service toll free at (1-866-573-0674) for referral information.
When calling Customer Service, have ready:
• Your name
• Your address
• Model and serial number of your heater
• How heater was malfunctioning
• Type of gas used (Propane/LP or Natural gas/NG)
• Purchase date
• Usually, we will ask you to return the defective part to the factory
PARTS NOT UNDER WARRANTY
Call Customer Service toll free at (1-866-573-0674) for referral information.
When calling Customer Service have ready:
• Model number of your heater
• The replacement part number
28
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at
1-866-573-0674,
8:00 a.m - 4:30 p.m., EST, Monday - Friday or e-mail [email protected].
Part. Description Part # QTY
1 DF ODS NDD0308 1
2 Piezo Ignitor PIMSC1-01 1
3 DF Regulator RV83FI-4/9 1
4 Gas Selection Valve YDF06 1
5 Rear Barrier ED200L7C-06 2
6 Mid Log Bracket AN/LI200MV-202 1
7 Grill Assembly EB29600H 1
8 Door EL013-01B1-01 1
9 Log Assembly ED200T500 1
10 Log 1 ED200T501 1
11 Log 2 ED200T502 1
12 Log 3 ED200T503 1
13 Log 4 ED200T504 1
14 Log 5 ED200T505 1
15 Connector Brackets SJ002 2
PART AVAILABLE----NOT SHOWN
Hardware Package ED200T2401 1
29
1
2
3
4
5
7
8
9
10
11
12
13
14
15
6
30

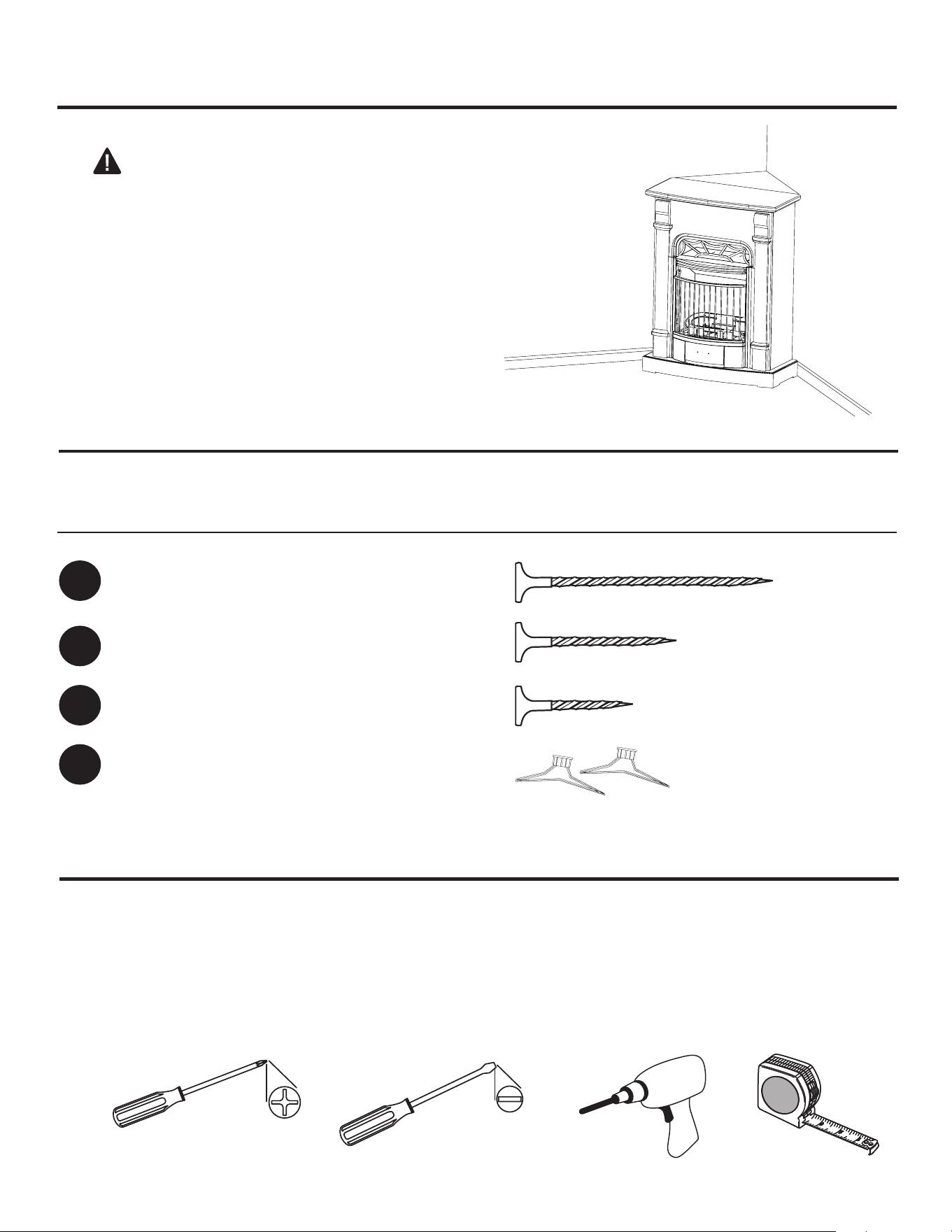

CORNER MANTEL TRIM
CAUTION: If baseboards are installed
where the replace is intended to be
displayed, then the replace will not t
ush against the wall.
For a proper ush t, you may need to
remove part of the baseboard molding if
necessary.
HARDWARE CONTENTS
Part Description Quantity (Shown to size)
AA
ST4.8 Screw - 2 3/8 in.
2
BB
8
CC
12
DD
Wall Anchor
2
ST4 Screw - 1 3/8 in.
ST4 Screw - 5/8 in.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
replacement parts list on page 29 and 30. If any part is missing or damaged, do not attempt to
assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly: Phillips Screwdriver, Flathead Screwdriver, Drill, and Tape
Measure
31

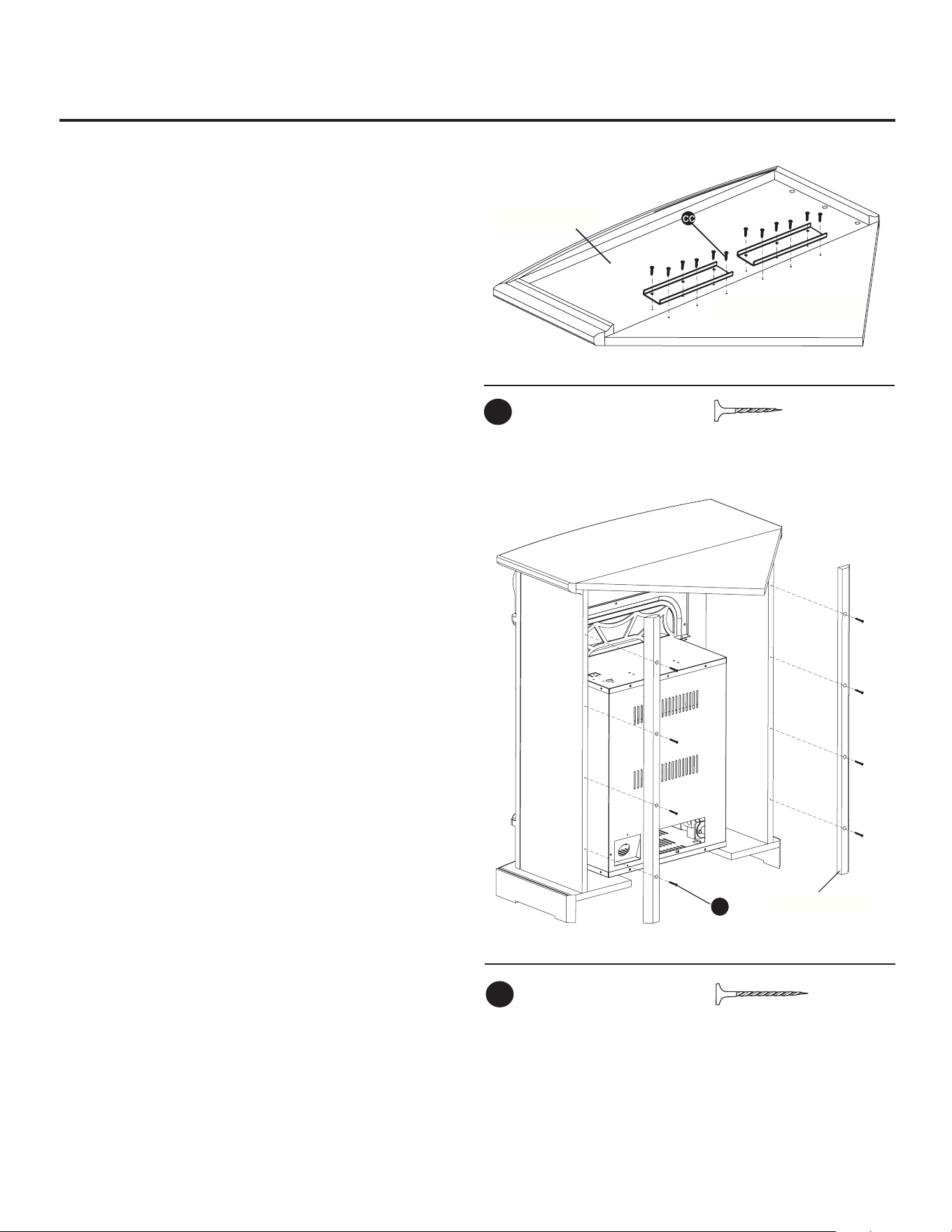

ASSEMBLY INSTRUCTIONS
1. Turn the replace top panel over.
Using the connector brackets that are
supplied, connect the replace top
panel to the triangular top triangle
panel with ST4 screw - 5/8 in. (CC)
as shown in Fig. 1.
Fig. 1
Hardware Used
CC
ST4 Screw - 5/8 in.
x 12
With the replace top panel assembled,
reattach the assembled top with the
replace.
Fig. 2
Hardware Used
BB
ST4 Screw - 1 3/8 in.
x 8
2. Attach the left and right rear barrier trim
pieces to the back of the replace with
ST4 screw - 1 3/8 in. (BB) as shown in
Fig. 2.
BB
Fireplace Top
Top Triangle Panel
Rear Barrier
32

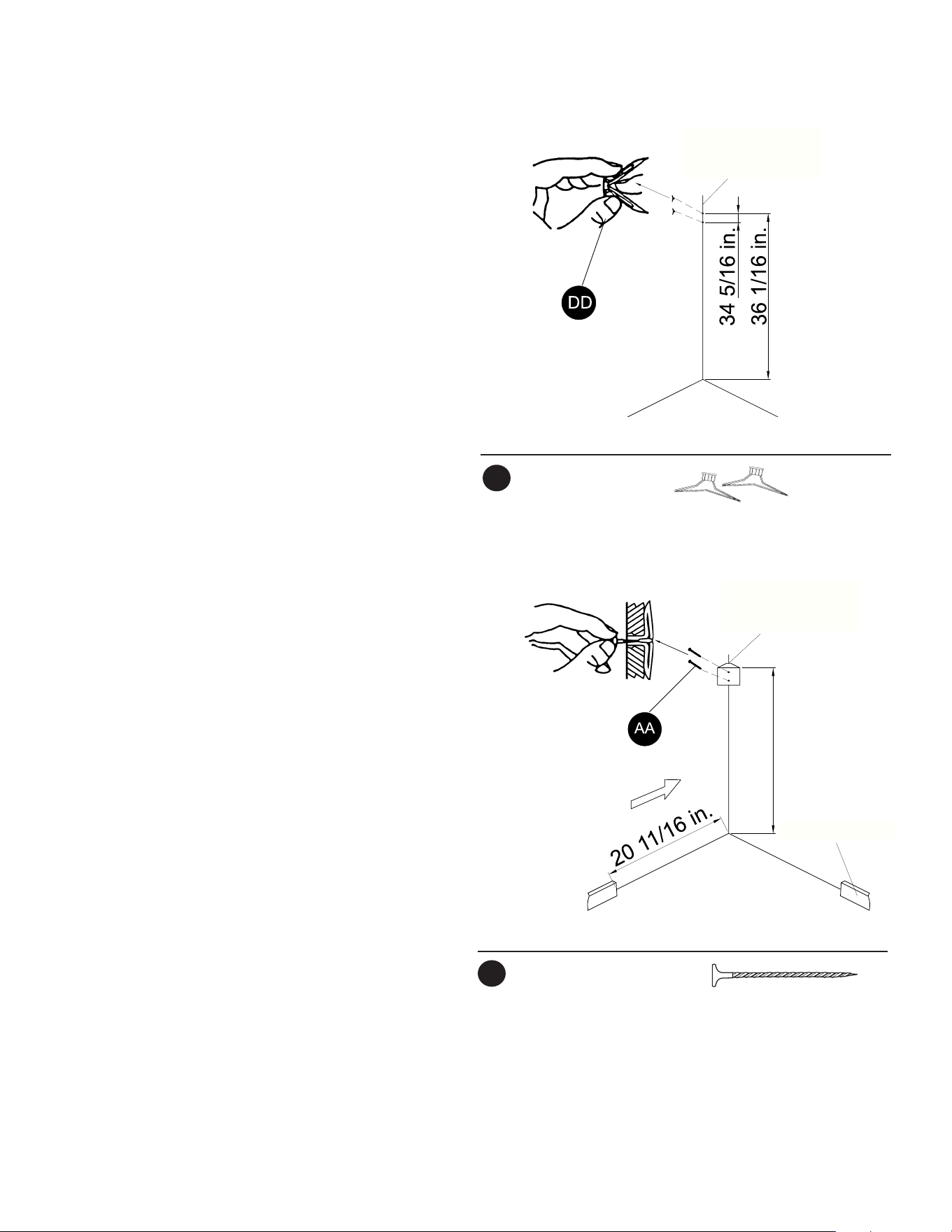

Fig. 3
3. Drill two holes (5/16 in.) in the corner
where the replace is to be displayed.
Drill the rst hole 34 5/16 in. from the
ground up; and the second hole
36 1/16 in. from the ground up as shown
in Fig. 3. Put the wall anchors (DD)
in the holes by pinching the anchor tabs
together.
Hardware Used
Wall Anchors
x 2
4. Attach the triangular wood block to the
holes drilled in step 4 with ST4.8 screw -
2 3/8 in. (AA) as shown in Fig. 4. This
block is used to support the top triangle
panel.
Hardware Used
AA
ST4.8 Screw - 2 3/8 in.
x 2
DD
Push replace into corner so that the top
triangle panel is resting on top of the
wood block.
Fig. 4
Mitered Corner
Joints
Baseboard
Mitered Corner
Joints
33
2-YEAR LIMITED WARRANTY
The manufacturer warrants this product to be free from defects in workmanship and material
present at time of shipment from the factory for two (2) years from the date of purchase. This
warranty applies only to the original purchaser. The manufacturer agrees to correct such
defect at no charge or, at our option, replace the product with a comparable or superior model.
To obtain warranty service, call our customer service department at 1-866-573-0674. You
may be required to present a copy of your sales receipt as proof of purchase. All costs of
removal and reinstallation are the expressed responsibility of the purchaser. Any damage to
the product by accident, misuse, improper installation, or by afxing accessories not produced
by the manufacturer, are the purchaser’s responsibility. The manufacturer assumes no
responsibility whatsoever for installation during the warranty period.
There is no further expressed warranty. The manufacturer disclaims any and all implied
warranties. The manufacturer shall not be liable for incidental, consequential, or special
damages arising at or in connection with product use or performance except as may otherwise
be accorded by law. This warranty gives you specic legal rights, and you also have other
rights which vary from state to state. This warranty supersedes all prior warranties
This product may be covered by one or more of the following patents: (United States) 7013886,
7434447, 7607426, 7654820, (Europe) 07009672, 07024044, 08004868 or other U.S. and foreign
patents pending.
Printed in China
