For more support, contact us via https://global.dreametech.com
Manufactured by: Dreame Trading (Tianjin) Co., Ltd.
Made in China
RLL42SD-EU-A00
10/2023
The word "dreame" is the abbreviation of Dreame Technology Co., Ltd. and its subsidiaries in China. It is the transliteration of the company's Chinese name " 追觅 ",
which means striving for excellence in every endeavor and reects the company's vision of continuous pursuit, exploration and search in technology.
The illustrations in this manual are for reference only. Please refer to the actual product.
L10s
Plus
Auto-Empty Robot Vacuum and Mop
User Manual
1
EN
Contents
User Manual
Benutzerhandbuch
Manuel d'utilisation
Manuale utente
Manual de usuario
Руководство пользователя
Instrukcja obsługi
مدختسملا ليلد
EN
DE
FR
IT
ES
RU
PL
HE
AR
שמתשמל ךירדמ
Usage Restrictions
Safety Information
·
This product should not be used by children younger than 8 years old
nor persons with physical, sensory, intellectual deficiencies, or limited
experience or knowledge without the supervision of a parent or guardian
to ensure safe operation and to avoid any risks. Cleaning and maintenance
shall not be performed by children without supervision.
·
This appliance contains batteries that are only replaceable by skilled
persons.
·
Clear the area to be cleaned. Children shall not play with the appliance.
Ensure children and pets are kept at a safe distance from the robot while it
is operating.
·
Do not install, charge or use the appliance in the bathrooms or around the
pools.
·
This product is for floor cleaning in a home environment only. Do not use it
outdoors, on non-floor surfaces, or in a commercial or industrial setting.
·
If the power cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
·
Do not use the robot in an area suspended above ground level without a
protective barrier.
·
Do not place the robot upside down. Do not use the LDS cover, robot cover,
or bumper as a handle for the robot.
·
Do not use the robot at an ambient temperature above 40℃ or below 0℃ or
on a floor with liquids or sticky substances.
To avoid electric shock, re or injury caused by improper use of the appliance, please read the user
manual carefully before using the appliance and keep it for future reference.
1
EN
Contents
User Manual
Benutzerhandbuch
Manuel d'utilisation
Manuale utente
Manual de usuario
Руководство пользователя
Instrukcja obsługi
مدختسملا ليلد
EN
DE
FR
IT
ES
RU
PL
HE
AR
שמתשמל ךירדמ
Usage Restrictions
Safety Information
·
This product should not be used by children younger than 8 years old
nor persons with physical, sensory, intellectual deficiencies, or limited
experience or knowledge without the supervision of a parent or guardian
to ensure safe operation and to avoid any risks. Cleaning and maintenance
shall not be performed by children without supervision.
·
This appliance contains batteries that are only replaceable by skilled
persons.
·
Clear the area to be cleaned. Children shall not play with the appliance.
Ensure children and pets are kept at a safe distance from the robot while it
is operating.
·
Do not install, charge or use the appliance in the bathrooms or around the
pools.
·
This product is for floor cleaning in a home environment only. Do not use it
outdoors, on non-floor surfaces, or in a commercial or industrial setting.
·
If the power cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
·
Do not use the robot in an area suspended above ground level without a
protective barrier.
·
Do not place the robot upside down. Do not use the LDS cover, robot cover,
or bumper as a handle for the robot.
·
Do not use the robot at an ambient temperature above 40℃ or below 0℃ or
on a floor with liquids or sticky substances.
To avoid electric shock, re or injury caused by improper use of the appliance, please read the user
manual carefully before using the appliance and keep it for future reference.
2 3
ENEN
Hereby, Dreame Trading（Tianjin）Co., Ltd. declares that the radio equipment type RCLD1 is in compliance with Directive 2014/53/EU. The full text of the EU
declaration of conformity is available at the following internet address: https://global.dreametech.com
For detailed e-manual, please go to https://global.dreametech.com/pages/user-manuals-and-faqs
Batteries and
Charging
Safety Information
·
Do not use any third-party battery or base station with auto-empty. Use only
with RCLD1 supply unit.
·
Do not attempt to disassemble, repair, or modify the battery or the base station
with auto-empty on your own.
·
Do not place the base station with auto-empty near a heat source.
·
Do not use a wet cloth or wet hands to wipe or clean the charging contacts of
the base station with auto-empty.
·
Do not improperly dispose of old batteries. Unneeded batteries should be
discarded at an appropriate recycling facility.
·
If the power cord becomes damaged or broken, stop using it immediately and
contact after-sales service.
·
Make sure the robot is turned off when being transported and kept in its
original packaging if possible.
·
If the robot will not be used for an extended period, fully charge it, then turn
it off and store it in a cool, dry place. Recharge the robot at least once every 3
months to avoid over-discharging the battery.
·

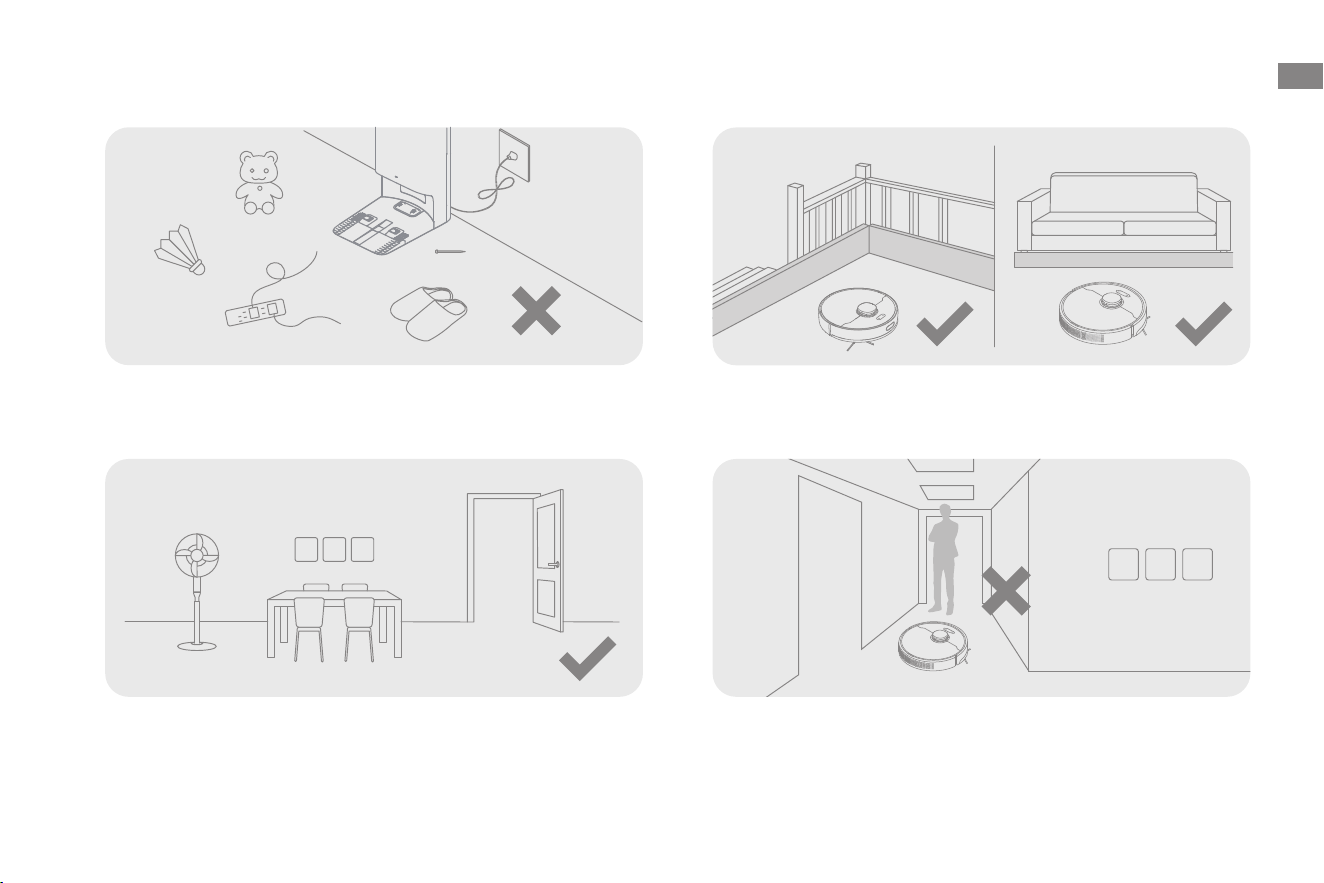

To prevent damage or harm from dragging, clear any loose objects from
the floor, and remove cables or power cords on the cleaning path before
operating the appliance.
·
Remove fragile or small items from the floor to prevent the robot from
bumping into and damaging them.
·
Keep hair, fingers, and other body parts away from the suction opening of
the robots.
·
Do not operate the appliance in a room where an infant or child is
sleeping.
·
Do not place children, pets, or any item on top of the robot regardless of
whether it is stationary or moving.
·
Do not use the robot to clean any burning objects. Do not use the robot to
pick up flammable or combustible liquids, corrosive gases, or undiluted
acids or solvents.
·
Do not vacuum hard or sharp objects. Do not use the appliance to pick up
objects such as stones, large pieces of paper or any item that may clog the
appliance.
·
Plug must be removed from the socket-outlet before cleaning or
maintaining the appliance.
·
Do not wipe the robot or the base station with a wet cloth or rinse them
with any liquid. After cleaning washable parts, fully dry the parts before
reinstalling and using them.
·
Please use this product in accordance with the instructions in the User
Manual. Users are responsible for any loss or damage that arise from
improper use of this product.
Usage Restrictions
Safety Information
Laser Safety
Information
·
The laser sensor in this product meets the IEC 60825-1:2014/EN 60825-1:2014/
A11:2021 Standard for Class 1 laser products. Please avoid direct eye contact
with it during use.
CLASS 1 LASER PRODUCT
CONSUMER LASER PRODUCT
EN 50689:2021
2 3
ENEN
Hereby, Dreame Trading（Tianjin）Co., Ltd. declares that the radio equipment type RCLD1 is in compliance with Directive 2014/53/EU. The full text of the EU
declaration of conformity is available at the following internet address: https://global.dreametech.com
For detailed e-manual, please go to https://global.dreametech.com/pages/user-manuals-and-faqs
Batteries and
Charging
Safety Information
·
Do not use any third-party battery or base station with auto-empty. Use only
with RCLD1 supply unit.
·
Do not attempt to disassemble, repair, or modify the battery or the base station
with auto-empty on your own.
·
Do not place the base station with auto-empty near a heat source.
·
Do not use a wet cloth or wet hands to wipe or clean the charging contacts of
the base station with auto-empty.
·
Do not improperly dispose of old batteries. Unneeded batteries should be
discarded at an appropriate recycling facility.
·
If the power cord becomes damaged or broken, stop using it immediately and
contact after-sales service.
·
Make sure the robot is turned off when being transported and kept in its
original packaging if possible.
·
If the robot will not be used for an extended period, fully charge it, then turn
it off and store it in a cool, dry place. Recharge the robot at least once every 3
months to avoid over-discharging the battery.
·
To prevent damage or harm from dragging, clear any loose objects from
the floor, and remove cables or power cords on the cleaning path before
operating the appliance.
·
Remove fragile or small items from the floor to prevent the robot from
bumping into and damaging them.
·
Keep hair, fingers, and other body parts away from the suction opening of
the robots.
·
Do not operate the appliance in a room where an infant or child is
sleeping.
·
Do not place children, pets, or any item on top of the robot regardless of
whether it is stationary or moving.
·
Do not use the robot to clean any burning objects. Do not use the robot to
pick up flammable or combustible liquids, corrosive gases, or undiluted
acids or solvents.
·
Do not vacuum hard or sharp objects. Do not use the appliance to pick up
objects such as stones, large pieces of paper or any item that may clog the
appliance.
·
Plug must be removed from the socket-outlet before cleaning or
maintaining the appliance.
·
Do not wipe the robot or the base station with a wet cloth or rinse them
with any liquid. After cleaning washable parts, fully dry the parts before
reinstalling and using them.
·
Please use this product in accordance with the instructions in the User
Manual. Users are responsible for any loss or damage that arise from
improper use of this product.
Usage Restrictions
Safety Information
Laser Safety
Information
·
The laser sensor in this product meets the IEC 60825-1:2014/EN 60825-1:2014/
A11:2021 Standard for Class 1 laser products. Please avoid direct eye contact
with it during use.
CLASS 1 LASER PRODUCT
CONSUMER LASER PRODUCT
EN 50689:2021
4 5
ENEN

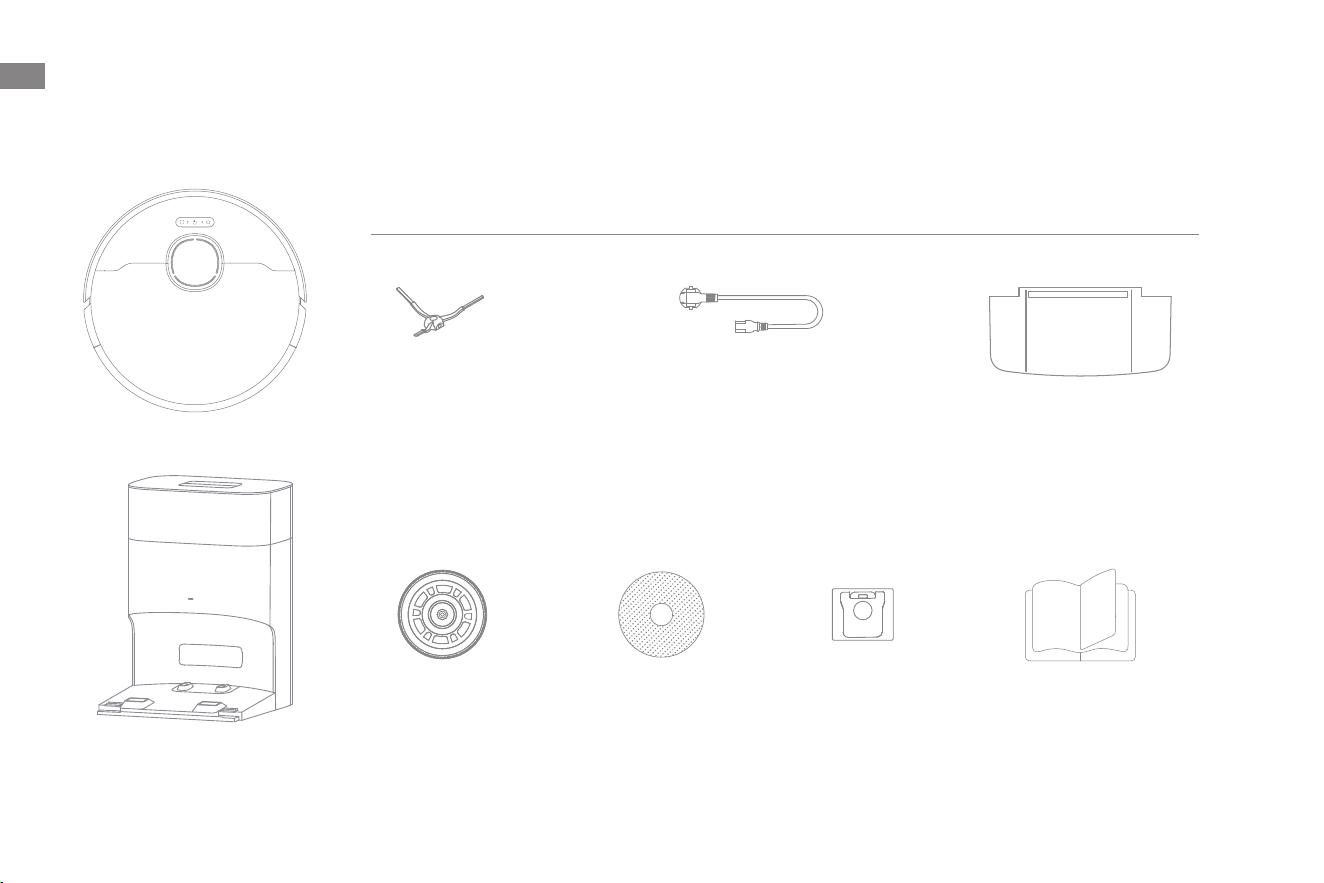

RobotPackage Contents
Product Overview

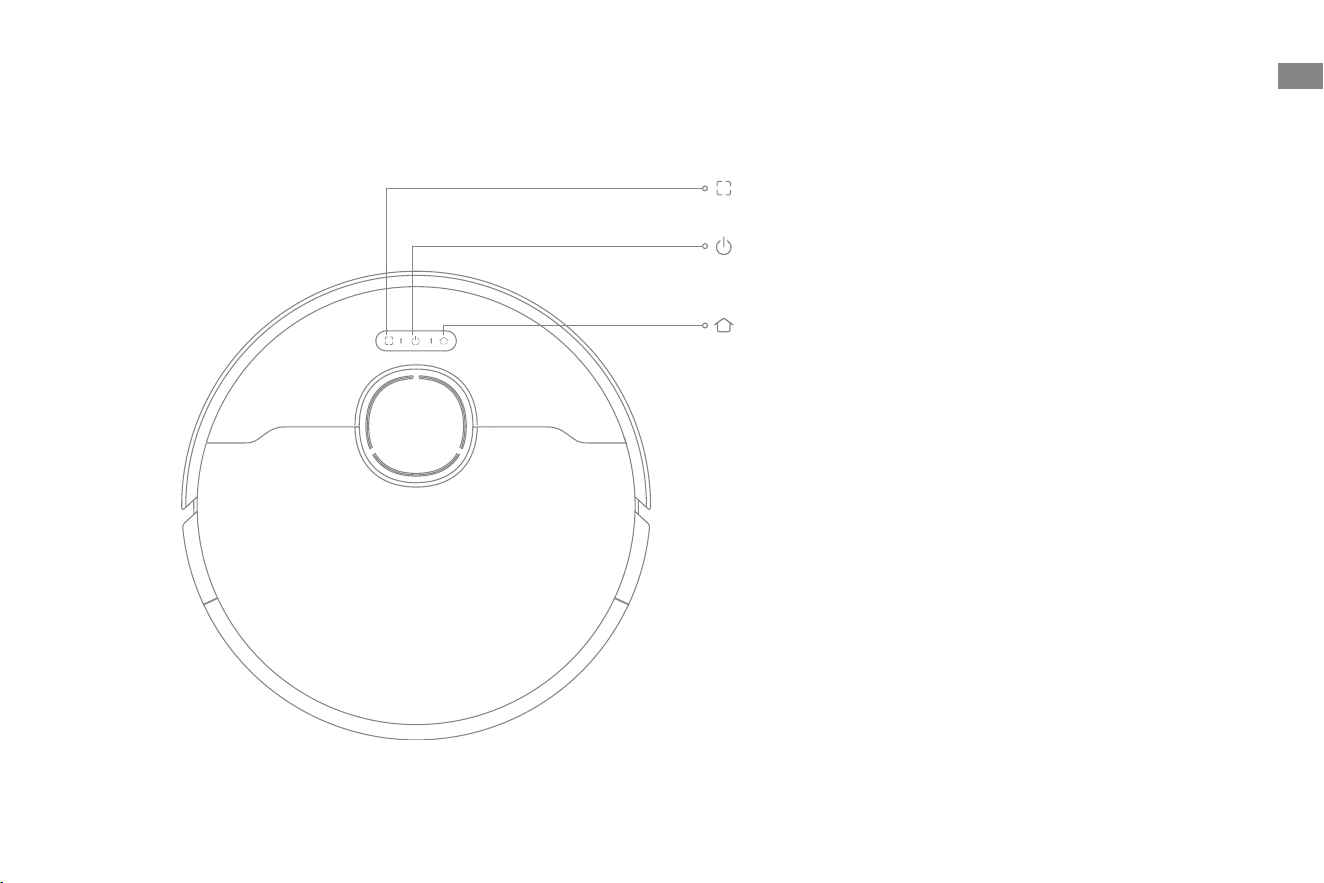

Spot Cleaning Button
·
Press to start spot cleaning
Power / Clean Button
·
Press and hold for 3 seconds to turn on or off
·
Press to start cleaning after the robot is turned on
Dock Button
·
Press to send the robot back to the base station
·
Press and hold for 3 seconds to disable Child Lock
Status Indicator
·
Solid White: Cleaning or cleanup completed
·
Blinking Orange: Error
Robot
Base Station with
Auto-Empty
Other Accessories
Product Overview
Side Brush
Mop Pad Holder ×2
Power Cord
Mop Pad ×2
(pre-installed)

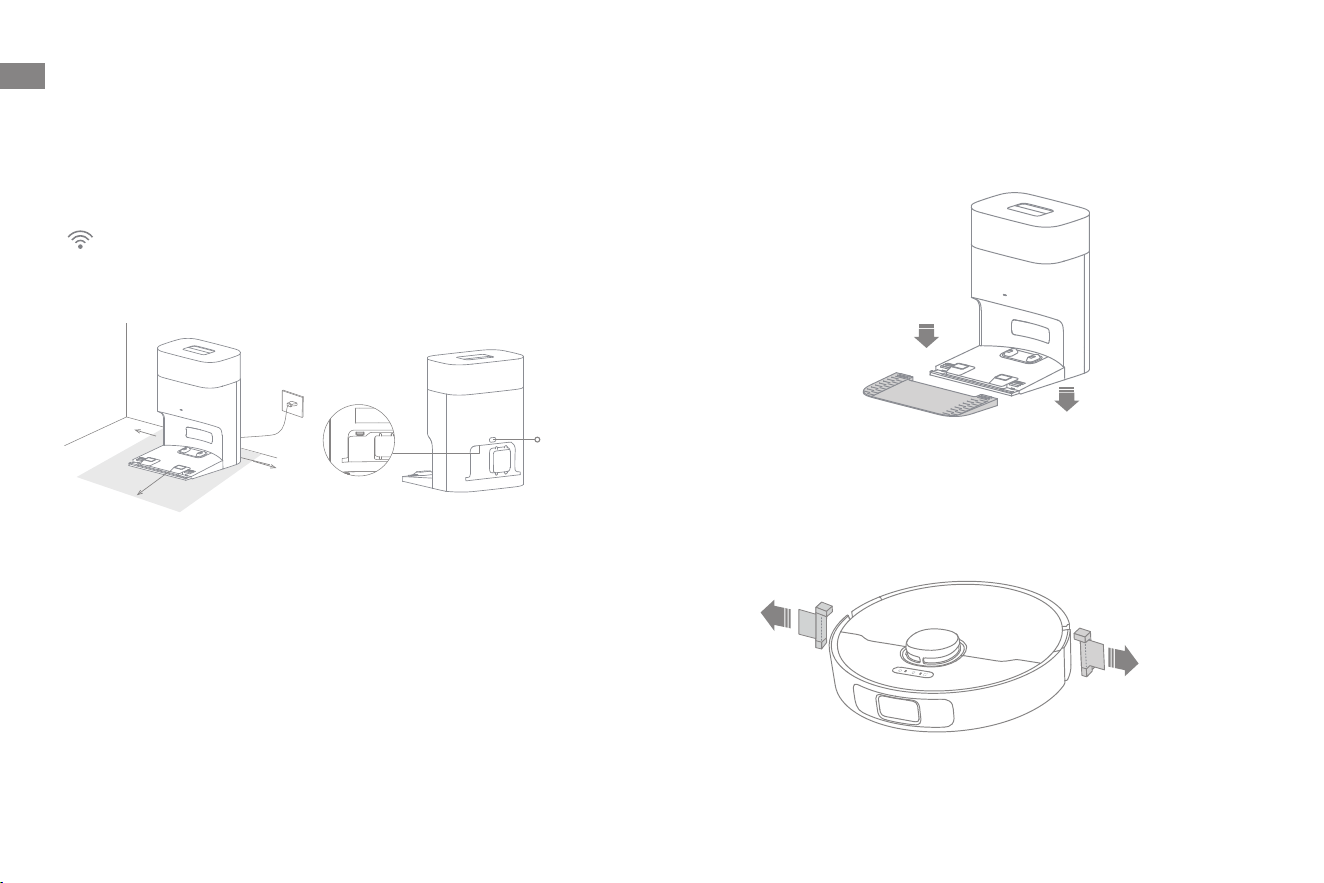

Base Station Ramp
Extension Plate
(install before use)
Dust Bag ×2
(pre-installed ×1)
User Manual
Note:
• Press any button on the robot to pause while the robot is cleaning or
returning to charge.
• Child Lock can be enabled/disabled through the Dreamehome app.
4 5
ENEN
RobotPackage Contents
Product Overview
Spot Cleaning Button
·
Press to start spot cleaning
Power / Clean Button
·
Press and hold for 3 seconds to turn on or off
·
Press to start cleaning after the robot is turned on
Dock Button
·
Press to send the robot back to the base station
·
Press and hold for 3 seconds to disable Child Lock
Status Indicator
·
Solid White: Cleaning or cleanup completed
·
Blinking Orange: Error
Robot
Base Station with
Auto-Empty
Other Accessories
Product Overview
Side Brush
Mop Pad Holder ×2
Power Cord
Mop Pad ×2
(pre-installed)
Base Station Ramp
Extension Plate
(install before use)
Dust Bag ×2
(pre-installed ×1)
User Manual
Note:
• Press any button on the robot to pause while the robot is cleaning or
returning to charge.
• Child Lock can be enabled/disabled through the Dreamehome app.
6 7
ENEN

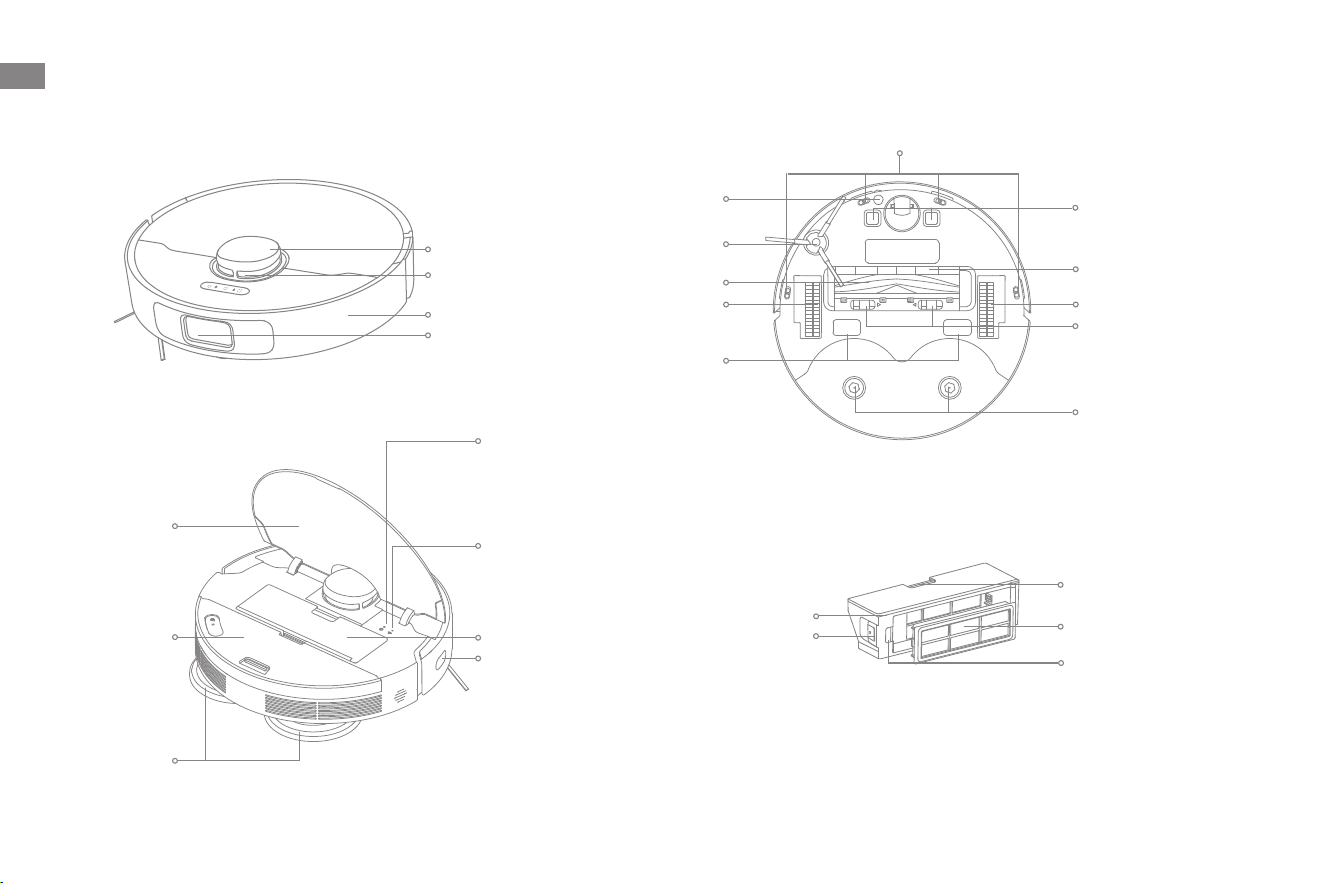

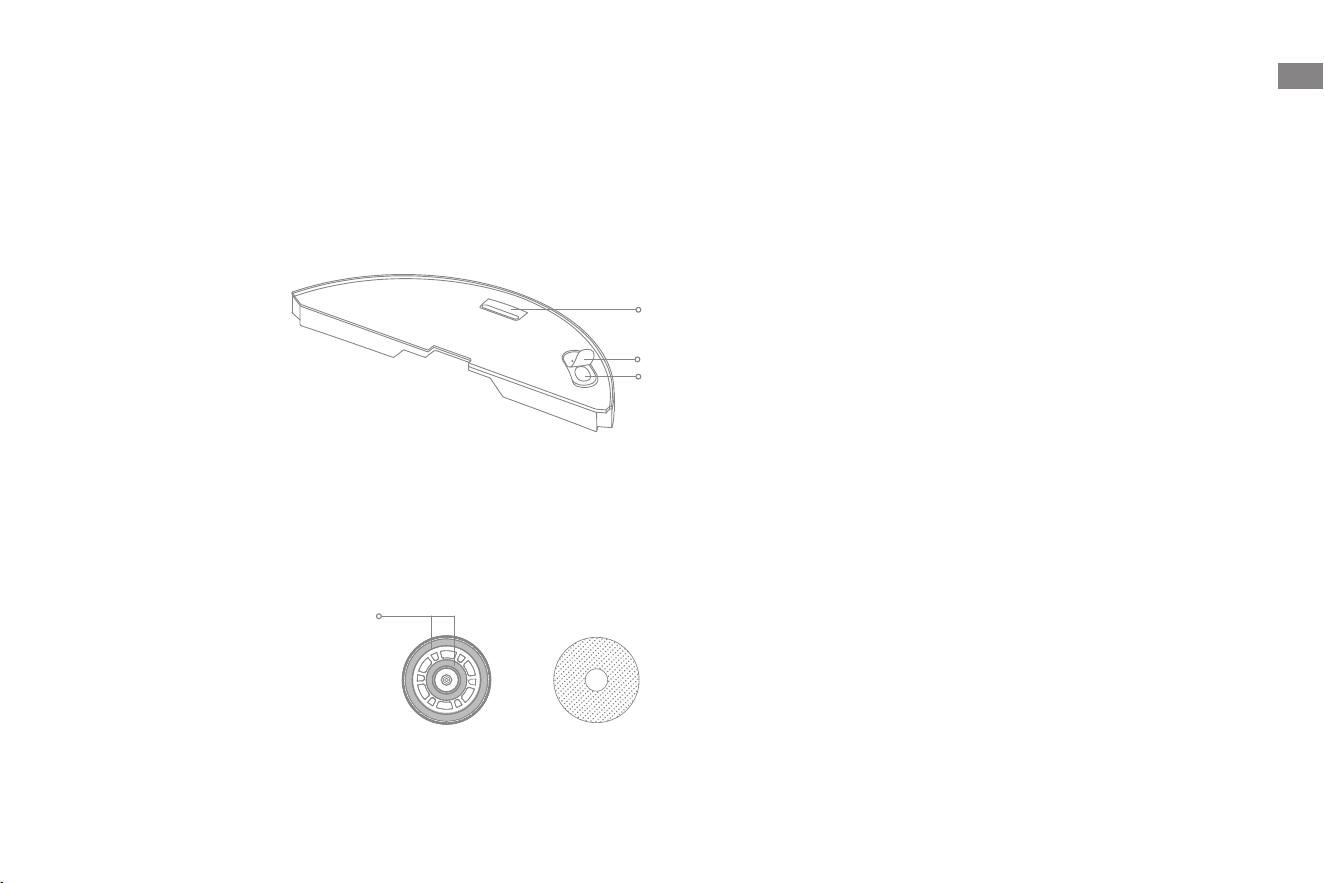

Mopping Module
Product OverviewProduct Overview
Robot and Sensors
Cli Sensors
Main Wheel
Auto-Empty Vents
Main Brush
Charging Contacts
Brush Guard
Water Tank Release Clip
Water Inlet
Water Tank Stopper
Main Wheel
Brush Guard Clips
Mop Pad Holder
Mounting Holes
Side Brush
Carpet Sensor
LDS Cover
Laser Distance
Sensor (LDS)
Water Tank
Cover
Mop Assembly
Line Laser Sensor
Bumper
Reset Button
·
Press and hold for 3
seconds to restore to
factory settings
Wi-Fi Indicator
Edge Sensor

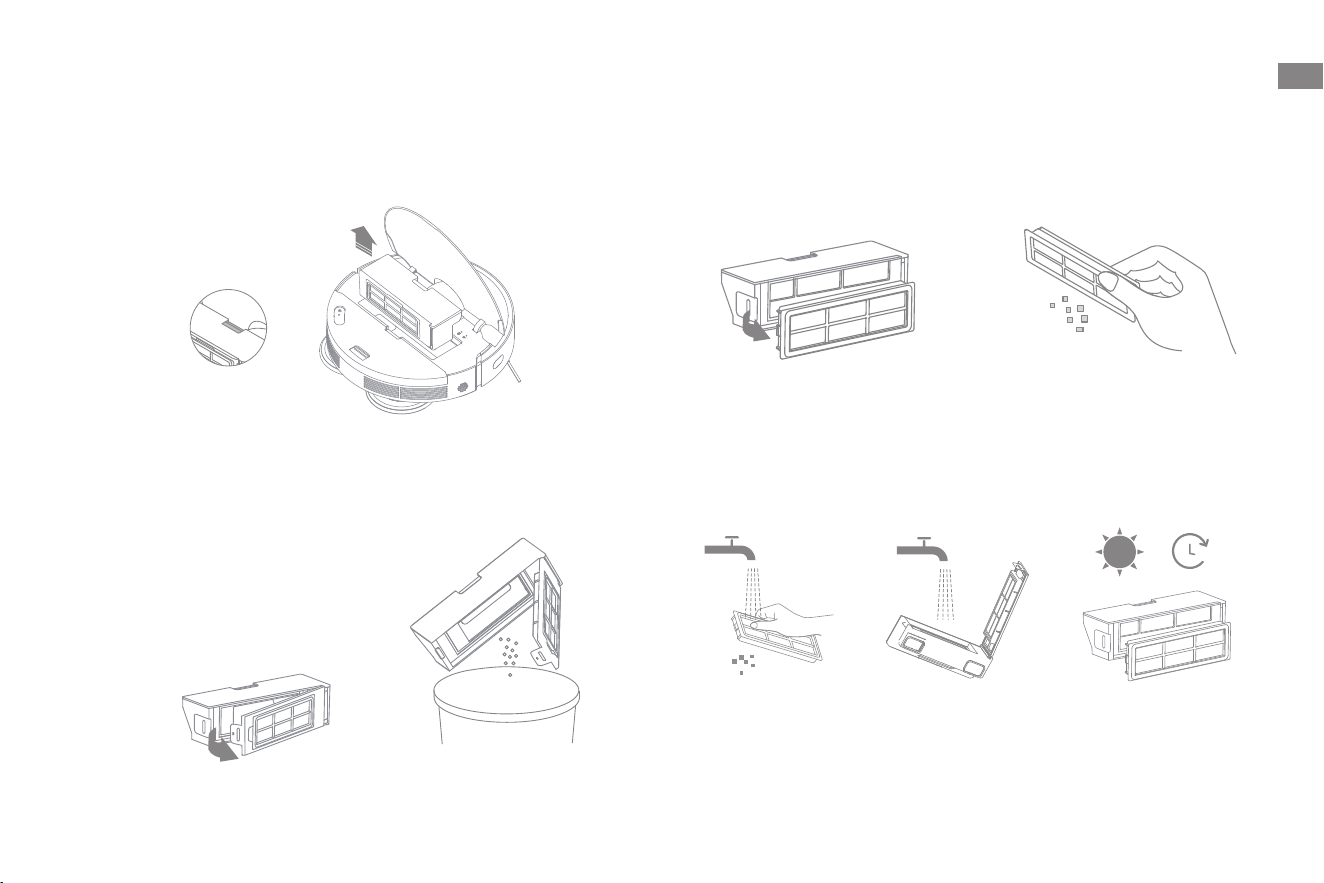

Dust Box
Dust Box
Water Tank
Filter
Dust Box Clip
Dust Box Cover Clip
Filter Clip
Dust Box Cover
Mop Assembly
Mop Pad
Attachment Area
Mop Pad Holder
Mop Pad
6 7
ENEN
Mopping Module
Product OverviewProduct Overview
Robot and Sensors
Cli Sensors
Main Wheel
Auto-Empty Vents
Main Brush
Charging Contacts
Brush Guard
Water Tank Release Clip
Water Inlet
Water Tank Stopper
Main Wheel
Brush Guard Clips
Mop Pad Holder
Mounting Holes
Side Brush
Carpet Sensor
LDS Cover
Laser Distance
Sensor (LDS)
Water Tank
Cover
Mop Assembly
Line Laser Sensor
Bumper
Reset Button
·
Press and hold for 3
seconds to restore to
factory settings
Wi-Fi Indicator
Edge Sensor
Dust Box
Dust Box
Water Tank
Filter
Dust Box Clip
Dust Box Cover Clip
Filter Clip
Dust Box Cover
Mop Assembly
Mop Pad
Attachment Area
Mop Pad Holder
Mop Pad
8 9
ENEN
Product Overview
Preparing Your Home
Before cleaning, please move away unstable, fragile, valuable or
dangerous items, and clean up cables, cloths, toys, hard objects and sharp
objects on the ground to avoid being entangled, scratched or knocked over
by the robot and causing losses.
Open the door of the room to be cleaned, and put the furniture in its
proper place to leave more space.
To prevent the robot from not recognizing areas that need to be cleaned,
do not stand in front of the robot, or in a threshold, hallway, or narrow
places.
Before cleaning, place a physical barrier at the edge of the stairs and
sofa to ensure the secure and smooth operations of the robot.

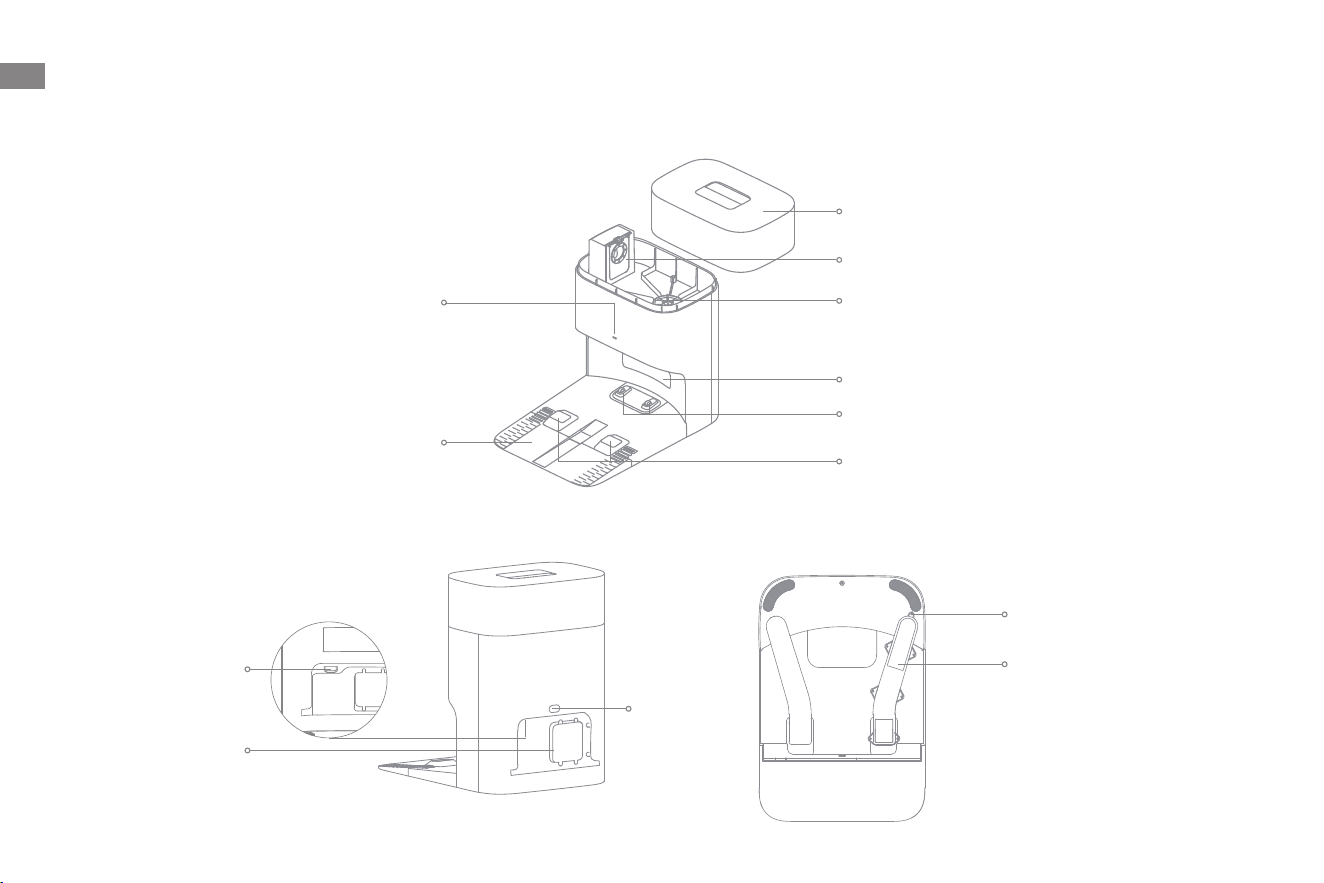

Cover
I: ON
O: OFF
Status Indicator
• Solid White: Base station is connected to power
• Breathing White: Robot is charging
• Blinking Orange: Base Station has an error
Air Duct Cover
Mounting Screw
Filter
Signaling Area
Dust Bag Slot
Base Station Ramp
Extension Plate
Charging Contacts
Auto-Empty Vents
Power Cord Storage Slot
Power Port
Note:
• When operating the robot for the rst time, follow it around while cleaning to remove any potential obstacles in time.
• Do not vacuum hard objects like stones, steel balls and toy parts, or sharp objects like construction waste, broken glass and nails, otherwise the ground may
be scratched.

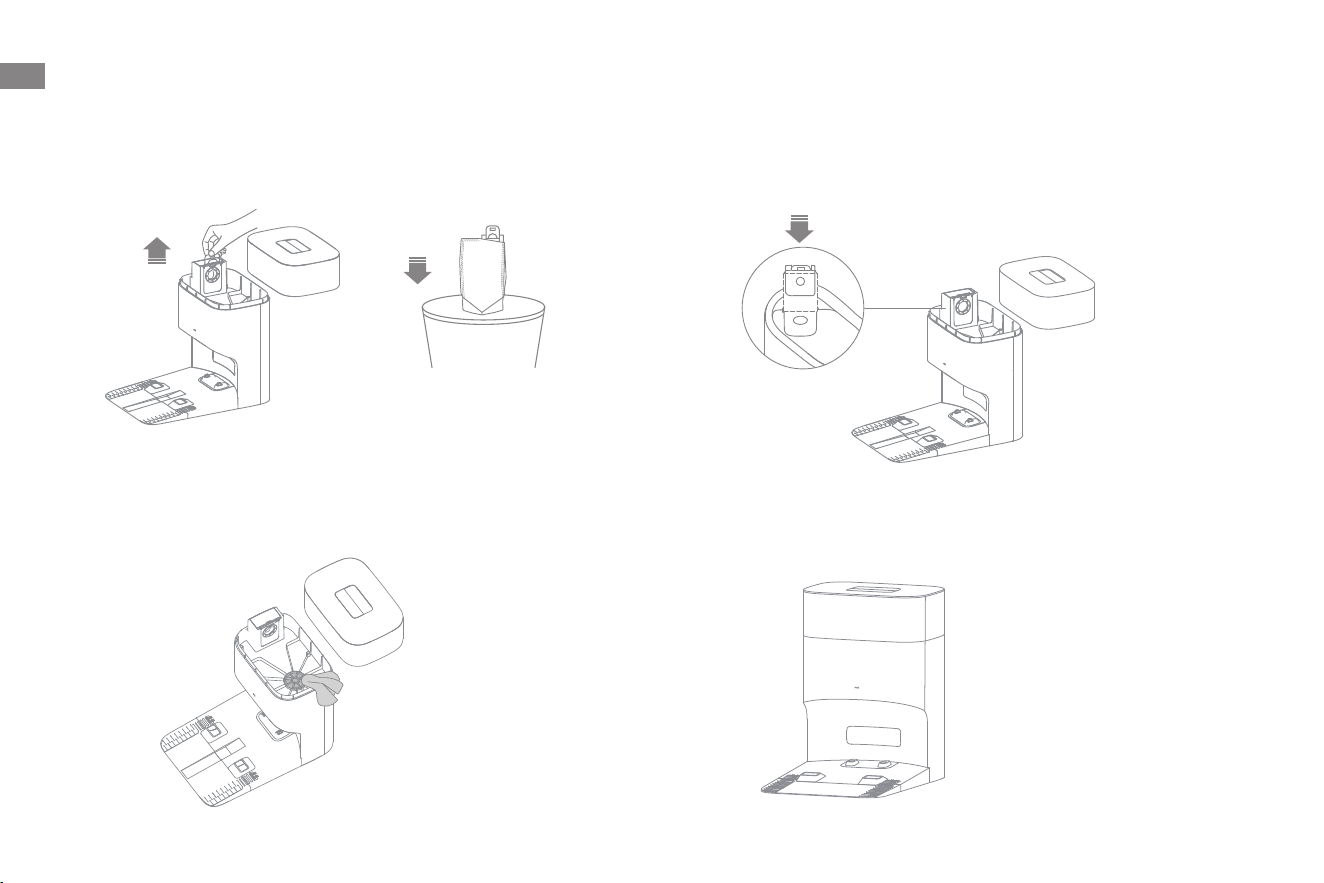

Base Station with Auto-Empty
8 9
ENEN
Product Overview
Preparing Your Home
Before cleaning, please move away unstable, fragile, valuable or
dangerous items, and clean up cables, cloths, toys, hard objects and sharp
objects on the ground to avoid being entangled, scratched or knocked over
by the robot and causing losses.
Open the door of the room to be cleaned, and put the furniture in its
proper place to leave more space.
To prevent the robot from not recognizing areas that need to be cleaned,
do not stand in front of the robot, or in a threshold, hallway, or narrow
places.
Before cleaning, place a physical barrier at the edge of the stairs and
sofa to ensure the secure and smooth operations of the robot.
Cover
I: ON
O: OFF
Status Indicator
• Solid White: Base station is connected to power
• Breathing White: Robot is charging
• Blinking Orange: Base Station has an error
Air Duct Cover
Mounting Screw
Filter
Signaling Area
Dust Bag Slot
Base Station Ramp
Extension Plate
Charging Contacts
Auto-Empty Vents
Power Cord Storage Slot
Power Port
Note:
• When operating the robot for the rst time, follow it around while cleaning to remove any potential obstacles in time.
• Do not vacuum hard objects like stones, steel balls and toy parts, or sharp objects like construction waste, broken glass and nails, otherwise the ground may
be scratched.
Base Station with Auto-Empty
10 11
ENEN
2. Install the Base Station Ramp Extension Plate1. Place the Base Station and Connect to an
Electrical Outlet
3. Remove the Protections
Before Use Before Use
Place the base station on level ground against the wall. Insert the
power cord into the base station and plug it into the socket.
Place the base station in a location that is as open as possible with a
good Wi-Fi signal.
Firmly insert the power cord until
the base station's status indicator
is solid white
＞5 cm
＞5 cm
＞1.5 m

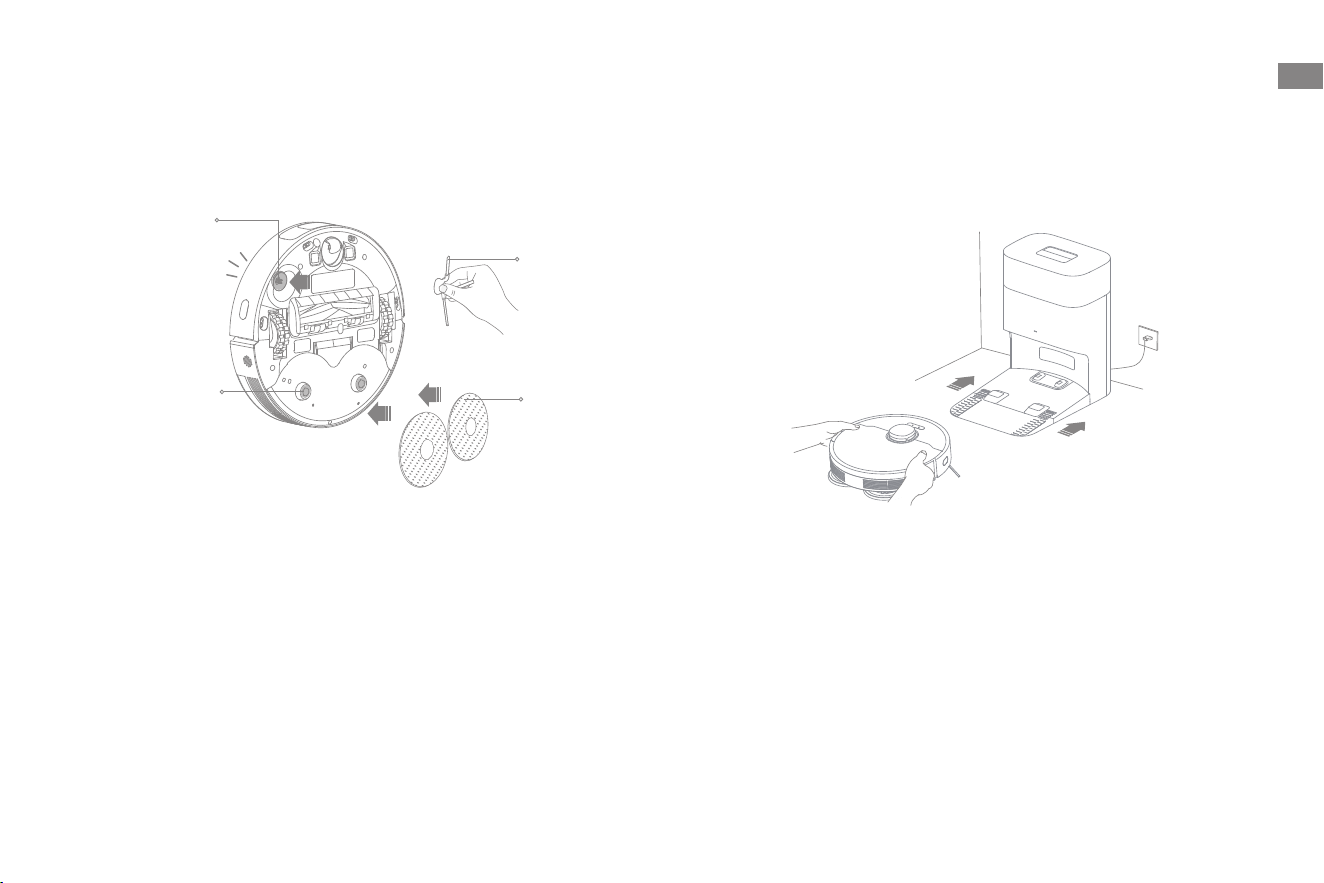

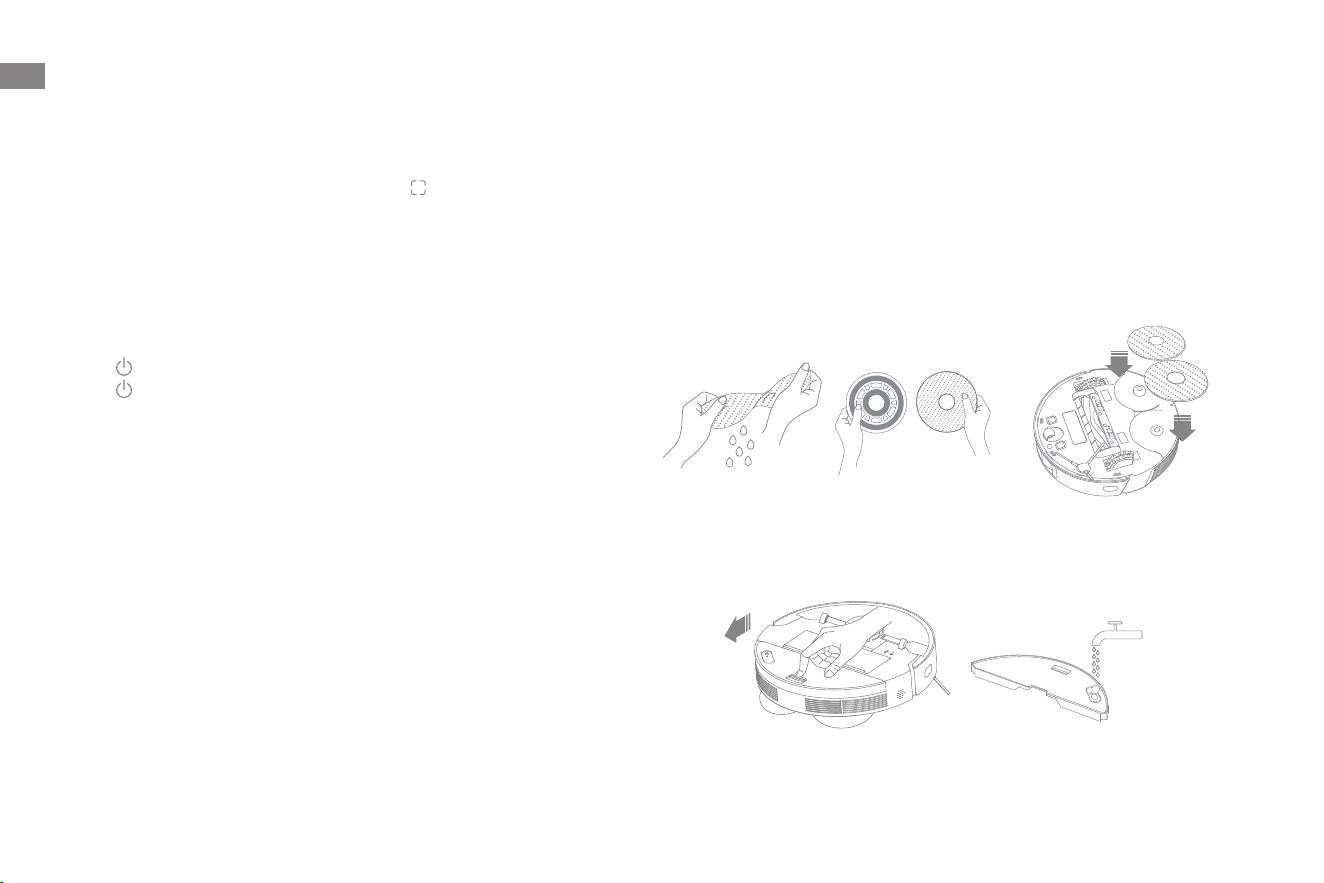

4. Install the Side Brush and the Mopping Assembly
5. Charge the Robot
When placing the robot, align the charging contacts at the bottom of the
robot with the charging contacts of the base station, and the robot will
automatically turn on and start charging.
Side Brush Clip
Mop Pad Holder
Mounting Holes
Mop Assembly
Side Brush
Click
Note:
Install the side brush until it clicks into place. Note:
It is recommended to fully charge your robot before first time use.
I: ON
O: OFF
Note:
•
Make sure that no objects might block the signaling area.
•
Remove any objects that are closer than 1.5 m from the front and 5 cm
from either side of the base station.
10 11
ENEN
2. Install the Base Station Ramp Extension Plate1. Place the Base Station and Connect to an
Electrical Outlet
3. Remove the Protections
Before Use Before Use
Place the base station on level ground against the wall. Insert the
power cord into the base station and plug it into the socket.
Place the base station in a location that is as open as possible with a
good Wi-Fi signal.
Firmly insert the power cord until
the base station's status indicator
is solid white
＞5 cm
＞5 cm
＞1.5 m
4. Install the Side Brush and the Mopping Assembly
5. Charge the Robot
When placing the robot, align the charging contacts at the bottom of the
robot with the charging contacts of the base station, and the robot will
automatically turn on and start charging.
Side Brush Clip
Mop Pad Holder
Mounting Holes
Mop Assembly
Side Brush
Click
Note:
Install the side brush until it clicks into place. Note:
It is recommended to fully charge your robot before first time use.
I: ON
O: OFF
Note:
•
Make sure that no objects might block the signaling area.
•
Remove any objects that are closer than 1.5 m from the front and 5 cm
from either side of the base station.
12 13
ENEN
Open the Dreamehome app, tap in the upper right corner, and scan
the same QR code on the robot again to add the device. Please follow the
prompts to nish the Wi-Fi connection.

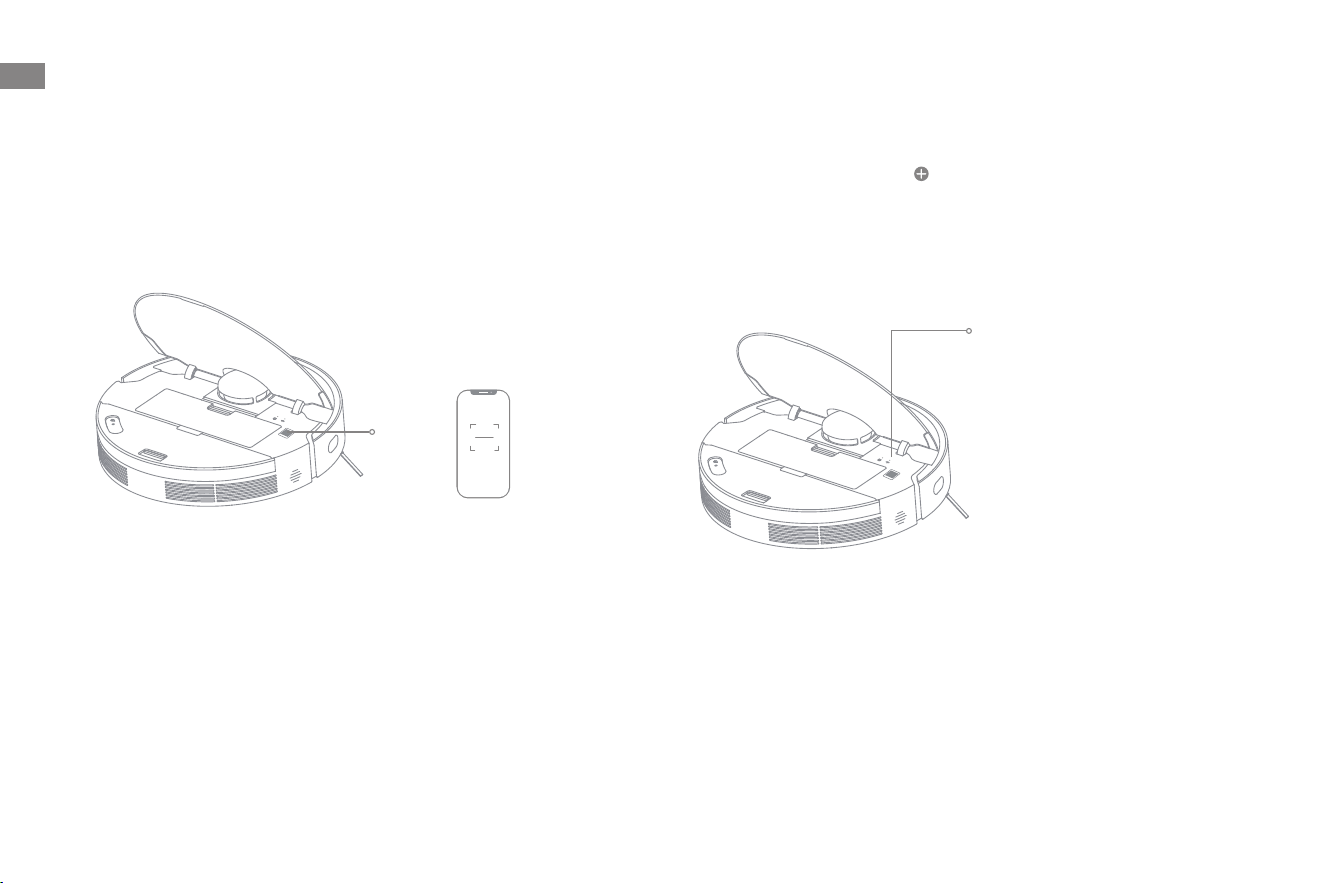

Connecting with Dreamehome App
1. Download Dreamehome App
Scan the QR code on the robot, or search "Dreamehome" in the app store to
download and install the app.
2.Add Device
Note:
• Only 2.4GHz Wi-Fi is supported.
• Due to upgrades in the app software, the actual operations may dier
from the directions in this manual. Please follow the instructions based on
the current app version.
Note: If you want to reset Wi-Fi, repeat step 2 and then follow the prompts
to nish the Wi-Fi connection.
Wi-Fi Indicator
·Blinking slowly: To be connected
·Blinking quickly: Connecting
·On: Wi-Fi connected
QR Code
How to Use
Turn On/O

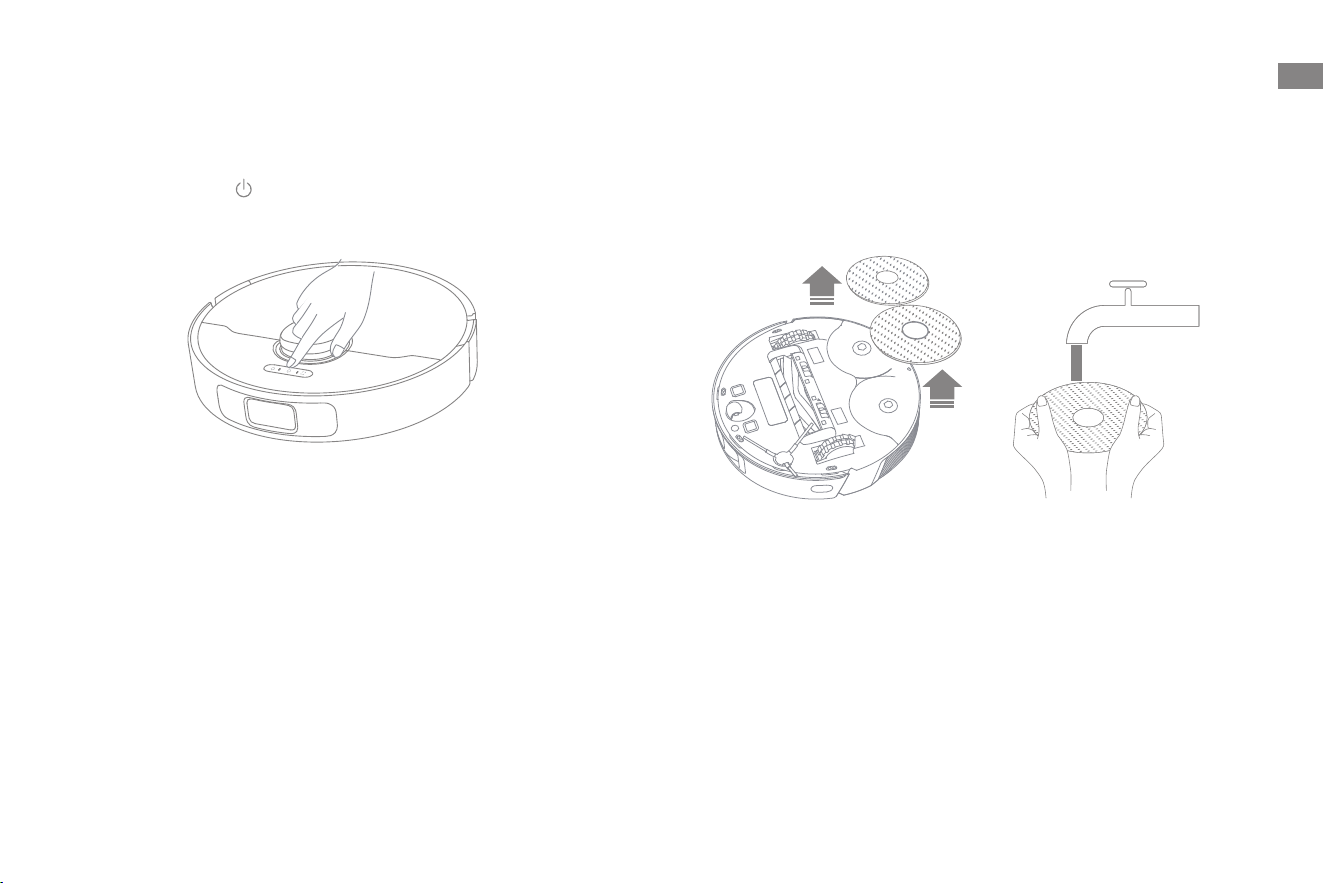

Press and hold the button for 3 seconds to turn on the robot. The power
indicator should be illuminated. Place the robot onto the base station, the
robot should turn on automatically and begin charging. To turn o the
robot, move the robot away from the base station and press and hold the
button for 3 seconds.
Fast Mapping
After conguring the network for the rst time, follow the instructions in the
app to quickly create a map. The robot will start mapping without cleaning.
When the robot returns to the base station, the mapping process has been
completed and the map will be saved automatically.
Start Cleaning
Press the button to start cleaning after the robot is turned on. The robot
will accurately map out a route, methodically clean along the edges and
walls, then nish by cleaning each room in an S-shaped pattern to ensure
a thorough job.
Note:
· It is recommended that the robot set out from the base station before
cleaning. Do not move the base station while the robot is cleaning. This
ensures that the robot returns to base station smoothly.
· After the robot completes the cleaning task and automatically returns to
the base station, the base station will start auto-empty. More settings can
be operated on the app.
Pause/Sleep
When the robot is running, press any button to pause it.
If the robot is paused for more than 10 minutes, it automatically enters sleep
mode. All indicators on the robot will turn o. Press any button on the robot
or base station, or use the app to wake up the robot.
Note:If the robot is paused and placed onto the base station, the current
cleaning process will end.
Auto Resume Cleaning
If the battery is too low, the robot will automatically return to the base station
to charge. After charging to the appropriate battery level, it will resume
unnished cleaning tasks.
Note: To use this function, please open it in the App.
Do Not Disturb (DND) Mode
When the robot is set to Do Not Disturb (DND) mode, the robot will be
prevented from resuming cleaning and the power indicator will turn o. DND
mode is disabled by default at the factory. You can use the app to enable DND
mode or modify the DND period. The DND period is 22:00–8:00 by default.
Note:
· The scheduled cleaning tasks will be performed as usual during the DND period.
· The robot will resume cleanup where it left o after the DND period expires.
12 13
ENEN
Open the Dreamehome app, tap in the upper right corner, and scan
the same QR code on the robot again to add the device. Please follow the
prompts to nish the Wi-Fi connection.
Connecting with Dreamehome App
1. Download Dreamehome App
Scan the QR code on the robot, or search "Dreamehome" in the app store to
download and install the app.
2.Add Device
Note:
• Only 2.4GHz Wi-Fi is supported.
• Due to upgrades in the app software, the actual operations may dier
from the directions in this manual. Please follow the instructions based on
the current app version.
Note: If you want to reset Wi-Fi, repeat step 2 and then follow the prompts
to nish the Wi-Fi connection.
Wi-Fi Indicator
·Blinking slowly: To be connected
·Blinking quickly: Connecting
·On: Wi-Fi connected
QR Code
How to Use
Turn On/O
Press and hold the button for 3 seconds to turn on the robot. The power
indicator should be illuminated. Place the robot onto the base station, the
robot should turn on automatically and begin charging. To turn o the
robot, move the robot away from the base station and press and hold the
button for 3 seconds.
Fast Mapping
After conguring the network for the rst time, follow the instructions in the
app to quickly create a map. The robot will start mapping without cleaning.
When the robot returns to the base station, the mapping process has been
completed and the map will be saved automatically.
Start Cleaning
Press the button to start cleaning after the robot is turned on. The robot
will accurately map out a route, methodically clean along the edges and
walls, then nish by cleaning each room in an S-shaped pattern to ensure
a thorough job.
Note:
· It is recommended that the robot set out from the base station before
cleaning. Do not move the base station while the robot is cleaning. This
ensures that the robot returns to base station smoothly.
· After the robot completes the cleaning task and automatically returns to
the base station, the base station will start auto-empty. More settings can
be operated on the app.
Pause/Sleep
When the robot is running, press any button to pause it.
If the robot is paused for more than 10 minutes, it automatically enters sleep
mode. All indicators on the robot will turn o. Press any button on the robot
or base station, or use the app to wake up the robot.
Note:If the robot is paused and placed onto the base station, the current
cleaning process will end.
Auto Resume Cleaning
If the battery is too low, the robot will automatically return to the base station
to charge. After charging to the appropriate battery level, it will resume
unnished cleaning tasks.
Note: To use this function, please open it in the App.
Do Not Disturb (DND) Mode
When the robot is set to Do Not Disturb (DND) mode, the robot will be
prevented from resuming cleaning and the power indicator will turn o. DND
mode is disabled by default at the factory. You can use the app to enable DND
mode or modify the DND period. The DND period is 22:00–8:00 by default.
Note:
· The scheduled cleaning tasks will be performed as usual during the DND period.
· The robot will resume cleanup where it left o after the DND period expires.
14 15
ENEN
How to Use How to Use
Spot Cleaning
When the robot is on standby, press the button to enable the spot
cleaning mode. In this mode, the robot cleans a square-shaped area of
1.5 × 1.5 meters around it and returns to its starting point once the spot
cleaning is completed.
Robot Restarting
If the robot stops responding or cannot be turned o, press and hold the
button for 10 seconds to forcefully turn it o. Then, press and hold the
button for 3 seconds to turn the robot on.
Use Mopping Function
It is recommended that all floors are vacuumed at least three times before
the first mopping session to achieve a better cleaning eect.
1. Dampen the mop pads and wring out excess water. Install and attach
the mop pads onto the mop pad holder in place. Lastly, install the mop
assembly onto the bottom of the robot.
2. Open the cover of the robot and take the water tank out. Fill the water
tank with clean water and then reinstall it.
Note:
· Do not use detergent or disinfectant.
· Do not fill the water tank with hot water as this may cause the water tank
to warp.
3. Press the button or use Dreamehome app to start cleaning.
Note:
· It is not recommended to use the mopping function on carpets.
· Use the app to adjust the water flow as required.
4. When the robot finishes a cleaning task and returns to the base station,
remove the mop assembly and wash the mop pads in time.
Note: When the robot is charging or not in use, remove the mopping
module, pour out all the remaining water in the water tank, and clean the
mop pads to prevent mildew or odors.
14 15
ENEN
How to Use How to Use
Spot Cleaning
When the robot is on standby, press the button to enable the spot
cleaning mode. In this mode, the robot cleans a square-shaped area of
1.5 × 1.5 meters around it and returns to its starting point once the spot
cleaning is completed.
Robot Restarting
If the robot stops responding or cannot be turned o, press and hold the
button for 10 seconds to forcefully turn it o. Then, press and hold the
button for 3 seconds to turn the robot on.
Use Mopping Function
It is recommended that all floors are vacuumed at least three times before
the first mopping session to achieve a better cleaning eect.
1. Dampen the mop pads and wring out excess water. Install and attach
the mop pads onto the mop pad holder in place. Lastly, install the mop
assembly onto the bottom of the robot.
2. Open the cover of the robot and take the water tank out. Fill the water
tank with clean water and then reinstall it.
Note:
· Do not use detergent or disinfectant.
· Do not fill the water tank with hot water as this may cause the water tank
to warp.
3. Press the button or use Dreamehome app to start cleaning.
Note:
· It is not recommended to use the mopping function on carpets.
· Use the app to adjust the water flow as required.
4. When the robot finishes a cleaning task and returns to the base station,
remove the mop assembly and wash the mop pads in time.
Note: When the robot is charging or not in use, remove the mopping
module, pour out all the remaining water in the water tank, and clean the
mop pads to prevent mildew or odors.
16 17
ENEN
Routine Maintenance
Parts
To keep the robot in good condition, it is recommended to refer to the accessory usage in the app or the following table for routine maintenance.
Part
Maintenance
Frequency
Replacement Period
Mop pad After each use Every 1 to 3 months
Main brush
Once every 2 weeks
Every 6 to 12 months
Side brush Every 3 to 6 months
Mop pad holder /
Dust box's filter Every 3 to 6 months
Base station's
signaling area
Once every month /
Base station's
charging contacts
Base station's auto-empty
vents
Laser Distance Sensor
(LDS)
Part
Maintenance
Frequency
Replacement Period
Robot's charging contacts
Once every month
/
Robot's auto-empty vents
Line laser sensor
Edge sensor
Bumper
Omnidirectional wheel
Carpet sensor
Cli sensors
Bottom of the robot
Dust box Clean it as needed
Dust bag / 90 days
Note: The replacement frequency will depend on your usage of the robot. If an exception occurs due to special circumstances, the parts should be replaced.
Routine Maintenance
Main Brush
1. Press the brush guard clips inwards to remove the brush guard and
lift the brush out of the robot.

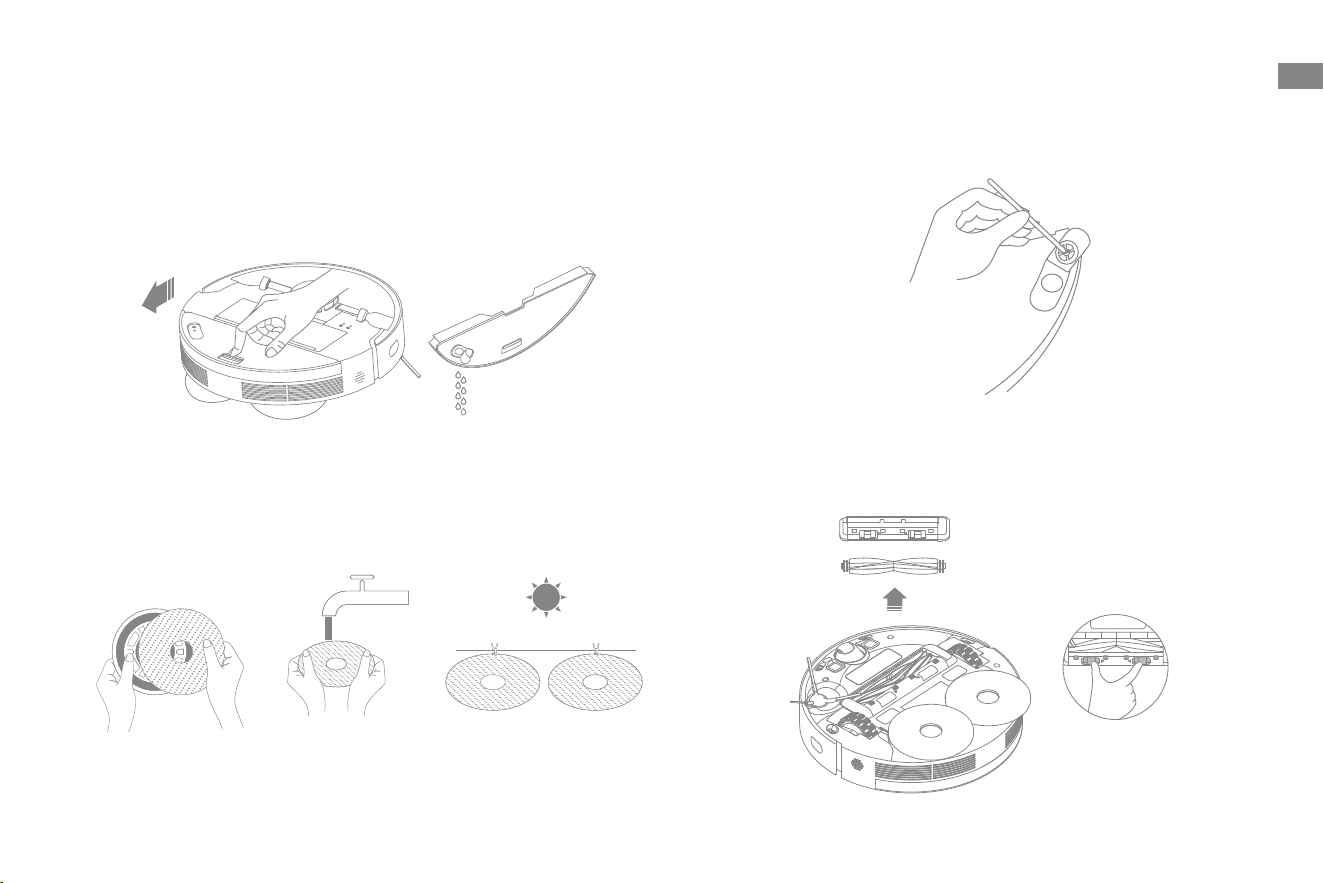

Mopping Moudle
1. Open the robot's cover and press the clip to remove the water tank. Pour
out the water in the tank. Clean the tank with water only and leave to air dry
before use.
Note: Do not directly expose the water tank to sunlight.
2. Remove the mop pads from the mop pad holder. Clean the mop pads with
water only and leave it to air dry before use.
3. If slow water flow occurs, or the water volume is not well-distributed,
clean the air hole in the cover of the water tank.
16 17
ENEN
Routine Maintenance
Parts
To keep the robot in good condition, it is recommended to refer to the accessory usage in the app or the following table for routine maintenance.
Part
Maintenance
Frequency
Replacement Period
Mop pad After each use Every 1 to 3 months
Main brush
Once every 2 weeks
Every 6 to 12 months
Side brush Every 3 to 6 months
Mop pad holder /
Dust box's filter Every 3 to 6 months
Base station's
signaling area
Once every month /
Base station's
charging contacts
Base station's auto-empty
vents
Laser Distance Sensor
(LDS)
Part
Maintenance
Frequency
Replacement Period
Robot's charging contacts
Once every month
/
Robot's auto-empty vents
Line laser sensor
Edge sensor
Bumper
Omnidirectional wheel
Carpet sensor
Cli sensors
Bottom of the robot
Dust box Clean it as needed
Dust bag / 90 days
Note: The replacement frequency will depend on your usage of the robot. If an exception occurs due to special circumstances, the parts should be replaced.
Routine Maintenance
Main Brush
1. Press the brush guard clips inwards to remove the brush guard and
lift the brush out of the robot.
Mopping Moudle
1. Open the robot's cover and press the clip to remove the water tank. Pour
out the water in the tank. Clean the tank with water only and leave to air dry
before use.
Note: Do not directly expose the water tank to sunlight.
2. Remove the mop pads from the mop pad holder. Clean the mop pads with
water only and leave it to air dry before use.
3. If slow water flow occurs, or the water volume is not well-distributed,
clean the air hole in the cover of the water tank.
18 19
ENEN
Dust Box
1. Open the robot's cover and press the clip to remove the dust box.
2. Open the dust box cover and empty the dust box as shown in the diagram.
Routine MaintenanceRoutine Maintenance
24h
Filter
1. Remove the filter and tap its basket gently.
Note:
Do not attempt to clean the filter with a brush, a finger or sharp
objects to prevent damage.
2. Rinse the dust box and filter with water and dry them completely
before reinstalling.
Note:
·
Rinse the dust box and filter with clean water only. Do not use any
detergent.
·
Use the dust box and filter only when they are completely dry.

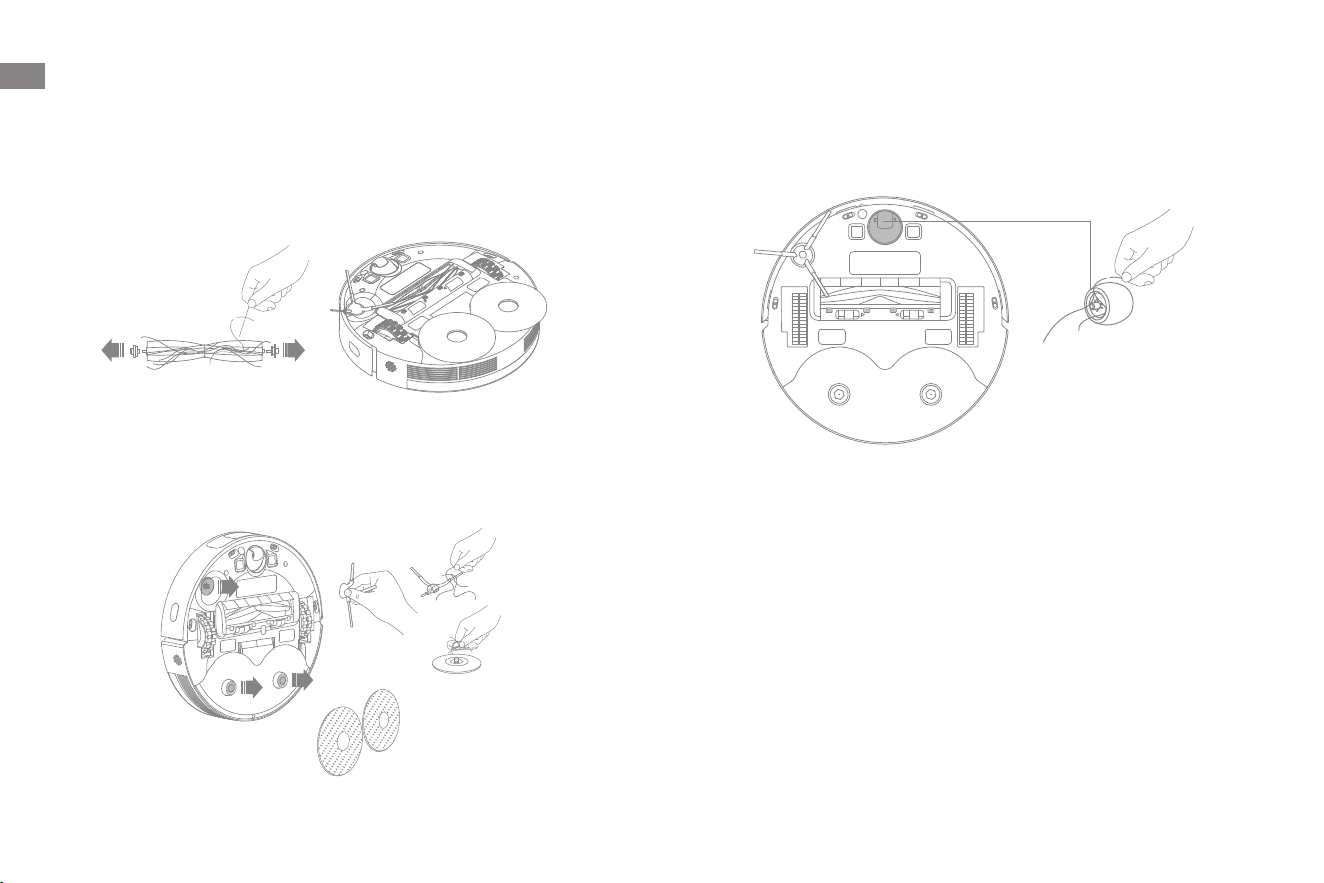

Side Brush & Mop Pad Holder
Remove and clean the side brush and mop pad holder.
Omnidirectional Wheel
Note:
·
Use a tool such as a small screwdriver to separate the axle and tire of
the omnidirectional wheel. Do not use excessive force.
·
Rinse the omnidirectional wheel under the running water and put it
back after drying it completely.
2. Pull out the brush covers at both ends of the brush as shown in the
diagram. Use a proper cleaning tool to remove any hair tangled in the
brush. Reinstall the brush covers on both ends of the brush, and then
reinstall the brush. Press on the brush guard to lock it in place.
18 19
ENEN
Dust Box
1. Open the robot's cover and press the clip to remove the dust box.
2. Open the dust box cover and empty the dust box as shown in the diagram.
Routine MaintenanceRoutine Maintenance
24h
Filter
1. Remove the filter and tap its basket gently.
Note:
Do not attempt to clean the filter with a brush, a finger or sharp
objects to prevent damage.
2. Rinse the dust box and filter with water and dry them completely
before reinstalling.
Note:
·
Rinse the dust box and filter with clean water only. Do not use any
detergent.
·
Use the dust box and filter only when they are completely dry.
Side Brush & Mop Pad Holder
Remove and clean the side brush and mop pad holder.
Omnidirectional Wheel
Note:
·
Use a tool such as a small screwdriver to separate the axle and tire of
the omnidirectional wheel. Do not use excessive force.
·
Rinse the omnidirectional wheel under the running water and put it
back after drying it completely.
2. Pull out the brush covers at both ends of the brush as shown in the
diagram. Use a proper cleaning tool to remove any hair tangled in the
brush. Reinstall the brush covers on both ends of the brush, and then
reinstall the brush. Press on the brush guard to lock it in place.
20 21
ENEN

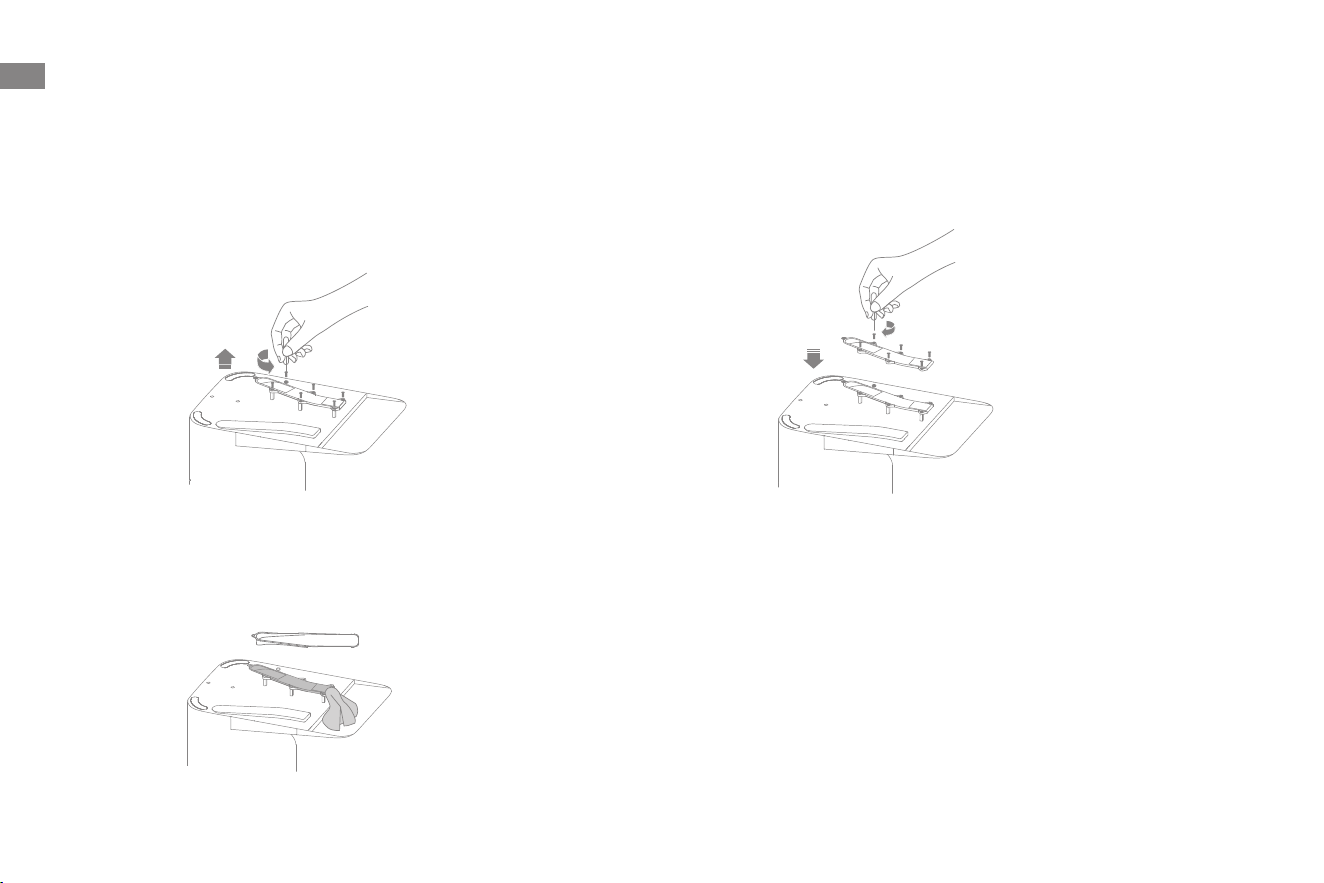

Dust Bag
Routine Maintenance
1. Remove and discard the dust bag. 3. Install a new dust bag.
2. Remove the dust and debris from the lter with a dry cloth. 4. Put back the cover of the dust tank.
Note: Pulling outwards on the handle will seal the dust bag to prevent the
dust and debris from accidentally falling out.

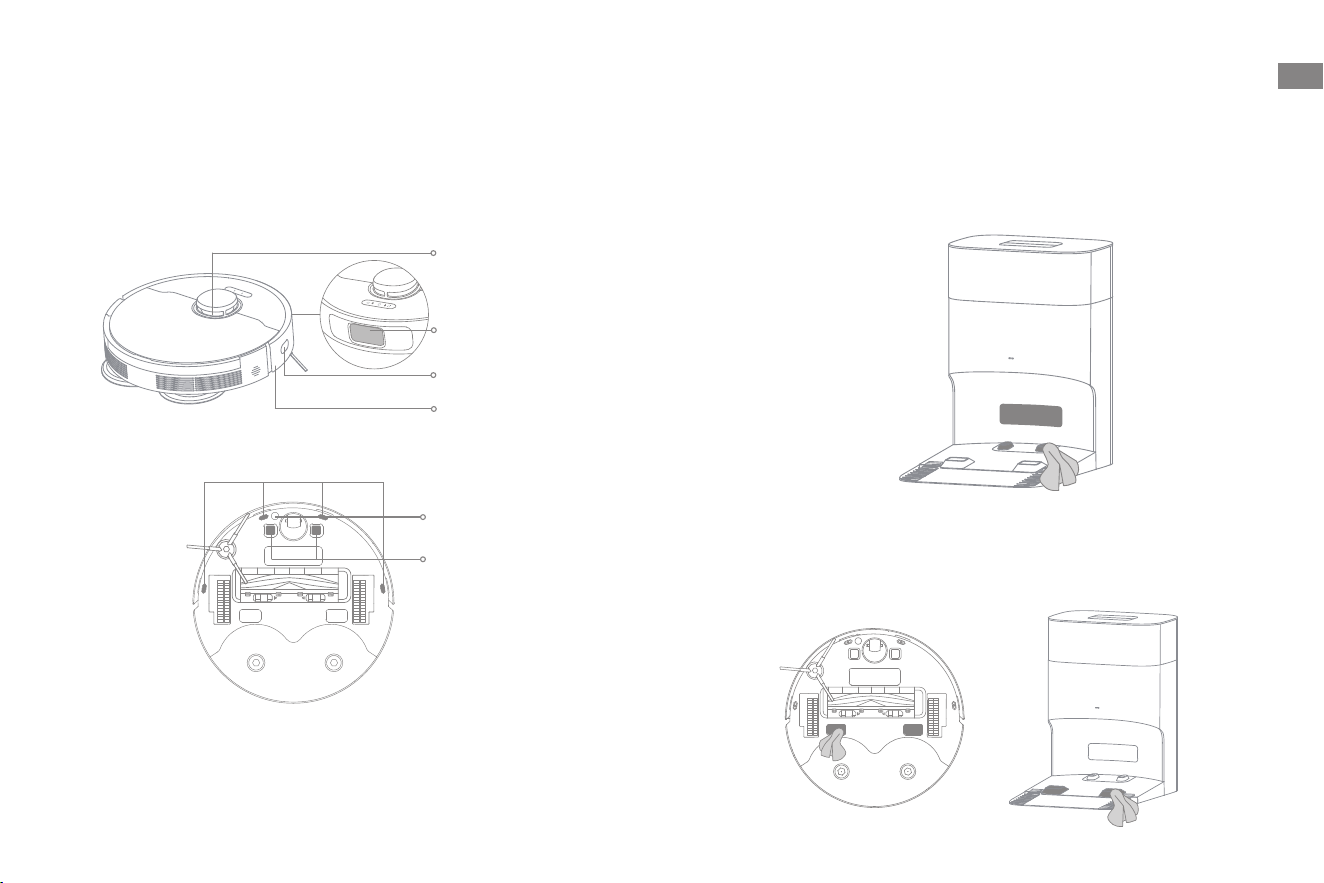

Charging Contacts
Clean the charging contacts and the signaling area of the base station with
a soft and dry cloth.
Auto-empty Vents
Clean the auto-empty vents of the robot and the base station with a soft
and dry cloth.
Edge Sensor
Line Laser Sensor
Laser Distance
Sensor (LDS)
Bumper
Carpet Sensor
Charging Contacts
Cli Sensors
Robot Sensors and Charging Contacts
Wipe sensors and charging contacts of the robot by using a soft and dry
cloth, as shown in the below figure:
Note: A wet cloth can damage sensitive elements within the robot and
the base station. Please use a dry cloth for cleaning.
Routine Maintenance
20 21
ENEN
Dust Bag
Routine Maintenance
1. Remove and discard the dust bag. 3. Install a new dust bag.
2. Remove the dust and debris from the lter with a dry cloth. 4. Put back the cover of the dust tank.
Note: Pulling outwards on the handle will seal the dust bag to prevent the
dust and debris from accidentally falling out.
Charging Contacts
Clean the charging contacts and the signaling area of the base station with
a soft and dry cloth.
Auto-empty Vents
Clean the auto-empty vents of the robot and the base station with a soft
and dry cloth.
Edge Sensor
Line Laser Sensor
Laser Distance
Sensor (LDS)
Bumper
Carpet Sensor
Charging Contacts
Cli Sensors
Robot Sensors and Charging Contacts
Wipe sensors and charging contacts of the robot by using a soft and dry
cloth, as shown in the below figure:
Note: A wet cloth can damage sensitive elements within the robot and
the base station. Please use a dry cloth for cleaning.
Routine Maintenance
22 23
ENEN
Air Duct
Battery
Routine Maintenance
If the air duct is blocked, please clean it according to the following steps.
The robot contains a high-performance lithium-ion battery pack. Make sure
that the battery remains well-charged for daily use to maintain optimal
battery performance.
1. Unscrew mounting screws on the air duct cover and remove the cover.
2. Check whether the air duct is blocked by foreign objects. If any, clean them.
3. Reinstall the air duct cover.
Troubleshooting
Problem Solution
The robot will not turn on.
The battery is low. Recharge the robot on the base station and try again.
The temperature of the battery is too low or too high. It is recommended to operate the appliance at a temperature
between 32 ℉ (0° C) and 104 ℉ (40° C).
The robot will not charge.
The base station is not connected to power, please make sure both ends of its power cord are correctly plugged in.
The contact between the charging contacts on the base station and the robot is poor, please clean the charging
contacts.
The robot fails to connect to Wi-
Fi.
The Wi-Fi network password is incorrect. Make sure the password used to connect to your Wi-Fi network is correct.
The robot does not support a 5 GHz Wi-Fi connection. Make sure the robot is connected to a 2.4 GHz Wi-Fi connection.
The Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.
The robot may not be ready to be congured. Please exit and re-enter the app, and then try again as instructed.
The robot cannot nd and
return to the base station.
The base station is disconnected from power or moved when the robot is not on it. Please connect the base station to
the power supply or place the robot onto the base station to charge.
There are too many obstructions around the base station. Place the base station in a more open area.
Moving the robot may cause it to re-position itself, and it will recreate a map if re-positioning fails. If the robot is
too far from the base station, it might not be able to automatically return on its own, in which case you will need to
manually place the robot onto the base station.
Wipe the signaling area on the base station to remove dust or debris.
The robot gets stuck in front of the base station and cannot return to it.
Clear any obstruction within 5 cm on the left and right sides or within 1.5 m in front of the base station to prevent the
robot from being blocked.
The route for returning to charge is blocked, e.g. the door is closed.
It is recommended to move the base station to a dierent place and try again.
22 23
ENEN
Air Duct
Battery
Routine Maintenance
If the air duct is blocked, please clean it according to the following steps.
The robot contains a high-performance lithium-ion battery pack. Make sure
that the battery remains well-charged for daily use to maintain optimal
battery performance.
1. Unscrew mounting screws on the air duct cover and remove the cover.
2. Check whether the air duct is blocked by foreign objects. If any, clean them.
3. Reinstall the air duct cover.
Troubleshooting
Problem Solution
The robot will not turn on.
The battery is low. Recharge the robot on the base station and try again.
The temperature of the battery is too low or too high. It is recommended to operate the appliance at a temperature
between 32 ℉ (0° C) and 104 ℉ (40° C).
The robot will not charge.
The base station is not connected to power, please make sure both ends of its power cord are correctly plugged in.
The contact between the charging contacts on the base station and the robot is poor, please clean the charging
contacts.
The robot fails to connect to Wi-
Fi.
The Wi-Fi network password is incorrect. Make sure the password used to connect to your Wi-Fi network is correct.
The robot does not support a 5 GHz Wi-Fi connection. Make sure the robot is connected to a 2.4 GHz Wi-Fi connection.
The Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.
The robot may not be ready to be congured. Please exit and re-enter the app, and then try again as instructed.
The robot cannot nd and
return to the base station.
The base station is disconnected from power or moved when the robot is not on it. Please connect the base station to
the power supply or place the robot onto the base station to charge.
There are too many obstructions around the base station. Place the base station in a more open area.
Moving the robot may cause it to re-position itself, and it will recreate a map if re-positioning fails. If the robot is
too far from the base station, it might not be able to automatically return on its own, in which case you will need to
manually place the robot onto the base station.
Wipe the signaling area on the base station to remove dust or debris.
The robot gets stuck in front of the base station and cannot return to it.
Clear any obstruction within 5 cm on the left and right sides or within 1.5 m in front of the base station to prevent the
robot from being blocked.
The route for returning to charge is blocked, e.g. the door is closed.
It is recommended to move the base station to a dierent place and try again.
24 25
ENEN
Troubleshooting
Problem Solution
The robot will not turn o.
The robot cannot be turned o when it is charging. It is recommended to move the robot from the base station, and
then press and hold the button for 3 seconds to turn it o.
If the robot cannot be turned o by performing step 1, press and hold the button for 10 seconds to forcibly turn o
the robot. If the problem persists, please contact after-sales service.
The charging speed is slow.
It takes about 6 hours to fully charge the robot when its battery is low.
If you operate the robot at temperatures outside of the specied range, the charging speed will automatically slow
down to extend the battery life.
The charging contacts on both the robot and the base station may be dirty, please wipe them with a dry cloth.
The noise increases while the
robot is operating.
Check whether the dust box's lter is clogged. If so, clean it or replace it.
A hard object may be caught in the main brush or the dust box. Check and remove any hard object.
The main brush or the side brush may become tangled. Check and remove any foreign objects.
Switch the suction mode to Standard or Quiet.
The robot moves without
following the set route.
Objects such as power cords and slippers should be organized before using the robot.
Working on wet slippery surfaces may cause the main wheel to slip. It is recommended to dry any wet areas before
using the robot.
Wipe the line laser sensor on the robot with a clean, soft, and dry cloth to keep them clean and unobstructed.
The robot misses the rooms to
be cleaned.
Make sure that the doors of the rooms to be cleaned are open.
Check whether there is a threshold higher than 2 cm at the door of the room. The robot cannot climb over high
thresholds or steps.
The place in front of the room to be cleaned may be wet and slippery, causing the robot to slip and work abnormally.
Please try drying the oor before using the robot.
Troubleshooting
Problem Solution
The robot will not resume cleaning after
charging.
Make sure that the robot is not set to the Do Not Disturb (DND) mode, which will prevent it from resuming
cleaning.
The robot will not resume cleaning after you manually place the robot on the base station or send the robot
to charge via the app or the button .
The base station cannot automatically
empty the dust box.
Check whether the dust bag in the dust tank is full.
If the dust bag is not full, check whether there is any obstruction at the auto-empty vents of the robot, the
base station, or the dust box. If any, clean the blocked part in time.
The mop pad holder is raised abnormally.
Please remove the mop pad holder to check if there is any foreign object stuck in it, and try to restart the
robot. If the problem persists, please contact the after-sales service team.
No water comes out of the water tank,
or only a little bit comes out.
Check whether there is water inside the water tank.
Clean the blowhole on the top of the water tank.
Clean the mop pads if it becomes dirty.
Make sure the mop assembly is installed correctly according to the user manual.
Robot returns to the base station
without performing auto-empty tasks.
DND mode prevents the robot from performing auto-empty tasks.
For more support, contact us via https://global.dreametech.com.
24 25
ENEN
Troubleshooting
Problem Solution
The robot will not turn o.
The robot cannot be turned o when it is charging. It is recommended to move the robot from the base station, and
then press and hold the button for 3 seconds to turn it o.
If the robot cannot be turned o by performing step 1, press and hold the button for 10 seconds to forcibly turn o
the robot. If the problem persists, please contact after-sales service.
The charging speed is slow.
It takes about 6 hours to fully charge the robot when its battery is low.
If you operate the robot at temperatures outside of the specied range, the charging speed will automatically slow
down to extend the battery life.
The charging contacts on both the robot and the base station may be dirty, please wipe them with a dry cloth.
The noise increases while the
robot is operating.
Check whether the dust box's lter is clogged. If so, clean it or replace it.
A hard object may be caught in the main brush or the dust box. Check and remove any hard object.
The main brush or the side brush may become tangled. Check and remove any foreign objects.
Switch the suction mode to Standard or Quiet.
The robot moves without
following the set route.
Objects such as power cords and slippers should be organized before using the robot.
Working on wet slippery surfaces may cause the main wheel to slip. It is recommended to dry any wet areas before
using the robot.
Wipe the line laser sensor on the robot with a clean, soft, and dry cloth to keep them clean and unobstructed.
The robot misses the rooms to
be cleaned.
Make sure that the doors of the rooms to be cleaned are open.
Check whether there is a threshold higher than 2 cm at the door of the room. The robot cannot climb over high
thresholds or steps.
The place in front of the room to be cleaned may be wet and slippery, causing the robot to slip and work abnormally.
Please try drying the oor before using the robot.
Troubleshooting
Problem Solution
The robot will not resume cleaning after
charging.
Make sure that the robot is not set to the Do Not Disturb (DND) mode, which will prevent it from resuming
cleaning.
The robot will not resume cleaning after you manually place the robot on the base station or send the robot
to charge via the app or the button .
The base station cannot automatically
empty the dust box.
Check whether the dust bag in the dust tank is full.
If the dust bag is not full, check whether there is any obstruction at the auto-empty vents of the robot, the
base station, or the dust box. If any, clean the blocked part in time.
The mop pad holder is raised abnormally.
Please remove the mop pad holder to check if there is any foreign object stuck in it, and try to restart the
robot. If the problem persists, please contact the after-sales service team.
No water comes out of the water tank,
or only a little bit comes out.
Check whether there is water inside the water tank.
Clean the blowhole on the top of the water tank.
Clean the mop pads if it becomes dirty.
Make sure the mop assembly is installed correctly according to the user manual.
Robot returns to the base station
without performing auto-empty tasks.
DND mode prevents the robot from performing auto-empty tasks.
For more support, contact us via https://global.dreametech.com.
26 27
ENEN
Specications
Model RLL42SD
Charging Time Approx. 6 hours
Rated Voltage XX.XV
Rated Power XX W
Operation Frequency 2400-2483.5 MHz
Maximum Output Power ＜ 20 dBm
Model RCLD1
Rated Input XXX-XXX V ~ XX-XX Hz
Rated Output XX.X V X A
Rated Power (during
dust emptying)
XXX W
Robot Base Station with Auto-Empty
Undernormaluseofcondition,thisequipmentshouldbekeptaseparation
distanceofatleast20cmbetweentheantennaandthebodyoftheuser.
All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed
with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a
designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities.
Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the
installer or local authorities for more information about the location as well as terms and conditions of such collection points.
WEEE Information
CAUTION:
Removal Guide:
Battery Disposal and Removal
The built-in lithium-ion battery contains substances that are hazardous to the environment. Before disposing of the battery, make sure the battery is removed
by qualified technicians and discarded at an appropriate recycling facility.
– the battery must be removed from the appliance before it is scrapped;
– the appliance must be disconnected from the supply mains when removing the battery;
– the battery is to be disposed of safely.
Before removing the battery, disconnect the power and run out the battery as much as possible.
Unneeded batteries should be discarded at an appropriate recycling facility.
Do not expose to high temperature environment to avoid risks of explosion.
Under abusive conditions, liquid may be ejected from the battery. If contact occurs, flush with water and seek medical help.
1. Turn over the robot, use a proper tool to remove the screws on the back of the robot, and then remove the cover.
2. Unplug the terminals between the battery and PCB board to remove the battery.
26 27
ENEN
Specications
Model RLL42SD
Charging Time Approx. 6 hours
Rated Voltage XX.XV
Rated Power XX W
Operation Frequency 2400-2483.5 MHz
Maximum Output Power ＜ 20 dBm
Model RCLD1
Rated Input XXX-XXX V ~ XX-XX Hz
Rated Output XX.X V X A
Rated Power (during
dust emptying)
XXX W
Robot Base Station with Auto-Empty
Undernormaluseofcondition,thisequipmentshouldbekeptaseparation
distanceofatleast20cmbetweentheantennaandthebodyoftheuser.
All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed
with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a
designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities.
Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the
installer or local authorities for more information about the location as well as terms and conditions of such collection points.
WEEE Information
CAUTION:
Removal Guide:
Battery Disposal and Removal
The built-in lithium-ion battery contains substances that are hazardous to the environment. Before disposing of the battery, make sure the battery is removed
by qualified technicians and discarded at an appropriate recycling facility.
– the battery must be removed from the appliance before it is scrapped;
– the appliance must be disconnected from the supply mains when removing the battery;
– the battery is to be disposed of safely.
Before removing the battery, disconnect the power and run out the battery as much as possible.
Unneeded batteries should be discarded at an appropriate recycling facility.
Do not expose to high temperature environment to avoid risks of explosion.
Under abusive conditions, liquid may be ejected from the battery. If contact occurs, flush with water and seek medical help.
1. Turn over the robot, use a proper tool to remove the screws on the back of the robot, and then remove the cover.
2. Unplug the terminals between the battery and PCB board to remove the battery.
For more support, contact us via https://global.dreametech.com
Manufactured by: Dreame Trading (Tianjin) Co., Ltd.
Made in China
RLL42SD-EU-A00
10/2023
The word "dreame" is the abbreviation of Dreame Technology Co., Ltd. and its subsidiaries in China. It is the transliteration of the company's Chinese name " 追觅 ",
which means striving for excellence in every endeavor and reects the company's vision of continuous pursuit, exploration and search in technology.
The illustrations in this manual are for reference only. Please refer to the actual product.
L10s
Plus
Auto-Empty Robot Vacuum and Mop
User Manual
