Technical Support
If you need technical support with your Boss Audio product or have
questions about its use, please contact us:
805.751.4853
www.BossAudio.com
5
Due to ongoing product development, specifications are subject to change without notice.
1
Congratulations on your purchase of the Boss Audio Phantom Series
Subwoofer. Boss Audio takes great pride in producing products that
look great, sound great, and stand up to the daily rigors applied by
audio enthusiasts around the world.

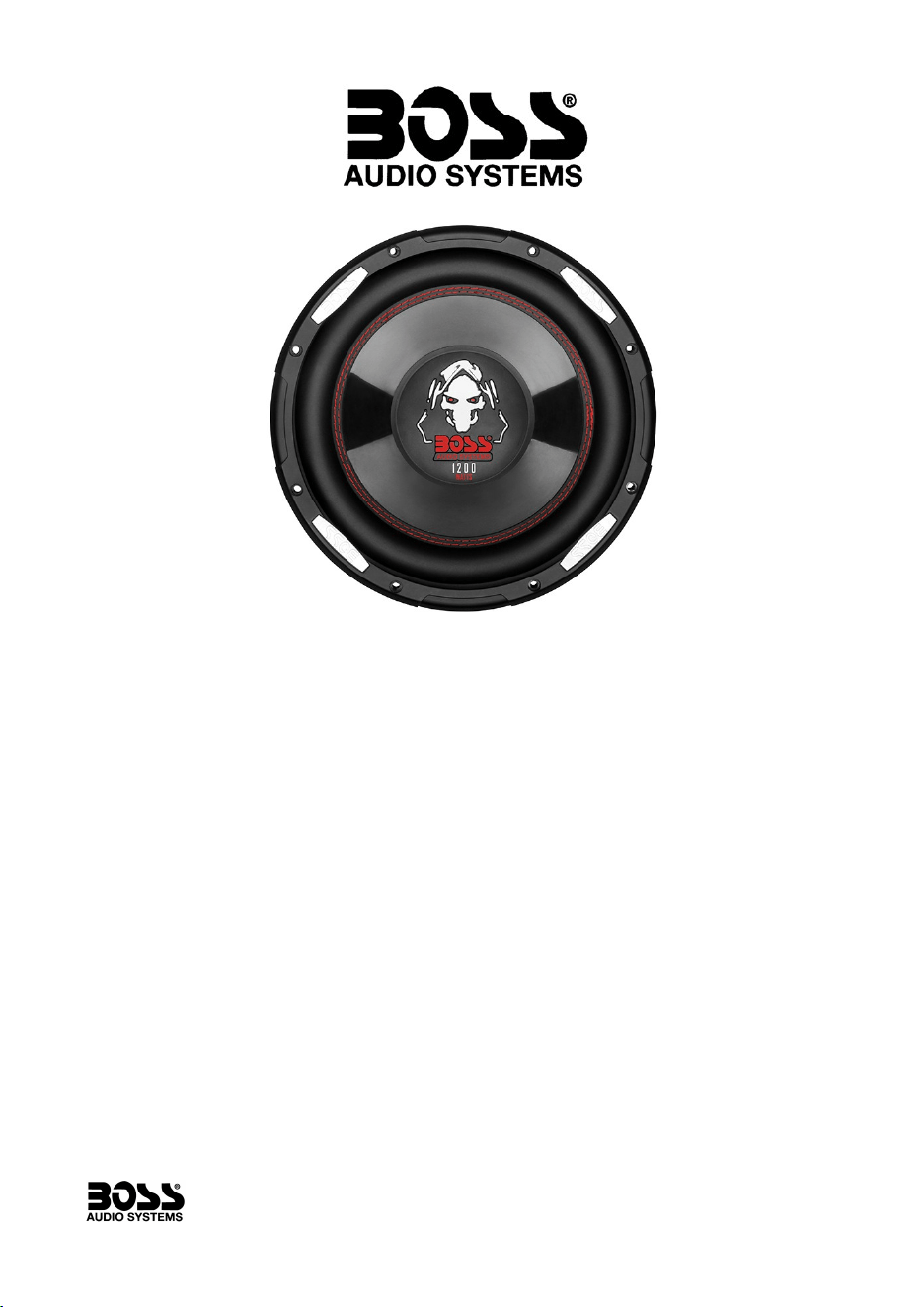

P100F 10” (25cm) Flat Subwoofer
Single 4 Ω Voice Coil
1200 W Peak Power Handling
2”(50.8 mm) High Temperature Voice Coil
Butyl Rubber Surround
2
4
Enclosures
The P100F will work in an extremely compact sealed enclosure
ranging from 0.35 ft³ -0.65 ft³. Since the woofer has pole-vent, it
needs a minimum clearance from the rear wall of the enclosure of
0.75” (19 mm).
Below you will find the dimensions to make the enclosure to suit the
subwoofers needs, it has been designed for maximum output while
retaining great sound quality.
The dimensions have already accounted for the volume displacement
of the subwoofer, and using 3/4” (19mm) MDF. All dimensions are
external.

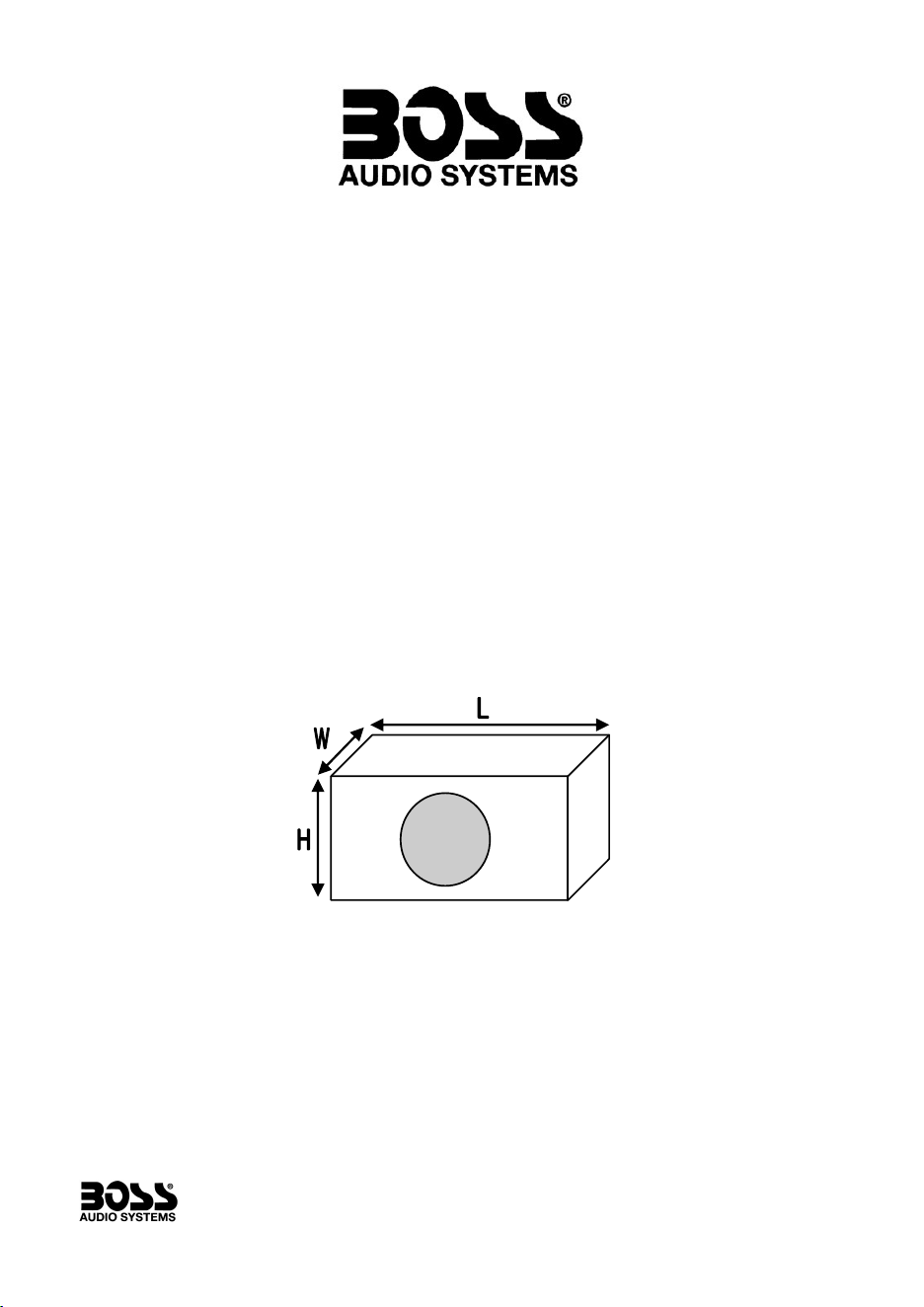

Sealed Dimensions:
Length (L) : 16” (406.4 mm)
Width (W) : 8” (203.2 mm)
Height (H) : 12” (304.8 mm)
Cutout Diameter: 9-1/8” (231.8 mm)
Enclosure Dimensions
4
4 Ω

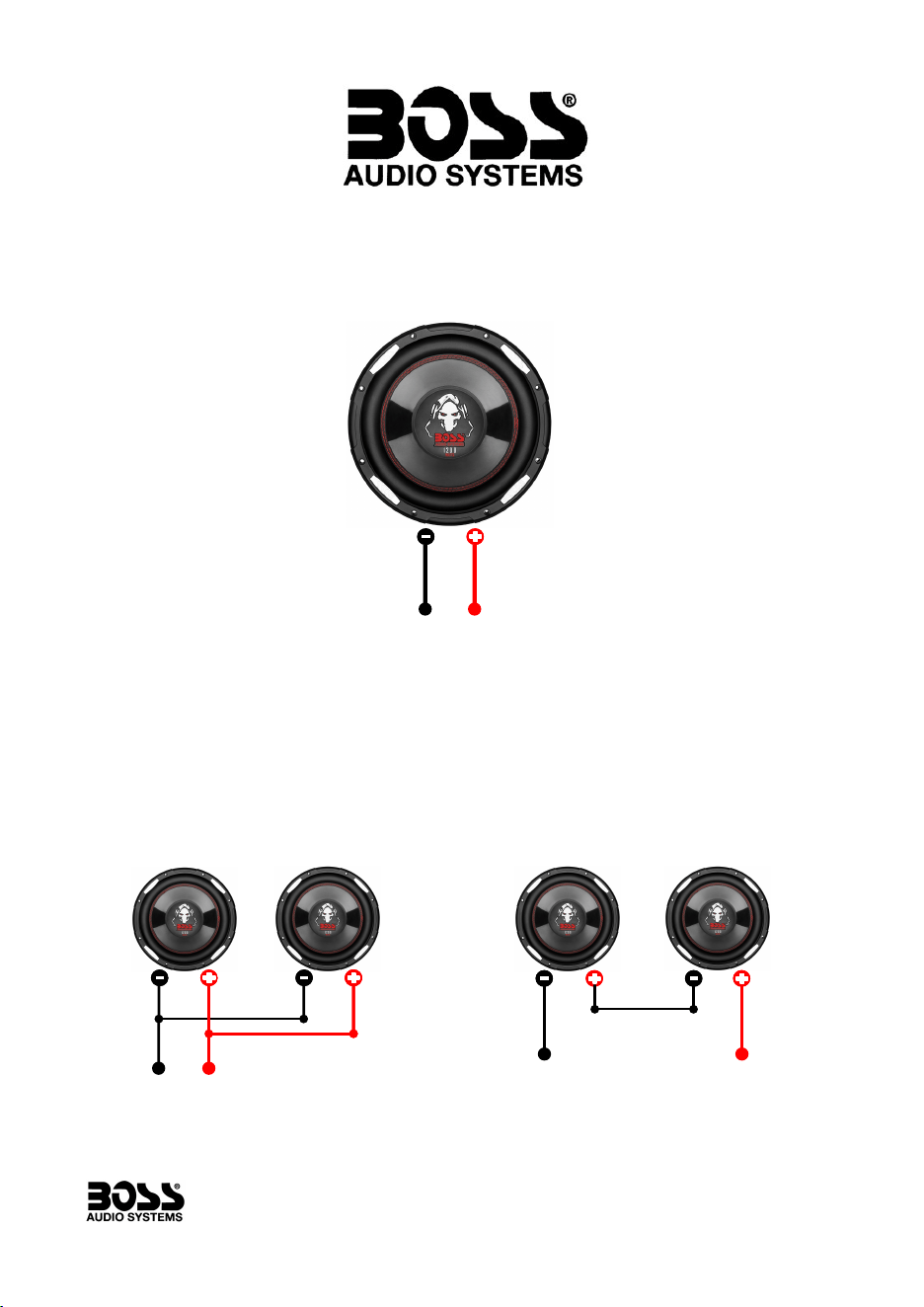

Wiring your Subwoofer
Multiple Subwoofers
Series
8 Ω
Parallel
2 Ω
Multiple Subwoofers
3
Product Specifications
Impedance 4 Ω
Resonant Frequency 48 Hz
Qts 0.918
Qms 5.179
Qes 1.116
Vas 0.772 cu ft. (21.86 liters)
Xmax 5mm
Sensitivity (1 W/ 1 m) 85 dB
Peak Power Handling 1200 W
Mounting Depth 3-3/8” (86 mm)
Cutout Diameter 9-1/8” (231.76 mm)
4
4 Ω
Wiring your Subwoofer
Multiple Subwoofers
Series
8 Ω
Parallel
2 Ω
Multiple Subwoofers
3
Product Specifications
Impedance 4 Ω
Resonant Frequency 48 Hz
Qts 0.918
Qms 5.179
Qes 1.116
Vas 0.772 cu ft. (21.86 liters)
Xmax 5mm
Sensitivity (1 W/ 1 m) 85 dB
Peak Power Handling 1200 W
Mounting Depth 3-3/8” (86 mm)
Cutout Diameter 9-1/8” (231.76 mm)
P100F 10” (25cm) Flat Subwoofer
Single 4 Ω Voice Coil
1200 W Peak Power Handling
2”(50.8 mm) High Temperature Voice Coil
Butyl Rubber Surround
2
4
Enclosures
The P100F will work in an extremely compact sealed enclosure
ranging from 0.35 ft³ -0.65 ft³. Since the woofer has pole-vent, it
needs a minimum clearance from the rear wall of the enclosure of
0.75” (19 mm).
Below you will find the dimensions to make the enclosure to suit the
subwoofers needs, it has been designed for maximum output while
retaining great sound quality.
The dimensions have already accounted for the volume displacement
of the subwoofer, and using 3/4” (19mm) MDF. All dimensions are
external.
Sealed Dimensions:
Length (L) : 16” (406.4 mm)
Width (W) : 8” (203.2 mm)
Height (H) : 12” (304.8 mm)
Cutout Diameter: 9-1/8” (231.8 mm)
Enclosure Dimensions
Technical Support
If you need technical support with your Boss Audio product or have
questions about its use, please contact us:
805.751.4853
www.BossAudio.com
5
Due to ongoing product development, specifications are subject to change without notice.
1
Congratulations on your purchase of the Boss Audio Phantom Series
Subwoofer. Boss Audio takes great pride in producing products that
look great, sound great, and stand up to the daily rigors applied by
audio enthusiasts around the world.
