Vogelzang VG5722-W 170 lb. Hopper 2,200 sq. Ft. Pellet Stove User Manual

* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.

THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.

Owner’s Instruction and Operation Manual

U.S. Environmental Protection Agency

Certied to comply with 2020 particulate

emissions standards.

SAFETY NOTICE: If this heater is not properly installed, a house re may result. For

your safety, follow the installation instructions. Never use make-shift compromises

during the installation of this heater. Contact local building or re ocials about

permits, restrictions and installation requirements in your area. NEVER OPERATE THIS

PRODUCT WHILE UNATTENDED.

CAUTION! Please read this entire manual before you install or use your new room

heater. Failure to follow instructions may result in property damage, bodily injury, or

even death. Improper Installation Will Void Your Warranty!

Save These Instructions In A Safe Place For Future Reference.

CALIFORNIA PROPOSITION 65 WARNING:

This product can expose you to chemicals

including carbon monoxide, which is known to the

State of California to cause cancer, birth defects,

and/or other reproductive harm. For more

information, go to www.P65warnings.ca.gov

854003F-1904N

VG5722-W

Report #: F22-782

Certied to ASTM E1509-2022 and CAN/ULC

S627:2023; Complies to CAN ICES-3(B)/NMB-3(B);

Contains IC:23243-WBR1DIPEX

Mobile Home / Transportable Building Approved

Model Number:

Your pellet stove has been safety tested and listed to ASTM E1509-2022 and CAN/ULC S627:2023. This manual describes

the installation and operation of the Vogelzang VG5722-W pellet stove. This heater meets the 2020 U.S. Environmental

Protection Agency’s emission limits for wood-heaters sold after May 15, 2020. Under specic EPA test conditions burning

wood pellet fuel this heater has been shown to deliver heat at a rate of 13,640 to 32,591 Btu/hr. This heater achieved a

particulate emissions rate of 1.5 g/hr when tested to method ASTM E 2779 / EPA Method 28R and 76% eciency.

INTRODUCTION

Heating Specications

Fuel Burn Rate*

2.1 to 5 lbs/hr (0.97 to

2.26 kg/hr)

* Pellet size may affect the actual rate of fuel feed,

burn times, and hopper capacity. Fuel feed rates may

vary by as much as 20%. Use PFI listed fuel for best

results.

Burn Time (lowest setting) 80 hrs.

Hopper Capacity * *up to 170lbs. (77kg)

Flue Size 3” or 4”

Electrical Specications

Electrical Rating 110-120 Volts AC, 60 HZ, 3.0 Amps

Watts (operational) 175 (approx.)

Watts (igniter running) 425 (approx.)

Dimensions

Overall: Height x Width x Depth 40” (1003mm) x 26” (660mm) x 30” (762mm)

Floor To Exhaust Pipe Center 6.28” (160 mm)

Floor To Fresh Air Intake Center 7.34” (187 mm)

WARNING:

IT IS AGAINST FEDERAL REGULATIONS TO OPERATE THIS WOOD HEATER IN A MANNER INCONSISTENT WITH THE

OPERATING INSTRUCTIONS IN THE OWNER’S MANUAL.

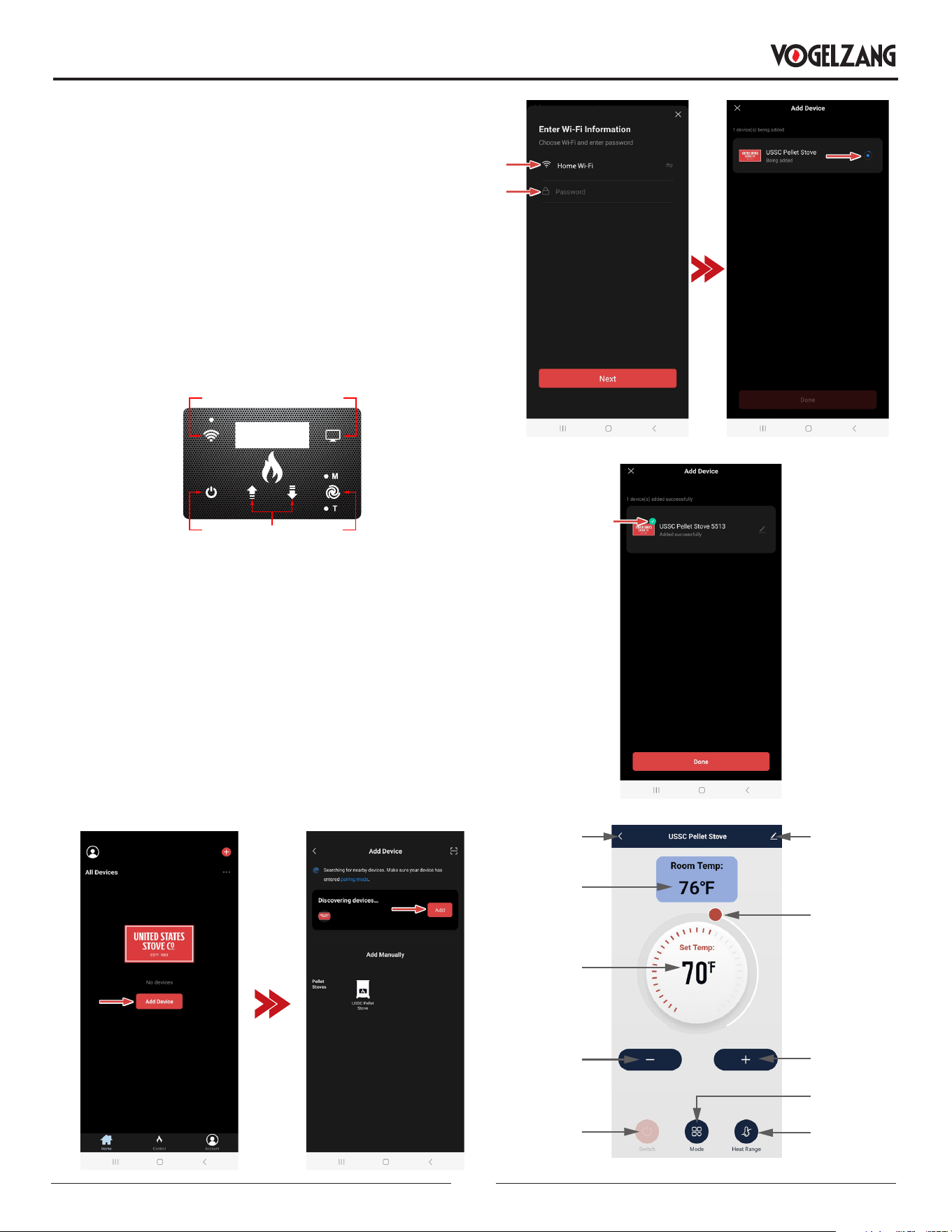

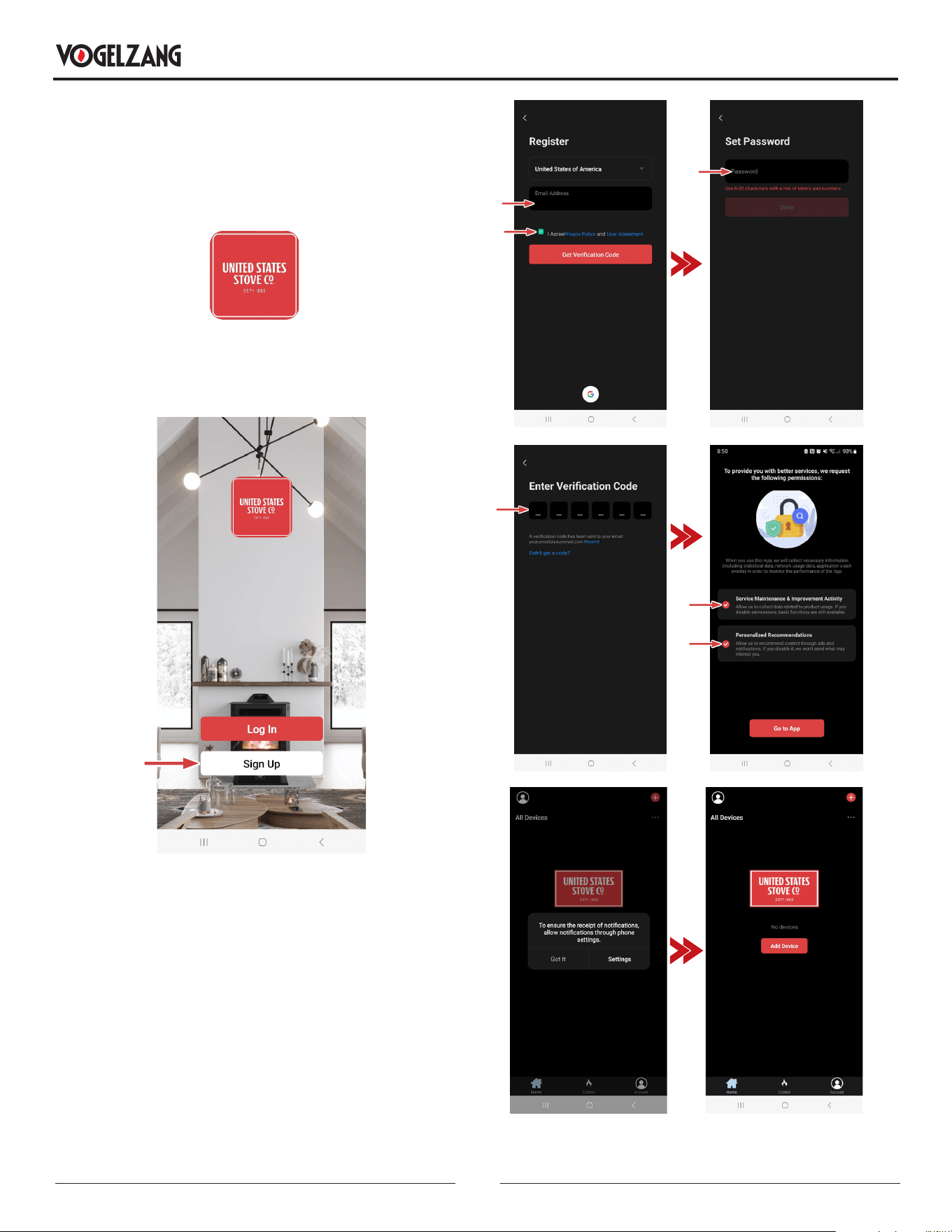

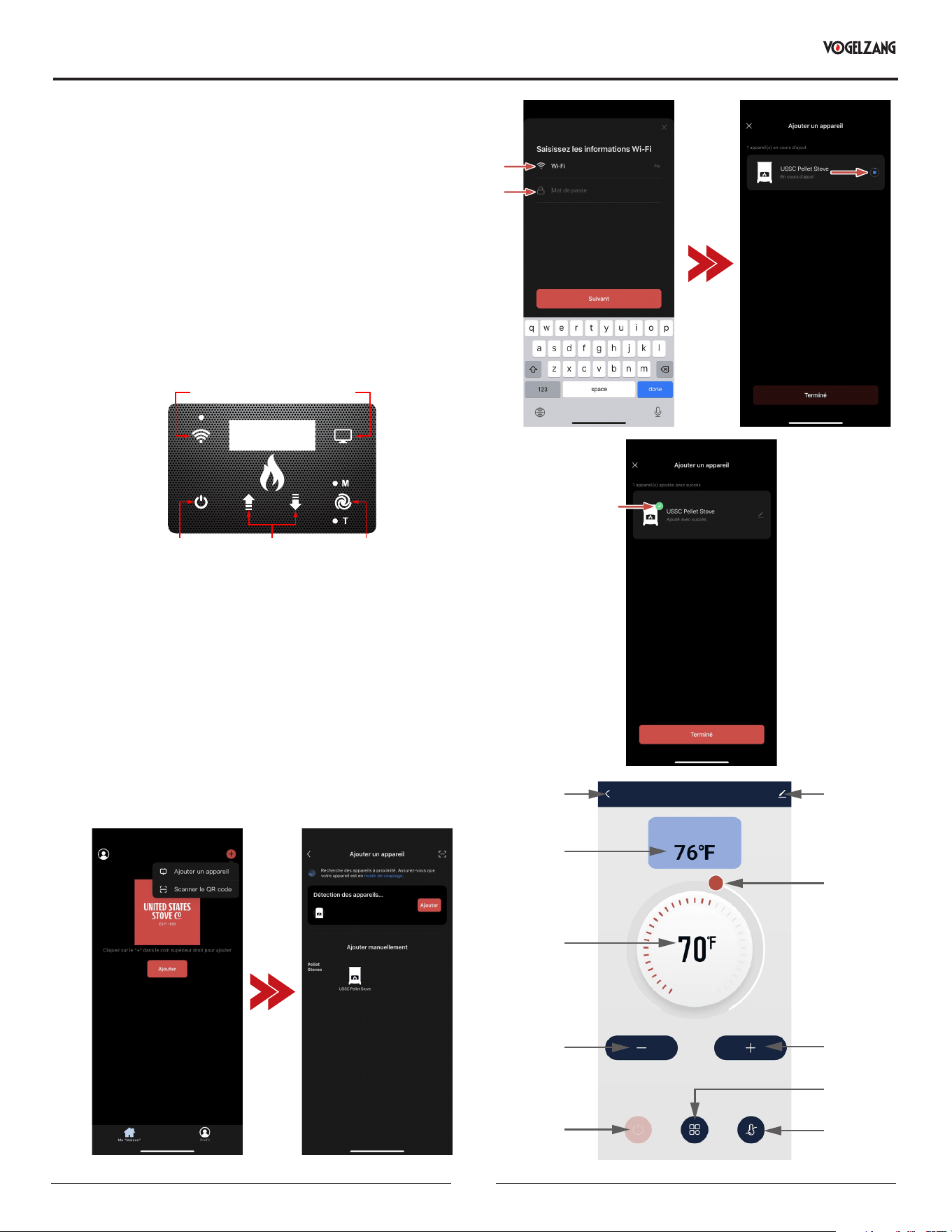

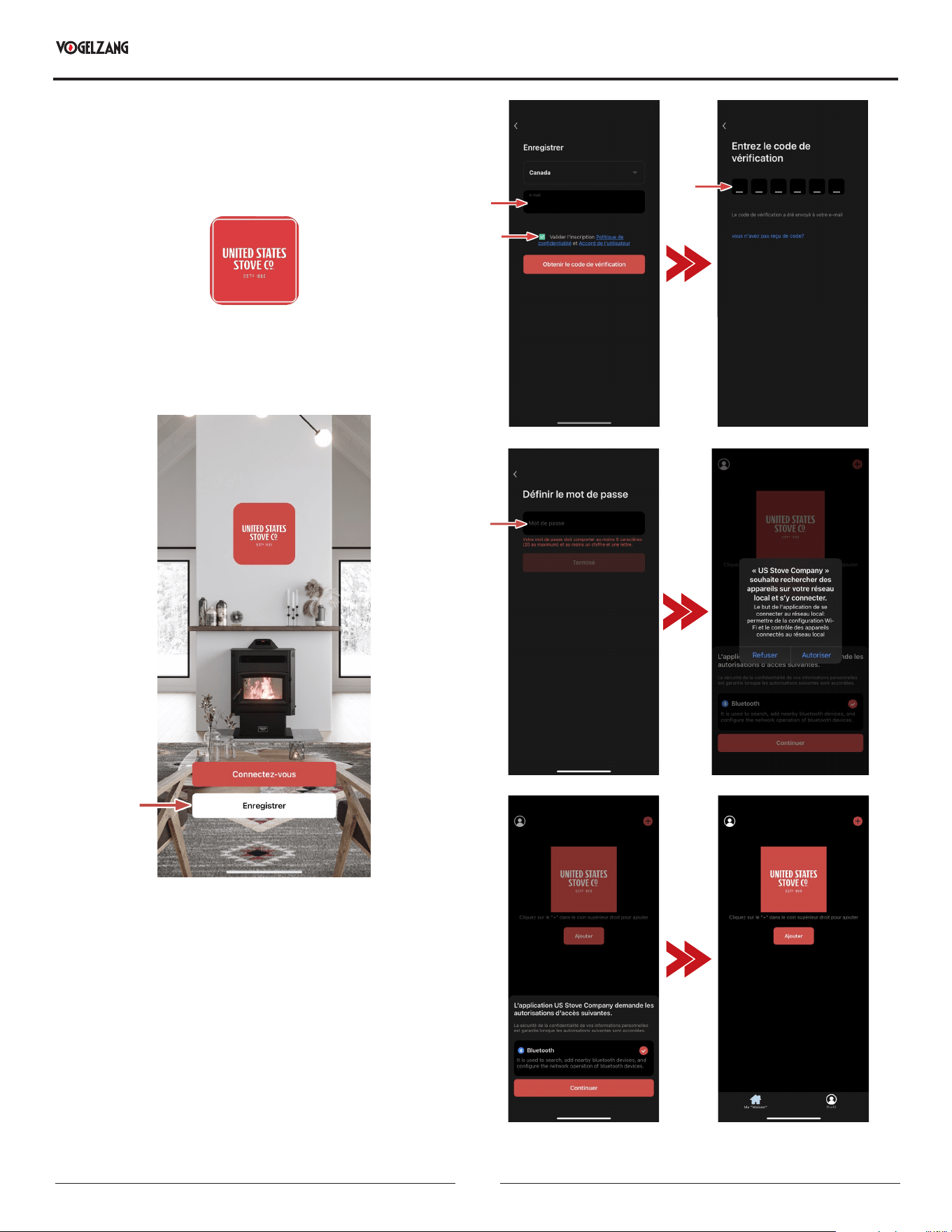

Note: To enable WiFi or Bluetooth® connectivity

for your stove, download the US Stove Co. App.

The US Stove Co. app allows you to operate

and monitor your stove. The App is available

for both iOS and Android and can be found by

searching for the following: US Stove Company

Heating Made Simple.

For Customer Service, please call:

1-800-750-2723 Ext 5050 or;

Text to 423-301-5624 or;

Email us at:

customerservice@usstove.com

Note: Register your product by using your smart

phone with the QR code. Save your receipts with

your records for any warranty claims.

You can also register your product online at

www.usstove.com/support/product-registration

/ OR by downloading the US Stove Company app

available for iOS and Android.

INSTALLATION CHECKLIST

Your Wood Stove should be installed by a qualied installer only. An NFI qualied Installer can be found at www.ncertied.

org/public/nd-an-n-pro/

CUSTOMER SERVICE

1-800-750-2723 ext 5050

Text to 423-301-5624

Email to: Customerservice@usstove.com

COMMISSIONING CHECKLIST

This checklist is to be completed in full by the qualied person who installs this unit. Keep this page for future reference.

Failure to install and commission according to the manufacturer’s instructions and complete this checklist will invalidate

the warranty.

Please Print

Customer Name: Telephone Number:

Address:

Model:

Serial Number:

Installation Company Name: Phone Number:

Installation Technician’s Name: License Number:

DESCRIPTION OF WORK

Location of installed appliance: _____________________________________________________________________________________

Venting System: New Venting System Yes No If yes, Brand ______________________________________________

If no, Date of inspection of existing venting system: __________________________________________________________________

COMMISSIONING

Conrm Hearth Pad Installation as per Installation Instructions .........................................................................................

Conrm proper placement of internal parts ...........................................................................................................................

Check soundness of door gasket and door seals .................................................................................................................

Conrm clearances to combustibles as per installation instructions in this manual .........................................................

Check the operations of the air controls ................................................................................................................................

Conrm the venting system is secure and sealed .................................................................................................................

Conrm the stove starts and operates properly ....................................................................................................................

Check to ensure a CO alarm is installed as per local building codes and is functional ......................................................

Explain the safe operation, proper fuel usage, cleaning, and routine maintenance requirements .....................................

Declaration of Completion: As the qualied person responsible for the work described above, I conrm that the appliance

as associated work has been installed as per manufacturer’s instructions and following any applicable building and

installation codes.

Signed: _______________________________________ Print Name: ___________________________________ Date: _______________

Home Owner: RETAIN THIS INFORMATION FOR FUTURE REFERENCE

INSTALLATION

FOR CUSTOMER SERVICE CALL: 800-750-2723 EXT 5050

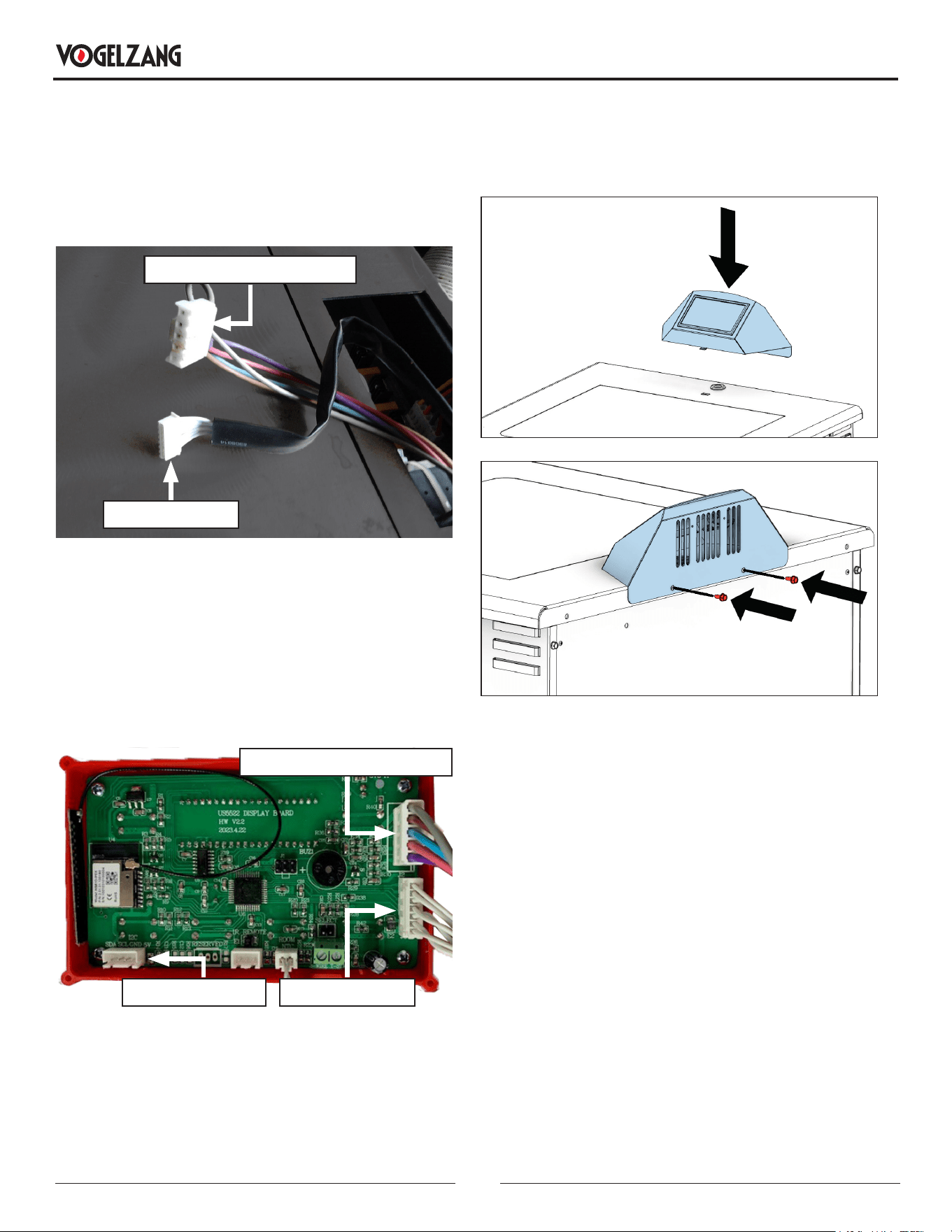

TOP CONTROL MOUNT INSTALLATION

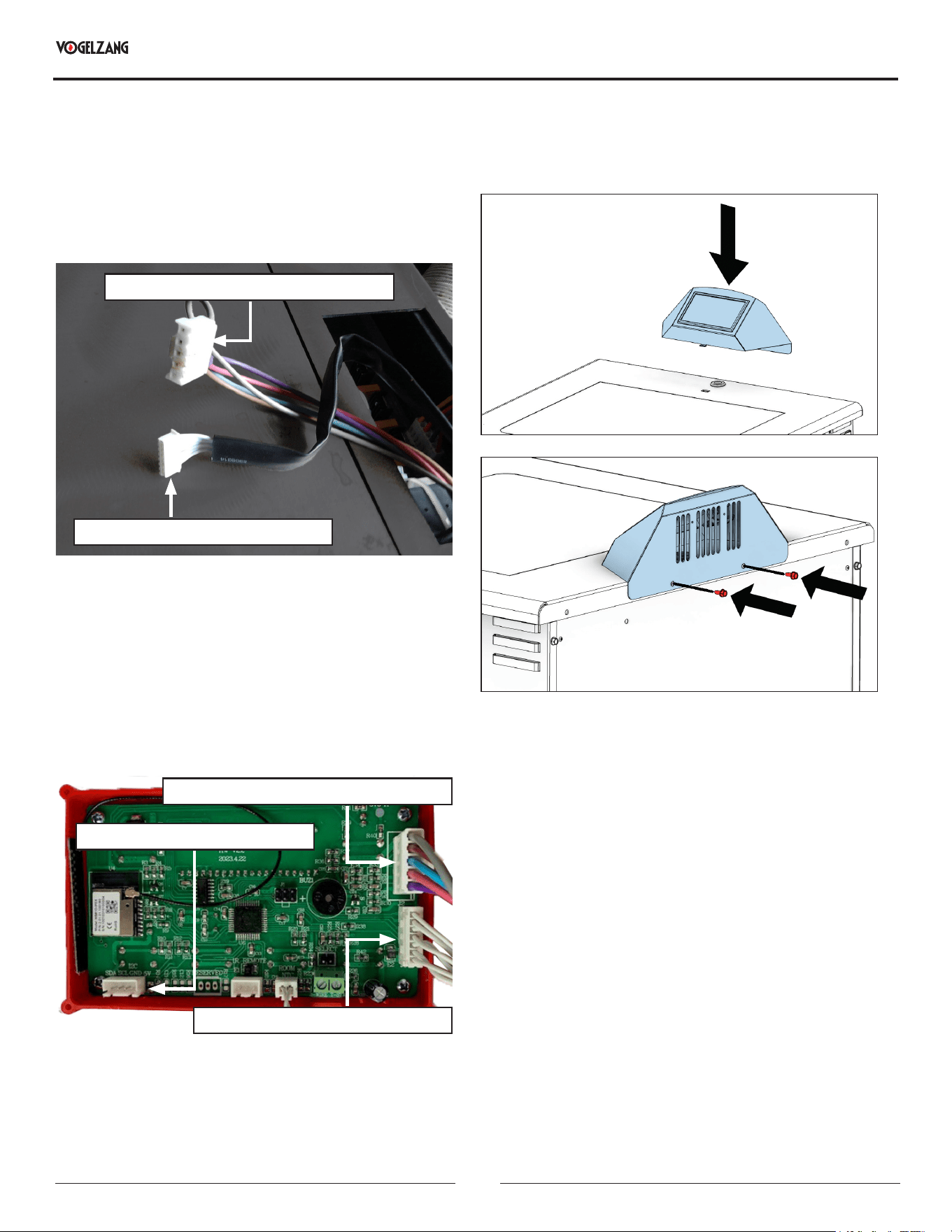

1. Pull the factory installed 5 Pin Main Wiring Harness, 7

Pin Com Cabel, and 4 Pin Wiring Harness, (not shown)

out of the top of the stove.

5 Pin Main Wiring Harness

7 Pin Com Cable

2. Unpack the top mount controls and ensure that all

wires are securely attached.

3. Connect the factory installed 5 Pin Main Wiring

Harness to the top right-hand corner of the control

panel. Connect the factory installed 7 Pin Com Cabel

to the control panel directly below the 5 Pin Main

Wiring Harness. Connect the 4 Pin Wiring Harness to

the bottom left-hand corner of the control panel.

7 Pin Com Cable4 Pin Fuel Sensor

5 Pin Main Wiring Harness

4. Secure the control panel to the top of the stove with

two sheet metal screws.

INSTALLATION

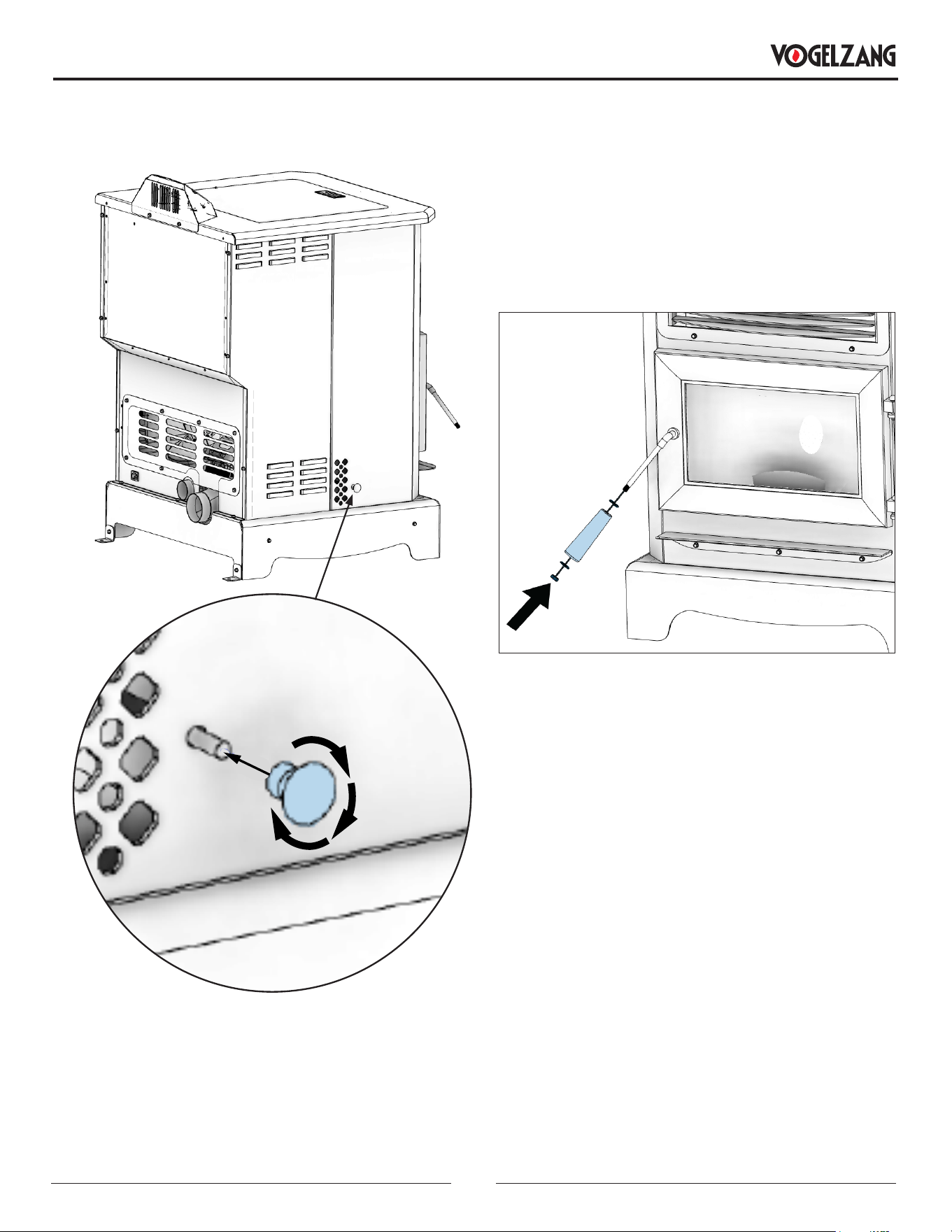

DAMPER HANDLE INSTALLATION

Twist the damper knob clockwise onto the damper rod.

DOOR HANDLE INSTALLATION

1. Slide one of the provided washers onto the door

handle rod.

2. Next slide the wood handle onto the door handle rod.

3. Slide the other provided washer onto the door handle

rod.

4. Screw the provided nut onto the end of the door handle

rod to secure everything in place.

INSTALLATION

SAFETY NOTICE

• IF THIS STOVE IS NOT PROPERLY INSTALLED, A

HOUSE FIRE MAY RESULT. TO REDUCE THE RISK OF

FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS.

• CONTACT YOUR LOCAL BUILDING OFFICIALS TO

OBTAIN A PERMIT AND INFORMATION ON ANY

ADDITIONAL INSTALLATION RESTRICTIONS OR

INSPECTION REQUIREMENTS IN YOUR AREA.

• DO NOT PLACE CLOTHING OR OTHER FLAMMABLE

ITEMS ON OR NEAR THIS STOVE.

• NEVER USE GASOLINE, GASOLINE-TYPE LANTERN

FUEL, KEROSENE, CHARCOAL LIGHTER FLUID, OR

SIMILAR LIQUIDS TO START OR ’FRESHEN UP’

A FIRE IN THIS STOVE. KEEP ALL SUCH LIQUIDS

WELL AWAY FROM THE STOVE WHILE IT IS IN USE.

• THIS APPLIANCE IS A FREESTANDING HEATER.

IT IS NOT INTENDED TO BE ATTACHED TO ANY

TYPE OF DUCTING. IT IS NOT A FURNACE. DO NOT

CONNECT THIS UNIT TO ANY AIR DISTRIBUTION

DUCT OR SYSTEM. THIS APPLIANCE IS NOT

INTENDED FOR COMMERCIAL USE.

• INSTALL VENT AT CLEARANCES SPECIFIED BY THE

VENT MANUFACTURER.

• DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST

VENTING SYSTEM OF THIS UNIT.

• YOUR STOVE REQUIRES PERIODIC MAINTENANCE

AND CLEANING (SEE ”MAINTENANCE”). FAILURE

TO MAINTAIN YOUR STOVE MAY LEAD TO

IMPROPER AND/OR UNSAFE OPERATION.

• A POWER SURGE PROTECTOR IS REQUIRED. THIS

UNIT MUST BE PLUGGED INTO A 110 - 120V, 60

HZ GROUNDED ELECTRICAL OUTLET. DO NOT USE

AN ADAPTER PLUG OR SEVER THE GROUNDING

PLUG. DO NOT ROUTE THE ELECTRICAL CORD

UNDERNEATH, IN FRONT OF, OR OVER THE HEATER.

DO NOT ROUTE THE CORD IN FOOT TRAFFIC AREAS

OR PINCH THE CORD UNDER FURNITURE.

CAUTION:

BURNING FUEL CREATES CARBON MONOXIDE AND

CAN BE HAZARDOUS TO YOUR HEALTH IF NOT

PROPERLY VENTED.

ATTENTION:

• A WORKING SMOKE DETECTOR MUST BE

INSTALLED IN THE SAME ROOM AS THIS PRODUCT.

• INSTALL A SMOKE DETECTOR ON EACH FLOOR OF

YOUR HOME; INCASE OF ACCIDENTAL FIRE FROM

ANY CAUSE IT CAN PROVIDE TIME FOR ESCAPE.

• THE SMOKE DETECTOR MUST BE INSTALLED AT

LEAST 15 FEET (4,57 M) FROM THE APPLIANCE IN

ORDER TO PREVENT UNDUE TRIGGERING OF THE

DETECTOR WHEN RELOADING.

CAUTION:

• USE OF OUTSIDE AIR IS NOT REQUIRED FOR THIS

UNIT.

• DO NOT UNPLUG THE STOVE IF YOU SUSPECT A

MALFUNCTION. TURN THE ON/OFF SWITCH TO

”OFF’ AND CONTACT YOUR DEALER.

• THE HEATER WILL NOT OPERATE DURING A POWER

OUTAGE. IF A POWER OUTAGE DOES OCCUR,

CHECK THE HEATER FOR SMOKE SPILLAGE AND

OPEN A WINDOW IF ANY SMOKE SPILLS INTO THE

ROOM.

• NEVER BLOCK FREE AIRFLOW THROUGH THE OPEN

VENTS OF THE UNIT.

Your heater should be installed by a qualied NFI (US) or

WETT (Canada) technician. To nd the nearest qualied

installer, go to:

https://ncertied.org,

https://www.wettinc.ca/

INSTALLATION

INSTALLATION OPTIONS

Freestanding Unit - supported by pedestal/legs and

placed on a non-combustible oor surface in compliance

with clearance requirements for a freestanding stove

installation.

Alcove Unit - supported by pedestal/legs and placed

on a non-combustible oor surface in compliance with

clearance requirements for an alcove installation.

IMPROPER INSTALLATION

The use of other components other than stated herein

could cause bodily harm, heater damage, and void your

warranty. The manufacturer will not be held responsible

for damage caused by the malfunction of a stove due to

improper venting or installation.

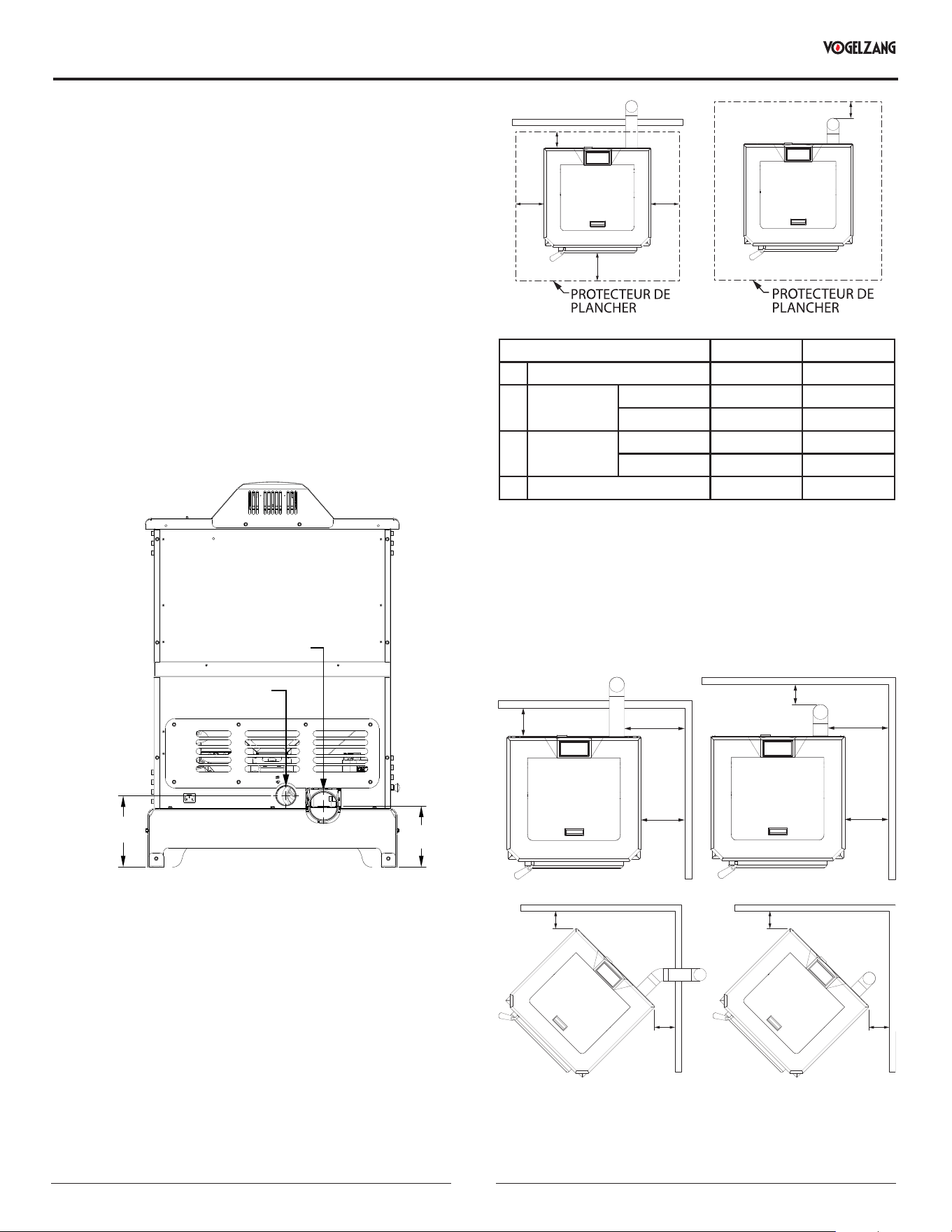

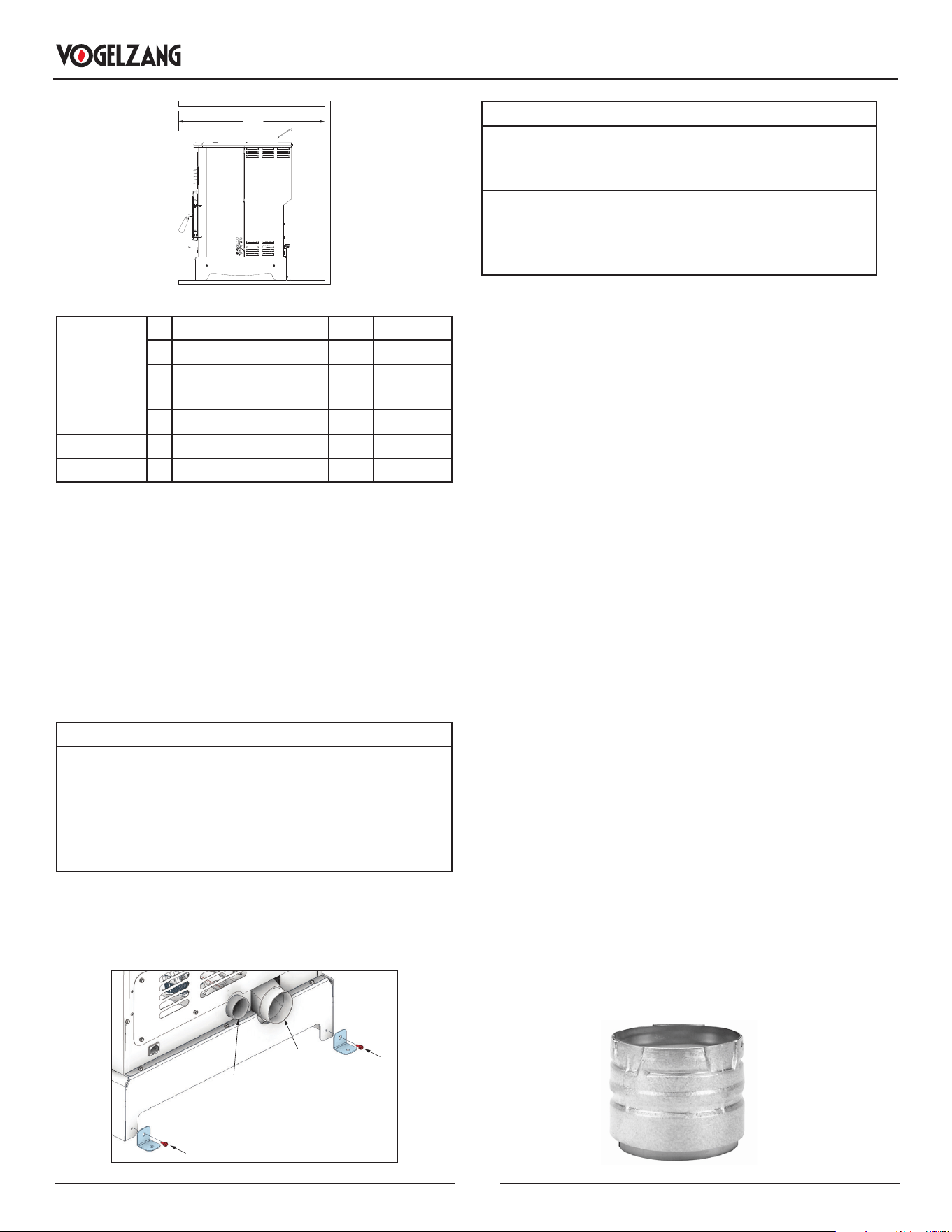

AIR INTAKE & EXHAUST LOCATIONS

7.34”

(187 mm)

6.28”

(160 mm)

Exhaust

Pipe

Fresh Air

Intake

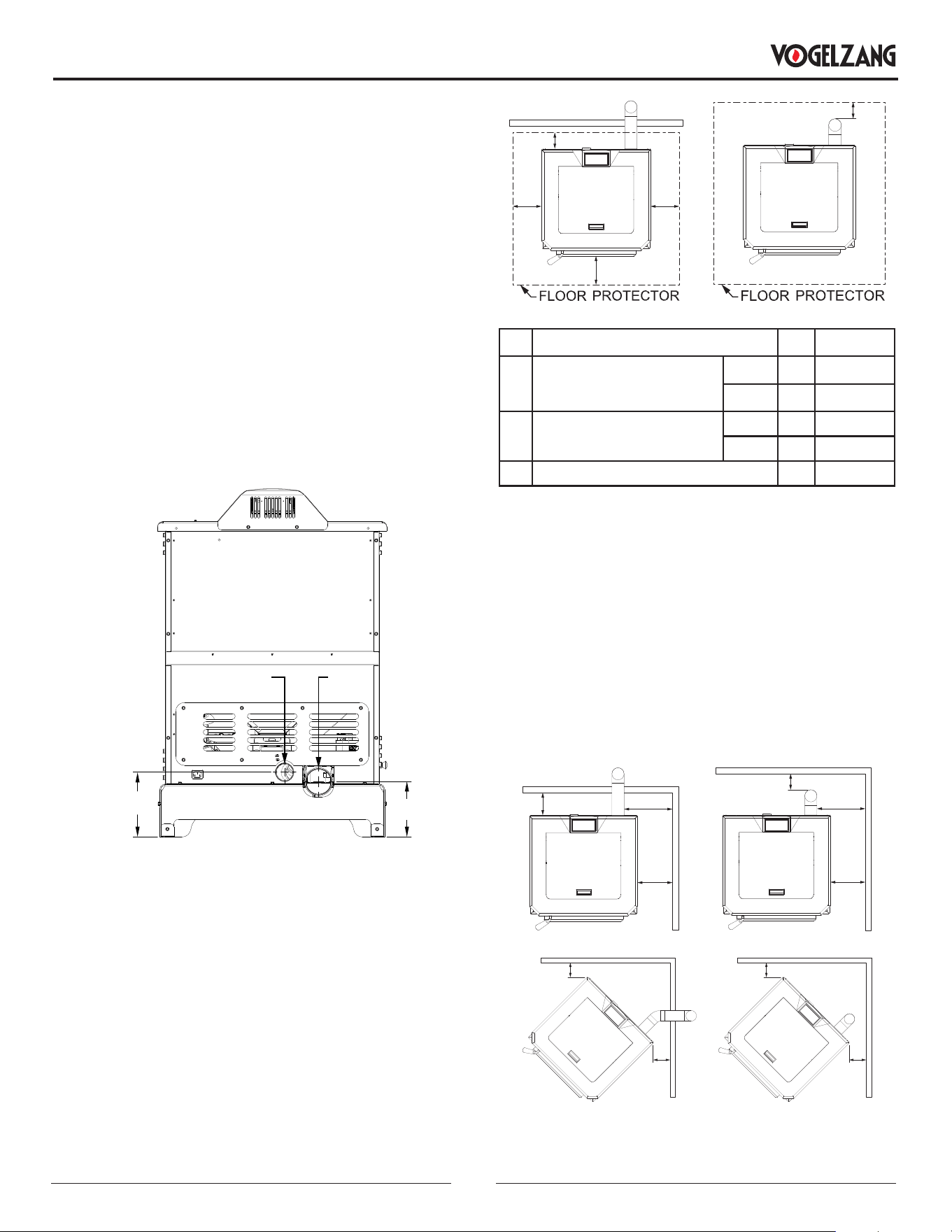

FLOOR PROTECTION

This unit must be installed on a non-combustible oor

surface. If a oor pad is used, it should be certied or

equal.

USA - The oor pad or non-combustible surface should

be large enough to extend a minimum of 6” (153 mm) in

front, 6” (153 mm) on each side, and 1” (26 mm) behind

the stove. Floor protection must extend under and 2”

(51 mm) to each side of the chimney tee for an interior

vertical installation. A Floor Protector of 1” (26 mm) thick

is recommended for this installation.

Canada - Floor protector must comply with CAN/ULC

standards. Must extend 18” (458mm) past the front and

8” (203mm) beyond each side of unit.

A Rear (through wall) 1” 25 mm

B Side

USA 6” 152 mm

CAN 8” 203mm

C Front

USA 6” 152 mm

CAN 18” 458mm

D Rear (interior vertical) 2” 50 mm

CLEARANCES

Your pellet stove has been tested and listed for installation

in residential, mobile home/transportable building, and

alcove applications in accordance with the clearances

given in this manual. NOTE: The distance on the side of

your pellet stove may need to be greater than the minimum

required clearance for suitable access to the control

panel. For safety reasons, please adhere to the installation

clearances and restrictions. Any reduction in clearance to

combustibles may only be done by means approved by a

regulatory authority.

PARALLEL

E Backwall to unit 9.5” 241 mm

F Sidewall to ue 13” 330 mm

Sidewall to top edge

of unit

8” 203 mm

H Backwall to ue 3” 76.2mm

CORNER J Adjacent wall to unit 8” 203 mm

ALCOVE K Alcove depth 36” 914 mm

OUTSIDE AIR SUPPLY (OPTIONAL, UNLESS INSTALLING

IN A MOBILE HOME/TRANSPORTABLE BUILDING)

Depending on your location and home construction,

outside air may be necessary for optimal performance.

Your stove is approved to be installed with an outside air

intake (69FAK) which is necessary for a mobile home/

transportable building. You can purchase the 69FAK

through your heater dealer. Installation instructions are

supplied with the air intake kit.

ATTENTION:

DO NOT VENT UNDER ANY PORCH, DECK, AWNING,

OR IN ANY SEMI ENCLOSED OR ROOFED AREA. DOING

SO MAY RESULT IN UNPREDICTABLE AIRFLOW AT THE

VENT CAP UNDER CERTAIN CONDITIONS AND CAN

AFFECT THE PERFORMANCE OF YOUR STOVE, AS

WELL AS, OTHER UNFORESEEABLE ISSUES.

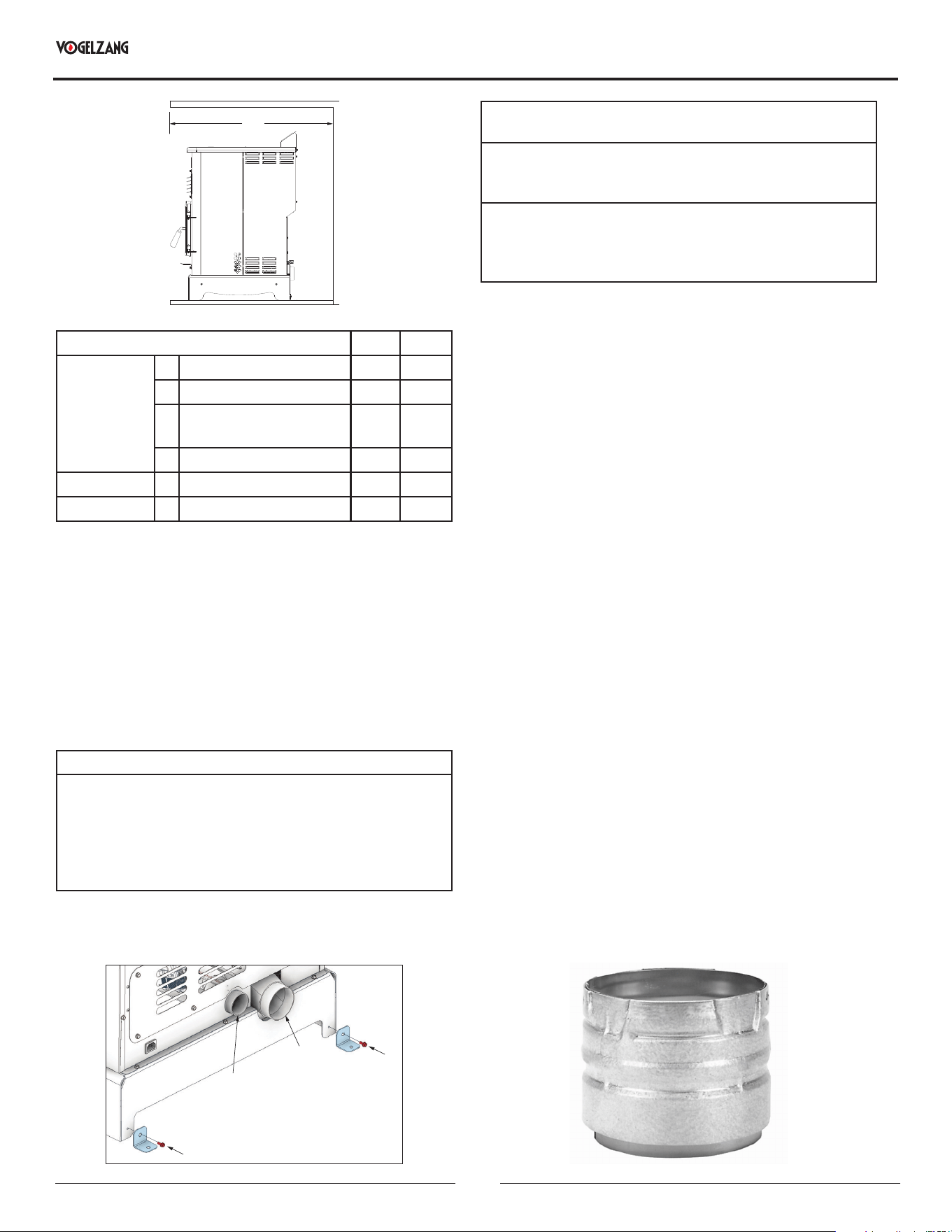

SECURING APPLIANCE TO THE FLOOR

Use the designated holes to secure the unit to the oor.

Fresh Air

Intake

Exhaust

Pipe

WARNING! DO NOT INSTALL IN SLEEPING ROOM.

CAUTION! THE STRUCTURAL INTEGRITY OF THE

MOBILE HOME/TRANSPORTABLE BUILDING FLOOR,

WALL, AND CEILING/ROOF MUST BE MAINTAINED.

WHEN INSTALLED IN A MOBILE HOME/

TRANSPORTABLE BUILDING, THE STOVE MUST BE

GROUNDED DIRECTLY TO THE STEEL CHASSIS AND

BOLTED TO THE FLOOR.

In addition to the previously detailed installation

requirements, mobile home/transportable building

installations must meet the following requirements:

• This stove must be securely fastened to the oor of the

mobile home/transportable building using two 1/4” lag

bolts that are long enough to go through both a hearth

pad, if used, and the oor of the home.

• The heater must be electrically grounded to the steel

chassis of the mobile home/transportable building

with 8 GA copper wire using a serrated or star washer

to penetrate paint or protective coating to ensure

grounding.

• Vent must be 3 or 4-inch “PL” Vent and must extend

a minimum or 36” (914 mm) above the roof line of

the mobile home/transportable building and must be

installed using a certied ceiling re stop and rain cap.

• When moving your mobile home/transportable building,

all exterior venting must be removed while the mobile

home/transportable building is being relocated. After

relocation, all venting must be reinstalled and securely

fastened.

• Outside Air is mandatory for mobile home/transportable

building installation. See Outside Air Supply section and

your dealer for purchasing.

• Check with your local building ocials as other codes

may apply.

VENTING REQUIREMENTS

A compatible appliance adapter is required for the proper

venting installation of this unit. Purchase the appropriate

appliance adapter from your preferred venting company

prior to starting the ventilation process.

INSTALLATION

WARNING:

• INSTALL VENT AT CLEARANCES SPECIFIED BY THE

VENT MANUFACTURER.

• DO NOT CONNECT THE PELLET VENT TO A VENT

SERVING ANY OTHER APPLIANCE OR STOVE.

• DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST

VENTING SYSTEM OF THIS UNIT.

The following installation guidelines must be followed

to ensure conformity with both the safety listing of this

stove and to local building codes. Do not use makeshift

methods or compromise in the installation.

IMPORTANT:

THIS UNIT IS EQUIPPED WITH A NEGATIVE DRAFT

SYSTEM THAT PULLS AIR THROUGH THE BURN POT

AND PUSHES THE EXHAUST OUT OF THE DWELLING.

IF THIS UNIT IS CONNECTED TO A FLUE SYSTEM

OTHER THAN THE WAY EXPLAINED IN THIS MANUAL,

IT WILL NOT FUNCTION PROPERLY.

MAXIMUM VENTING DISTANCE

Installation MUST include at least 3-feet of vertical pipe

outside the home. This will create some natural draft to

reduce the possibility of smoke or odor during appliance

shutdown and keep exhaust from causing a nuisance or

hazard by exposing people or shrubs to high temperatures.

The maximum recommend vertical venting height is 12-

feet for 3-inch type “PL” vent. Total length of horizontal vent

must not exceed 4-feet. This could cause back pressure.

Use no more than 180 degrees of elbows (two 90-degree

elbows, or two 45-degree and one 90-degree elbow, etc.)

to maintain adequate draft.

IMPORTANCE OF PROPER DRAFT

Draft is the force which moves air from the appliance up

through the chimney. The amount of draft in your chimney

depends on the length of the chimney, local geography,

nearby obstructions and other factors. Too much draft

may cause excessive temperatures in the appliance.

Inadequate draft may cause backpung into the room and

‘plugging’ of the chimney. Inadequate draft will cause the

appliance to leak smoke into the room through appliance

and chimney connector joints. An uncontrollable burn or

excessive temperature indicates excessive draft. Take into

account the chimney’s location to ensure it is not too close

to neighbours or in a valley which may cause unhealthy or

nuisance conditions.

PELLET VENT TYPE

A certied 3-inch or 4-inch type “PL” pellet vent exhaust

system must be used for installation and attached to the

pipe connector provided on the back of the stove (use a

3-inch to 4-inch adapter for 4-inch pipe). The connection

at the back of the stove must be sealed using Hi-Temp

RTV. Use a 4-inch vent if the vent height is over 12-feet or

if the installation is over 2,500 feet above sea level. We

recommend the use of Simpson Dura-Vent® or Metal-

Fab® pipe (if you use other pipes, consult your local

building codes and/or building inspectors). Do not use

Type-B Gas Vent pipe or galvanized pipe with this unit. The

pellet vent pipe is designed to disassemble for cleaning

and should be checked several times during the burning

season. The pellet vent pipe is not furnished with the unit

and must be purchased separately.

PELLET VENT INSTALLATION

The installation must include a clean-out tee to enable

collection of y ash and to permit periodic cleaning of the

exhaust system. 90-degree elbows accumulate y ash

and soot thereby reducing exhaust ow and performance

of the stove. Each elbow or tee reduces draft potential by

30% to 50%. All joints in the vent system must be fastened

by at least 3 screws, and all joints must be sealed with Hi-

Temp RTV silicone sealant to be airtight. The area where

the vent pipe penetrates to the exterior of the home must

be sealed with silicone or other means to maintain the

vapor barrier between the exterior and the interior of the

home. Vent surfaces can get hot enough to cause burns if

touched by children. Noncombustible shielding or guards

may be required.

PELLET VENT TERMINATION

Do not terminate the vent in an enclosed or semi-enclosed

area, such as; carport, garage, attic, crawl space, under a

sun deck or porch, narrow walkway, or any other location

that can build up a concentration of fumes. Termination in

one of these areas can also lead to unpredictable pressure

situations with the appliance, and could result in improper

performance and/or malfunction. The termination

must exhaust above the outside air inlet elevation. The

termination must not be located where it will become

plugged by snow or other materials. Do not terminate the

venting into an existing steel or masonry chimney.

INSTALLATION

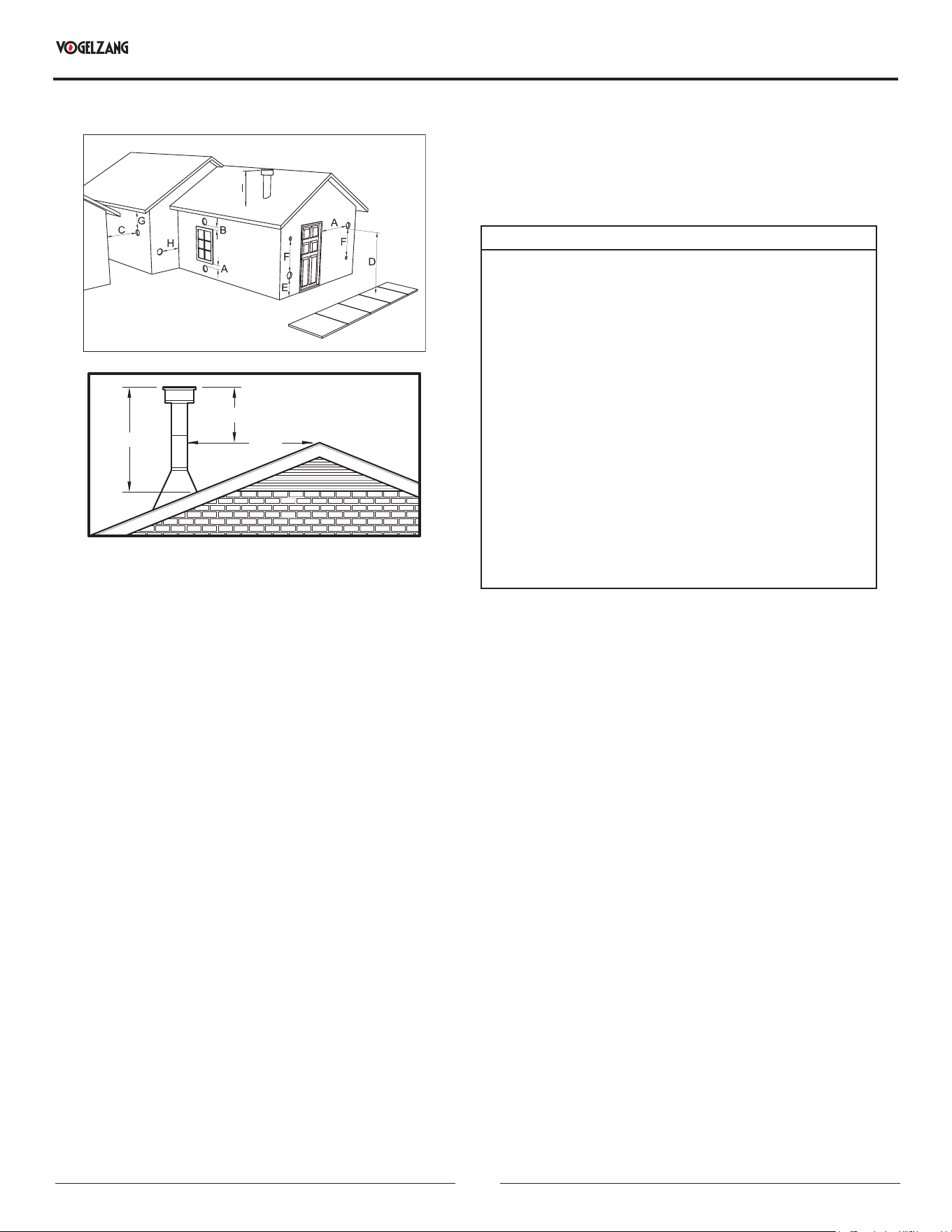

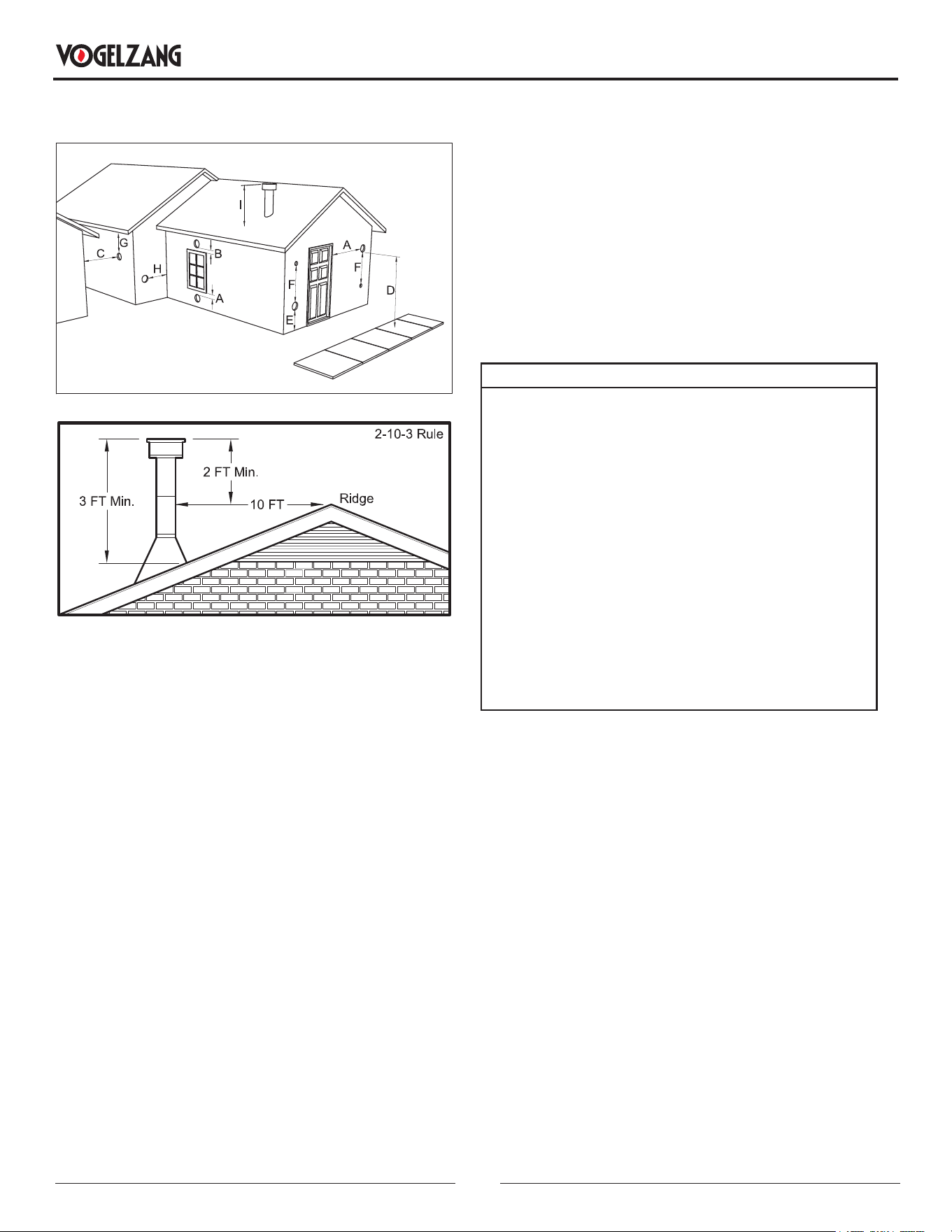

VENT TERMINATION CLEARANCES

A. Minimum 4-foot (1.22m) clearance below or beside

any door or window that opens.

B. Minimum 1-foot (0.3m) clearance above any door or

window that opens.

C. Minimum 3-foot (0.91m) clearance from any adjacent

building.

D. Minimum 7-foot (2.13m) clearance from any grade

when adjacent to public walkways.

E. Minimum 2-foot (0.61m) clearance above any grass,

plants, or other combustible materials.

F. Minimum 3-foot (0.91m) clearance from an forced air

intake of any appliance.

G. Minimum 2-foot (0.61m) clearance below eves or

overhang.

H. Minimum 1-foot (0.3m) clearance horizontally from

combustible wall.

I. Must be a minimum of 3 foot (0.91m) above the roof

and 2 foot (0.61m) above the highest point or the roof

within 10 feet (3.05m).

Determining where to install your new pellet stove heater.

To get the most ecient use of re-circulated heat, you

should consider a room that is centrally located within

your home. Choose a room that is large and open. It is

Extremely Important to maintain proper clearances from

any combustible surfaces or materials in the room where

your heater will be located. You can nd proper clearance

measurements in this manual and on the rating label of

your pellet stove. The pellet stove can be vented through an

exterior wall or into an existing masonry or metal chimney

if “PL” vent pipe is used throughout existing chimney.

Venting can pass through the ceiling and roof if approved

pipe is used. Where passage through a wall, or partition of

combustible construction is desired, the installation must

conform to CAN/CSA-B365.

WARNING:

• DO NOT OBTAIN COMBUSTION AIR FROM THE

ATTIC, GARAGE OR ANY OTHER UNVENTILATED

AREA. YOU MAY OBTAIN COMBUSTION AIR FROM

A VENTILATED CRAWL SPACE.

• DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST

VENTING SYSTEM OF THIS UNIT.

• DO NOT CONNECT THIS UNIT TO A CHIMNEY

FLUE SERVING ANOTHER HEATER, FURNACE OR

APPLIANCE.

• INSTALL VENT AT CLEARANCES SPECIFIED BY THE

VENT MANUFACTURER.

• ONLY USE APPROVED MATERIAL FOR

INSTALLATION, FAILURE TO DO SO MAY RESULT

IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN

DEATH.

This appliance is certied for use with listed 3 inch or 4 inch

“PL” pellet venting products. The use of other components

other than stated herein could cause bodily harm, heater

damage, and void your warranty.

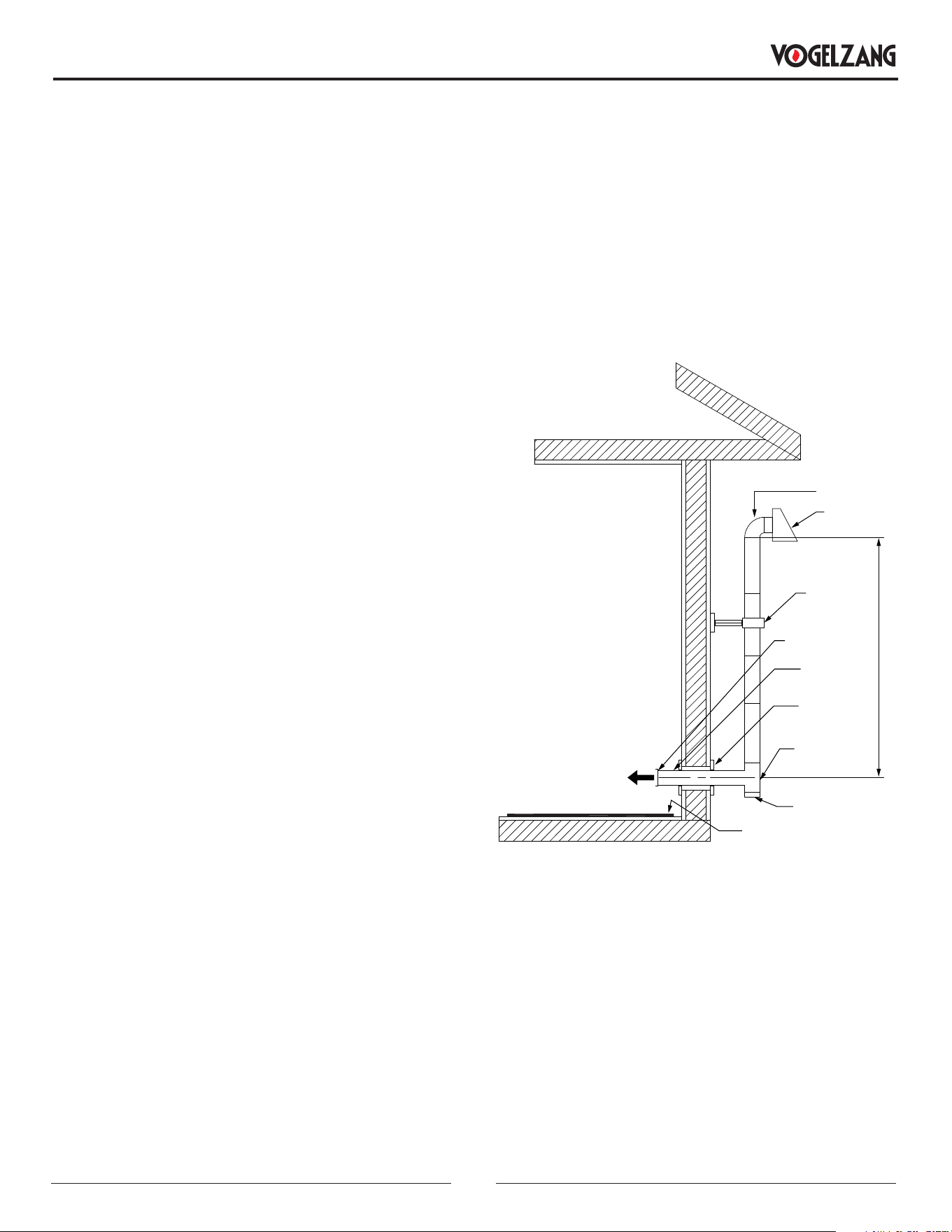

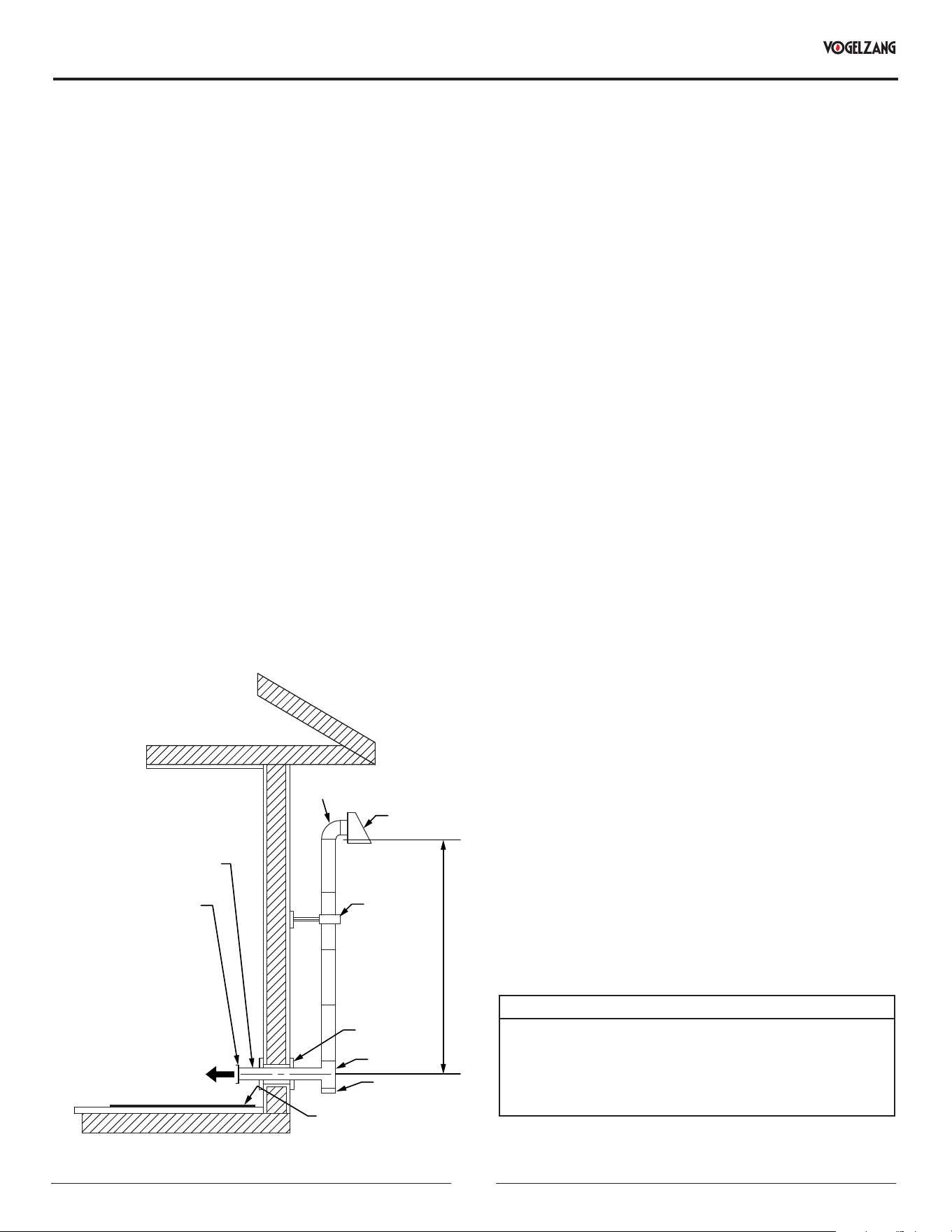

HORIZONTAL EXHAUST VENT INSTALLATION

1. Locate your pellet stove in a location which meets the

requirements of this manual, but in an area where it

does not interfere with the house framing, wiring, etc.

2. Install a non-combustible hearth pad underneath the

pellet stove. This pad should extend at least 6” (152

mm) in front of the unit.

3. Place the pellet stove approximately 15” (381 mm)

away from the interior wall.

4. Locate the center of the exhaust pipe of your unit. This

point should then be extended to the interior wall of

your house. Once you have located the center point,

on the interior wall, cut a 7” (175 mm) diameter hole

through the wall.

INSTALLATION

5. The next step is to install the wall thimble, refer to the

instructions which come with the wall thimble for this

step.

6. Install the appropriate length of exhaust vent pipe

into the wall thimble. See steps 11 and 12 when

determining the correct length of exhaust vent to use.

7. Outside Fresh Air is Mandatory when installing

this pellet stove room heater in airtight homes and

mobile home/transportable buildings. Be sure that

the outside air vent has an approved cap on it to

prevent rodents from entering. Be sure to install in

location that won’t become blocked with snow, etc.

8. Connect the exhaust vent pipe to the exhaust outlet of

your pellet stove.

9. Secure all vent joint connections with 3 screws.

Seal the exhaust vent joint connections with high

temperature silicone sealant.

10. Push the unit straight back to the interior wall,

being sure to maintain the minimum clearances to

combustibles 2” (51 mm) to the back of the unit. Seal

the annular space of the wall thimble and around the

vent pipe with high temperature silicone sealant.

11. The exhaust vent pipe must extend at least 12” (300

mm) out past the exterior wall. Seal the annular space

of the wall thimble and around the vent pipe with high

temperature silicone sealant.

12. Install an approved horizontal termination cap or if

necessary install a 90° elbow and appropriate length

of vertical venting. An approved vertical vent cap is

recommended.

THROUGH THE WALL INSTALLATION

(RECOMMENDED INSTALLATION)

Canadian installations must conform to CAN/CSA-B365.

To vent the unit through the wall, connect the pipe adapter

to the exhaust motor adapter. If the exhaust adapter

is at least 18” (457 mm) above ground level, a straight

section of pellet vent pipe can be used through the wall.

Your heater dealer should be able to provide you with a

kit that will handle most of this installation, which will

include a wall thimble that will allow the proper clearance

through a combustible wall. Once outside the structure,

a 3” (76 mm) clearance should be maintained from the

outside wall and a clean out tee should be placed on the

pipe with a 90-degree turn away from the house. At this

point, a 3ft (0.91m) (minimum) section of pipe should be

added with a horizontal cap, which would complete the

installation. A support bracket should be placed just below

the termination cap or one every 4ft (1.22m) to make the

system more stable. If you live in an area that has heavy

snowfall, it is recommended that the installation be taller

than 3ft (0.91m) to get above the snowdrift line. This same

installation can be used if your heater is below ground level

by simply adding the clean-out section and vertical pipe

inside until ground level is reached. With this installation

you have to be aware of the snowdrift line, dead grass, and

leaves. We recommend a 3ft (0.91m) minimum vertical

rise on the inside or outside of the house. The “through

the wall” installation is the least expensive and simplest

installation. Never terminate the end vent under a deck, in

an alcove, under a window, or between two windows. We

recommend Simpson Dura-Vent® or Metal-Fab® kits.

Non-Combustable

Floor Pad

Clean-Out

Cover

Tee

Wall

Thimble

Pipe

Adapter

Exhaust Motor

Adapter

3’-0” (min) Vertical Pipe

Support

Bracket

Termination

Cap

90° Elbow

TO STOVE

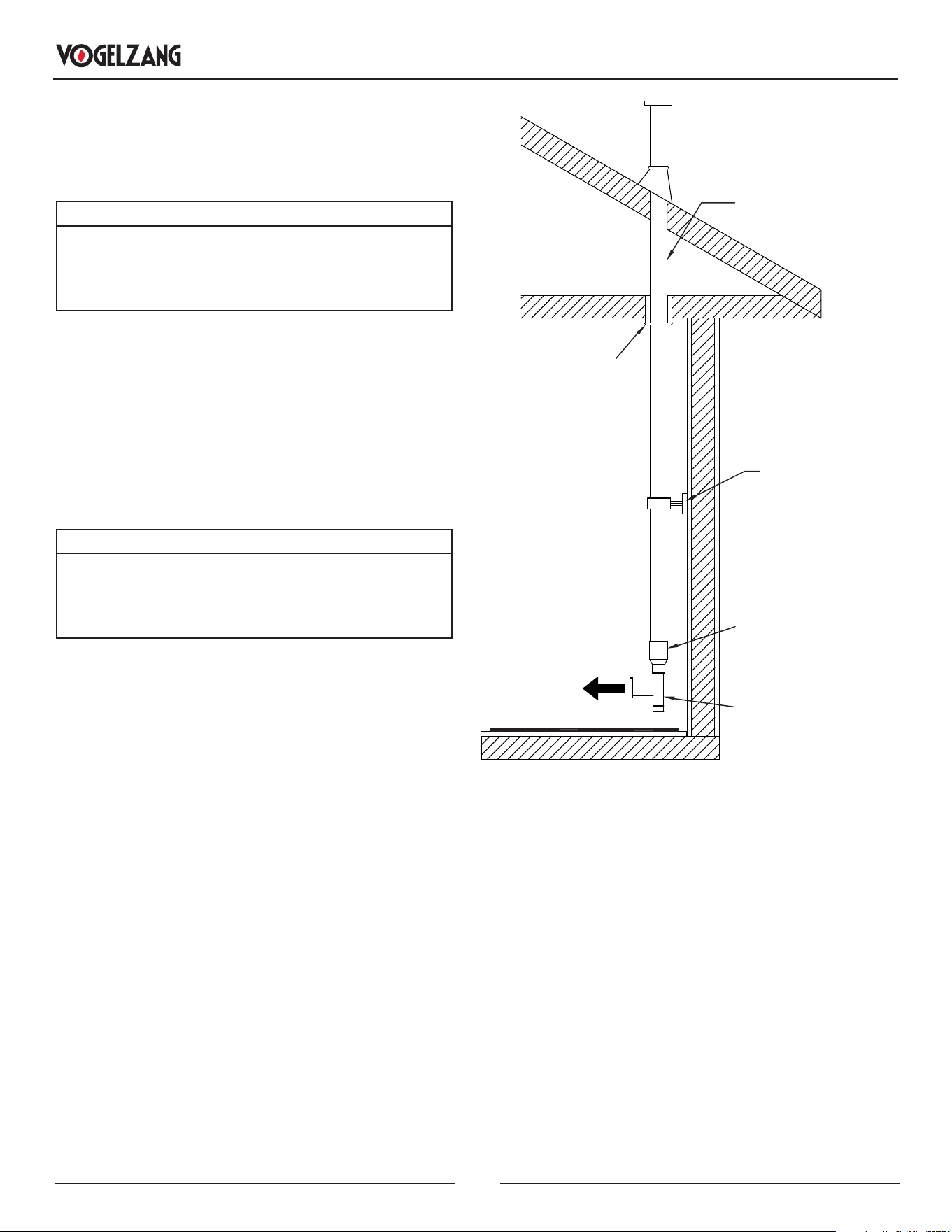

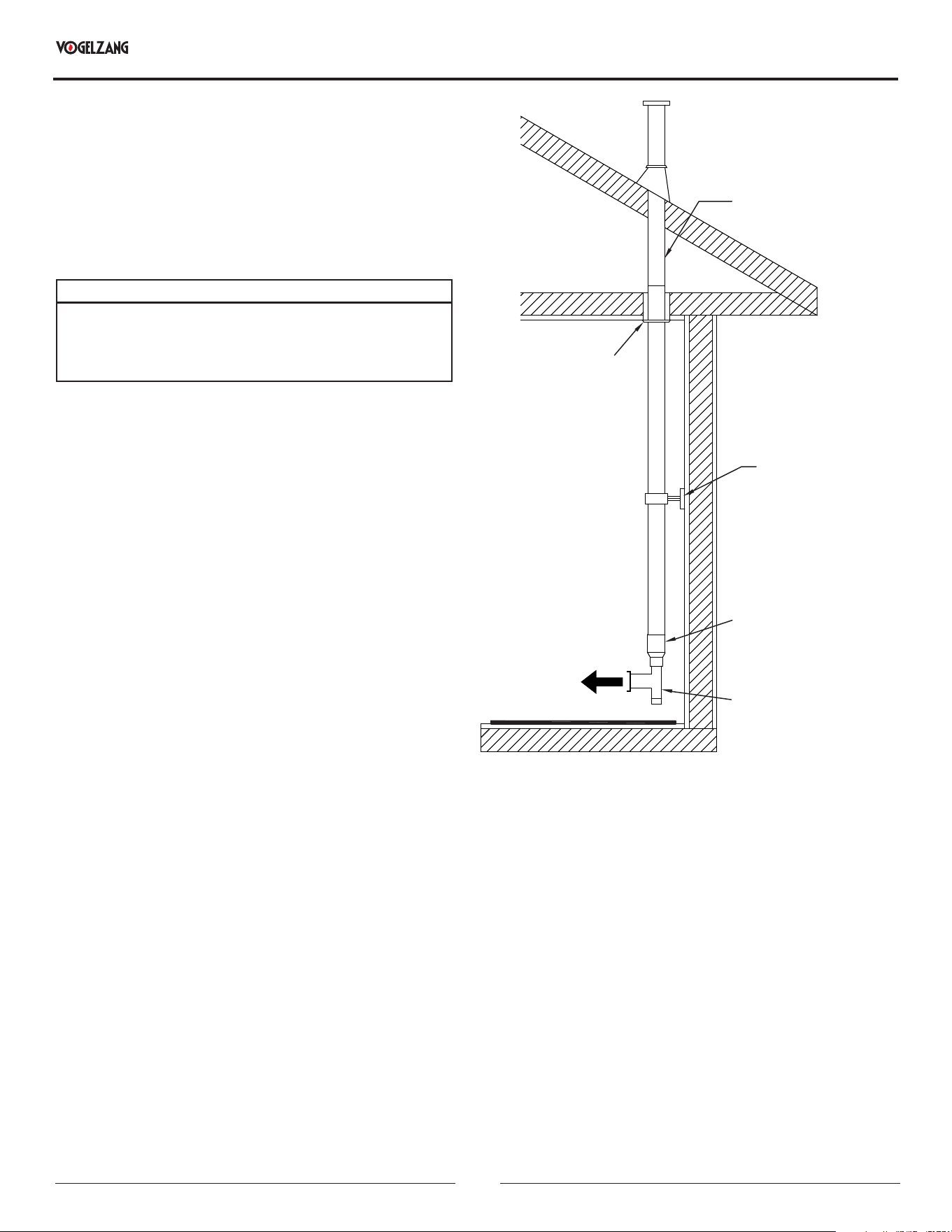

THROUGH THE ROOF / CEILING

INSTALLATION

• When venting the heater through the ceiling, the pipe

is connected the same as through the wall, except the

clean-out tee is always on the inside of the house, and

a 3” (76 mm) adapter is added before the clean-out tee.

• You must use the proper ceiling support anges and

roof ashing (supplied by the pipe manufacturer; follow

the pipe manufacturer’s directions). It is important to

note that if your vertical run of pipe is more than 12ft

(3.7m), the pellet vent pipe size should be increased to

4” (102 mm) in diameter.

INSTALLATION

• Do not exceed more than 4ft (1.22m) of pipe on a

horizontal run and use as few elbows as possible. If an

offset is required, it is better to install 45-degree elbows

rather than 90-degree elbows.

WARNING:

YOU MAY WANT TO LOCATE ANY UTILITIES OR

OBSTACLES INSIDE THE WALL BEFORE ATTEMPTING

THIS INSTALL. MAKE SURE TO KEEP IN MIND YOUR

UNIT’S CLEARANCE REQUIREMENTS.

1. Mark the area and then cut the wall for vent installation

if needed.

2. Install the wall thimble as specied by the manufacturer

(wall thimble sold separately)

3. Install venting.

VENTING YOUR PELLET STOVE INTO AN

EXISTING CLASS A 6” CHIMNEY SYSTEM

IMPORTANT:

IF YOU ARE INSTALLING YOUR PELLET STOVE AS

A REPLACEMENT TO AN EXISTING WOOD STOVE,

YOU CAN INSTALL YOUR PELLET STOVE USING THE

EXISTING CLASS A 6” VENTING SYSTEM.

1. You must have the existing chimney system cleaned

and/or inspected by a qualied chimney sweep before

proceeding with the installation of your pellet stove.

2. To the right is an example of an installation using part

number 860001, 3-6” transition into 6” connector pipe

(the illustration is only an example). Please conform

to any local building codes or regulations having

jurisdiction before you have a qualied installer

proceed with this installation.

Existing Class ‘A’

6” Chimney System

3” PL Vent

Clean Out Tee

Support

Bracket

Ceiling

Support

3” to 6” Pipe

Adapter

TO STOVE

NEVER OPERATE THIS PRODUCT WHILE UNATTENDED

OPERATION INSTRUCTIONS

HOW YOUR HEATER WORKS

Your pellet heater operates on a timer based auger fuel

feed system, that is controlled by a digital circuit board.

The fuel is delivered from the auger into a burn pot, which

is the vessel where the combustion process takes place.

Based upon the heat ranges (1-5), the heater will feed the

appropriate amount of fuel to reach a set temperature

range. Note that the amount of heat produced by the heater

is proportional to the rate of the fuel that is burned. Your

heater is equipped with an automatic ignition system that

should ignite the fuel within 5-10 minutes from pressing

the ON button. As pellets fall into the burn pot and ignite,

outside air is drawn in to feed the re by a combustion

blower. The post combustion gases are then pulled through

the heat exchanger as they are traveling out the exhaust.

As the heater warms up, room air is circulated around the

heat exchanger by means of a room air blower, distributing

warm air into the room. Because a forced draft pressure

is required for the combustion process inside your heater,

it is extremely important that the exhaust system be

properly maintained. And, that when operating your heater,

you make sure that the viewing and combustion doors are

properly closed and/or sealed.

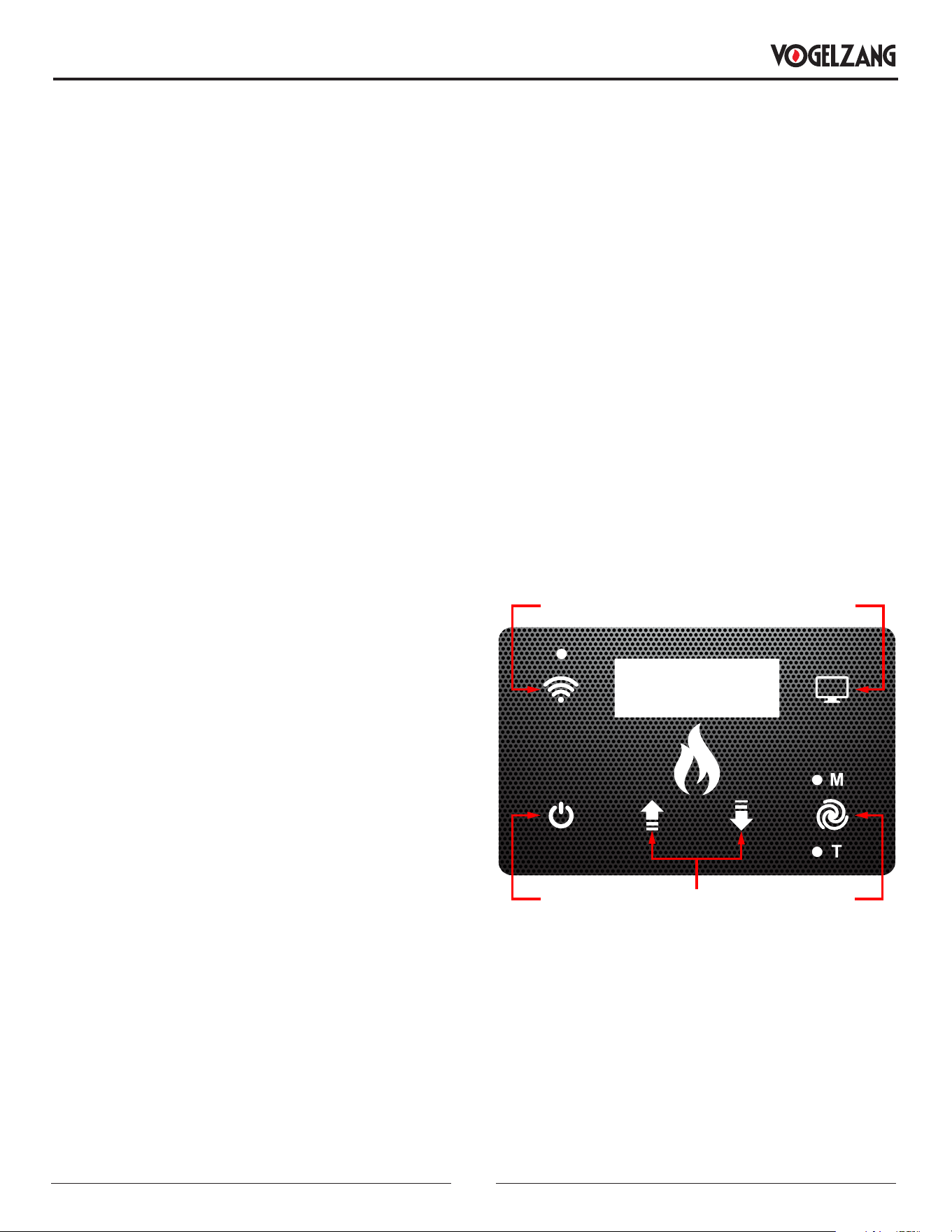

CONTROL PANEL OVERVIEW

Turning the heater ON/OFF, as well as adjustments for the

fuel feed rate is performed by pressing the appropriate

button(s) on the control panel.

ON/OFF (Power)

• Pressing the “ON” button on the control panel will begin

the start-up sequence for the heater. Fuel will begin to

feed through the auger feed system then ignite after

approx. 5 minutes.

• Pressing the “OFF” button on the control panel will

cause the heater to enter its shut-down sequence. The

fuel feed system will stop pulling fuel from the hopper

and, once the re goes out and the heater cools down,

the fans will stop running.

HEAT RANGE

• Pressing the “Heat Range” arrows, up or down, will

adjust the amount of fuel being delivered to the burn pot.

• The exhaust blower will start. Note that this appliance

pulses the exhaust blower in order to achieve the proper

air to fuel ratio, and to also aid in the cleaning of the burn

pot.

• Once the heater reaches a set temperature, the room fan

will come on.

WIFI

• Press the “WIFI” button to begin pairing the unit to your

phone.

DISPLAY

• Pressing the “Display” button toggles the display

between the heat range and the room temperature.

MODE

• Use the “Mode” button to switch between (M) manual

mode and (T) thermostat mode.

WIFI DISPLAY

ON/OFF

(POWER)

HEAT

RANGE

MODE

WARNING:

• DO NOT USE CHEMICALS OR FLUIDS TO START

THE FIRE - NEVER USE GASOLINE, GASOLINE-

TYPE LANTERN FUEL, KEROSENE, CHARCOAL

LIGHTER FLUID, OR SIMILAR LIQUIDS TO START

OR “FRESHEN UP” A FIRE IN THIS STOVE. KEEP

ALL SUCH LIQUIDS WELL AWAY FROM THE STOVE

WHILE IT IS IN USE.

• HOT WHILE IN OPERATION. KEEP CHILDREN,

CLOTHING AND FURNITURE AWAY. CONTACT MAY

CAUSE SKIN BURNS.

This heater is designed to burn only PFI Premium grade

pellets. DO NOT BURN:

1. Garbage;

2. Lawn clippings or yard waste;

3. Materials containing rubber, including tires;

4. Materials containing plastic;

5. Waste petroleum products, paints or paint thinners, or

asphalt products;

6. Materials containing asbestos;

7. Construction or demolition debris;

8. Railroad ties or pressure-treated wood;

9. Manure or animal remains;

10. Salt water driftwood or other previously salt water

saturated materials;

11. Unseasoned wood; or

12. Paper products, cardboard, plywood, or particleboard.

The prohibition against burning these materials does

not prohibit the use of re starters made from paper,

cardboard, saw dust, wax and similar substances

for the purpose of starting a re in an affected wood

heater.

Burning these materials may result in release of toxic

fumes or render the heater ineffective and cause smoke.

PROPER FUEL

ATTENTION:

THIS APPLIANCE IS DESIGNED FOR THE USE OF

PELLETIZED FUEL THAT MEET OR EXCEED THE

STANDARD SET BY THE PELLET FUEL INSTITUTE

(PFI).

Your pellet stove is designed to burn premium hardwood

pellets that comply with the Pellet Fuels Institute (PFI)

standard (minimum of 40 lbs density per cubic ft, 1/4” to

5/16” diameter, length no greater than 1.5”, not less than

8,200 BTU/lb, moisture under 8% by weight, ash under 1%

by weight, and salt under 300 parts per million). Pellets

that are soft, contain excessive amounts of loose sawdust,

have been, or are wet, will result in reduced performance.

Store your pellets in a dry place. DO NOT store the fuel

within the installation clearances of the unit or within the

space required for refuelling and ash removal. Doing so

could result in a house re. Do not over re or use volatile

fuels or combustibles, doing so may cause a personal and

property damage hazards.

THIS STOVE IS APPROVED FOR BURNING PELLETIZED

WOOD FUEL ONLY ! Factory-approved pellets are those

1/4” or 5/16” in diameter and not over 1” long. Longer or

thicker pellets sometimes bridge the auger ights, which

prevents proper pellet feed. Burning wood in forms other

than pellets is not permitted. It will violate the building

codes for which the stove has been approved and will void

all warranties. The design incorporates automatic feed of

the pellet fuel into the re at a carefully prescribed rate. Any

additional fuel introduced by hand will not increase heat

output but may seriously impair the stoves performance

by generating considerable smoke. Do not burn wet

pellets. The stove’s performance depends heavily on the

quality of your pellet fuel. Avoid pellet brands that display

these characteristics:

• Excess Fines – “Fines” is a term describing crushed

pellets or loose material that looks like sawdust or sand.

Pellets can be screened before being placed in hopper

to remove most nes.

• Binders – Some pellets are produced with materials to

hold the together, or “bind” them.

• High ash content – Poor quality pellets will often create

smoke and dirty glass. They will create a need for more

frequent maintenance. You will have to empty the burn

pot plus vacuum the entire system more often. Poor

quality pellets could damage the auger. We cannot

accept responsibility for damage due to poor quality

pellet.

CAUTION:

• KEEP FOREIGN OBJECTS OUT OF THE HOPPER.

• THE MOVING PARTS OF THIS STOVE ARE

PROPELLED BY HIGH TORQUE ELECTRIC MOTORS.

KEEP ALL BODY PARTS AWAY FROM THE

AUGER WHILE THE STOVE IS PLUGGED INTO AN

ELECTRICAL OUTLET. THESE MOVING PARTS MAY

BEGIN TO MOVE AT ANY TIME WHILE THE STOVE

IS PLUGGED IN.

OPERATION INSTRUCTIONS

PRE-START-UP CHECK

Remove burn pot, making sure it is clean and none of the

air holes are plugged. Clean the rebox, and then reinstall

burn pot. Clean door glass if necessary (a dry cloth or

paper towel is usually sucient). Never use abrasive

cleaners on the glass or door. Check fuel in the hopper,

and rell if necessary.

BUILDING A FIRE

Never use a grate or other means of supporting the fuel.

Use only the burn pot supplied with this heater. Hopper lid

must be closed in order for the unit to feed pellets. During

the start-up period:

• Make sure the burn pot is free of pellets.

• DO NOT open the viewing door.

• DO NOT add pellets to the burn pot by hand.

NOTE: During the rst few res, your stove will emit an odor

as the high-temperature paint cures or becomes seasoned

to the metal. Maintaining smaller res will minimize this.

Avoid placing items on the stovetop during this period

because the paint could be affected. Attempts to achieve

heat output rates that exceed heater design specications

can result in permanent damage to the heater.

OPTIMAL OPERATION

This pellet stove has been certied by the US EPA to

meet strict 2020 guidelines. To Insure this unit produces

the optimal minimal emissions, it is critical to follow

the following guidelines. To achieve a “high burn” your

stove should be set on setting 5 with the damper open.

To achieve a “medium burn” your stove should be set on

setting 3 with the damper 50% open. To achieve a “low

burn” your stove should be set on setting 1with the damper

closed. If the door is opened while the stove is in operation

it must be closed within 30 seconds or the stove will shut

down. If the stove shuts down push the “On/Off” button to

re-start your stove. The stove will have to fully shut down

and turn off before you will be able to restart the stove.

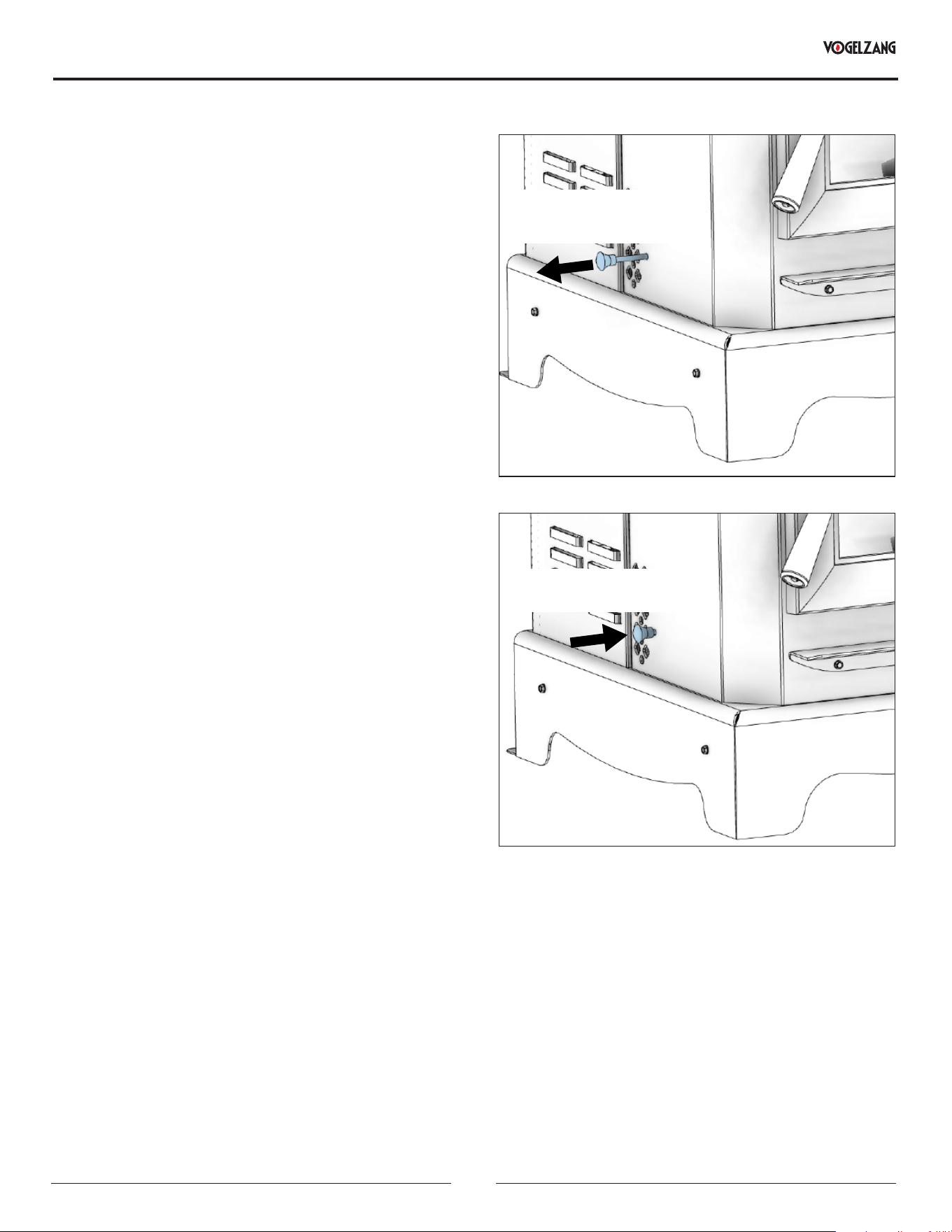

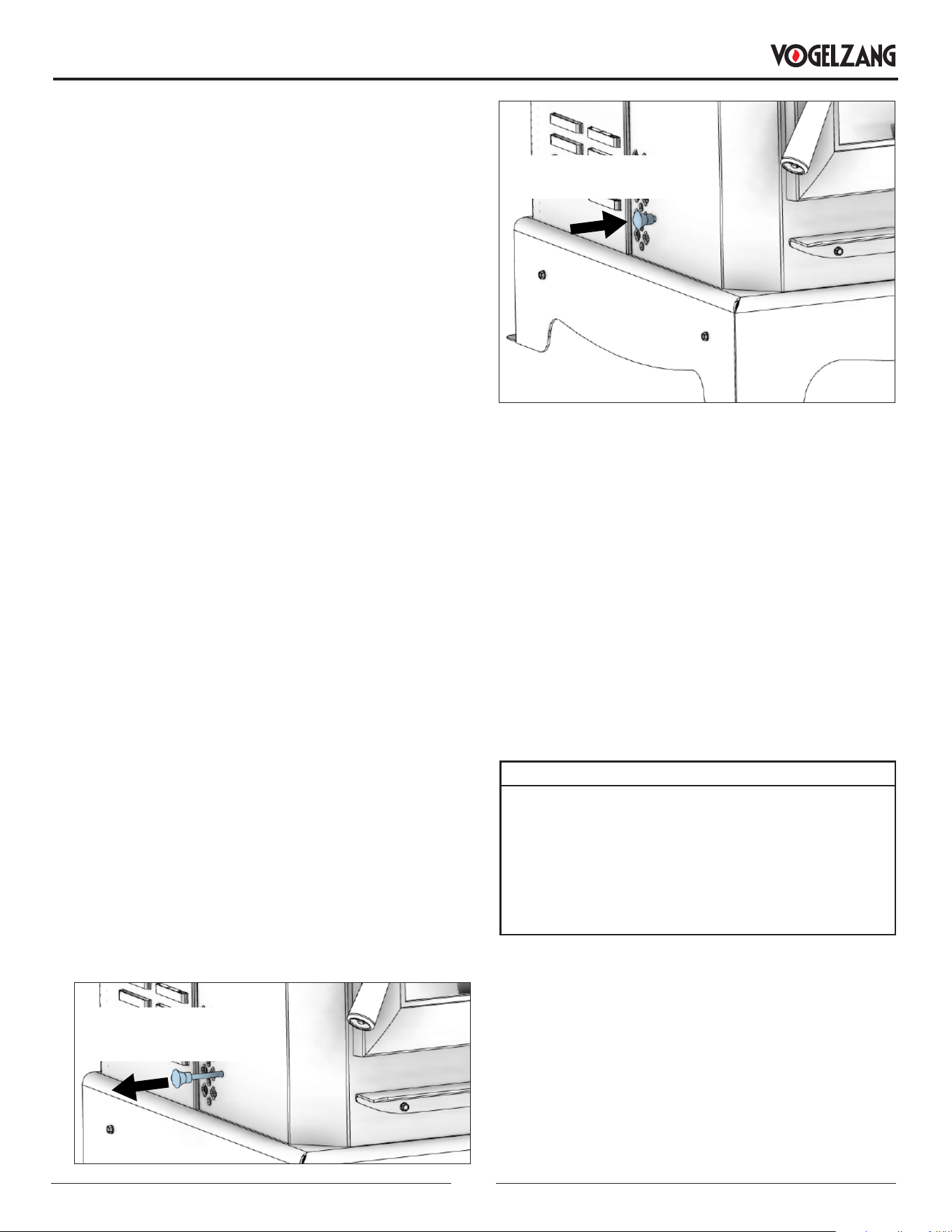

DAMPER SETTINGS

Fully Open

Fully Closed

IGNITOR

1. Fill the hopper and clean the burn pot.

2. Press the “On/Off” button.

3. Set the heat range/temperature. Manual Mode - Press

the “Display Button” to see the current heat range. Use

the up and down arrows to adjust the heat range.

T-stat Mode - Press the “Display Button” to see the

current temperature setting. Use the up and down

arrows to adjust the temperature as needed.

If the re doesn’t start in 12 minutes, press “On/Off”, wait

a few minutes, clear the burn pot, and start the procedure

again.

OPENING DOOR

CAUTION:

• DO NOT OPERATE YOUR STOVE WITH THE VIEWING

DOOR OPEN. THE AUGER WILL NOT FEED PELLETS

UNDER THESE CIRCUMSTANCES AND A SAFETY

CONCERN MAY ARISE FROM SPARKS OR FUMES

ENTERING THE ROOM.

• THE DOOR MUST BE CLOSED AND SEALED DURING

OPERATION.

If the door is opened while the stove is in operation it must

be closed within 30 seconds or the stove will shut down. If

the stove shuts down push the “On/Off” button to re-start

your stove. The stove will have to fully shut down and turn

off before you will be able to restart the stove.

ROOM AIR FAN

When starting your stove the Room Air Fan will not come

on until the stove’s heat exchanger warms up. This usually

takes about 10 minutes from start-up.

OPERATION INSTRUCTIONS

IF STOVE RUNS OUT OF PELLETS

This stove is tted with a fuel level sensor that, when

connected to WiFi and detects a low fuel level, will cause

the display on the stove to ash and send a notication to

the accompanying app.

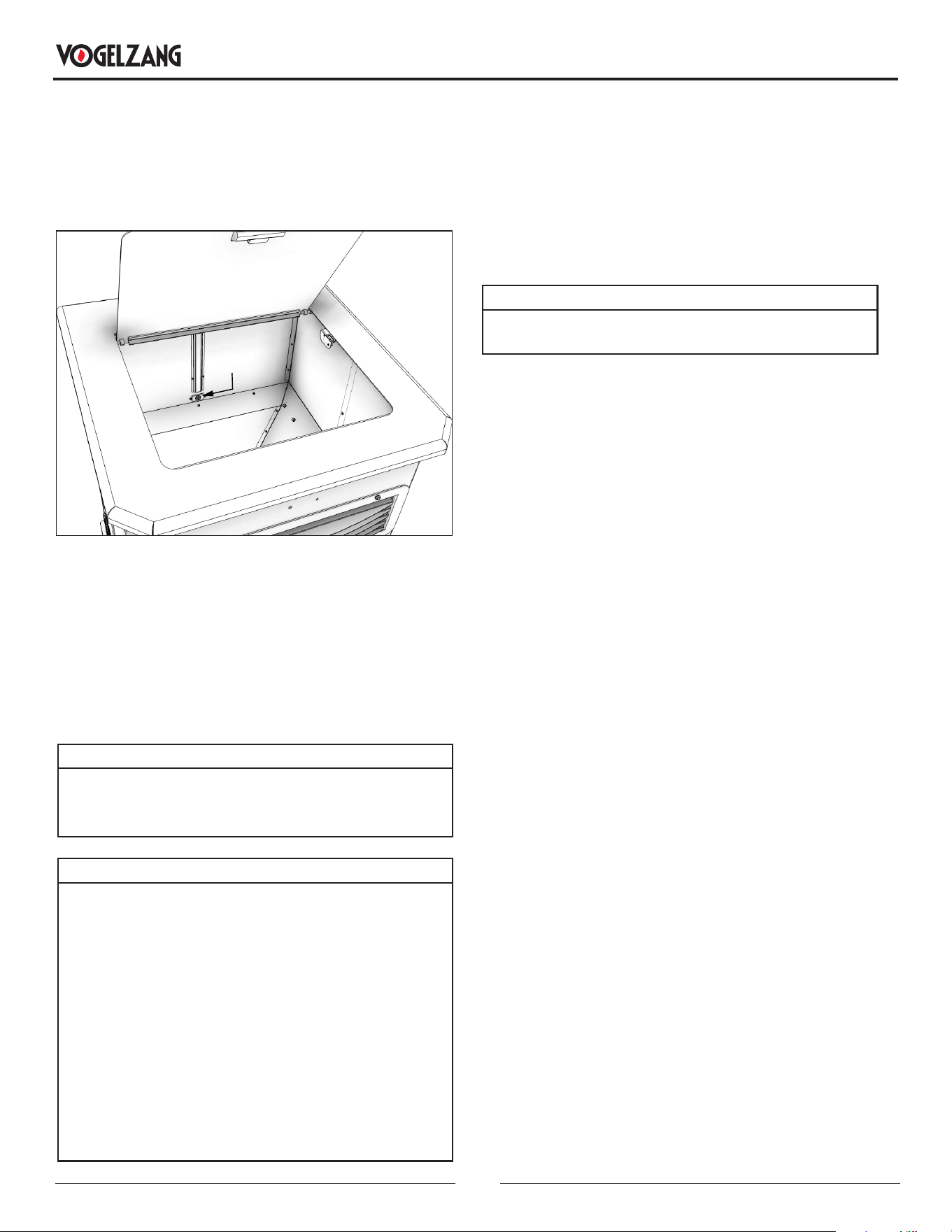

FUEL LEVEL

SENSOR

The re goes out and the auger motor and blowers will

run until the stove cools. This will take 30 minutes or

longer depending on the heat remaining in the appliance.

After the stove components stop running all lights on

the display will go out and the two digit display will begin

showing “E3”.

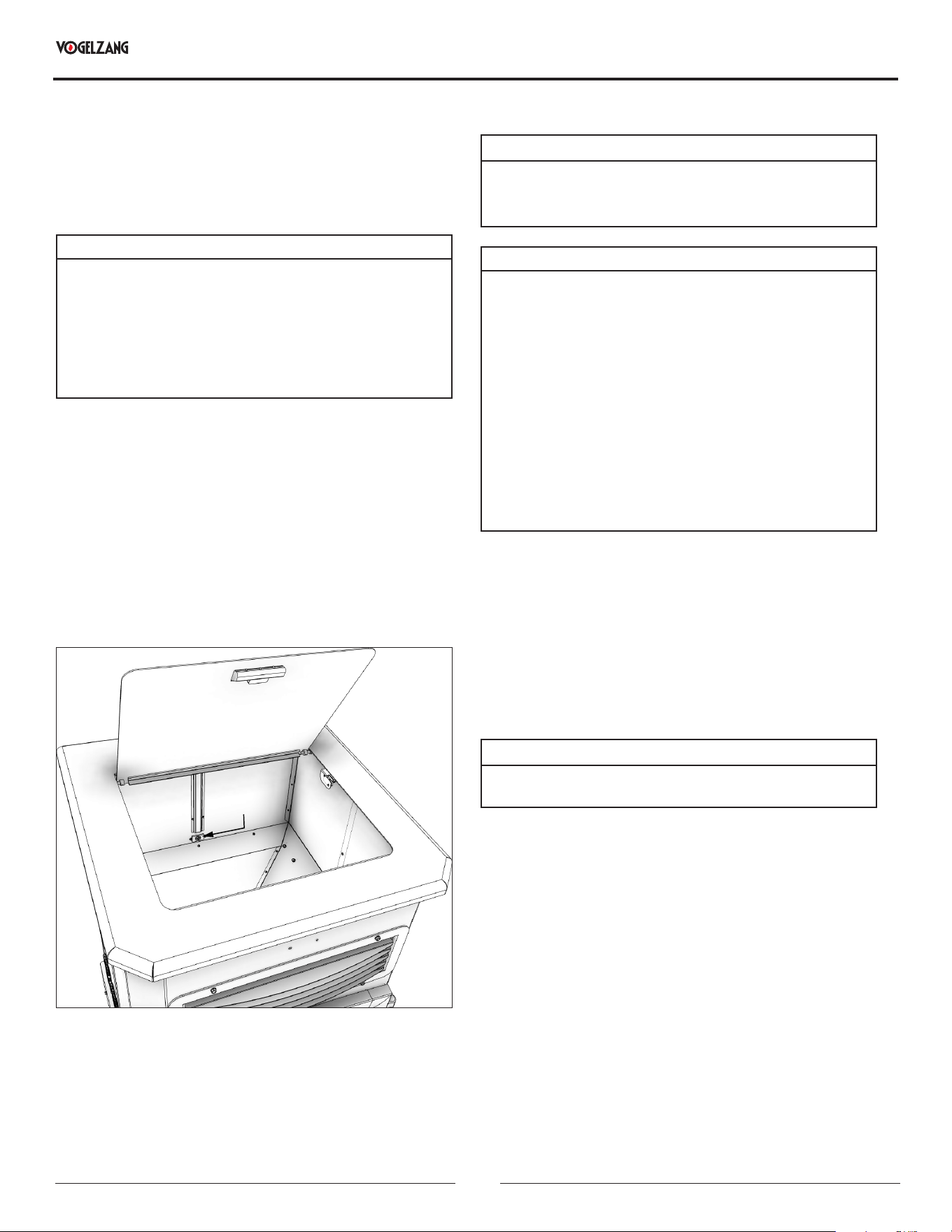

REFUELLING

WARNING:

• KEEP HOPPER LID CLOSED AT ALL TIMES EXCEPT

WHEN REFILLING.

• DO NOT OVERFILL HOPPER.

CAUTION:

• THE HOPPER AND STOVE TOP WILL BE HOT

DURING OPERATION; THEREFORE, YOU SHOULD

ALWAYS USE SOME TYPE OF HAND PROTECTION

WHEN REFUELING YOUR STOVE.

• DO NOT TOUCH THE HOT SURFACES OF THE STOVE.

EDUCATE ALL CHILDREN ON THE DANGERS OF A

HIGH-TEMPERATURE STOVE. YOUNG CHILDREN

SHOULD BE SUPERVISED WHEN THEY ARE IN THE

SAME ROOM AS THE STOVE.

• NEVER PLACE YOUR HAND NEAR THE AUGER

WHILE THE STOVE IS IN OPERATION.

• WE RECOMMEND THAT YOU NOT LET THE HOPPER

DROP BELOW 1/4 FULL.

TAMPER WARNING

This wood heater has a manufacturer-set minimum low

burn rate that must not be altered. It is against federal

regulations to alter this setting or otherwise operate this

wood heater in a manner inconsistent with operating

instructions in this manual.

SHUTDOWN PROCEDURE

WARNING:

NEVER SHUT DOWN THIS UNIT BY UNPLUGGING IT

FROM THE POWER SOURCE.

Turning your stove off is a matter of pressing the “POWER”

button on the display board. The auger motor will stop,

and the blowers will continue to operate until the internal

rebox temperatures have fallen to a preset level.

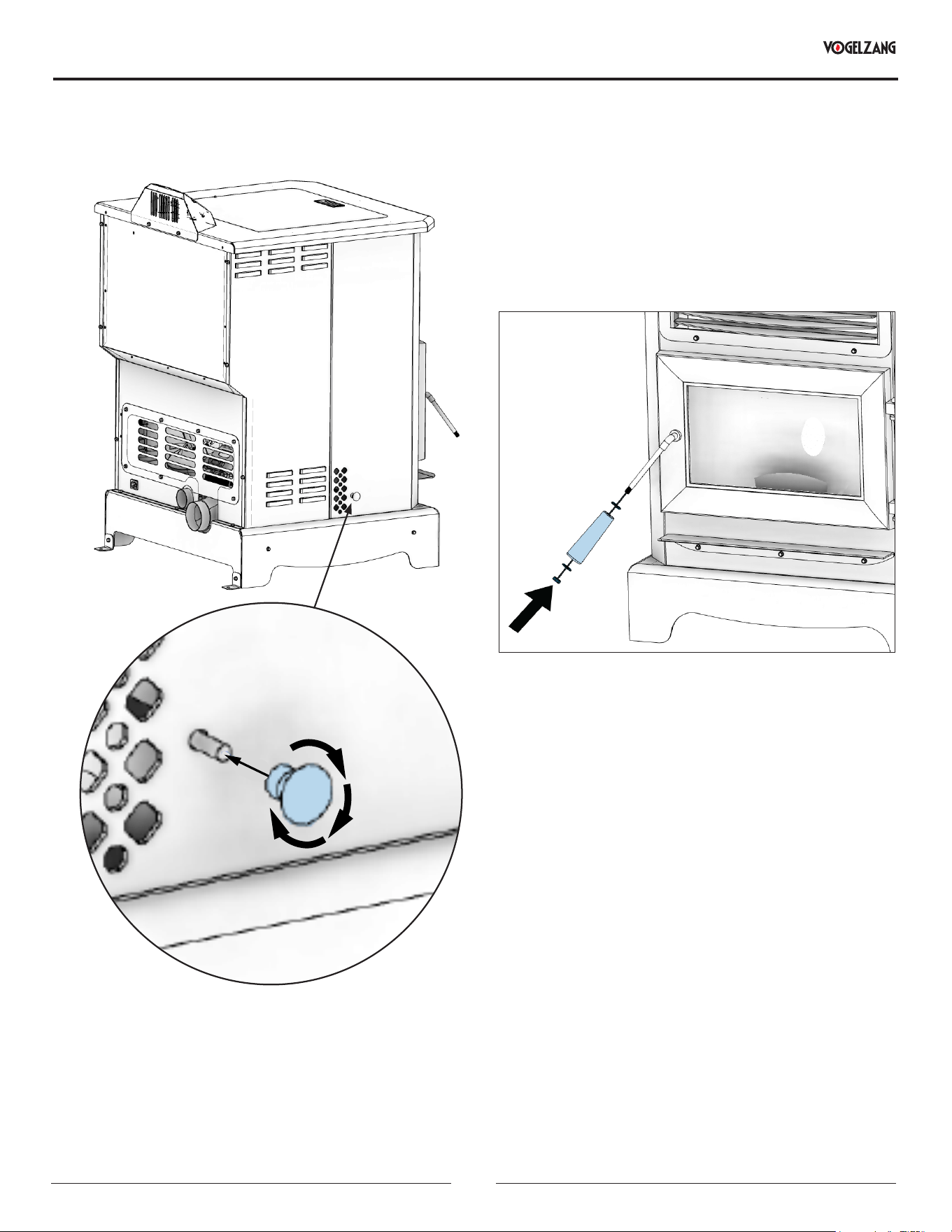

1. Your stove is equipped with a high temperature

thermodisc. This unit has a manual reset thermodisc.

This safety switch has two functions.

A. To recognize an overheat situation in the stove and

shut down the fuel feed or auger system.

B. In case of a malfunctioning convection blower, the

high-temperature thermodisc will automatically shut

down the auger, preventing the stove from overheating.

NOTE: On some units, once tripped, like a circuit breaker,

the reset button will have to be pushed before restarting

your stove. On other units the thermodisc has no reset

button and will reset itself once the stove has cooled. The

manufacturer recommends that you call your dealer if this

occurs as this may indicate a more serious problem. A

service call may be required.

2. If the combustion blower fails, an air pressure switch

will automatically shut down the auger.

NOTE: Opening the stove door for more than 30 seconds

during operation will cause enough pressure change to

activate the air switch, shutting the fuel feed off. The stove

will shut down and show “E2” on the two digit display. The

stove has to fully shut down before restarting.

INTERIOR CHAMBERS

• Burn Pot - Periodically remove and clean the burn pot

and the area inside the burn pot housing. In particular,

it is advisable to clean out the holes in the burn pot to

remove any build up that may prevent air from moving

through the burn pot freely.

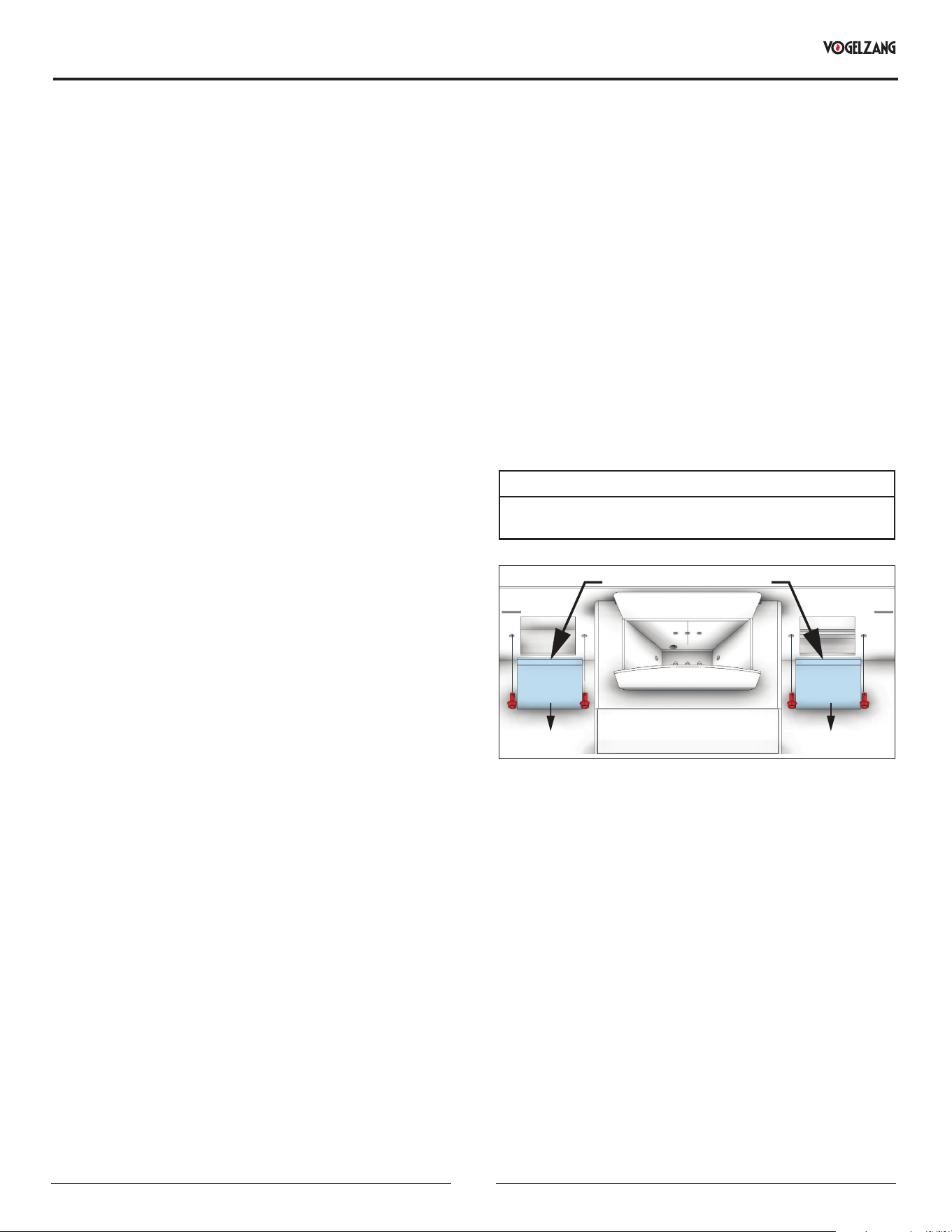

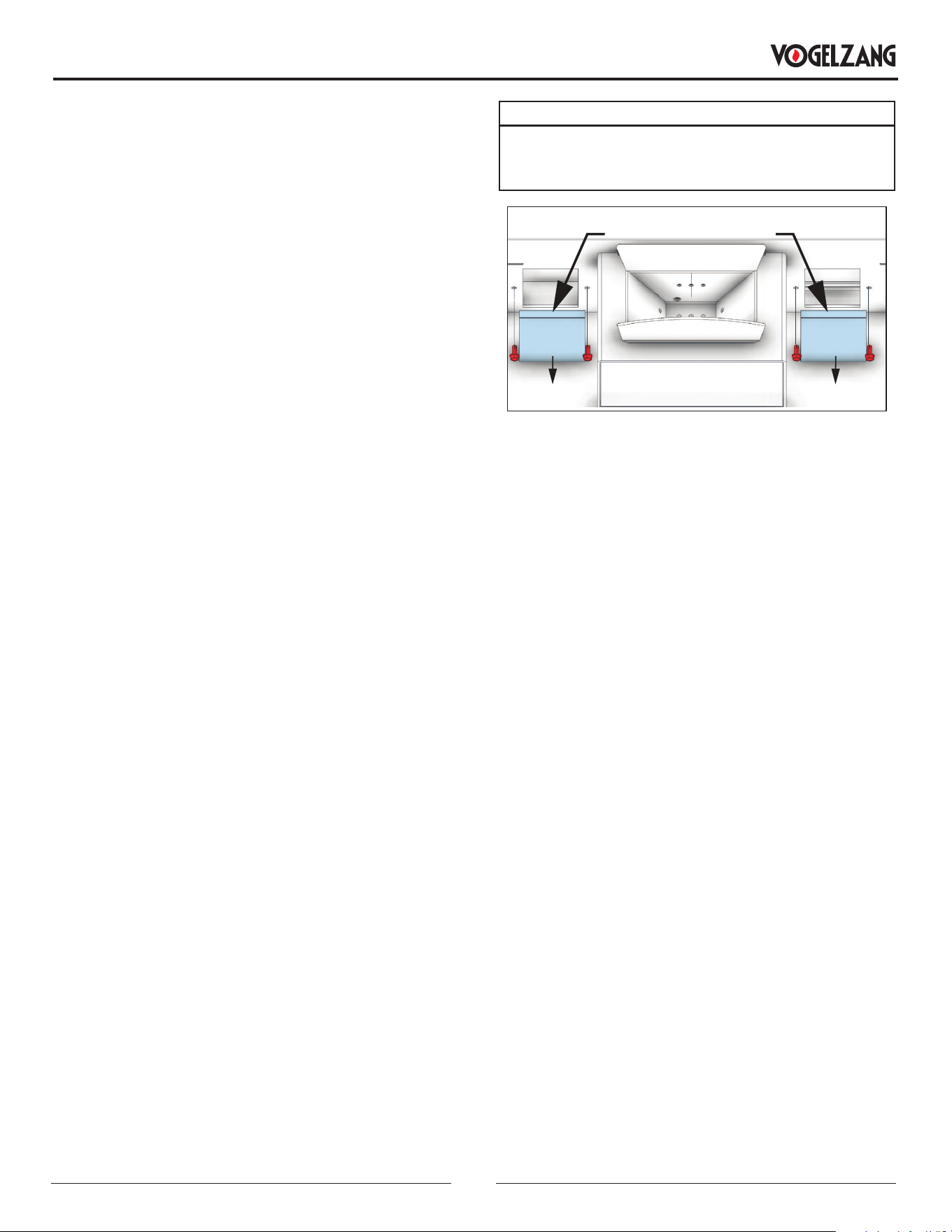

• Heat Exchanger - There are two clean out plates that

need to be removed in order to clean the y ash out

of the heat exchanger. Open the door to access the

OPERATION INSTRUCTIONS

cleanouts located inside the rebox, one on each side

of the burnpot. The clean outs are secured to the rebox

with (2) 5/16” screws each. Remove the clean outs

and vacuum out any accumulated ash. This should be

done at least once per month or more frequently if large

amounts of ash are noticed while cleaning or if the stove

does not seem to be burning properly.

Over time ash or dust may accumulate on the blades of the

circulation & exhaust fans. The fans should be inspected,

periodically, and if any accumulation is present vacuumed

clean as the ash or dust can impede the fans performance.

It is also possible that creosote may accumulate in the

exhaust fan therefore, this must be brushed clean. The

exhaust fan can be found behind the left side panel (facing

the front of the heater), the circulation fan can be found

behind the right side panel. To access the igniter, remove

the air inlet tube and cover (2 screws). The auger motor is

located in the center rear of the unit. Note: When cleaning,

take care not to damage the fan blades.

If a vacuum is used to clean your stove, we suggest

using the AV15E AshVac vacuum. The AV15E AshVac is

designed for ash removal. Some regular vacuum cleaner

(i.e. shop vacs) may leak ash into the room.

DO NOT VACUUM HOT ASH.

WARNING:

FAILURE TO PROPERLY MAINTENANCE THE CLEAN

OUTS WILL RESULT IN POOR PERFORMANCE OF THIS

STOVE.

Clean-Out Plates

OPERATION INSTRUCTIONS

APP SETUP

This stove can be monitored and controlled by using

the US Stove Company app which is available for iOS or

Android devices through the app store.

1. Download the US Stove Company app.

2. Open the app and select “Sign Up”. Note: You will only

need to go through the sign-up process when using

the app for the rst time.

3. Follow the on-screen instructions.

• Enter your email and agree to the Privacy Policy and

User Agreement.

• Make a password that is 6-20 characters with a mix of

letters and numbers.

• Enter the 6 digit verication code that was sent to the

previously entered email address.

• Provide access to the two permissions requested.

• Allow notications through the phones settings.

• The app is ready to add the unit.

your[email protected]

OPERATION INSTRUCTIONS

APP CONNECTION & OPERATION

1. Open the app. After the initial “Sign Up” process has

been completed, the app opens, by default to the “Add

Device” screen.

2. Make sure that your device and stove connect to the

same Wi-Fi network.

3. Make sure the stove is plugged into an electrical outlet

and can be powered on.

4. There is a red ashing indicator light located above

the congure button. Note: When the indicator light

is ashing the unit is ready to be paired. When the

indicator light is solid the unit has successfully paired.

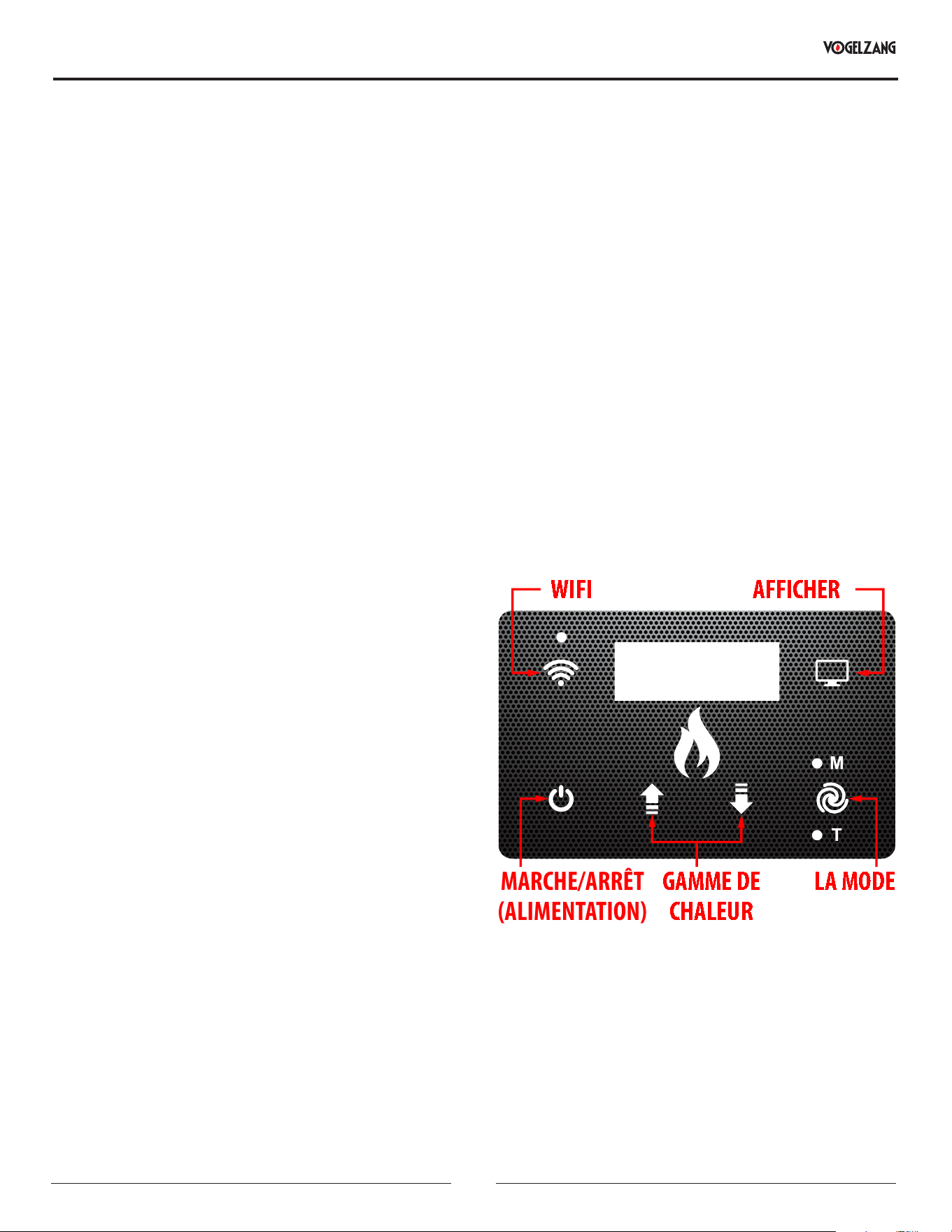

WIFI DISPLAY

ON/OFF

(POWER)

HEAT

RANGE

MODE

5. Select “Add Device”. Note: Access to location and

Bluetooth is required while using the app.

6. A screen with “Discovering Devices” will come up.

Press the “Add” button.

7. Enter the Wi-Fi information.

8. The blue circle indicates the device is in the process

of being added.

9. Once the unit has been successfully added a green

check mark will appear. The app and unit are now

ready for use.

Device Select

Screen

Stove Setting

Current Room

Temperature

Device Name &

Device Sharing

Settings

Increase

Temperature

Setpoint

Heat Range

Mode

Temperature

Adjuster

Decrease

Temperature

Setpoint

Power ON/OFF

NEVER OPERATE THIS PRODUCT WHILE UNATTENDED

MAINTENANCE

CAUTION:

• FAILURE TO CLEAN AND MAINTAIN THIS UNIT AS

INDICATED CAN RESULT IN POOR PERFORMANCE,

SAFETY HAZARDS, FIRE, AND EVEN DEATH.

• NEVER PERFORM ANY INSPECTIONS, CLEANING,

OR MAINTENANCE ON A HOT STOVE.

• DISCONNECT THE POWER CORD BEFORE

PERFORMING ANY MAINTENANCE! NOTE:

TURNING THE ON/OFF SWITCH TO ”OFF” DOES NOT

DISCONNECT ALL POWER TO THE ELECTRICAL

COMPONENTS OF THE STOVE.

• DO NOT OPERATE STOVE WITH BROKEN GLASS,

LEAKAGE OF FLUE GAS MAY RESULT.

• ATTEMPTS TO ACHIEVE HEAT OUTPUT RATES

THAT EXCEED HEATER DESIGN SPECIFICATIONS

CAN RESULT IN PERMANENT DAMAGE TO THE

HEATER.

CREOSOTE FORMATION, INSPECTION, &

REMOVAL

CAUTION:

THE EXHAUST SYSTEM SHOULD BE CHECKED

MONTHLY DURING THE BURNING SEASON FOR ANY

BUILD-UP OF SOOT OR CREOSOTE.

When any wood is burned slowly, it produces tar and other

organic vapors, which combine with expelled moisture

to form creosote. The creosote vapors condense in the

relatively cool chimney ue or a newly started re or

from a slow-burning re. As a result, creosote residue

accumulates on the ue lining. When ignited, this creosote

makes an extremely hot re, which may damage the

chimney or even destroy the house. Despite their high

eciency, pellet stoves can accumulate creosote under

certain conditions. The chimney connector and chimney

should be inspected by a qualied person annually or per

ton of pellets to determine if a creosote or y ash build-up

has occurred. If creosote has accumulated, it should be

removed to reduce the risk of a chimney re. Inspect the

system at the stove connection and at the chimney top.

Cooler surfaces tend to build creosote deposits quicker, so

it is important to check the chimney from the top as well as

from the bottom. The creosote should be removed with a

brush specically designed for the type of chimney in use.

A qualied chimney sweep can perform this service. It is

also recommended that before each heating season the

entire system be professionally inspected, cleaned and, if

necessary, repaired. To clean the chimney, disconnect the

vent from the stove.

FLY ASH

This accumulates in the horizontal portion of an exhaust

run. Though non-combustible, it may impede the normal

exhaust ow. It should therefore be periodically removed.

ASH REMOVAL & DISPOSAL

CAUTION:

ALLOW THE STOVE TO COOL BEFORE PERFORMING

ANY MAINTENANCE OR CLEANING. ASHES MUST BE

DISPOSED IN A METAL CONTAINER WITH A TIGHT

FITTING LID. THE CLOSED CONTAINER OF ASHES

SHOULD BE PLACED ON A NON-COMBUSTIBLE

SURFACE OR ON THE GROUND, WELL AWAY FROM

ALL COMBUSTIBLE MATERIALS, PENDING FINAL

DISPOSAL.

Remove the ashes periodically to avoid unnecessary ash

build up. Remove ashes when unit has cooled. Ashes

should be placed in a metal container with a tight tting

lid. The closed container of ashes should be placed

on a noncombustible oor or on the ground, well away

from all combustible materials, pending nal disposal. If

the ashes are disposed of by burial in soil or otherwise

locally dispersed, they should be retained in the closed

container until all embers have been thoroughly cooled.

The container shall not be used for other trash or waste

disposal. If combined with combustible substances, ashes

and embers may ignite.

SMOKE & CO MONITORS

Burning wood naturally produces smoke and carbon

monoxide(CO) emissions. CO is a poisonous gas

when exposed to elevated concentrations for extended

periods of time. While the modern combustion systems

in heaters drastically reduce the amount of CO emitted

out the chimney, exposure to the gases in closed or

conned areas can be dangerous. Make sure you stove

gaskets and chimney joints are in good working order

and sealing properly to ensure unintended exposure. It is

recommended that you use both smoke and CO monitors

in areas having the potential to generate CO.

CHECK & CLEAN THE HOPPER

Check the hopper periodically to determine if there is any

sawdust (nes) that is building up in the feed system or

MAINTENANCE

pellets that are sticking to the hopper surface. Clean as

needed.

DOOR & GLASS GASKETS

Inspect the main door and glass window gaskets

periodically. The main door may need to be removed to

have frayed, broken, or compacted gaskets replaced

by your authorized dealer. This unit’s door uses a 3/4”

diameter rope gasket.

BLOWER MOTORS

Clean the air holes on the motors of both the exhaust and

distribution blowers annually. Remove the exhaust blower

from the exhaust duct and clean out the internal fan blades

as part of your fall start-up. If you have indoor pets your

power motors should be inspected monthly to make sure

they are free of animal hair build up. Animal hair build up

in blowers can result in poor performance or unforeseen

safety hazards.

PAINTED SURFACES

Painted surfaces may be wiped down with a damp cloth. If

scratches appear, or you wish to renew your paint, contact

your authorized dealer to obtain a can of suitable high-

temperature paint.

GLASS

We recommend using a high-quality glass cleaner. Should

a buildup of creosote or carbon accumulate, you may wish

to use 000 steel wool and water to clean the glass. DO

NOT use abrasive cleaners. DO NOT perform the cleaning

while the glass is HOT. Do not attempt to operate the unit

with broken glass. Replacement glass may be purchased

from your U.S. Stove dealer. If the glass is broken, follow

these removal procedures:

1. Once the heater has cooled, remove the door from the

heater.

2. Remove the rope gasket from the door followed by the

nuts holding the glass retainer in place.

3. While wearing gloves, carefully remove any loose

pieces of glass from the door frame.

4. Replace the glass and gasket, making sure the gasket

runs the full perimeter of the glass edge.

5. Re-install the retainer and eight nuts and rope gasket

using high-temperature silicone to adhere the gasket

to the door.

6. Never use substitute materials for the glass.

DO NOT abuse the door glass by striking, slamming, or

similar trauma. Do not operate the stove with the glass

removed, cracked, or broken.

FALL START UP

Prior to starting the rst re of the heating season, check

the outside area around the exhaust and air intake systems

for obstructions. Clean and remove any y ash from the

exhaust venting system. Clean any screens on the exhaust

system and on the outside air intake pipe. Turn all of the

controls on and make sure that they are working properly.

This is also a good time to give the entire stove a good

cleaning throughout.

SPRING SHUTDOWN

After the last burn in the spring, remove any remaining

pellets from the hopper and the auger feed system. Scoop

out the pellets and then run the auger until the hopper

is empty and pellets stop owing (this can be done by

pressing the “ON” button with the viewing door open).

Vacuum out the hopper. Thoroughly clean the burn pot,

and rebox. It may be desirable to spray the inside of the

cleaned hopper with an aerosol silicone spray if your stove

is in a high humidity area. The exhaust system should be

thoroughly cleaned.

MAINTENANCE SCHEDULE

Use the following as a guide under average use conditions.

Gaskets around door and door glass should be inspected

and repaired or replaced when necessary.

Daily Weekly

Monthly or

as needed

Burn Pot Stirred Empty

Combustion

Chamber

Brushed

Ashes Check Empty

Interior Chambers Vacuumed

Combustion

Blower Blades

Vacuumed /

Brushed

Convection Blower

Impeller

Vacuumed /

Brushed

Vent System Cleaned

Gaskets Inspected

Glass Wiped Cleaned

Hopper (end of

season)

Empty &

Vacuumed

HOW TO ORDER REPAIR PARTS

INSTRUCTIONS SPECIFIC FOR CANADIAN

INSTALLATIONS

Do not obstruct the space under the heater and do not

obstruct the combustion air openings.

Refer to the chimney manufacturer’s instructions for

disassembling the chimney/venting for transportation of

a transportable building.

The parts or materials to be employed for ember protectors

and the minimum areas to be covered and their relation

to the space heater, as well as the notice: “In Canada, to

comply with CSA B365, Installation Code for Solid-Fuel-

Burning Appliances and Equipment, any combustible

covering beneath the appliance and/or within the area

extending horizontally at least 450 mm (18 in) beyond the

appliance on any side equipped with a door, and at least

200 mm (8 in) beyond the appliance on other sides, shall

be protected by a continuous, durable, non-combustible

pad that will provide ember protection. The 450 mm (18

in) ember protection required on any side with a door shall

extend for the full width of the appliance plus the 200 mm

(8 in) required on each side of the appliance without a

door. Where an appliance is installed less than 200 mm (8

in) from a wall, the ember pad need only extend to the base

of the wall. An ember pad shall not be placed on top of a

carpet unless the pad is structurally supported to prevent

displacement and distortion.

If this appliance is installed in a transportable building,

removal of the chimney/venting is required for

transportation of the building.

DO NOT INSTALL IN AN ALCOVE

DO NOT INSTALL IN ANY FIREPLACE

FOR PARTS ASSISTANCE, CALL 800-750-2723 EXT 5051 OR EMAIL: PARTS@USSTOVE.COM , OR ORDER AT

WWW.MYREPLACEMENTPARTS.COM

The information in this owner’s manual is specic to your unit. When ordering replacement parts the information in this

manual will help to ensure the correct items are ordered. Before contacting customer service write down the model

number and the serial number of this unit. That information can be found on the certication label attached to the back of

the unit. Other information that may be needed would be the part number and part description of the item(s) in question.

Part numbers and descriptions can be found in the “Repair Parts” section of this manual. Once this information has been

gathered you can contact customer service by phone 1-800-750-2723 Ext 5051 or Email [email protected].

Model Information

Model Number

Serial Number

TROUBLESHOOTING GUIDE

When your stove acts out of the ordinary, the rst reaction is to call for help. This guide may save time and money by

enabling you to solve simple problems yourself. Problems encountered are often the result of only ve factors: 1) poor

fuel; 2) poor operation or maintenance; 3) poor installation; 4) component failure; 5) factory defect. You can usually solve

those problems related to 1 and 2. Customer service can solve problems relating to 3, 4 and 5. Refer to diagrams in the

“Repair Parts” section to help locate indicated parts. For the sake of troubleshooting and using this guide to assist you,

you should look at your heat level setting to see which light is ashing.

• Disconnect the power cord before performing any maintenance! NOTE: Turning the ON/OFF Switch to ”OFF” does not

disconnect all power to the electrical components of the stove.

• Never try to repair or replace any part of the stove unless instructions for doing so are given in this manual. All other

work should be done by a trained technician.

Display “E1”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The convection blower is overheating and tripping

the internal temperature shutoff.

Clean any dust off of the windings and fan blade. If oiling the

blower does not help, the blower may be bad.

The stove is being left on the highest setting for

extended periods of time.

If operating the heater on the highest heat setting, the room

temperature could increase enough and lead to potential

overheating situations. If this happens try operating at a lower

heat setting.

Fuel other than wood pellets is being burned in the

stove.

This pellet stove is designed and tested to use wood pellets.

Check for signs of fuel other than wood pellets. No other types of

fuel have been approved for this pellet stove. If there are signs of

other types of fuel being used, stop using them immediately.

Power surge or brown out situation.

A power surge, spike, or voltage drop could cause the high limit

switch to trip. Check to see if a surge protector is being used on

the stove. If not, recommend one to the customer.

High Limit Switch is malfunctioning. If the other items check out OK, replace the high limit switch.

ATTENTION: THIS WOOD HEATER NEEDS PERIODIC INSPECTION AND REPAIR FOR PROPER OPERATION. IT

IS AGAINST FEDERAL REGULATIONS TO OPERATE THIS WOOD HEATER IN A MANNER INCONSISTENT WITH

OPERATING INSTRUCTIONS IN THIS MANUAL.

Display is Flashing

The low fuel sensor has tripped. Pellet level is low, rell hopper.

TROUBLESHOOTING GUIDE

Display “E2”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

Airow switch hose or stove attachment pipes for

hose are blocked.

Unhook air hose from the air switch and blow through it. If air ows

freely, the hose and tube are ne. If air will not ow throw the hose,

use a wire coat hanger to clear the blockage.

The air inlet, burnpot, interior combustion air

chambers, combustion blower, or exhaust pipe

are blocked with ash or foreign material.

Follow all cleaning procedures in the maintenance section of the

owner’s manual.

The rebox is not properly sealed. Make sure the door is closed and that the gasket is in good shape.

Vent pipe is incorrectly installed.

Check to make sure vent pipe installation meets criteria in owner’s

manual.

The airow switch wire connections are bad. Check the connectors that attach the gray wires to the air switch.

Combustion blower failure.

With the stove on, check to see if the combustion blower is

running. If it is not, you will need to check for power going to the

combustion blower. It should be a full current. If there is power,

the blower is bad. If there is not, make sure the control board is

sending power to the air switch.

Control board not sending power to combustion

blower.

If there is no current going to the combustion blower, check all

wire connections. If all wires are properly connected, you have a

bad control board.

Control board not sending power to air switch.

There should be a 5-volt current (approximately) going to the air

switch after the stove has been on for 30 seconds.

Air switch has failed.

To test the air switch, you will need to disconnect the air hose from

the body of the stove. With the other end still attached to the air

switch, very gently suck on the loose end of the hose (you may

want to remove the hose entirely off the stove and the air switch

rst and make sure it is clear). If you hear a click, the air switch is

working. BE CAREFUL TOO MUCH VACUUM CAN DAMAGE THE

AIR SWITCH.

Display “E3”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The hopper is out of pellets Rell the hopper.

The air dampener is too far open for a low feed

setting

If on the low setting, you may need to close the dampener all the

way.

The burnpot holes are blocked. Remove the burnpot and thoroughly clean it.

The air inlet, the interior chambers, or exhaust

system has a partial blockage.

Follow all cleaning procedures in the maintenance section of the

owner's manual

The hopper safety switch has failed or hopper is

open.

When operating the unit, be sure the hopper lid is closed so that

the hopper safety switch will activate. Check the wires leading

from the hopper safety switch to the control panel and auger

motor for secure connections. Use a continuity tester to test the

hopper safety switch; replace if necessary.

The auger shaft is jammed.

"Start by emptying the hopper. Then remove the auger motor by

removing the auger pin, then remove the two bolts that hold the

auger bracket to the auger tube. The auger bracket will now be

able to be removed form the auger tube. Remove the two bolts

on the side of the auger tube to remove the lower bearing of the

auger. Pull the auger out of the tube to free the jam.

The auger motor has failed.

Remove the auger motor from the auger shaft and try to run the

unit. If the motor will turn the shaft is jammed on something. If the

motor will not turn, the motor is bad.

The Proof of Fire (POF) thermodisc has

malfunctioned.

Temporarily bypass the POF thermodisc by disconnecting the two

wires and connecting them with a short piece of wire. Then plug

the stove back up. If the stove comes on and works, you need

to replace the POF thermodisc. This is for testing only. DO NOT

LEAVE THE THERMODISC BYPASSED. Your blowers will never

shut off and if the re went out the auger will continue to feed

pellets until the hopper is empty if you leave the POF thermodisc

bypassed.

The control board is not sending power to the POF

thermodisc or other auger system components.

There should be a 5-volt (approximately) current going to the POF

thermodisc after the stove has been on for 10 minutes.

TROUBLESHOOTING GUIDE

Display “E4”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The air inlet, burnpot, interior combustion air

chambers, combustion blower, or exhaust pipe

are blocked with ash or foreign material.

Follow all cleaning procedures in the maintenance section of the

owner’s manual.

The Proof of Fire (POF) thermodisc has came

unplugged

Check the (POF) thermodisc to see if the wires are connected

properly.

The Proof of Fire (POF) thermodisc has

malfunctioned.

Temporarily bypass the POF thermodisc by disconnecting the two

wires and connecting them with a short piece of wire. Then plug

the stove back up. If the stove comes on and works, you need

to replace the POF thermodisc. This is for testing only. DO NOT

LEAVE THE THERMODISC BYPASSED. Your blowers will never

shut off and if the re went out the auger will continue to feed

pellets until the hopper is empty if you leave the POF thermodisc

bypassed.

The hopper is out of Pellets. Rell the hopper.

The hopper safety switch has failed or hopper is

open.

When operating the unit, be sure the hopper lid is closed so that

the hopper safety switch will activate. Check the wires leading

from the hopper safety switch to the control panel and auger

motor for secure connections. Use a continuity tester to test the

hopper safety switch; replace if necessary.

The auger shaft is jammed.

Start by emptying the hopper. Then remove the auger motor by

removing the auger pin. Remove the auger shaft inspection plate

in the hopper so that you can see the auger shaft. Gently lift the

auger shaft straight up so that the end of the auger shaft comes

up out of the bottom auger bushing. Next, remove the two nuts

that hold the top auger biscuit in. Then rotate the bottom end of

the auger shaft up towards you until you can lift the shaft out of

the stove. After you have removed the shaft, inspect it for bent

ights, burrs, or broken welds. Remove any foreign material that

might have caused the jam. Also, check the auger tube for signs of

damage such as burrs, rough spots, or grooves cut into the metal

that could have caused a jam.

The auger motor has failed.

Remove the auger motor from the auger shaft and try to run the

unit. If the motor will turn the shaft is jammed on something. If the

motor will not turn, the motor is bad.

Display “E5”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The stove automatically shows "E5" when

turned on

The T-stat sensor has come unplugged form the control board. Check

to see if the sensor is unplugged. If the sensor is not unplugged then

the sensor is damaged or has a short. If the sensor is damaged or has

a short it will need to be replaced.

TROUBLESHOOTING GUIDE

Stove Feeds Pellets, But Will Not Ignite

Possible Causes Possible Remedies: (Unplug stove rst when possible)

Air damper open too far for ignition.

In some situations it may be necessary to have the damper

completely closed for ignition to take place. After there is a ame,

the damper can then be adjusted for the desired feed setting.

Blockage in igniter tube or inlet for igniter tube.

Find the igniter housing on the backside of the rewall. The air

intake hole is a small hole located on bottom side of the housing.

Make sure it is clear. Also, look from the front of the stove to make

sure there is not any debris around the igniter element inside of the

igniter housing.

The burnpot is not pushed completely to the rear

of the rebox.

Make sure that the air intake collar on the burnpot is touching the

rear wall of the rebox.

Bad igniter element.

Put power directly to the igniter element. Watch the tip of the

igniter from the front of the stove. After about 2 minutes the tip

should glow. If it does not, the element is bad.

The control board is not sending power to the

igniter.

Check the voltage going to the igniter during startup. It should be

a full current. If the voltage is lower than full current, check the

wiring. If the wiring checks out good, the board is bad.

Smoke Smell Coming Back Into The Home

Possible Causes Possible Remedies: (Unplug stove rst when possible)

There is a leak in the vent pipe system.

Inspect all vent pipe connections. Make sure they are sealed with

RTV silicone that has a temperature rating on 500 degree F or

higher. Also, seal joints with UL-181-AP foil tape. Also, make sure

the square to round adapter piece on the combustion blower has

been properly sealed with the same RTV.

The gasket on the combustion blower has gone

bad.

Inspect both gaskets on the combustion blower to make sure they

are in good shape.

Because it is a wood-burning device, your pellet heater may emit a faint wood-burning odor. If this increases beyond

normal, or if you notice an unusual soot build-up on walls or furniture, check your exhaust system carefully for leaks. All

joints should be properly sealed. Also clean your stove, following instructions in “MAINTENANCE”. If problem persists,

contact customer service.

Convection Blower Shuts Off And Comes Back On

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The convection blower is overheating and tripping

the internal temperature shutoff.

Clean any dust off of the windings and fan blades. If cleaning the

blower does not help, the blower may be bad.

Circuit board malfunction.

Test the current going to the convection blower. If there is power

being sent to the blower when it is shut off, then the control board

is ne. If there is NOT power being sent to the blower when it shuts

off during operation, then you have a bad control board.

TROUBLESHOOTING GUIDE

Stove Will Not Feed Pellets, But Fuel Feed Light Comes On As Designed

Possible Causes Possible Remedies: (Unplug stove rst when possible)

High limit switch has

tripped or is defective.

Wait for the stove to cool for about 30 - 45 minutes. Locate the High Limit thermodisc and

press the reset button on the back of it. If the heater will not restart, check the thermodisc

to see if it’s bad. To test if the thermodisc is bad, you can bypass it as described previously

for the POF thermodisc.

Bad Auger Motor.

Remove the auger motor from the auger shaft and try to run the unit. If the motor will turn

the shaft is jammed on something. If the motor will not turn, the motor is bad.

Auger Jam

Start by emptying the hopper. Then remove the auger motor by removing the auger pin.

Remove the auger shaft inspection plate in the hopper so that you can see the auger shaft.

Gently lift the auger shaft straight up so that the end of the auger shaft comes up out of the

bottom auger bushing. Next, remove the two nuts that hold the top auger biscuit in. Then

rotate the bottom end of the auger shaft up towards you until you can lift the shaft out of the

stove. After you have removed the shaft, inspect it for bent ights, burrs, or broken welds.

Remove any foreign material that might have caused the jam. Also, check the auger tube

for signs of damage such as burrs, rough spots, or grooves cut into the metal that could

have caused a jam.

Loose wire or connector.

Check all wires and connectors that connector to the auger motor, high limit switch, and the

Molex connector.

Bad control board.

If the fuse is good, the wires and connectors check out good, and the high limit switch did

not trip, test for power going to the auger motor. If there is not a full current going to the

auger motor when the fuel feed light is on, you have a bad control board.

TROUBLESHOOTING GUIDE

Glass “Soot’s” Up At A Very Fast Rate

Flame Is Lazy, Dark, And Has Black Tips

After Stove Has Been On For A While, The Burnpot Overlls

Possible Causes Possible Remedies: (Unplug stove rst when possible)

Stove or vent pipe is dirty, which restricts airow

through the burnpot.

Follow all cleaning procedure in the maintenance section of the

owner’s manual.

Vent pipe installed improperly.

Check to make sure the vent pipe has been installed according to

the criteria in the owner’s manual.

Burnpot holes are blocked. Remove the burnpot and thoroughly clean it.

Blockage in air intake pipe.

Visually inspect the air intake pipe that leads into the burnpot for

foreign material.

Combustion blower is not spinning fast enough.

Test the RPM on the blower after the blades have been cleaned.

The RPM should be approximately 3000 RPM.

Bad Pellets. (Applies to GLASS “SOOT’S” UP AT A

VERY FAST RATE Only)

The brand of pellets or the batch of pellets that are being used

may be of poor quality. If possible, try a different brand of pellets.

You might also want to try a brand that is made from a different

type of wood (softwood vs. hardwood). Different woods have

different characteristics when being burned.

High Limit Switch Keeps Tripping

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The convection blower is

overheating and tripping

the internal temperature

shutoff.

Clean any dust off of the windings and fan blades. If oiling the blower does not help, the

blower may be bad.

The stove is being left

on the highest setting

for extended periods of

time.

If operating the heater on the highest heat setting, the room temperature could increase

enough and lead to potential overheating situations. If this happens, try operating at a lower

heat setting.

Fuel other than wood

pellets is being burned in

the stove.

This pellet stove is designed and tested to use wood pellets. Check for signs of fuel other

than wood pellets. No other types of fuel have been approved for this pellet stove. If there

are signs of other types of fuel being used, stop using them immediately.

Power surge or brown

out situation.

A power surge, spike, or voltage drop could cause the high limit switch to trip. Check to see

if a surge protector is being used on the stove. If not, recommend one to the consumer.

High limit switch is

malfunctioning.

If the other items check out okay, replace the high limit switch.

TROUBLESHOOTING GUIDE

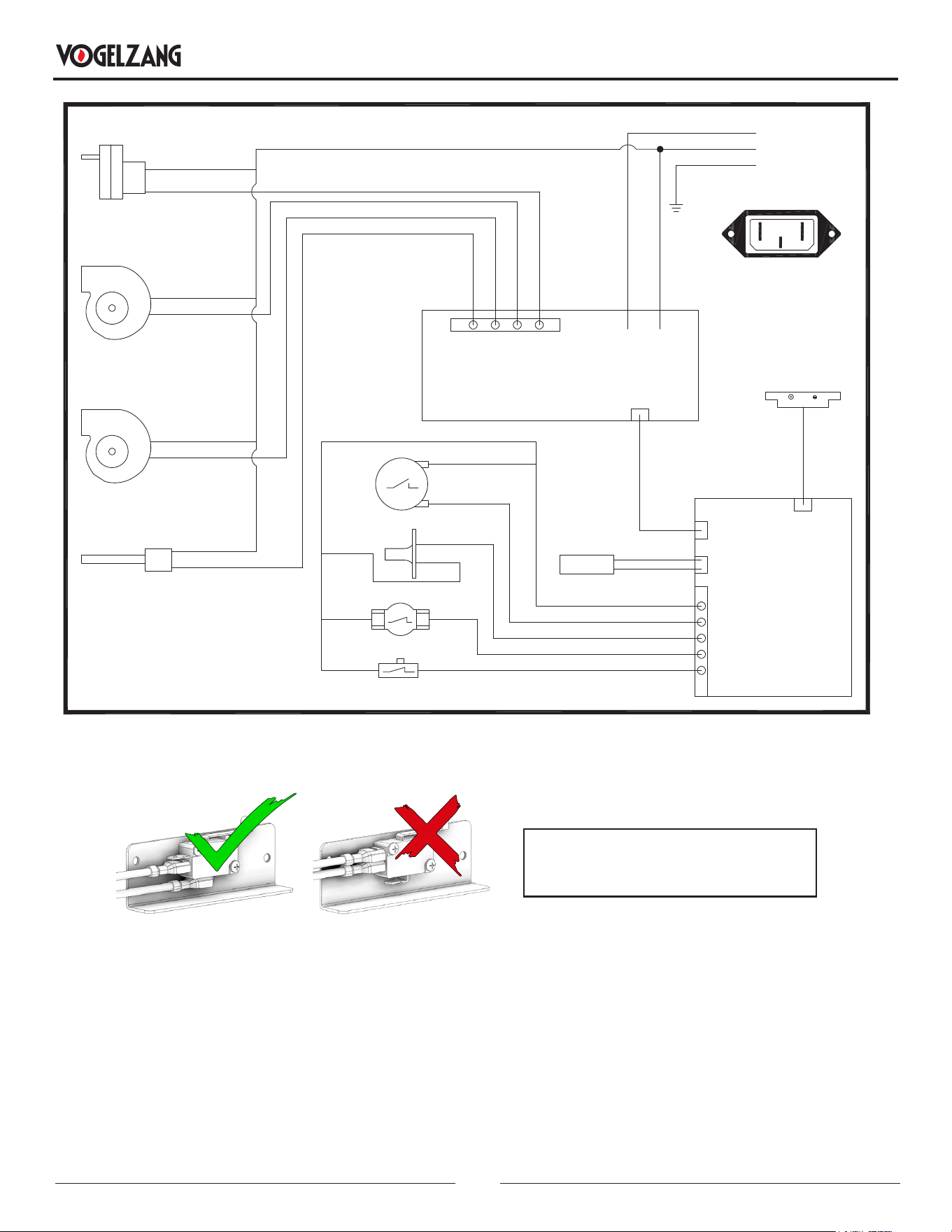

WIRING DIAGRAM

CORRECT WRONG

ENSURE THE WIRES ARE CONNECTED

TO THE BOTTOM TWO PRONGS OF THE

HOPPER SWITCH AS SHOWN.







































































































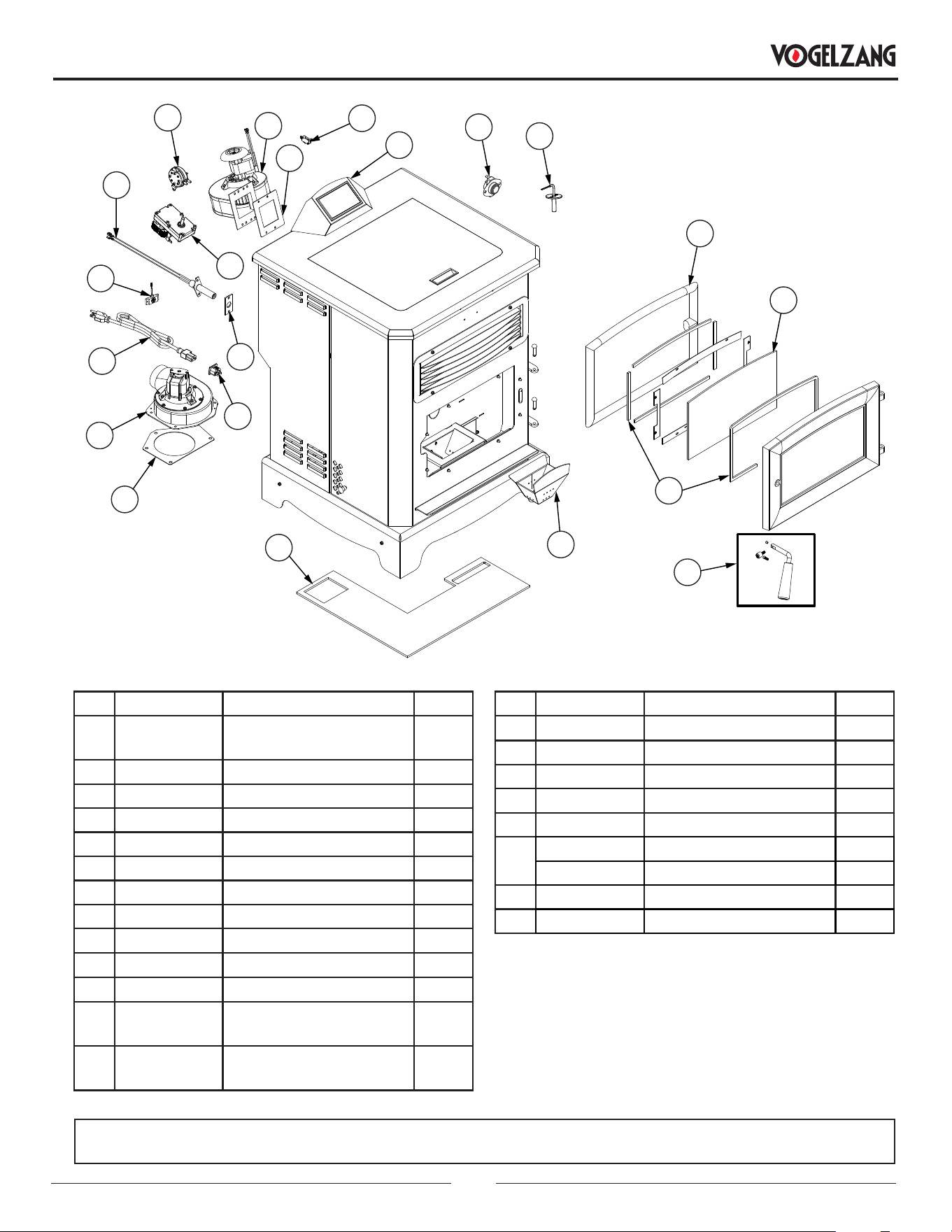

Key Part # Description Qty

1 88174

Glass Gasket - Flat

(3/16T x 3/8W)

3.94 ft

2 893154 Clear Glass 1

3 88324 1” Rope Gasket 5.48 ft

4 893629 Burnpot Assembly 1

5 80455 High Temp Snapdisc 1

6 80914 WiFi PCBA 1

7 88351 Channel Gasket 1

8 88118 Ignitor Flange Gasket 1

9 80869 Ceramic Ignitor 1

10 80549 Pressure Switch 1

11 80867 Distribution Blower 1

12 88106

Distribution Blower

Gasket

13 80866

Drive Motor

(1.5 RPM CCW)

Key Part # Description Qty

14 80915 RTD Temperature Probe 1

15 88100 Exhaust Blower Gasket 1

16 80868 Exhaust Blower 1

17 80491 Microswitch 1

18 893241-VG Door Handle Kit 1

80917 Receptacle W/EMC Filter 1

80462 Power Receptacle 1

20 80461 Power Supply Cord 1

21 80938 Sensor, Hopper Fuel Level 1

REPAIR PARTS

IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING USSC PARTS PURCHASED THROUGH

YOUR DEALER OR DIRECTLY FROM USSC. USE OF THIRD PARTY COMPONENTS WILL VOID THE WARRANTY.

To order parts:

Call 1-800-750-2723 Ext 5051 or

Email to: [email protected]

It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is

completed.

SERVICE PROVIDER

Before completing the appropriate Service Record below, please ensure you have carried out the service as described

in the manufacturer’s instructions. Always use the manufacturer's specied spare part when replacement is necessary.

Service 01 Date: _______________________

Engineer Name: _____________________________________

License No.: ________________________________________

Company: ___________________________________________

Telephone No.: ______________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _____________________________________

Service 03 Date: _______________________

Engineer Name: _____________________________________

License No.: ________________________________________

Company: ___________________________________________

Telephone No.: ______________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _____________________________________

Service 05 Date: _______________________

Engineer Name: _____________________________________

License No.: ________________________________________

Company: ___________________________________________

Telephone No.: ______________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _____________________________________

Service 07 Date: _______________________

Engineer Name: _____________________________________

License No.: ________________________________________

Company: ___________________________________________

Telephone No.: ______________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _____________________________________

Service 02 Date: _______________________

Engineer Name: _____________________________________

License No.: ________________________________________

Company: ___________________________________________

Telephone No.: ______________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _____________________________________

Service 04 Date: _______________________

Engineer Name: _____________________________________

License No.: ________________________________________

Company: ___________________________________________

Telephone No.: ______________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _____________________________________

Service 06 Date: _______________________

Engineer Name: _____________________________________

License No.: ________________________________________

Company: ___________________________________________

Telephone No.: ______________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _____________________________________

Service 08 Date: _______________________

Engineer Name: _____________________________________

License No.: ________________________________________

Company: ___________________________________________

Telephone No.: ______________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _____________________________________

SERVICE RECORD

VG5722-W

Signaler Le Numéro: F22-782

Certié selon la norme ASTM E1509-2022 et Certié

CAN/ULC S627:2023; Conforme à CAN ICES-3(B)/

NMB-3(B); Contient IC:23243-WBR1DIPEX

Maisons mobiles/bâtiments portatifs approuvé

Numéro De Modèle:

Manuel d’instructions et d’utilisation du propriétaire

* Toutes les images de ce manuel sont à des ns d’illustration uniquement. Le produit réel peut varier.

CE MANUEL EST SUJET À MODIFICATION SANS PRÉAVIS.

Conservez ces instructions dans un endroit sûr pour référence ultérieure.

AVIS DE SÉCURITÉ: Si ce radiateur n’est pas correctement installé, un incendie peut en résulter.

Pour votre sécurité, suivez les instructions d’installation. N’utilisez jamais de compromis de

fortune lors de l’installation de ce radiateur. Contactez les responsables locaux du bâtiment

ou des pompiers pour connaître les permis, les restrictions et les exigences d’installation dans

votre région. NE JAMAIS UTILISER CE PRODUIT SANS SURVEILLANCE.

MISE EN GARDE! Veuillez lire l’intégralité de ce manuel avant d’installer ou d’utiliser votre nouveau

radiateur. Le non-respect des instructions peut entraîner des dommages matériels, des blessures

corporelles ou même la mort. Une installation incorrecte pourrait annuler votre garantie!

AVERTISSEMENT : Avant de démarrer votre poêle à granulés à distance avec le WiFi, il est essentiel

de vous assurer que rien n’est appuyé, drapé ou à proximité de votre poêle. Tous les dégagements aux

combustibles spéciés dans votre manuel du propriétaire doivent être maintenus en tout temps. Le

non-respect de cet avertissement peut entraîner un incendie et/ou des dommages matériels.

AGENCE AMÉRICAINE DE PROTECTION DE

L’ENVIRONNEMENT

Certié conforme aux normes d’émissions

de particules 2020.

AVERTISSEMENT SUR LA PROPOSITION 65 DE LA

CALIFORNIE:

Ce produit peut vous exposer à des produits chimiques,

y compris le monoxyde de carbone, qui est connu dans

l’État de Californie pour provoquer le cancer, des anomalies

congénitales et / ou d’autres troubles de la reproduction.

Pour plus d’informations, visitez www.P65warnings.ca.gov

LISTE DE CONTRÔLE D’INSTALLATION

Votre poêle à bois ne doit être installé que par un installateur qualié. Un installateur qualié NFI est disponible à l’adresse www.

ncertied.org/public/nd-an-n-pro/

SERVICE CLIENTS

1-800-750-2723 poste 5050

Texte au 423-301-5624

E-mail à: customerservice@usstove.com

LISTE DE CONTRÔLE DE MISE EN SERVICE

Cette liste de contrôle doit être remplie intégralement par la personne qualiée qui installe cet appareil. Conservez cette page pour

référence future.

Le fait de ne pas installer et mettre en service selon les instructions du fabricant et de remplir cette liste de contrôle annulera la

garantie.

S’il te plaît imprime

Nom du client: Numéro de téléphone:

Adresse:

Modèle:

Numéro de série:

Nom de la société d’installation: Numéro de téléphone:

Nom du technicien d’installation: Numéro de licence:

DESCRIPTION DU TRAVAIL

Emplacement de l’appareil installé: _______________________________________________________________________________________________

Système de ventilation: nouveau système de ventilation Oui Non Si oui, marque ______________________________________

Si non, date d’inspection du système de ventilation existant: _______________________________________________________________________

MISE EN SERVICE

Conrmer l’installation du tapis de foyer conformément aux instructions d’installation .........................................................................

Conrmer le bon placement des pièces internes ........................................................................................................................................

Vérier la solidité du joint de porte et des joints de porte ...........................................................................................................................

Conrmer les dégagements aux combustibles selon les instructions d’installation de ce manuel ........................................................

Vérier le fonctionnement des commandes pneumatiques .......................................................................................................................

Conrmez que le système de ventilation est sécurisé et scellé .................................................................................................................

Conrmer que le poêle démarre et fonctionne correctement .....................................................................................................................

Assurez-vous qu’un avertisseur de CO est installé conformément aux codes du bâtiment locaux et qu’il est fonctionnel ..................

Expliquer le fonctionnement en toute sécurité, l’utilisation appropriée du carburant, le nettoyage et les exigences d’entretien de

routine .............................................................................................................................................................................................................

Déclaration d’achèvement: En tant que personne qualiée responsable des travaux décrits ci-dessus, je conrme que l’appareil en tant

que travail associé a été installé selon les instructions du fabricant et en suivant les codes de construction et d’installation applicables.

Signé: ________________________________________ Nom en lettres moulées: __________________________________ Date: _________________

Propriétaire du domicile: CONSERVEZ CETTE INFORMATION POUR RÉFÉRENCE FUTURE

Votre poêle à granulés a été testé pour la sécurité et homologué selon ASTM E1509-2022 et CAN/ULC S627:2023. Ce manuel décrit

l’installation et le fonctionnement du poêle à granulés Vogelzang VG5722-W. Cet appareil de chauffage respecte les limites d’émission

de l’Agence américaine de protection de l’environnement 2020 pour les appareils de chauffage au bois vendus après le 15 mai 2020.

Dans des conditions de test spéciques de l’EPA brûlant des granulés de bois, il a été démontré que cet appareil de chauffage fournit

de la chaleur à un taux de 13 640 à 32 591 Btu/h. Cet appareil de chauffage a atteint un taux d’émission de particules de 1,5 g/h

lorsqu’il a été testé selon la méthode ASTM E 2779 / EPA Method 28R et une ecacité de 76 %.

Spécications De Chauffage

Brûler le combustible de tarif * 2,1 à 5 lb/h (0,97 à 2,26 kg/h)

* La taille des granulés peut affecter le débit

réel d’alimentation en carburant, les durées

de combustion et la capacité de la trémie. Les

débits d’alimentation en carburant peuvent

varier jusqu’à 20 %. Utilisez du carburant

homologué PFI pour de meilleurs résultats.

Temps de combustion (réglage le plus bas) 80 hrs.

Capacité de la trémie * *jusqu’à 170lbs. (77kg)

Taille du conduit de fumée 3 po ou 4 po

Spécications Électriques

Note électrique 110-120 volts, 60 HZ, 30 Amps

Watts (opérationnel) 175 (approx.)

Watts (allumeur en marche) 425 (approx.)

Dimensions

Hauteur x Largeur x Profondeur 40 po (1003 mm) x 26 po (660 mm) x 30 po (762 mm)

Du sol au centre du tuyau d’échappement 6,28 po (160 mm)

Du sol au centre d’admission d’air frais 7,34 po (187 mm)

AVERTISSEMENT:

IL EST CONTRAIRE À LA RÉGLEMENTATION FÉDÉRALE D’UTILISER CE POÊLE À BOIS D’UNE MANIÈRE INCOMPATIBLE AVEC LES

INSTRUCTIONS D’UTILISATION DU MANUEL DU PROPRIÉTAIRE.

INTRODUCTION

Remarque: Pour activer la connectivité WiFi

ou Bluetooth® pour votre poêle, téléchargez

l’application US Stove Co. L’application US Stove

Co. vous permet de faire fonctionner et de surveiller

votre poêle. L’application est disponible pour iOS et

Android et peut être trouvée en recherchant ce qui

suit : US Stove Company Heating Made Simple.

Pour le service client, veuillez appeler:

1-800-750-2723 poste 5050 ou;

Texte au 423-301-5624 ou;

Écrivez-nous à:

customerservice@usstove.com

Remarque: Enregistrez votre produit en utilisant votre téléphone

intelligent avec le code QR. Conservez vos reçus avec vos

dossiers pour toute réclamation au titre de la garantie.

Vous pouvez également enregistrer votre produit en ligne

sur www.usstove.com/support/product-registration / OU en

téléchargeant l’application US Stove Company disponible pour

iOS et Android.

LISTE DE CONTRÔLE D’INSTALLATION

Votre poêle à bois ne doit être installé que par un installateur qualié. Un installateur qualié NFI est disponible à l’adresse www.

ncertied.org/public/nd-an-n-pro/

SERVICE CLIENTS

1-800-750-2723 poste 5050

Texte au 423-301-5624

E-mail à: [email protected]

LISTE DE CONTRÔLE DE MISE EN SERVICE

Cette liste de contrôle doit être remplie intégralement par la personne qualiée qui installe cet appareil. Conservez cette page pour

référence future.

Le fait de ne pas installer et mettre en service selon les instructions du fabricant et de remplir cette liste de contrôle annulera la

garantie.

S’il te plaît imprime

Nom du client: Numéro de téléphone:

Adresse:

Modèle:

Numéro de série:

Nom de la société d’installation: Numéro de téléphone:

Nom du technicien d’installation: Numéro de licence:

DESCRIPTION DU TRAVAIL

Emplacement de l’appareil installé: _______________________________________________________________________________________________

Système de ventilation: nouveau système de ventilation

Oui Non Si oui, marque ______________________________________
