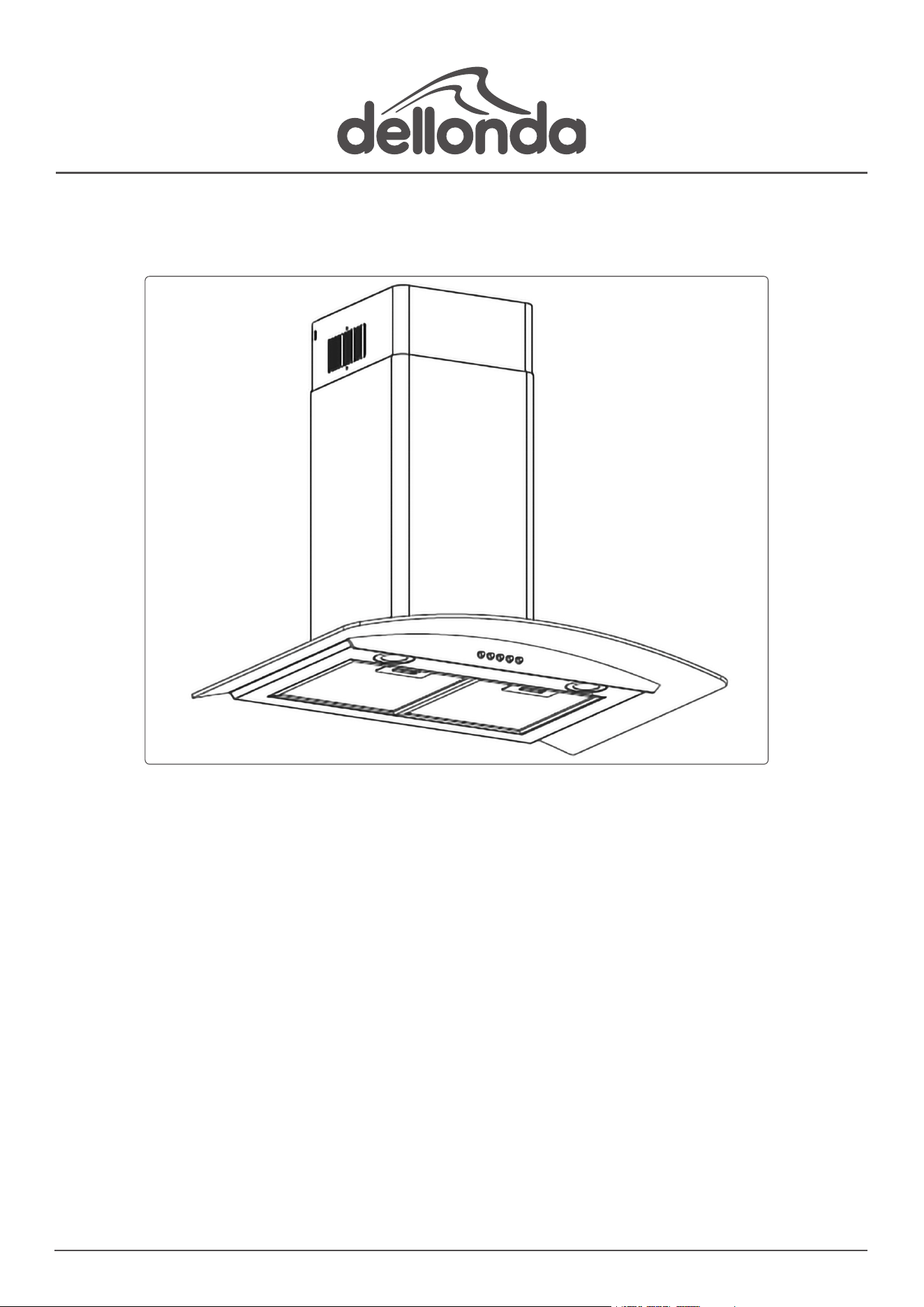

60cm Curved Glass Cooker Hood & Carbon Filters, S/Steel
Model No. DH128
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
DH128 Issue:3 21/02/23
www.dellonda.co.uk
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instruction
manual
Warning:
Hot
Surface
Specication
Airow: 600m³/h
Cable Length: 1.5m
Colour: Stainless Steel - 430SS
Control: 3 Speed Push Button
Design: Curved Glass
Energy Efciency Class: B
Headroom: 60cm
Lamp Power: 3W (2 x 1.5W)
Power: 190W
Product dimensions: 600 x 500 x 420/805mm
Supply: 220-240V
Type: Wall Mounted
Safety Instructions
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and all electrical
connections for wear and damage. Dellonda recommend that an RCD (Residual Current Device) is used with all electrical products. You may
obtain an RCD by contacting your local domestic stockist. If the product is used in the course of business duties, it must be maintained in a
safe condition and routinely PAT (Portable Appliance Test) tested.
• Electrical safety information: It is important that the following information is read and understood.
• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
• Regularly inspect power supply cables for wear or damage and check all connections to ensure that they are secure.
• Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that it is tted with the correct fuse.
• DO NOT pull or carry the appliance by the power cable.
• DO NOT use worn or damaged cables, plugs or connectors.
• Ensure that any faulty item is repaired or replaced immediately by a qualied electrician.
• Dellonda recommend that installation and repairs are carried out by a qualied electrician.
• GENERAL SAFETY
• This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the
product. The manual should be kept in a safe place for future reference.
• DO NOT try to use the cooker hood without the grease lters or if the lters are excessively greasy!
• DO NOT install above a cooker with a high level grill.
• DO NOT leave frying pans unattended during use because overheated fats or oils might catch re.
• Never leave naked ames under the cooker hood.
• If the cooker hood is damaged, do not attempt to use.
• DO NOT ambé under the cooker hood.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood, when the
cooker hood is located above a gas appliance, shall be at least 65 cm.
• The air must not be discharged into a ue that is used for exhausting fumes from appliances burning gas or other fuels.
• ALWAYS:
• Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
• The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
• All installation work must be carried out by a competent person or qualied electrician.
• Please dispose of the packing material carefully. Children are vulnerable to it.
• Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
• Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efciency of the cooker hood.
• WARNING: Failure to install the screws or xing device in accordance with these instructions may result in electrical hazards.
• WARNING: Before obtaining access to terminals, all supply circuits must be disconnected.
• Always put lids on pots and pans when cooking on a gas cooker.
• When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being
observed.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
• The cooker hood removes odours from room but not steam.
• Cooker hood is for domestic use only.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• WARNING: Before obtaining access to terminals, all supply circuits must be disconnected.
• CAUTION: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children
younger than 8 years old should stay away unless they are under permanent supervision.
• There is a re risk if cleaning is not carried out in accordance with the instructions
• Regulations concerning the discharge of air have to be fullled.
• Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
• For safety reason, please use only the same size of xing or mounting screw which are recommended in this instruction manual.
• Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
• Cleaning and user maintenance shall not be made by children without supervision.
• When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the
room must not exceed 4 Pa (4 x 10-5 bar).
• WARNING: Danger of re: do not store items on the cooking surfaces.
• A steam cleaner is not to be used.
• NEVER try to extinguish a re with water, but switch off the appliance and then cover ame e.g. with a lid or a re blanket.
• INSTALLATION (VENT OUTSIDE)
• V-FLAP MOUNTING
• If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The images only show an example of how to
mount the V-flap, the outlet may be various according to different models and configuration.
• To mount the V-flap 1:
• Mount two halves 2 into the body 6
• pin 3 should be on the top;
• the axle 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half.
INSTALLATION
• If you have an outlet to the outside, your cooker hood can be connected as per g.2 by means of an extraction duct (enamel, aluminium, exible
pipe or non-ammable material with an interior diameter of 150mm).
• Before installation, turn the unit off and unplug it from the mains supply.
• The cooker hood should be placed at a distance of 65~75cm above the cooking surface for best performance, g.3.

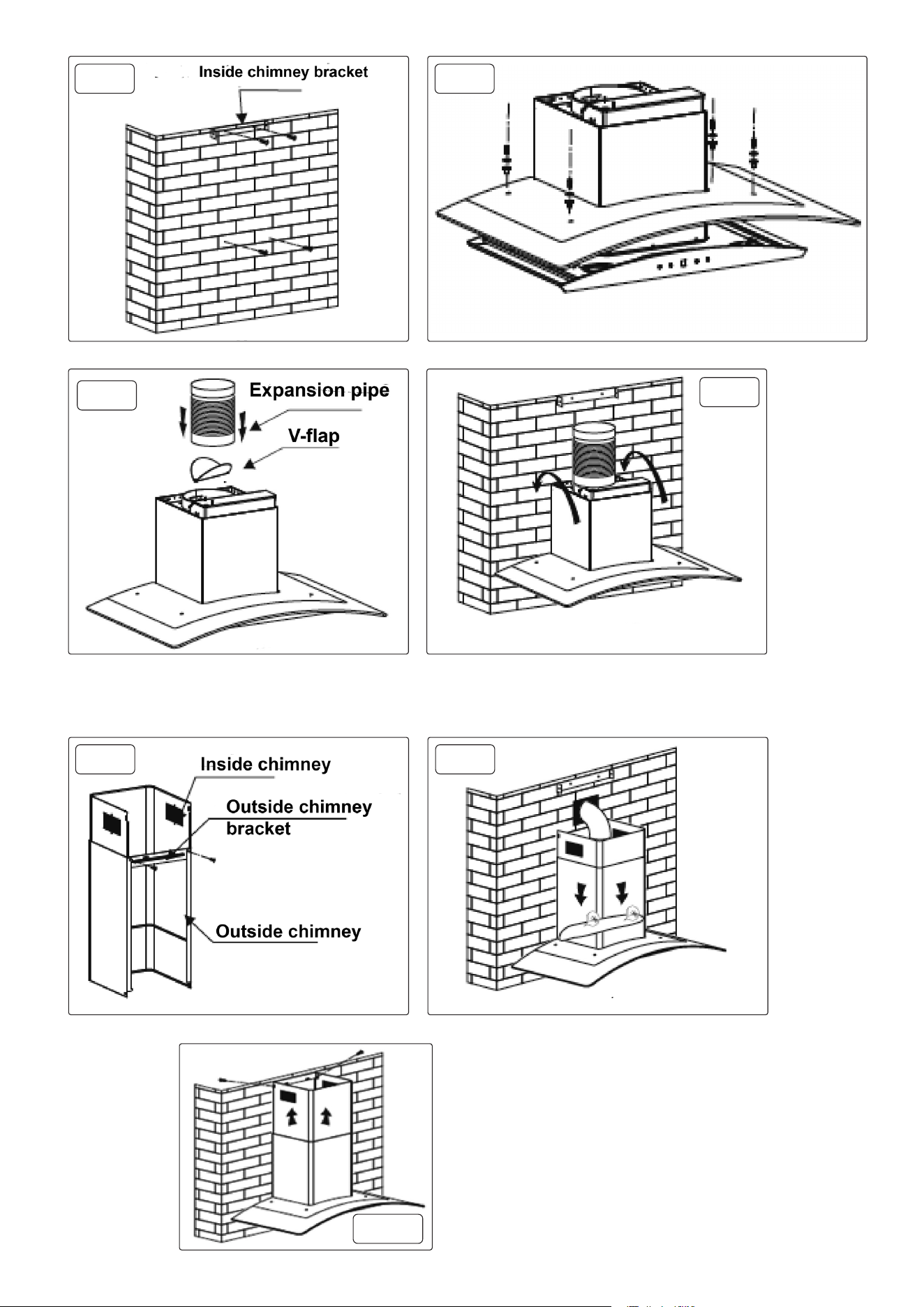

• After deciding the cooker hood height, measure the position of the holes for hanging the hood and inside chimney bracket. Drill 4 Ø8mm holes,
they are for xing inside chimney bracket and the hood, keep the hood level. The xed position of the outside chimney bracket is the highest place
of outside chimney. See g.4.
• Screw 2 x ST4*30mm screws on the wall with wall plugs and then use 2 x ST4×40mm screws to x the inside chimney bracket. See g.4.
• Fix the glass onto the cooker hood body with screws ,washers and wall plugs. See g.5.
fig.
1
fig.
2
fig.
3
• Fit the v-ap and expansion pipe to the outlet, and xed with a cable tie. See g.5. Put the cooker hood on the wall mounted screws. See g.6.
• Install the outside chimney bracket onto the outside chimney with 2 x ST4*8mm screws. Ensure the inside chimney can be moved inside freely.
See g.8.
• Next adjust the height, x the body with 2 x ST4*30mm safety screws. Note: The two safety vents are positioned on the back housing, with a
diameter of 6mm.
• Adjust the height of the inside chimney into the suitable height, and x the inside chimney to the inside chimney bracket with 2 x ST4*8mm
screws. See g.10.
fig.
9
fig.
4
fig.
6
fig.
7
fig.
5
fig.
8
fig.
10
EXHAUST DUCT INSTALLATION
• The following rules must be strictly followed to obtain optimal air extraction:
• Keep expansion pipe short and straight.
• DO NOT reduce the size or restrict expansion pipe.
• When using expansion pipe always install the pipe pulled taut to minimize pressure loss.
• Failure to observe these basic instructions will reduce the performance and increase noise levels of the cooker hood.
• Any installation work must be carried out by a qualied electrician or competent person.
• DO NOT connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer
tube, gas tube, hot wind tube.
• The angle of the bend of the expansion pipe should not be less than 120º; you must direct the pipe horizontally, or, alternatively, the pipe should
go up from the initial point and should be led to an outer wall.
• After the installation, make sure that the cooker hood is level to avoid grease collection at on end, g.11.
• Ensure the expansion pipe selected for iinstallation complies with relevant standards and is re retardant.
• WARNING For safety reasons, please use only the same size of xing or mounting screws which are recommended in this instruction manual.
• Failure to install the screws or xing device in accordance with these instructions may result in electrical hazards.
OPERATION
• 1) Push stop button, and the motor will stop.
• 2) Push the low button, and the motor runs at low speed.
• 3) Push the middle button, and the motor runs at mid speed.
• 4) Push the high button, and the motor runs at high speed.
• 5) Push the light button and the two lights will come on. Push it again and the light will turn off.
TROUBLESHOOTING
Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt
before undertaking any of the above. Always disconnect the unit from the power source when opening the unit.
MAINTENANCE AND CLEANING
• WARNING• Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that the
cooker hood is switched off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is
achieved without damage.
• GENERAL
• Cleaning and maintenance should be carried out with the appliance cold especially cleaning. Avoid leaving alkaline or acid substances (lemon
juice, vinegar etc.) on the surfaces.
• STAINLESS STEEL
• The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy. Dry with a clean soft cloth. A specialized stainless steel
cleaning uid may be used.
• NOTE: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly criss-cross scratching patterns from
appearing.
Fault Cause Solution
Light on but motor does not work Fan switch turned o Select a fan switch position
Fan switch failed Contact service centre
Motor failed Contact service centre
Light does not work, motor does not work House fuses blown Reset/replace fuses
Mains cable loose or disconnected Ret mains power cable to power outlet.
Switch power on.
Oil leakage One way valve and the outlet are not
tightly sealed
Remove one way valve and seal with
sealant
Leakage from the connection of chimney
and cover
Take chimney down and seal
fig.
11
Stop Low Mid High Lights
• CONTROL PANEL SURFACE
• The control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to
remove any excess moisture left after cleaning.
• IMPORTANT
• Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will
affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warranty.
• GREASE MESH FILTERS
• The mesh lters can be cleaned by hand. Soak them for about 3 minutes in water with a grease-loosening detergent then brush it gently with a
soft brush. Do not apply too much pressure, to avoid damage . (Leave to dry naturally out of direct sun light).
• Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.
• INSTALLING GREASE MESH FILTERS g.12.
• To install lters:
• - Angle the lter into slots at the back of the hood.
• - Push the button on handle of the lter.
• - Release the handle once the lter ts into a resting position.
• - Repeat to install all lters.
• CARBON FILTERS g.13.
• Activated carbon lter can be used to trap odours. Normally the activated carbon lter should be
changed at three or six months according to your cooking habits. The installation procedure of activated
carbon lter is as below.
• 1. In order to install the activated carbon lter, the metallic anti-grease lter should be detached rst.
Press the lock and pull it downward.
• 2. Insert the carbon lter into the rectangular hole, tting it over the motor.
• 3. After inserting the front edge of the carbon lter into the slot on the cooker hood. Lower the back edge
of the carbon lter, until it clicks into place at the rear of the rectangular hole. Raise the two xing bars, until they are horizontal over the carbon
lter.
• 4. Place the aluminium lter back in position.
• 5. Apply reverse procedure to uninstall the carbon lter.
• NOTE: Make sure the lter is securely locked.
• Otherwise, it could loosen and be dangerous.
• When the activated carbon lter is tted, the suction
power will be lowered.
• BULB REPLACEMENT See g.14.
• The bulb must be replaced by the manufacturer, its
service agent or similarly qualied persons.
• Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it has completely
cooled down before any direct contact with hands.
• When handling bulbs hold with a cloth or gloves to ensure perspiration does not come in contact with the bulb as this can reduce the life of the
bulb.
• Note:
• Before changing the lights, make sure that the appliance is turned off and unplugged.
• Protect against danger when changing lights, such as wearing gloves.
• Changing the lights:
• Remove the grease lter.
• Use a screwdriver to remove the 4pcs screws on the large glass and carefully remove the glass.
• Dismantle the terminal box and slightly pull the light connecting wire out, and dismantle the terminal of the light connecting wire. Replace the
lamp.
• Apply the reverse procedure to install the light back.
• • ILCOS D code for this lamp is: DBR-1.5/65-H-64 – LED modules – round lamp – Max wattage: 2×1.5 W – Voltage range: AC 220-240V
fig.
12
fig.
13
Lights not working Broken or faulty bulbs Replace bulbs as per instructions in this
manual
Insucient suction Distance between the cooker hood and
the gas hob is too great
Ret the cooker hood to the correct
distance
Cooker hood inclines Fixing screws are not tight enough Tighten the hanging screw and make
horizontal
fig.
14
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please dispose of it in
an environmentally friendly way. Drain any fluids (if applicable) into approved containers, in accordance with local waste regulations. Under the
Waste Batteries and Accumulators Regulations 2009, Dellonda would like to inform the user that this product contains one or more batteries. It
is our policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice. No liability is
accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
