60cm Angled Chimney Cooker Hood with Carbon Filters, Touch
Controls, LED lamp, Energy Class A+, Black Glass
Model No. DH105
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
DH105 Issue:2 29/10/24
www.dellonda.co.uk
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instruction
manual
Warning:
Hot
Surface
SPECIFICATION
SAFETY INSTRUCTIONS
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and all electrical
connections for wear and damage. Dellonda recommend that an RCD (Residual Current Device) is used with all electrical products. You may
obtain an RCD by contacting your local domestic stockist. If the product is used in the course of business duties, it must be maintained in a
safe condition and routinely PAT (Portable Appliance Test) tested.
• Electrical safety information: It is important that the following information is read and understood.
• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
• WARNING! It is advised the rated residual operating current does not exceed 30mA.
• Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
• IMPORTANT: Ensure that the voltage rating on the appliance suits the power supply to be used and it is tted with the correct fuse.
• DO NOT pull or carry the appliance by the power cable.
• DO NOT use worn or damaged cables, plugs or connectors.
• Ensure that any faulty item is repaired or replaced immediately by a qualied electrician.
• Dellonda recommend that installation and repairs are carried out by a qualied electrician.
• The voltage rating of the lamp is less than the rated voltage of the appliance. The voltage rating of the lamp shall also be marked on or near the
lamp holder.
• SUPPLY CORD
• WARNING! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to
avoid a hazard.
• GENERAL SAFETY
• This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the
product. The manual should be kept in a safe place for future reference.
• DO NOT try to use the cooker hood without the grease lters or if the lters are excessively greasy!
• DO NOT install above a cooker with a high level grill.
• DO NOT leave frying pans unattended during use because overheated fats or oils might catch re.
• Never leave naked ames under the cooker hood.
• If the cooker hood is damaged, do not attempt to use it.
• DO NOT ambé under the cooker hood.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the
cooker hood is located above a gas appliance), this distance shall be at least 65cm.
• The air must not be discharged into a ue that is used for exhausting fumes from appliances burning gas or other fuels. Cooker hoods and
other cooking fume extractors may adversely effect the safe operation of appliances burning gas or other fuels (including those in other rooms)
due to back ow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a cooker hood or
other cooking fume extractor, the operation of open ued gas appliances should be tested by a competent person to ensure that back ow of
combustion gases does not occur.
• ALWAYS:
• IMPORTANT! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
• The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
• All installation work must be carried out by a competent person or qualied electrician.
• Please dispose of the packing material carefully. Children are vulnerable to it.
Airow: 560m³/h
Supply Cable Length: 1.5m
Colour: Black
Control: 3-Speed Touch Control
Design: Angled Chimney
Electrical Class: Class I
Energy Eciency Class: A+
Energy Rating: A+
Headroom: 60cm
Lamp Power: 3.5W
Nett Weight: 7.4kg
Power: 110W
Product Depth (Front to Back): 29.5cm
Product Dimensions (W x D x H): 600 x 295 x 635/915mm
Product Height (Floor to Top): 91.5cm
Product Width (Side to Side): 60cm
Supply: 220-240V
Type: Wall Mounted
• Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
• Make sure the ducting has no bends sharper than 90 degrees as this will reduce the eciency of the cooker hood.
• WARNING! Failure to install the screws or xing device in accordance with these instructions may result in electrical hazards.
• WARNING! Before obtaining access to terminals, all supply circuits must be disconnected.
• Always put lids on pots and pans when cooking on a gas cooker.
• When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being
observed. The cooker hood removes odours from the room but not steam.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
• Cooker hood is for domestic use only.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall NOT play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• WARNING! Before obtaining access to terminals, all supply circuits must be disconnected.
• CAUTION: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children
younger than 8 years old should stay away unless they are under permanent supervision.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• There is a re risk if cleaning is not carried out in accordance with the instructions.
• Regulations concerning the discharge of air have to be fullled.
• Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
• For safety reason, please use only the same size of xing or mounting screw which are recommended in this instruction manual.
• Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
• Cleaning and user maintenance shall not be made by children without supervision.
• When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the
room must not exceed 4 Pa (4 x 10-5 bar).
• WARNING! Danger of re: DO NOT store items on the cooking surfaces.
• A steam cleaner is not to be used.
• NEVER try to extinguish a re with water, but switch off the appliance and then cover ame e.g. with a lid or a re blanket.

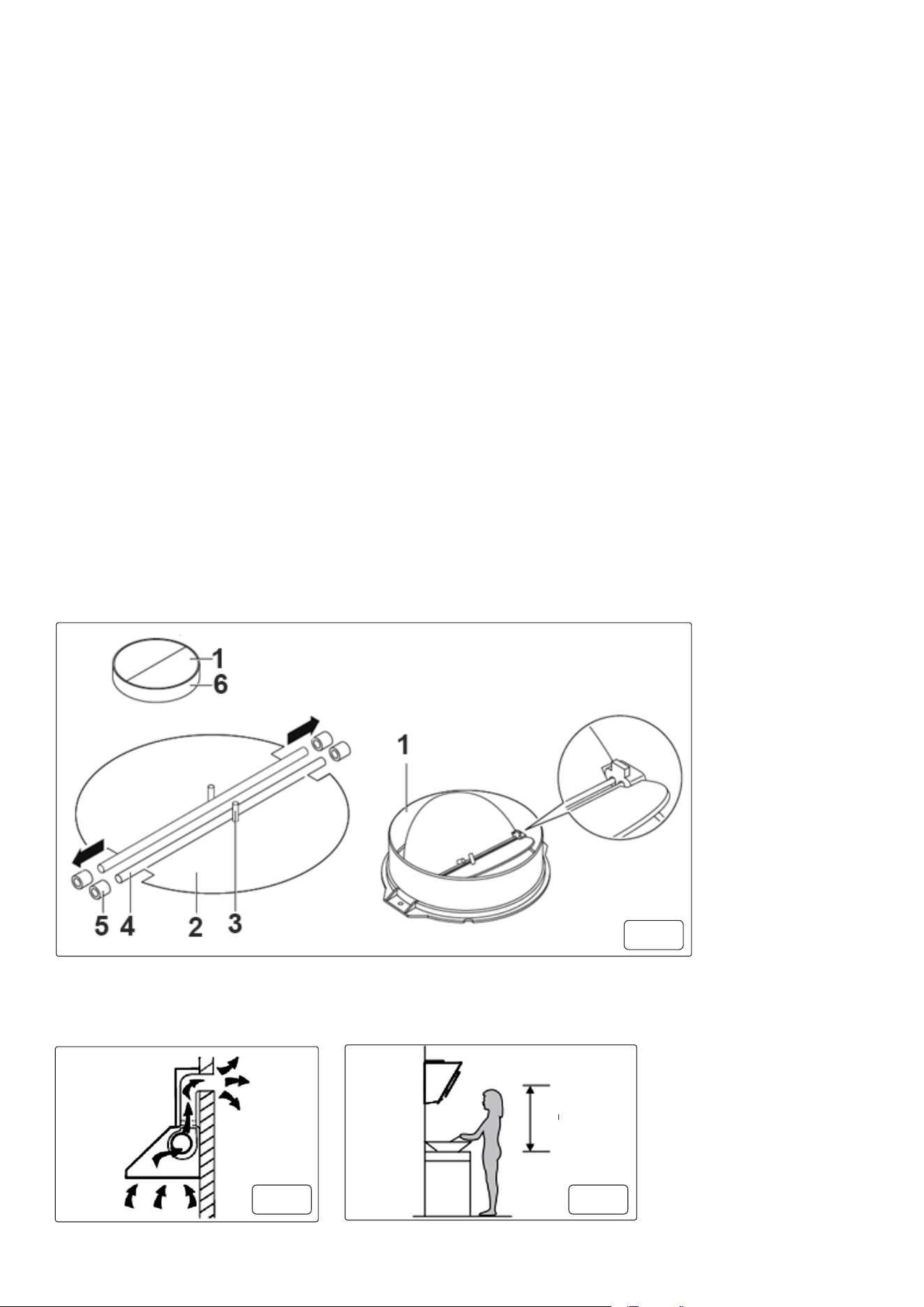

• INSTALLATION (VENT OUTSIDE)
• V-FLAP MOUNTING
• If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The images only show an example of how to
mount the V-flap, the outlet may be various according to different models and configuration.
• To mount the V-flap 1:
• Mount two half-parts 2 into the body 6
• Pin 3 should be located on the top;
• The axle 4 should be inserted in the holes 5 on body;
• Repeat all the operations for the 2nd half-part.

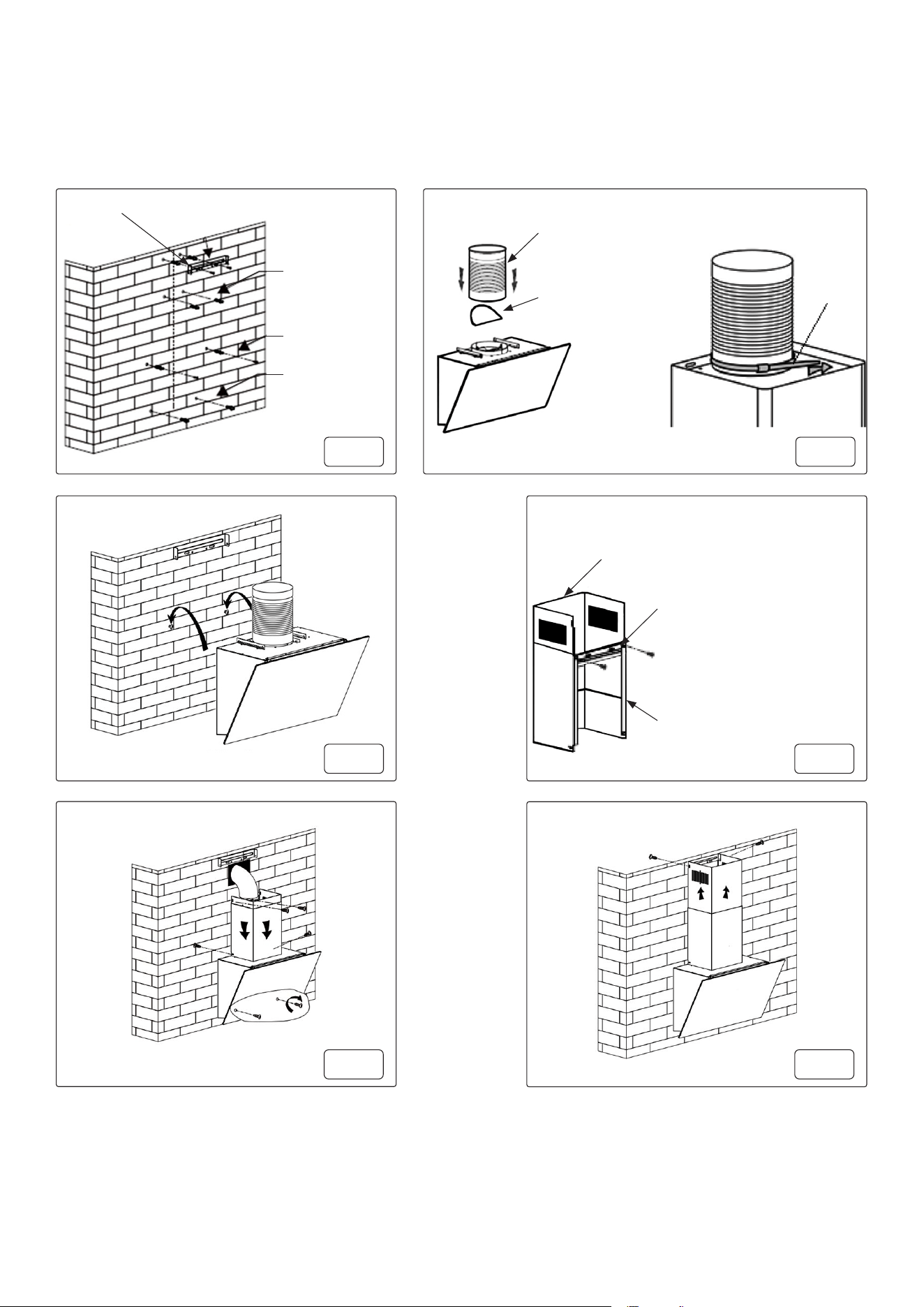

INSTALLATION
• If you have an outlet to the outside, your cooker hood can be connected as per g.2 by means of an extraction duct (enamel, aluminium, exible
pipe or non-ammable material with an interior diameter of 120/150mm).
• Before installation, turn the unit off and disconnect it from the mains supply.
• WARNING! Failure to install the screws or xing device in accordance with these instructions may result in electrical hazards.
• The cooker hood should be placed at a distance of 65-75cm above the cooking surface for best performance, g.3.
• After deciding the cooker hood height, measure the position of the holes for hanging hood and inside chimney bracket. Drill 8 x Ø8mm and keep
the hood level. The xed position of the inside chimney bracket is the highest place of inside chimney. See g.4.
fig.
1
fig.
3
fig.
2
65cm
75cm
• The screws installed should leave for 3-5mm out of the wall to hang the hood, see g.4.
• Screw two 4 x 30mm screws on the wall with wall plugs to x the hood, then use two 4mm x 40mm screws to x the inside chimney bracket.
• See g.4. NOTE: It is important to use the correct screws in the correct positions.
• Install the V-ap in the outlet. Fix the expansion pipe on the outlet with a cable tie. See g.5. Hang the cooker hood onto the hook. See g.6.
• Install the outside chimney bracket onto the outside chimney with 2 ST4*8mm screws. Make sure the inside chimney can be slid easily. See g.7.
• Fix the cooker hood with 2pcs ST4*30mm safety screws. NOTE: The two safety vents are positioned on the back housing, with a diameter of
6mm. Put the two chimney sections onto the cooker hood and lead the expansion pipe to the outside. See g.8.
• Adjust the height of the inside chimney to the position of the inside chimney bracket and x it with 2pcs ST4*8mm screws. See g.9.
EXHAUST DUCT INSTALLATION
• The following rules must be strictly followed to obtain optimal air extraction:
• Keep expansion pipe short and straight.
• DO NOT reduce the size or restrict expansion pipe.
• When using expansion pipe always install the pipe pulled taut to minimize pressure loss.
• Failure to observe these basic instructions will reduce the performance and increase noise levels of the cooker hood.
• Any installation work must be carried out by a qualied electrician or competent person.
• DO NOT connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer
tube, gas tube, hot wind tube.
• The angle of the bend of the expansion pipe should not be less than 120º; you must direct the pipe horizontally, or, alternatively, the pipe should
go up from the initial point and should be led to an outer wall.
fig.
8
fig.
6
fig.
7
fig.
4
fig.
5
fig.
9
Inside chimney bracket
Expansion pipe
V-ap Cable tie
Inside chimney
Outside chimney bracket
Outside chimney
St*40mm screws
Mounting screws
Safety screws

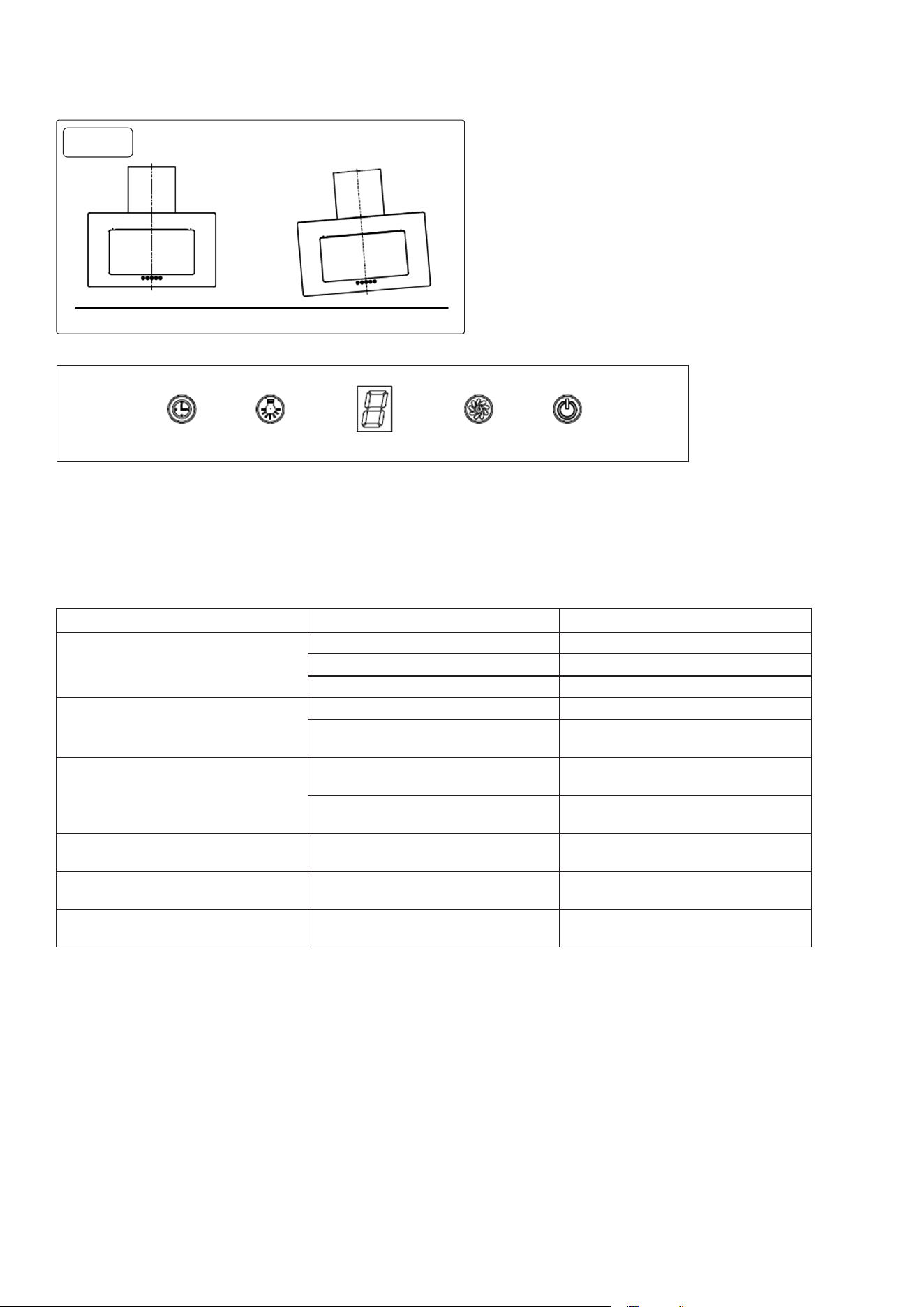

• After the installation, make sure that the cooker hood is level to avoid grease collection at on end, g.10.
• Ensure the expansion pipe selected for installation complies with relevant standards and is re retardant.
• WARNING! For safety reasons, please use only the same size of xing or mounting screws which are recommended in this instruction manual.
• Failure to install the screws or xing device in accordance with these instructions may result in electrical hazards.
OPERATION
• PUSH BUTTONS
• Push the Power button, to turn the cooker hood ON or OFF.
• Push the Speed button, this sets the speed from low, medium, or high. The LED will indicate 1-2-3-1-2.
• Push the light button and the light will illuminate. Push it again and the light will turn off.
• Press the Timer button to use the timer function when the fan is in run mode only. Set the timer in increaments of 1 to 9. 9 minutes being the
longest amount of time before the fan switches off. The LED display indicates the amount of time left on the timer.
TROUBLESHOOTING
Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt
before undertaking any of the above. Always disconnect the unit from the mains supply when opening the unit.
MAINTENANCE AND CLEANING
• WARNING! Before maintenance or cleaning is carried out, the cooker hood should be turned off from the mains power supply.
• External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is
achieved without damage.
• GENERAL
• Clean the cooker hood regularly so as not to block the airways.
• Cleaning and maintenance should be carried out with the appliance cold especially cleaning. Avoid leaving alkaline or acid substances (lemon
juice, vinegar etc) on the surfaces.
• STAINLESS STEEL
• The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy. Dry with a clean soft cloth. A specialized stainless steel
cleaning uid may be used.
• NOTE: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly criss-cross scratching patterns from
appearing.
• CONTROL PANEL SURFACE
• The control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to
remove any excess moisture left after cleaning.
Fault Cause Solution
Light on but motor does not work. Fan switch turned off. Select a fan switch position.
Fan switch failed. Contact service centre.
Motor failed. Contact service centre.
Light does not work, motor does not work.
House fuses blown.
Reset/replace fuses.
Mains cable loose or disconnected. Ret mains power cable to power outlet.
Switch power on.
Oil leakage. One way valve and the outlet are not
tightly sealed.
Remove one way valve and seal with
sealant.
Leakage from the connection of chimney
and cover.
Take chimney down and seal.
Lights not working. Broken or faulty bulbs. Replace bulbs as per instructions in this
manual.
Insucient suction. Distance between the cooker hood and
the gas hob is too great.
Ret the cooker hood to the correct
distance.
Cooker hood inclines. Fixing screws are not tight enough. Tighten the hanging screw and make
horizontal.
fig.
10
Right Wrong
Timer Lamp Speed Power
• IMPORTANT
• Use neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will
affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufacturer’s warranty.

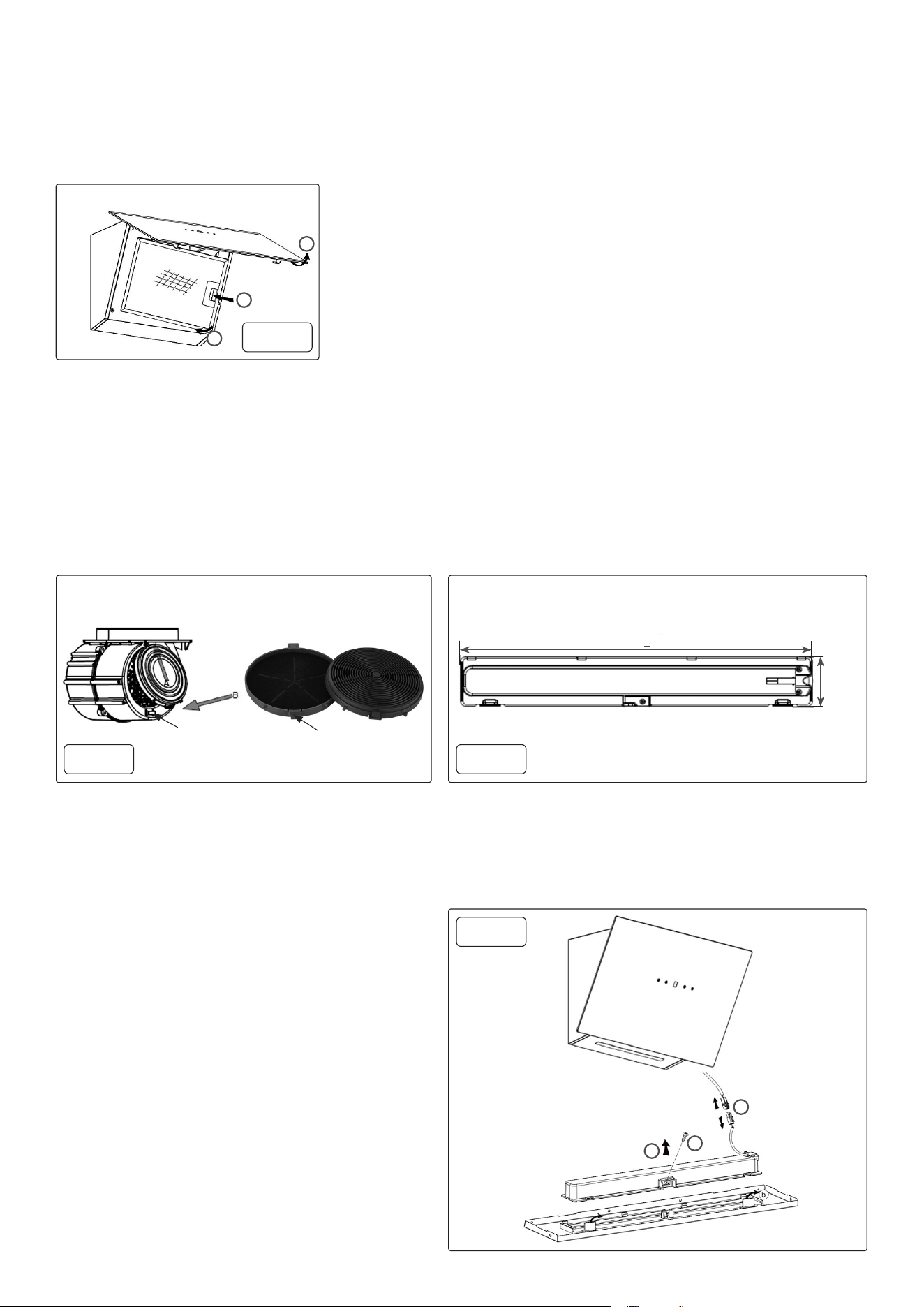

• GREASE MESH FILTERS
• The mesh lters can be cleaned by hand. Soak them for about 3 minutes in water with a grease-loosening detergent then brush it gently with a
soft brush. DO NOT apply too much pressure, to avoid damage. (Leave to dry naturally out of direct sun light).
• Filters should be washed separately to crockery and kitchen utensils. It is advisable not to use rinse aid.
• FOLLOW THE ILLUSTRATION BELOW TO DISMANTLE THE GREASE FILTER
• INSTALLING GREASE MESH FILTERS g.11.
• - Angle the lter into slots at the back of the hood 1.
• - Push the button on handle of the lter 2.
• - Release the handle once the lter ts into a resting position 3.
• - Repeat to install all lters.
• CARBON FILTER g.12.
• Activated carbon lter can be used to trap odours. Normally the activated carbon lter should be changed at three or six months according to
your cooking habits. The installation procedure of activated carbon lter is as below.
• 1. WARNING! Before installing or replacing the carbon lters, remove from mains supply.
• 2. Press the lter lock (A) on fan to remove the carbon lter.
• 3. To replace the carbon lter, locate slot (B) on the fan, slot the tab on carbon lter into (B). Click the carbon lter in place.
• NOTE: Make sure the lter is securely locked, otherwise, it could loosen and be dangerous.
• When the activated carbon lter is tted, the suction power will be lowered.
• BULB REPLACEMENT
• The bulb must be replaced by the manufacturer, its service agent or similarly qualied persons.
• WARNING! Always switch off the mains electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it
has completely cooled down before any direct contact with hands.
• When handling bulbs hold with a cloth or gloves to ensure perspiration does not come into contact with the bulb, as this can reduce the life of the
bulb.
• CHANGING THE LIGHTS:
• Open the inner glass assembly and remove the grease lter.
• Find the lamp, use a cross head screwdriver to unscrew the screws
on the lamp, unplug the buckle with care, remove the lamp base
and dismantle the terminal of the light connecting wire. Fig.14.
• Apply the reverse procedure to install the light back.
• BULB TYPE:
• ILCOS D code for this lamp is: DBS-1.5/65-S-320/45.2
• LED modules – rectangle lamp
• Max wattage: 1×3.5W
• Voltage range: DC 220-12V
• Dimensions: 320 x 45.2mm
• OPERATING METHODS IN THE EVENT OF AN ACCIDENT/
BREAKDOWN
• In the event of an accident turn the power to the cooker hood off at
the mains.
• In the event of a breakdown contact Dellonda Service Centre.
• SPARE PART SPECIFICATION
• For spare parts and specication contact Dellonda Service Centre.
NOTE: A qualied electrician must be used when maintenance is
required on the product.
fig.
12
fig.
11
1
2
3
Tab
Slot B
Filter lock
fig.
13
320+1
45.2
fig.
14
C
A
D
• END OF SERVICE
• Through years of normal wear, the cooker hood will eventually become unserviceable. When this happens ensure that it is disposed of in
accordance with local authority regulations.
• ENVIRONMENTAL IMPACT OF THE COOKING PROCESS
• When whole life cycles of food products are taken into account, food is estimated to emit up to 37% of global GHG emissions. Most studies
estimate the climate change impact of food only up to the retail/purchase stages of the food supply chain, thus excluding consumption (here
dened as food preparation and cooking). However, the preparation of meat and vegetables can contribute up to 20% and 36% of total product
emissions, respectively, when recipe recommendations of major cooking methods are followed. Cooking food from scratch at home can result
in lower overall GHG emissions than consuming ready-made meals. Previous studies have indicated that GHG emissions from home cooking
can be reduced by minimizing cooking times and appliance use. Such a reduction can reach 86% in the case of pasta, and the equivalent of
18–55% less energy use in the case of roast beef and Yorkshire puddings. However, little is known about actual cooking practices for different
foods in households. Previously recorded cooking practices adopted by university students could indicate how to reduce GHG emissions due to
unsustainable cooking, but are not representative of general consumption patterns across the population.
• RESTRICTED USE OF THE COOKER HOOD
• Choose a cooker hood that is the correct size for your kitchen. A cooker hood that is too small will not be effective in removing cooking fumes
and smells.
• Choose a cooker hood that has the right extraction rate. The extraction rate is measured in cubic metres per hour (m3/h). A cooker hood with a
higher extraction rate will be more effective in removing cooking fumes and smells.
• Consider the type of ducting you want to use. There are two types of ducting for cooker hoods: exible ducting and rigid ducting. Flexible ducting
is easier to install, but it is not as effective as rigid ducting. Rigid ducting is more dicult to install, but it is more effective in removing cooking
fumes and smells.
• Make sure that the cooker hood is installed in a well-ventilated area. This will help to prevent the build-up of cooking fumes and smells.
• By following these guidelines, you can ensure that your cooker hood is safe and effective.
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please dispose of it in
an environmentally friendly way. Drain any fluids (if applicable) into approved containers, in accordance with local waste regulations. Under the
Waste Batteries and Accumulators Regulations 2009, Dellonda would like to inform the user that this product contains one or more batteries. It
is our policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice. No liability is
accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
