90cm Chimney Style Cooker Hood & Carbon Filters-S/Steel
Model No. DH59, DH127
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
DH59, DH127 Issue:1 06/12/24
www.dellonda.co.uk
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instruction
manual
Warning:
Hot
Surface
SPECIFICATION
Airow: 350m³/h
Cable Length: 1.5m
Colour: Stainless Steel DH127, Black DH59
Control: 3 Speed Push Button
Design: Chimney
Energy Efciency Class: B Efciency Class: B
Headroom: 90cm
Power: 65W
Product dimensions: 900 x 475 x 580/960mm
Supply: 220-240V
Type: Wall Mounted
SAFETY INSTRUCTIONS
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and all electrical
connections for wear and damage. Dellonda recommend that an RCD (Residual Current Device) is used with all electrical products. You may
obtain an RCD by contacting your local domestic stockist. If the product is used in the course of business duties, it must be maintained in a
safe condition and routinely PAT (Portable Appliance Test) tested.
• Electrical safety information: It is important that the following information is read and understood.
• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
• Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
• Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the circuit is tted with the correct fusing.
• DO NOT pull or carry the appliance by the power cable.
• DO NOT pull the plug from the socket by the cable.
• DO NOT use worn or damaged cables, plugs or connectors.
• Ensure that any faulty item is repaired or replaced immediately. Dellonda recommend that installation and repairs are carried out by a qualied
electrician.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.
• GENERAL SAFETY
• This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the
product. The manual should be kept in a safe place for future reference.
• DO NOT try to use the cooker hood without the grease lters or if the lters are excessively greasy!
• DO NOT install above a cooker with a high level grill.
• DO NOT leave frying pans unattended during use because overheated fats or oils might catch re.
• Never leave naked ames under the cooker hood.
• If the cooker hood is damaged, do not attempt to use.
• DO NOT ambé under the cooker hood.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood, when the
cooker hood is located above a gas appliance, shall be at least 65 cm.
• The air must not be discharged into a ue that is used for exhausting fumes from appliances burning gas or other fuels.
• ALWAYS:
• Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
• The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
• All installation work must be carried out by a competent person or qualied electrician.
• Please dispose of the packing material carefully. Children are vulnerable to it.
• Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
• Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efciency of the cooker hood.
• WARNING: Failure to install the screws or xing device in accordance with these instructions may result in electrical hazards.
• WARNING: Before obtaining access to terminals, all supply circuits must be disconnected.
• Always put lids on pots and pans when cooking on a gas cooker.
• When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being
observed.
• The air must not be discharged into a ue that is used for exhausting fumes from appliances burning gas or other fuels.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
• The cooker hood removes odours from room but not steam.
• Cooker hood is for domestic use only.
• Children from age 8 years and above, persons with reduced physical, sensory, or mental capabilities those with lack of experience and knowledge
can use the appliance, if they have been given supervision or instruction concerning the use of the appliance in a safe way to understand the
hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• WARNING! Before obtaining access to terminals, all supply circuits must be disconnected.
• The appliance shall be disconnected from its power source during service and when replacing parts.
• CAUTION: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children
younger than 8 years old should stay away unless they are under permanent supervision.
• There is a re risk if cleaning is not carried out in accordance with the instructions
• Regulations concerning the discharge of air have to be fullled.
• Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
• For safety reason, please use only the same size of xing or mounting screw which are recommended in this instruction manual.
• Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
• Cleaning and user maintenance shall not be made by children without supervision.
• When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the
room must not exceed 4 Pa (4 x 10-5 bar).
• WARNING! Danger of re: do not store items on the cooking surfaces.
• A steam cleaner is not to be used.
• NEVER try to extinguish a re with water, but switch off the appliance and then cover ame e.g. with a lid or a re blanket.
• INSTALLATION (VENT OUTSIDE)

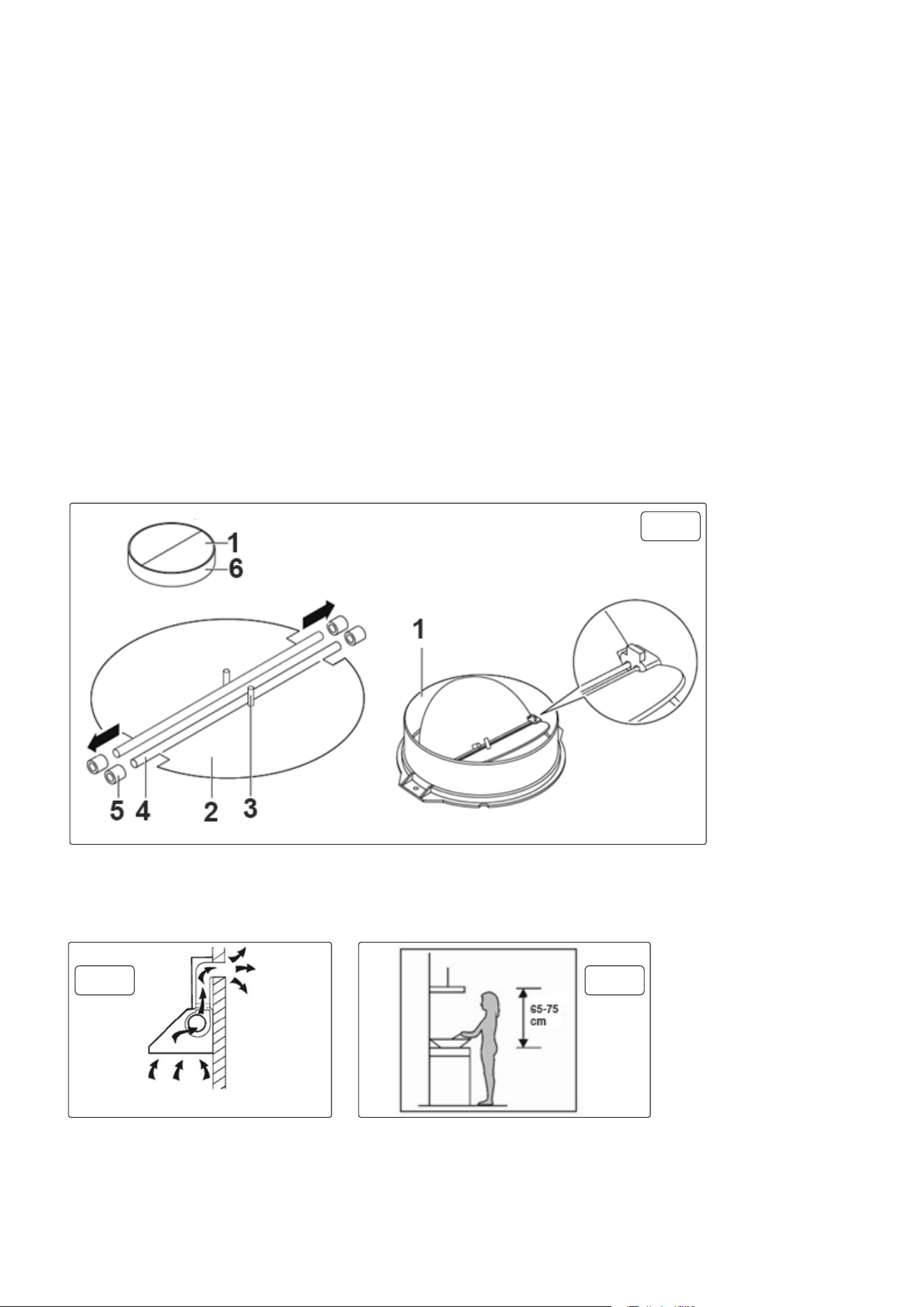

• V-FLAP MOUNTING
• If the cooker hood does not have an assembled V-flap 1, mount the half-parts to its body. The images only show an example of how to mount the
V-flap, the outlet may be various according to different models and configuration.
• To mount the V-flap 1:
• Mount two halves 2 into the body 6
• pin 3 should be on the top;
• the axle 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half.
INSTALLATION
• If you have an outlet to the outside, your cooker hood can be connected as per g.2 by means of an extraction duct (enamel, aluminium, exible
pipe or non-ammable material with an interior diameter of 150mm). The air must not be discharged into a ue that is used for exhausting fumes
from appliances burning gas or other fuels.
• Before installation, turn the unit off and unplug it from the mains supply.
• The cooker hood should be placed at a distance of 65~75cm above the cooking surface for best performance, g.3.
• Install the hook in a suitable place once the installation height is xed, and keep it in line. The xed position of the inside chimney bracket is the
place of the chimney.
• Drill 5 Ø8mm holes on a suitable place to accommodate the hook and inside chimney bracket once the installation height is xed, keep it in line.
The xed position of the inside chimney bracket is the place of chimney. See g.4.
• Screw and tighten the hook onto the wall with the 3pcs screws (4mm x 40 mm) and wall plugs provided. Then use 2 pcs ST4*40mm screws to x
the inside chimney bracket. See g.4.
• Install the expansion pipe to the outlet and x it by cable tie. See g.5.
fig.
1
fig.
2
fig.
3

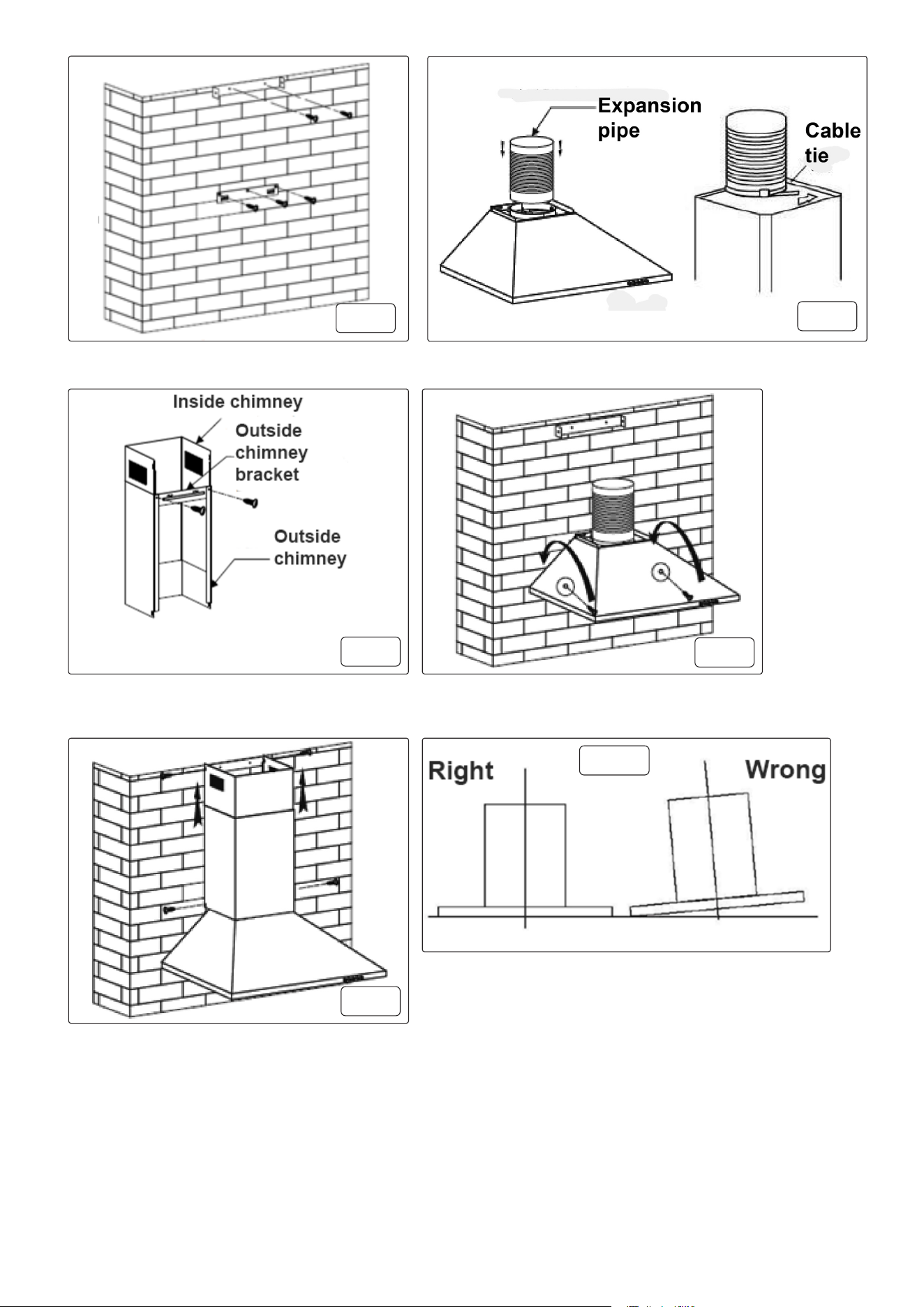

• Fix the outside chimney bracket on the outside chimney, and be sure that the inside chimney can be adjusted for height. See g.6.
• Hang the appliance onto the hook and x the appliance by the 2pcs safety screws (4mm x 30mm). See g.7
• Adjust the height of the inside chimney to the position of the inside chimney bracket and x with a screw. Note: The two safety vents are
positioned on the back housing. See g.8.
• Before usage, read all the instructions and make sure that the power rating of the cooker hood matches the power rating of the supply.
EXHAUST DUCT INSTALLATION
• The following rules must be strictly followed to obtain optimal air extraction:
• Keep expansion pipe short and straight.
• DO NOT reduce the size or restrict expansion pipe.
• When using expansion pipe always install the pipe pulled taut to minimize pressure loss.
• Failure to observe these basic instructions will reduce the performance and increase noise levels of the cooker hood.
• Any installation work must be carried out by a qualied electrician or competent person.
• DO NOT connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer
tube, gas tube, hot wind tube.
• The angle of the bend of the expansion pipe should not be less than 120º; you must direct the pipe horizontally, or, alternatively, the pipe should
go up from the initial point and should be led to an outer wall.
• After the installation, make sure that the cooker hood is level to avoid grease collection at on end, g.9.
• Ensure the expansion pipe selected for installation complies with relevant standards and is re retardant.
fig.
4
fig.
6
fig.
7
fig.
5
fig.
8
fig.
9
• WARNING! For safety reasons, please use only the same size of xing or mounting screws which are recommended in this instruction manual.
• Failure to install the screws or xing device in accordance with these instructions may result in electrical hazards.

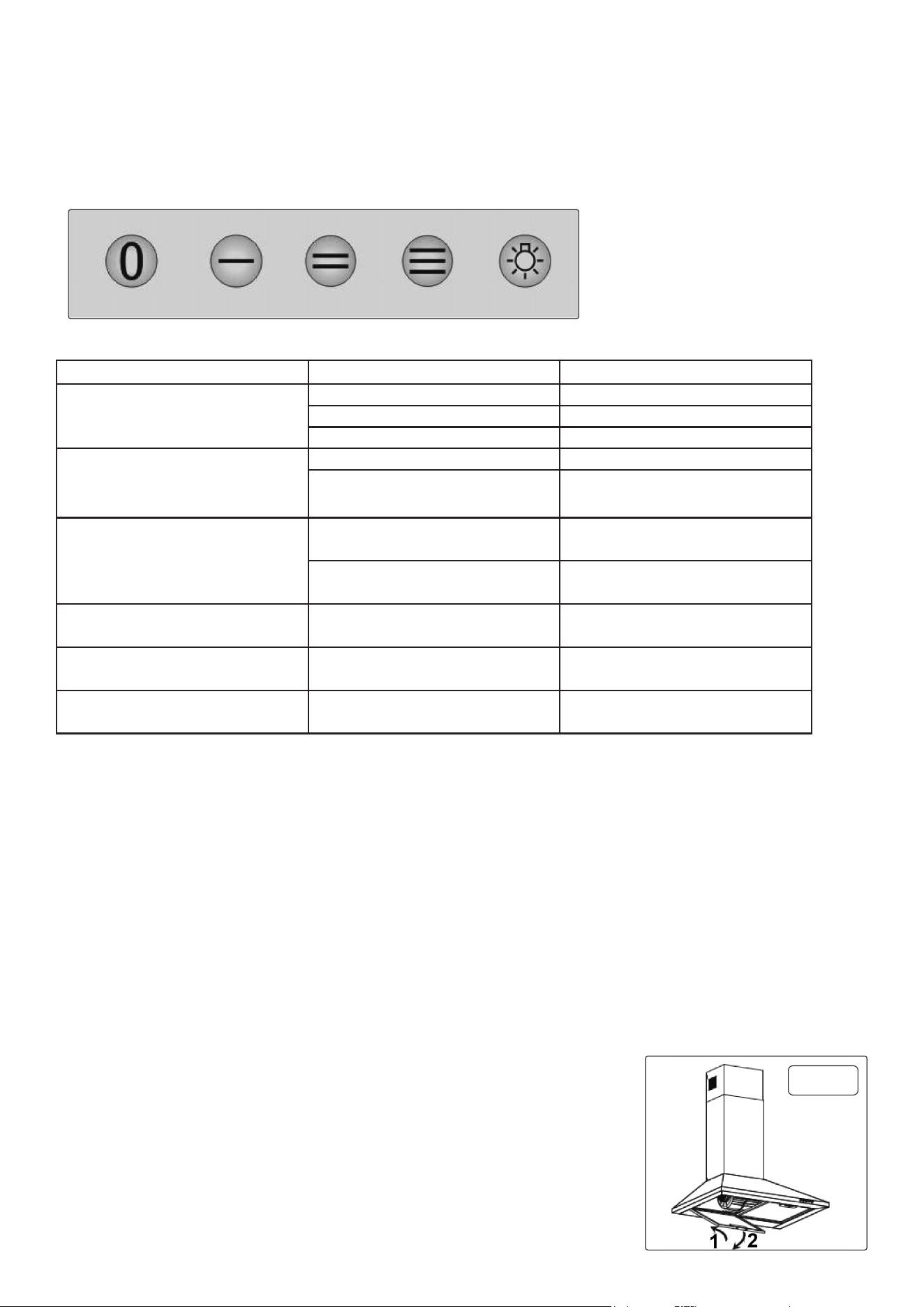

OPERATION
• 1) Push stop button, and the motor will stop.
• 2) Push the low button, and the motor runs at low speed.
• 3) Push the middle button, and the motor runs at mid speed.
• 4) Push the high button, and the motor runs at high speed.
• 5) Push the light button and the two lights will come on. Push it again and the light will turn off.
TROUBLESHOOTING
Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt
before undertaking any of the above. Always disconnect the unit from the power source when opening the unit.
MAINTENANCE AND CLEANING
• WARNING• Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that the
cooker hood is switched off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is
achieved without damage.
• GENERAL
• Cleaning and maintenance should be carried out with the appliance cold especially cleaning. Avoid leaving alkaline or acid substances (lemon
juice, vinegar etc.) on the surfaces.
• STAINLESS STEEL
• The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy. Dry with a clean soft cloth. A specialized stainless steel
cleaning uid may be used.
• NOTE: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly criss-cross scratching patterns from
appearing.
• CONTROL PANEL SURFACE
• The control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to
remove any excess moisture left after cleaning.
• IMPORTANT
• Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or
products containing abrasives, as this will affect the appliance appearance and potentially remove any
printing of artwork on the control panel and will void manufactures warranty.
• GREASE MESH FILTERS
• The mesh lters can be cleaned by hand. Soak them for about 3 minutes in water with a grease-
loosening detergent then brush it gently with a soft brush. Do not apply too much pressure, to avoid
damage . (Leave to dry naturally out of direct sun light).
• Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.
• INSTALLING GREASE MESH FILTERS g.10.
• To install lters:
• - Angle the lter into slots at the back of the hood.
Stop Low Middle High Light
Fault Cause Solution
Light on but motor does not work Fan switch turned o Select a fan switch position
Fan switch failed Contact service centre
Motor failed Contact service centre
Light does not work, motor does not work House fuses blown Reset/replace fuses
Mains cable loose or disconnected Ret mains power cable to power outlet.
Switch power on.
Oil leakage One way valve and the outlet are not
tightly sealed
Remove one way valve and seal with
sealant
Leakage from the connection of chimney
and cover
Take chimney down and seal
Lights not working Broken or faulty bulbs Replace bulbs as per instructions in this
manual
Insucient suction Distance between the cooker hood and
the gas hob is too great
Ret the cooker hood to the correct
distance
Cooker hood inclines Fixing screws are not tight enough Tighten the hanging screw and make
horizontal
fig.
10
• - Push the button on handle of the lter.
• - Release the handle once the lter ts into a resting position.
• - Repeat to install all lters.

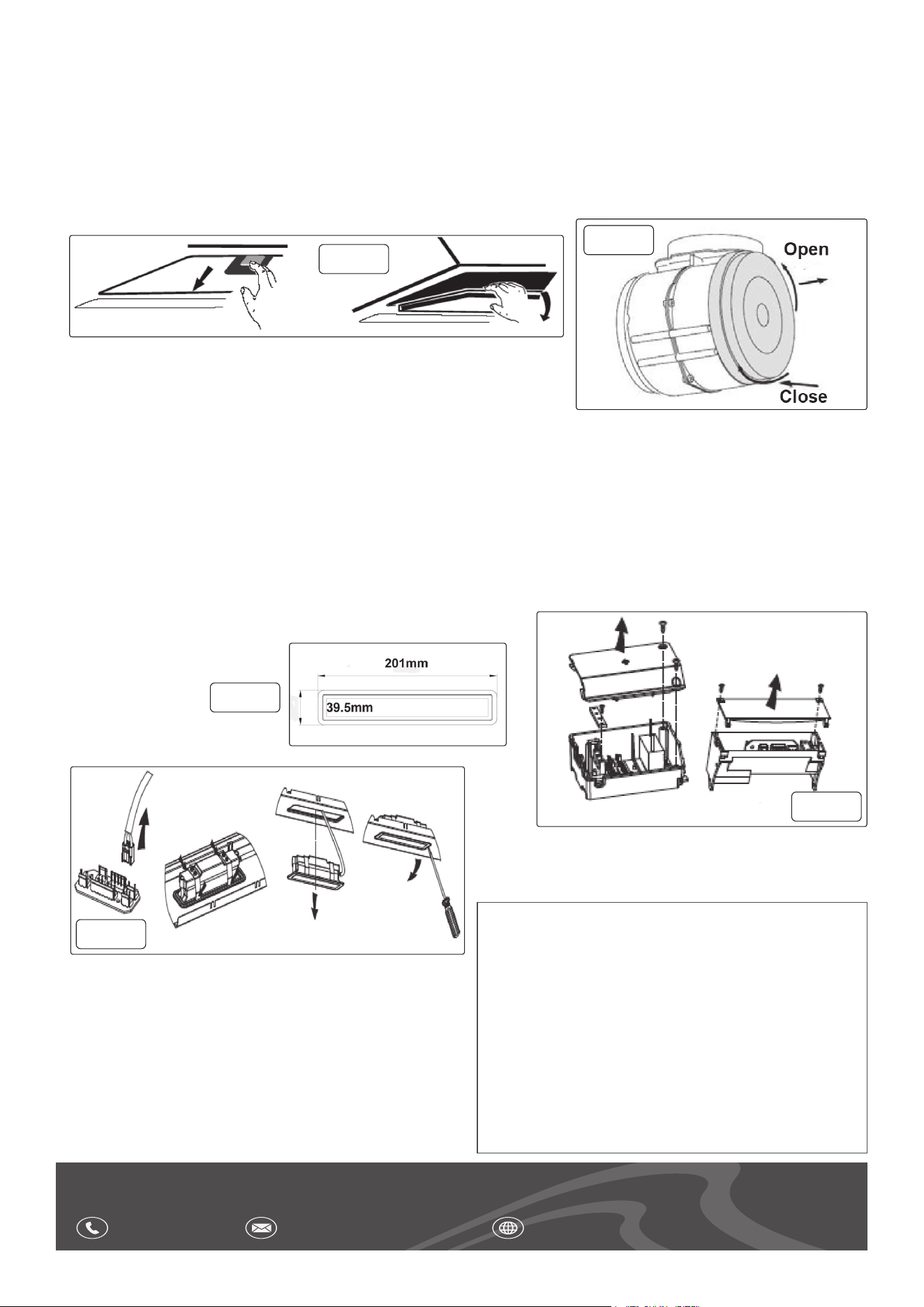

• CARBON FILTERS g’s 11 & 12.
• Activated carbon lter can be used to trap odours. Normally the activated carbon lter should be changed at three or six months according to
your cooking habits. The installation procedure of activated carbon lter is as below.
• 1. WARNING Before installing or replacing the carbon lters, remove from mains supply.
• 2. Press the lter lock and remove the mesh lter.
• 3. Turn the carbon lter on both side of the motor anti-clockwise. Replace the carbon lters with the new carbon lters.
• 4. Place the mesh lter.
• 5. Connect the power supply to the wall socket.
•
CONTROL PANEL
• NOTE: Make sure the lter is securely locked.
• Otherwise, it could loosen and be dangerous.
• When the activated carbon lter is tted, the suction power will be lowered.
• BULB REPLACEMENT
• The bulb must be replaced by the manufacturer, its service agent or similarly qualied persons.
• WARNING! Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is
completely cool down before any direct contact to hands.
• When handling globes hold with a cloth or gloves to ensure perspiration does not come in contact with the globe as this can reduce the life of the
globe.
• Remove the grease lter.
• Locate the junction box, unscrew the screws on the junction box cover, then take off the junction box cover. If there is wire retaining plate this
needs to be dismantled rst. See g.14.The junction box has versions a and b, depending on different models.
• Locate the terminal of the light connecting wire disconnect. See g.15.
• Method 1: Use a tool or ngers to press the clip of both sides of LED light, until the light is pressed out, see g.16.Then slightly pull the light
connecting wire out.
• Method 2: Use a straight screwdriver to prize up the LED light bottom edge, see g.16, then slightly pull out the light connecting wire.
• Retting is the reverse procedure.
• ILCOS D code for this lamp is: DBS-1.5/65-H-201/39.5
• LED modules –rectangle lamp
• Max wattage: 1×1.5 W
• Voltage range: AC 220-240V
• dimensions see g.13.
END OF LIFE
• Disconnect from mains supply and remove from operating position.
• Dismantle chimney assembly.
• Recycle components according to regional regulations in force.
fig.
11
fig.
13
fig.
12
fig.
14
fig.
15
Environment Protection and Waste Protection and
Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no
longer required, or has reached the end of it’s useful life, please
dispose of it in an environmentally friendly way. Drain any fluids
(if applicable) into approved containers, in accordance with local
waste regulations. Under the Waste Batteries and Accumulators
Regulations 2009, Dellonda would like to inform the user that
this product contains one or more batteries. It is our policy to
continually improve products and we reserve the right to alter
data, specifications and parts without prior notice. No liability is
accepted for incorrect use of this product. Guarantee is 12 months
from purchase date, proof of which is required for any claim.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
Product Information Sheet. Hoods
SUPPLIER_NAME_OR_TRADEMARK Dellonda EU Ltd.
DELEGATED_ACT 66/2014/EU
MODEL_IDENTIFIER DH59
ADDRESS
Farney Street, Carrickmacross, Co. Monaghan, A81 PK68 Ireland
PHONE_NUMBER 01284 757 500
EMAIL_ADDRESS TechnicalCompliance@dellonda.co.uk
Parameter
Verification tolerances
Annual energy consumption, AEChood. kWh/a
26.4
Time increase factor.
1.4
Fluid dynamic efficiency.
15.3
Energy efficiency index.
60.8
Measured air flow rate at best efficiency point.
202.9
Measured air pressure at best efficiency point.
135
Maximum air flow.
315.2
221.2
Minimum air flow.
Measured electric power input at best efficiency
point.
230.4
Nominal power of the lighting system.
1.5
Average illumination of the lighting system on the
cooking surface.
67
Measured power consumption in standby mode.
-
Measured power consumption off mode.
0.00
Sound power level, highest setting. dB
64
Sound power level, lowest setting. dB
59
Suppliers website https://www.dellonda.co.uk/
Baridi Cooker Hood,Chimney Style with Carbon Filters 90cm - Black
Product Information Sheet. Hoods
SUPPLIER_NAME_OR_TRADEMARK Dellonda EU Ltd.
DELEGATED_ACT 66/2014/EU
MODEL_IDENTIFIER DH127
ADDRESS
Farney Street, Carrickmacross, Co. Monaghan, A81 PK68 Ireland
PHONE_NUMBER 01284 757 500
EMAIL_ADDRESS TechnicalCompliance@dellonda.co.uk
Parameter
Verification tolerances
Annual energy consumption, AEChood. kWh/a
26.4
Time increase factor.
1.4
Fluid dynamic efficiency.
15.3
Energy efficiency index.
60.8
Measured air flow rate at best efficiency
202.9
Measured air pressure at best efficiency
point.
135
Maximum air flow.
315.2
Measured electric power input at best
efficiency point.
49.6
Nominal power of the lighting system.
1.5
Average illumination of the lighting system on
the cooking surface.
67
Measured power consumption in standby
-
Measured power consumption off mode.
-
Sound power level. dB
64
Suppliers website https://www.dellonda.co.uk/
90cm Chimney Style Cooker Hood with Carbon Filters, Stainless Steel
