ELITE SMART AUTO INCLINE 20" DECK
TREADMILL WITH 300LB WEIGHT
CAPACITY
SF-T723016
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INSTRUCTION
When using an electrical appliance, basic precautions should always be followed, including the
following:
Read all instructions before using (this appliance).
DANGER –To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after using and before
cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in
use, and before putting on or taking off parts.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Keep children
under the age of 13 away from this machine.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments
not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return the appliance to a service center for
examination and repair.
5. Do not carry this appliance by supply cord or use cord as a handle.
6. Keep the cord away from heated surfaces.
7. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair,
and the like.
8. Never drop or insert any object into any opening.
9. Do not use outdoors. Household use only.
10. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
11. To disconnect, turn all controls to the off position, then remove plug from outlet.
12. CAUTION: Risk of Injury to Persons – To Avoid Injury, use extreme caution when stepping onto or
off of a moving belt. Read Instruction Manual Before Using.

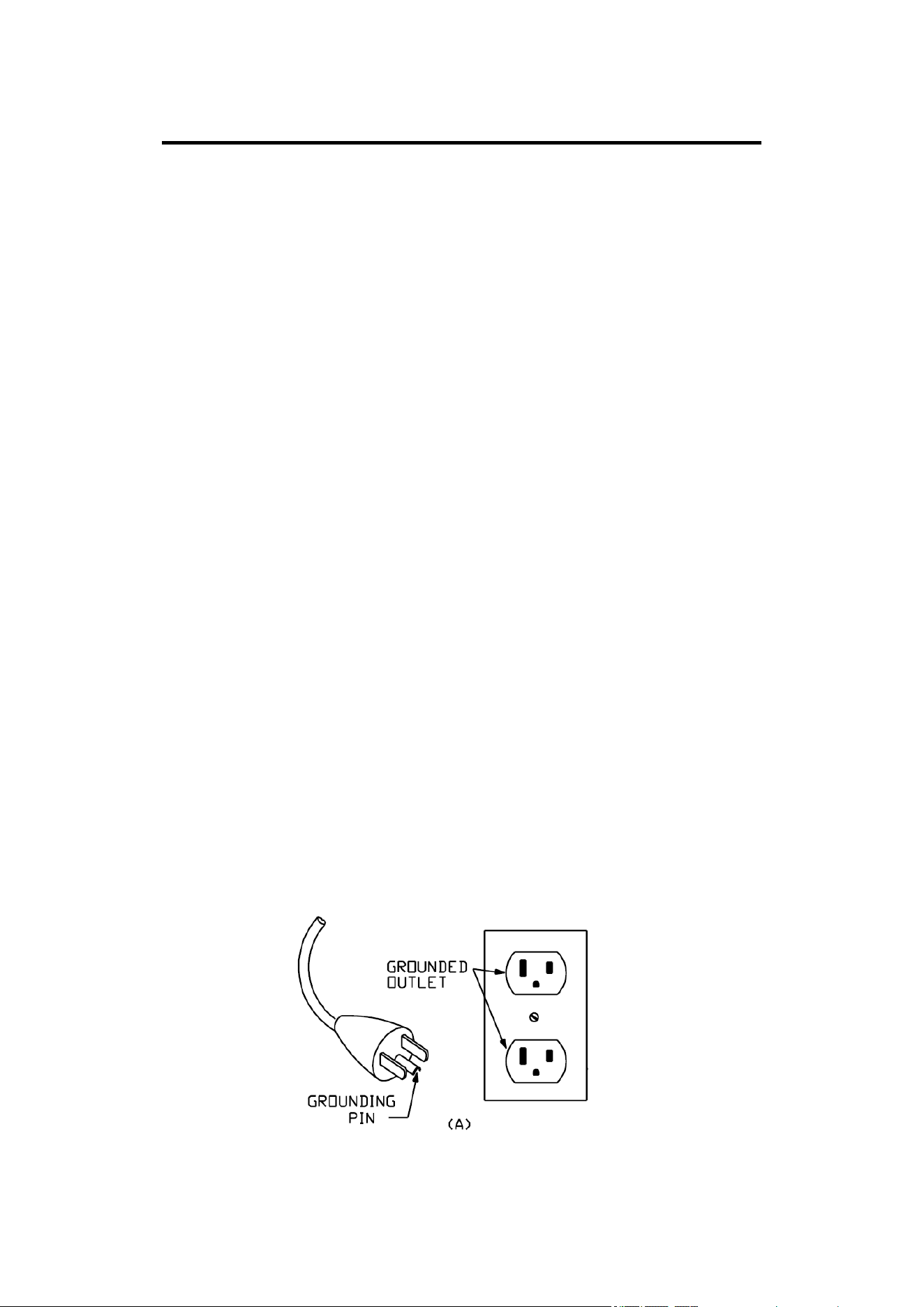

13. Connect this appliance to a properly grounded outlet only. See Grounding Instructions.
14. REMOVE CONTROL BOX (OR KEY, OR SAFETY PIN, AS APPLICABLE) WHEN NOT IN USE,
AND STORE OUT OF REACH OF CHILDREN.
15. Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric
shock, or injury to persons.
SAVE THESE INSTRUCTIONS
2
Caution: The user is cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic Development Canada’s license-exempt RSS(s) and Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause interference.
2) This device must accept any interference, including interference that may cause undesired
operation of the device.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
3
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the equipment properly. Your physician’s advice is essential if you are taking medication that
affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 240cm (8 feet) of free space behind it and
60cm (2 feet) on each side. Do not place the treadmill on any surface that blocks air openings. To
protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 lbs (135 kgs).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving is
required.
12. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme cold,
hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only. It is not intended for commercial use!
4
IMPORTANT NOTE:
The belt must be lubricated before the first use! Please see Page 12 for instructions on how to
properly apply lubricant.
IMPORTANT OPERATING INSTRUCTIONS
1. Insert the power plug directly into the socket.
2. Read the manual before operating the treadmill.
3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on
the main console. The speed will increase gradually.
4. While on the treadmill, move with caution as distractions may cause you to lose balance and stray
from walking in the center of the running belt. This may result in serious injury.
5. This unit starts at a very low speed. To begin use, hold onto the handrails and stand on the side
rails while it starts up, then step onto the running belt once it’s in motion.
6. Always hold the handrails when making changes in the settings.
7. A safety key is provided for emergency use. The treadmill will function only if the safety key is
inserted into the computer console. In case of emergency, remove the safety key to immediately
stop the running belt and shut off the treadmill. The display screen will reset once the safety key is
reinserted.
8. The console control keys are precisely set and require very little finger pressure to use. To avoid
damaging these keys, do not use excessive pressure when operating these controls.
9. This treadmill is designed for adult use only! Children should not be allowed to use or play near
this treadmill. When present, children should always be supervised by an adult.
10. Women who are pregnant or nursing should consult a physician before attempting to begin any
exercise program.
11. Always stay hydrated during and after exercise.
5

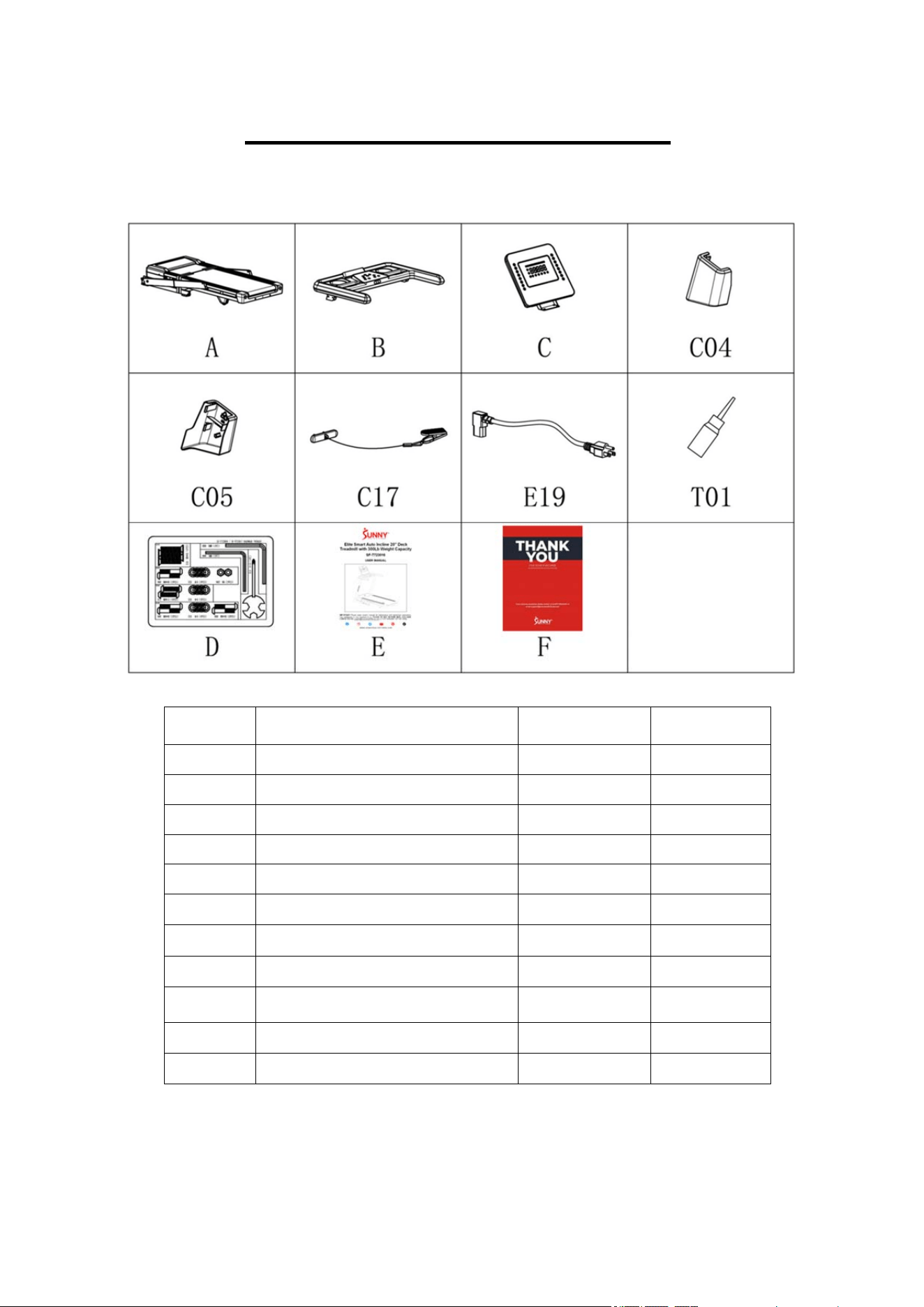

PRE-ASSEMBLY CHECK LIST
Before you start to assemble, please make sure all parts are included.
No. Description Spec. Qty.
A Main Frame 1
B Panel Connecting Bracket 1
C Console Assembly 1
C04 Left Upright Tube Cover 1
C05 Right Upright Tube Cover 1
C17 Safety Key 1
E19 Power Wire 1
T01 Lubricant Oil 1
D Hardware Package 1
E Manual 1
F Thank You Card 1
6

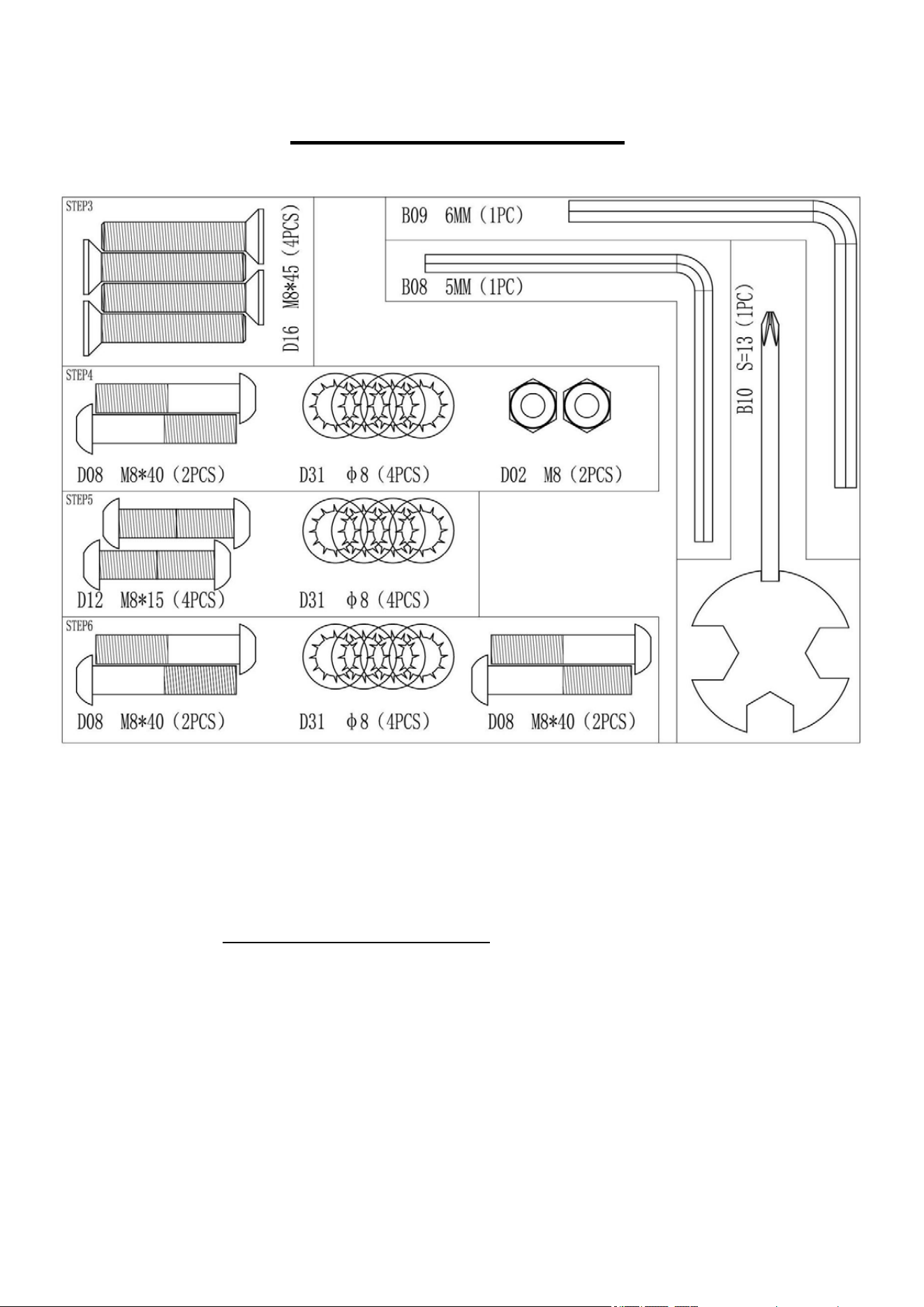

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)

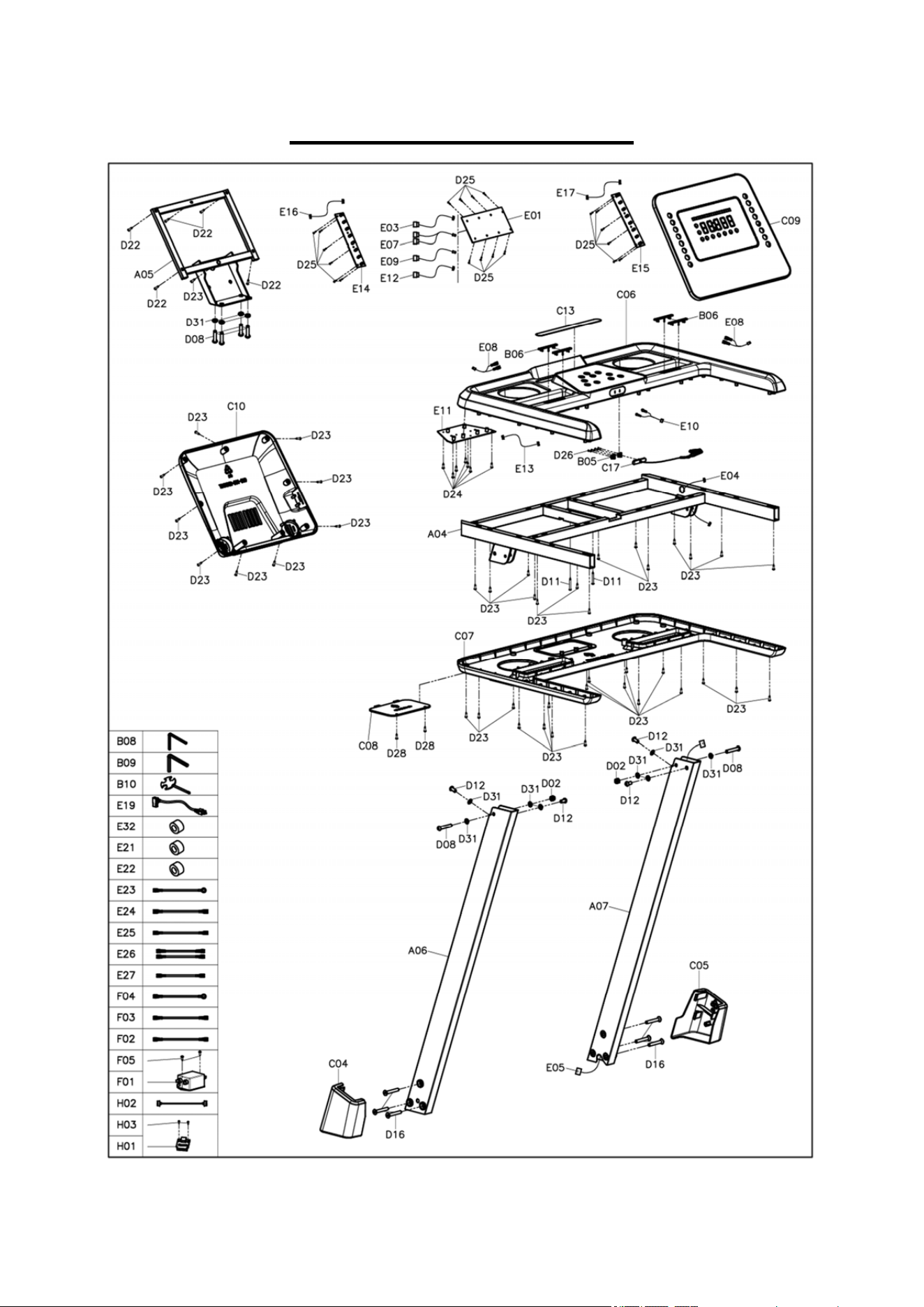

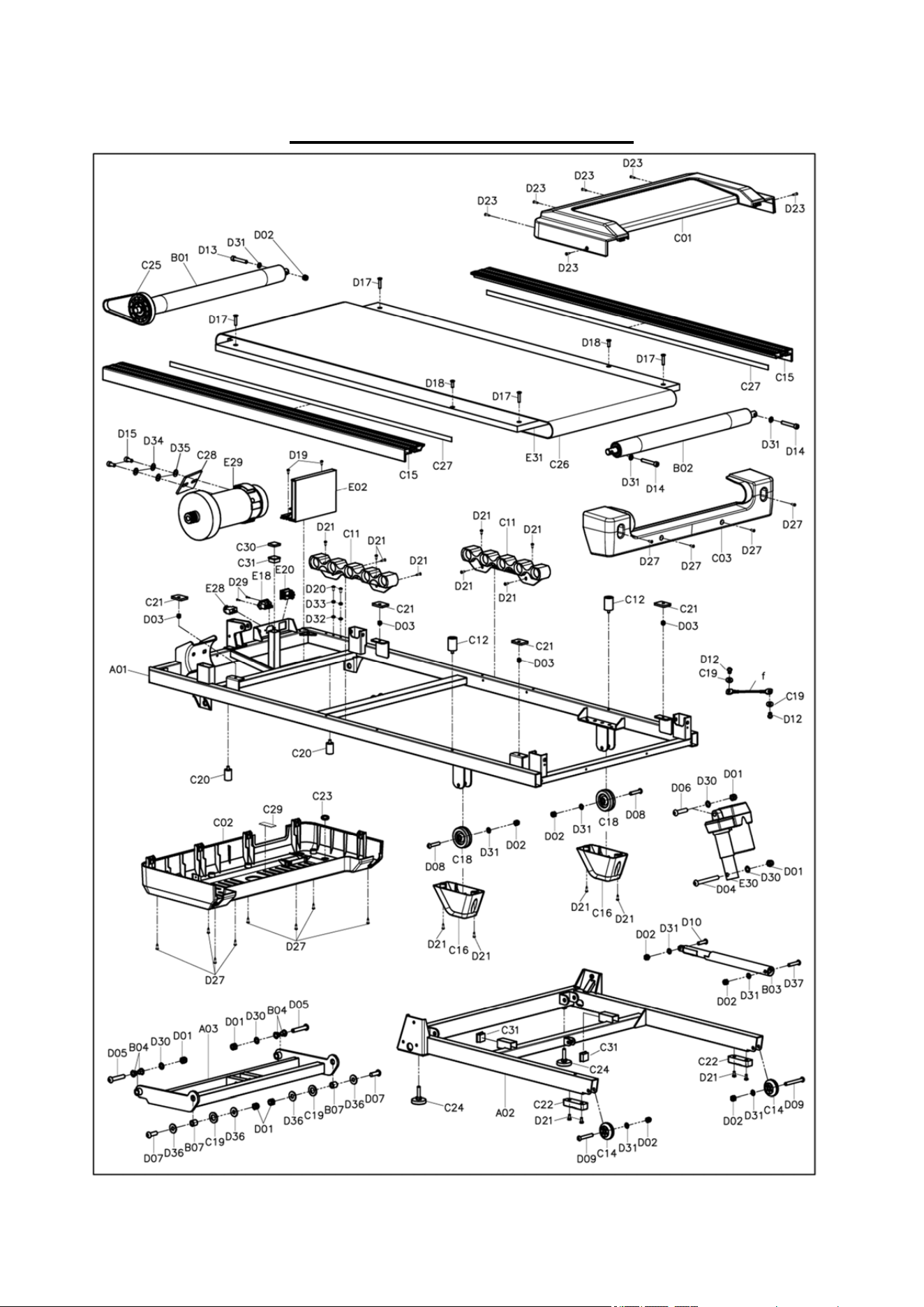

The part number found on the “EXPLODED DIAGRAM” (pages 26~27) and “PARTS LIST” (pages
28~29)
Please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).
7
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-
8669).

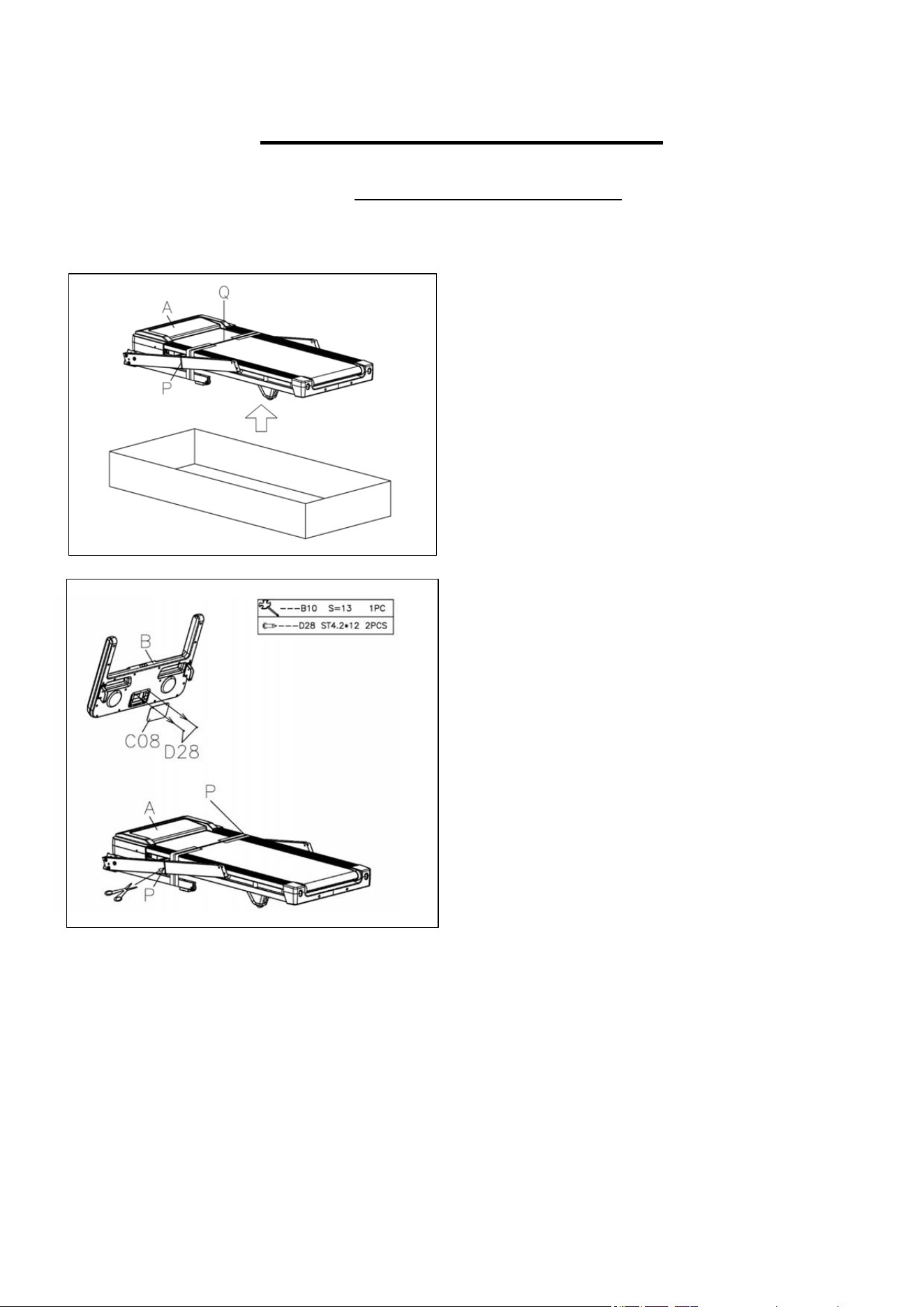

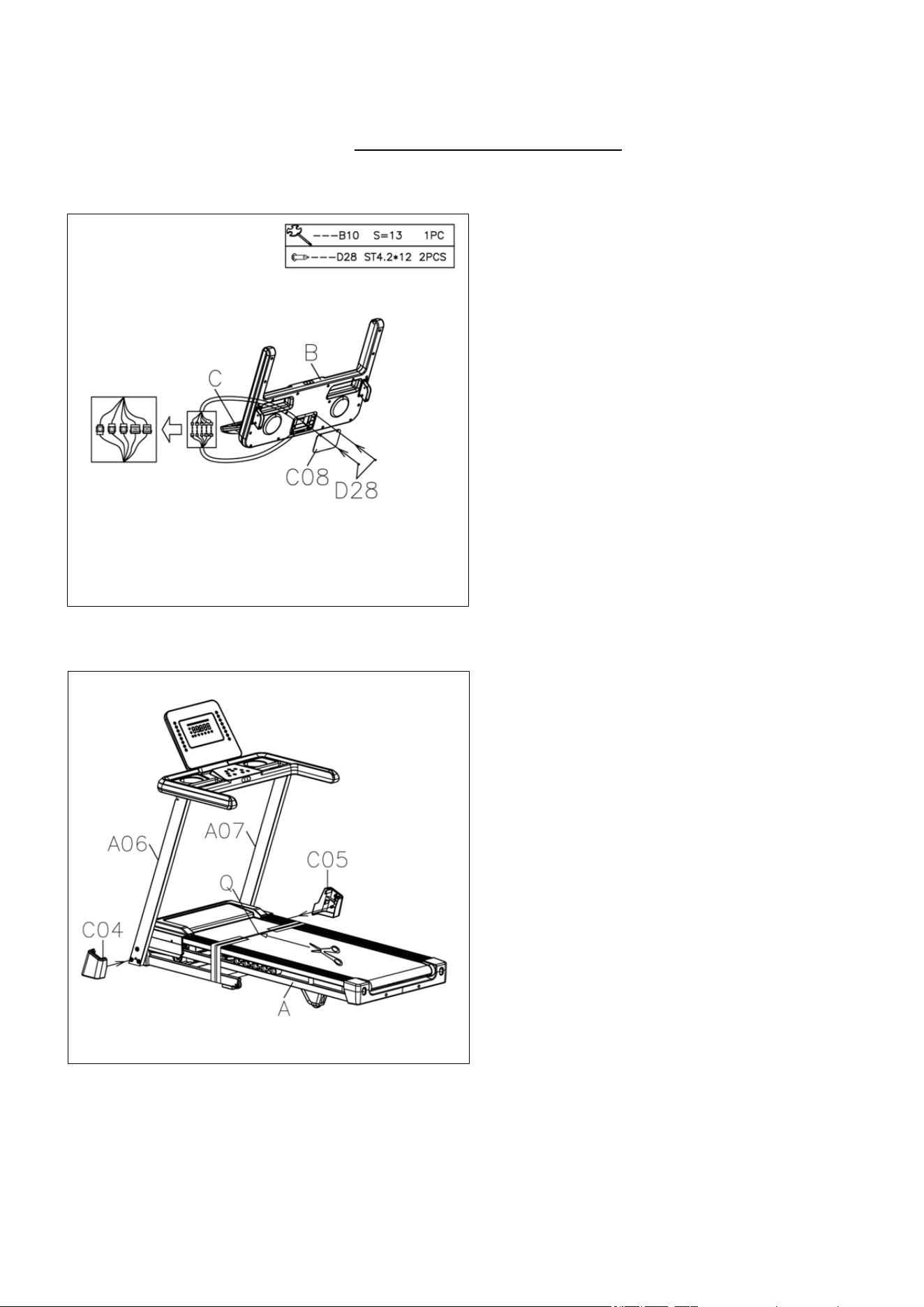

STEP 2:
Cut the Packing Belt (No. P) on each
side.
Loosen the 2 Countersunk Head Screws
(No. D28) on the Console Small Cover
(No. C08) by using Cross Wrench (No.
B10) and remove the Console Small
Cover (No. C08).
Place the Console Small Cover (No.
C08) and Countersunk Head Screws
(No. D28) to the side, it will be used during
STEP 7.
STEP 1:
Note: We recommend having two
people to do the assembly.
Open the carton, take out the
contents, and place the Treadmill (No.
A) on leveled ground.
Do not cut the Packing Belt (No. Q)
until the assembly is complete!
8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-
8669).

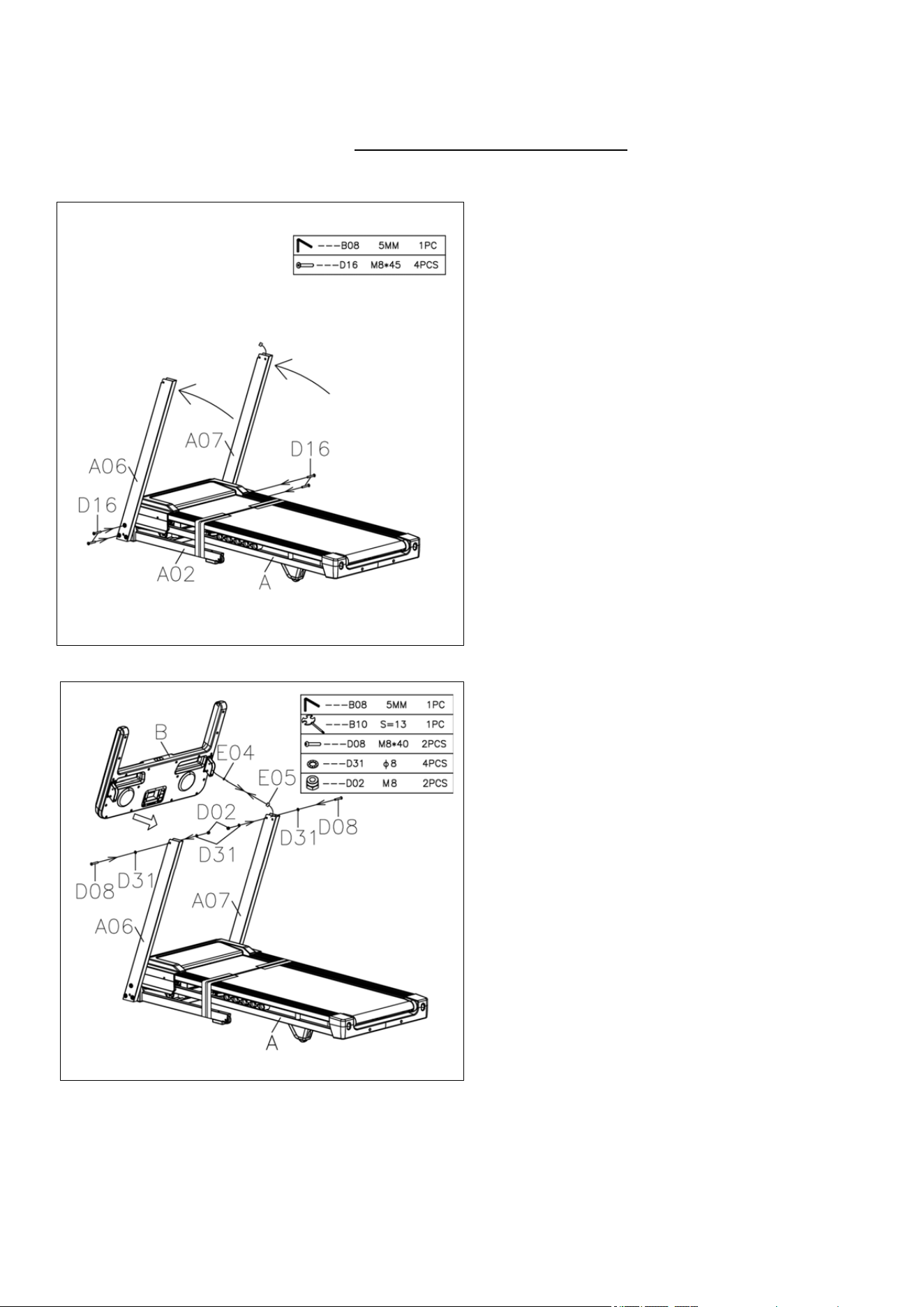

STEP 3:
Lift the Left & Right Upright Tubes (No.
A06 & No. A07) (in the direction shown on
the diagram) to the left.
Support the Left & Right Upright Tubes
(No. A06 & No. A07) with your hands to
prevent them from falling.
Tighten the Left & Right Upright Tubes
(No. A06 & No. A07) to the Base Assembly
(No. A02) by using 4 Bolts (No. D16).
Secure by using Allen Wrench (No. B08).
Note: Do not tighten the 4 Bolts (No. D16)
here, wait until the assembly is complete in
STEP 5.
STEP 4:
Connect the Bottom Signal Wire 1 (No.
E04) to the Bottom Signal Wire2 (No. E05).
Attach the Panel Connecting Bracket (No.
B) to the Left & Right Upright Tubes (No.
A06 & No. A07) with 2 Bolts (No. D08), 2
Nuts (No. D02) and 4 Locking Washers
(No. D31). Tighten by using Allen Wrench
(No. B08) and Cross Wrench (No. B10).
NOTE: When lifting, avoid puncturing the
wires inside the Right Upright Tubes (No.
A07) as this will cause damage.
Note: Do not tighten the 2 Bolts (No. D08)
here, wait until the assembly is complete in
STEP 5.
9
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).

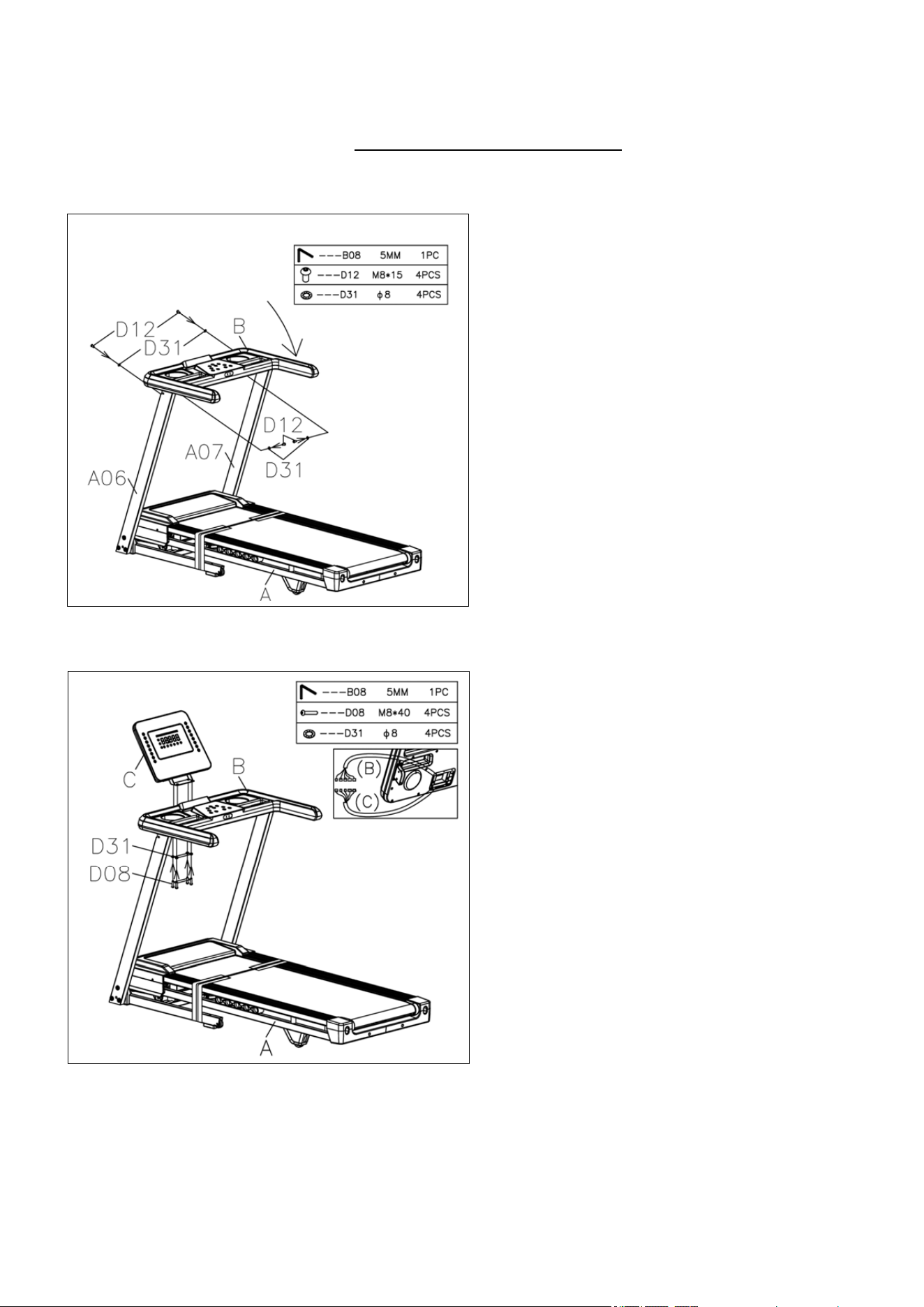

STEP 6:
Note: The wire should be guarded when
passing through the Panel Connecting
Bracket (No. B).
Insert the Console Assembly (No. C) into
the holes on the Panel Connecting
Bracket (No. B). Attach with 4 Bolts (No.
D08) and 4 Locking Washers (No. D31).
Tighten by using Allen Wrench (No. B08).
STEP 5:
Tighten the Panel Connecting Bracket
(No. B) to the Left & Right Upright Tubes
(No. A06 & No. A07) with 4 Flat Round
Head Bolts (No. D12) and 4 Locking
Washers (No. D31) by using Allen Wrench
(No. B08).
Note: Recheck all the bolts in the Left &
Right Upright Tubes (No. A06 & No. A07),
then tighten them.
10
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).
STEP 8:
Attach the Left & Right Upright Tube
Covers (No. C04 & No. C05) to the Left &
Right Upright Tubes (No. A06 & No. A07).
You may now cut the Packing Belt (No. Q).
STEP 7:
Connect the wire ports of Console
Assembly (No. C) to the wire ports of
Panel Connecting Bracket (No. B) first.
Note: Connect the same-colored wires.
Attach the Console Small Cover (No.
C08) to the Panel Connecting Bracket
(No. B) with 2 Countersunk Head Screws
(No. D28). Tighten by using Cross
Wrench (No. B10).
11
IMPORTANT NOTE!
You will need to lubricate
your treadmill before the first
use. See Page 12.
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).
STEP 10:
Insert the pin end of Safety Key (No. C17)
into the Console Top Cover (No. C06).
The assembly is complete!
IMPORTANT NOTE!
You will need to lubricate
your treadmill before the
first use. See Page 12.

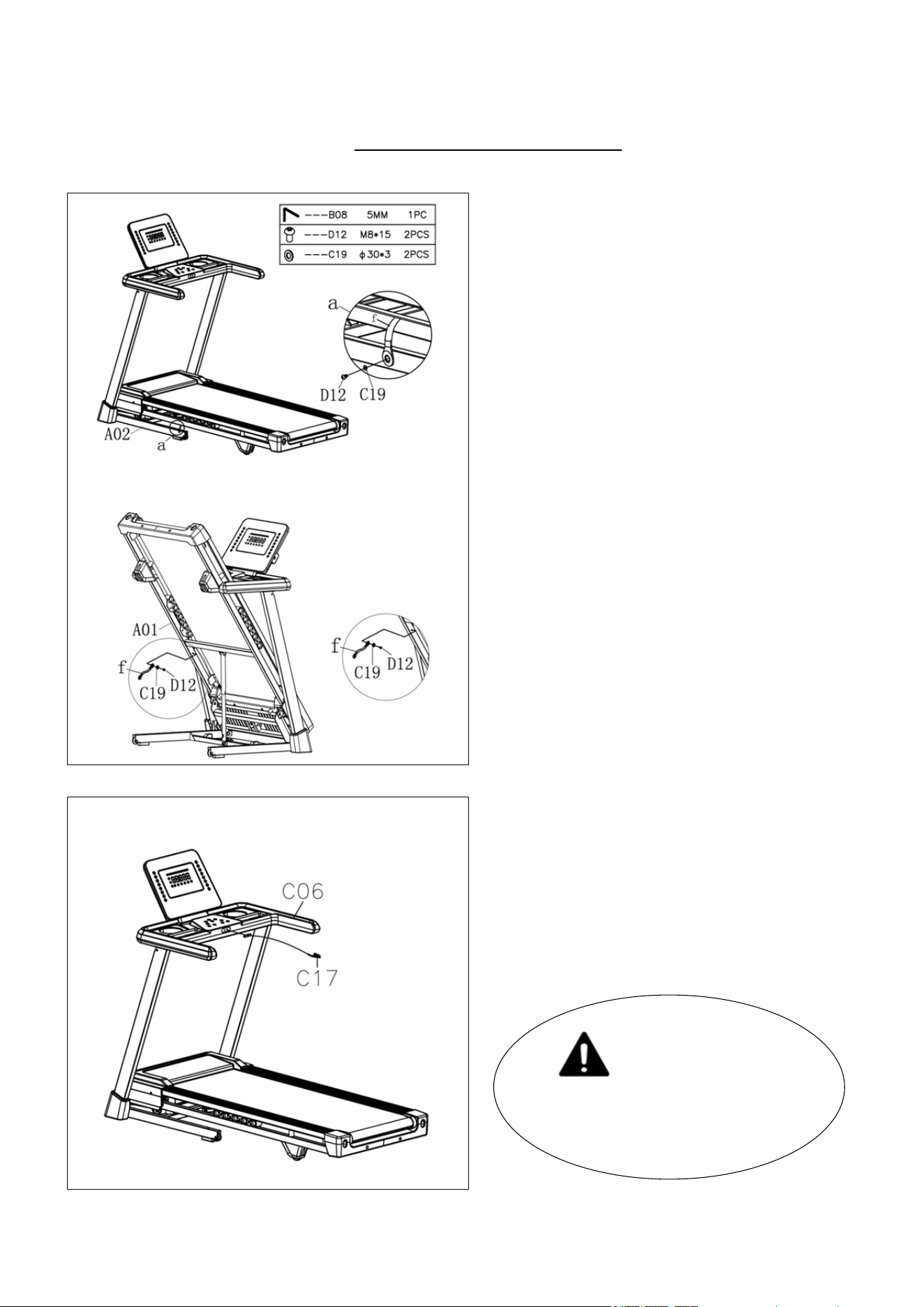

STEP 9:
Remove the Flat Round Head Bolt (No.
D12) and Plastic Gasket (No. C19) from
the Base Assembly (No. A02) using the
Allen Wrench (No. B08)
.
Fold the treadmill, remove the Flat Round
Head Bolt (No. D12) and Plastic Gasket
(No. C19) from the Main Frame (No. A01)
using the Allen Wrench (No. B08). Then
remove the Safety Wirerope (No. f).
Please keep the 2 Flat Round Head
Bolts (No. D12), 2 Plastic Gaskets (No.
C19) and Safety Wirerope (No. f) as
spare parts after it is removed.
12
LUBRICATING THE TREADMILL
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
RUNNING BELT & TREADMILL LUBRICANT:
Lubricating the Running Board (No. E31) and Running Belt (No. C26) is essential as the friction
affects the life span and operations of the treadmill. Inspect the Running Belt (No. C26) and
Running Board (No. E31) regularly. If you find any wear on the Running Board (No. E31), please
contact us at: [email protected].
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating, or
repairing the unit.

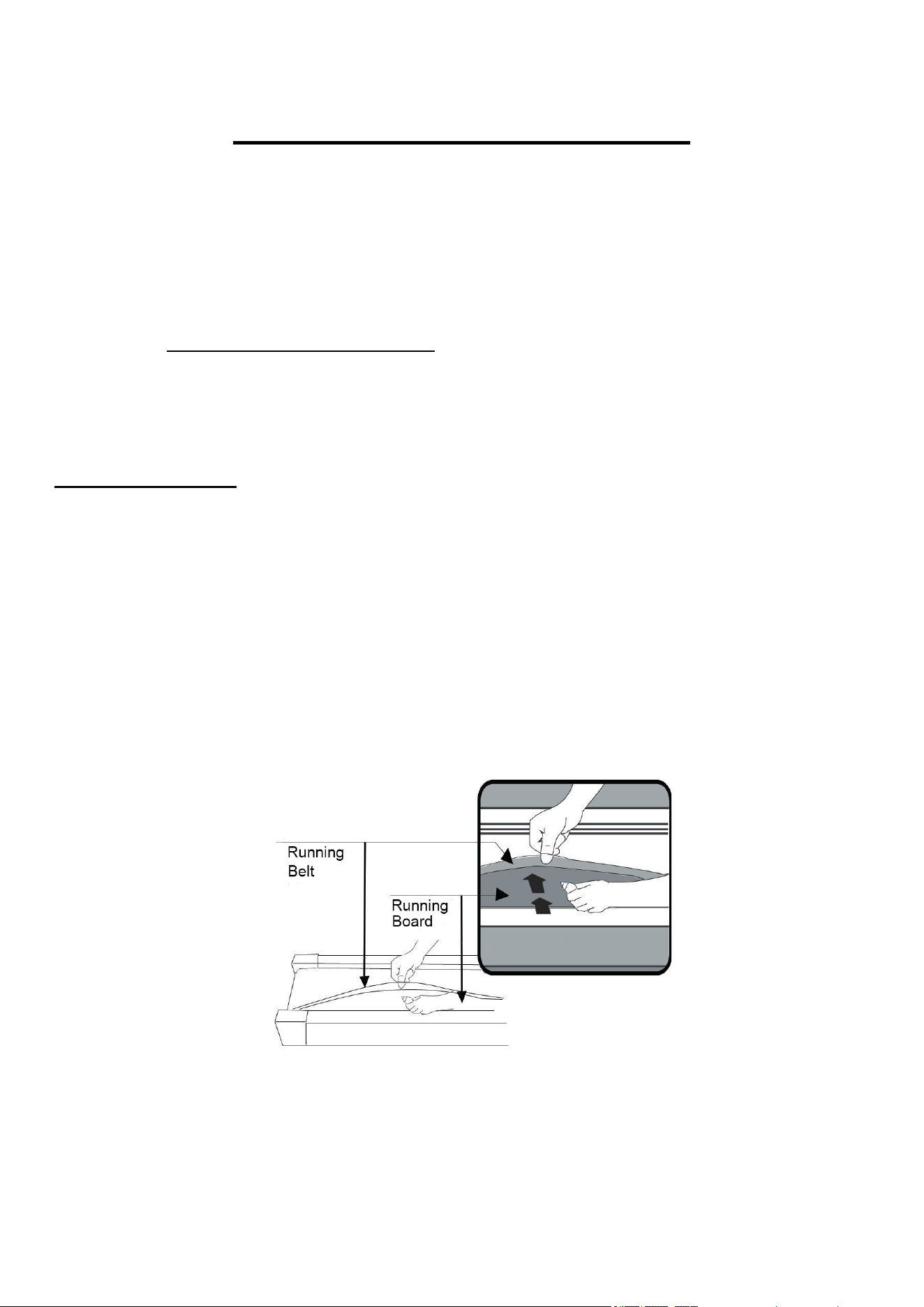

HOW TO LUBRICATE:
1. To apply lubricant, lift one side of the Running Belt (No. C26) and apply oil to the middle of the
Running Board (No. E31). Next, start the treadmill and place it at the lowest speed setting and
allow the oil to spread over the Running Board (No. E31). Repeat this process for the other side.
2. The moving parts should turn freely and quietly. Abnormal moving parts will affect the safety of the
equipment. Inspect and tighten bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done
on a regular basis.
4. DO NOT LOOSEN OR MAKE ANY ADJUSTMENTS TO THE RUNNING BELT WHILE APPLYING
LUBRICANT. A loose Running Belt (No. C26) will result in the runner sliding off during use, while
too tight of a Running Belt (No. C26) will negatively affect the motor’s performance and create
more friction between the roller and Running Belt (No. C26). The most suitable tightness for the
Running Belt (No. C26) is when it is pulled out 50-75mm from the Running Board (No. E31).
The following time table is recommended:
Light user (less than 3 hours/ week) every six months
Medium user (3-5 hours/ week) every three months
Heavy user (more than 5 hours/ week) every two months
13

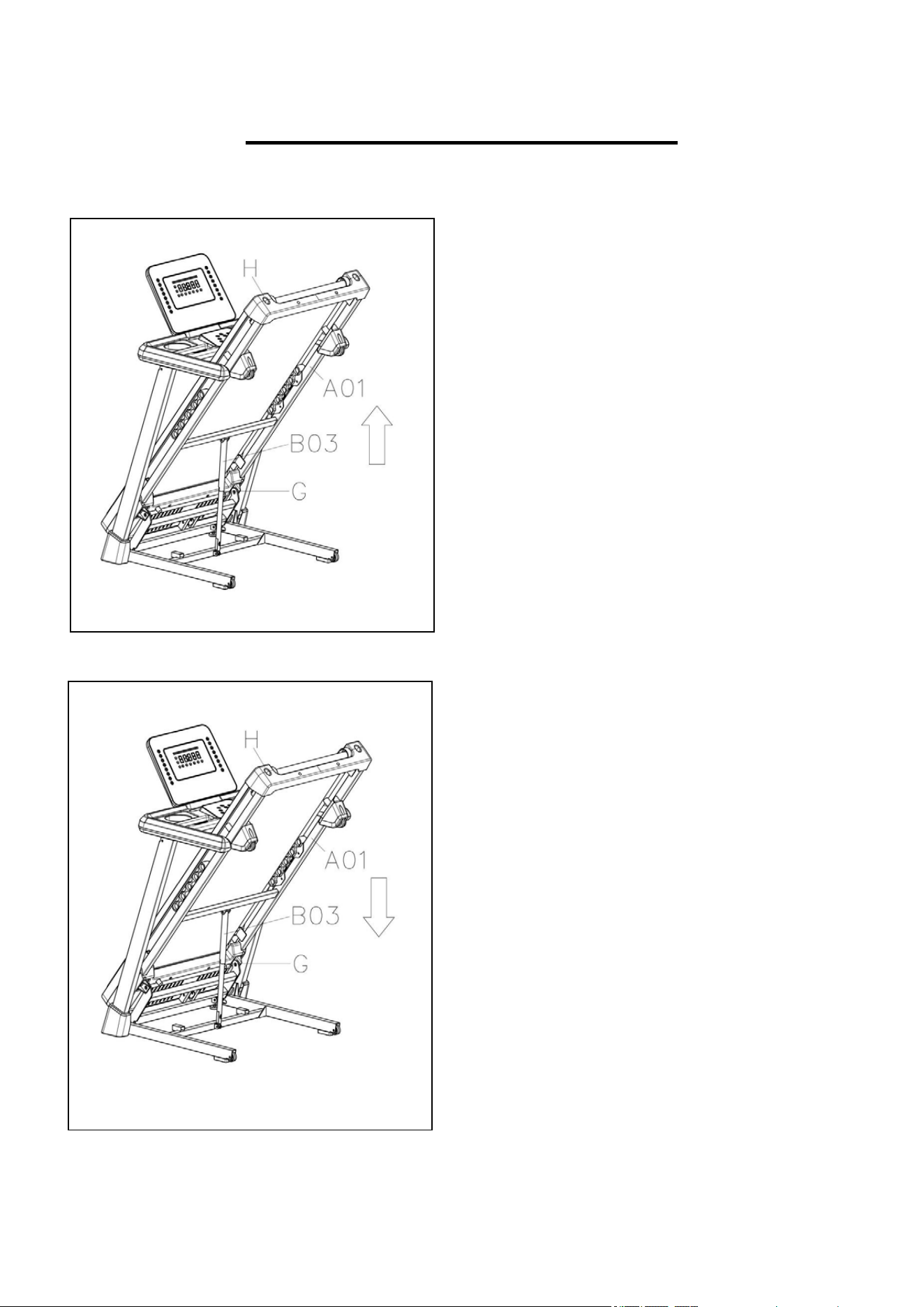

HOW TO FOLD THE MACHINE
FOLDING:
UNFOLDING:
NOTE: Please make sure the incline
is at ZERO when folding and
unfolding.
Place your hand at position “H” and
lift the Main Frame (No. A01) until
the Air Cylinder (No. B03) “G” locks
into the tube.
When the Air Cylinder (No. B03)
successfully locks into the tube, you
will hear a clicking sound.
Before lowering the Main Frame (No.
A01), ensure that the space directly
underneath it is clear of any objects.
Hold the Main Frame (No. A01) at
position “H” with one hand. Next,
using your foot, firmly push against
the Air Cylinder (No. B03) “G” and
press down on the Main Frame (No.
A01). Once the Main Frame (No.
A01) has been pushed down, it will
automatically continue to steadily
lower itself until it reaches level
ground.
(Please keep people and pets away
from the treadmill when unfolding.)
14

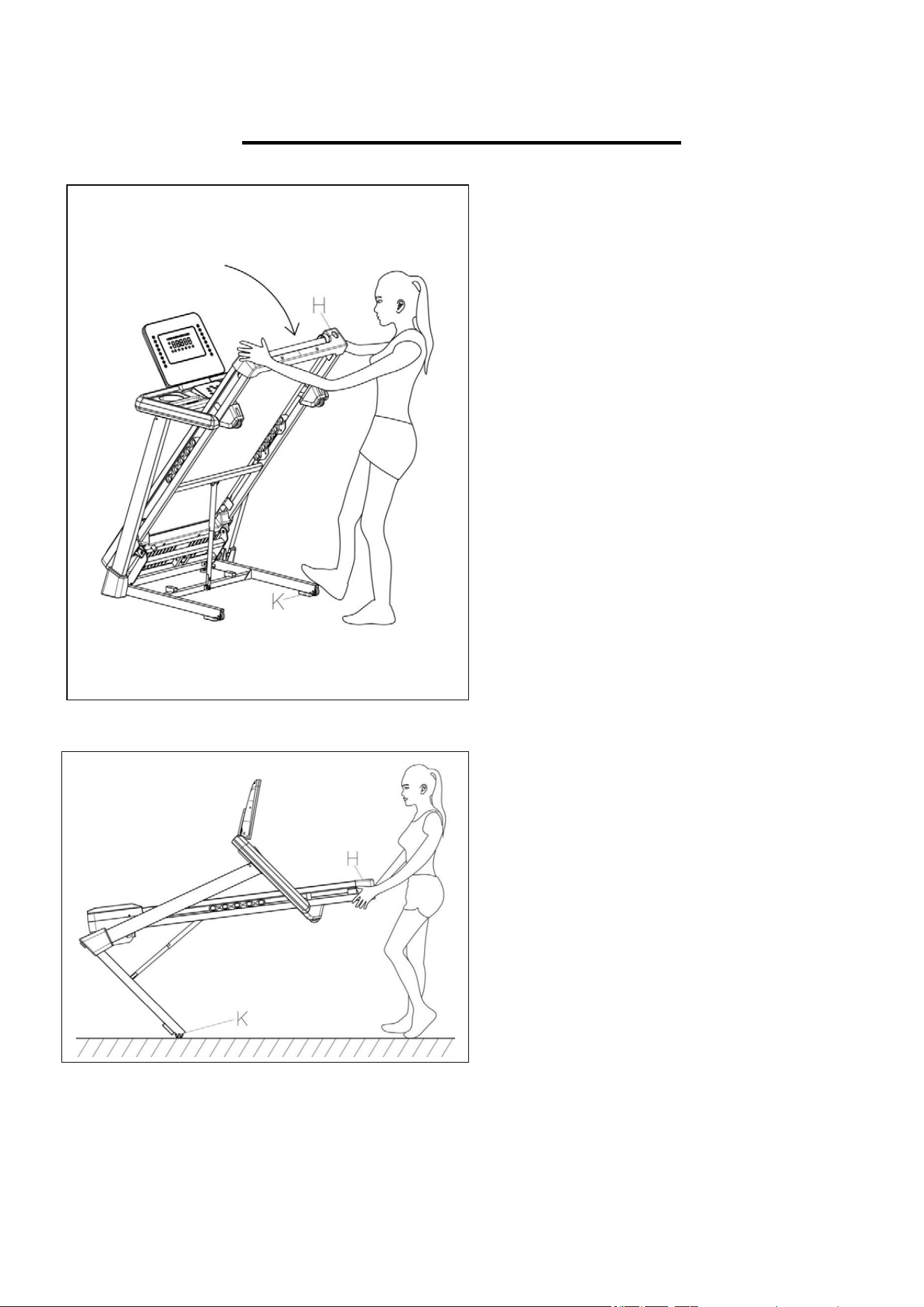

HOW TO MOVE THE MACHINE
Before attempting to move the
treadmill, make sure that it has
been properly folded. Unplug the
power cord.
To tilt, start by placing one hand
at position “H” to support the top
end of the treadmill. Next, place
one foot at position “K” to hold the
bottom end of the treadmill
steady. With your foot at “K,”
slowly tilt the top of the treadmill
downward towards the ground.
Once the treadmill reaches a low
enough point, the transportation
wheels will touch the ground.
To transport, hold the treadmill at
position “H” and tilt until the
transportation wheels “K” can
move on the ground.
15

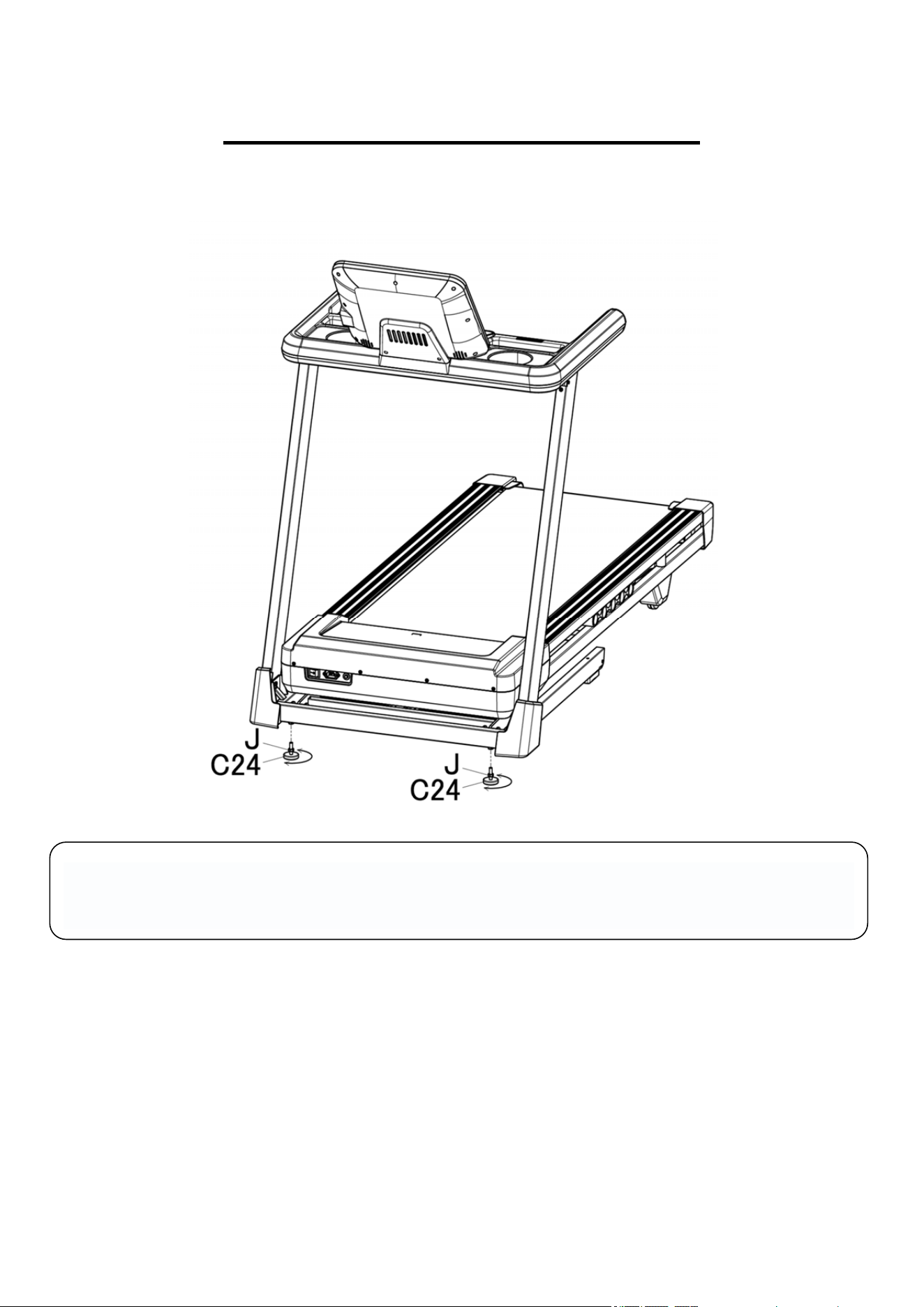

HOW TO ADJUST THE BALANCE
Adjustment method: Place the machine on the ground, rotate Adjustable Foot Pad (No. C24)
to raise or lower the footpad until the machine is level.
16
MAINTENANCE & CARE
General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and
maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No.
C13) to prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from
your shoes does not wear the Running Board (No. E31) and Running Belt (No. C26). Clean the
surface of the Running Belt (No. C26) with a clean, damp cloth.
To better maintain the treadmill and prolong its life, it is suggested that the treadmill be powered off
for 10 minutes every 2 hours and fully powered off whenever not in use.

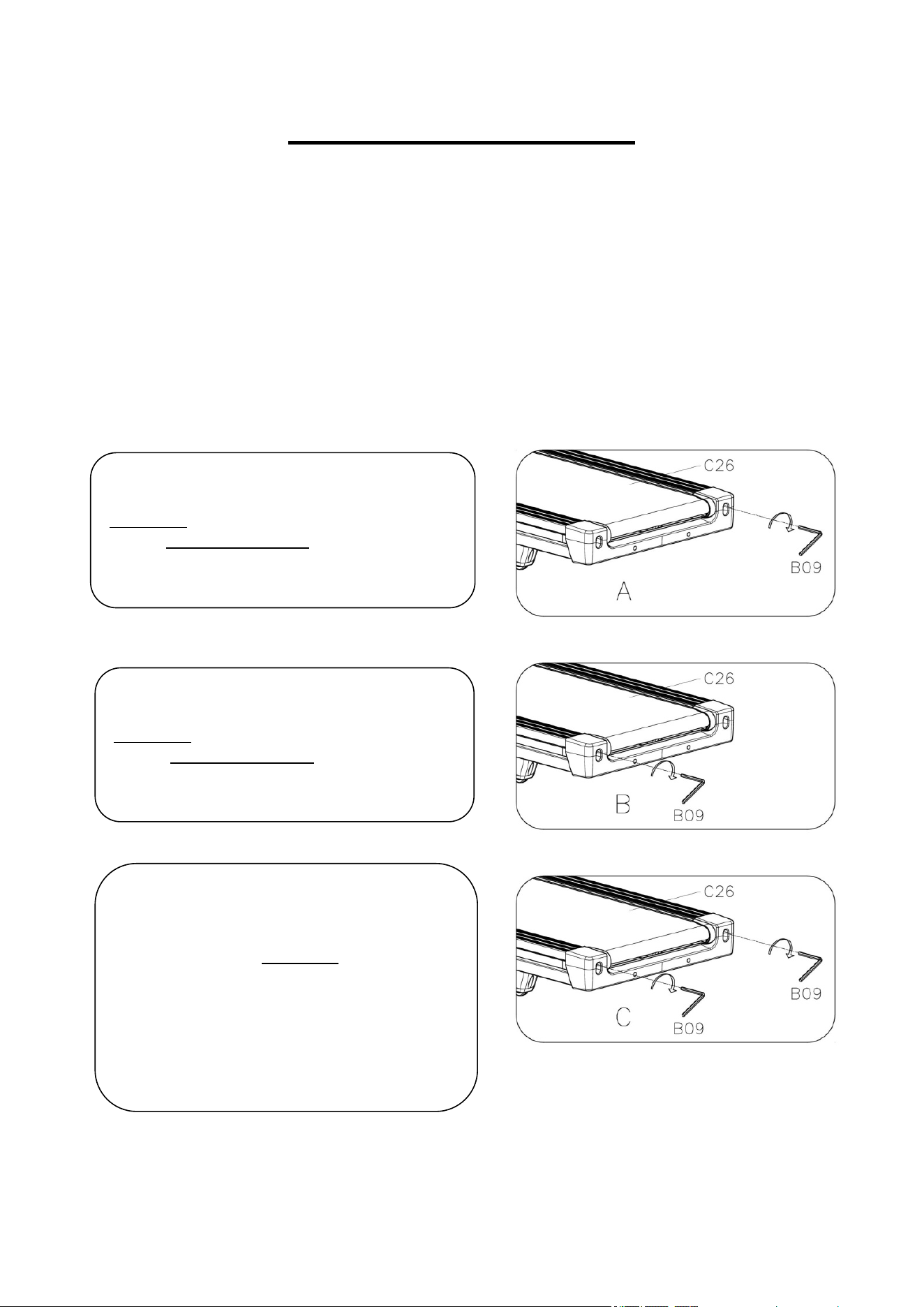

CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 3-5mph to check if the Running Belt (No. C26) drifts
from the center.
If the Running Belt (No. C26) moves to
the right, turn the right adjusting bolt ¼ turn
clockwise, then turn the left adjusting bolt
¼ turn counter-clockwise. If the Running
Belt (No. C26) does not move, repeat this
step until it centers. Refer to Figure A.
If the Running Belt (No. C26) moves to
the left, turn the left adjusting bolt ¼ turn
clockwise, then turn the right adjusting bolt
¼ turn counter-clockwise. If the Running
Belt (No. C26) does not move, repeat this
step until it centers. Refer to Figure B.
Over time, the Running Belt (No. C26)
will loosen. To tighten the Running Belt
(No. C26), turn the left & right adjusting
bolts one full turn clockwise, check the
tension of the Running Belt (No. C26).
Continue this process until Running Belt
(No. C26) is at the correct tension. Make
sure to adjust both sides equally to
ensure correct belt alignment. Refer to
Figure C.
17
IMPORTANT ELECTRICAL INFORMATION
WARNING: This treadmill requires a power source of 12 amps (100-120 V) in order to properly
operate. For your safety, as well as the safety of others, please verify that the power source is correct
before plugging the equipment. Any power source above or below this level could cause significant
damage to the equipment and/or user.
GROUNDING METHODS:
This product must be grounded. Should the treadmill malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This product is
equipped with a plug that has an equipment-grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance with
all local codes and ordinances. Ensure that the product is connected to an outlet with the same
configuration as the plug. Do not use an adaptor for this product.
This product is for use on a nominal 100-120V circuit and has a grounding plug that looks like the
plug illustrated in sketch A.
DANGER:
Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are unsure whether the product has been
properly grounded. Do not modify the plug provided with the product. If it will not fit the outlet, have a
proper outlet installed by a qualified electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
cord away from all moving parts of the treadmill including the elevation mechanism and
transportation wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover on this treadmill without first disconnecting power cord.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for outdoor use or
use in any other high humidity environment.
GROUNDING METHOD
18

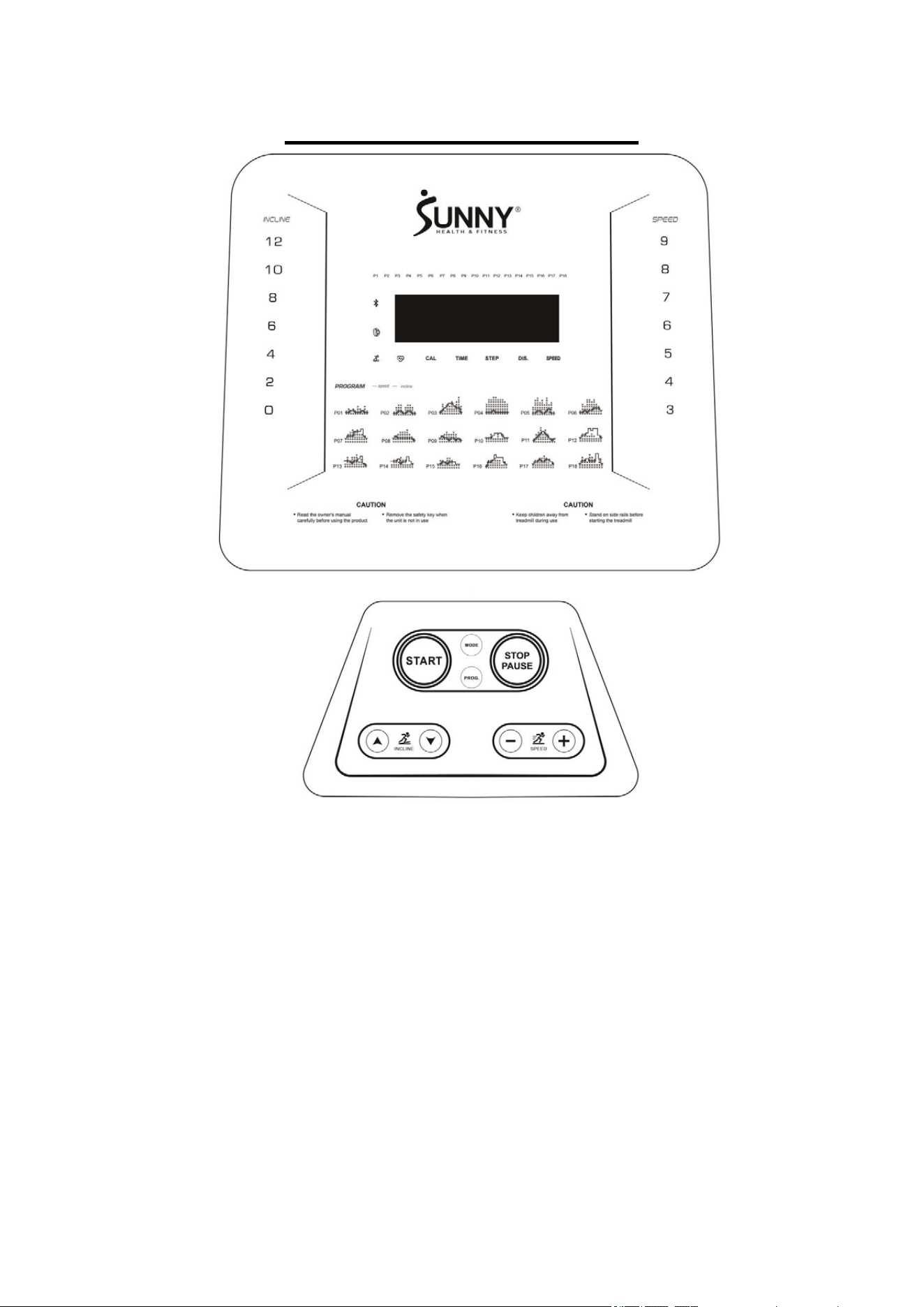

THE DISPLAY CONSOLE
QUICK START:
1. Insert the pin end of the Safety Key (No. C17) into the holes on the Console Top Cover (No.
C06).
2. Press the START button and the system will automatically display a 3-second countdown. Once
the countdown reaches zero, the Running Belt (No. C26) will start at the initial default speed of
0.6 MPH.
3. To adjust the speed, you can use the SPEED +/- buttons on the Console Top Cover (No. C06) or
the QUICK SPEED buttons 3, 4, 5, 6, 7, 8, 9 MPH on Panel Top Cover (No. C09).
4. To adjust the incline, you can use the INCLINE ∧/∨ buttons on the Console Top Cover (No. C06)
or the QUICK INCLINE buttons 0, 2, 4, 6, 8, 10, 12 on Panel Top Cover (No. C09).
NOTE: The maximum speed on this treadmill is 12.0MPH.
19
WINDOW DISPLAY:
DISTANCE: Displays the distance traveled (0.0-99.99 MILES). When the distance reaches 99.99
MILES, it will reset to 0.00 and begin counting again from 0.0. When in Countdown Mode, it will count
down from the set distance to 0.00. When it reaches 0.00, the treadmill will stop smoothly and display
“End” and automatically reset to the initial setting after 5 seconds.
TIME: Displays the time elapsed (0:00-99:59 MINS). If the time reaches 99:59, the treadmill will stop
smoothly and display “End” then automatically reset to 0:00 after 5 seconds.
When in Countdown Mode, it will count down from the set time to 0:00. When the clock reaches 0:00,
the treadmill will stop smoothly and display “End” then automatically reset itself after 5 seconds.
Maximum Countdown time is 99:00 minutes:seconds.
CALORIES: Displays the number of calories burned from 0 to 99999 KCAL. When the count reaches
99999 KCAL, it will reset and start back from 0. When in Countdown Mode, it will count down from
the desired setting to 0. Once it reaches 0, the treadmill will stop smoothly and display “End”, then
automatically reset to the initial setting after 5 seconds.
INCLINE: Displays the incline from 0-15 level.
SPEED: The speed range is 0.6-12 MPH. 0.6MPH is the default running speed.
PULSE: When the runner holds both hands on the pulse sensors (located on the handles), the
system will calculate the runner’s heart rate and display it in this window. The pulse range is 50-200
beats/min.
STEP: Display the step from 0 to 99999.
NOTE:
1. This data is just for reference only and should not be used for medical purposes.
2. Distance and calories will not count when no one is running on the treadmill.
CONSOLE FUNCTION KEYS:
PROGRAM: Press the PROGRAM button to set your desired interval setting. Programs are displayed
as P1-P2---P18.
MODE: When stopped, press this button to select a Countdown mode.
15:00 MINS is the default Countdown for TIME.
1.0 Mile is the default Countdown for DISTANCE.
50 KCAL is the default Countdown for CALORIES.
When setting each Countdown Mode, you can press the SPEED +/– buttons or INCLINE ∧/∨
buttons to increase or decrease from the default setting. Press START to start the treadmill.
In the running state, press this button to select the function displayed.
START: To start the treadmill, insert the pin end of the Safety Key (No. C17) into the holes on the
Console Top Cover (No. C06) and then press the START button. This treadmill requires the Safety
PROGRAMS Initial Default Value Set Range Display Range
TIME (MIN:SECOND) 0:00 15:00 5:00-99:00
0:00－99:59
INCLINE 0 0 0-15 0-15
SPEED (MPH) 0 0.6 0.6-12.0 0.6-12.0
DISTANCE (MILE) 0.00 1.00 0.5-99.90 0.00-99.99
PULSE (BPM) P N/A N/A 50-200
STEP 0 - -
0－99999
CALORIE (KCAL) 0 50 10-999
0－99999
20
Key (No. C17) to be inserted to start. 0.6 MPH is the default start speed.
STOP/PAUSE: This button has functions to PAUSE and STOP. When in use, press this button once
to PAUSE your workout and the current workout data will still be shown. Press this button again to
STOP your workout session and all data will be reset to the initial setting.
In the STOP state, press and hold this button for 6 seconds to disconnect the heart rate monitor. To
reconnect the heart rate monitor, press and hold this button for 6 seconds again.
SPEED +/–: Press the +/- buttons to increase or decrease the speed in increments of 0.1 MPH.
Pressing and holding either of these buttons for a duration of over ½ a second will increase or
decrease the speed continuously.
3, 4, 5, 6, 7, 8, 9 (QUICK SPEED): These buttons are preset to 3, 4, 5, 6, 7, 8, 9 MPH speeds for
convenience.
INCLINE ∧/∨: Press these buttons to adjust incline level. When the treadmill is running, press the ∧/
∨ buttons to increase or decrease the incline level. Pressing and holding either of these buttons for
duration of over ½ a second will increase or decrease the incline level continuously.
The incline levels range from 0-15.
0, 2, 4, 6, 8, 10, 12 (QUICK INCLINE): These buttons are preset to 0, 2, 4, 6, 8, 10, 12 incline level
for convenience.
LUBRICATION REMINDER:
Your treadmill needs lubrication maintenance every 188 Miles. The system will release a beeping
sound every 10 seconds and display an “OIL” icon on your display to remind you when it is time.
Please read the LUBRICATING THE TREADMILL instructions on Page 12 to learn the proper steps to
lubricate your treadmill. Apply the lubricant to the middle of the Running Board (No. E31) on both
sides. After application, press and hold the STOP button for 3 seconds to clear the “OIL” reminder.
INTERVAL PROGRAMS (P1-P18):
Press the PROGRAM button to select an interval setting. Programs are displayed as P1-P18. Select
the desired program, and the console will display a countdown starting from 10:00 MINS, press
SPEED +/– buttons or INCILINE ∧/∨ buttons if you wish to increase or decrease the exercise time.
Press the START button to start the interval program. The interval program is divided into 10 sections.
Each exercise time equals the setting time divided by 10. When the speed enters the next interval,
the treadmill will beep, and the speed will change according to the set interval. Press SPEED +/– or
QUICK SPEED buttons or INCILINE ∧/∨ or QUICK INCLINE buttons to change the SPEED and
INCLINE. After finishing one program, the system will beep and display “End.” The machine will
gradually come to a stop, then automatically reset to the initial setting after 5 seconds.
21
TIME
PROG.
TIME INTERVAL= setting time/10
1 2 3 4 5 6 7 8 9 10
P1
SPEED 1.2 2.5 1.8 2.5 1.8 3.1 2.5 1.2 3.1 1.8
INCLINE 1 2 3 3 1 2 2 3 2 2
P2
SPEED 1.2 3.7 4.3 5 1.8 3.7 5 4.3 3.1 1.2
INCLINE 1 2 3 3 2 2 3 4 2 2
P3
SPEED 1.8 5 1.8 5 3.1 5.6 3.1 5.6 7.5 3.7
INCLINE 1 3 5 7 9 10 8 6 5 2
P4
SPEED 5 6.2 6.8 7.5 7.5 6.8 6.2 6.2 5.6 5
INCLINE 1 2 2 3 1 2 2 2 2 1
P5
SPEED 3.7 6.2 7.5 5.6 6.8 5 7.5 4.3 5.6 1.8
INCLINE 1 2 4 3 2 2 4 5 2 1
P6
SPEED 1.2 5 3.7 6.2 6.2 5.6 6.8 5 3.1 1.8
INCLINE 2 2 3 2 3 4 5 6 5 3
P7
SPEED 1.2 3.7 4.3 5.6 4.3 5.6 3.7 3.1 2.5 1.2
INCLINE 4 5 6 6 9 9 10 12 6 3
P8
SPEED 1.2 2.5 3.7 5 4.3 5 5.6 3.7 2.5 1.2
INCLINE 3 5 4 4 3 4 4 3 3 2
P9
SPEED 1.2 2.5 3.1 4.3 3.7 3.1 5 3.7 1.8 1.2
INCLINE 3 5 3 4 2 3 4 2 3 2
P10
SPEED 1.2 1.8 3.1 1.8 1.8 3.1 1.8 3.7 1.8 1.8
INCLINE 4 4 3 6 7 8 8 6 3 3
P11
SPEED 1.2 3.1 5 6.2 3.7 5.6 3.1 1.8 1.2 1.2
INCLINE 1 3 5 8 10 7 6 3 2 3
P12
SPEED 1.2 3.1 3.1 2.5 2.5 3.7 2.5 1.2 1.8 2.5
INCLINE 3 5 6 7 12 9 11 11 6 3
P13
SPEED 1.2 4.3 2.5 4.3 5 5.6 2.5 3.1 1.8 1.2
INCLINE 5 6 6 4 6 5 8 9 4 2
P14
SPEED 1.2 3.7 3.1 2.5 5 3.7 3.1 1.2 1.8 1.8
INCLINE 5 6 5 8 4 5 5 10 6 3
P15
SPEED 1.2 3.7 3.1 2.5 5 4.3 3.1 1.8 1.8 1.2
INCLINE 3 4 5 6 3 5 5 6 4 3
P16
SPEED 1.2 3.1 4.3 3.1 5 3.7 3.1 1.2 2.5 1.2
INCLINE 1 5 6 8 12 9 10 9 5 3
P17
SPEED 1.2 3.1 3.7 4.3 5 5.6 5 3.1 1.8 2.5
INCLINE 3 5 6 8 6 5 8 7 5 3
P18
SPEED 1.2 1.8 3.1 3.7 5 3.7 5.6 3.7 3.1 1.2
INCLINE 5 7 5 8 6 5 9 10 6 2
22
TREADMILL FUNCTIONS
SAFETY LOCK FUNCTION:
Removing the Safety Key (No. C17) from the Console Top Cover (No. C06) while the treadmill is
running will cause it to stop immediately. Once the treadmill reaches a full stop, the window display of
the console will show “- - -” and the speaker will beep 3 times. To start the treadmill again, insert the
pin end of the Safety Key (No. C17) into the Console Top Cover (No. C06) and press the START
button.
POWER SAVE FUNCTION:
When the treadmill has been inactive for 10 minutes, it will enter Power Saving Mode. While the
treadmill is in this mode, the window display of the Console Top Cover (No. C06) will be turned off.
To turn it back on, press any button.
POWER ON:
Flick the power switch to this symbol to turn on the treadmill.
POWER OFF:
Flick the power switch to this symbol to turn the treadmill off at any time. This includes during
exercise.
SAFETY NOTE:
We recommend that you maintain a slow speed at the beginning of a session and hold the Console
Top Cover (No. C06) handrails until you have become familiar with the treadmill.
Insert the pin end of the Safety Key (No. C17) into the holes on the Console Top Cover (No. C06)
and attach the opposite end (with the safety clip on it) to your clothing before starting your workout. To
end your workout, press the STOP button or remove the Safety Key (No. C17) and the treadmill will
stop immediately.
BLUETOOTH :
1. The Bluetooth icon will flash when the console is on or wakes from power saving mode. If no
Bluetooth connection is established within 3 minutes, the Bluetooth icon will turn off.
2. The Bluetooth icon will stay on when it is connected.
WIRELESS HEART RATE :
1. The wireless heart rate icon will stay on when the heart rate monitor is connected.
2. The console can be connected to the heart rate monitor at any time except in power saving mode.
3. The wireless heart rate icon will flash when the console is on. If the heart rate monitor is not
connected within 3 minutes, the wireless heart rate icon will turn off.
NOTE: The heart rate monitor is not included. Wireless heart rate function works with SunnyFit Heart
Rate Monitor HR200.
23
EXERCISE INSTRUCTIONS
GETTING STARTED:
Before starting any exercise program, you should consult your physician to determine if you have any
medical or physical conditions that could put your health and safety at risk or prevent you from using
the equipment properly.
Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising immediately if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea.
Get to know your treadmill. Before attempting to use the treadmill take some time to stand alongside
and familiarize yourself with the controls.
1. Once you get on, stand on the Side Rails (No. C15) first and stabilize yourself by holding onto the
handrails.
2. Next, attach the clip end of the Safety Key (No. C17) to your clothes and insert the pin end of the
key into the holes on the Console Top Cover (No. C06).
3. Press the START button to start the treadmill.
4. The treadmill will start at the system default setting speed of 0.6MPH. When you feel comfortable,
you may slowly increase this speed.
5. When you are finished with your exercise, press the STOP button to stop the treadmill or you can
remove the pin end of the Safety Key (No. C17) to stop the treadmill.
USB CHARGING: You can charge your device using the USB port.
APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
1.Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free
SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen prompts
to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your course/session and
recorded in your account profile!
24
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SUGGESTED ACTION
Treadmill will not start
Not plugged in. Plug cord into outlet.
Safety Key is not inserted. Insert Safety Key.
Running belt not centered
Running belt tension is not
correct on the left or right sides
of the running board.
Tighten the left and right
adjusting bolts of the rear roller.
Computer not working
Wires from the console and
bottom control board are not
properly connected.
Check wire from the console to
the control board.
Transformer is damaged.
If the transformer is damaged,
contact customer service.
E01/E13: Message failure
Wires from the console and
bottom control board are not
properly connected.
Check wire connections from the
console to the control board. If
the wire has been punctured or
damaged, you will need to
replace it. If the problem is not
rectified, you may need to
replace the control board.
E02: Burst clash
protection
Incoming voltage is lower than
50% of the required voltage.
Check that the incoming power
supply is the correct voltage.
E04: Incline failure
The incline motor is damaged or
the wire for the incline motor is
not connected properly or has
been damaged.
Reconnect or replace the wire
for the incline motor. Replace the
incline motor with a new one, if
damaged. Check the control
board, replace if damaged.
Press incline self-inspection
button of the control board once
a new control board or a new
motor is replaced.
25
NOTE:
1. If you are having trouble connecting your smart equipment, visit www.sunnyfit.com/guide or scan
the QR code below:
2. If you require additional support, please contact support@sunnyfit.com.
E05: Current overload
protection (Self Protecting
System)
The incoming voltage is too low
or too high. The control board is
damaged.
Restart the treadmill. Check the
incoming voltage to ensure it is
correct. Check the control board,
replace if damaged.
A moving part of the treadmill is
stuck and therefore, the motor is
unable to rotate properly.
Inspect moving parts of the
treadmill to ensure that they are
operating correctly. Check the
motor, listen for strange noises,
and check for a burning smell.
Replace the motor if necessary.
E06: Motor abnormality
The motor wire is not connected,
or the motor is damaged.
Check motor wires to see if the
motor is connected. If the wire
has been punctured or
damaged, you will need to
replace it. If the problem is not
rectified, you may need to
replace the motor.
E08: Control board
abnormality
The control board is not
connected.
Check the upper and middle
wires to see if the control board
is connected. If the wire has
been punctured or damaged,
you will need to replace it. If the
problem is not rectified, you may
need to replace the control
board.
E10: Motor abnormality
The motor is damaged, or a
moving part of the treadmill is
stuck and therefore the motor is
unable to rotate properly.
Inspect moving parts of the
treadmill to ensure that they are
operating correctly.
Replace the motor if necessary.
26
EXPLODED DIAGRAM 1
27
EXPLODED DIAGRAM 2
28
PARTS LIST
No. Description Specification Qty. No. Description Specification Qty.
A01 Main Frame 1 C23 Ring Protective Plug 1
A02 Base Assembly 1 C24 Adjustable Foot Pad 2
A03 Incline Assembly 1 C25 Motor Belt 1
A04 Console Base Bracket 1 C26 Running Belt 1
A05 Panel Fixed Bracket 1 C27 EVA Pad 10*1.0*1100 2
A06 Left Upright Tube 1 C28 EVA Pad 80*64*3.0 1
A07 Right Upright Tube 1 C29 EVA Pad 50*20*2.0 1
B01 Front Roller 1 C30 EVA Pad 25*25*5.0 1
B02 Rear Roller 1 C31 Square Plug 3
B03 Air Cylinder 1 D01 Nut M10 6
B04 Incline Assembly Bushing 4 D02 Nut M8 9
B05 Safety Block 2 D03 Nut M6 4
B06 Hand Pulse Sheet 4 D04 Bolt M10*90 1
B07 Sleeving 2 D05 Bolt M10*55 2
B08 Allen Wrench
5mm
1 D06 Bolt M10*40 1
B09 Allen Wrench
6mm
1 D07 Bolt M10*30 2
B10 Cross Wrench S=13 1 D08 Bolt M8*40 8
C01 Motor Top Cover 1 D09 Bolt M8*35 2
C02 Motor Bottom Cover 1 D10 Bolt M8*30 1
C03 Rear Cover 1 D11 Screw ST4.2*40 2
C04 Left Upright Tube Cover 1 D12 Flat Round Head Bolt M8*15 6
C05 Right Upright Tube Cover 1 D13 Bolt M8*60 1
C06 Console Top Cover 1 D14 Bolt M8*55 2
C07 Console Bottom Cover 1 D15 Cylindrical Head Bolt M8*12 2
C08 Console Small Cover 1 D16 Bolt M8*45 6
C09 Panel Top Cover 1 D17 Bolt M6*32 4
C10 Panel Bottom Cover 1 D18 Bolt M6*25 2
C11 Cushion 2 D19 Bolt M5*15 2
C12 Black Cushion 2 D20 Bolt M5*12 2
C13 Silicone Pad 1 D21 Head with Pad Bolt M5*12 16
C14 Transportation Wheel 2 D22 Screw ST4.2*20 5
C15 Side Rail 2 D23 Screw ST4.2*12 48
C16 Adjustable Wheel Cover 2 D24 Screw ST2.9*8 7
C17 Safety Key 1 D25 Screw ST2.9*6 20
C18 Adjustable Wheel 2 D26 Head with Pad Screw ST2.5*6 4
C19 Plastic Gasket Φ30*3 4 D27 Pan Head with Pad Tapping Screw ST4.2*12 12
C20 Cylindrical Cushion 2 D28 Countersunk Head Screw ST4.2*12 2
C21 Rubber Cushion 4 D29 Countersunk Head Screw ST2.9*8 2
C22 Foot Pad 2 D30 Locking Washer Φ10 4
29
Version 2.0
No. Description Specification Qty. No. Description Specification Qty.
D31 Locking Washer Φ8 21 E18 Power Socket 1
D32 Locking Washer Φ5 2 E19 Power Wire 2050mm 1
D33 Spring Washer Φ5 2 E20 Square Switch 1
D34 Spring Washer Φ8 2 E21 Magnetic Ring 1
D35 Flat Washer Φ8 2 E22 Magnetic Core 1
D36 Big Washer Φ10 4 E23 Grounding Wire 1
D37 Bolt M8*45 L20 1 E24 AC Single Line Brown 350 1
E01 Console 1 E25 AC Single Line Blue 350 1
E02 Control Board 1 E26 AC Single Line Brown 200 2
E03 Upper Signal Wire 1 E27 AC Single Line Blue 200 1
E04 Bottom Signal Wire1 1 E28 Overload Protector 1
E05 Bottom Signal Wire2 1 E29 Motor
1
E06 N/A - E30 Incline Motor
1
E07 Hand Pulse Top Signal Wire 1 E31 Running Board
1
E08 Hand Pulse Bottom Signal Wire 2 E32 Magnetic Ring 3
1
E09 Safety Key Top Connecting Wire 1 F01 Filter
1
E10 Safety Key Bottom Connecting Wire 1 F02 AC Single Line Brown
1
E11
Bottom Button Board
1 F03 AC Single Line Blue
1
E12 Button Board Top Signal Wire 1 F04 Grounding Wire
1
E13 Button Board Bottom Signal Wire 1 F05 Pan Head Tapping Screw ST4.2*12
2
E14 Left Button Board 1 H01 USB Module
1
E15 Right Button Board 1 H02 USB Connecting Wire
1
E16 Left Button Board Connecting Wire 1 H03 Pan Head Tapping Screw ST2.9*8
2
E17
Right Button Board Connecting
Wire
1 f Safety Wirerope
1
